*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

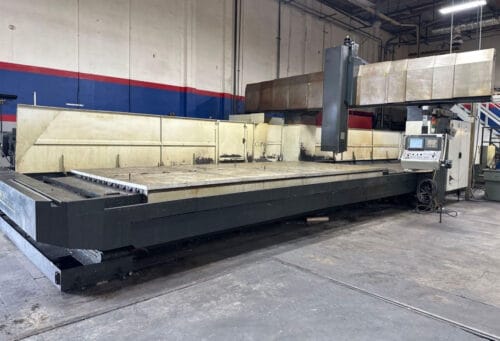

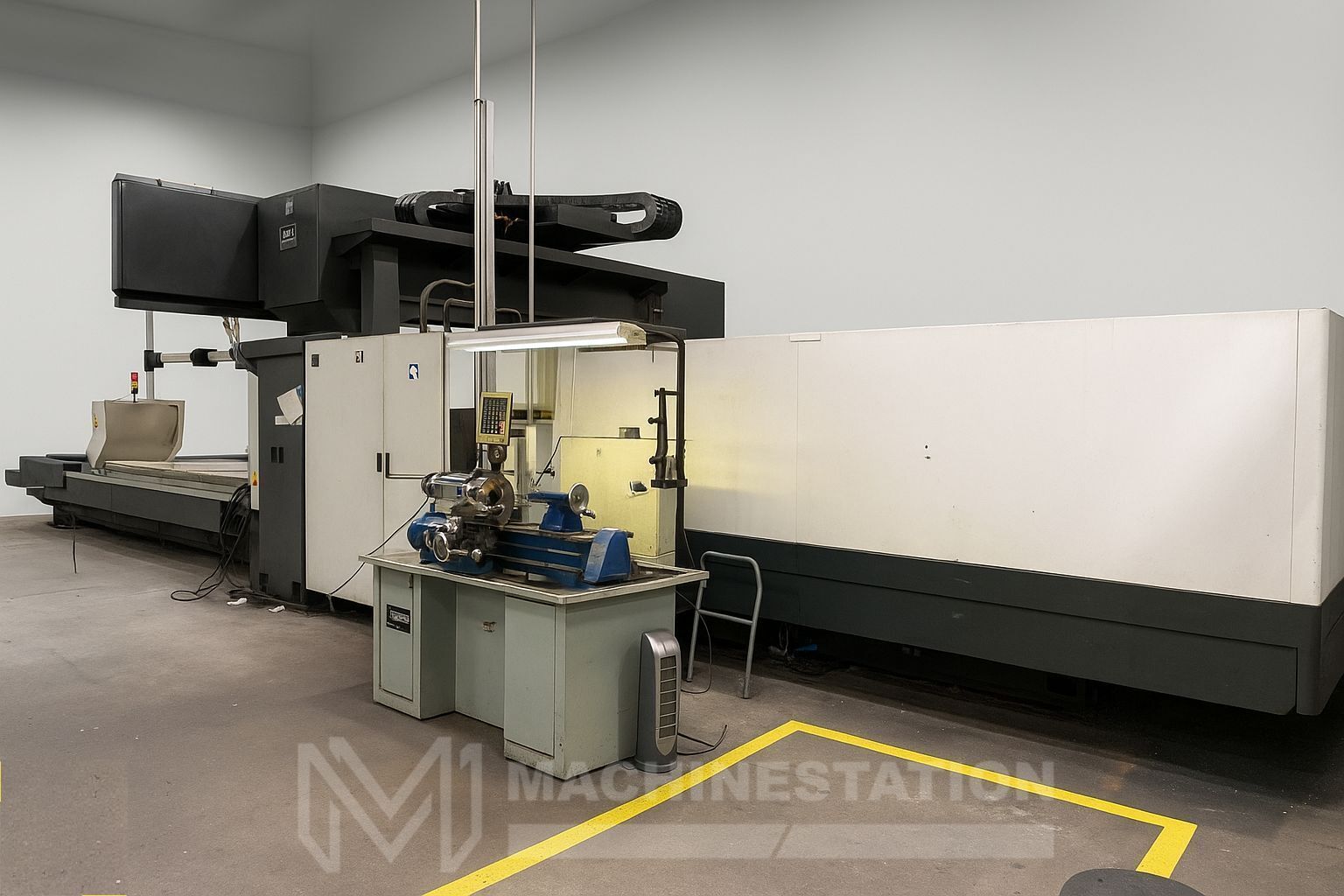

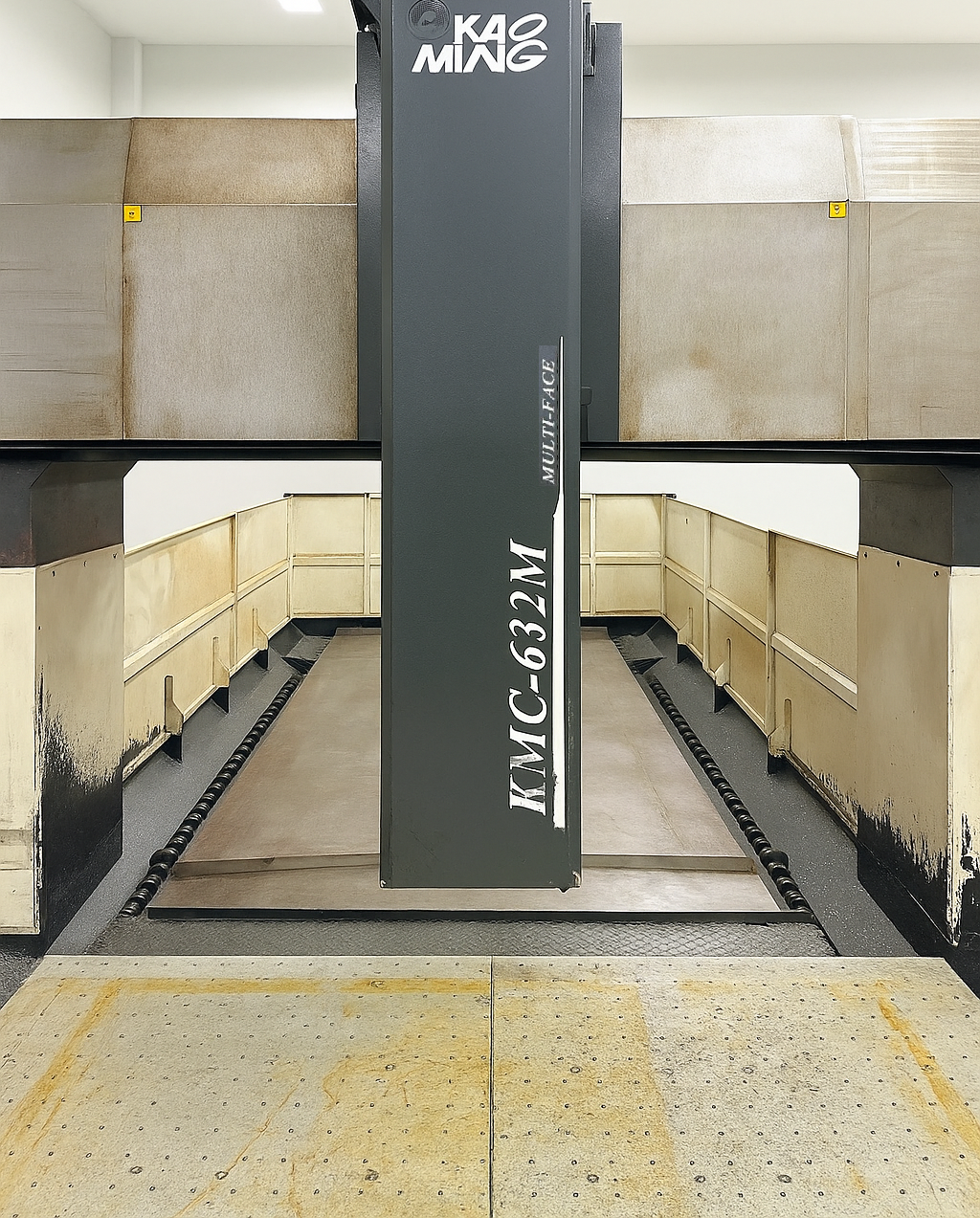

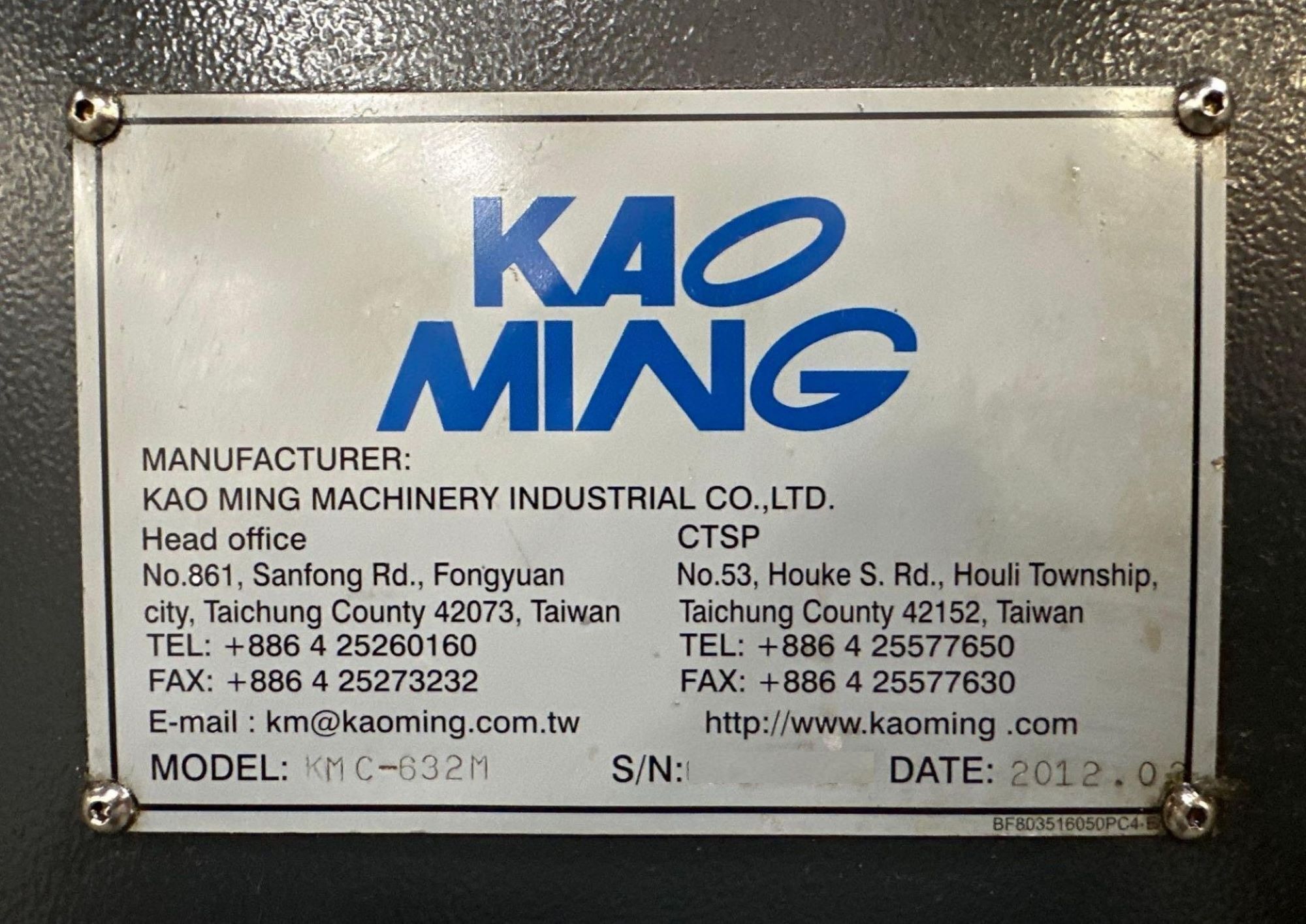

| Make: | Kao Ming |
| Model: | KMC 632M |
| Year: | 2012 |
| Cutting Time: | 531 Hours |
| Condition: | Used – Good |
| Features: |
|---|

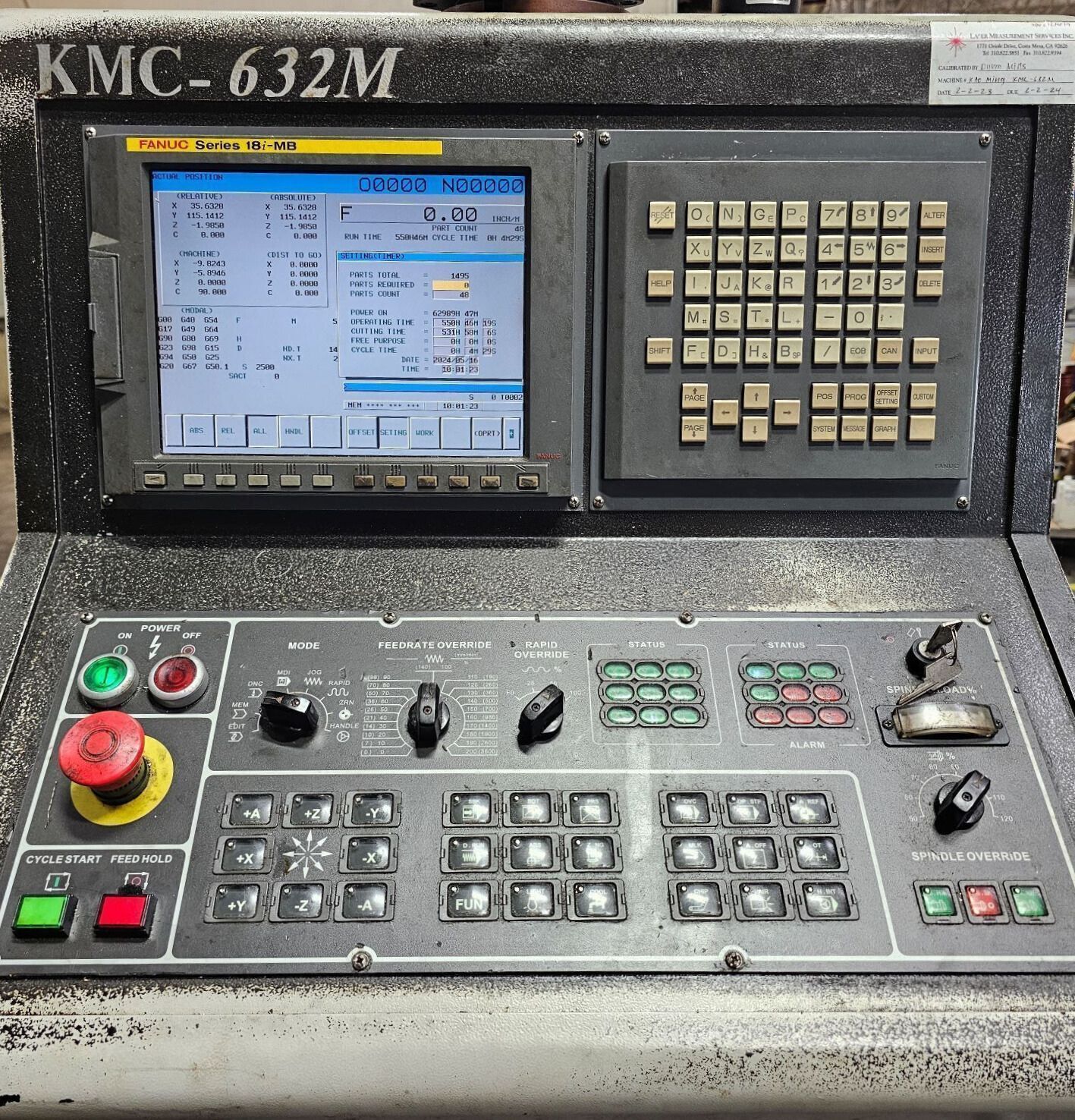

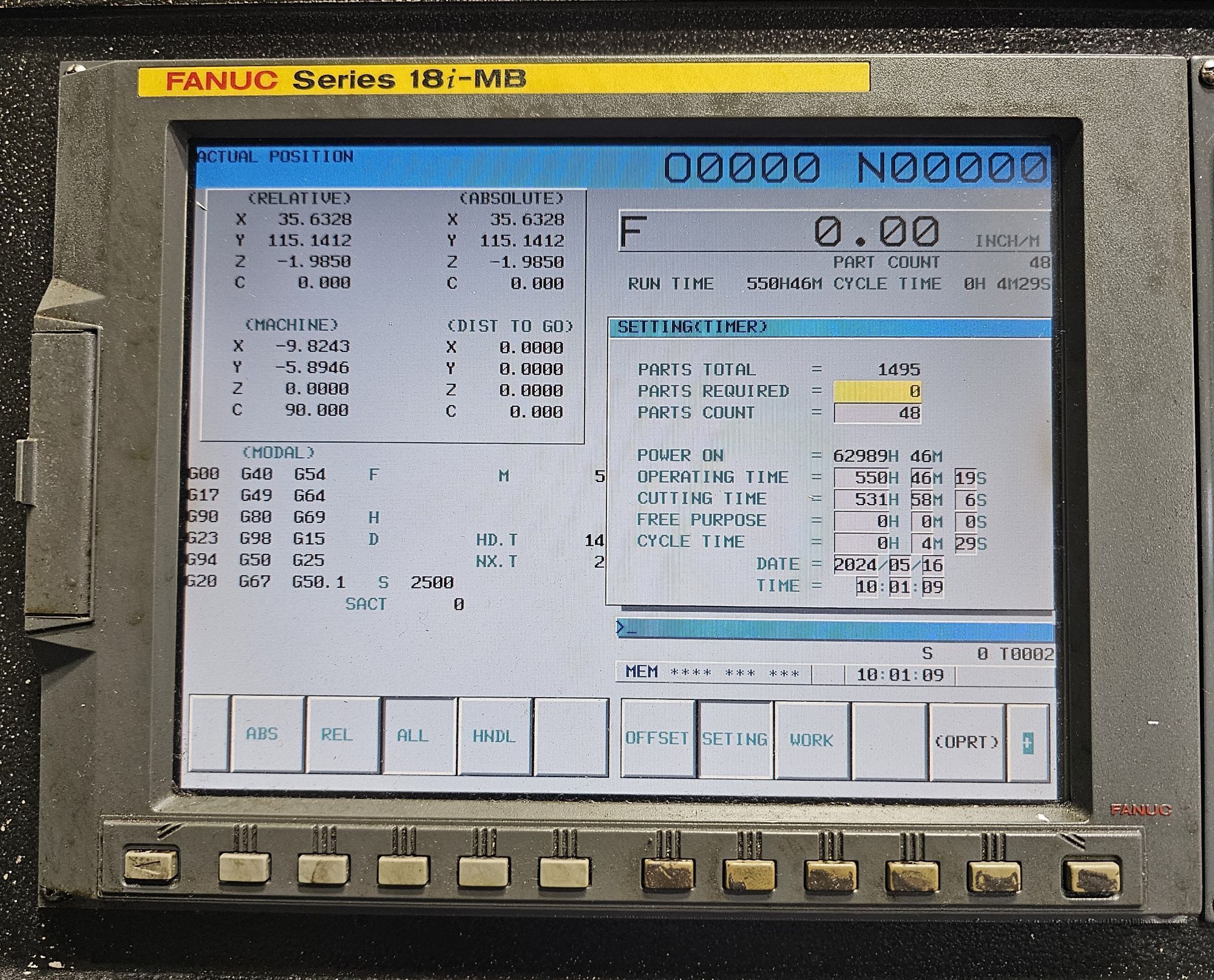

| Fanuc 18iMB CNC Control |
| 236.22″ X 102.36″ Table |
| 30 Station Side Mount Tool Changer |
| CAT-50 Spindle Taper |
| 35 HP high torque spindle motor |
| 4000 RPM Spindle |
| Rigid Tapping |
| Spindle Orientation |
| PCMCIA Card Slot |
| RS-232 Port |
| Auto Lubrication System |
| Coolant System |
| 4th Axis Ready |
| Spindle Chiller Unit |
| Screw Type Chip Conveyor |
| Chip Conveyor |
| All side Guardians Comes with Machine |
| Aluminum Fixture Plate Mounted on Table |
| Travels: |
|---|
| X Axis: 245.27″ |
| Y Axis: 151.57″ |
| Z Axis: 43.30″ |
| Distance Between Columns: 125.98″ |
| Distance From Table Surface to Spindle Nose: 13.6″ – 56.9″ |
| Distance From Table Surface to Horizontal Spindle Center: 5.2″ – 48.5″ |
| Rapid Traverse X-Axis: 276 IPM |
| Rapid Traverse X-Axis: 393 IPM |
| Cutting Feedrates: 196 IPM |
| Table: |
|---|
| Length: 236.22″ |
| Width: 102.36″ |
| Max Weight on Table: 33,000 lbs |

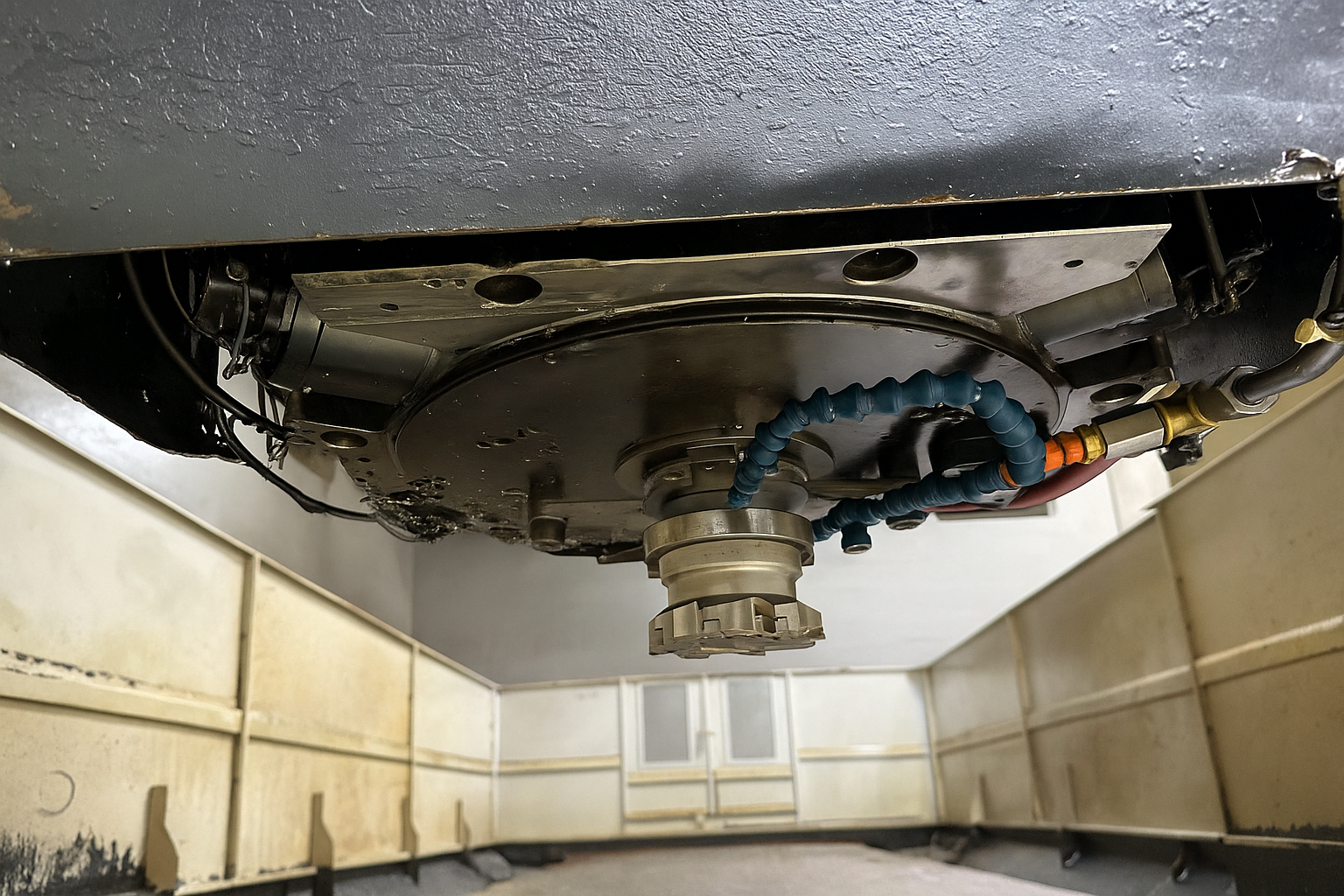

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 4400 RPM (4000) |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
|---|
| CAT-50 Taper |
| Capacity: 30 |
| Max Tool Weight (V/H): 44 lbs / 33 lbs |
| Max Tool Length (V/H): 13.80″ / 11.80″ |
| Max Tool Diameter (Without Adjacent Tools): 5.70″ (7.87″) |
| General: |
|---|
| Air Required: 98 psi 4 scfm |
| Power: 205-235v / 66FLA / 3-Phase 70 Kva |
| Overall Dimensions: 564″ x 295″ x 200″ High |
| Weight: 127160 lbs. |
