*All specifications are approximations and are subject to verification.

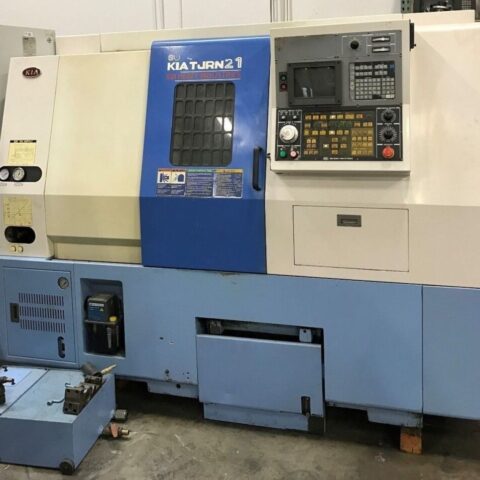

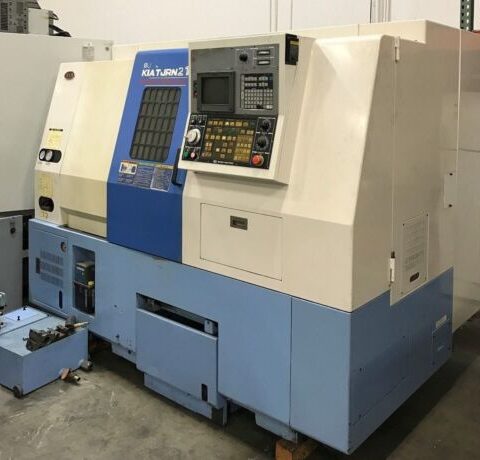

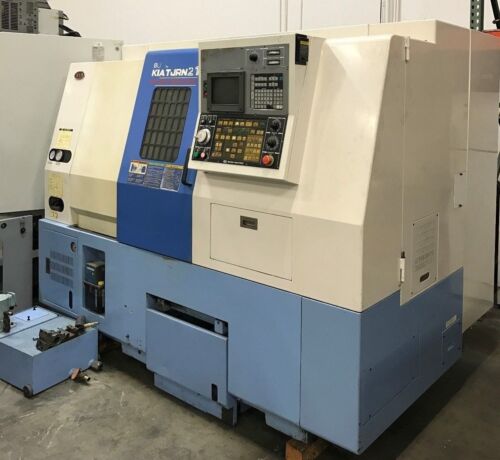

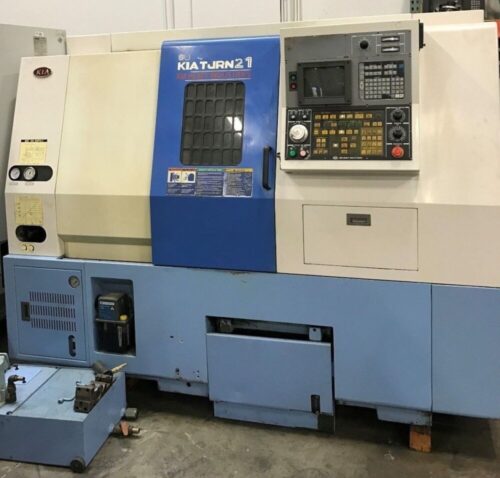

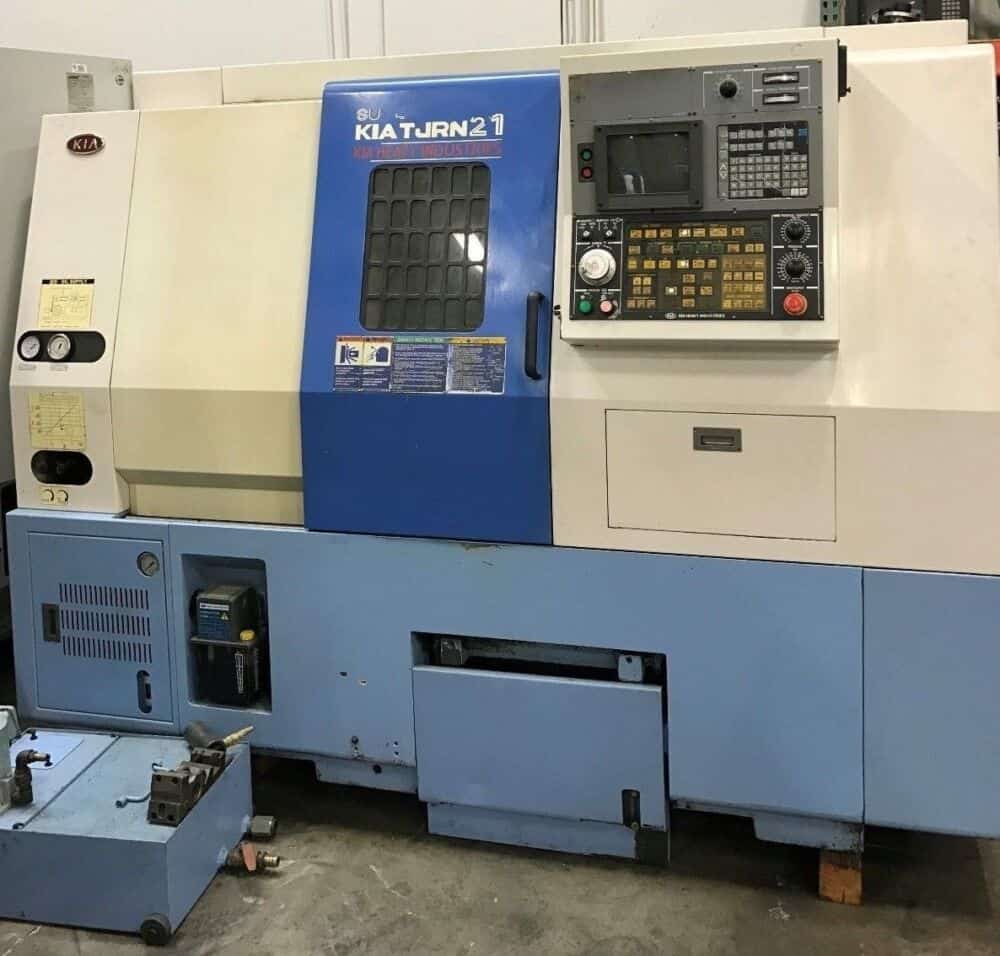

KIA TURN21 CNC TURNING Equipped with:

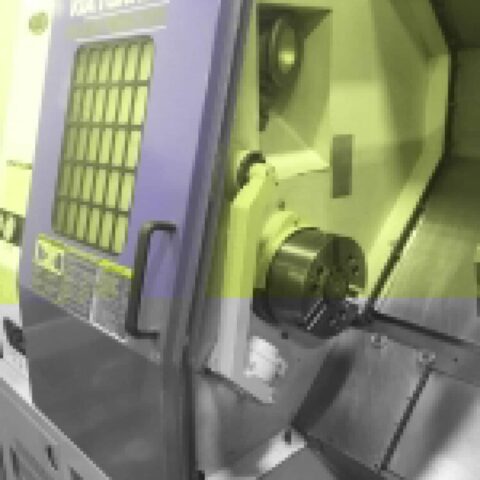

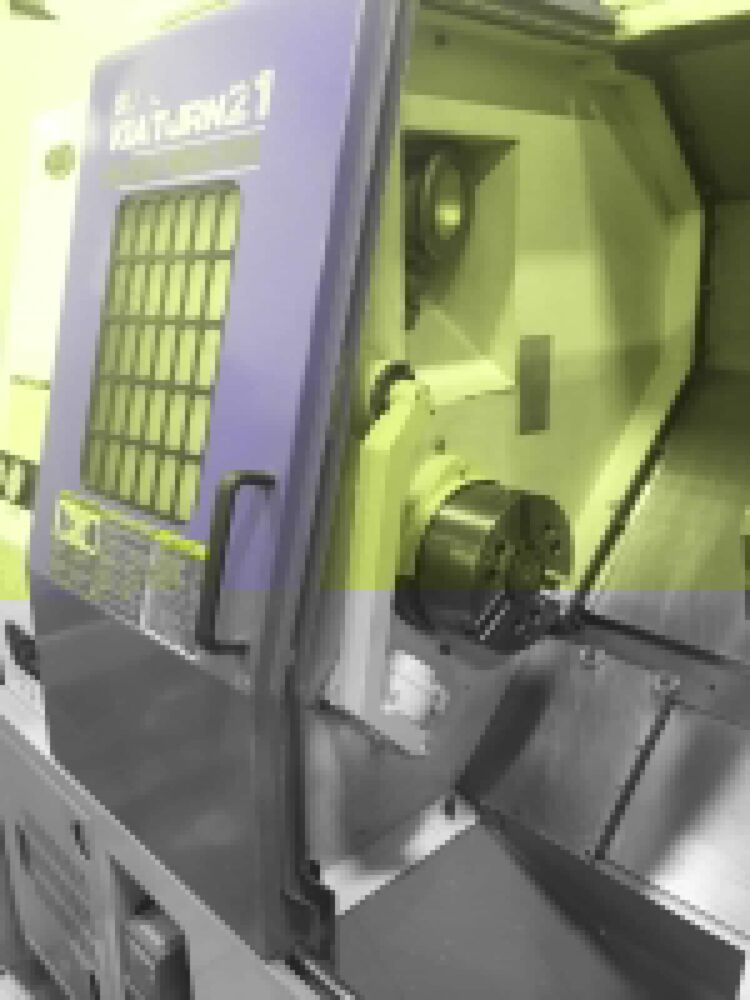

- HS-08 8″ Hydraulic Chuck
- Hydraulic Tailstock
- Tool Pre-setter
- Foot Pedal
- Extended Memory
- Barfeed Interface
- RS-232 ports
- 12 Station Automatic Turret
- Tooling as shown on Turret
- Coolant Tank
- Comes with Original Manuals
KIA TURN21 CNC TURNING Specifications:
- Max Turning Diameter: 13.78″
- Max Turning Length: 16.14″
- Max Bar Capacity: 2.0″
- Swing Over Bed: 21.65″
- X Axis Travel: 8.27″
- Z Axis Travel: 16.93″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 40 – 4,000 RPM
- Spindle Motor: 15/20 hp
- Turret Capacity: 12 Stations
- Turret Index Time: 0.6 Second
- Tailstock Quill Taper: MT #4
- Tailstock Travel: 15.75″
- Tailstock Quill Travel: 4.0″
- Tailstock Quill Thrust: 225 – 900 LB
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 95″ x 68″ x 75″ High
- Weight: 9000 lbs
