*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

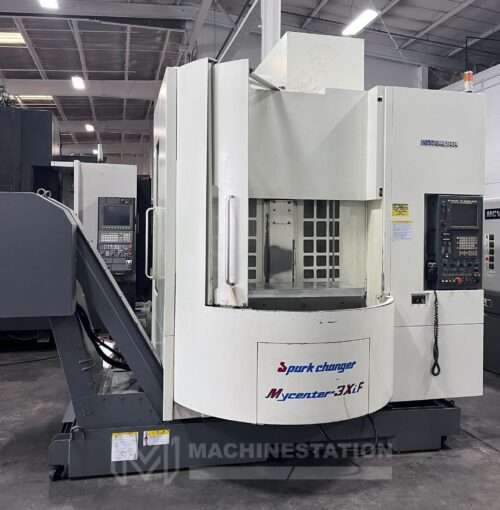

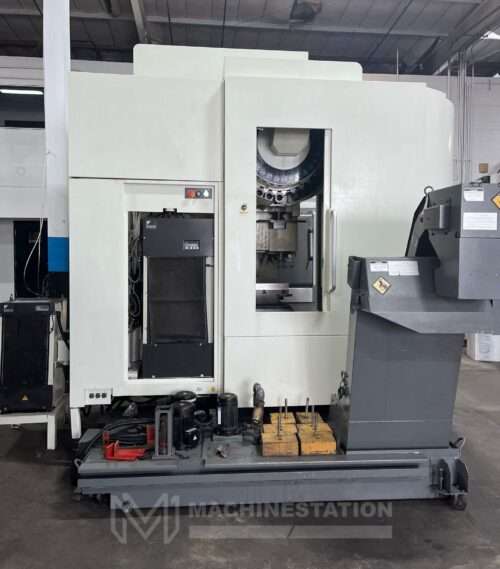

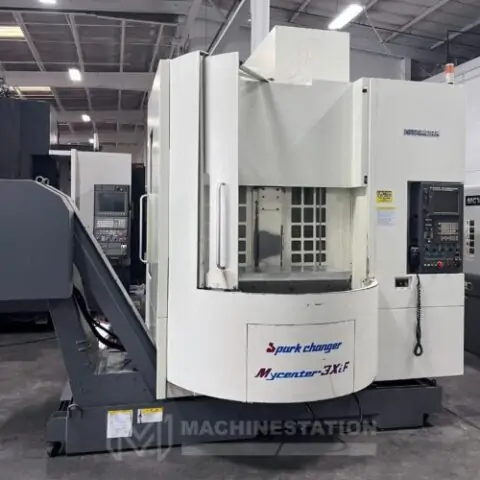

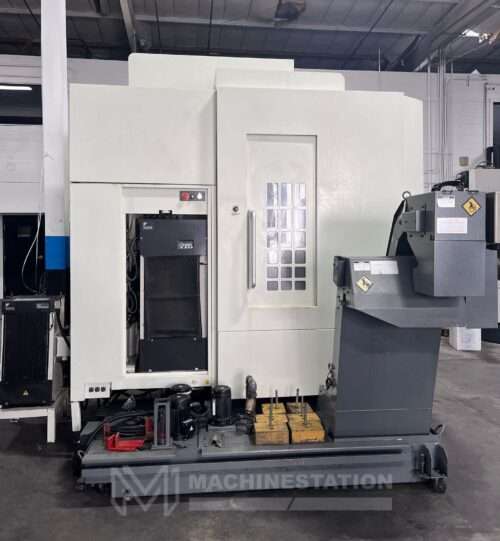

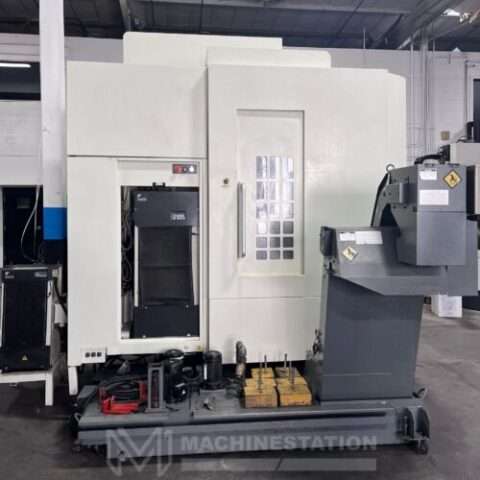

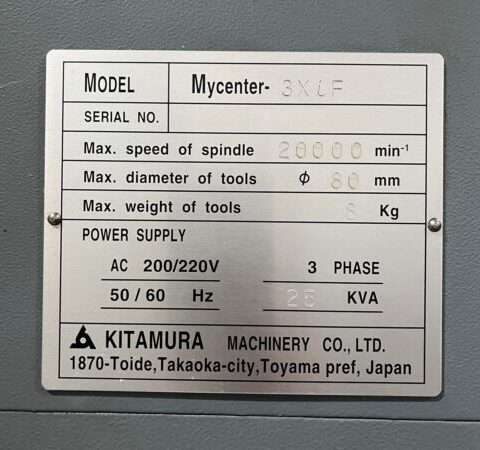

| Make: | Kitamura |

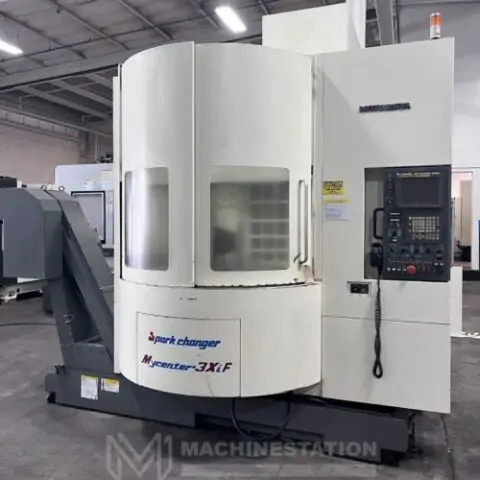

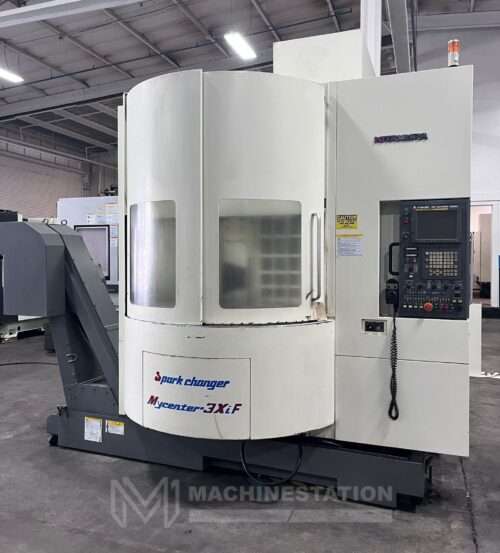

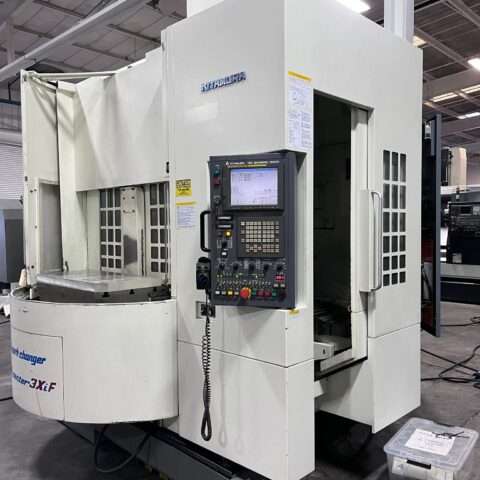

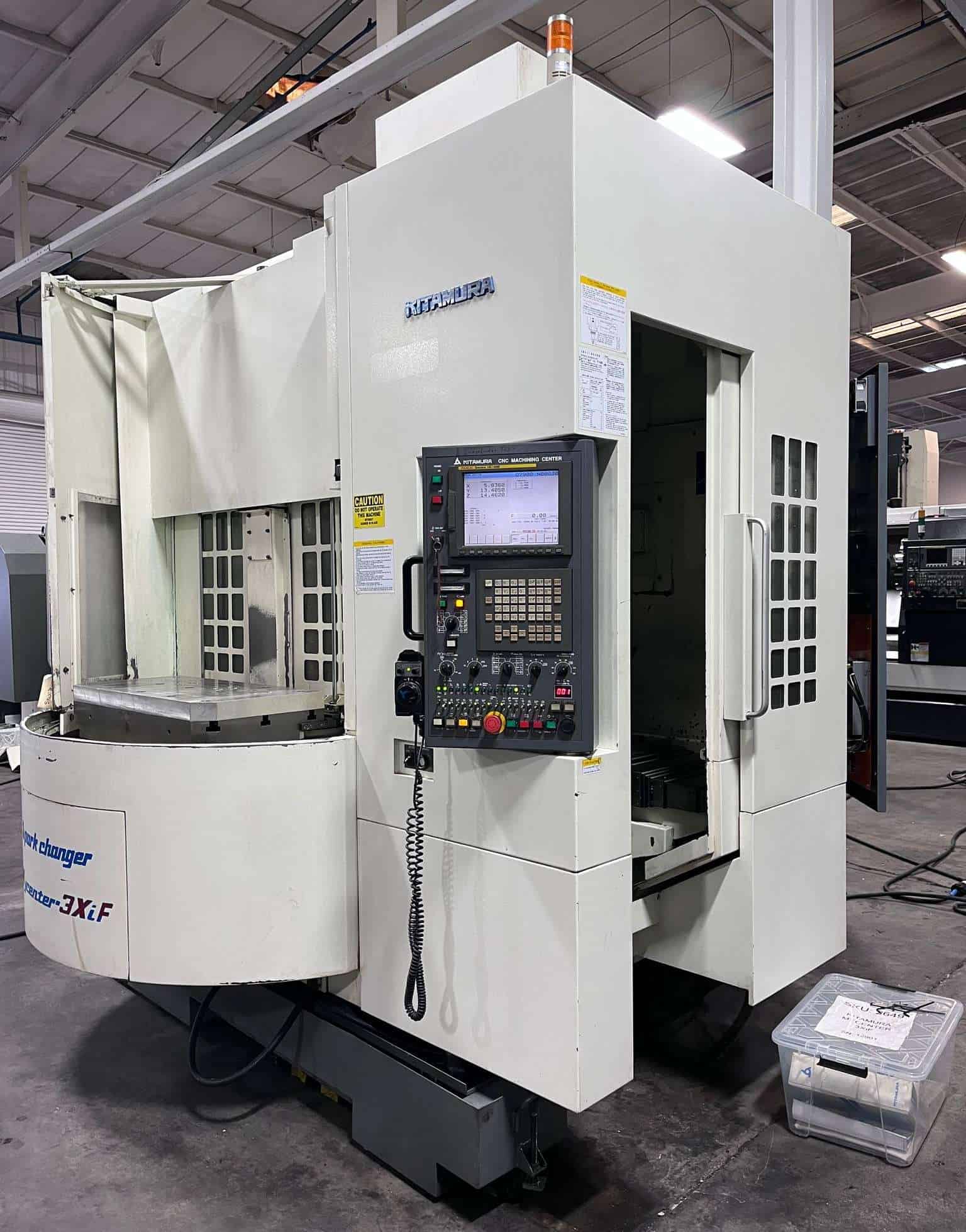

| Model: | MyCenter 3XiF Spark Changer |
| Condition: | Used – Good |
| Features: |
|---|

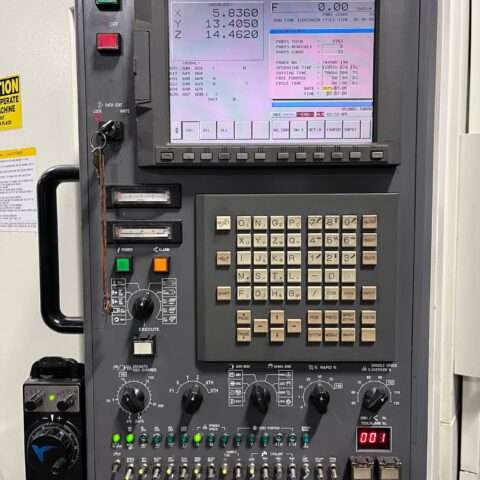

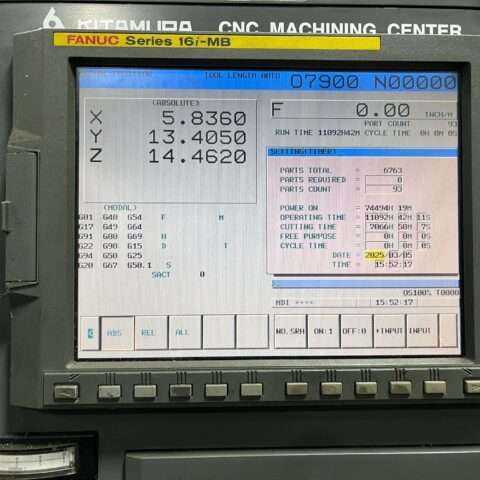

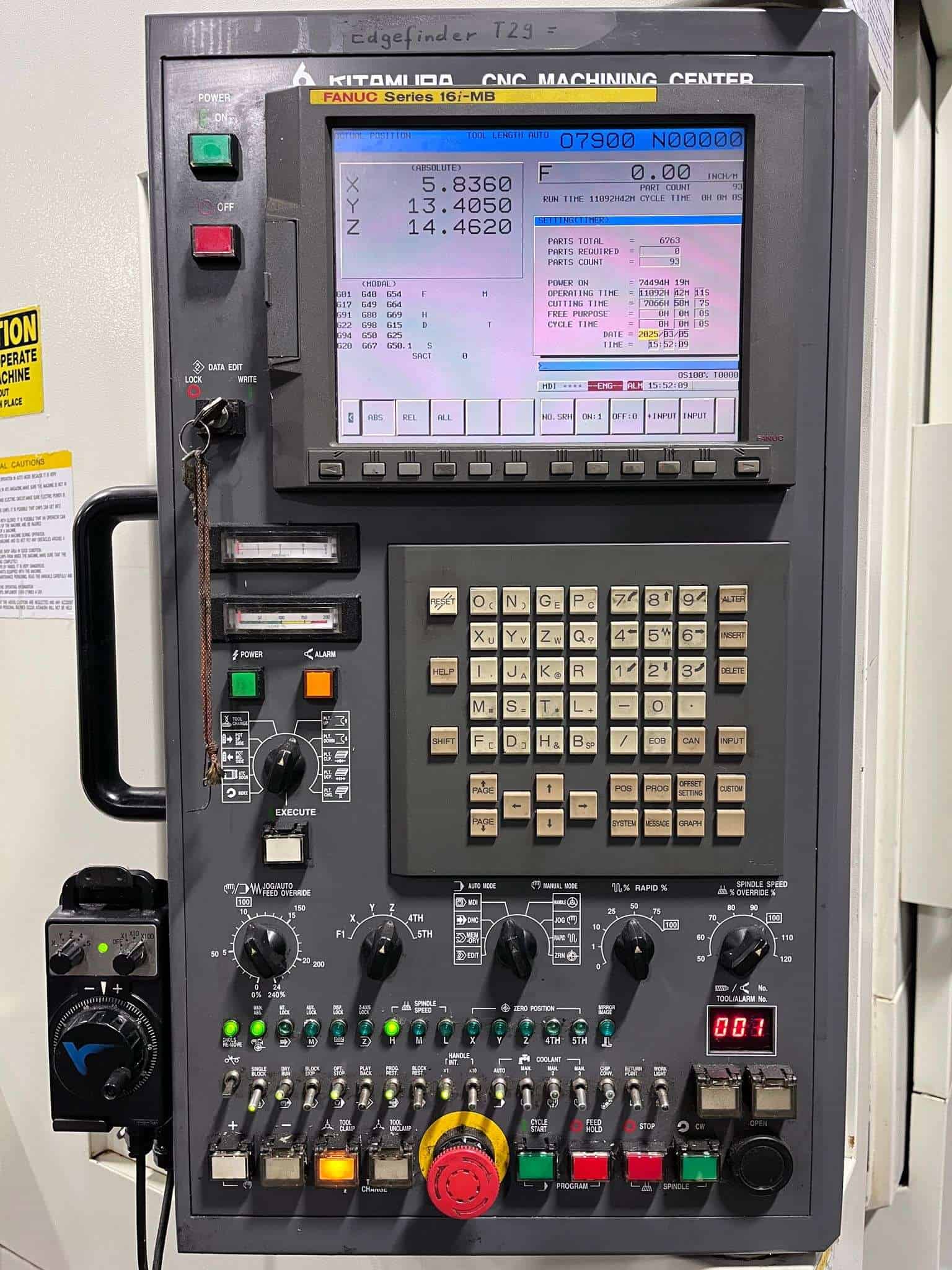

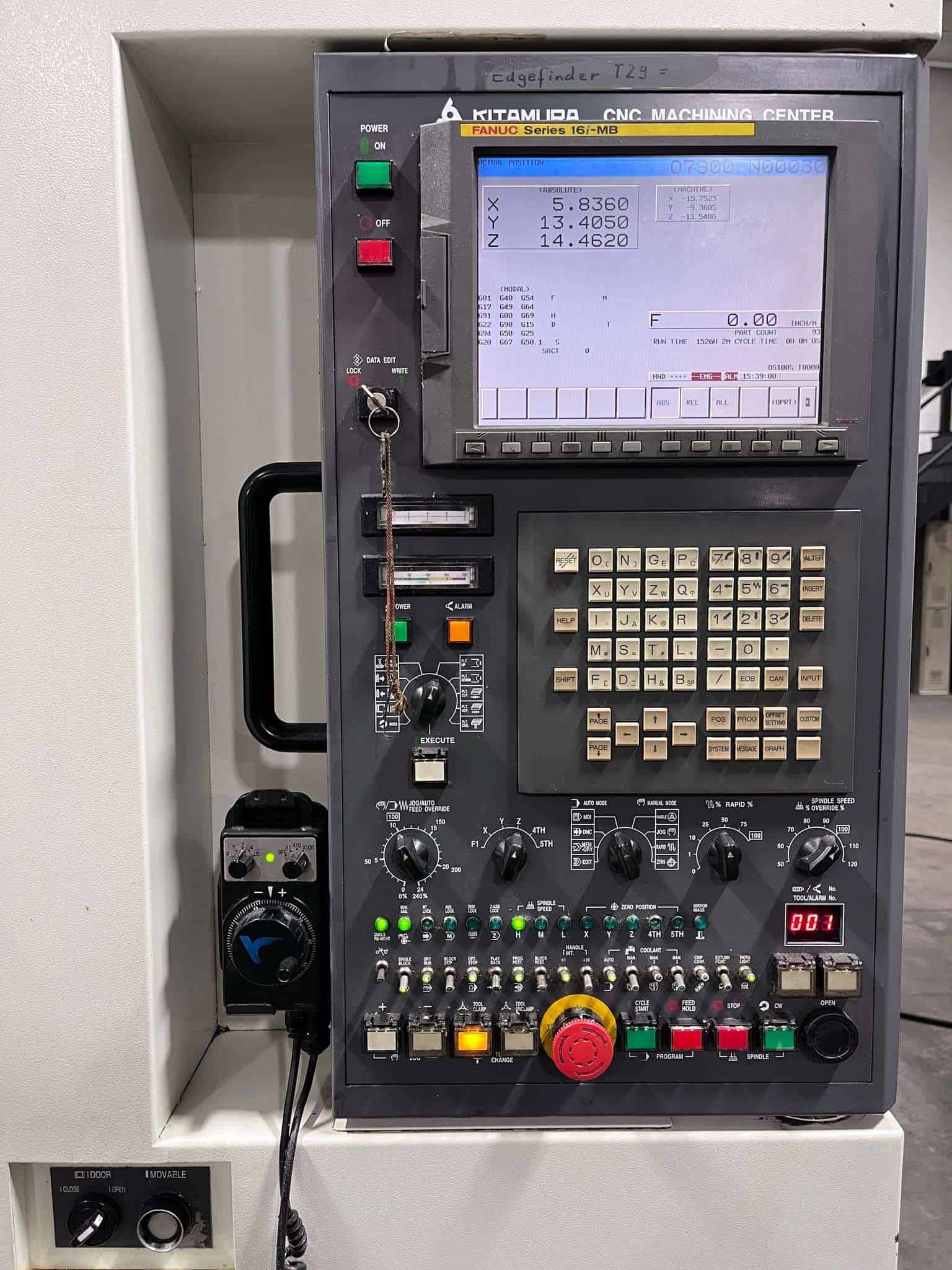

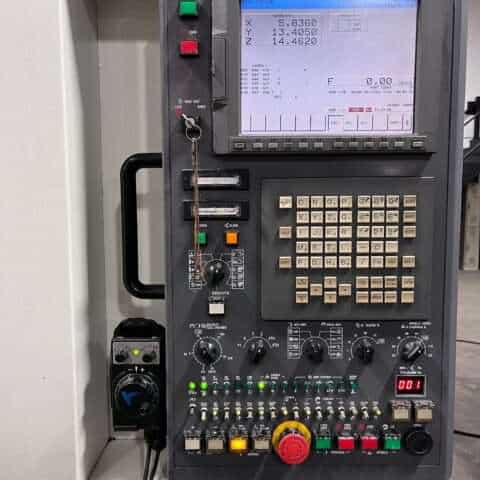

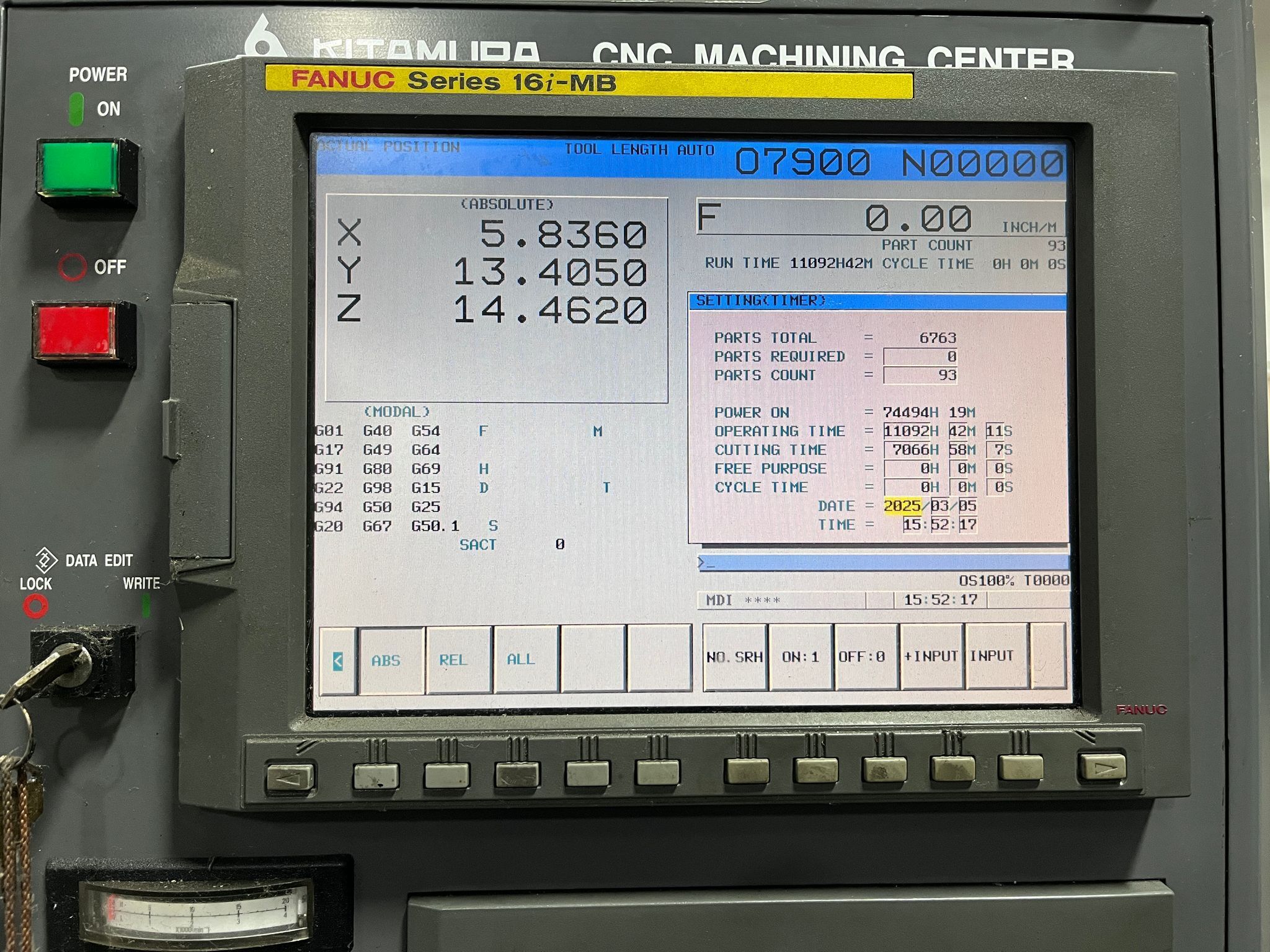

| Fanuc 16iM CNC Control |
| 180° Rotary Type Pallet Changer |
| 20,000 RPM High-Speed Spindle |
| 30 Tools Side Mount High Speed Tool Changer |
| Coolant through Spindle |
| 20 HP High Torque Spindle |
| Fast Rapid Traverse |
| MPG Handwheel Control |

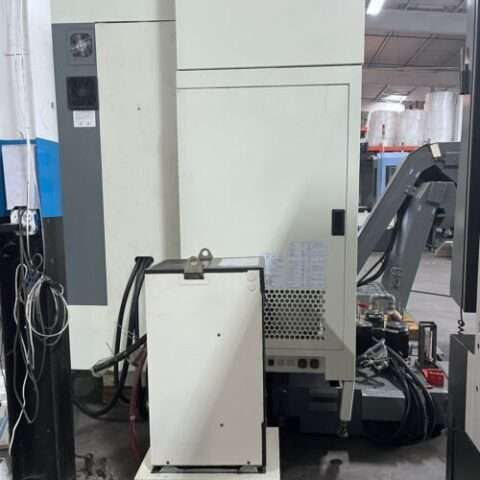

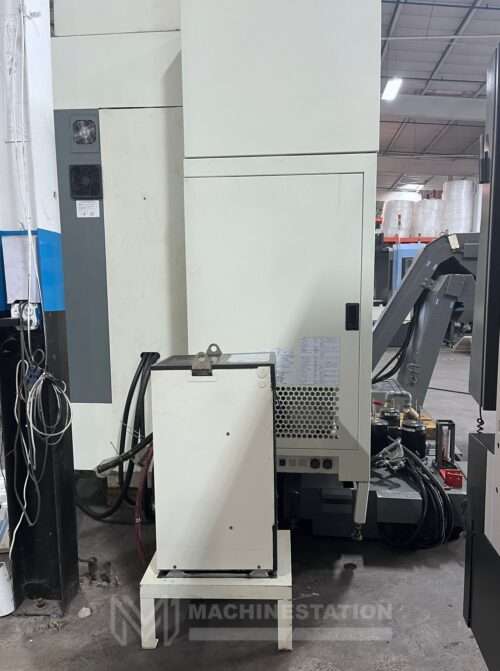

| Spindle Chiller |
| Rigid Tapping |
| Spindle Orientation |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Books and Manuals |

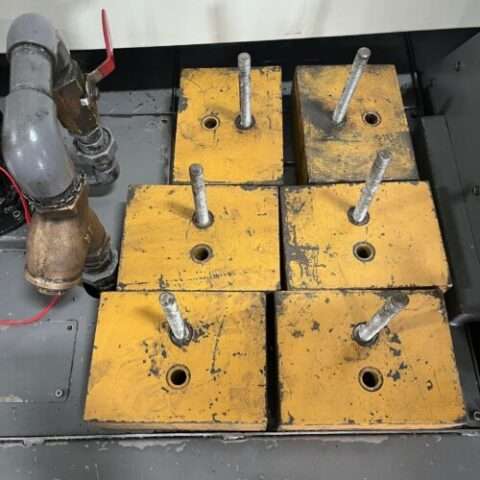

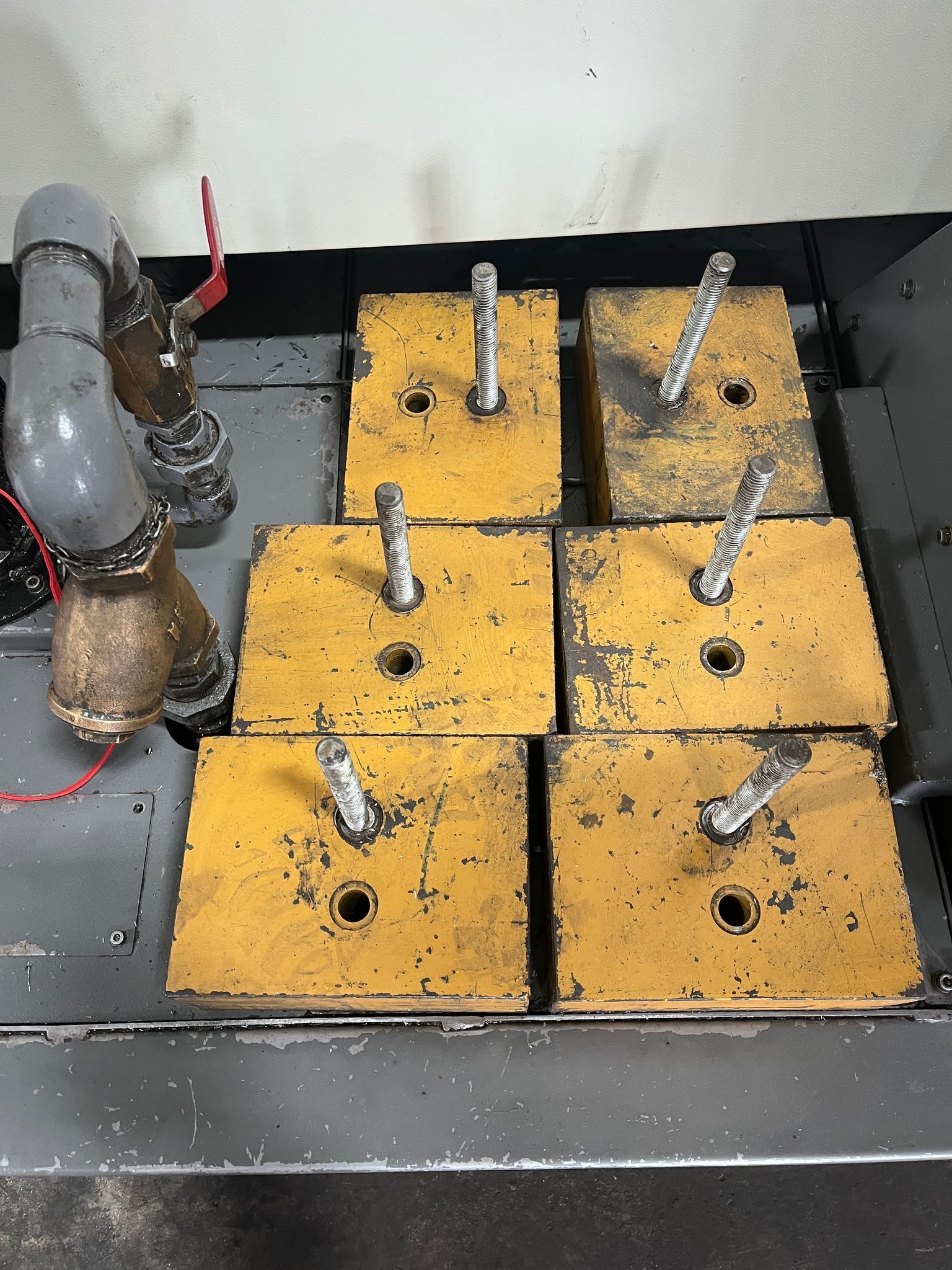

| Levelling Pads |
| Travel: |
|---|
| X-Axis: 30.19″ |
| Y-Axis: 17.97″ |
| Z-Axis: 18.19″ |
| Rapid Traverse Rates: 1181 Inch Per Minute |
| Cutting Feed Rates: 945 Inch Per Minute |

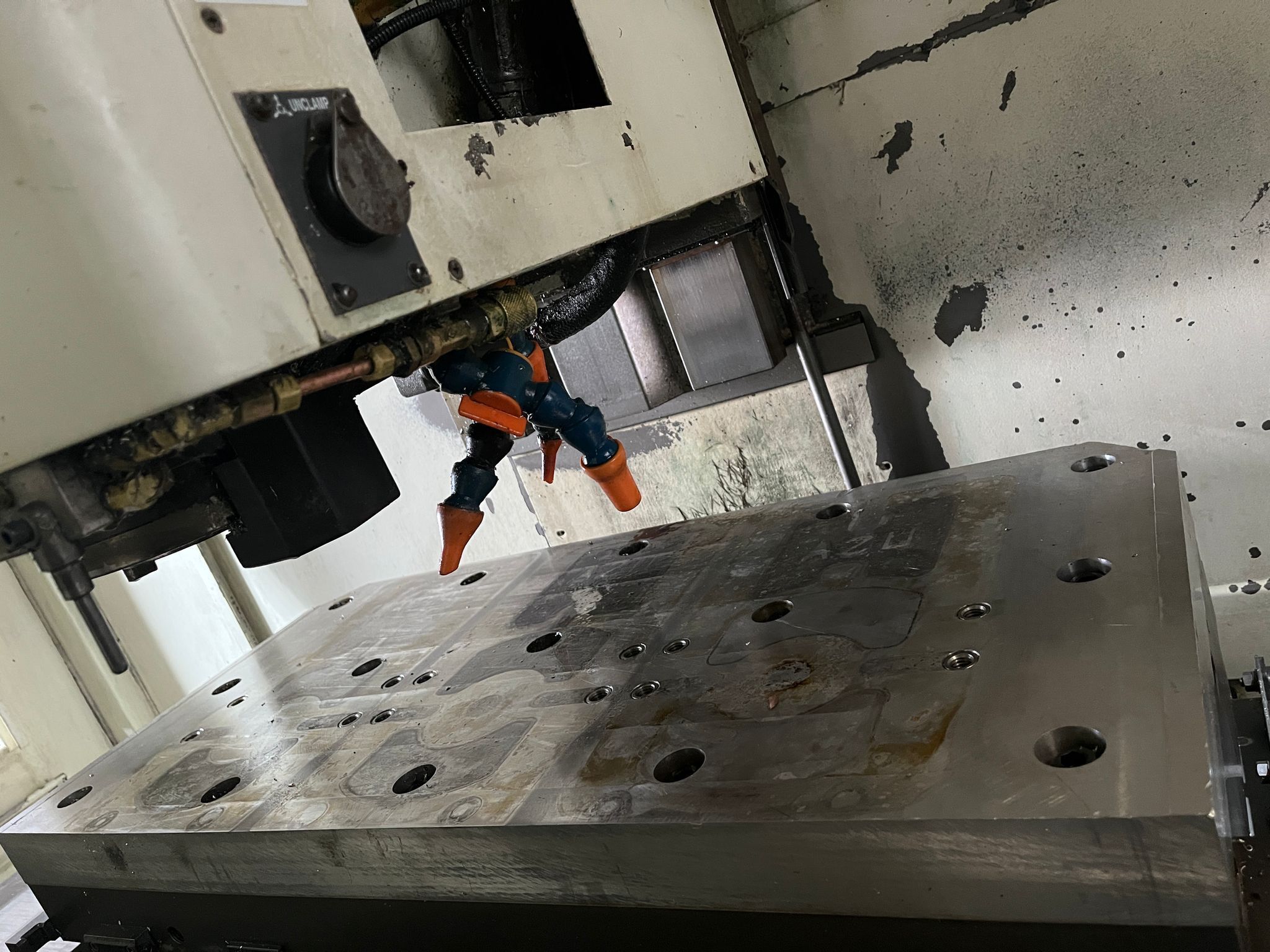

| Table: |
|---|
| Length: 34.00″ |
| Width: 16.0″ |
| Max Weight on Table: 440 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 20,000 RPM |
| Spindle Power: 20 HP |

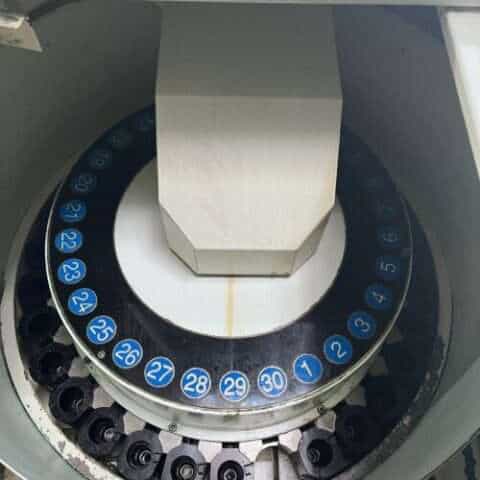

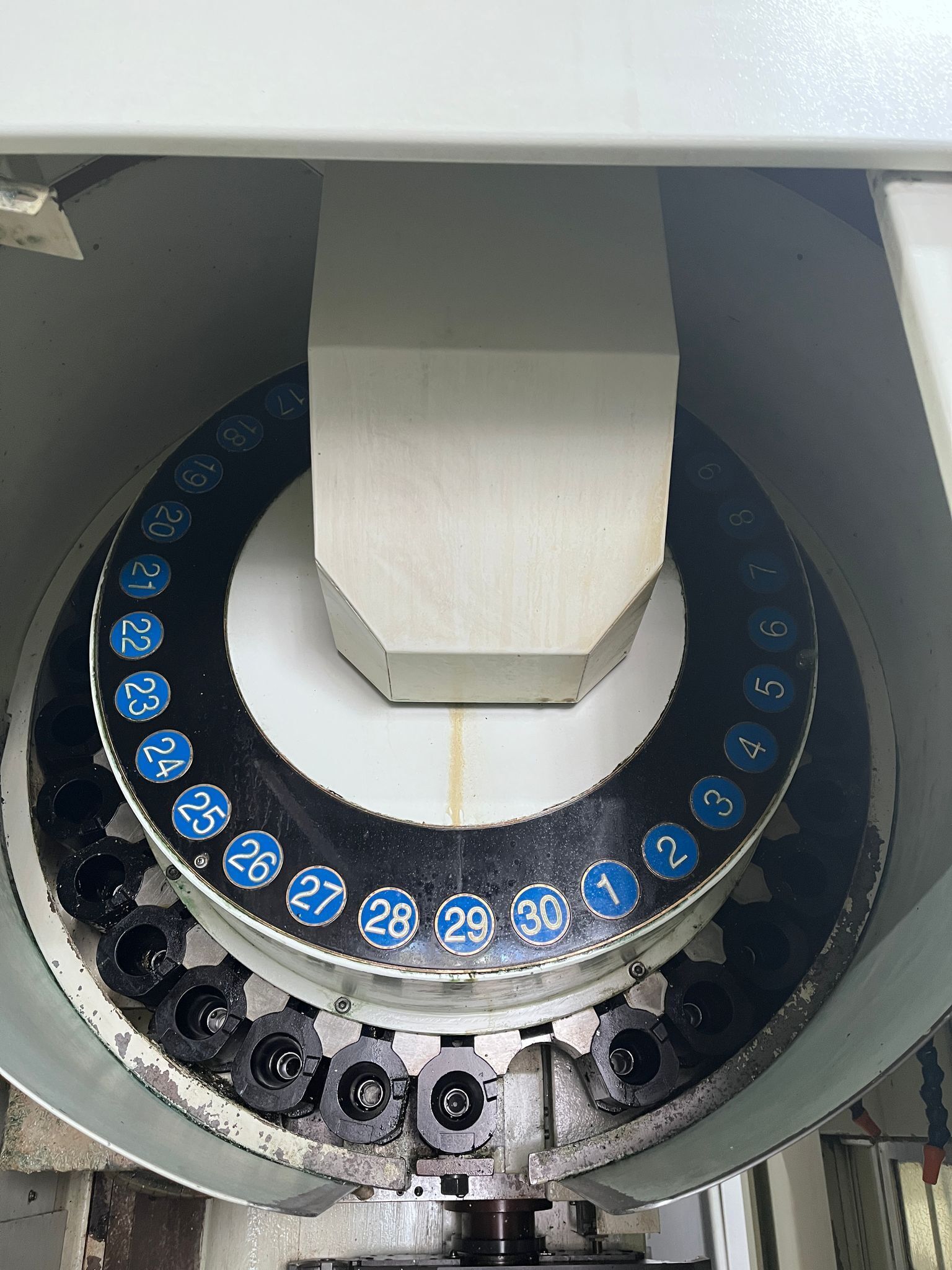

| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 17.63 lbs |
| Max Tool Dia: 3.14″ |
| Tool Changing Time: 1.7 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 25kva / 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 120″ x 97″ x 110″ High |
| Weight: 17,500 lbs. Approx. |
