Sold
Leadwell V-40 CNC Vertical Machining Center 2008 – Fanuc 0i-MC, 8000 RPM
Out of stock
| SKU: | 11252 |
| Make/Model: | Leadwell V-40 |
| Year: | 2008 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Leadwell |
| Model No.: | V-40 |
| Year of Manufacture: | 2008 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc 0i-MC |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|

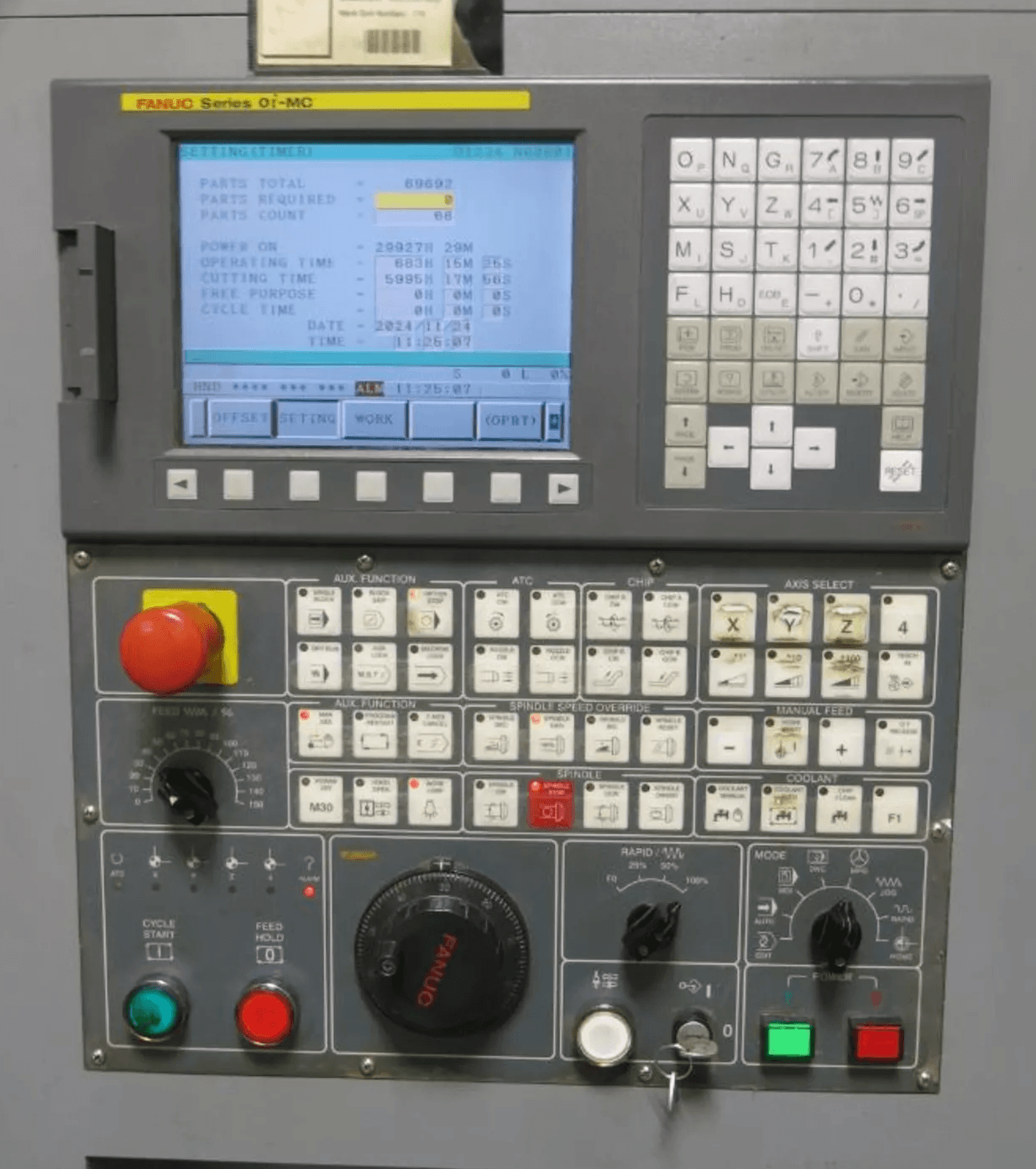

| Fanuc 0i-MC CNC Control |
| BT40 Spindle |
| Arm Type Automatic Tool Changer |
| Coolant System |
| Rigid Tapping |
| Full Enclosure |
| Chip Management System |
| Manual Pulse Generator |
| Capacity: |
|---|
| Table Size: 1200 × 500 mm |
| Max Table Load: ~500 kg |
| Travels: |
|---|
| X-Axis Travel: 1020 mm |
| Y-Axis Travel: 510 mm |
| Z-Axis Travel: 510 mm |
| Rapid Traverse (X/Y): ~24 m/min |
| Rapid Traverse (Z): ~18–24 m/min |
| Spindle: |
|---|
| Spindle Speed: 80 – 8,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: ~12–18.5 kW |
| Tooling System: |
|---|
| Tool Capacity: 20–24 Tools |
| Type: Arm / Umbrella ATC |
| Reliable production-grade ATC |
| General: |
|---|
| Axis: 3-Axis |
| Machine Weight: ~5,000 – 6,500 kg |
| Power Requirement: ~30 kVA |
| Footprint: ~2990 × 2250 × 2600 mm |
| Features: |
|---|
| Heavy-duty box guideways (rigidity advantage) |
| Proven Fanuc control reliability |
| Large table capacity for medium components |
| Suitable for steel & heavy cutting |
| Strong Taiwanese build quality |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | V-40 |
