Leadwell V20i CNC Vertical Machining Center (2009) – Fanuc 0i-MD, BT40, 8K RPM
Out of stock
| SKU: | 11251 |
| Make/Model: | Leadwell V-20i |
| Year: | 2009 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Leadwell |
| Model No.: | V-20i |
| Year of Manufacture: | 2009 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

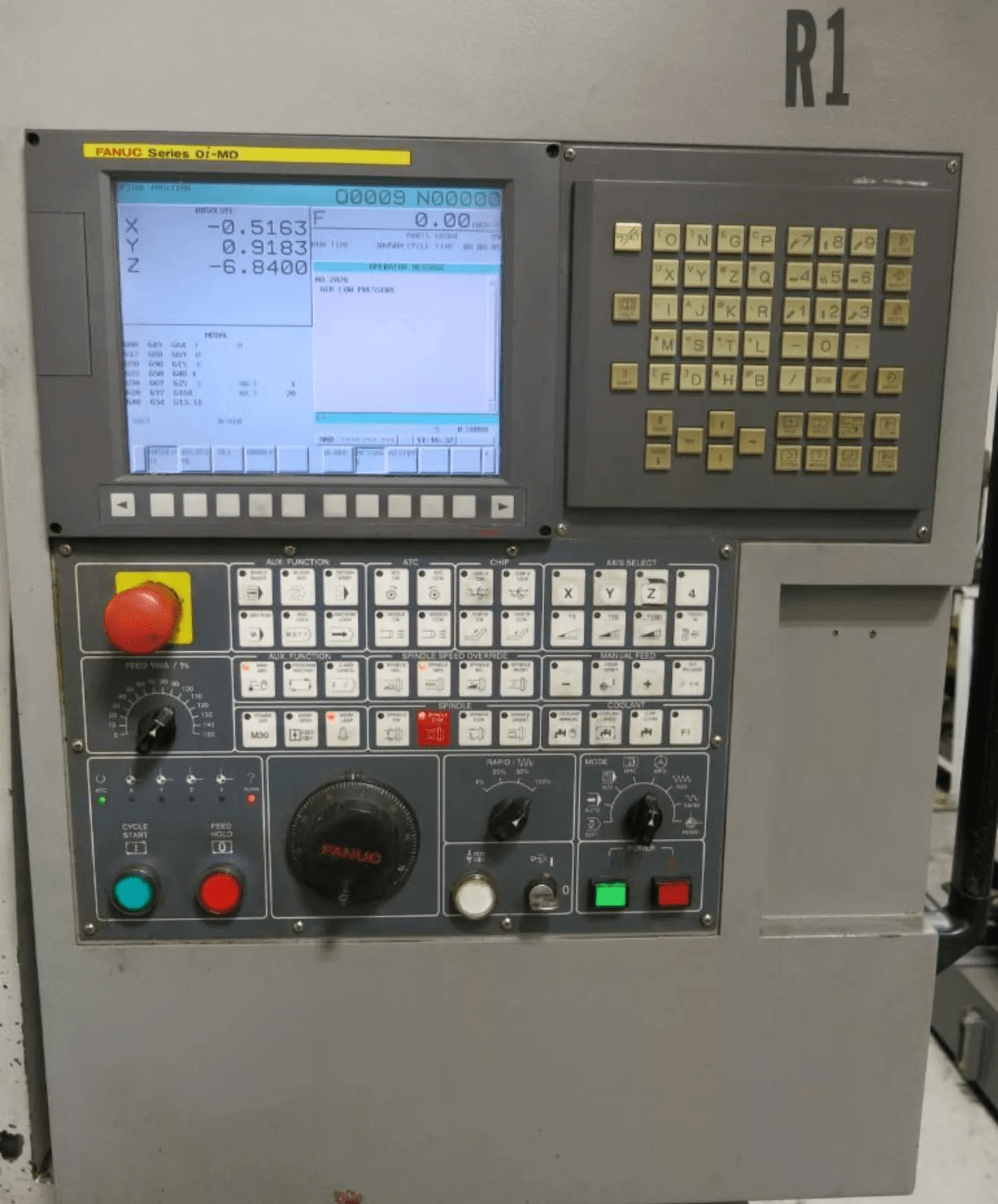

| CNC Control: | Fanuc 0i-MD |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|
| Fanuc 0i-MD CNC Control |
| BT40 Spindle |
| Arm Type Automatic Tool Changer |
| Coolant System |
| Rigid Tapping |
| Full Enclosure |
| Chip Management System |
| Manual Pulse Generator |
| Capacity: |
|---|
| Table Size: 600 × 350 mm |
| Compact footprint ideal for small to medium parts |
| Travels: |
|---|
| X-Axis Travel: 510 mm |
| Y-Axis Travel: 350 mm |
| Z-Axis Travel: 510 mm |
| Rapid Traverse (X/Y/Z): ~30–32 m/min |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: ~7.5 / 11 kW |
| Reliable belt-driven spindle |
| Tooling System: |
|---|
| Tool Capacity: 20 Tools |
| Type: Arm Type ATC |
| Fast and dependable tool changes |
| General: |
|---|
| Axis: 3-Axis |
| Machine Weight: ~3,000 – 3,500 kg |
| Power Requirement: ~30 kVA |
| Guideways: Linear (X/Y) + Box (Z) |
| Features: |
|---|
| Compact VMC – ideal for limited space |
| Proven Fanuc control reliability |
| Hybrid guideway design (LM + Box) |
| Easy maintenance & widely available parts |
| Cost-effective entry-level machining solution |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | V-20i |
