*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

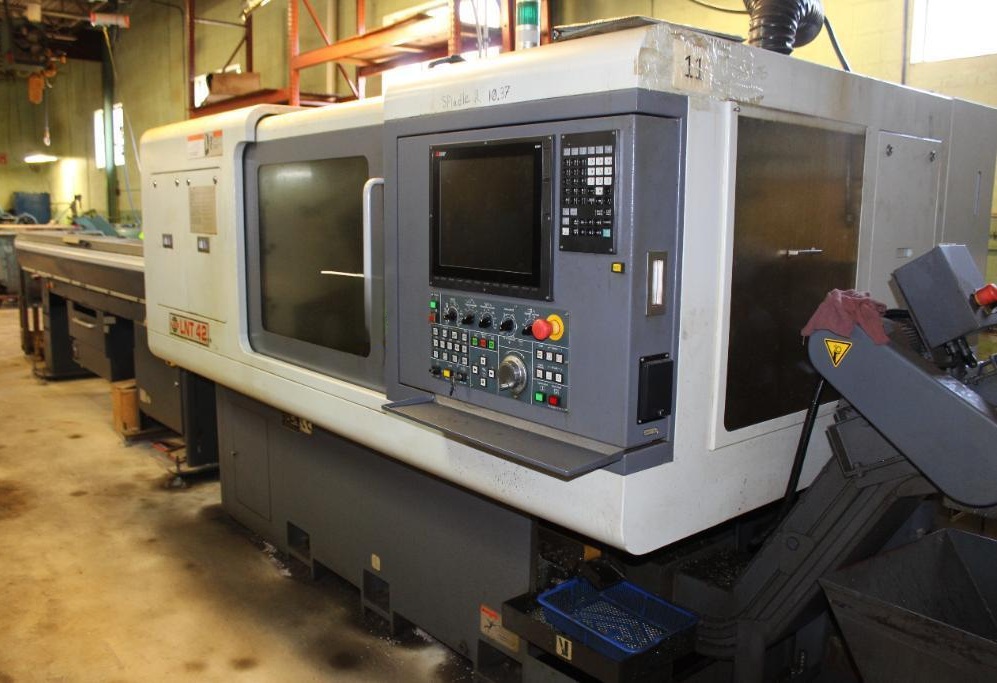

| Make: | Lico |
| Model: | LNT42 |
| Year: | 2019 |
| Machine Type: | CNC Multi-Slide Automatic Lathe |

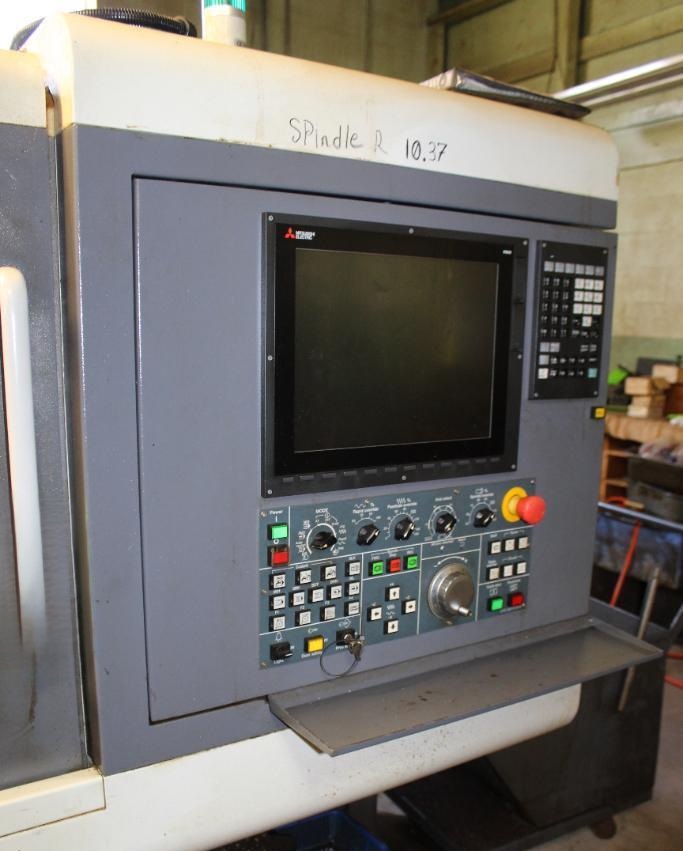

| CNC Control: | Mitsubishi CNC Control |
| Equipped With: |
|---|
| Mitsubishi CNC Control |
| 8-Position Servo Tool Turret |
| Tool-Driven / Live Tool Capability |
| Pick-Off Device for Back-End Machining |
| Back Machining Tooling Platform |
| Automatic Lubrication System |
| Hydraulic System |
| Coolant System |
| Workpiece Conveyor |
| Chip / Part Collection System |
| Front Door Safety Interlock |
| Work Light |
| Control Cabinet Heat Exchanger |
| Bar Feeder Interface |
| CNC Indexing & Feeding Technologies TRACER 51V 12′ Bar Feeder |
| Capacity: |
|---|
| Maximum Bar Diameter: 1.62″ |
| Maximum Turning Diameter: 2.56″ |
| Maximum Turning Length: 10″ |
| Spindle Center Height: 39.4″ |
| Collet Type: F48 |
| Spindle Bore: 2.09″ |
| Draw Tube Bore: 1.69″ |
| Travels: |
|---|
| Main Slide X-Axis Travel: 2.76″ |
| Main Slide Z-Axis Travel: 4.53″ |
| Main Tool Turret X-Axis Travel: 6.30″ |
| Main Tool Turret Z-Axis Travel: 19.69″ |
| Secondary Tool Platform: 5.91″ X / 7.87″ Z |
| Spindle: |
|---|
| Spindle Motor: 20 HP |
| Maximum Spindle Speed: 5,000 RPM |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.09″ |
| Collet Chuck: F48 |
| Spindle Indexing: 48-Position |
| Turret: |
|---|
| Main Tool Turret: 8 Positions |
| Turret Type: Servo Driven |
| Tool Holder: VDI-30 |
| Turning Tool Shank: 0.79″ |
| Boring Bar Capacity: 0.98″ |
| General: |
|---|
| Power Source: 220V / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 7,040 lbs. |
| Machine Dimensions (Approx.): 110″ L × 72″ W × 76″ H |
