*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
SKU: | 112876 |

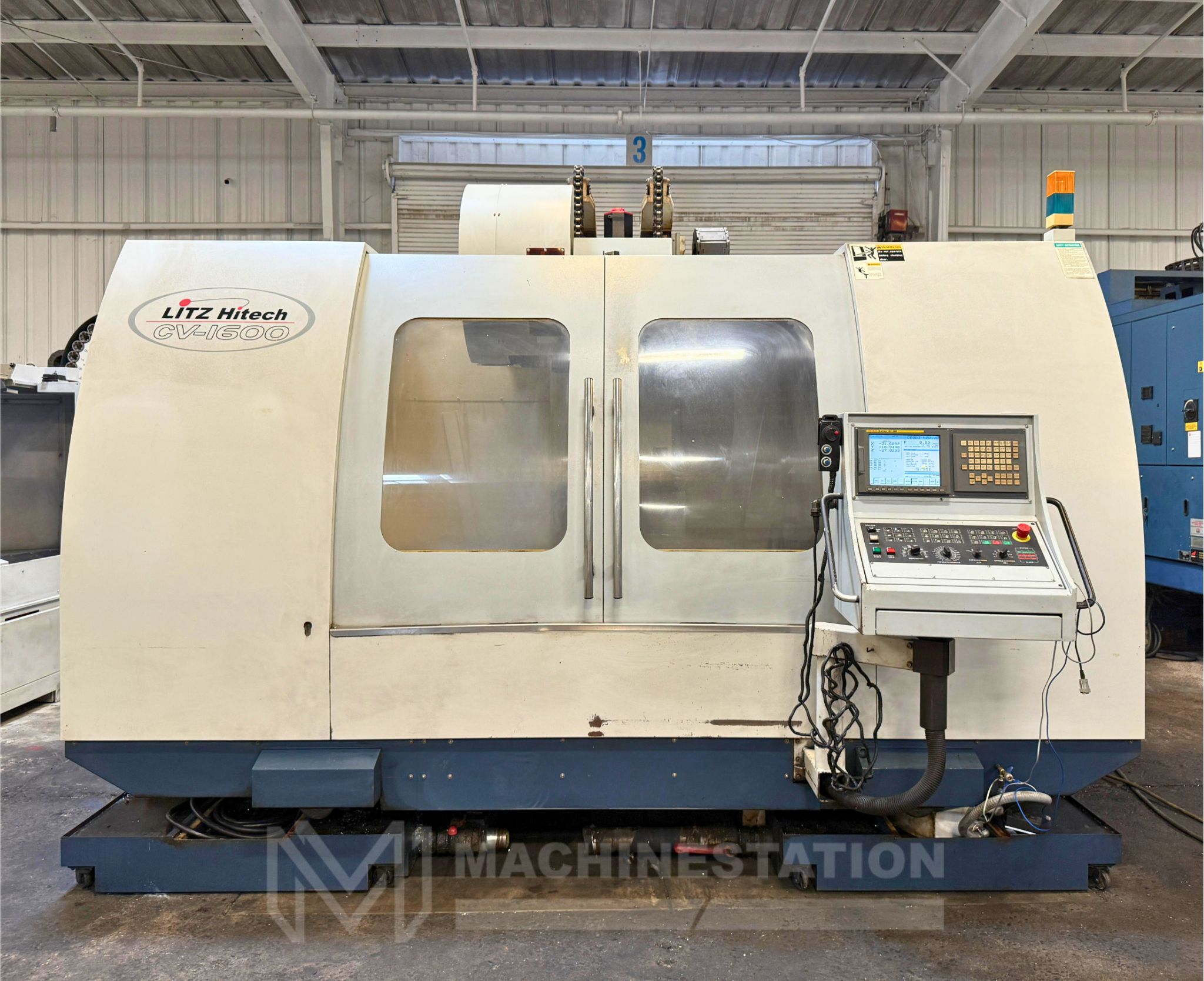

Make: | Litz Hitech |
Model: | CV-1600 |
Year of Manufacture: | 2007 |
Equipped With: |
---|

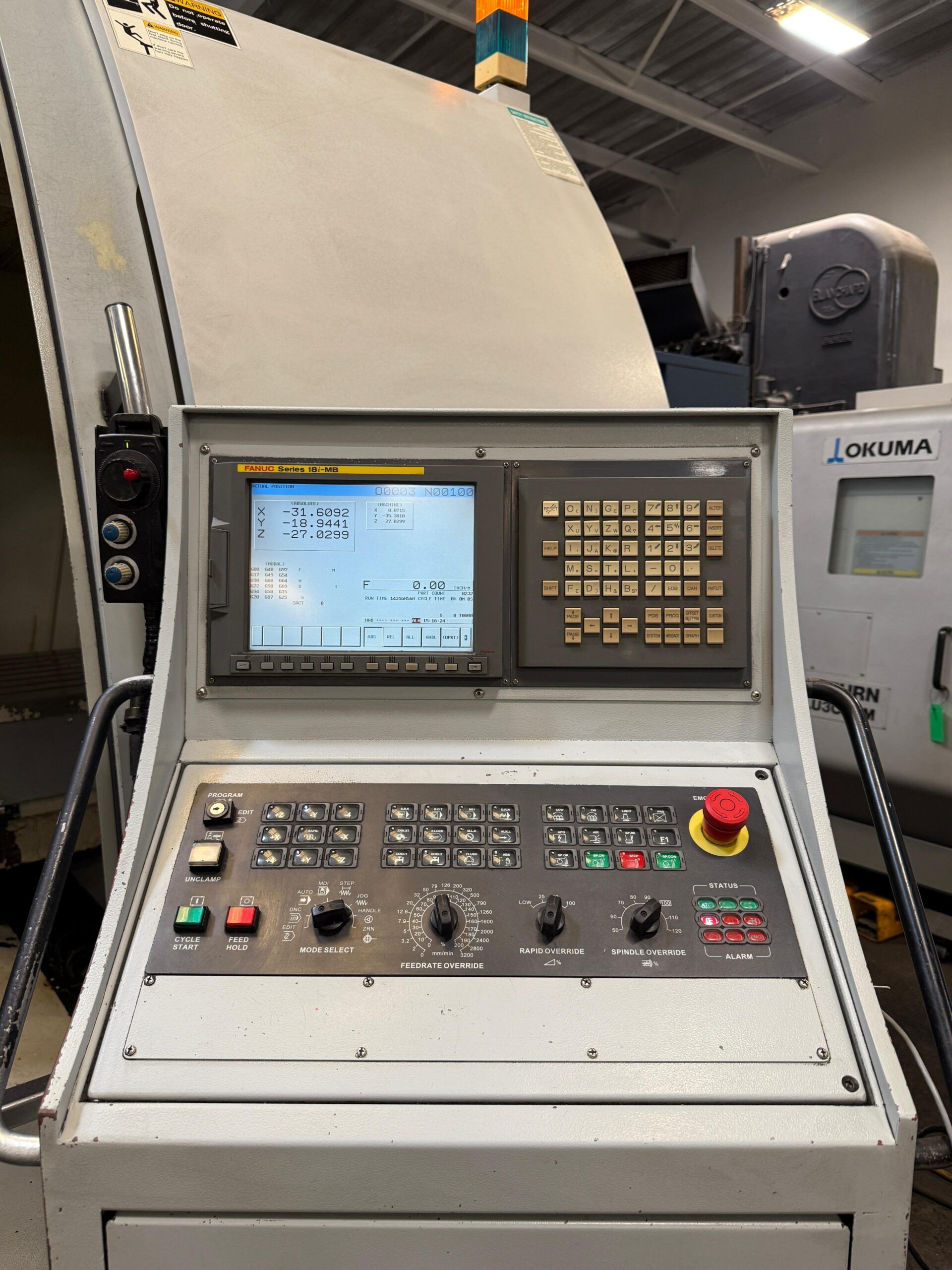

- Fanuc Series 18i-MB CNC Control
- Linear Guideways Construction
- 10,000 RPM High Speed Spindle
- 40 Spindle Taper
- 30 Station Automatic tool changer
- Spindle Chiller Unit
- MPG Hand Wheel Control
- Rigid Tapping

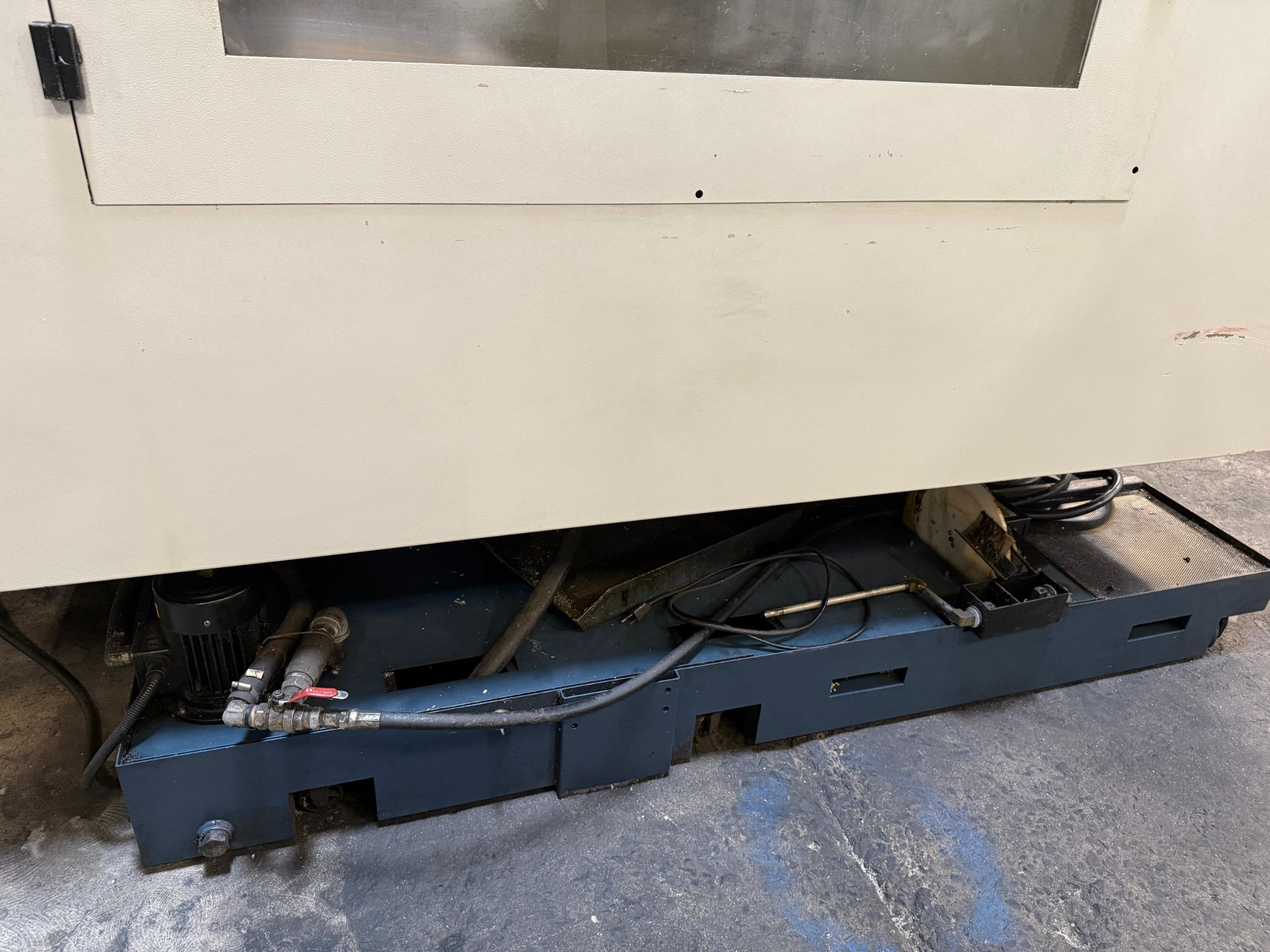

- Coolant System
- Dual Chip Auger
|

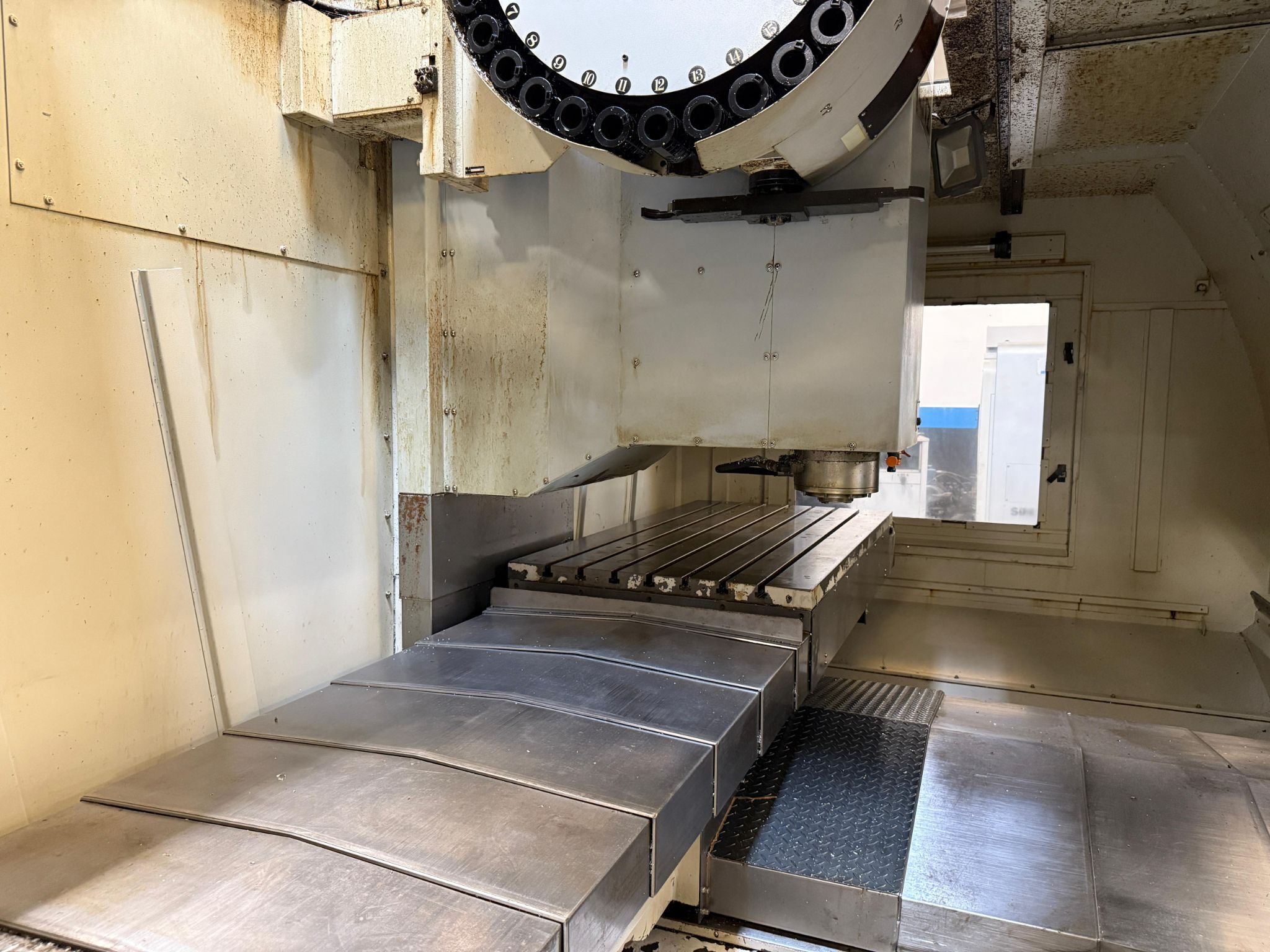

Table: |
---|
- Length: 66.93″
- Width: 33.46″
- Number of Std T-Slots: 7
- Max Weight on Table: 4,410 lbs
|
Travel: |
---|
- X-Axis: 62.99″
- Y-Axis: 35.43″
- Z-Axis: 31.49″
- Rapid Traverse Rates X & Y Axis: 787 Inch Per Minute
- Rapid Traverse Rates Z Axis: 590 Inch Per Minute
- Cutting Feed Rates: 314 Inch Per Minute
- Spindle Nose to Table: (Min.- Max.): 3.93″ – 35.43″
|

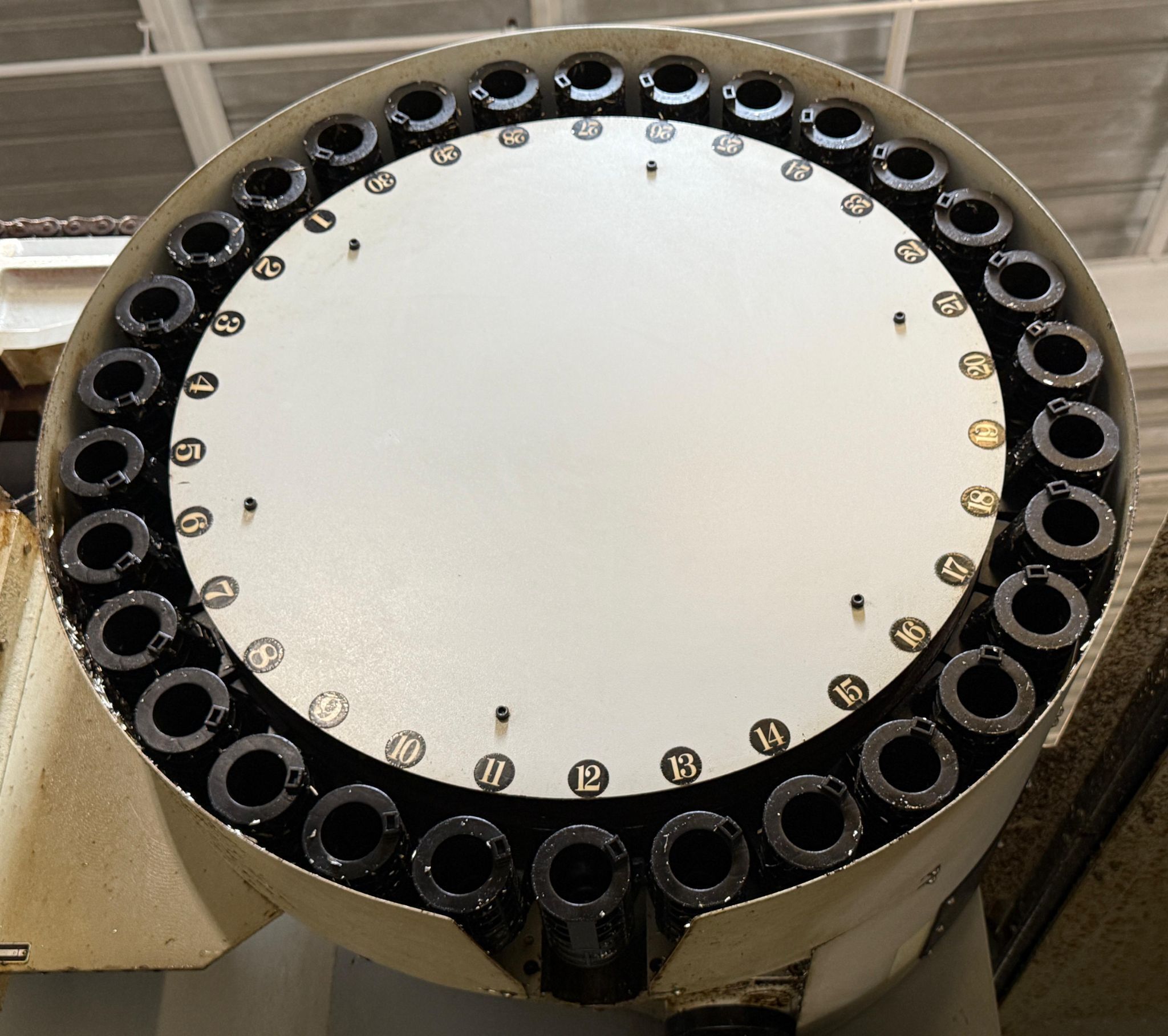

Automatic Tool Changer: |
---|
- Capacity: 30 Station
- Max Tool Dia: 4.921″
- Max. tool length: 13.78″
- Max. tool weight: 33.06 lbs
|
Spindle: |
---|
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 20 HP
|
General: |
---|
- Air Required: 85 psi 6 scfm

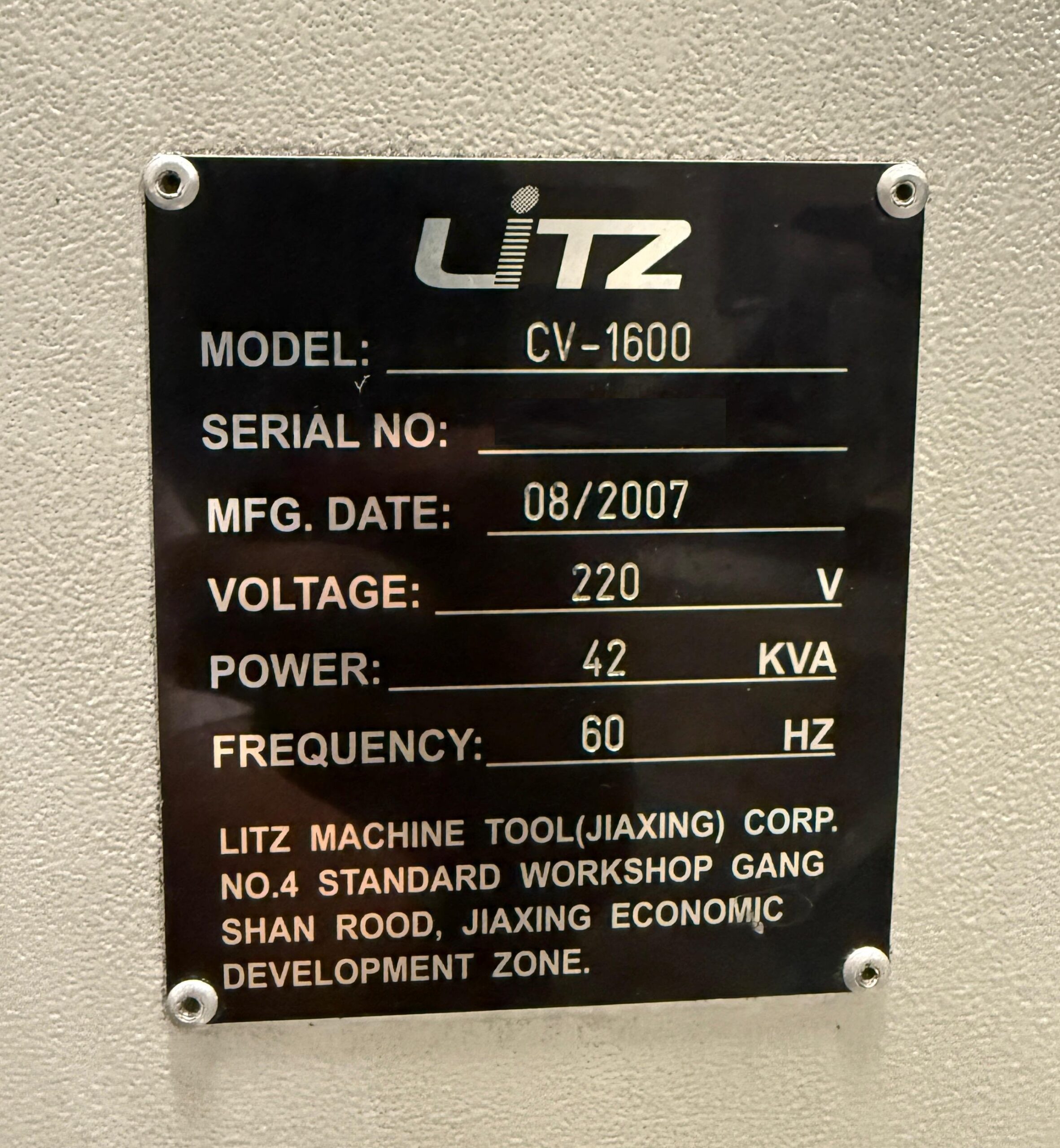

- Power: 220v / 50/60 Hz / 3-Phase / 42 kva
- Machine Diemensions: 152″ x 144″ x 132″ High Approx.
- Weight: 41,887 lbs Approx.
|
