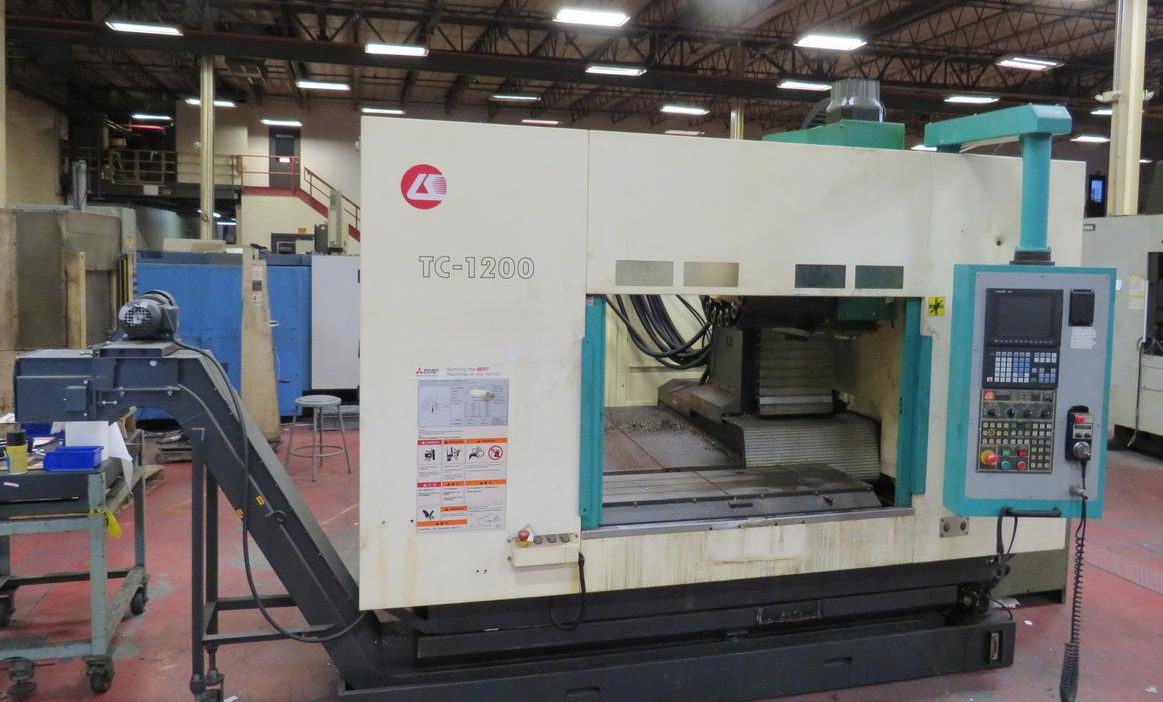

LK TC-1200 CNC Vertical Machining Center

SKU 11941

Make/Model LK TC-1200

Year 2012

Out of stock

SKU:	11941
Make/Model:	LK TC-1200
Year:	2012

SKU: 11941

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	LK
Model:	TC-1200
Year:	2012
Machine Type:	CNC Vertical Machining Center
CNC Control:	Mitsubishi M70 CNC

Features:
Mitsubishi M70 CNC Control
20-Position Automatic Tool Changer
BT30 Spindle Taper
12,000 RPM High-Speed Spindle
Large 53.15″ × 16.14″ Table
Fully Enclosed Machining Area
Chip Conveyor
Coolant System
Automatic Lubrication System
Sorgel 15 kVA Three-Phase Transformer

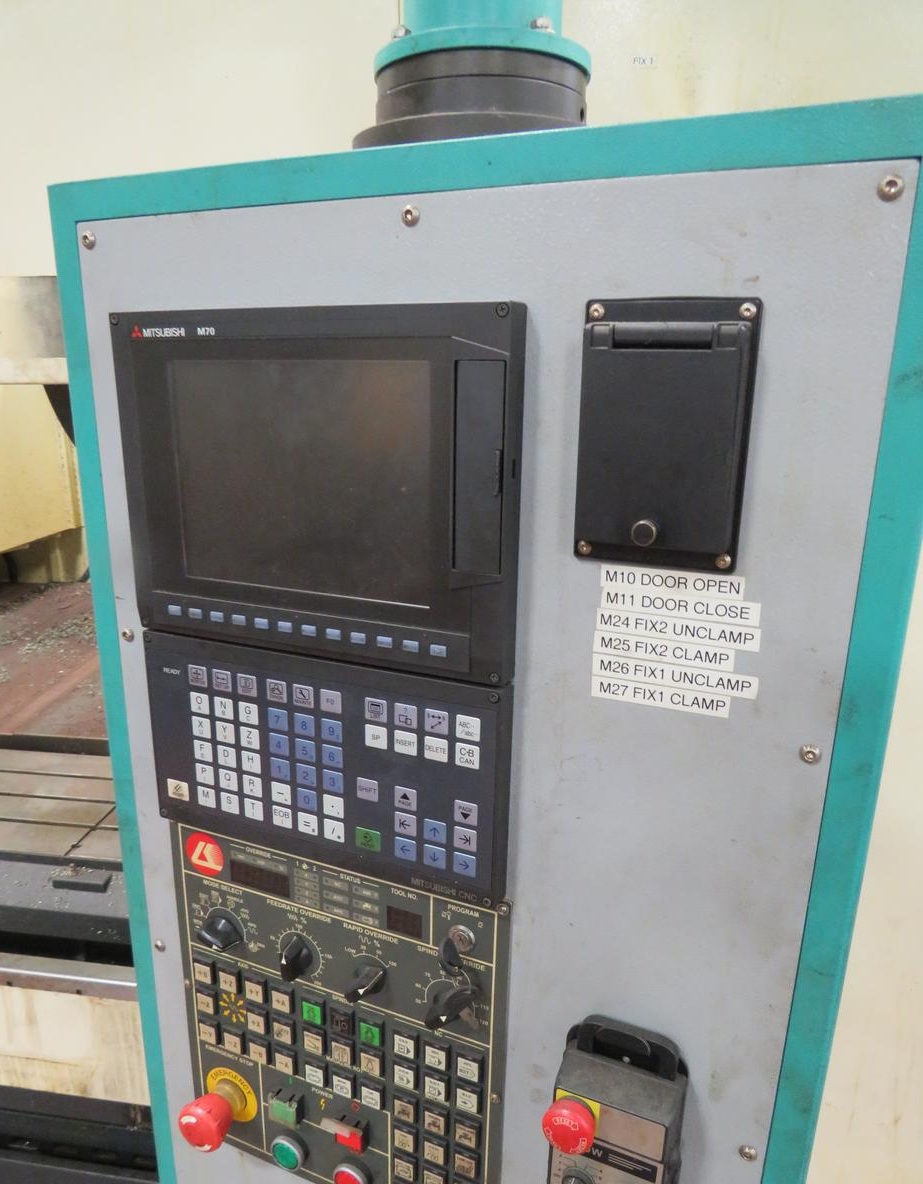

Machine-Mounted Control Pendant

Table:
Table Size: 53.15″ × 16.14″
Table Capacity: 660 lbs. per Side / 1,320 lbs. Total
T-Slot: 0.55″ × 3 × 3.94″ Pitch

Travels:
X-Axis Travel: 47.24″
Y-Axis Travel: 16.14″
Z-Axis Travel: 16.54″
Distance Spindle Center to Table: 7.87″–24.41″

Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: BT30 / No. 30
Spindle Motor: 10 HP
Tool Shank: BT30

Automatic Tool Changer:
ATC Capacity: 20 Tools
Tool Change Type: Arm Type
Maximum Tool Weight: 6.6 lbs.
Maximum Tool Length: 7.87″
Maximum Tool Diameter: 2.95″ / 5.91″

Feedrates:
Rapid Traverse X/Y/Z: 1,890 IPM

General:
Power Source: 480V / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 161.6″ L × 106.9″ W × 98.4″ H
Machine Weight (Approx.): 12,853 lbs.

Table:
Table Size: 1,350 mm × 410 mm
Table Capacity: 660 lbs. per Side / 1,320 lbs. Total
T-Slot: 14 mm × 3 × 100 mm Pitch

Travels:
X-Axis Travel: 1,200 mm
Y-Axis Travel: 410 mm
Z-Axis Travel: 420 mm
Distance Spindle Center to Table: 200 mm–620 mm

Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: BT30 / No. 30
Spindle Motor: 10 HP
Tool Shank: BT30

Automatic Tool Changer:
ATC Capacity: 20 Tools
Tool Change Type: Arm Type
Maximum Tool Weight: 6.6 lbs.
Maximum Tool Length: 200 mm
Maximum Tool Diameter: 75 mm / 150 mm

Feedrates:
Rapid Traverse X/Y/Z: 1,890 IPM

General:
Power Source: 480V / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 4,105 mm L × 2,715 mm W × 2,499 mm H
Machine Weight (Approx.): 12,853 lbs.

Categories	CNC Vertical Machining Centers
Make	LK
Model	TC-1200

Mitsubishi M70 CNC Control
20-Position Automatic Tool Changer
BT30 Spindle Taper
12,000 RPM High-Speed Spindle
Large 1,350 mm × 410 mm Table
Fully Enclosed Machining Area
Chip Conveyor
Coolant System
Automatic Lubrication System
Sorgel 15 kVA Three-Phase Transformer
Machine-Mounted Control Pendant
