Sold
Makino A61NX CNC Horizontal Machining Center (2016) – 14K RPM, 40 ATC, Fanuc Pro Control
Out of stock
| SKU: | 11263 |
| Make/Model: | Makino A61NX |
| Year: | 2016 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Makino |
| Model: | A61NX |
| Year of Manufacture: | 2016 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center (HMC) |

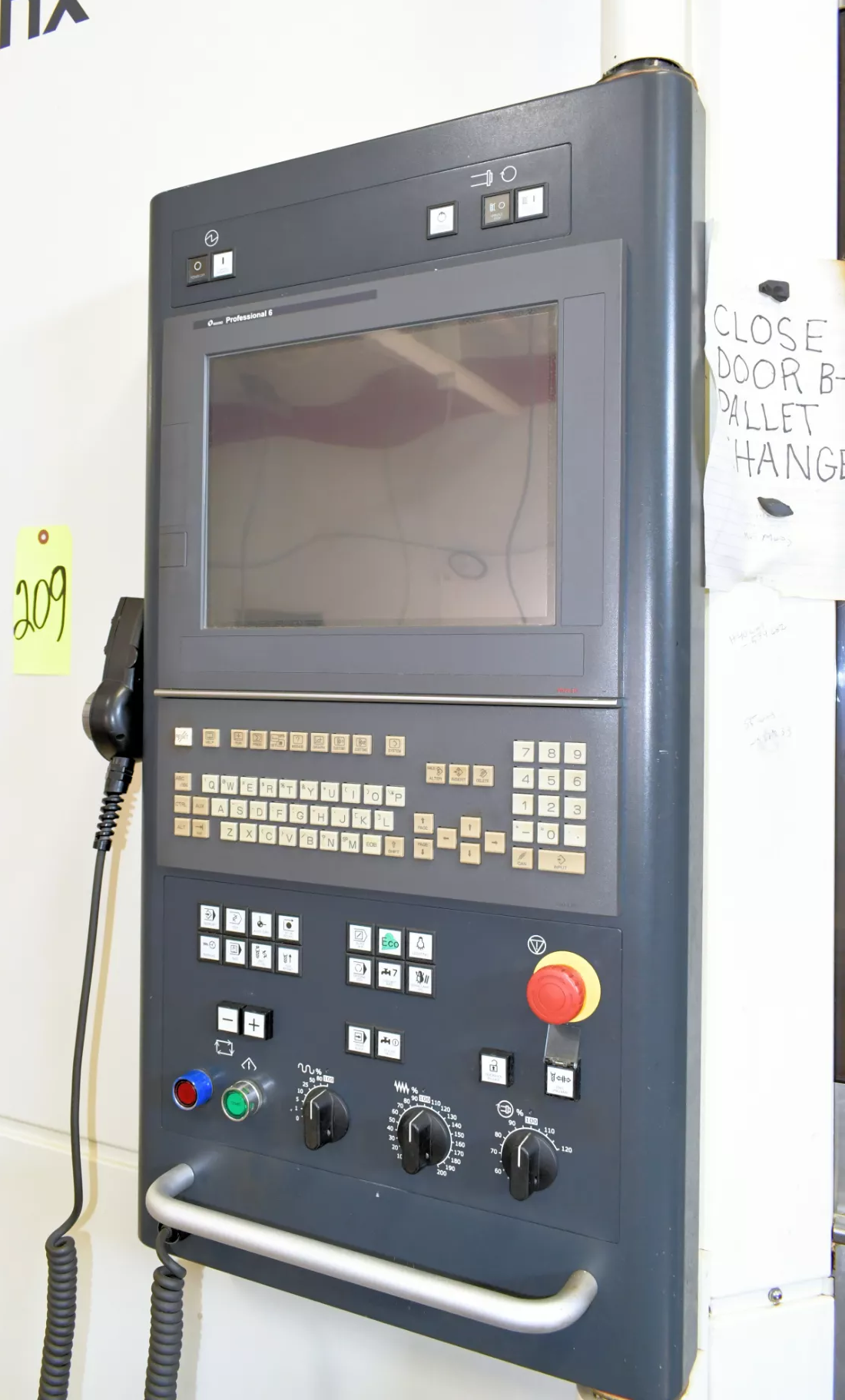

| CNC Control: | Makino Professional 5 (Fanuc-based) |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Makino Professional 5 CNC Control |
| 14,000 RPM High-Speed Spindle |
| CAT40 / BT40 / HSK-A63 Spindle Options |
| 40-Station Automatic Tool Changer |
| Dual Pallet Changer (APC) |
| High-Speed Rapids (60 m/min) |
| Full 4th Axis Pallet Indexing |
| Through-Spindle Coolant (High Pressure Ready) |
| Chip Conveyor System |
| Rigid Tapping |
| Thermal Control System for Accuracy |
| Roller Linear Guideways |
| High Rigidity Box-Type Construction |
| Automatic Tool Length Measurement (optional) |
| Renishaw Probing (optional) |
| Ethernet / DNC Capability |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Pallet Size: 630 × 630 mm (24.8″ × 24.8″) |
| Pallet Load Capacity: 1,200 kg (2,645 lbs) |
| Pallet Indexing: 1° (360° rotation) |
| Travels: |
|---|
| X-Axis Travel: 730 mm (28.7″) |
| Y-Axis Travel: 730 mm (28.7″) |
| Z-Axis Travel: 800 mm (31.5″) |
| Rapid Traverse (X/Y/Z): 60 m/min (~2,362 IPM) |
| Cutting Feedrate: Up to 50,000 mm/min |
| Spindle: |
|---|
| Spindle Speed: 14,000 RPM |
| Spindle Taper: CAT40 / BT40 / HSK-A63 |
| Spindle Motor: 30 HP (22 kW) |
| Spindle Type: High-speed direct drive |
| Spindle to Table Distance: ~50 – 850 mm |
| Tooling System: |
|---|
| Tool Capacity: 40 Tools (60 / 80 optional) |
| Tool-to-Tool Time: ~0.9 sec |
| Chip-to-Chip Time: ~2.5 sec |
| Electrical: |
|---|

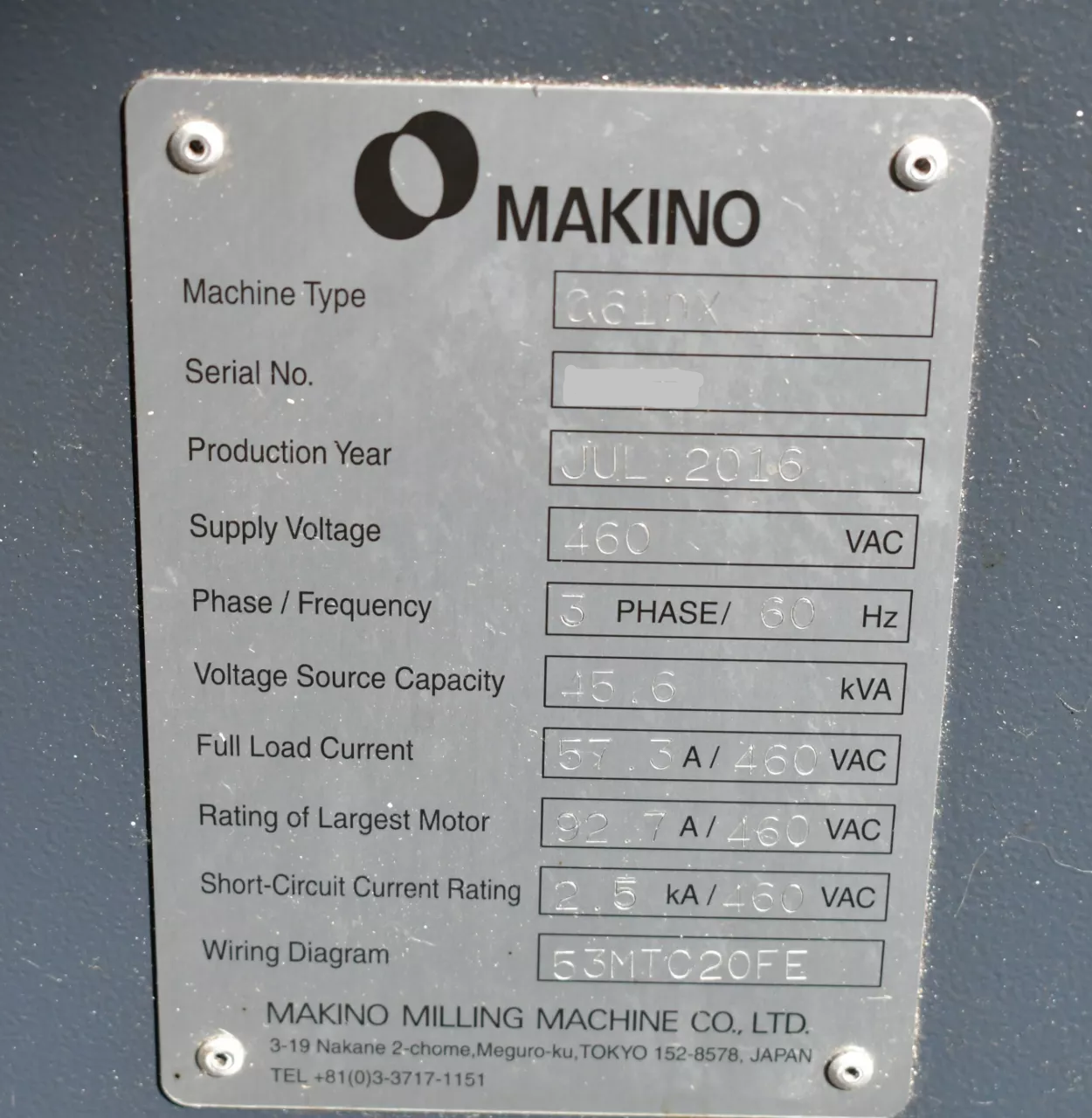

| Power Requirement: 460V / 3 Phase / 60 Hz |
| Power Capacity: ~45.6 kVA |
| General: |
|---|
| Machine Weight: ~28,000 – 30,000 lbs |
| Footprint: ~160″ × 110″ |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | A61NX |
