Makino SNC64 CNC Vertical Machining Center

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

Make:	Makino
Model:	SNC64
Machine Type:	CNC Vertical Machining Center

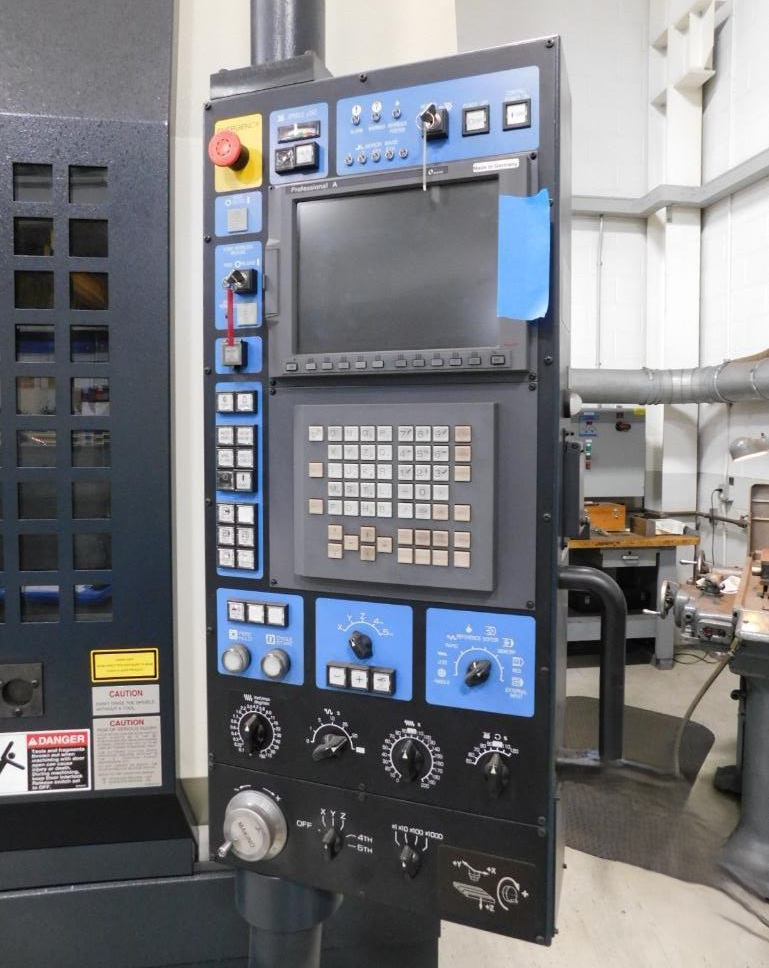

CNC Control:	Makino Professional A

Features:
Makino Professional A CNC Control
F-63 Tooling
14-Position Automatic Tool Changer
Enclosed Machining Area
Daikin Spindle Oil Cooling Unit
Model AKZ907-MK02-C2 Daikin Oil Cooling Unit
Automatic Tool Changing System
Emergency Stop System

Table:
Table Type: Fixtured T-Slot Table
Table Size: 15-5/8″ × 29-1/2″
Table Load Capacity: 550 lbs.

Travels:
X-Axis Travel: 23.6″
Y-Axis Travel: 15.7″
Z-Axis Travel: 15.7″

Spindle:
Spindle Type: High-Speed Vertical Spindle
Spindle Taper: F-63

Automatic Tool Changer:
Tool Changer: Automatic
Capacity: 14 Positions
Tooling: F-63

General:
Power Source: 460V / 50–60 Hz
Machine Dimensions (Approx.): 92″ × 153″ × 99″ H
Machine Weight (Approx.): 13,227 lbs.

Table:
Table Type: Fixtured T-Slot Table
Table Size: 15-5/203 mm × 29-1/51 mm
Table Load Capacity: 550 lbs.

Travels:
X-Axis Travel: 599 mm
Y-Axis Travel: 399 mm
Z-Axis Travel: 399 mm

Spindle:
Spindle Type: High-Speed Vertical Spindle
Spindle Taper: F-63

Automatic Tool Changer:
Tool Changer: Automatic
Capacity: 14 Positions
Tooling: F-63

General:
Power Source: 460V / 50–60 Hz
Machine Dimensions (Approx.): 2,337 mm × 3,886 mm × 2,515 mm H
Machine Weight (Approx.): 13,227 lbs.

Categories	CNC Vertical Machining Centers
Make	Makino
Model	SNC64

Makino Professional A CNC Control
F-63 Tooling
14-Position Automatic Tool Changer
Enclosed Machining Area
Daikin Spindle Oil Cooling Unit
Model AKZ907-MK02-C2 Daikin Oil Cooling Unit
Automatic Tool Changing System
Emergency Stop System
