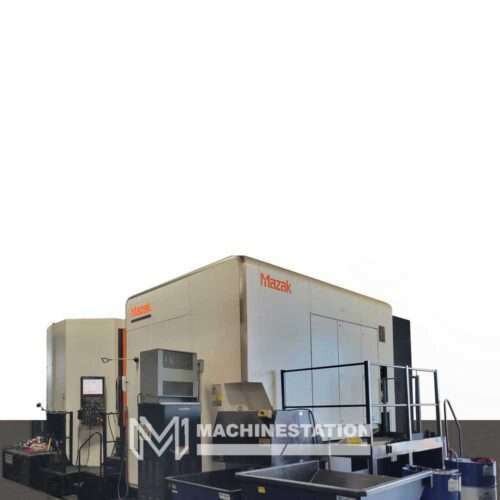

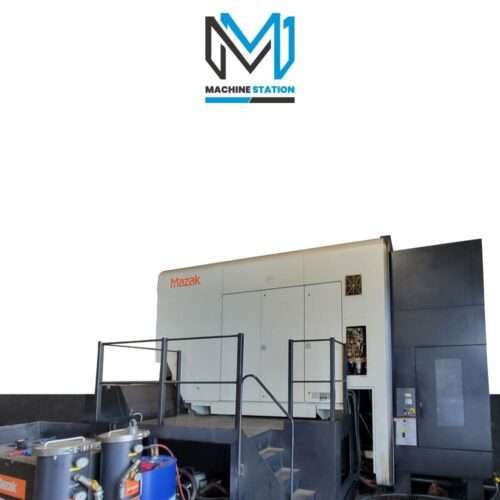

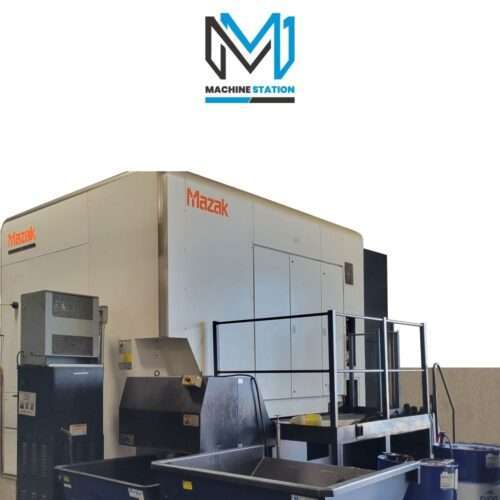

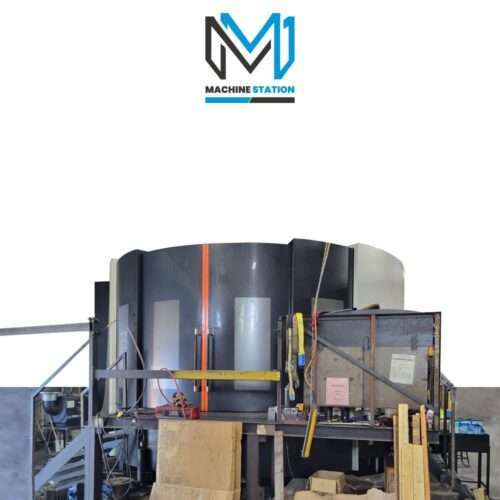

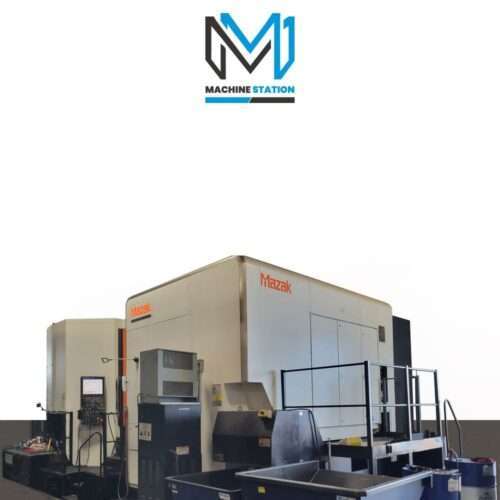

Mazak Integrex e-1550V/10 II 5 Axis Multi Tasking Machining Center

Out of stock

Used Mazak Integrex e-1550V/10 II 5 Axis Multi Tasking Machining Center For Sale

SKU: 7014

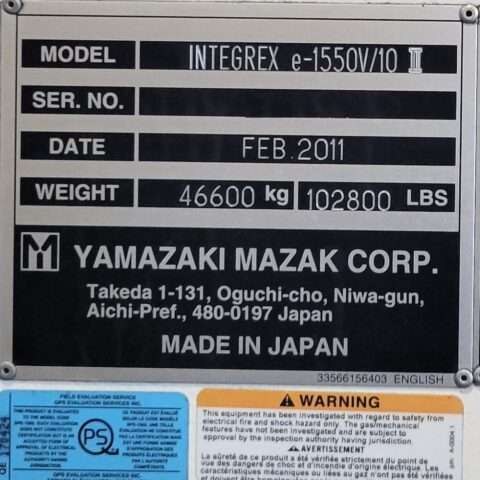

Make/Model: Mazak Integrex e-1550V/10 II

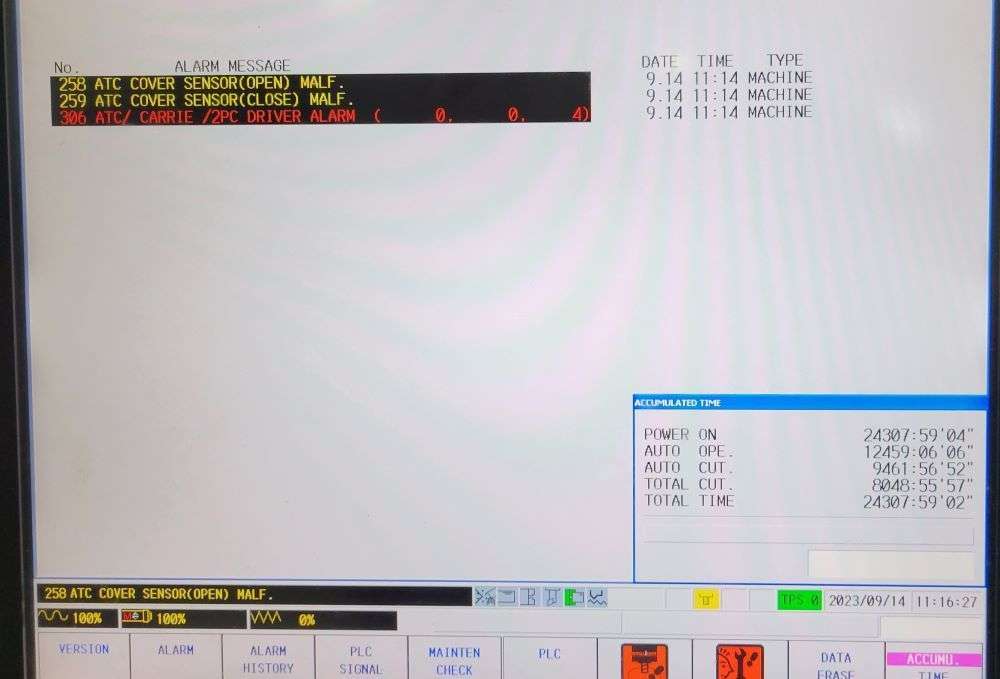

Cutting Time: 8048 Hours
Video: No Video



SKU: 7014

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mazak
Model: e-1550V/10 II
Year: 2011
Condition: Used – Excellent



Features:

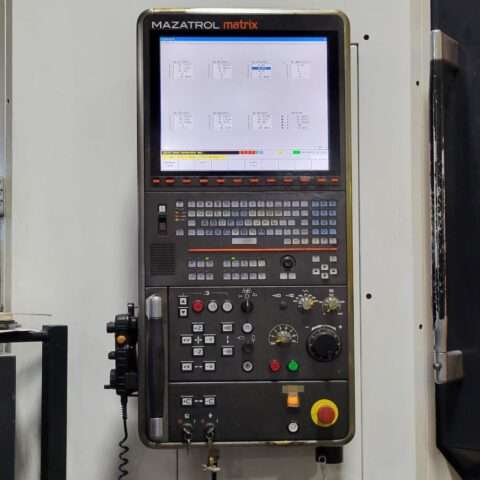

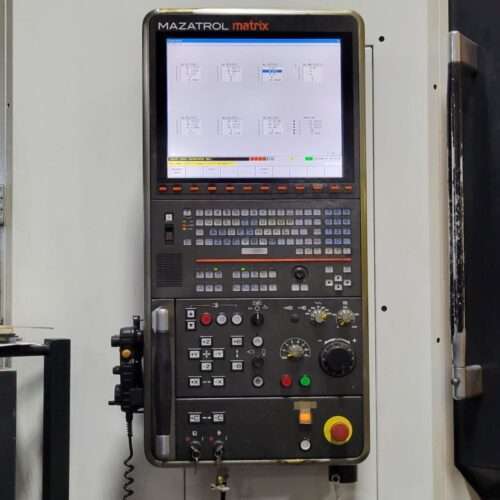

Mazatrol Metrix CNC Control
5 Axis Simultaneous Machining
Automatic Pallet Changer

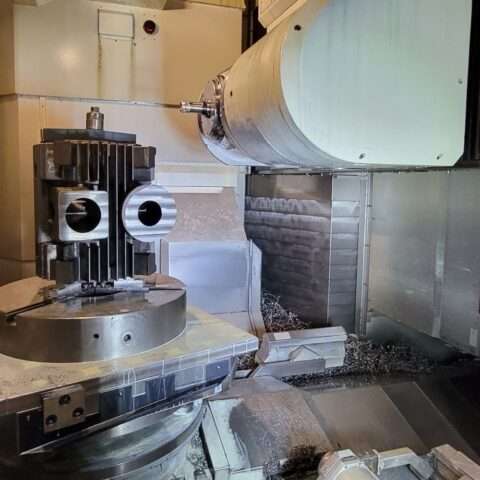

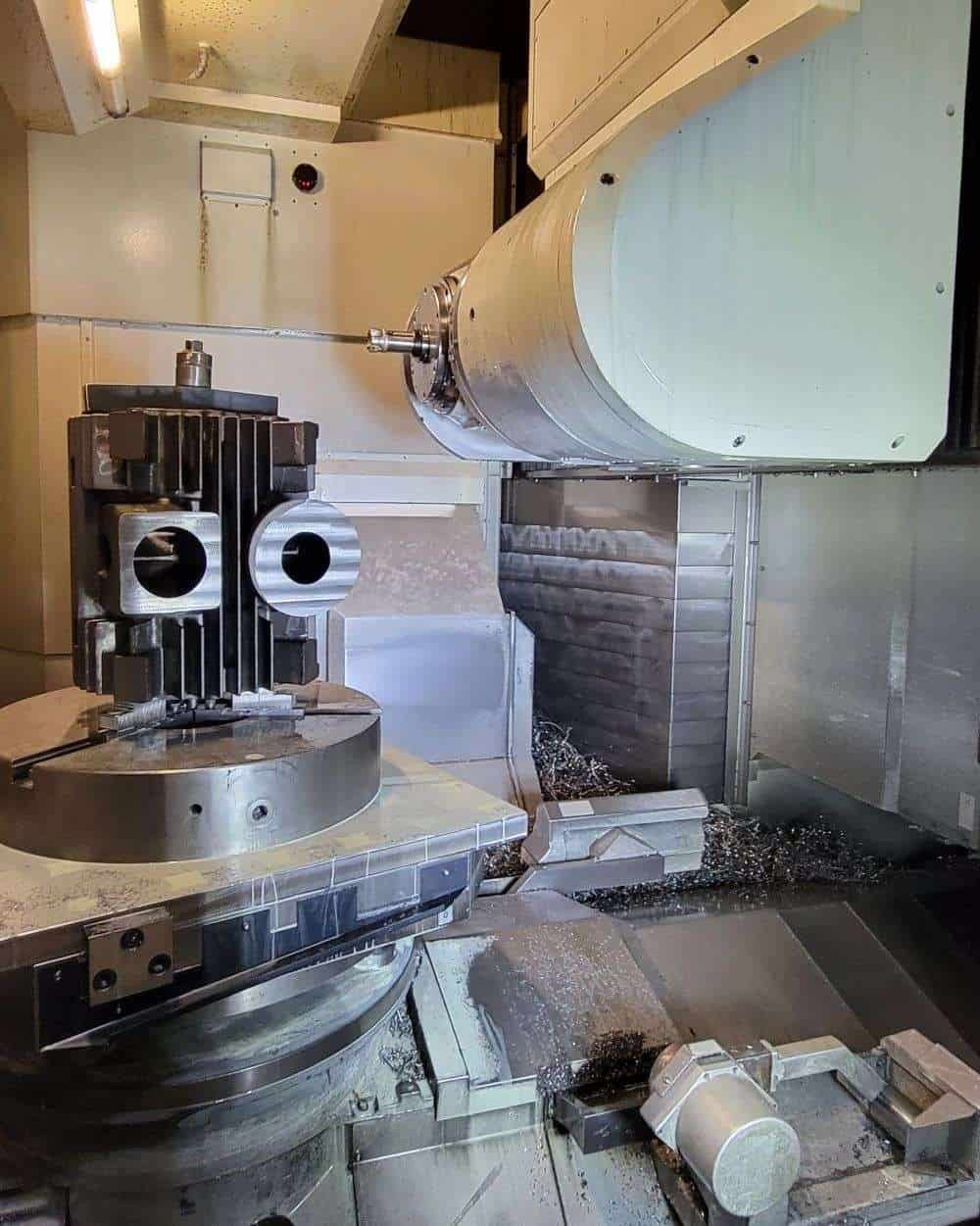

10,000 RPM Pendulum Head

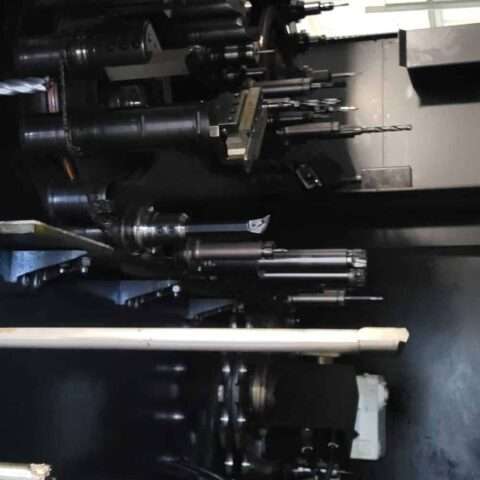

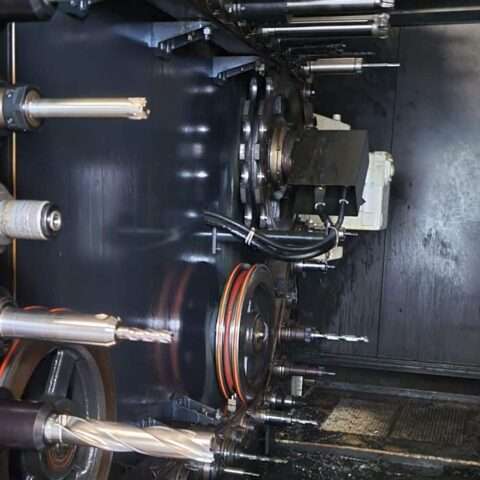

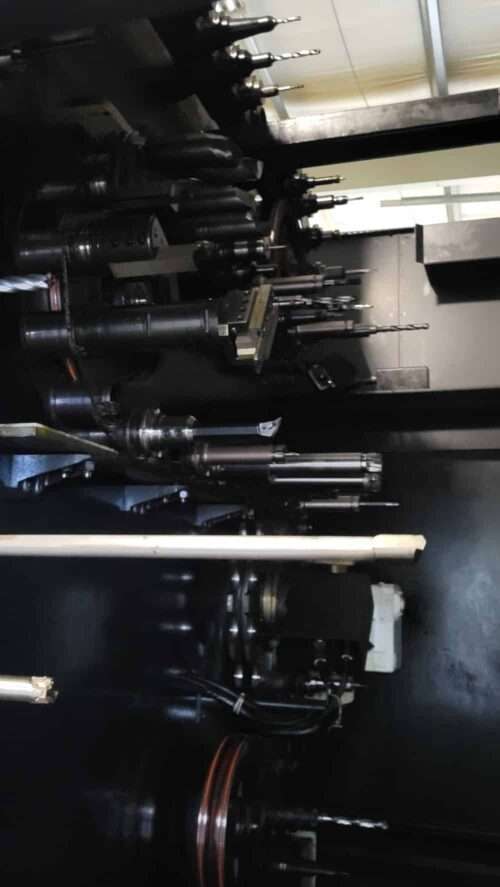

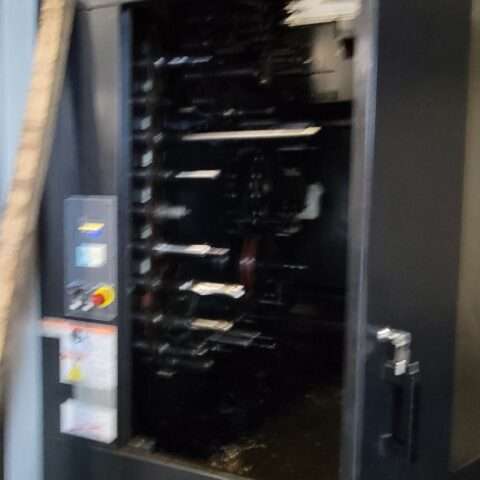

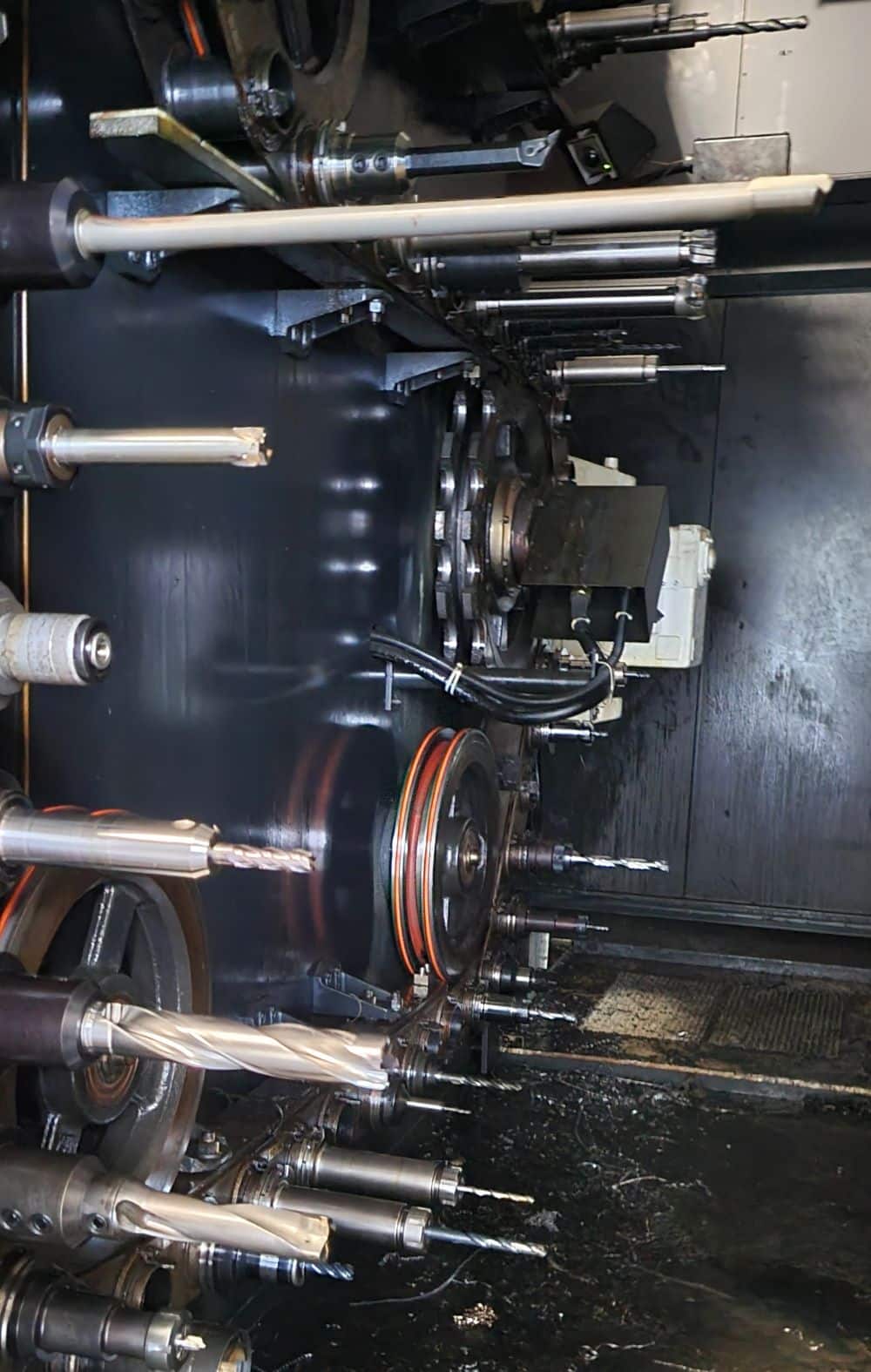

80 Station Tool Magazine

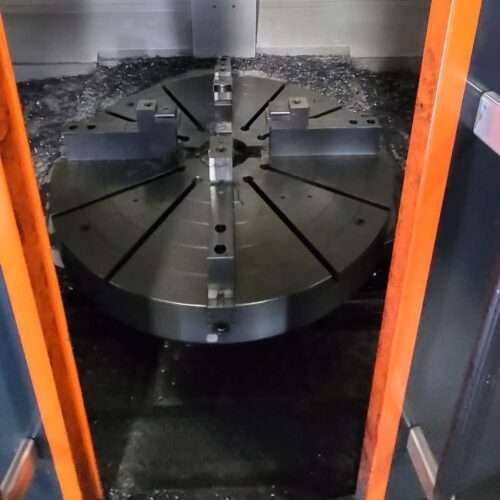

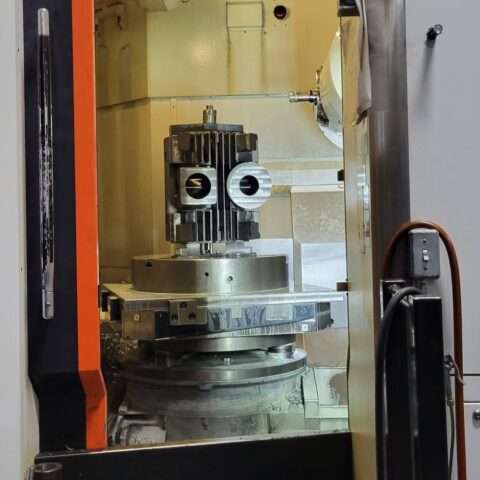

55.11″ 4-Jaw Chuck
Coolant through Spindle
Work Measuring System
Overload Detection System
Automatic Tool Eye
NC4 Laser Rotary Tool Length Measurement with Air without Macros
Laser Measurement NC4 Macro Upgrade
Hobbing Function without Tooling

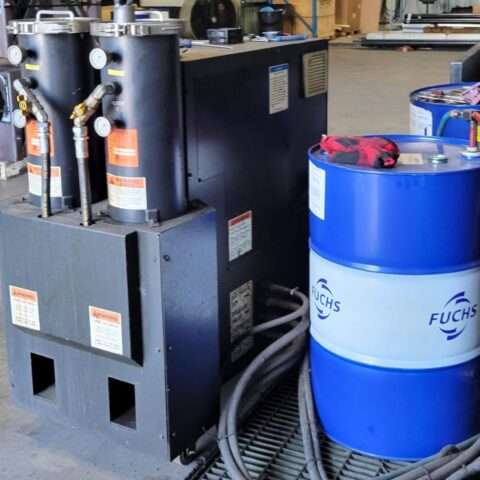

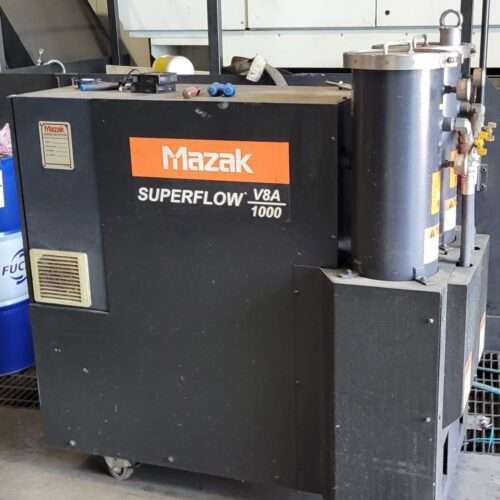

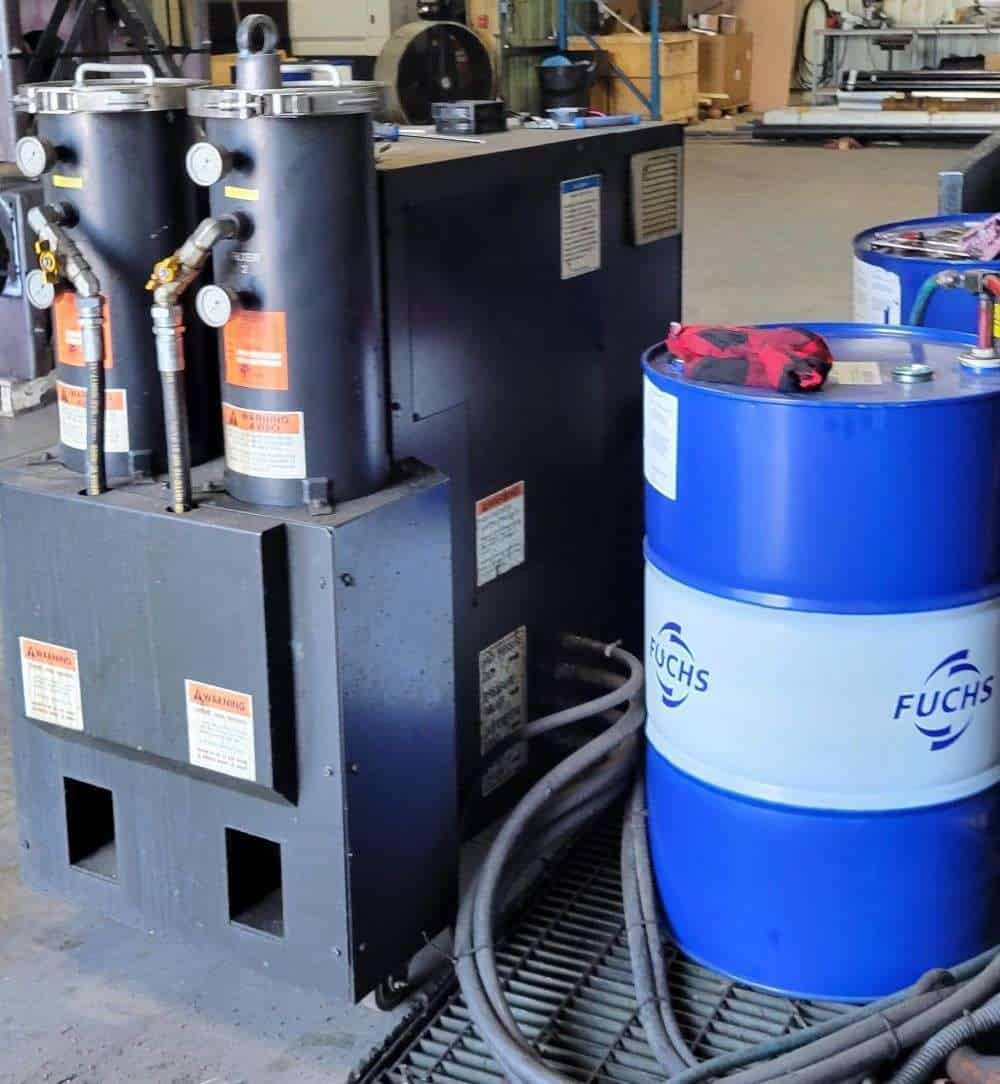

Mazak Super Flow V8A Variable High Pressure Coolant System
Auto Pecking Cycle with Load Detection
Chip Conveyor
Work light



Capacity:
Maximum Machining Diameter: 79″
Maximum Machining Length: 57″

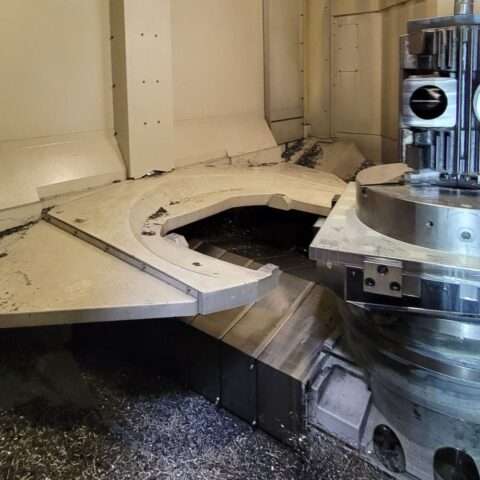

Pallet:
Pallet size: 55.12″ × 55.12″
Max Weight on Pallet: 11023 lbs
Indexing: 360° (0.0001) ( Table Rotate )



Travel:
X Axis: 73.82″
Y Axis: 61.02″
Z Axis: 62.96″
B Axis: 160° (0.0001°) ( Milling Head Tilt )
C Axis: 360° (0.0001°) ( Table Rotate )
Rapid Traverse X, Y & Z Axis: 1654 IPM



Milling Spindle:
Single Station Pendulum Head with 80 ATC
Taper Size: 50
Speed Range: 10,000 RPM
Spindle Power: 60 HP



Turning Spindle:
Chuck Size: 55.11″ 4-Jaw Chuck
Chuck Speed: 300 RPM



General:
Air Required: 100 psi, 4 scfm

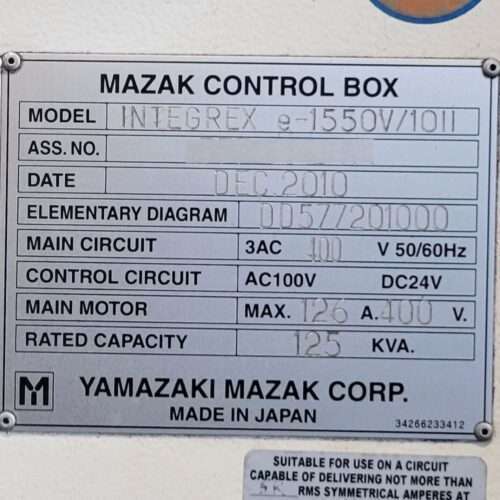

Power: 125 kva / 220v / 3-Phase
Machine Dimensions: ″ x ″ x ″ High
Machine Weight: 102,800 lbs
