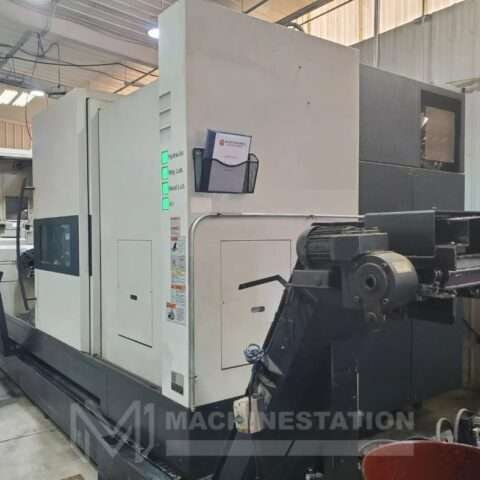

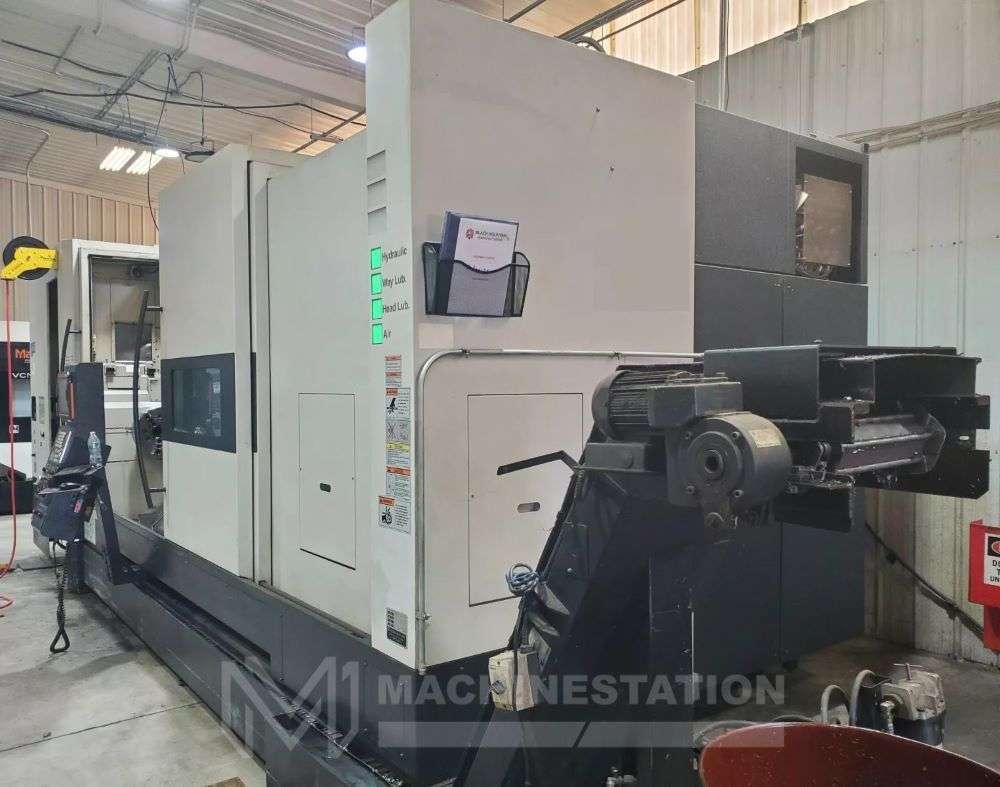

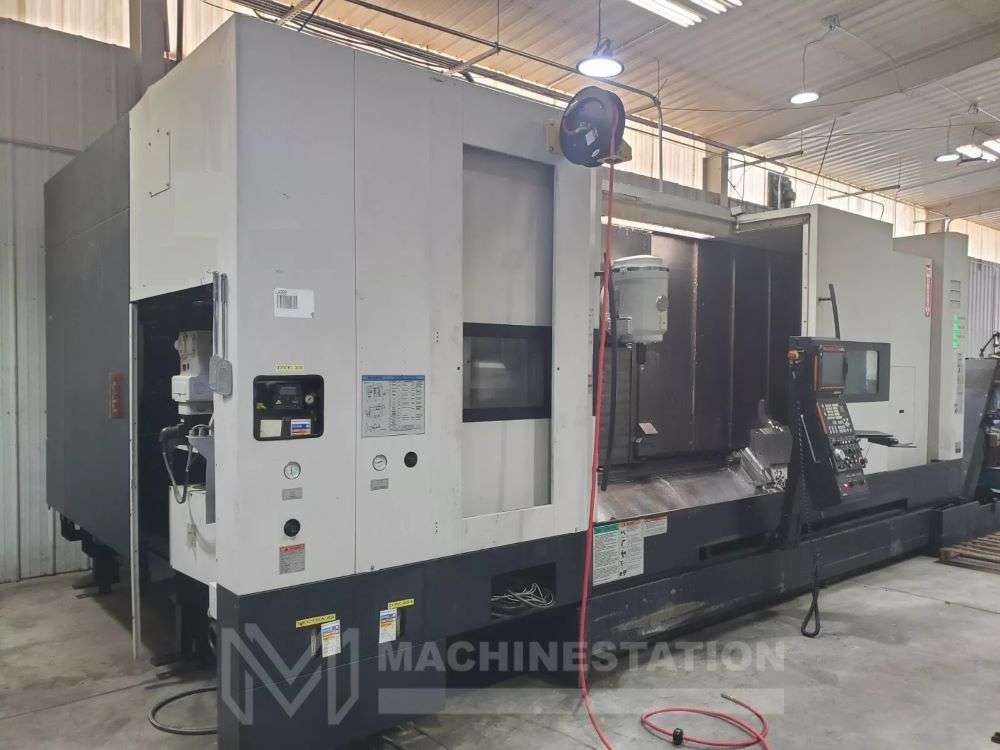

Mazak Integrex E-410H Multi Axis CNC Turning Center

Out of stock
SKU: 2577
Make/Model: Mazak Integrex E-410H
Year: 2006

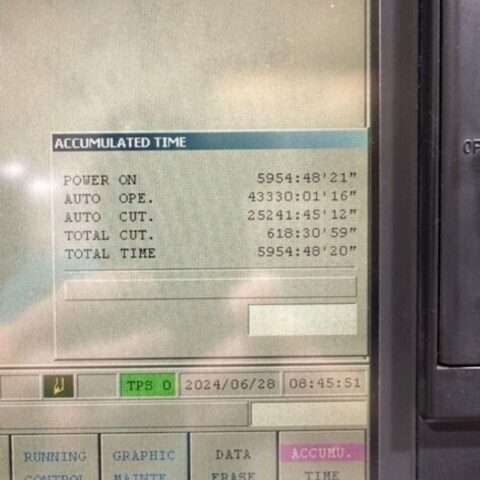

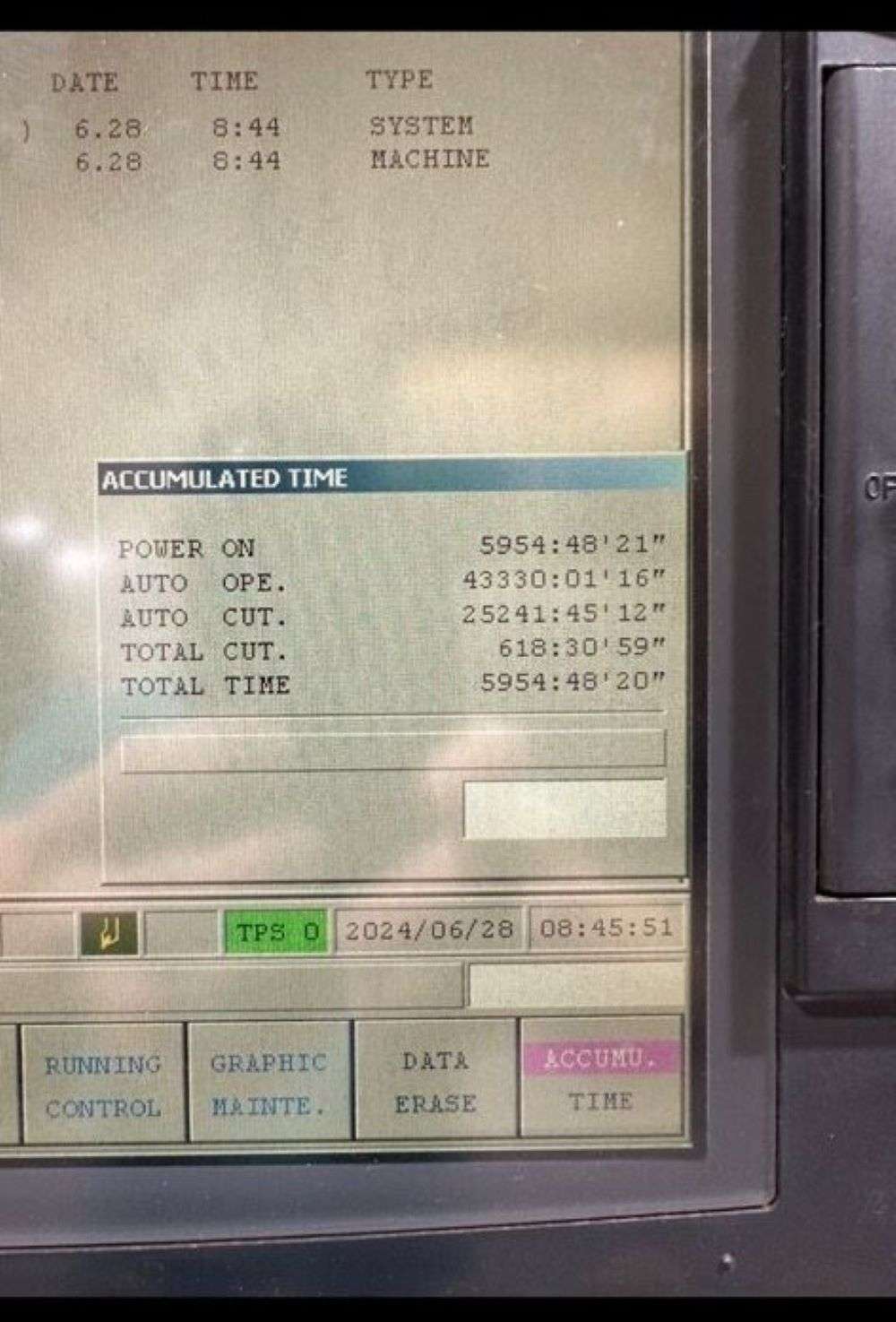

Cutting Time: 25,241 Hours
Video: On Request
SKU: 2577

*All specifications are approximations and are subject to verification. The Mazak Integrex E-410H, an advanced CNC machine, is shown as in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mazak
Model: Integrex E-410H
Year: 2006
Condition: Used Good

Features:

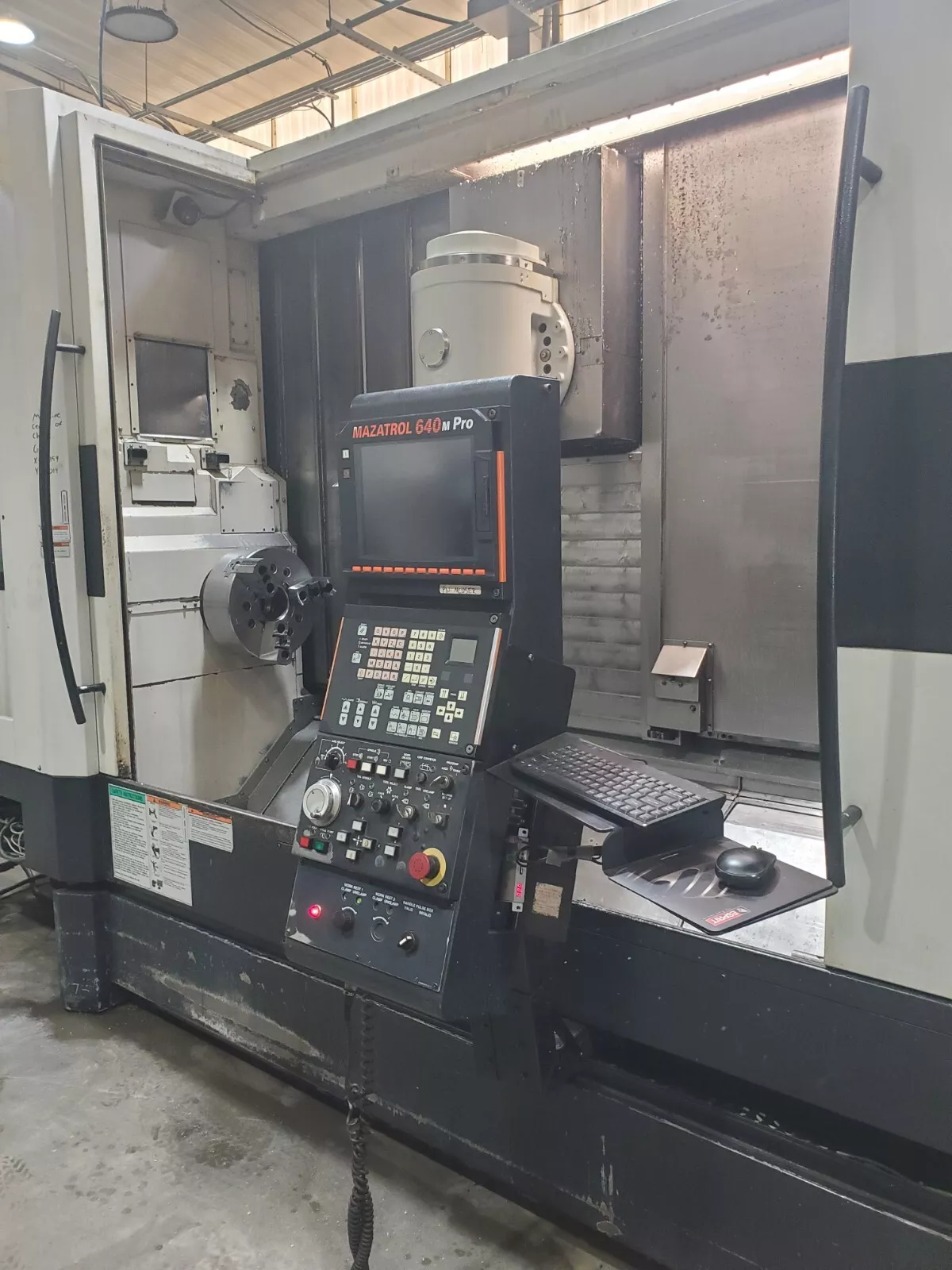

  • Mazatrol 640M Pro CNC Control
  • 5 Axis Simultaneous Machining

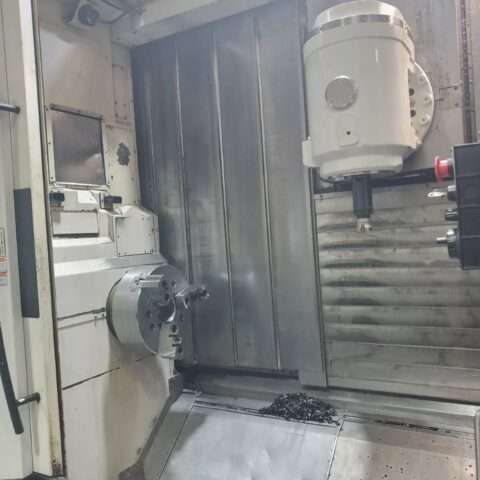

  • 15″ Kitagawa 3-Jaw Chuck

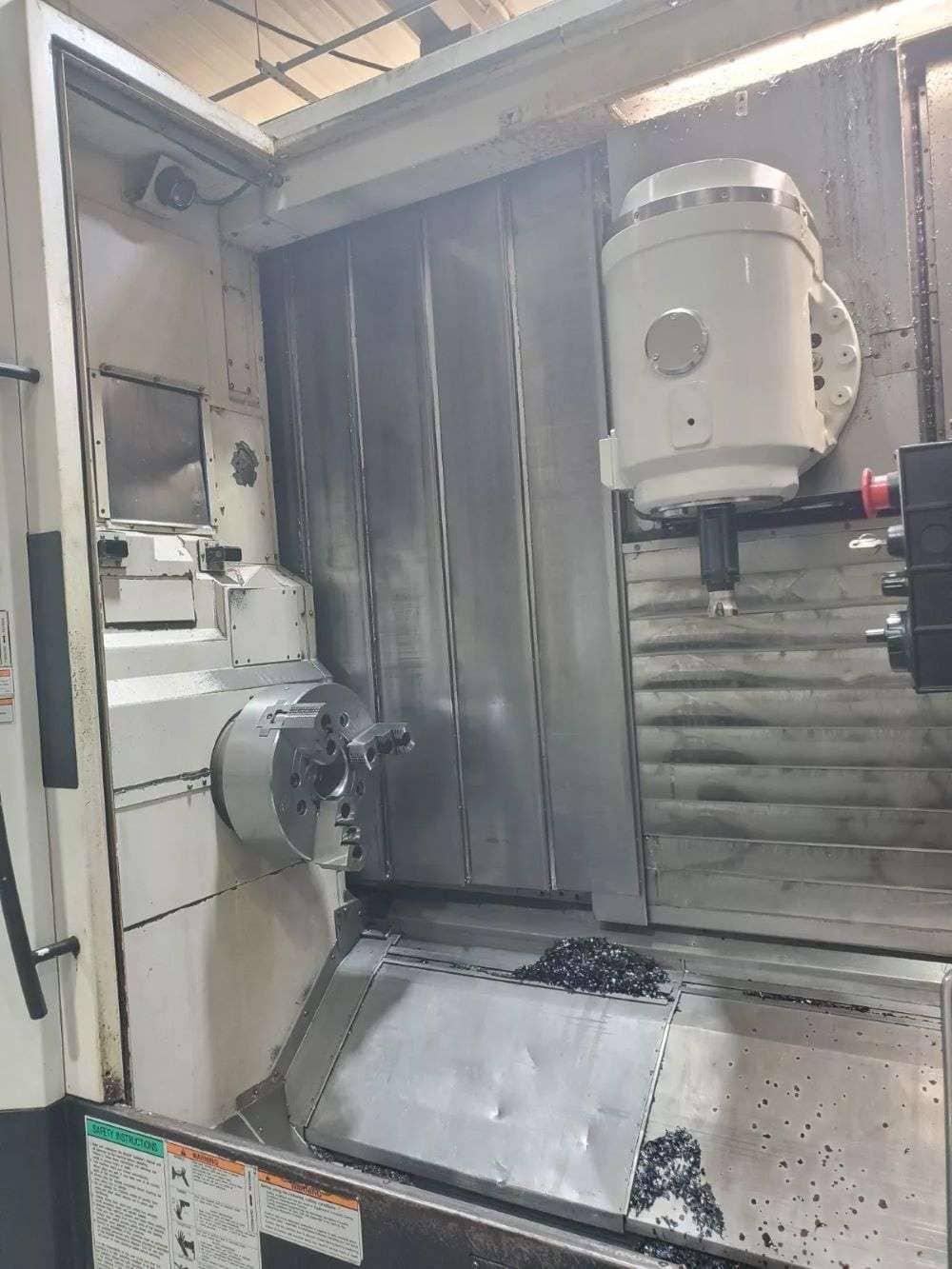

  • 12,000 RPM Pendulum Milling Head
  • 80 Station Tool Magazine
  • Through Coolant Milling Head
  • Full C-Axis Spindle
  • Y Axis Capability
  • Tool Length Measurement System
  • Hydraulic Steady Rest

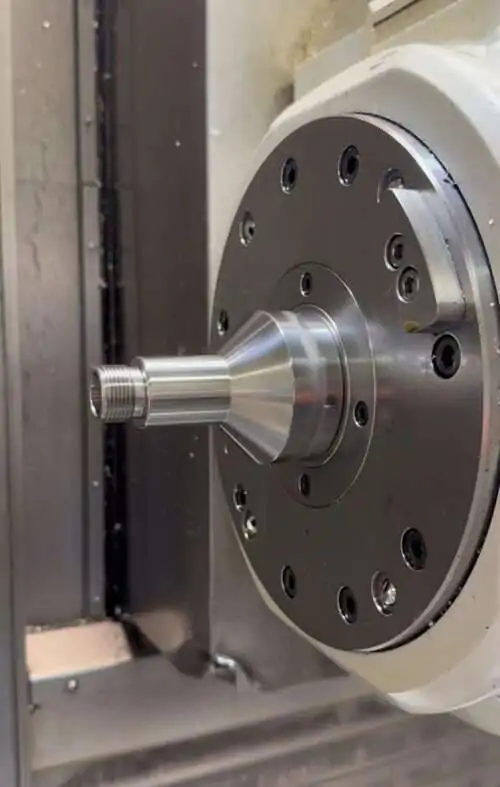

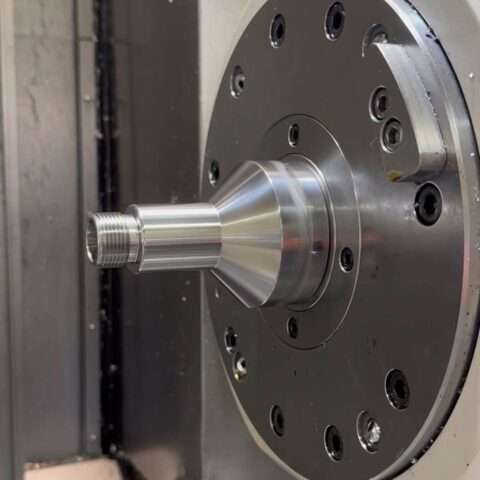

  • Programmable Tailstock
  • Rigid Tapping
  • PCMCIA Card Slot
  • 3.5″ Floppy Drive Unit
  • Tool Eye
  • Coolant System

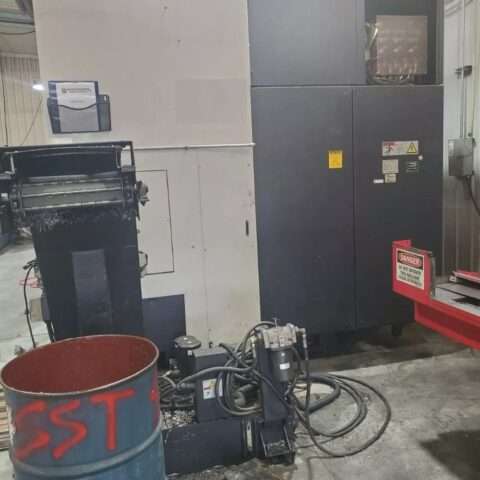

  • Chip Conveyor
  • Transformer

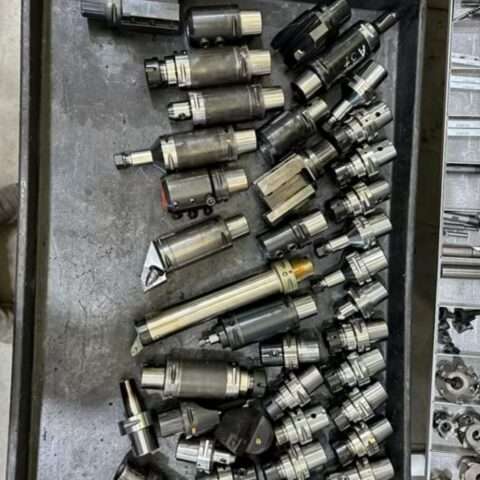

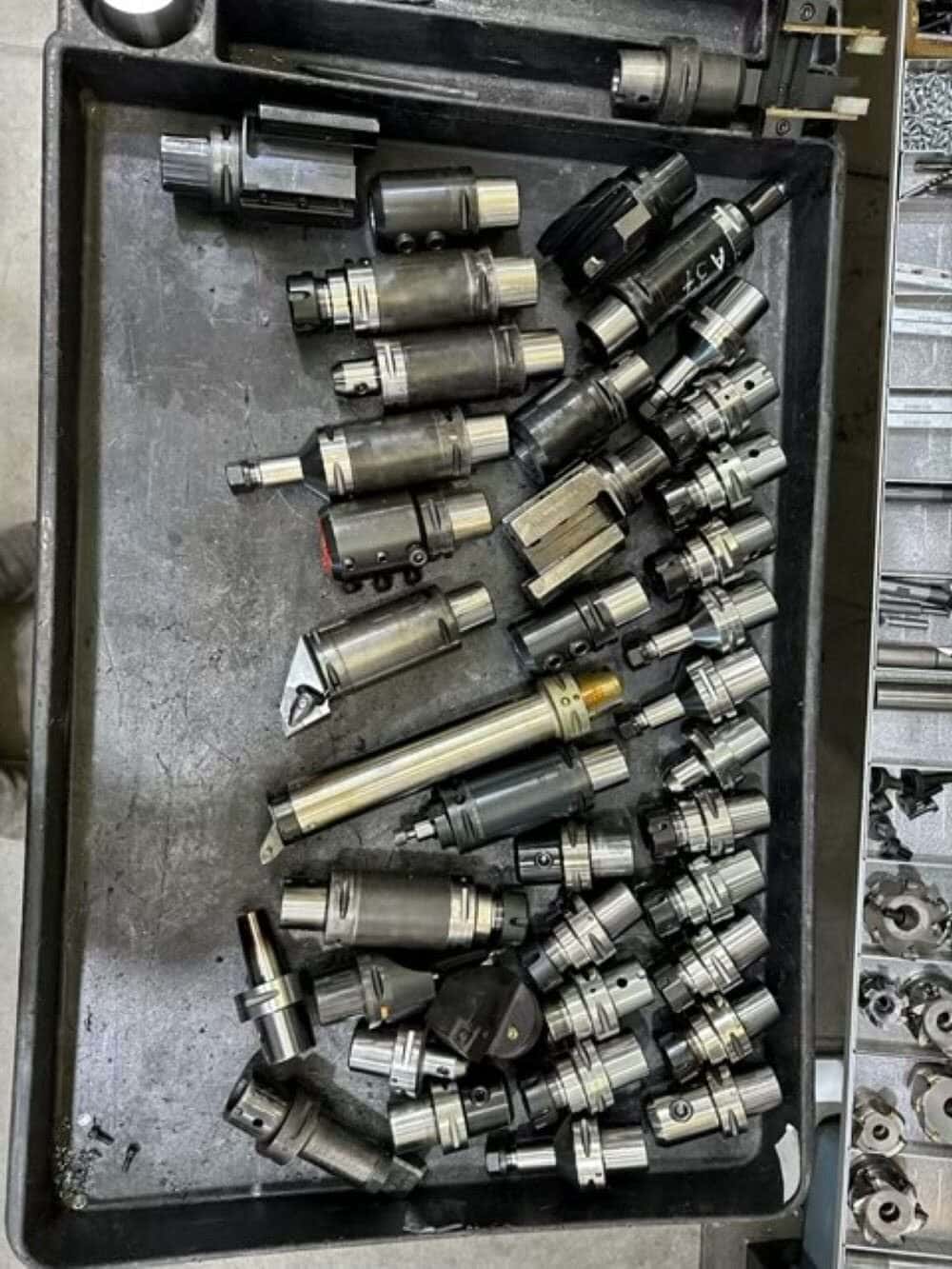

  • Capto C6 Tool Holders
  • Brand new milling spindle with less than 50 hours

Capacity:

  • Max Machining Diameter: 24.01″
  • Max Machining Length: 120.0″
  • Max Bar Capacity: 3.0″
  • Swing Over Bed: 24.01″
  • Distance Between Centers: 120.0″

Travels:

  • X Axis Travel: 28.97″
  • Y Axis Travel: 16.14″
  • Z Axis Travel: 122.55″
  • B Axis Travel: 240 Degree (-30 +210 Degree)
  • C Axis: 360 Degree (0.0001)

Feedrate:

  • X Axis Rapid Traverse Rate: 1969 Inch Per Minute
  • Z Axis Rapid Traverse Rate: 1575 Inch Per Minute

Spindle:

  • Spindle Nose: A2-8
  • Spindle Bore: 3.2″
  • Spindle Speed: 4000 RPM
  • Spindle Motor: 35 HP

Milling Head:

  • Single Station Pendulum Head with 80 ATC
  • Spindle Speed: 12000 RPM
  • Spindle Motor: 30 HP
  • Milling Head Indexing: 240 Degree (-30 +210 Degree)

Automatic Tool Changer:

  • Capacity: 12 Live Stations Tool
  • Holder Type: BMT-55P
  • Turret Index Time: 0.2 Second
  • OD Tool Size: 1.00″
  • ID Tool Size: 1.50″
  • Live Tool Speed: 5000 RPM

Tailstock:

  • Type: Programmable

General:

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement:  75.2 Kva
  • Overall Dimensions: ″ x ″ x ″ High
  • Machine Weight: 45,194 Hours Approx.
