USED-AKIRA SEIKI CNC MACHINING CENTER Model PERFORMA JR

Out of stock

Product Description


Make: Akira-Seiki
Model #: JR
Serial #: E04124001-735
Condition: Great

All specifications are approximations, and are subject to verification.


Features:

  • Spindle inner air chilling
  • Head cartridge coolant through
  • Spindle air blow
  • Rigid tapping
  • Tool life management
  • Spindle taper air blow
  • High pressure coolant flush
  • Enclosure splash guard
  • Heat exchanger for electrical cabinet
  • Remote control MPG
  • Water oil separation
  • 3 level operation status lights
  • Coolant tank and chip case
  • Automatic lubrication

Specifications:

Travel:
X-Axis: 16″
Y-Axis: 16″
Z-Axis: 18″
Spindle Nose to Table(min-max): 3-21″
Spindle Center to Column: 17″

 Table:
Table Size: 22 x 15″
T-Slot: 16mm x 80mm x 4 slots
Max Loading: 1320 lbs
Standard Loading: 790 lbs
Spindle:
Max. Motor Power: 12 HP
Speed: 20 – 9,000 RPM
Taper Size: BT40
Feedrates:
Rapid Feed X/Y/Z: 1184/1184/945 IPM
Cutting Feed X/Y/Z: 394/394/394 IPM
Accuracy:
Positioning: +/- 0.000157″
Repeatability: +/- 0.00079″
Automatic Tool Changer:
Capacity: 12
Max Tool Diameter: 2.4″
Max Tool Length: 6.3″
Max Tool Weight: 15.4 lbs
General:
Tank Capacity: 150L
Chip Disposal: Drawer
Air Source Requirement: 7 kgs/cm2
Power Requirement: 16KVA
Overall Dimensions: 75″ x 75″ x 100″
Weight: 6,300 lbs

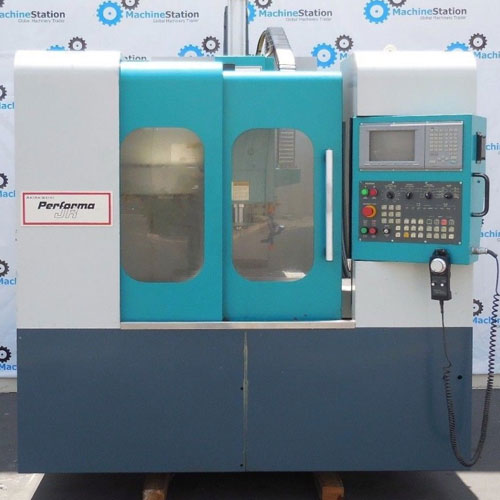

USED-AKIRA SEIKI CNC MACHINING CENTER Model PERFORMA JR and Comes as shown in pictures.

GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.
WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.
MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.
BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
