All specifications are approximations and are subject to verification.
| Location | Lake Elsinore, CA |
| SKU | 105005 |
| Make Model No. | MAZAK QTN-250 |
| Year | 2005/05 |
| Condition | Used-Good |
| Country of Origin | Japan |

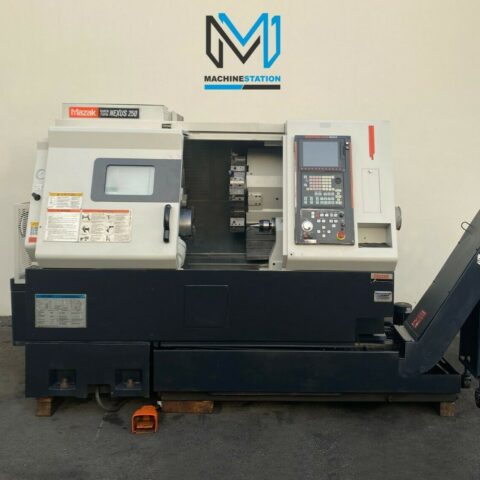

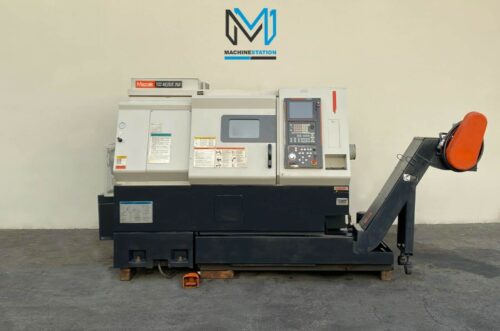

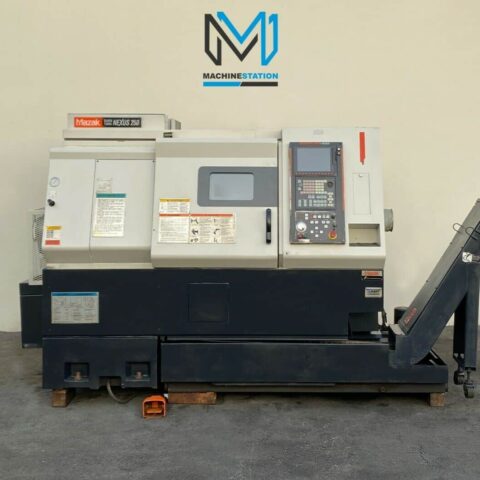

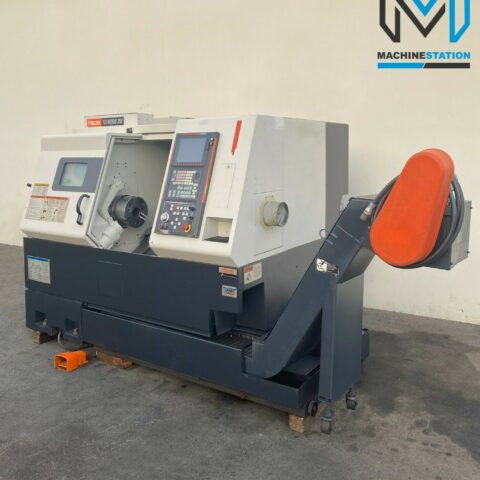

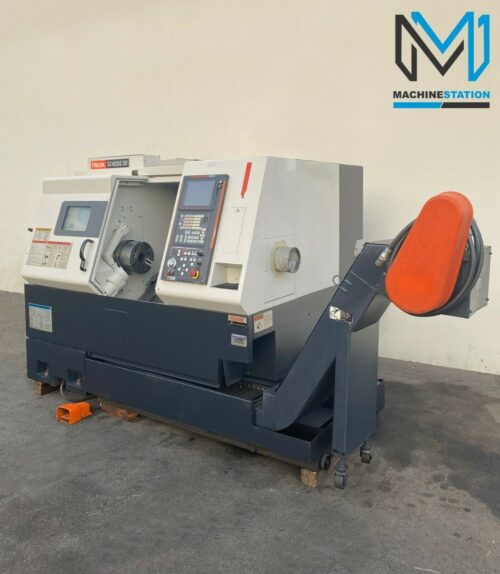

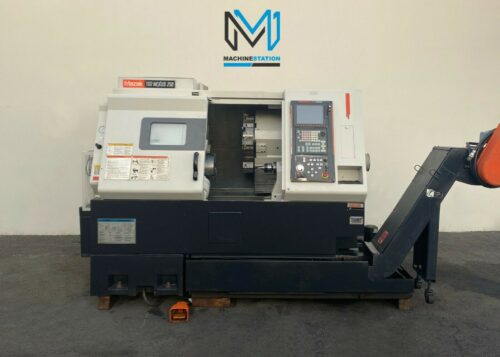

| MAZAK Quick Turn NEXUS QTN-250 Equipped With: |
|---|

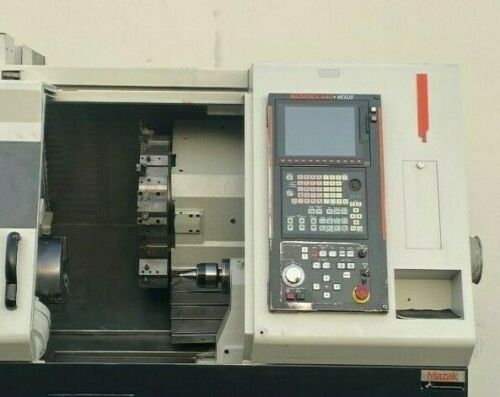

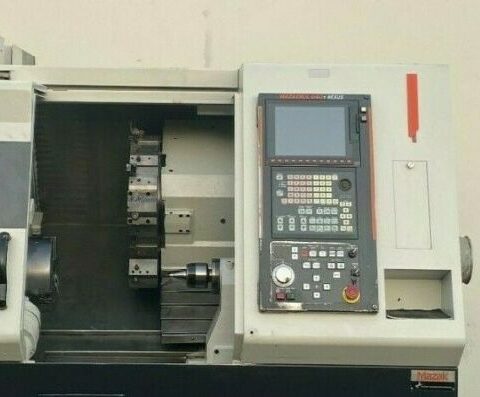

| Mazak Nexus 640T Control |
| Tool Presetter |

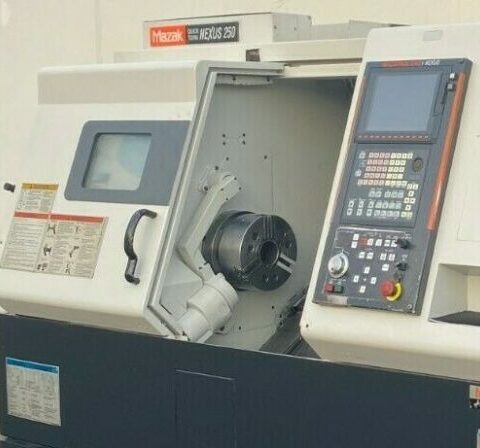

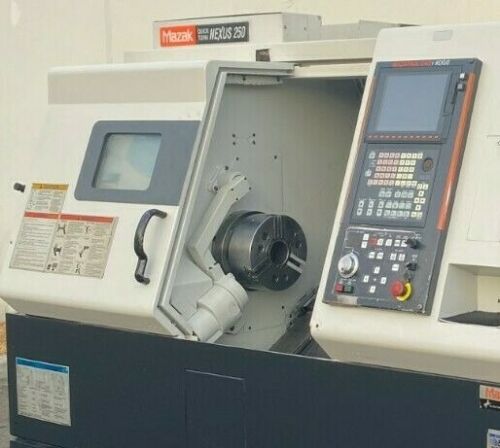

| 10″ 3-Jaw Kitagawa Hydraulic Chuck |
| PCMCIA Card Slot |
| 2 Step gear spindle for powerful torque |
| Programmable Tailstock with Quill |

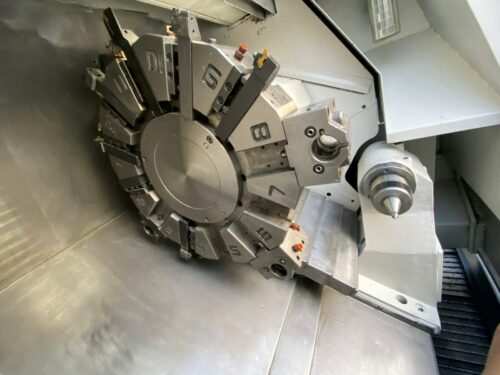

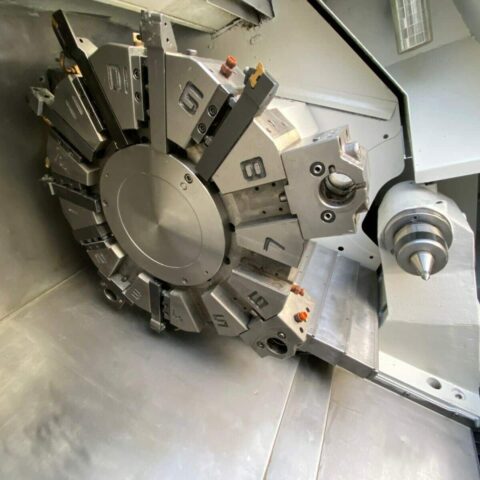

| 12 Station Turret with Tooling |
| Coolant System. |
| Automatic Lubrication system |
| Foot Operated Control for Chuck |
| Chip Conveyor |
| Specifications: |
|---|
| Max Turning Diameter: 14.75″ |
| Max Turning Length: 19.86″ |
| Max Bar Capacity: 3.05″ |
| Swing Over Bed: 26.57″ |
| Distance Between Centers: 29.85″ |
| X Axis Travel: 9.0″ |
| Z Axis Travel: 22.63″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 30 HP |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock Body Travel: 28.1″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

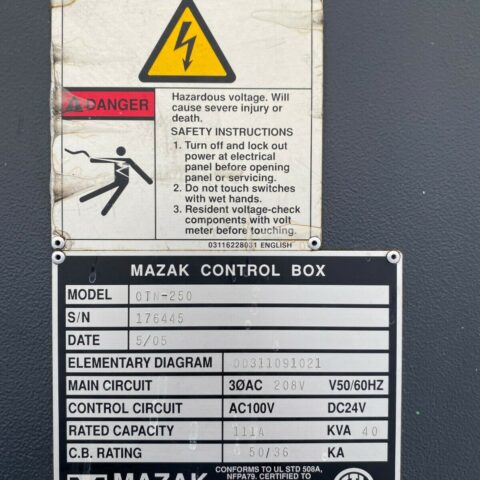

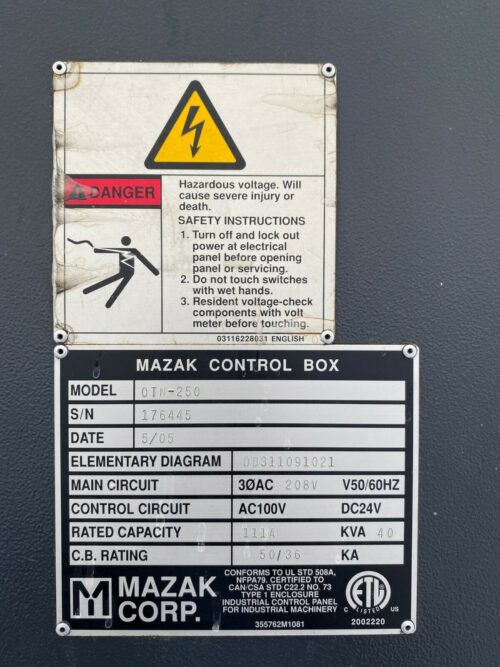

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: ″ High |
| Weight : 11000 lbs Approx. |
