*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | Multiplex 4200 |
| Year: | 2010 |
| Condition: | Used – Good |
| Machine Type: | Dual Spindle CNC Turning Center |
| Control: | Mazak Mazatrol 640T PC-Fusion CNC |
| Features: |
|---|

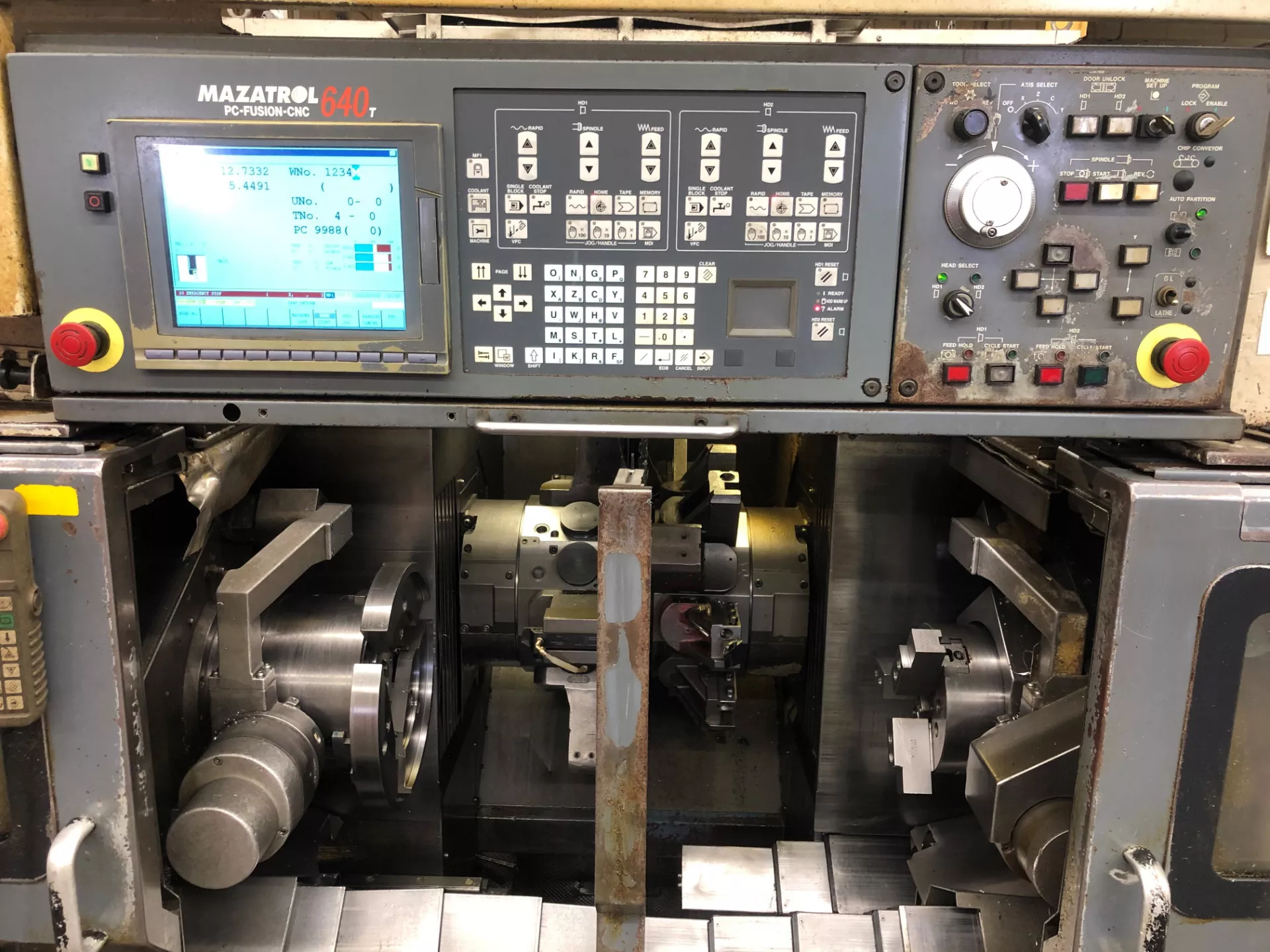

| Mazak Mazatrol 640T CNC Control |

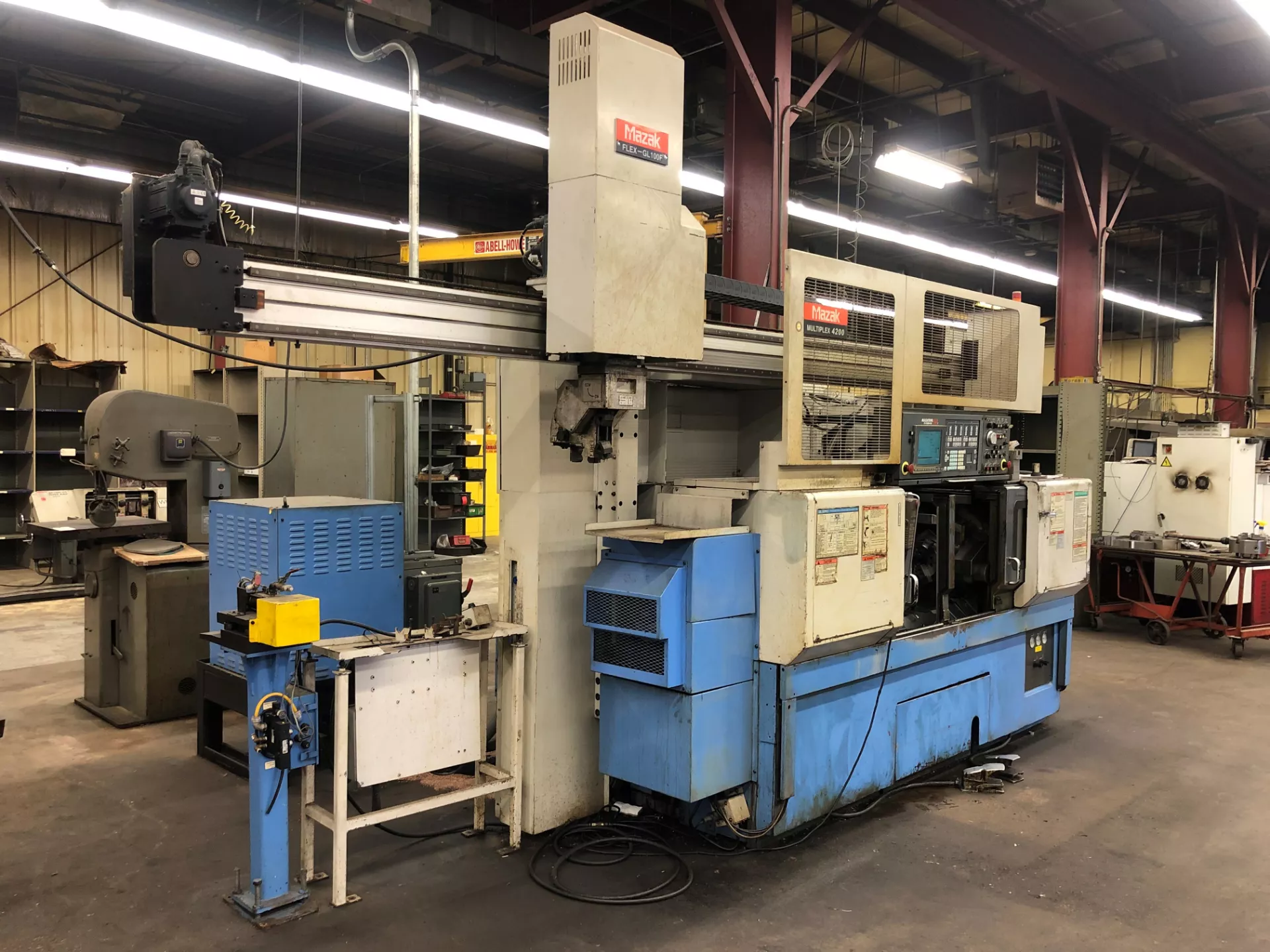

| Flex GL-100F Gantry Robot Loader |
| 10″ 3-Jaw Main Chuck |
| 8″ 3-Jaw Sub Chuck |

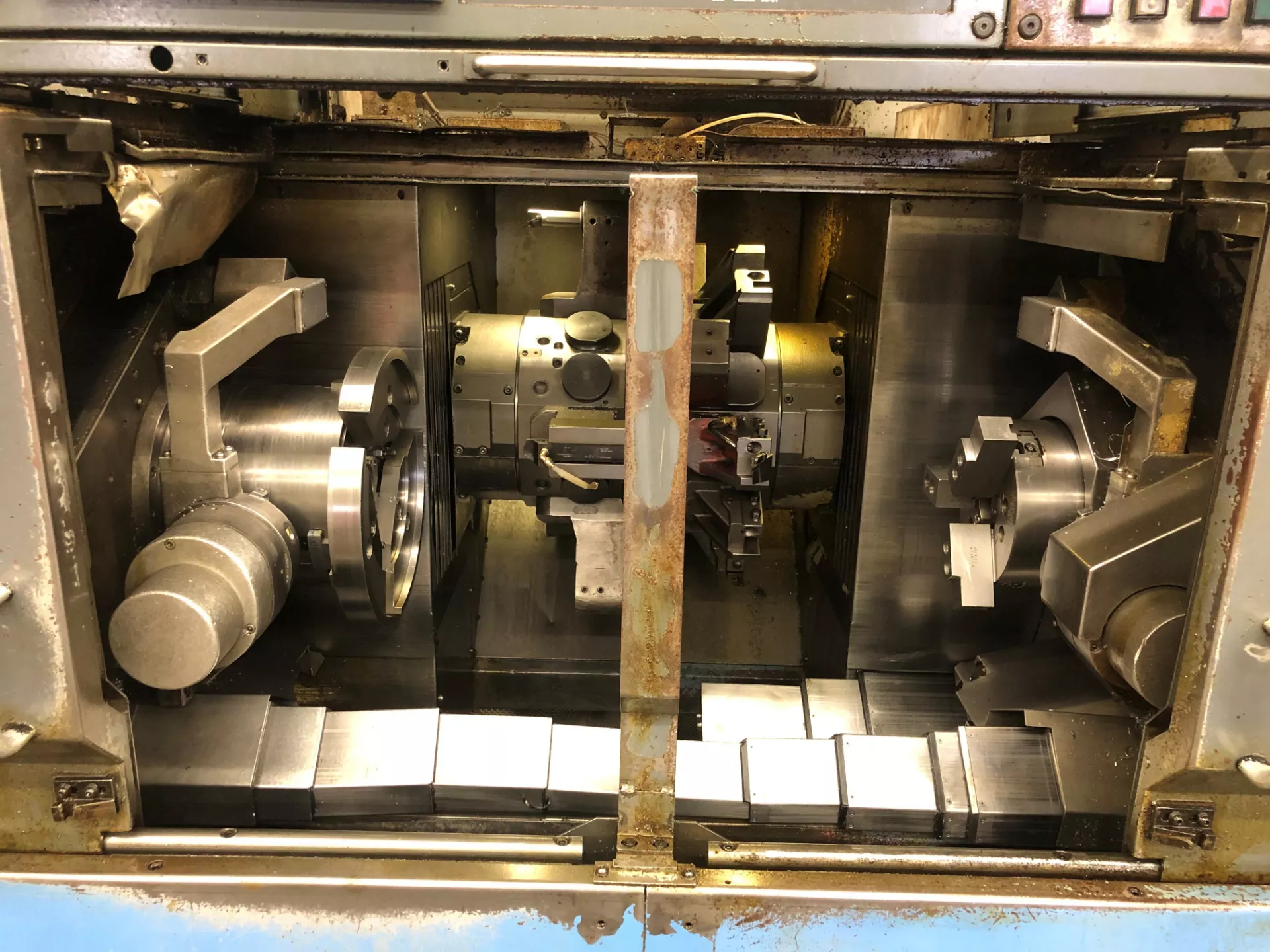

| Dual Opposed Spindles |
| (2) 12-Position Turrets |
| Dual Tool Eyes |
| Chip Conveyor |
| Automatic Parts Transfer Between Spindles |
| Hydraulic Chucking System |
| Coolant System |
| Fully Enclosed Splash Guard |
| Foot Pedals |
| Work Light |
| Capacity: |
|---|
| Max. Swing: 12.6″ |
| Standard Cutting Diameter: 10.24″ |
| Max. Bar Diameter: 2.0″ |
| Max. Machining Length (Chuckwork): 7.0″ |
| Max. Machining Length (Shaftwork): 21.0″ |
| Distance Between Spindle Faces (Max.): 46.85″ |
| Distance Between Spindle Faces (Min.): 10.15″ |
| Travels: |
|---|
| X-Axis Travel (L & R): 9.06″ |
| Z-Axis Travel (Left): 17.25″ |
| Z-Axis Travel (Right): 19.37″ |
| Rapid Traverse (X-Axis): 1,200 IPM |
| Rapid Traverse (Z-Axis): 1,300 IPM |
| Spindle: |
|---|
| Spindle Speed: 35 – 5,000 RPM |
| Spindle Motor: 20 HP (Cont.) / 30 HP (30 Min.) |
| Spindle Nose: A2-6″ |
| Spindle Bore: 2.4″ |
| Turret: |
|---|
| Number of Turrets: 2 (Left & Right) |
| Turret Type: Dodecagonal / Drum Non-Lift |
| Tool Stations Per Turret: 12 |
| General: |
|---|
| Air Required: 71 PSI / 14 SCFM |
| Power: 77.4 KVA |
| Overall Dimensions: 140″ L x 82″ W x 98″ H Approx. |

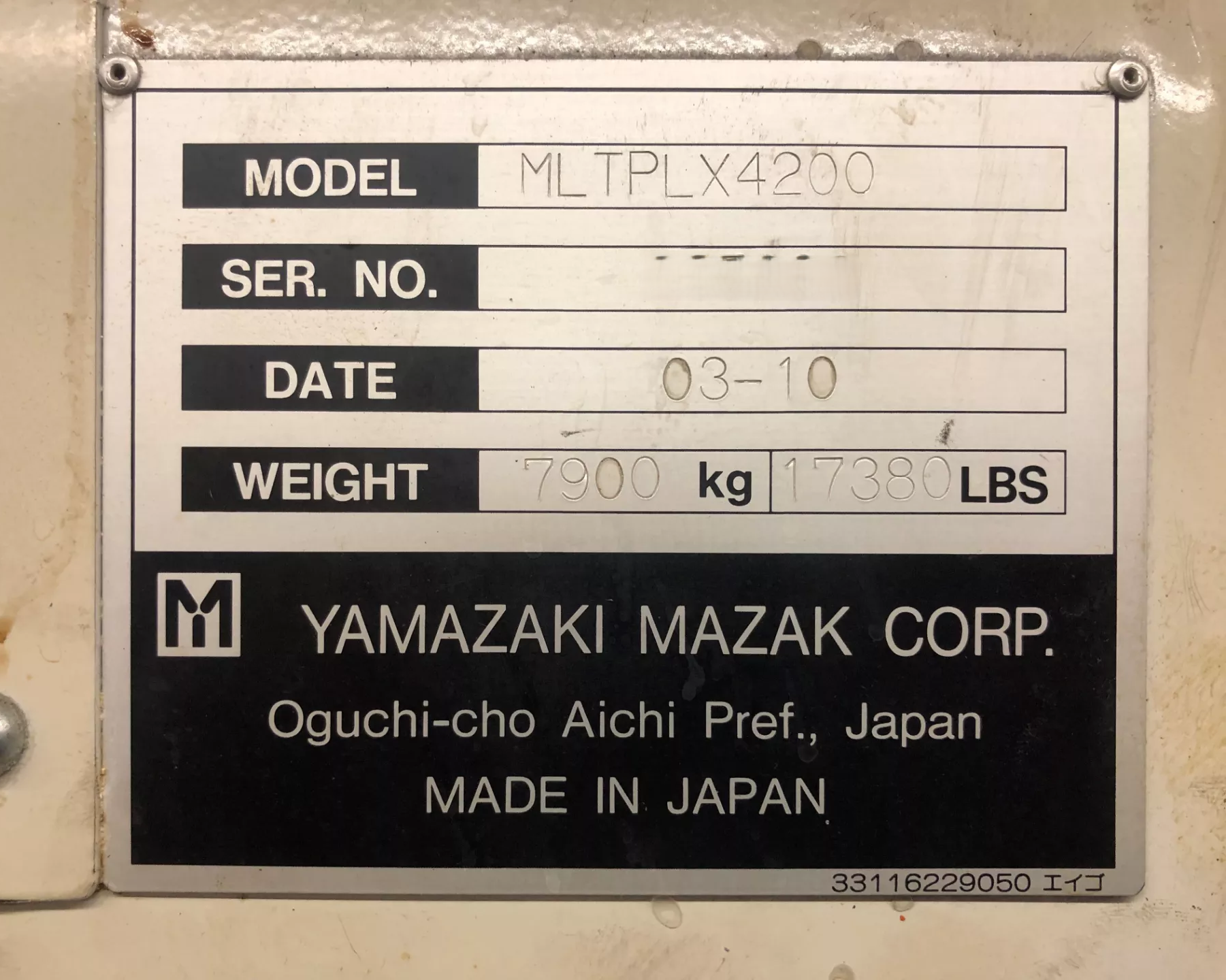

| Machine Weight: 17,380 lbs. |
