*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

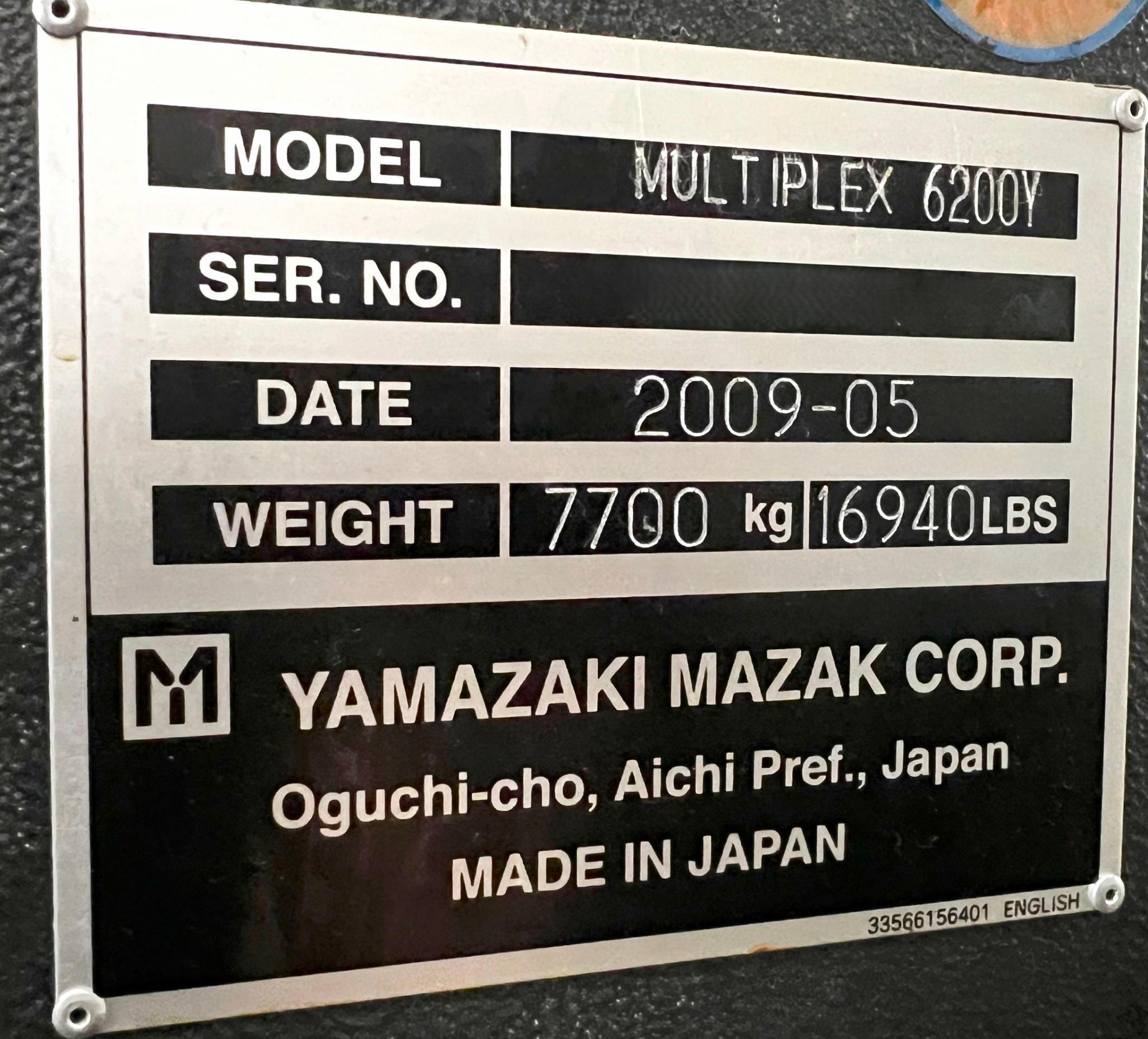

| Make: | Mazak |
| Model: | Multiplex 6200Y |
| Year: | 2009 |
| Machine Type: | CNC Turning Center |
| CNC Control: | MAZATROL 640T CNC Control |
| Equipped With: |
|---|
| MAZATROL 640T CNC Control |
| Y-Axis |
| C-Axis |
| Twin Turret |
| Sub-Spindle |
| Live Tooling / Milling |
| Overload Detection |
| LNS Quick Load Servo S3 Bar Feeder |
| Barfeed Interface |
| Concep 2000 Chip Conveyor |
| Parts Conveyor |
| High-Pressure Coolant – 213 PSI |
| Turret Air Blast |
| Signal Tower Lights |
| Tool Holders in Turrets Included |
| Capacity: |
|---|
| Maximum Swing Over Bed: 12.60″ |
| Maximum Turning Diameter: 10.24″ |
| Maximum Turning Length: 20.87″ |
| Distance Between Centers: 47″ |
| Maximum Machining Length – Chuck Work: 7″ |
| Maximum Machining Length – Shaft Work: 21″ |
| Bar Capacity: 2.00″ |
| Travels: |
|---|
| X-Axis Travel: 9.45″ |
| Z-Axis Travel: 17.32″ |
| Spindle: |
|---|
| Chuck Size: 8″ |
| Chuck Type: Hydraulic |
| Chuck: Kitagawa B-208 3-Jaw |
| Spindle Bore: 2.44″ |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Nose: A2-6 |
| Turrets: |
|---|
| Main & Second Turret: 12 Tool Positions |
| Total Turret Positions: 24 |
| Live Milling Maximum Speed: 4,500 RPM |
| Bar Feeder: |
|---|
| Manufacturer: LNS |
| Model: Quick Load Servo S3 |
| Type: Servo Bar Feeder |
| General: |
|---|
| Machine Weight (Approx.): 16,940 lbs |
