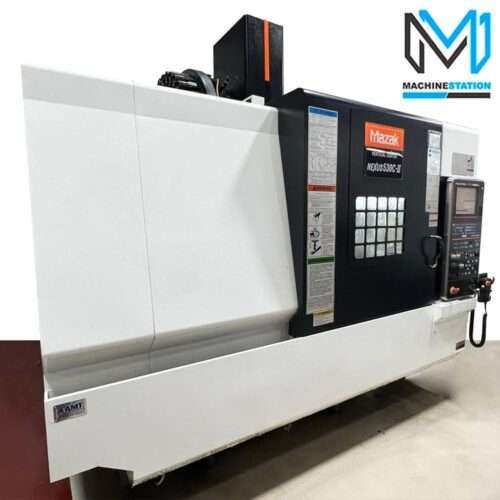

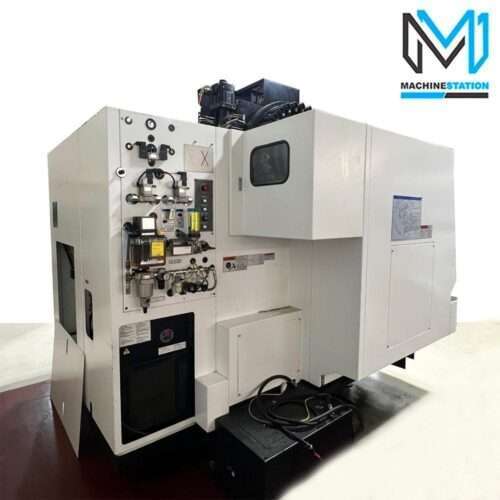

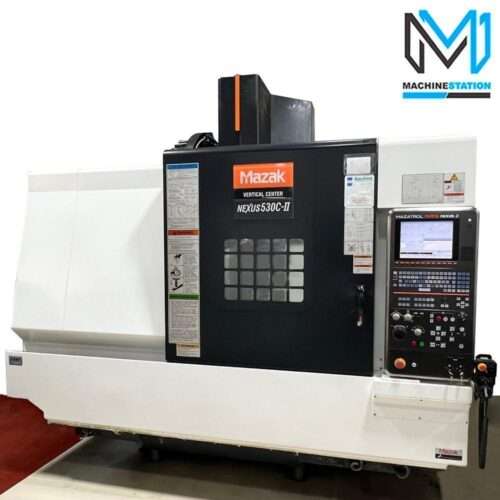

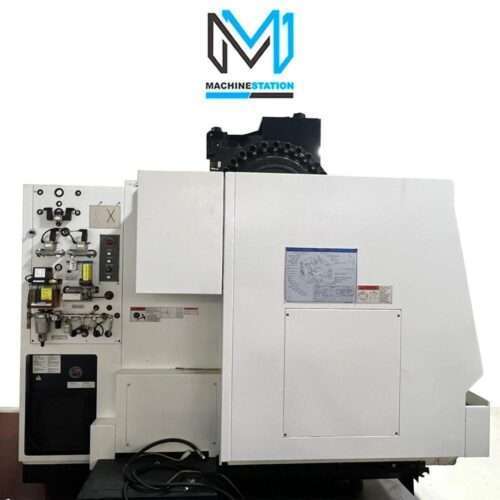

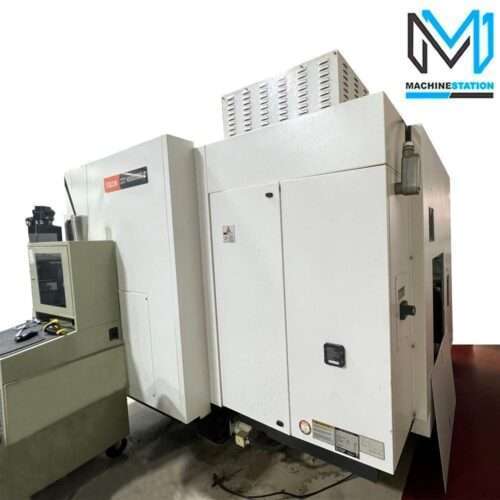

Mazak Nexus VCN 530C-II 4th Axis Vertical Machining Center

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

• Features:

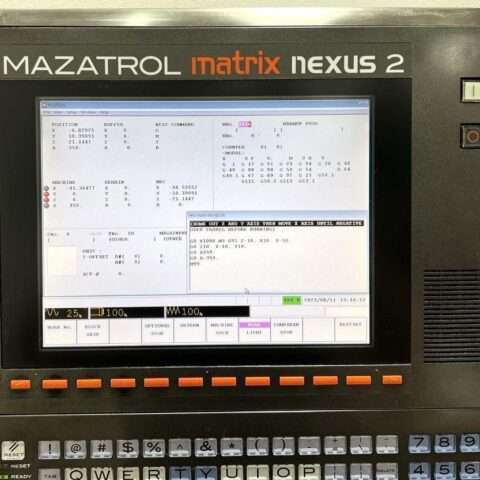

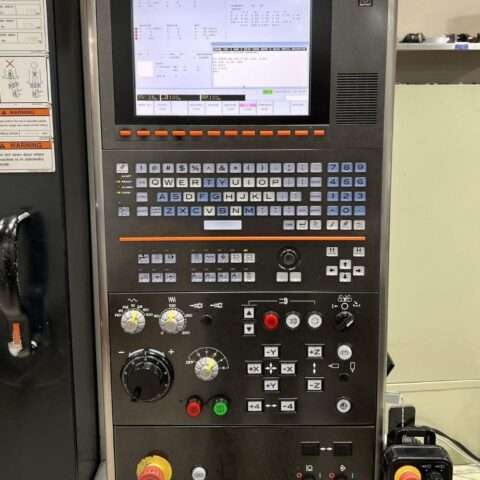

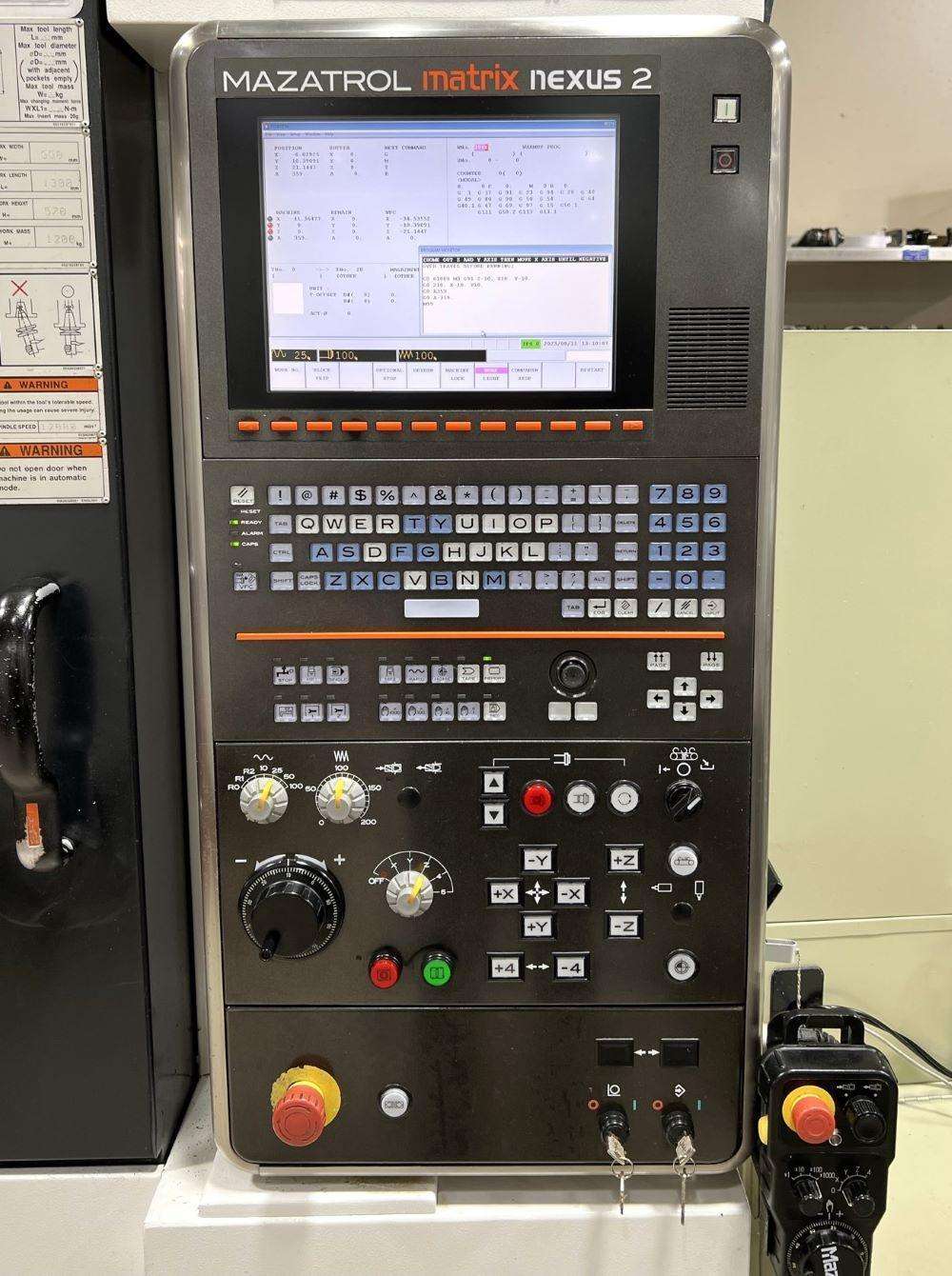

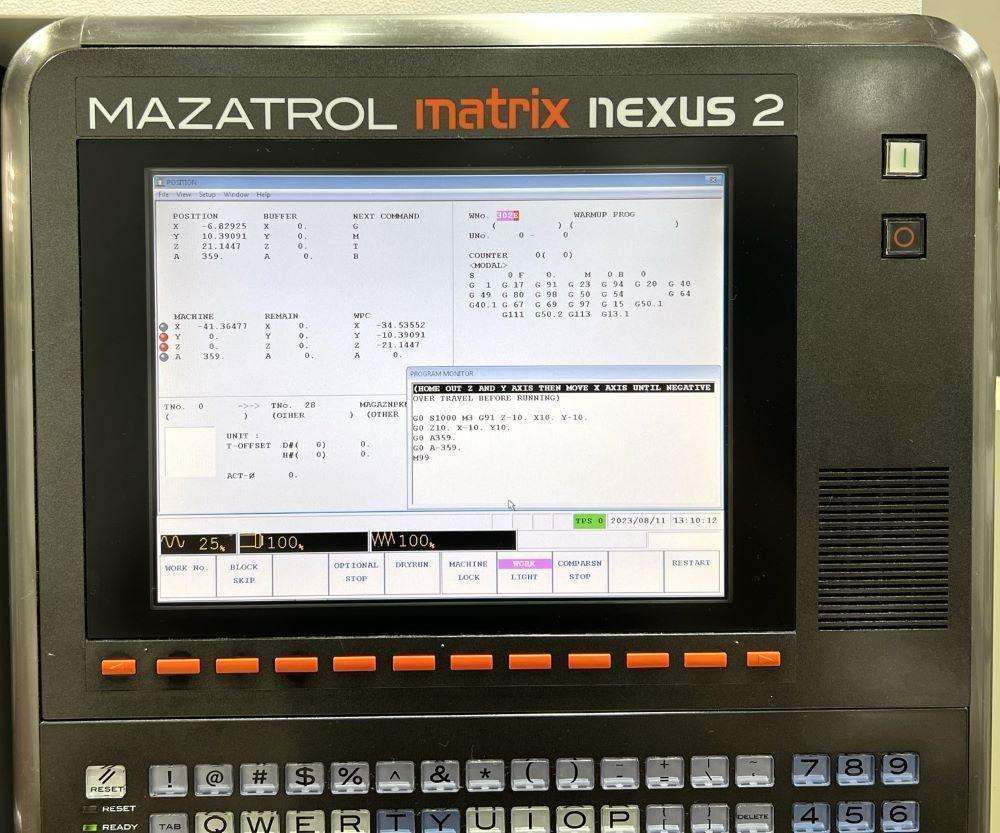

• Mazatrol Matrix Nexus 2 CNC Control

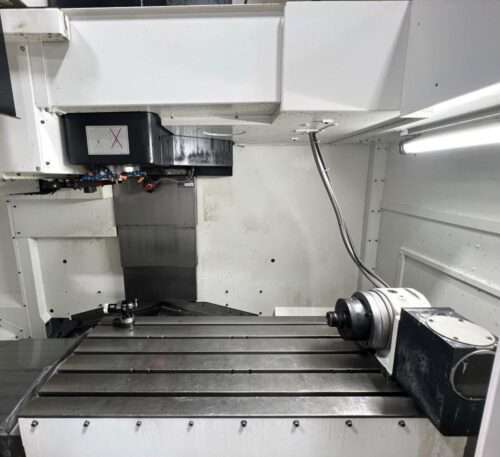

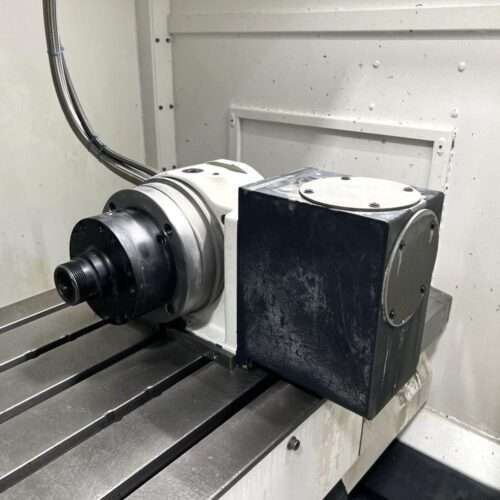

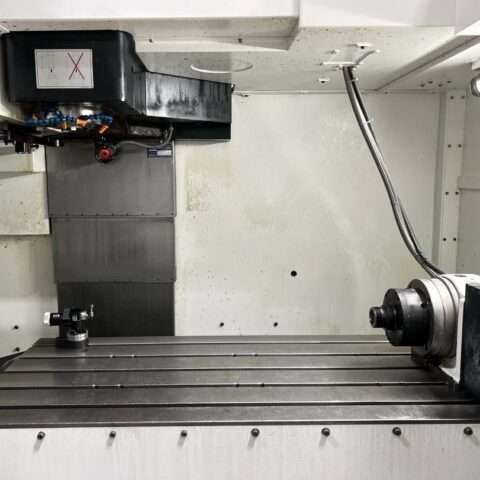

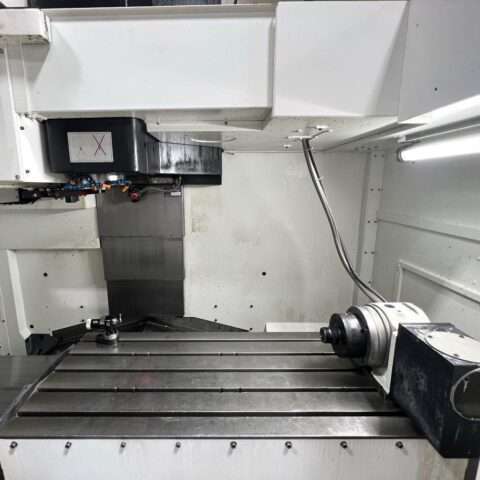

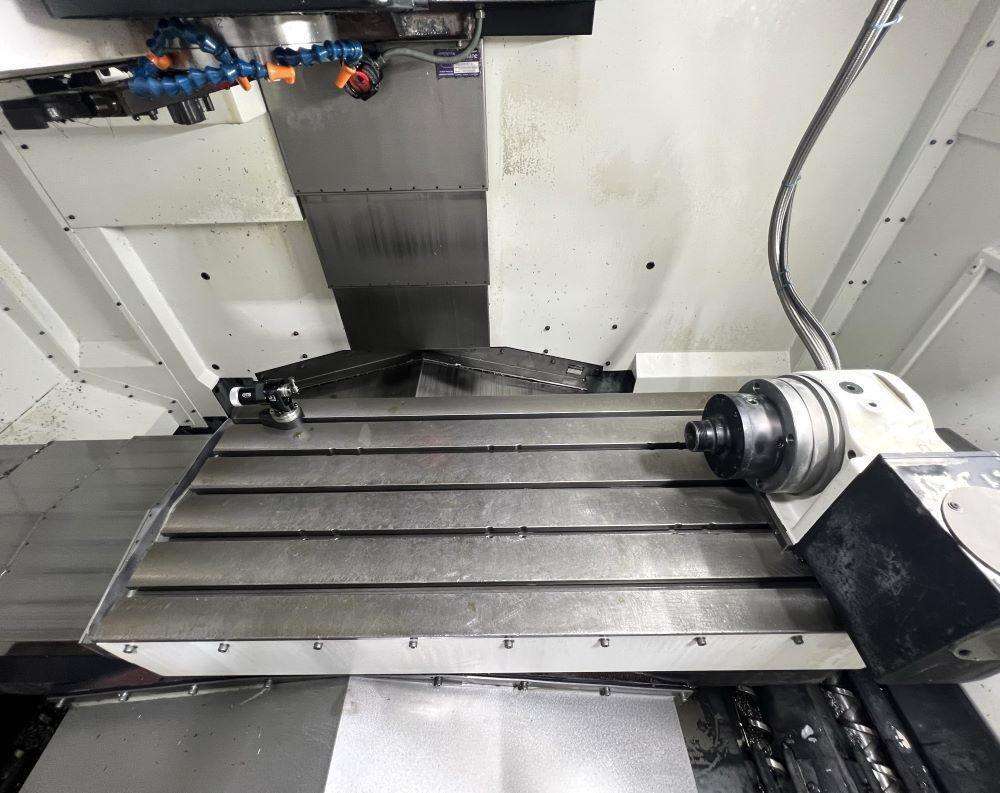

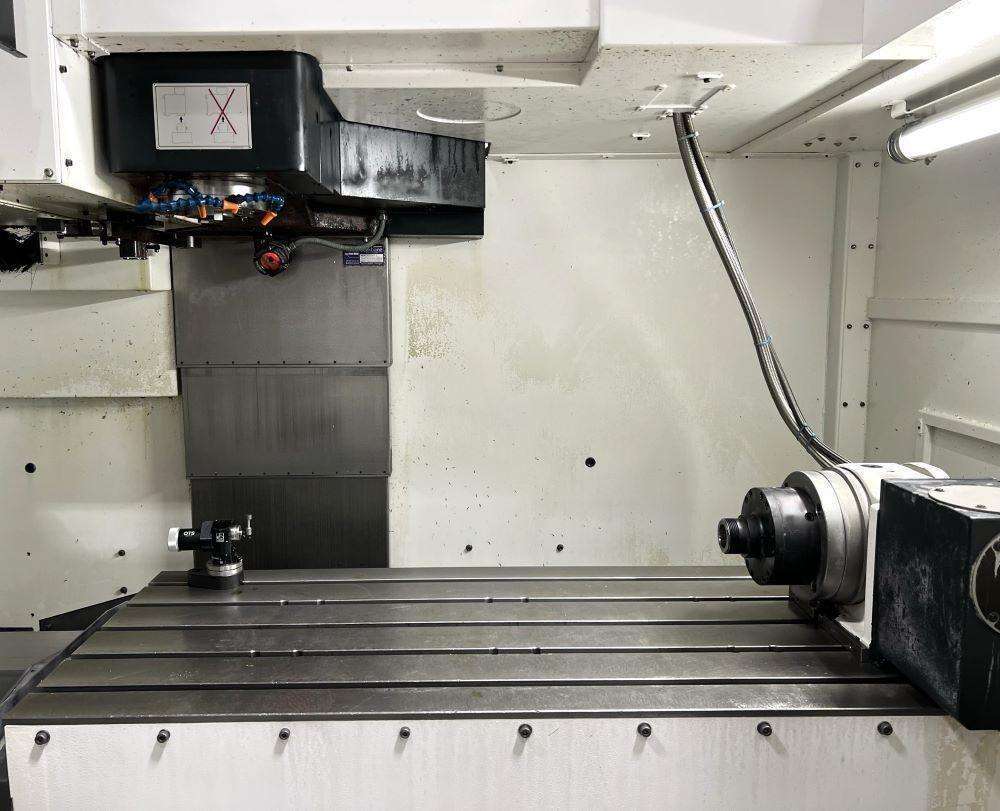

• Kitagawa 4th Axis Rotary Table
• 12,000 RPM High Speed Spindle
• Renishaw Probing System
• 25 HP High Torque Spindle
• Through Spindle Coolant

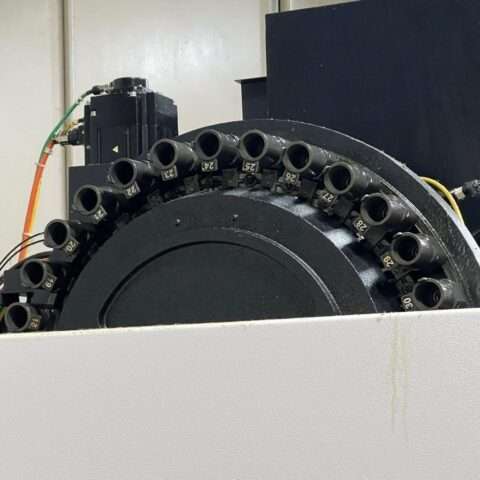

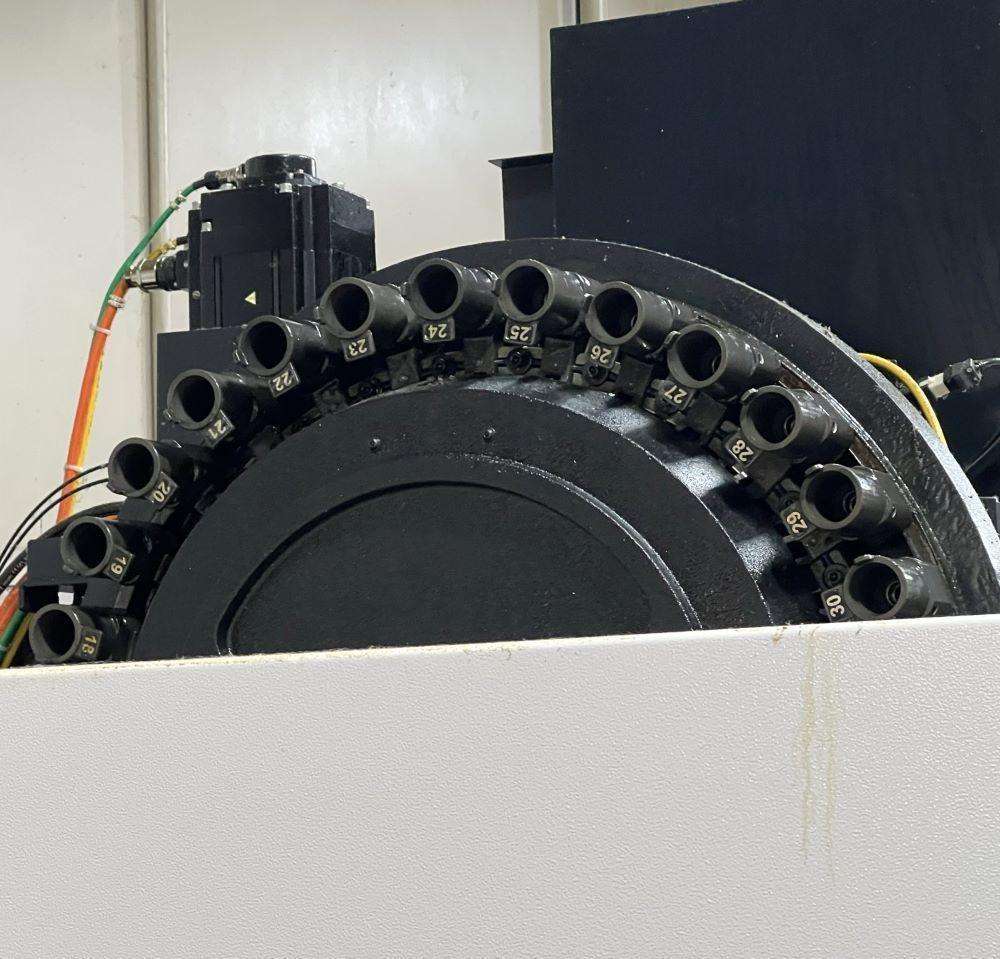

• 30 Station Automatic tool changer
• 40 Taper Spindle
• USB Drive
• PCMCIA Card Slot
• MPG Handwheel Control
• Rigid Tapping
• Spindle Orientation
• High Pressure Coolant System
• OTS Tool Presetter
• Chip Conveyor

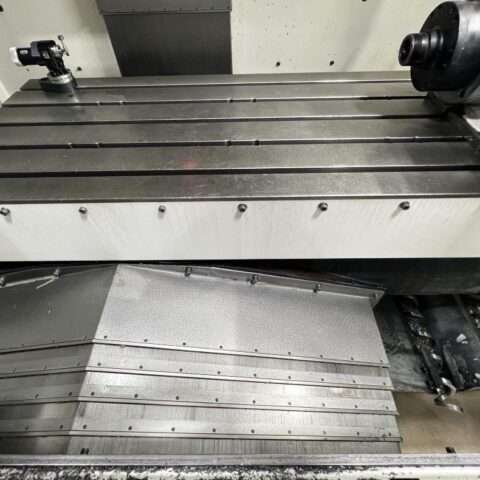

• Telescopic way covers
• Transformer

• Specifications:

• Travels:
• X-Axis: 41.3″
• Y-Axis: 20.9″
• Z-Axis: 20.1″
• Rapid Traverse Rates Axis: 1645 IPM
• Cutting Feed Rates: 987 IPM
• Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

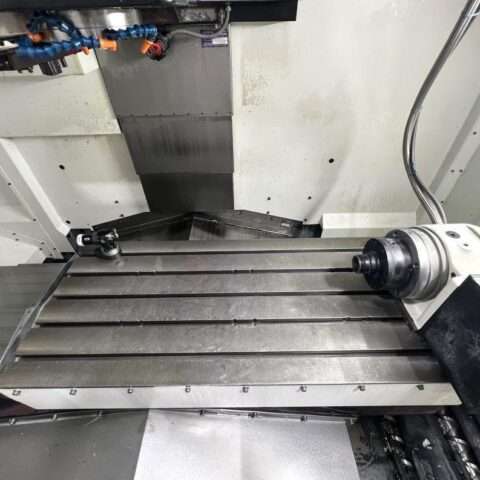

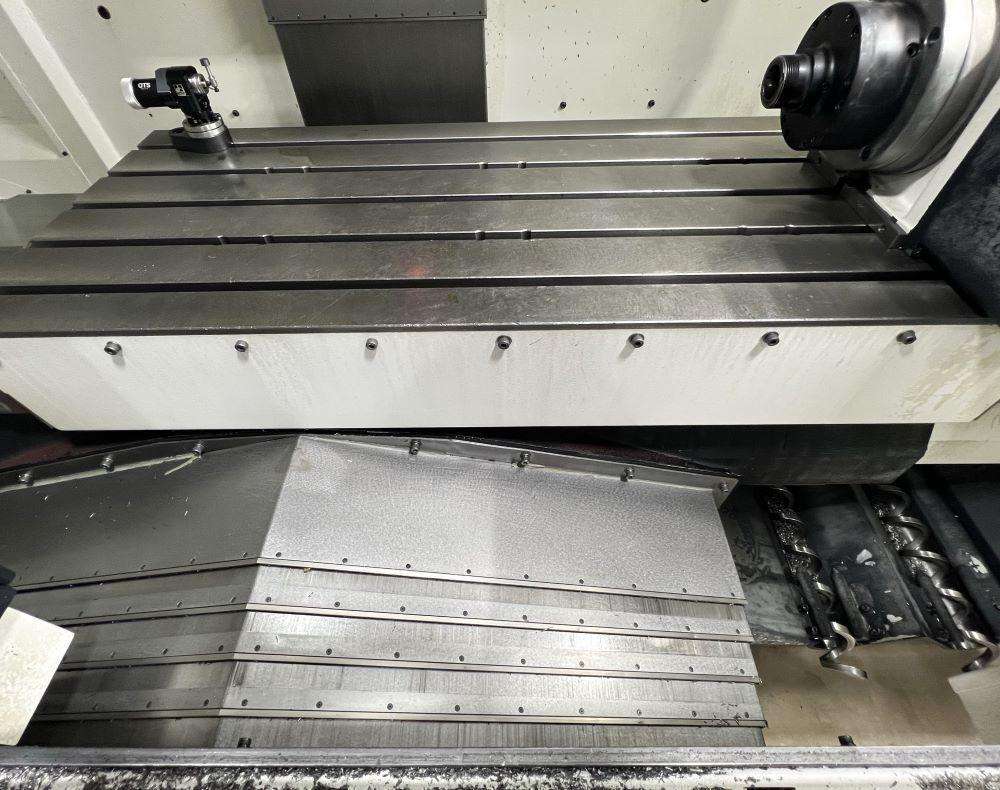

• Table:

• Length: 51.18″
• Width: 21.65″
• Max Weight on Table: 2646 lbs

• Spindle:

• Taper Size: 40
• Speed Range: 12000 RPM
• Spindle Power: 25 HP

• Automatic Tool Changer:

• Capacity: 30 Station Side Mounted
• Max Tool Weight: 17.6 lbs
• Max Tool Dia: 3.25″ – 4.92″
• Max Tool Length: 13.78″
• Tool Changing Time : 1.3 Seconds

• General:

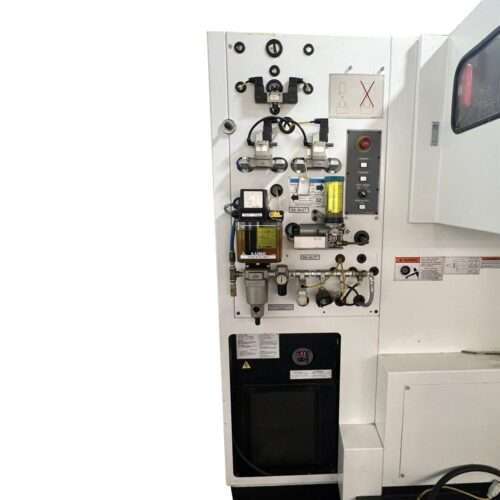

• Air Required: 100 psi, 4 scfm

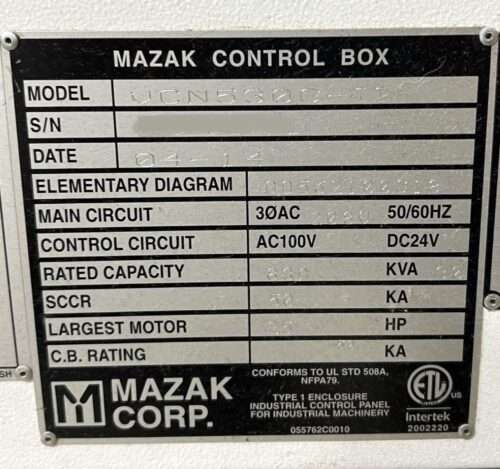

• Power: 220v / 30 kva / 3-Phase
• Overall Dimensions: ” x  x ” High

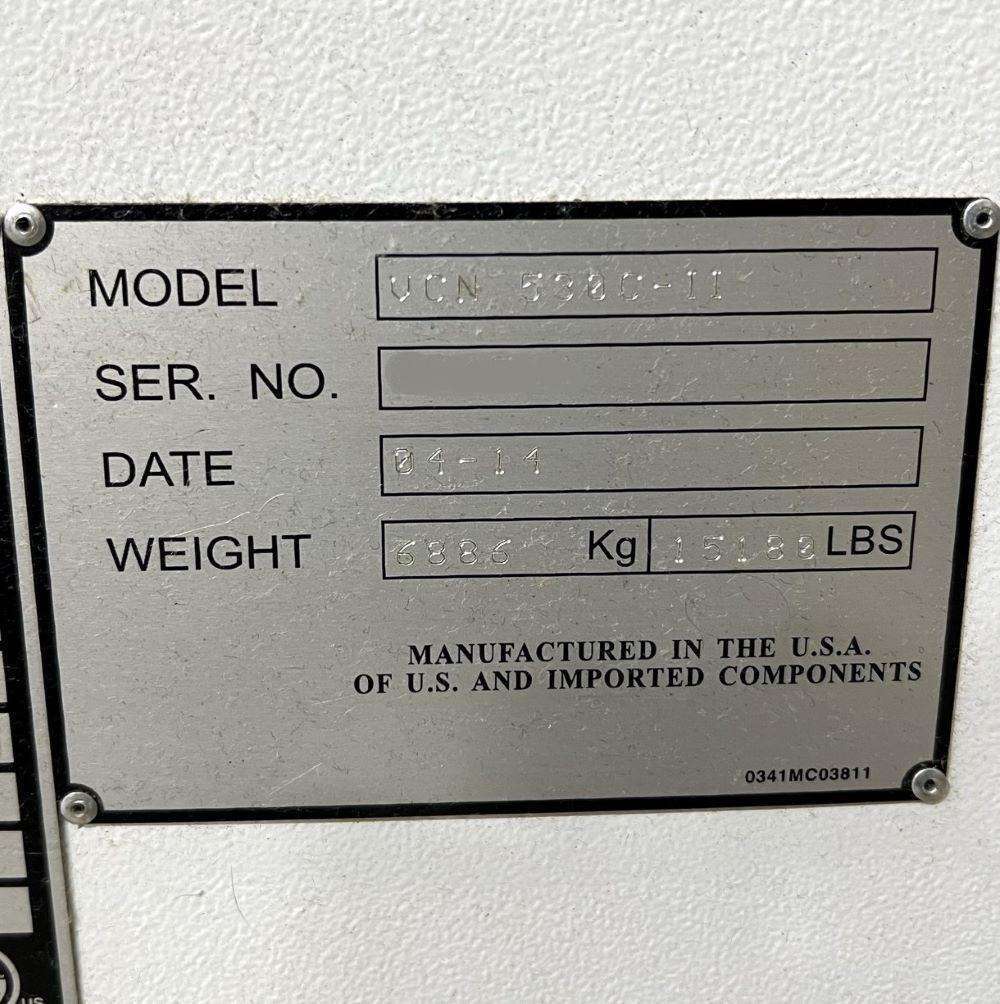

• Weight: 15,180 lbs
