*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

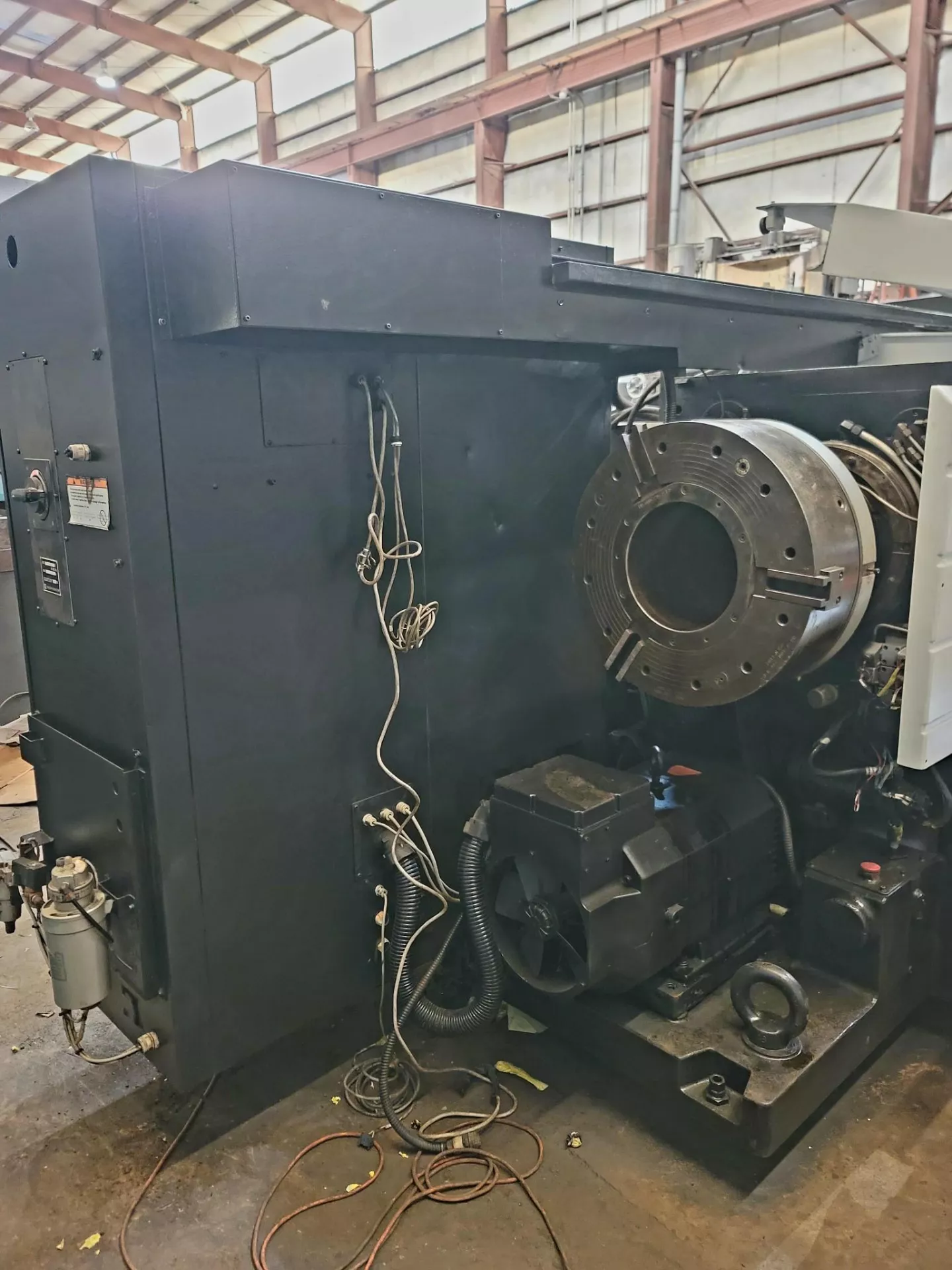

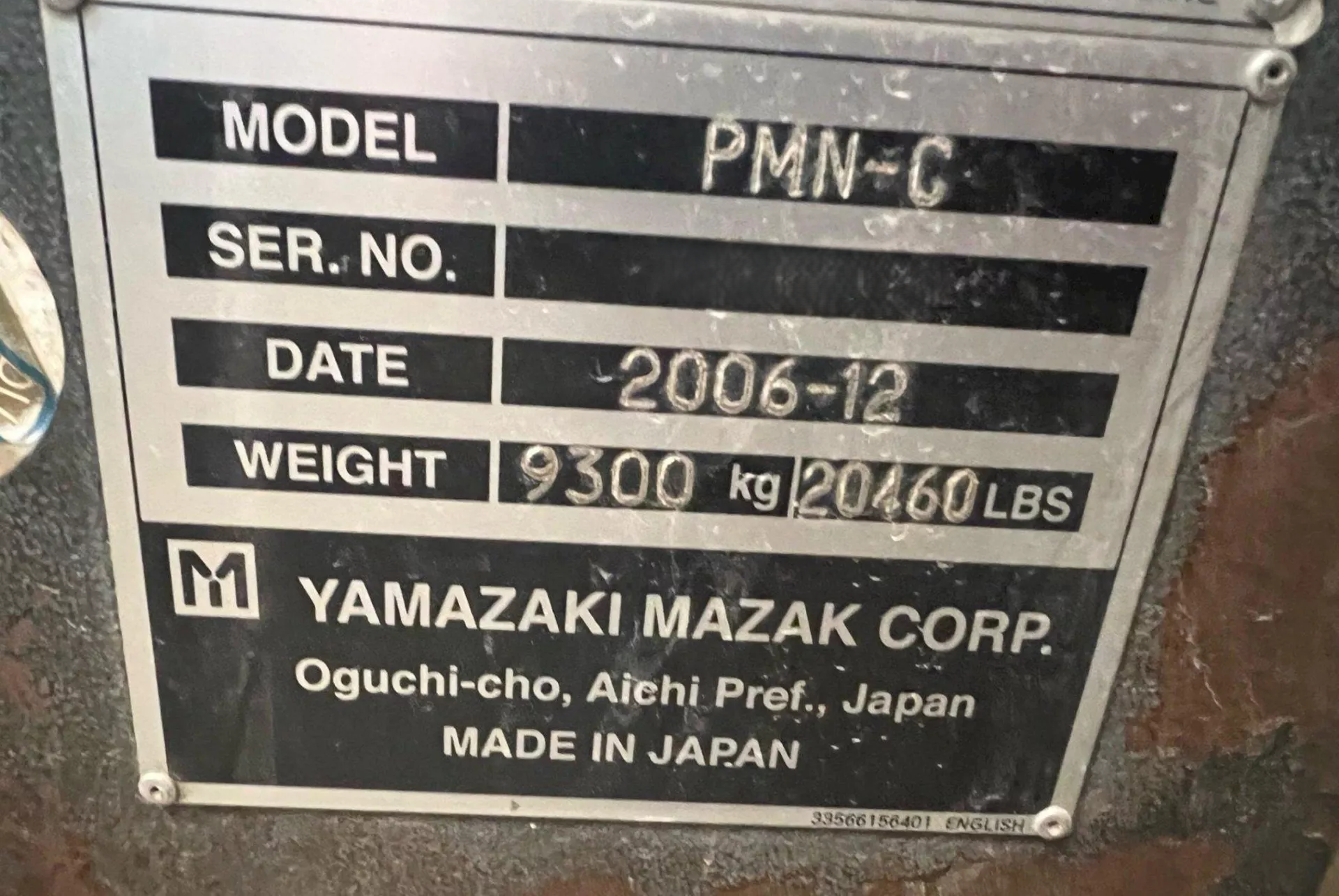

| Make: | Mazak |
| Model: | Powermaster Chucker (PMC) |
| Year: | 2006 |
| Equipped With: |
|---|

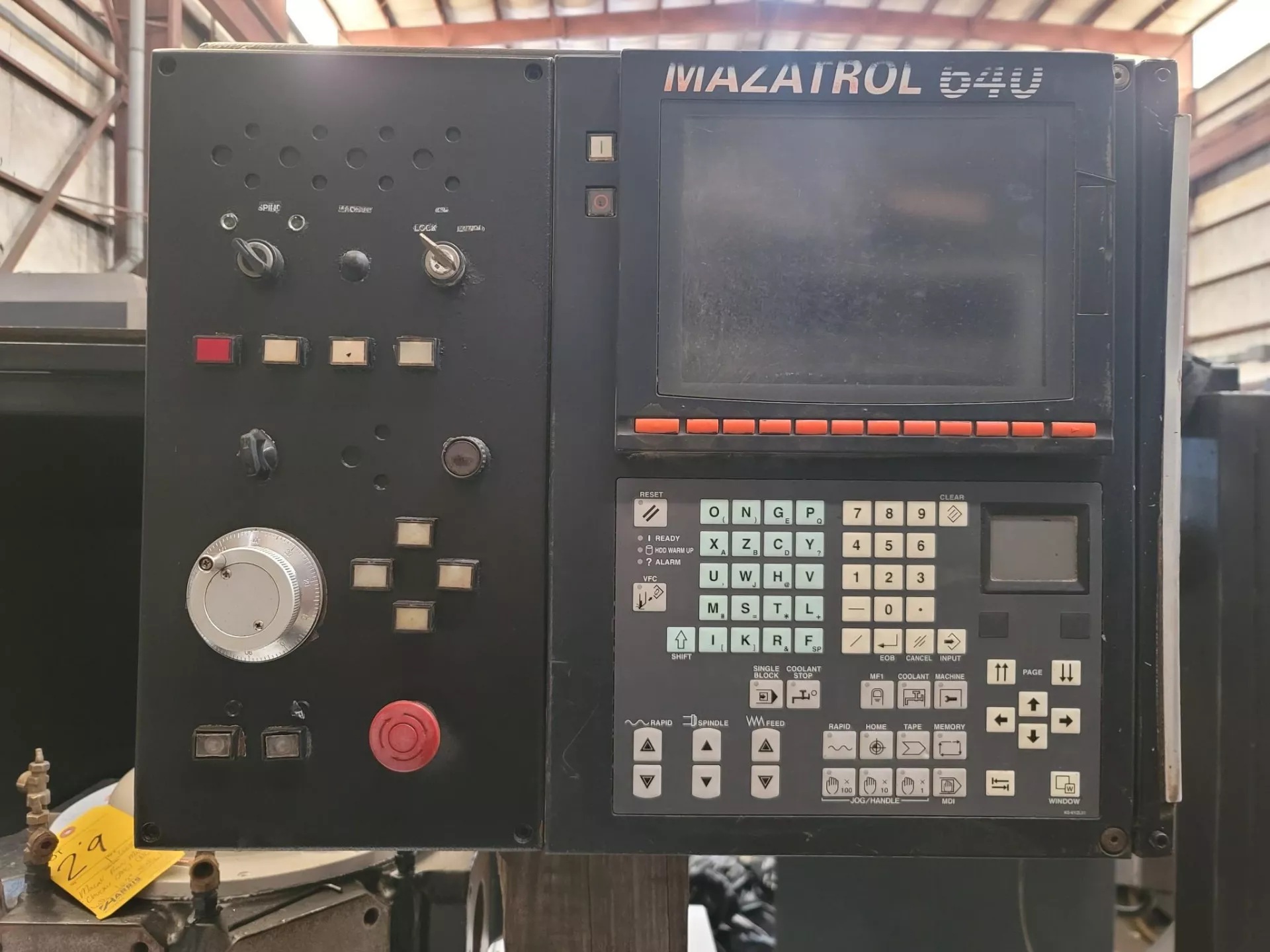

| Mazatrol Fusion 640T CNC Control |
| 24″ Front 4-Jaw Chuck |
| 32″ Rear Air Chuck |
| 8-Position Turret |
| 6 Turret Tool Holders |
| Hydraulic Tank and Motor |
| Chuck Guard |
| Electrical Panel |
| Coolant Pan |
| Covers Detached for Transport |
| Under Power |
| Capacity: |
|---|
| Max Swing Over Bed Ways: 42.00″ |
| Max Turning Diameter: 39.37″ |
| Distance, Turret to Spindle Face: 62.99″ |
| Spindle Bore: 10.8″ |
| Travels: |
|---|
| X-Axis Travel: 22.50″ |
| Z-Axis Travel: 44.88″ |
| Rapid Traverse (X-Axis): Approx. 472 IPM |
| Rapid Traverse (Z-Axis): Approx. 787 IPM |
| Spindle: |
|---|
| Spindle Speed: Approx. 500 RPM |
| Main Motor: 30/45 KVA |
| Turret: |
|---|
| Turret Capacity: 8 Stations |
| General: |
|---|
| Total Cutting Time: 5,182 Hours |
| Machine Dimensions (Approx.): 225″ × 90″ × 98″ |
| Machine Weight (Approx.): 24,500 lbs. |
