*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | QTS-250 |
| Year: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| Country of Origin: | Japan |
-
Features:
- High-Rigidity Slant Bed CNC Lathe
- Built-In High-Torque Spindle
- Servo-Driven Turret
- Rigid Tapping Capability
- Thermally Stable Machine Design
- Automatic Central Lubrication System
- Fully Enclosed Machining Area
- Hydraulic Chuck & Cylinder System
-
Travels:
- X-Axis Travel: 8.7″
- Z-Axis Travel: 20.1″
-
Capacity:
- Chuck Size: 10″
- Chuck Manufacturer: Kitagawa
- Chuck Model: B210A815D
- Max Turning Diameter: 12.6″
- Max Turning Length: 20.1″
- Bar Capacity: 2.5″
-
Spindle:
- Spindle Nose: A2-6
- Spindle Speed: 4,000 RPM
- Spindle Motor: 35 HP
- High-Torque Built-In Spindle
-
Feedrates & Dynamics:
- Rapid Traverse (X / Z): 945 IPM
- High-Torque Servo Drives
- Precision Ground Ballscrews
-
Turret:
- Turret Type: Servo-Driven Turret
- Tool Stations: 12 Stations
- Tool Size: 1.0″ Square / Ø2.0″ Boring
-
Coolant System:
- Flood Coolant System
- Coolant Tank Capacity: Approx. 90 Gallons
- Coolant Gun
-
Chip Management:
- Auger-Type Chip Removal
- Hinged Belt Chip Conveyor (Optional)
-
CNC Control:

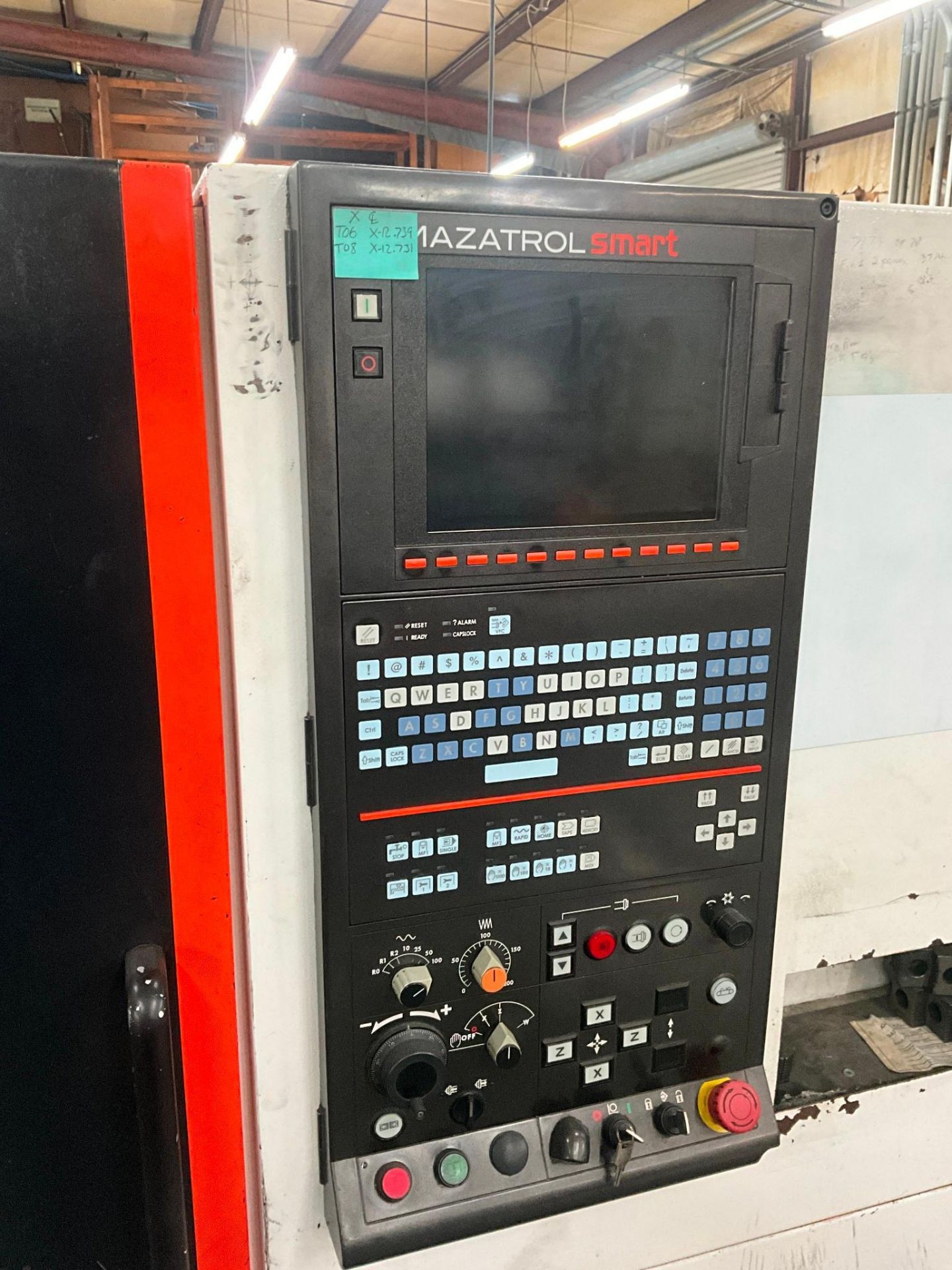

- Mazatrol CNC Control
- Color LCD Display
- Conversational & EIA/ISO Programming
- Ethernet & USB Connectivity
-
Electrical & General:
- Power Supply: AC 208V / 3-Phase / 50–60 Hz
- Rated Capacity: 40 kVA
- Largest Motor: 35 HP
- SCCR: 50 kA
- Machine Weight: Approx. 15,750 lbs
