*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

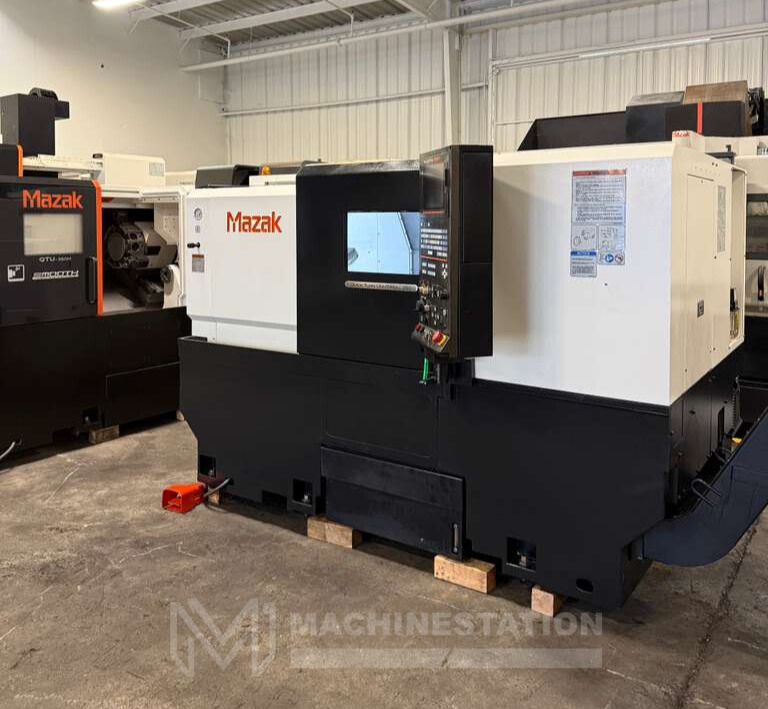

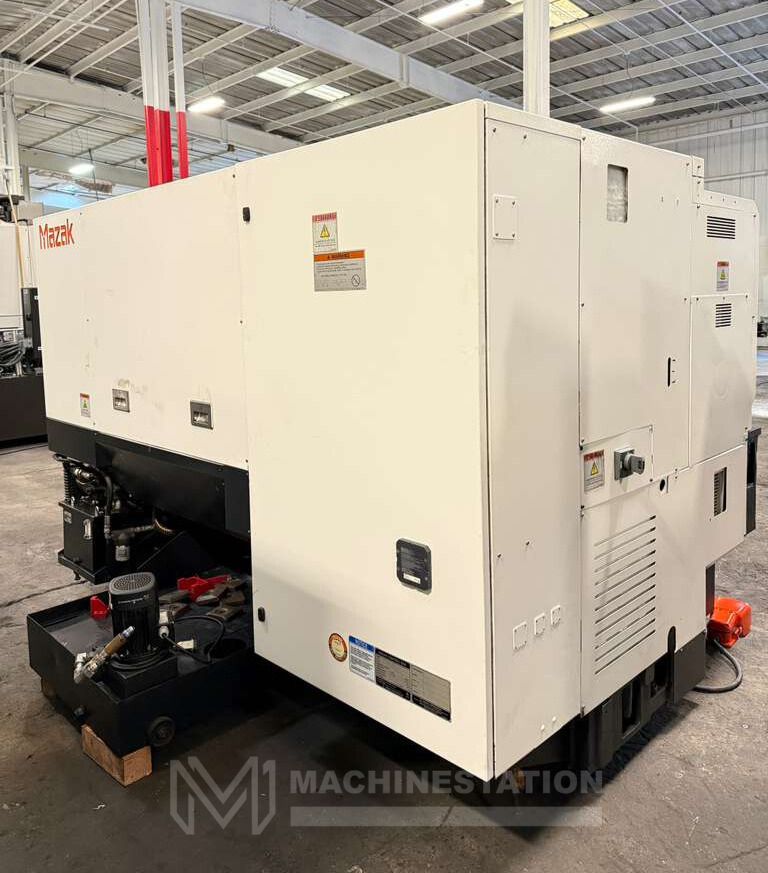

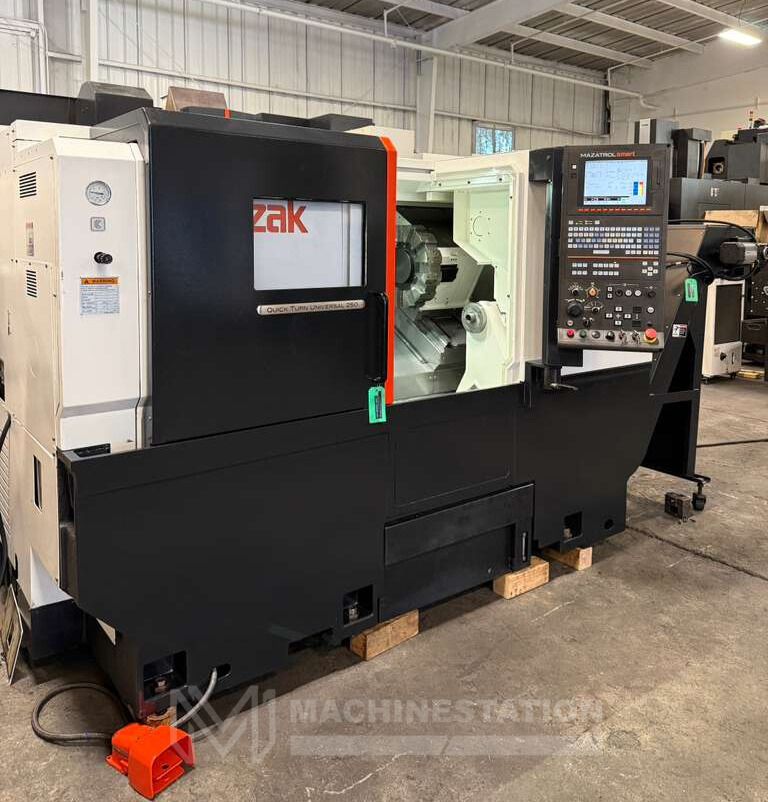

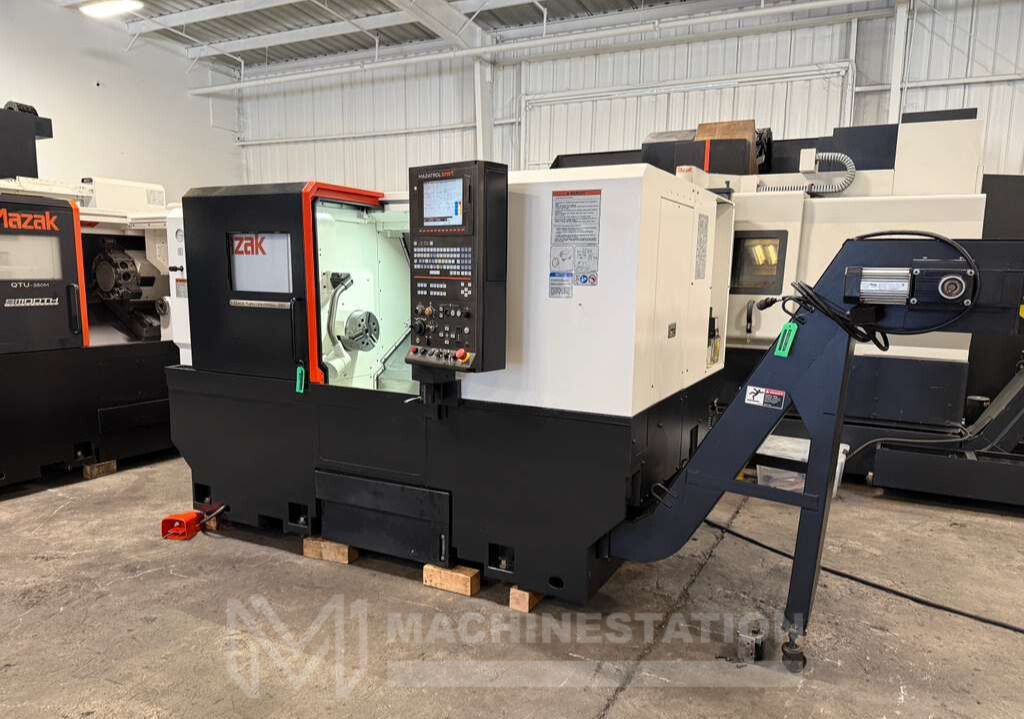

| Make: | Mazak |
| Model: | QTU-250 |
| Year: | 2015 |
| Equipped With: |
|---|

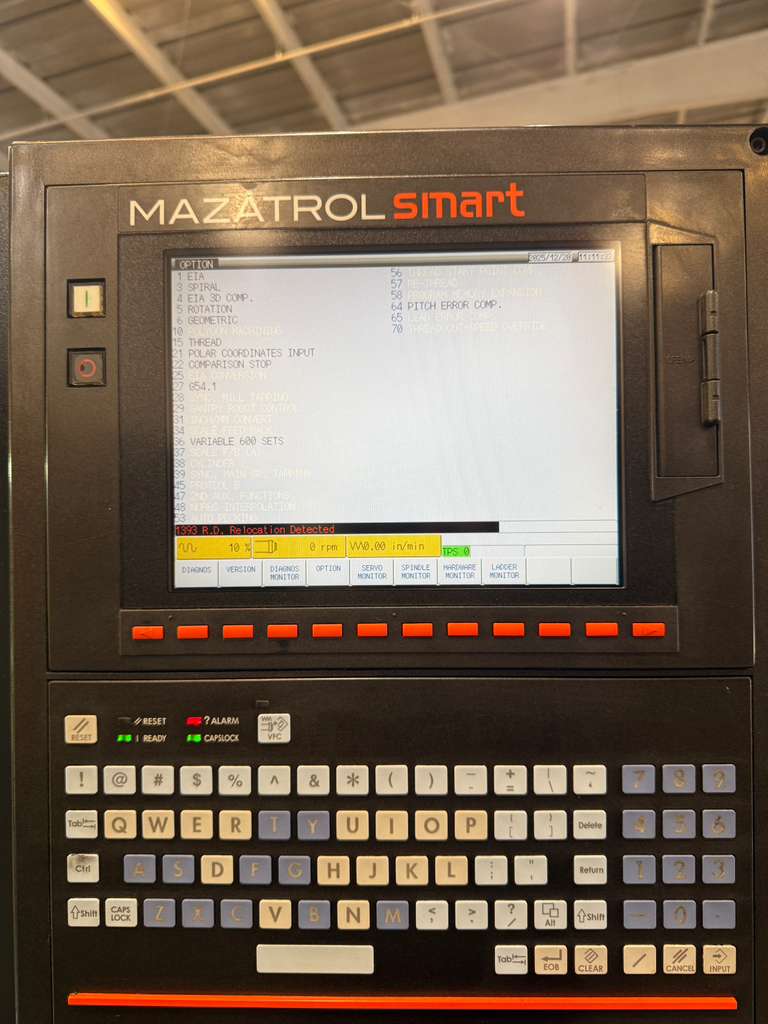

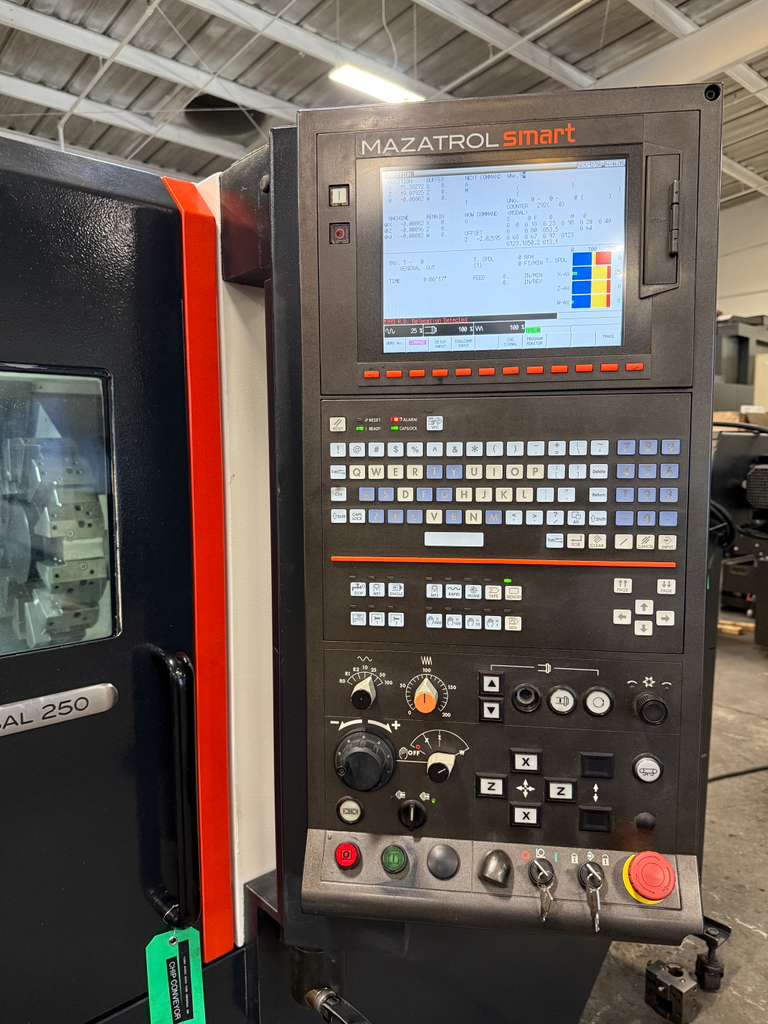

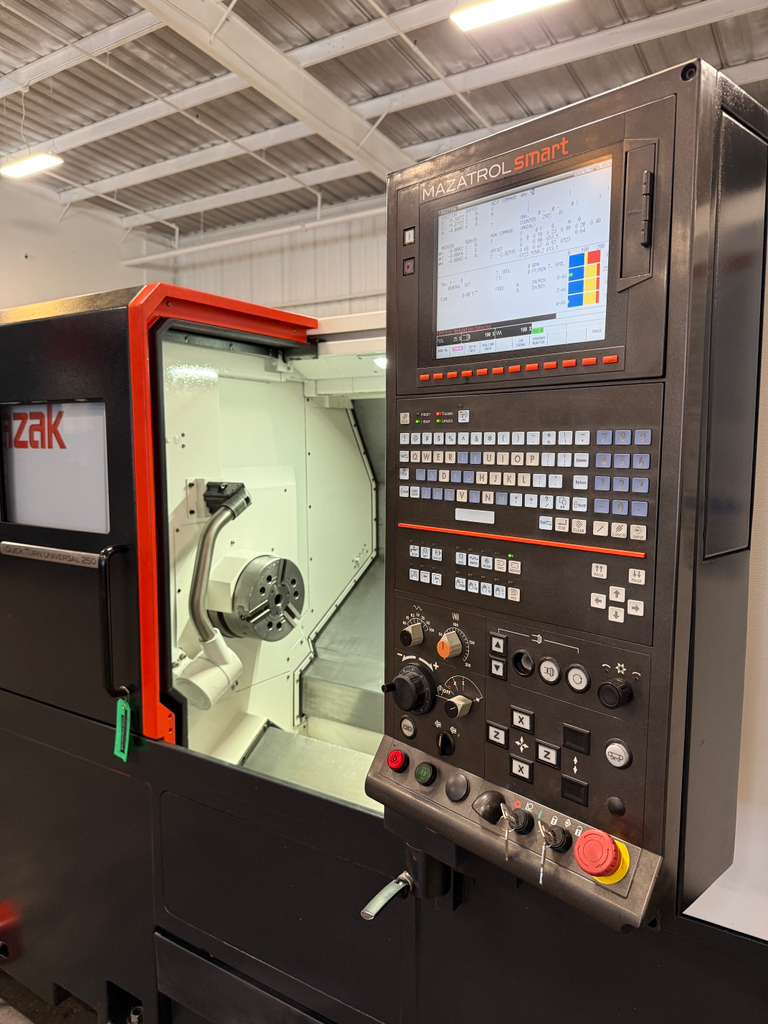

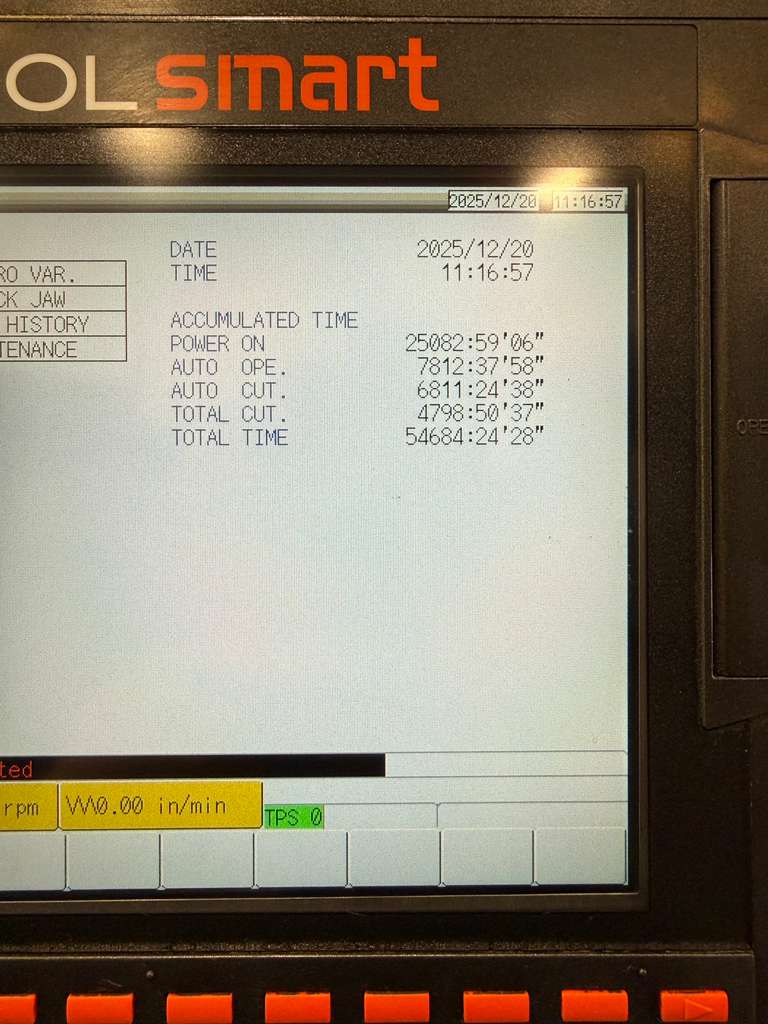

| Mazatrol Smart CNC Control |

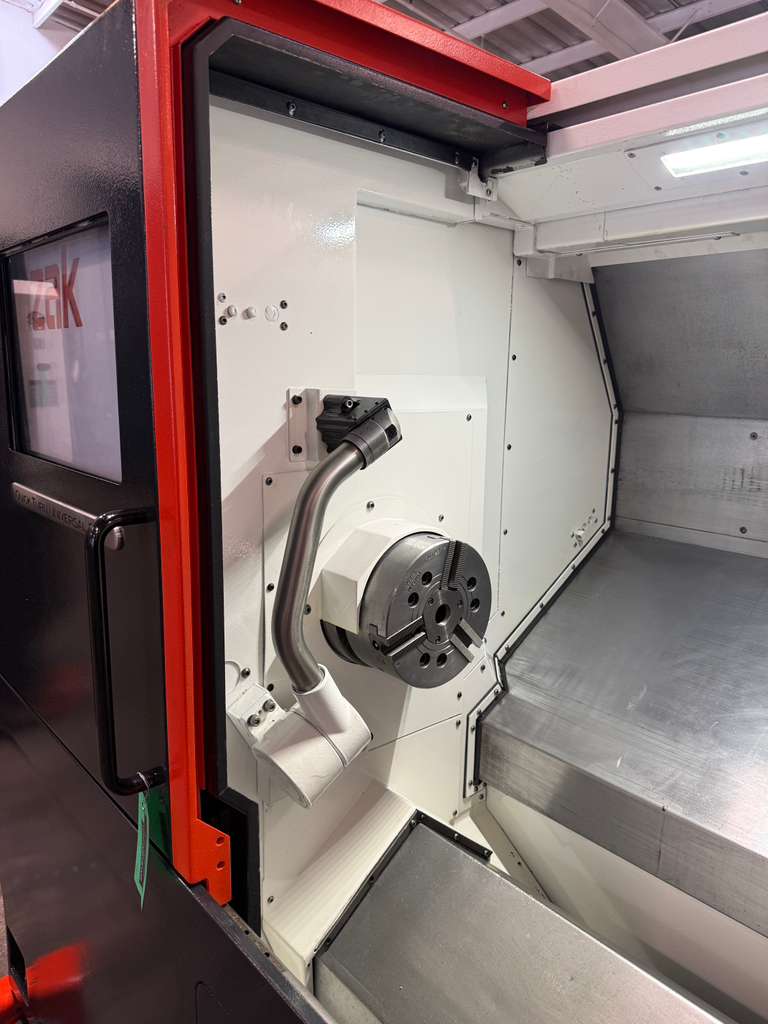

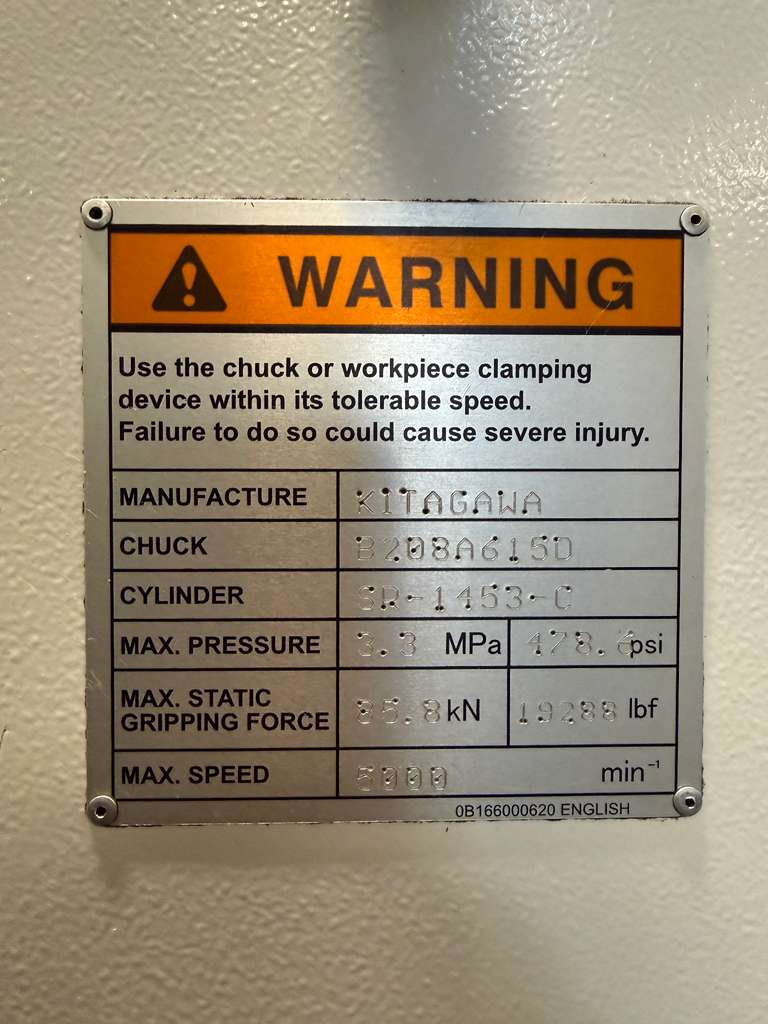

| 8″ 3- Jaw Kitagawa B-208 Hydraulic Chuck |

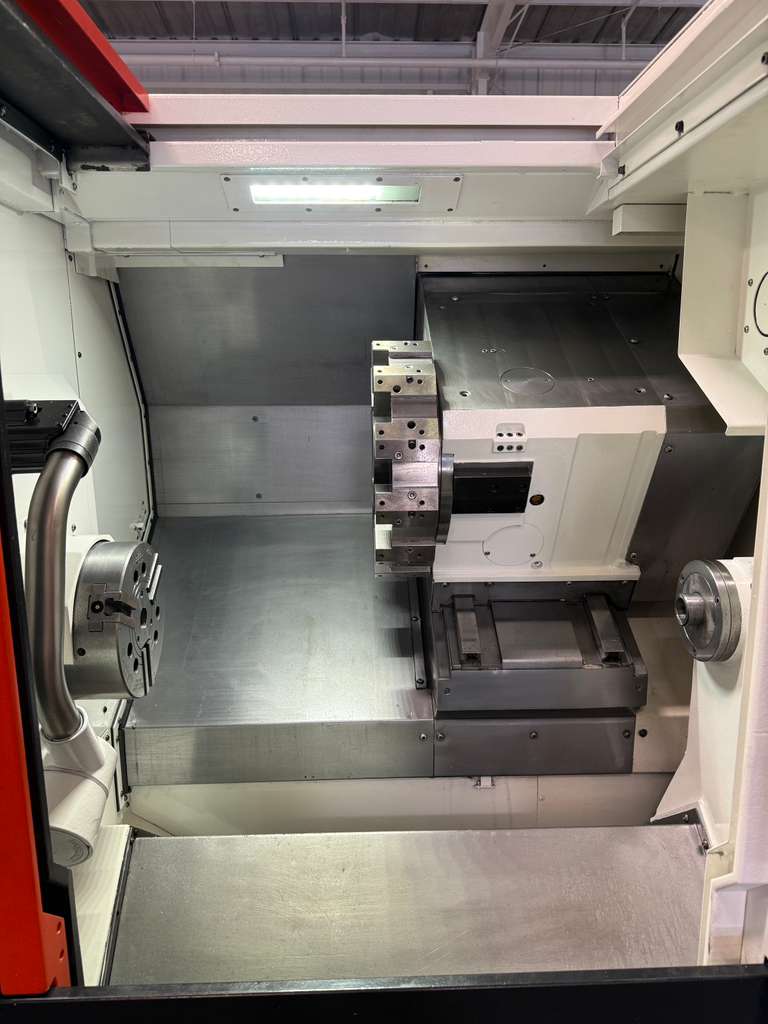

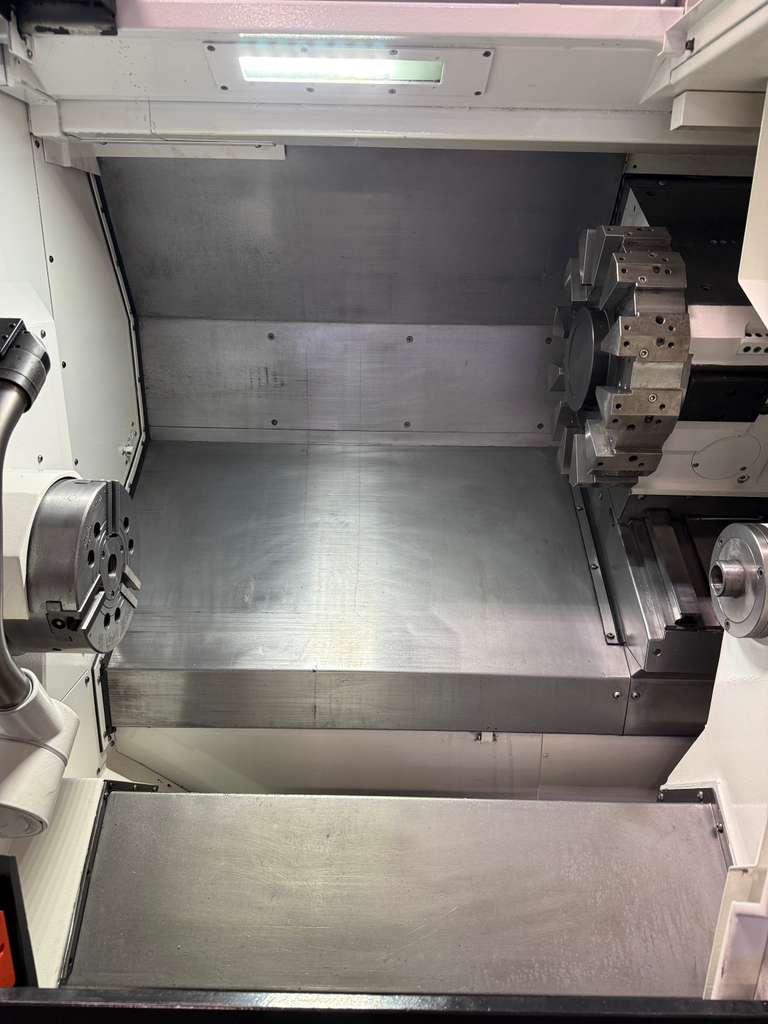

| 12 stations Drum Turret Bolt on Type |

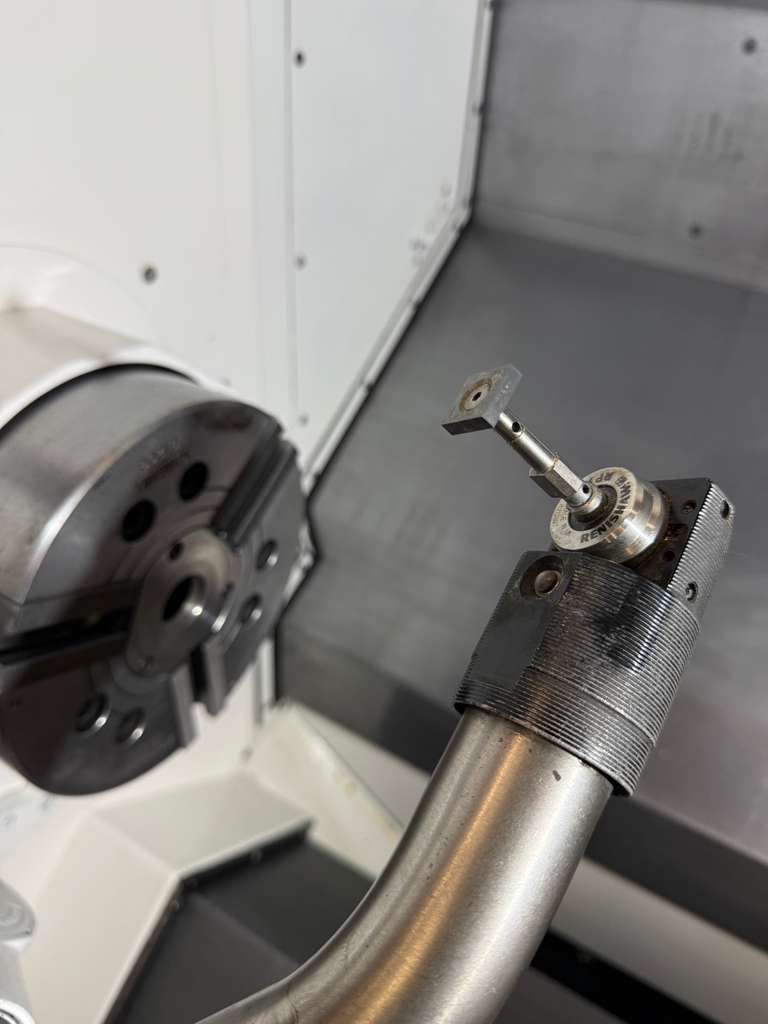

| Automatic Tool Presetter |
| Rigid Tapping |
| Coolant System |
| Automatic Lubrication System |

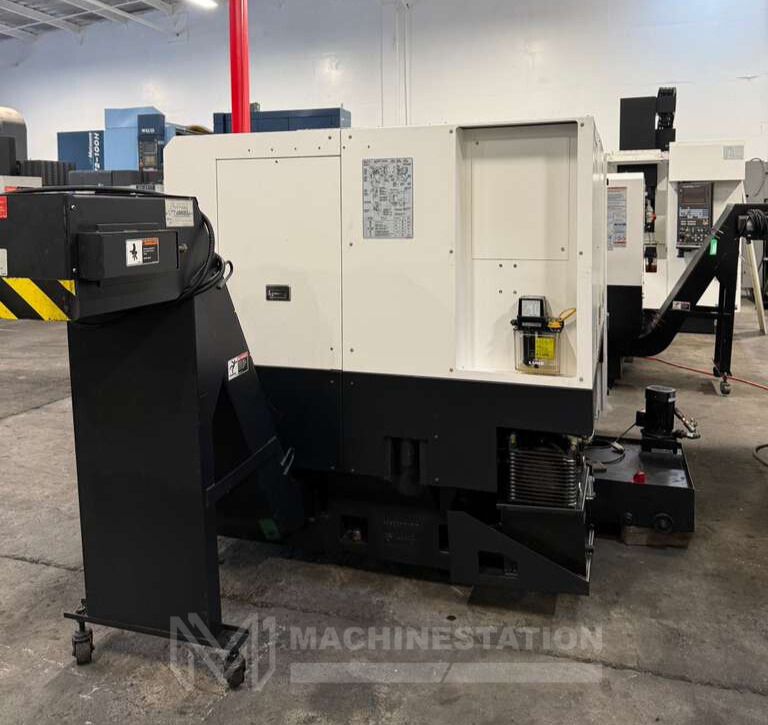

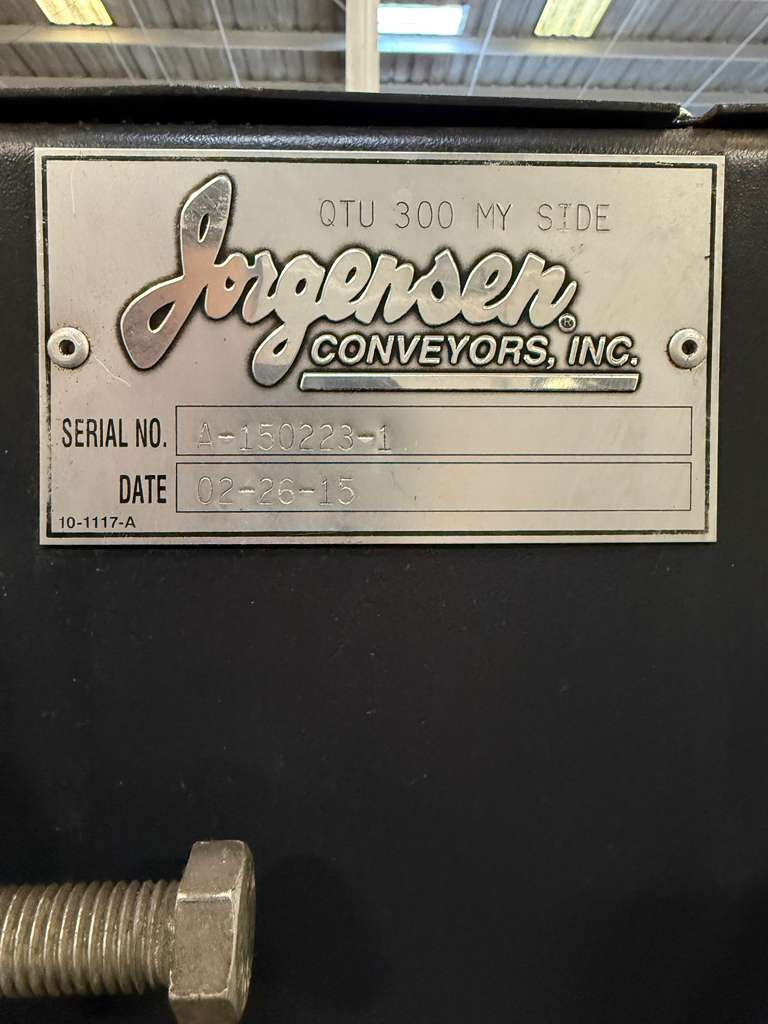

| Chip Conveyor |
| Foot Switch |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter : 16.25″ |
| Max Turning Length : 21.03″ |
| Max Swing Over Bed: 27.40″ |
| Max Bar Capacity : 2.00″ |
| Travels: |
|---|
| X Axis Travel : 8.50″ |
| Z Axis Travel : 25.00″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Bore: 2.99″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 4,500 RPM |
| Spindle Power: 20 HP |
| Turret: |
|---|

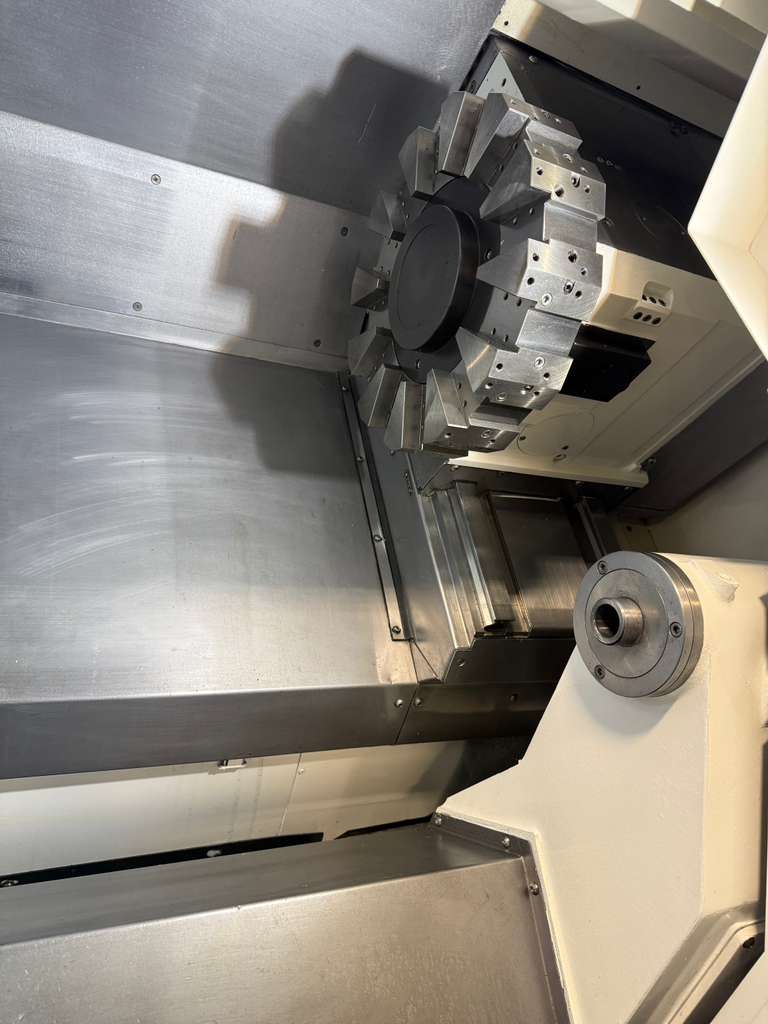

| Turret Capacity: 12 Stations |
| OD Tool Size: 1.0″ |
| Max Boring Bar Sze: 1.5″ |
| Turret Index Time: 0.18 Sec. |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Travel: 13.25″ |
| Tailstock Type: Programmable |
| General: |
|---|

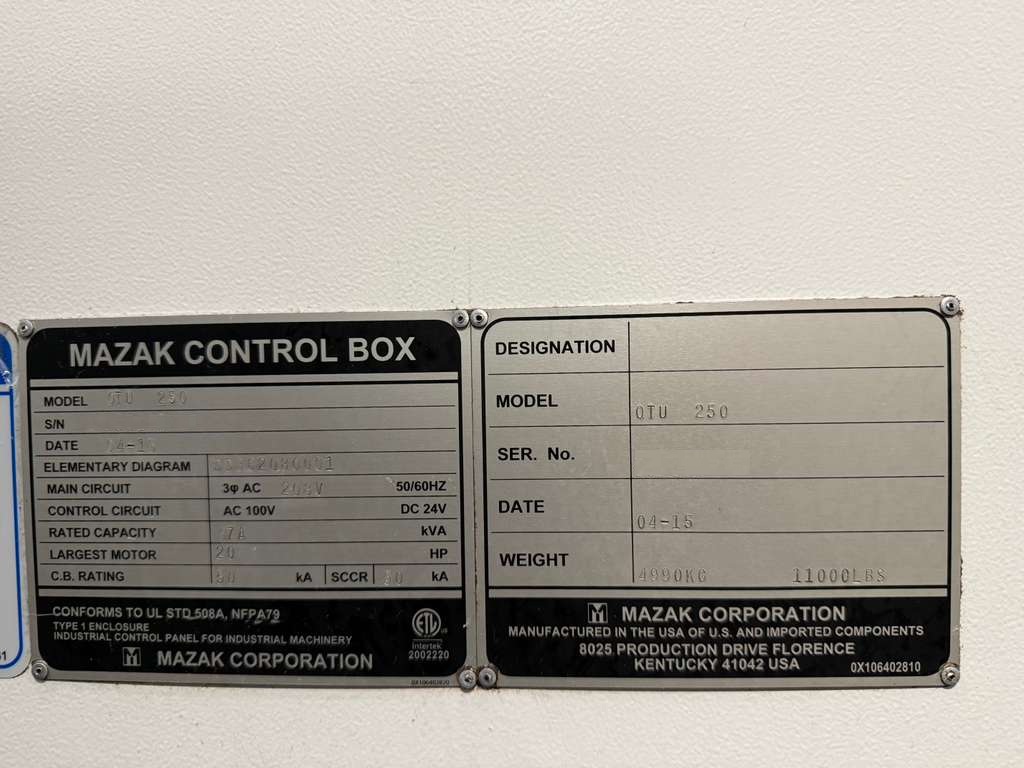

| Power Source: 208v / 50/60 Hz / 3-Phase / 27.3 kva |
| Overall Dimensions: 104.3″ X 66.5″ X 67.9″ High Approx. |
| Weight: 11,000 lbs. Approx. |
