*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

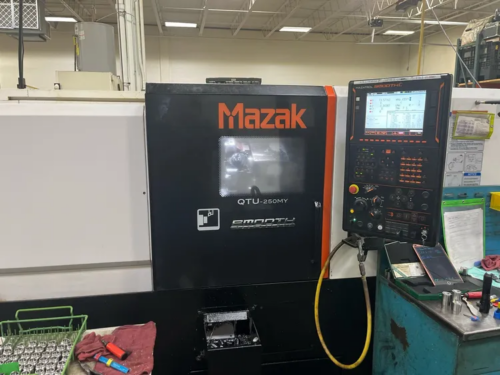

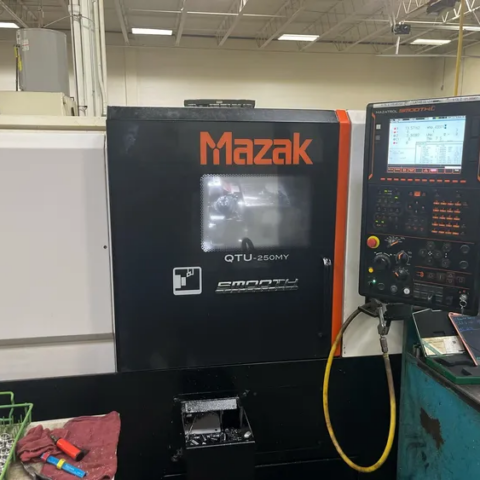

| Make: | Mazak |
| Model: | QTU-250MY |
| Year: | 2017 |
| Equipped With: |
|---|

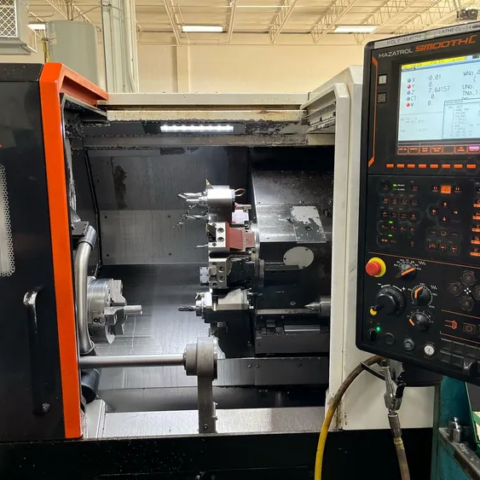

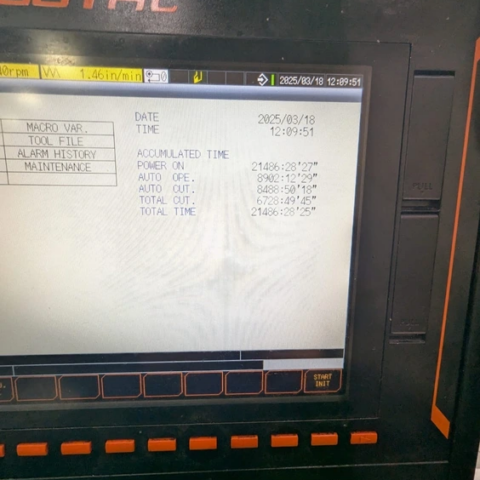

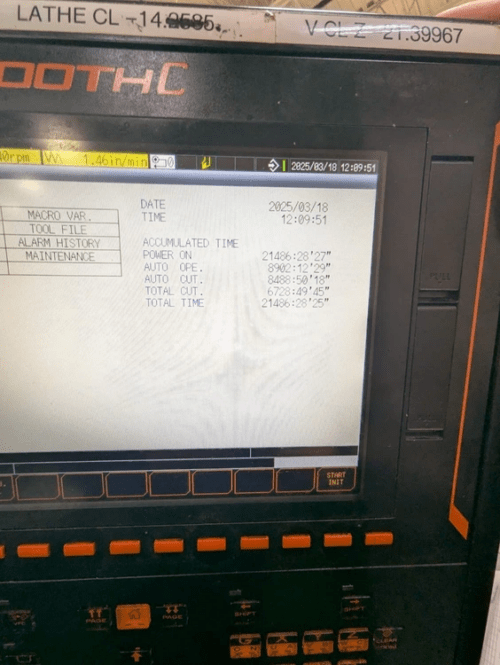

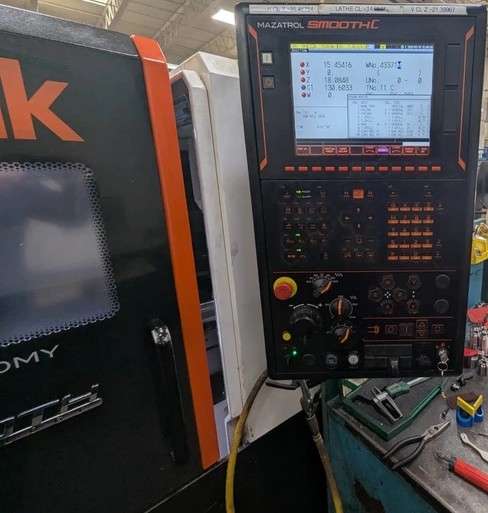

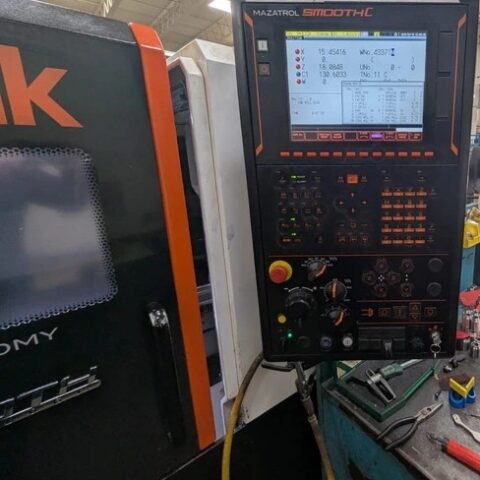

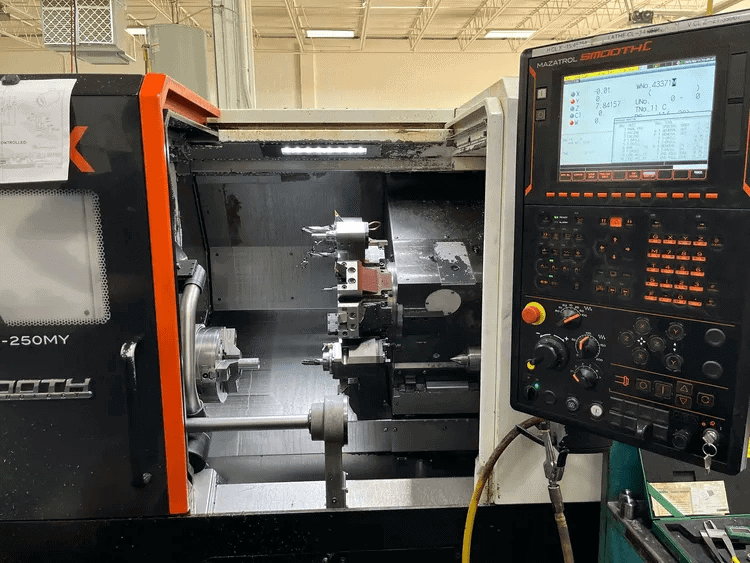

| Mazak SmoothC CNC Control |
| EIA/ISO Package For KY Mill TC |
| Smooth Standard Software For Lathe (Mill) |

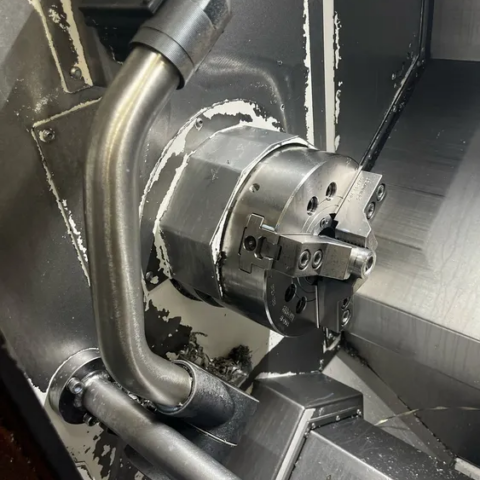

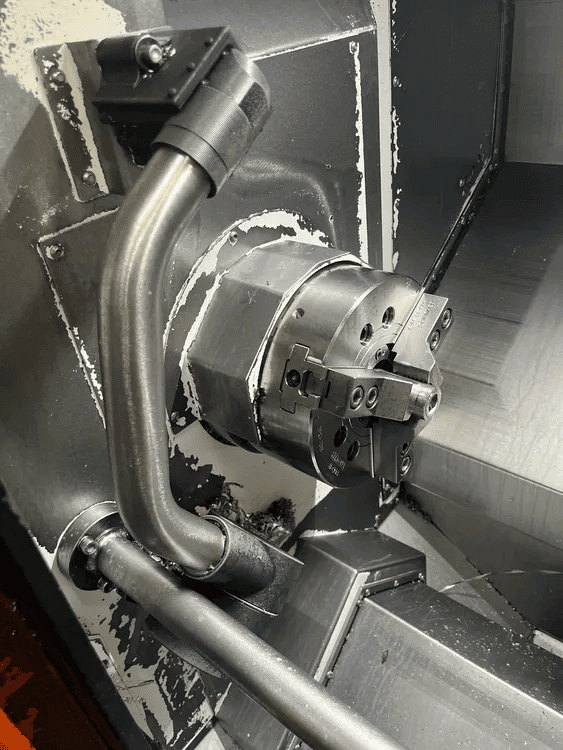

| 8″ 3- Jaw Chuck |
| Servo Controlled Full C-Axis on Spindle |
| Y Axis On Turret |

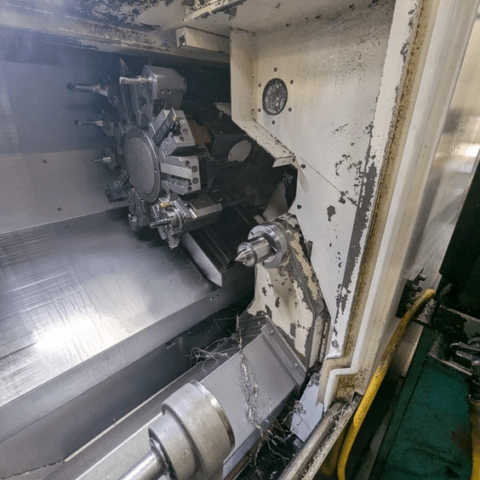

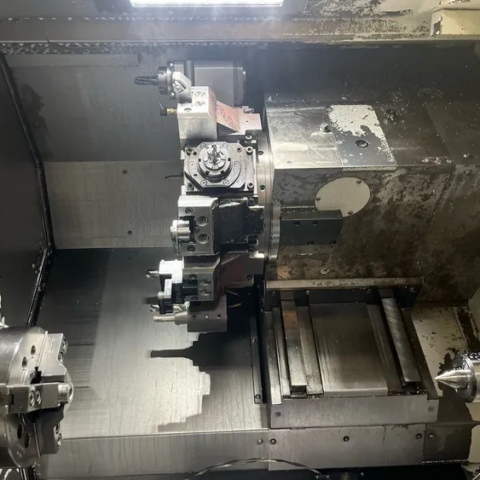

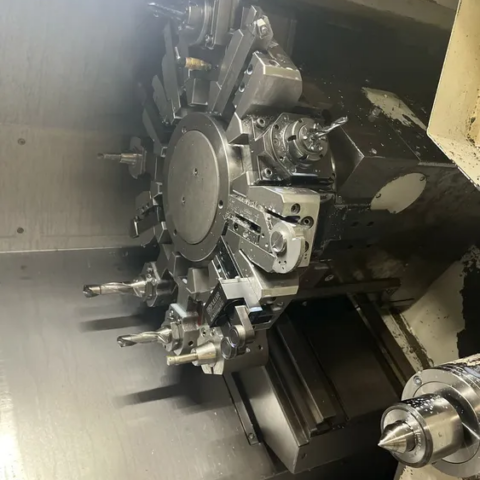

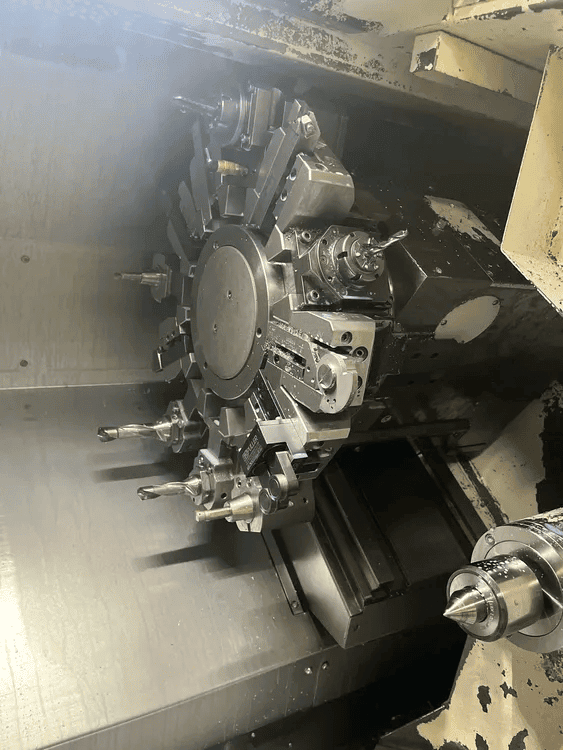

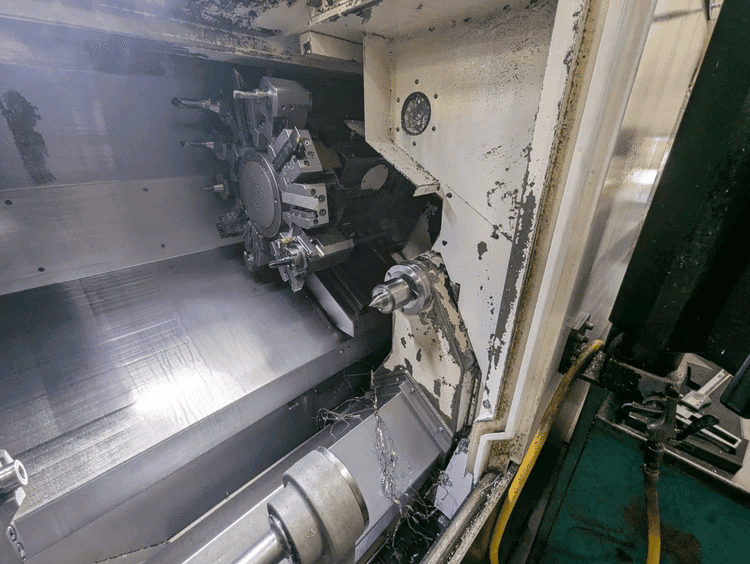

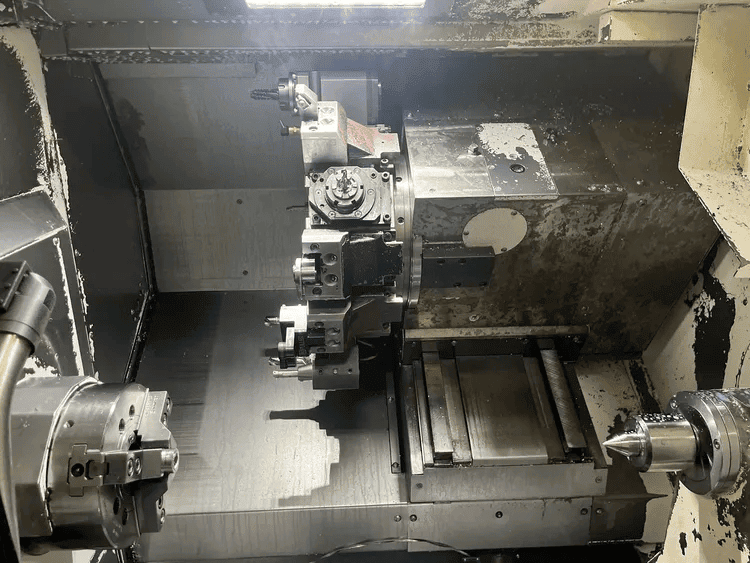

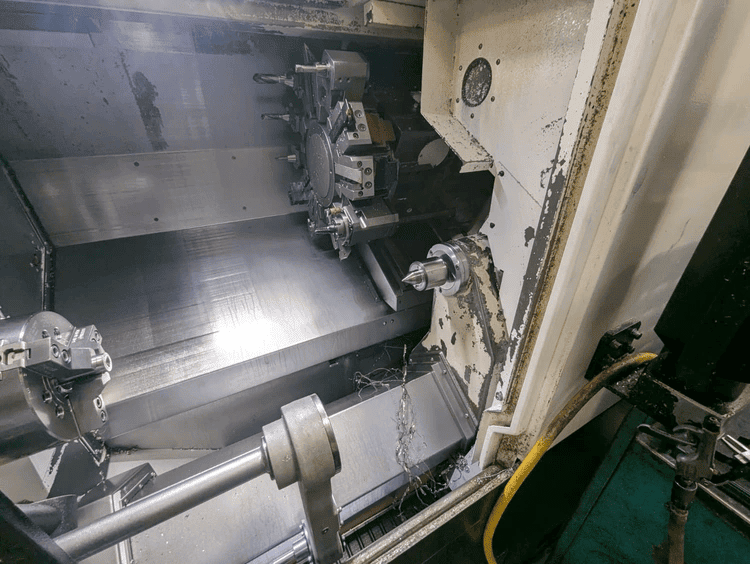

| 12 stations Drum Turret Bolt on Type |
| Automatic Tool Presetter |
| Part Catcher |
| LAN Port |
| SD Memory I/F (1-PORT) + USB |
| Memory I/F (1-PORT) |
| Rigid Tapping |

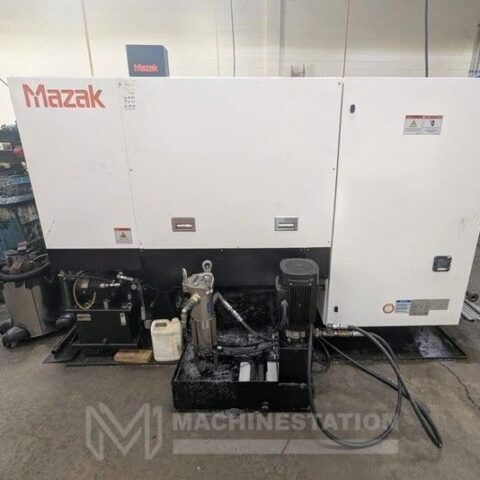

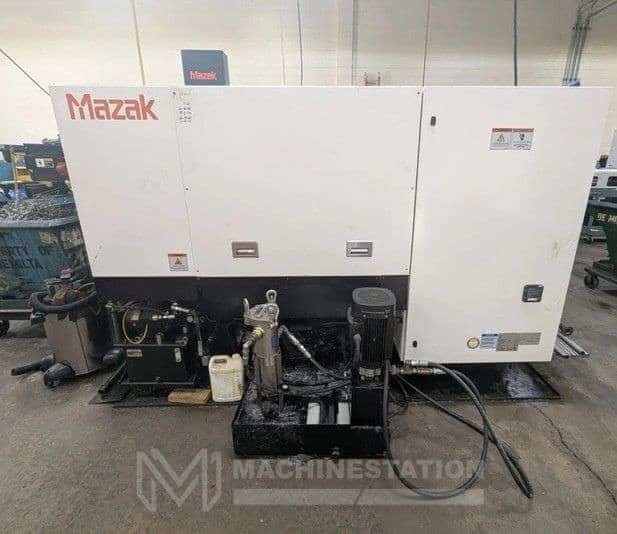

| Coolant System |
| High Pressure Coolant – 213 PSI |
| Automatic Lubrication System |

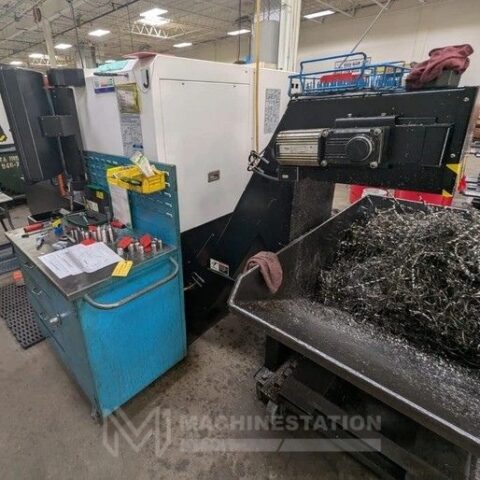

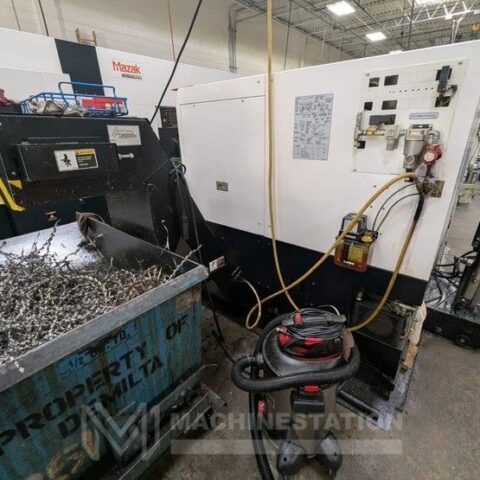

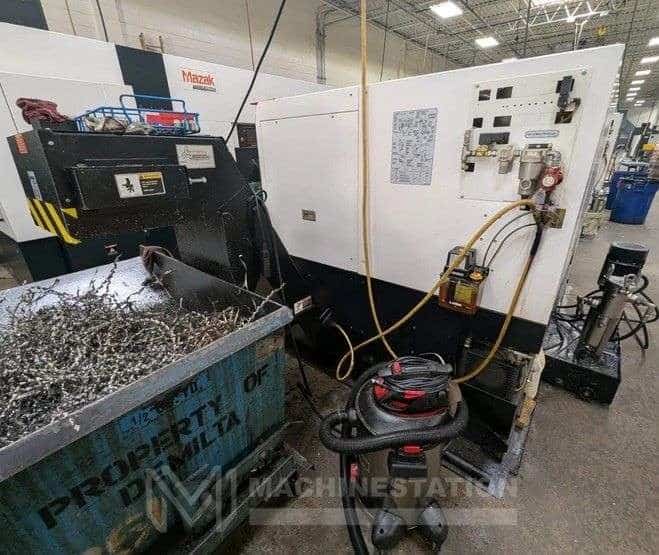

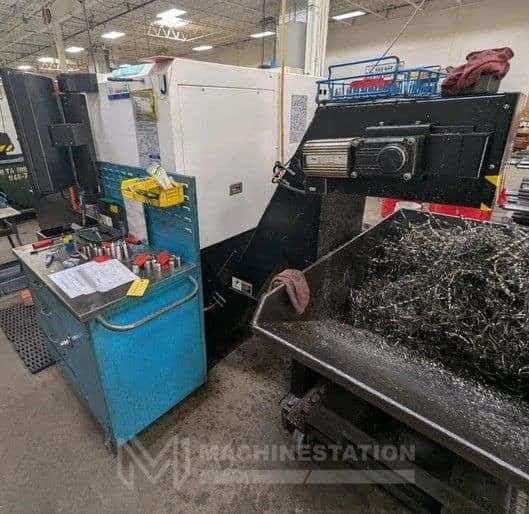

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter : 13.40″ |
| Max Turning Length : 21.03″ |
| Max Swing Over Bed: 27.40″ |
| Max Bar Capacity : 2.00″ |
| Travels: |
|---|
| X Axis Travel : 8.50″ |
| Z Axis Travel : 23.75″ |
| Y Axis Travel: 4.00″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Bore: 2.99″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 4,500 RPM |
| Spindle Power: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4,500 RPM |
| Live Tools Motor: 7.3 HP |

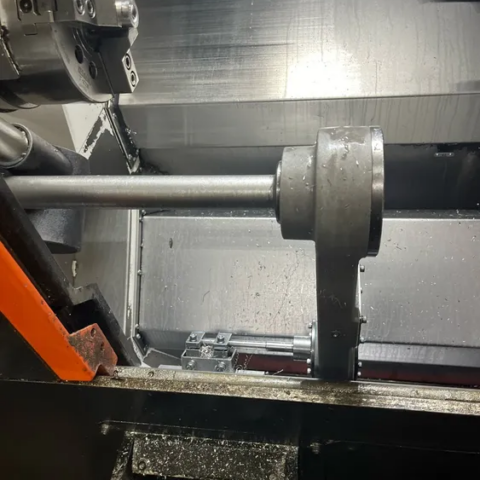

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Type: Programmable |
| General: |
|---|
| Power Source: 208v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 102″ X 66.5″ X 67.9″ High Approx. |
| Weight: 12,500 lbs. Approx. |
