*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | Quick Turn 200 MSY |
| Year: | 2021 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center with Milling & Y-Axis |
| Country of Origin: | USA |
| Approx. Weight: | 5,670 kg (12,500 lbs) |
| Machine Configuration: |
|---|
- Multi-Tasking CNC Turning Center
- Main Spindle + Sub-Spindle (MS)
- Y-Axis Milling Capability (Y)
- Live Tooling
- Full C-Axis on Main & Sub Spindles
- Single Turret, Multi-Function Design
|

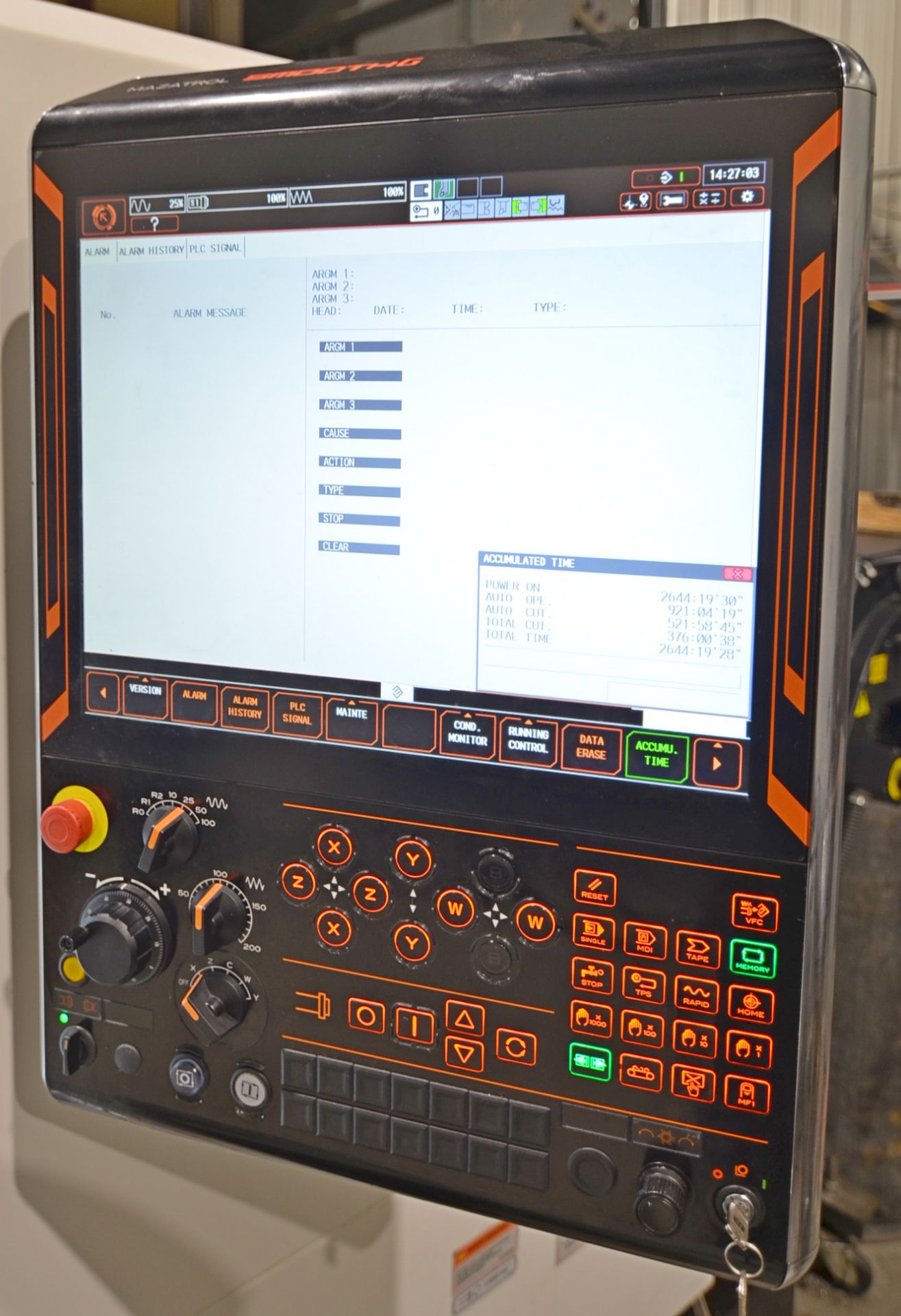

| CNC Control: |
|---|
- Mazatrol SmoothG CNC Control
- 15″ Color LCD Touchscreen
- Mazatrol Conversational Programming
- EIA / ISO G-Code Programming
- Advanced Smooth Technology
- High-Speed Look-Ahead
- Tool Data & Tool Life Management
- 3D Part Simulation
- Ethernet, USB & Network Ready
- Thermal Displacement Compensation
|
| Axis Travels: |
|---|
- X-Axis Travel: Approx. 8.3″ (210 mm)
- Y-Axis Travel: ±2.0″ (±50 mm)
- Z-Axis Travel: Approx. 20.1″ (510 mm)
- C-Axis: 360° Continuous (Main & Sub Spindles)
|
| Spindle Specifications: |
|---|
- Main Spindle
- Chuck Size: 8″
- Spindle Nose: A2-6
- Maximum Spindle Speed: Approx. 5,000 RPM
- Spindle Motor Power: 35 HP
- C-Axis Indexing

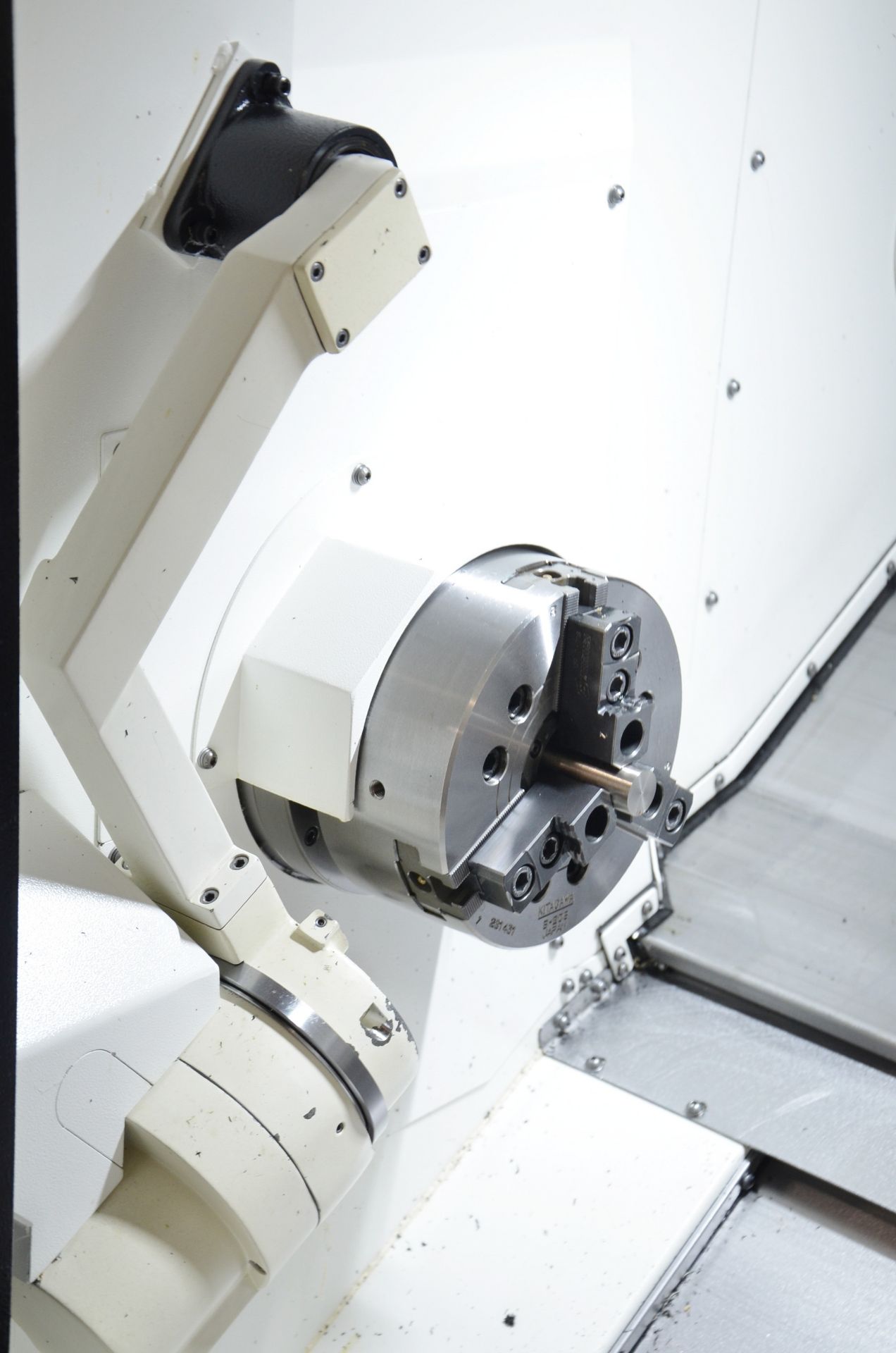

- Sub-Spindle
- Chuck Size: 8″
- Spindle Nose: A2-6
- Maximum Spindle Speed: Approx. 5,000 RPM
- Full Synchronization with Main Spindle
|

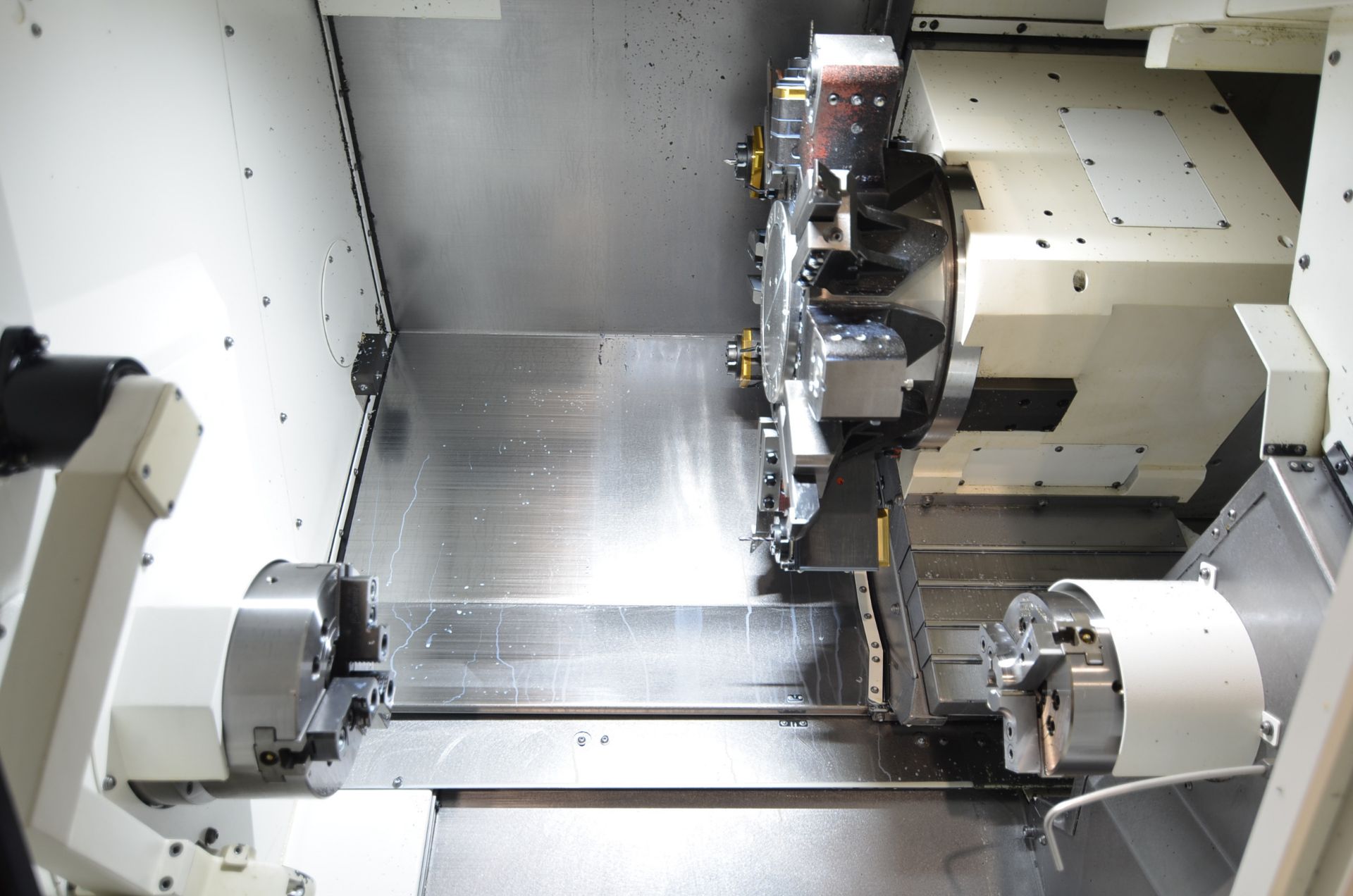

| Turret & Tooling: |
|---|
- Turret Type: Servo-Driven Milling Turret
- Number of Stations: 12
- Live Tool Stations: 12
- Tool Shank Size: BMT / VDI (Model Dependent)
- Live Tool Speed: Approx. 4,000 RPM
- Y-Axis Interpolation
|
| Turning Capacity: |
|---|
- Maximum Turning Diameter: Approx. 13.4″ (340 mm)
- Maximum Turning Length: Approx. 20″ (510 mm)
- Bar Capacity: Approx. 2.5″ (63 mm)
|
| Feedrates & Rapids: |
|---|
- Rapid Traverse (X / Z): Approx. 1,180 IPM
- Rapid Traverse (Y): Approx. 400 IPM
- High-Precision AC Servo Drives
|
| Coolant & Chip Management: |
|---|
- Flood Coolant System
- High-Pressure Coolant Ready (TSC Optional)
- Programmable Coolant Nozzles
- Automatic Chip Conveyor
- Chip Auger System
|
| Electrical Specifications: |
|---|
- Main Power: 3-Phase AC, 575V, 50 / 60 Hz
- Control Voltage: AC 100V / DC 24V
- Rated Capacity: 50 kVA
- Largest Motor: 35 HP
- Circuit Breaker Rating: 50 kA
- SCCR: 10 kA
|
| Safety & Reliability: |
|---|
- Full Machine Enclosure
- Interlocked Safety Doors
- Emergency Stop System
- Thermal Growth Control
- Servo Load Monitoring
- Automatic Central Lubrication System
|
| Key Features Summary: |
|---|
- True Multi-Tasking MSY Lathe
- Complete Part Machining in One Setup
- Simultaneous Turning & Milling
- Excellent Accuracy & Thermal Stability
- Ideal for Aerospace, Automotive & Precision Parts
- Proven Mazak Reliability & Global Support
|
