*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model No.: |
QUICK TURN 250MY |
| Year of Manufacture: |
2017 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center with Live Milling & Y-Axis |
| CNC Control: |

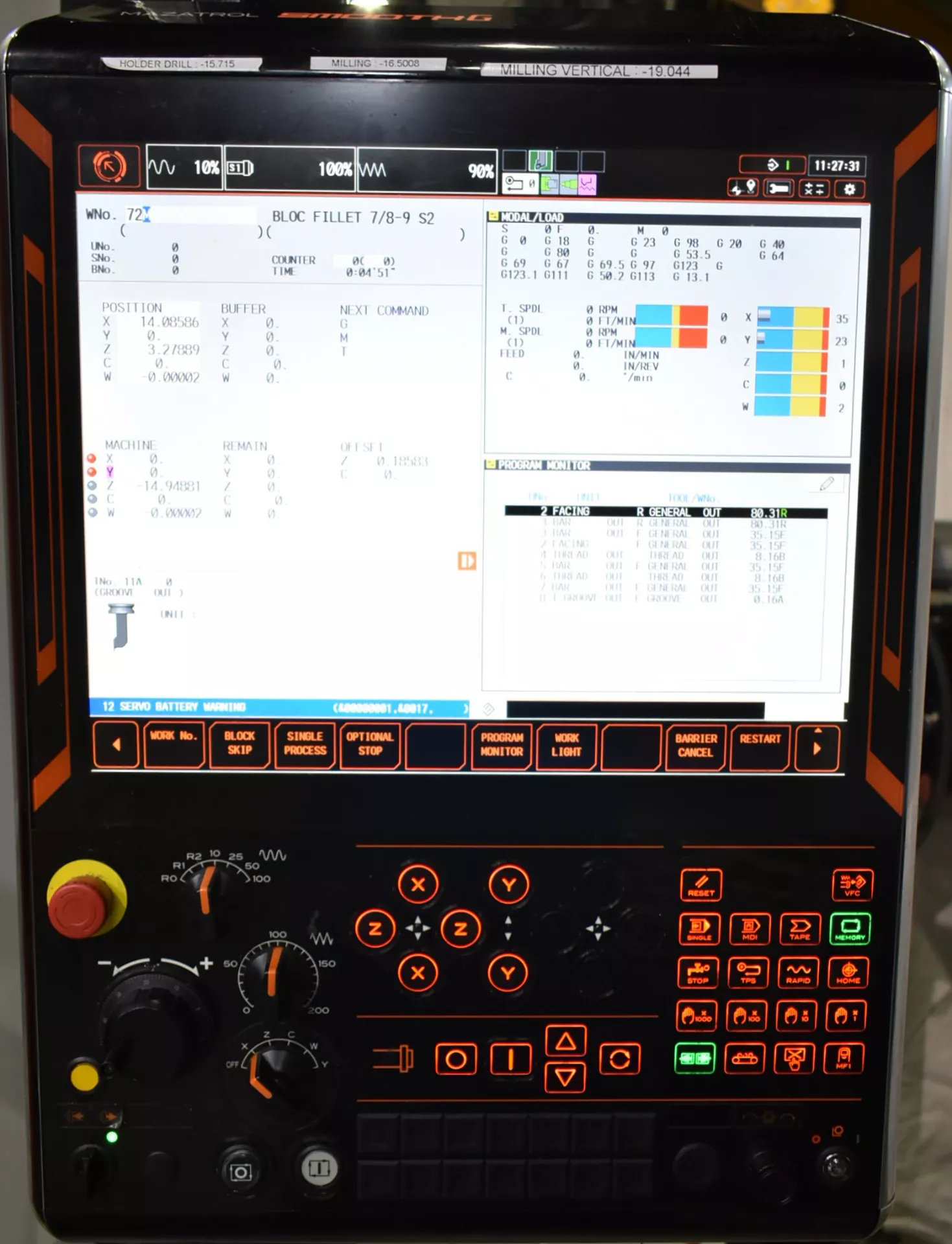

Mazatrol SmoothG CNC Control |
| Equipped With: |
| Mazatrol SmoothG CNC Control |
| 10″ Hydraulic Chuck |
| Live Tooling Capability |
| Y-Axis Milling Function |
| C-Axis Spindle Positioning |
| 12 Station Turret |
| Tool Presetter |
| Parts Catcher |
| Chip Conveyor |
| Coolant System |
| Through Spindle Coolant (Optional) |
| Programmable Tailstock |
| Manual Guide I (Conversational Programming) |
| USB / Data Interface |
| Fully Enclosed Guarding |
| Capacity: |
| Max Turning Diameter: 14.8″ |
| Max Turning Length: 20″ |
| Swing Over Bed: 26″ |
| Swing Over Carriage: 20″ |
| Max Bar Capacity: 2.6″ (65 mm) |
| Chuck Size: 10″ |
| Travels: |
| X Axis Travel: 9.1″ |
| Y Axis Travel: ±2″ (4″ Total) |
| Z Axis Travel: 22″ |
| Rapid Traverse X Axis: 1,181 IPM |
| Rapid Traverse Y Axis: 787 IPM |
| Rapid Traverse Z Axis: 1,417 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 30 HP |
| Milling / Live Tooling: |
| Milling Spindle Speed: 5,000 RPM |
| Tooling Type: VDI / Bolt-On (Config Dependent) |
| C-Axis Indexing: 0.001° |
| Turret: |
| Turret Capacity: 12 Stations |
| Live Tooling Positions: Yes |
| Tailstock: |
| Tailstock Type: Programmable Hydraulic |
| Tailstock Taper: MT4 |
| General: |
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Machine Weight: ~12,500 lbs |
| Features: |
| Multi-Tasking Turning + Milling Capability |
| Y-Axis for Off-Center Machining |
| C-Axis for Precise Angular Positioning |
| High Productivity Single Setup Machining |
| Rigid Box Way Construction for Heavy Cutting |
| SmoothG Control for Faster Processing & Better Surface Finish |
| Manual Guide I for Easy Conversational Programming |
| Compact Footprint with Large Work Capacity |
| Excellent for Automotive, Oil & Gas, and General Machining |
| Reduced Cycle Time with Live Tooling |
| Automation Ready (Bar Feeder / Robot Integration) |
