*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

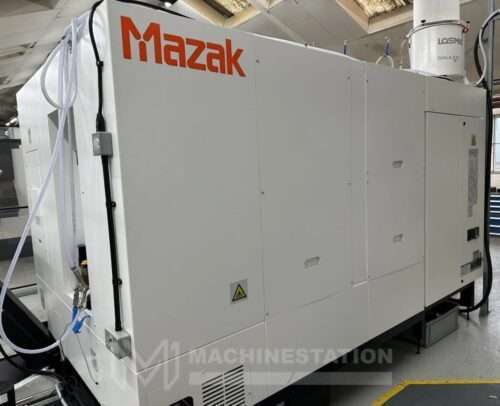

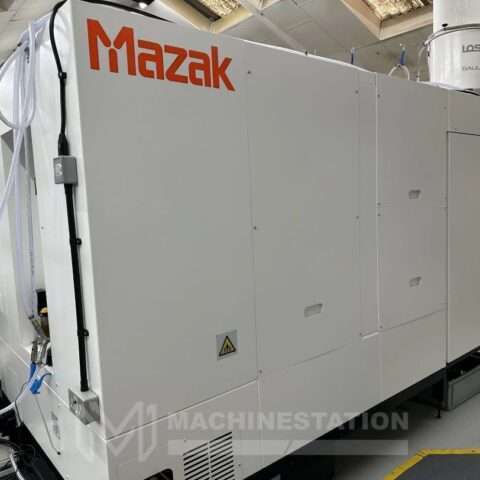

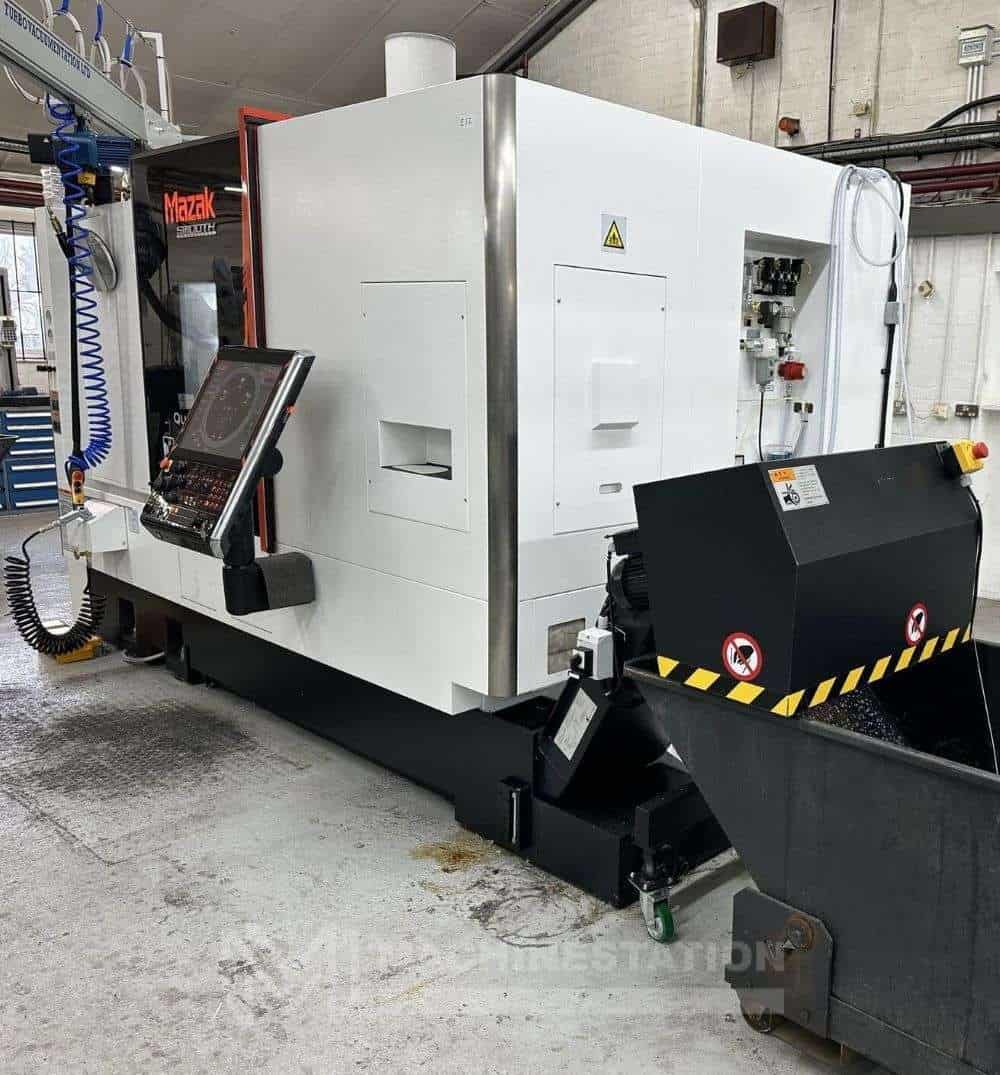

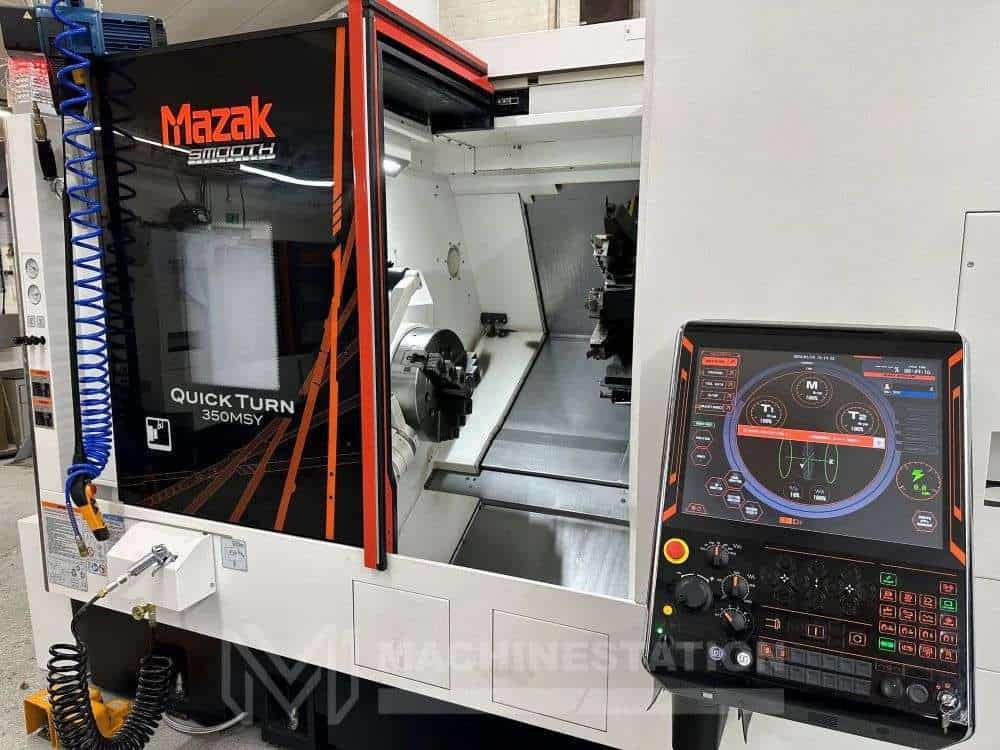

| Make: | Mazak |

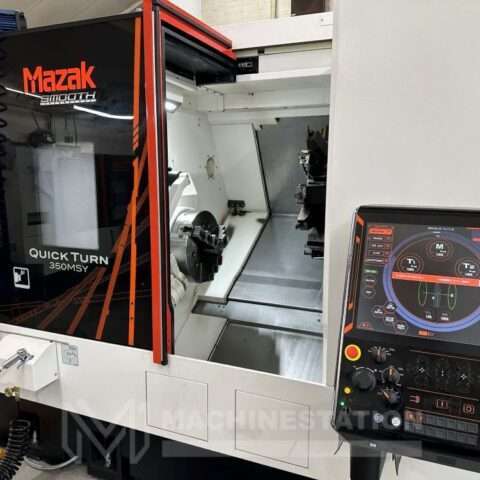

| Model: | Quick Turn 350MSY |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

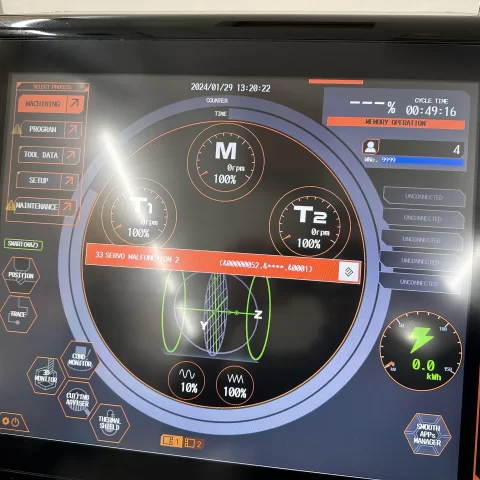

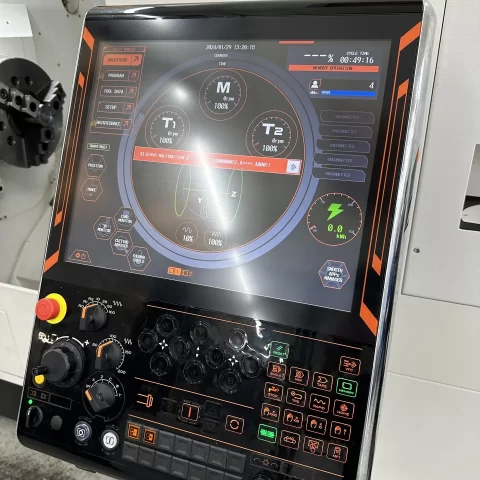

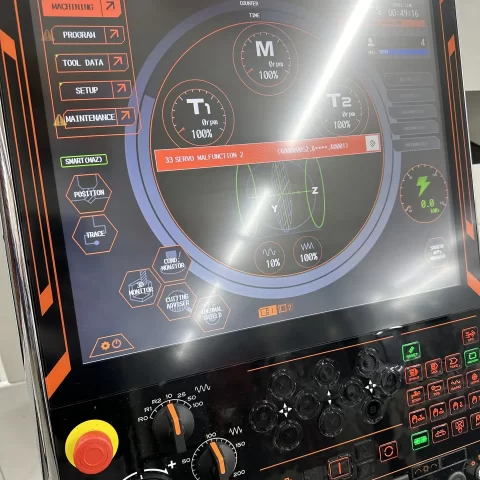

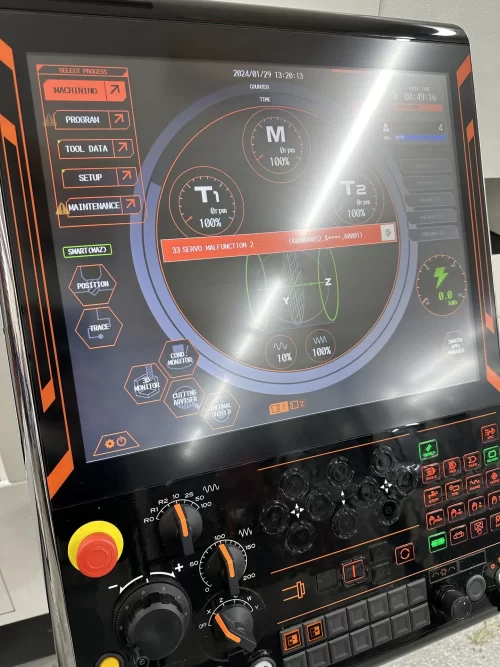

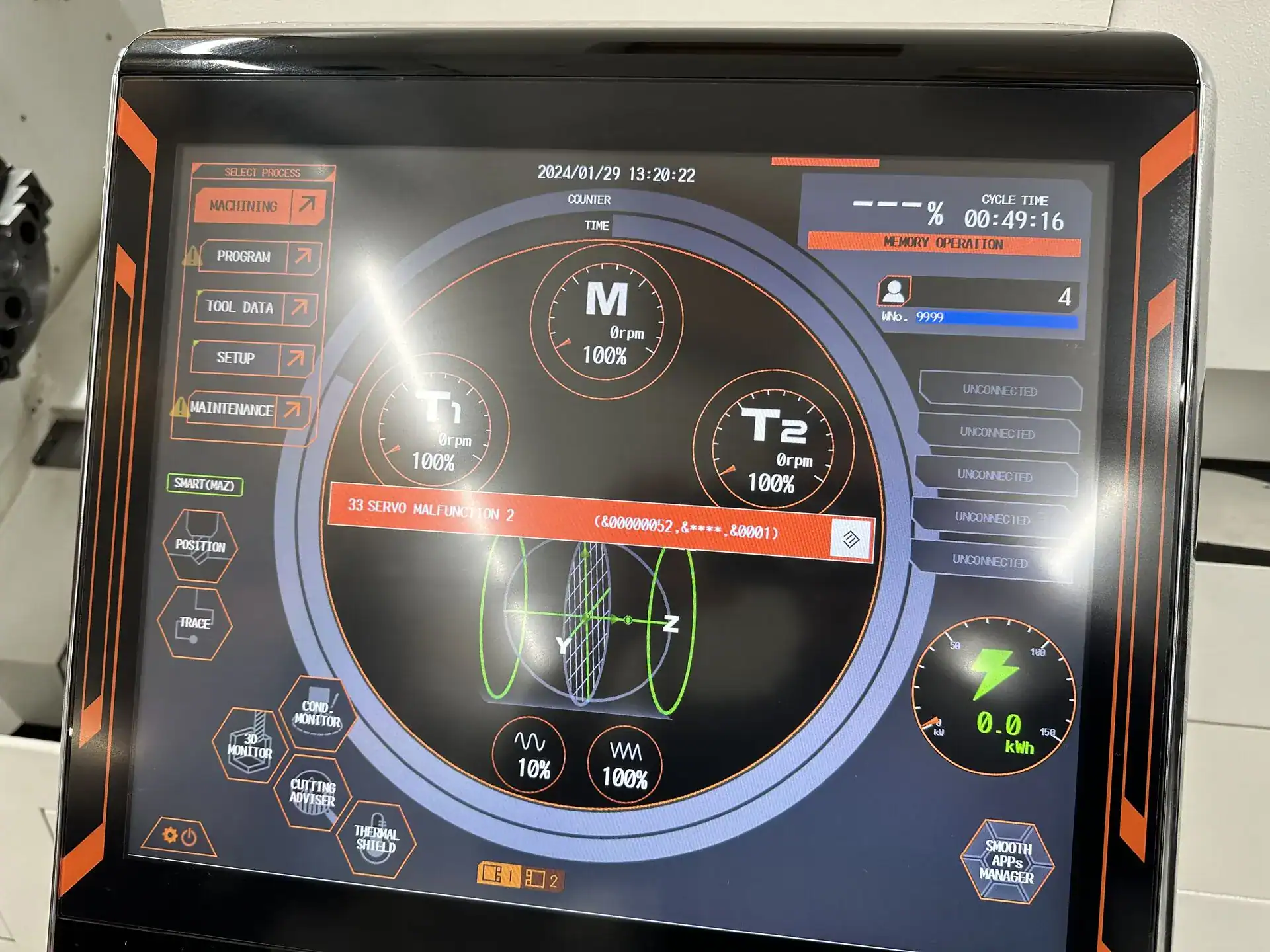

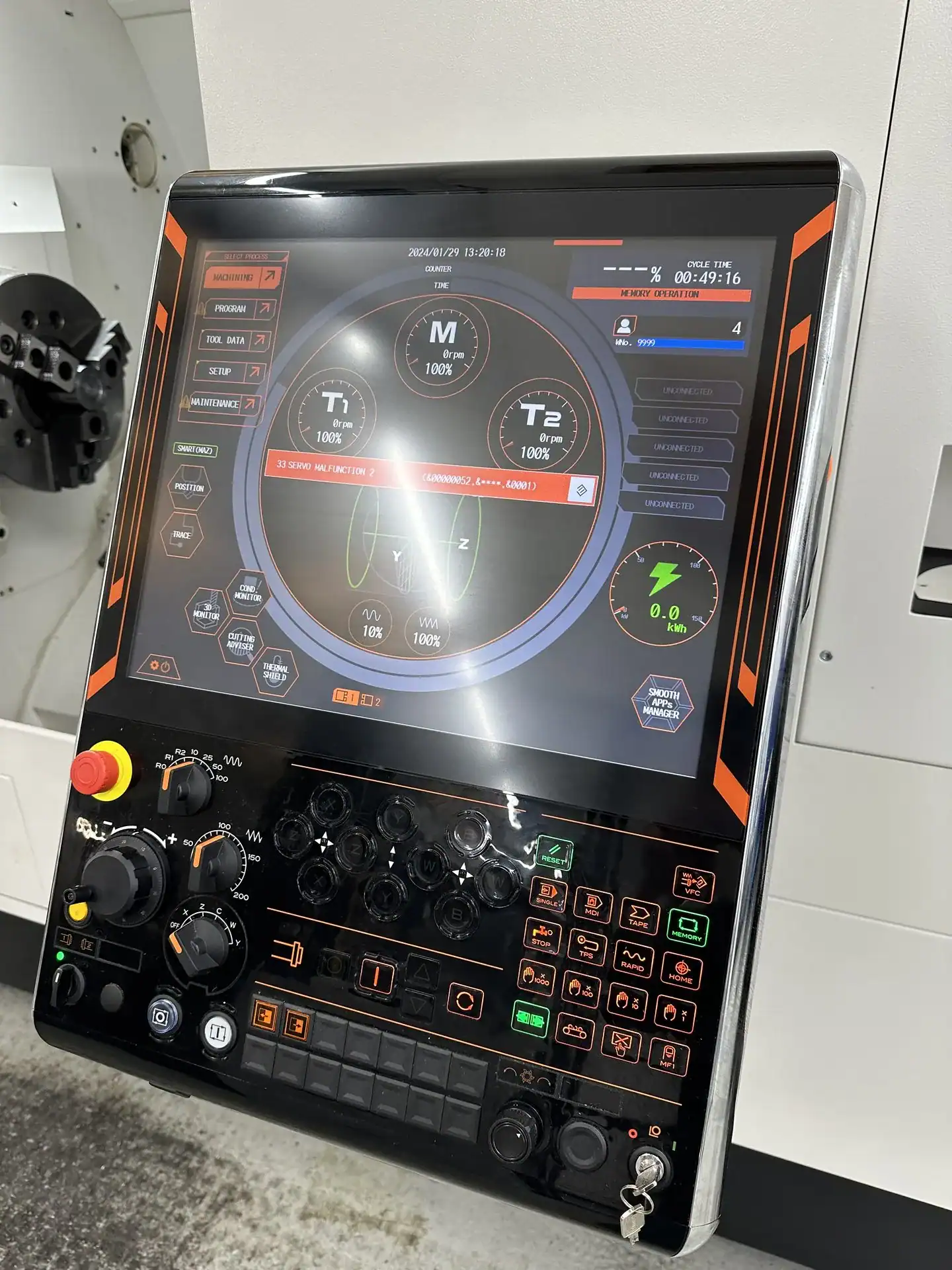

| Mazak Smooth G CNC Control |

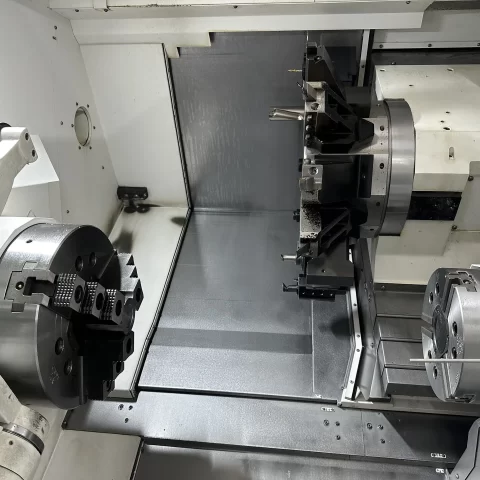

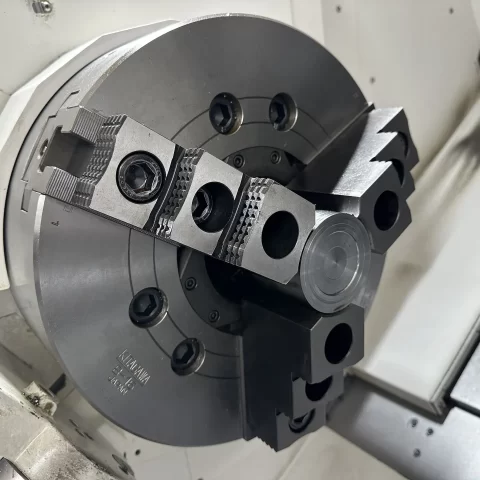

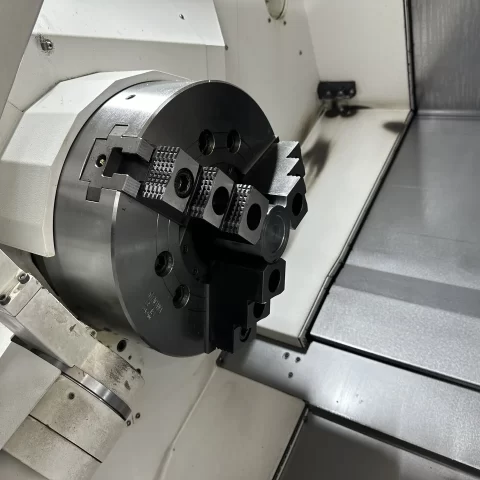

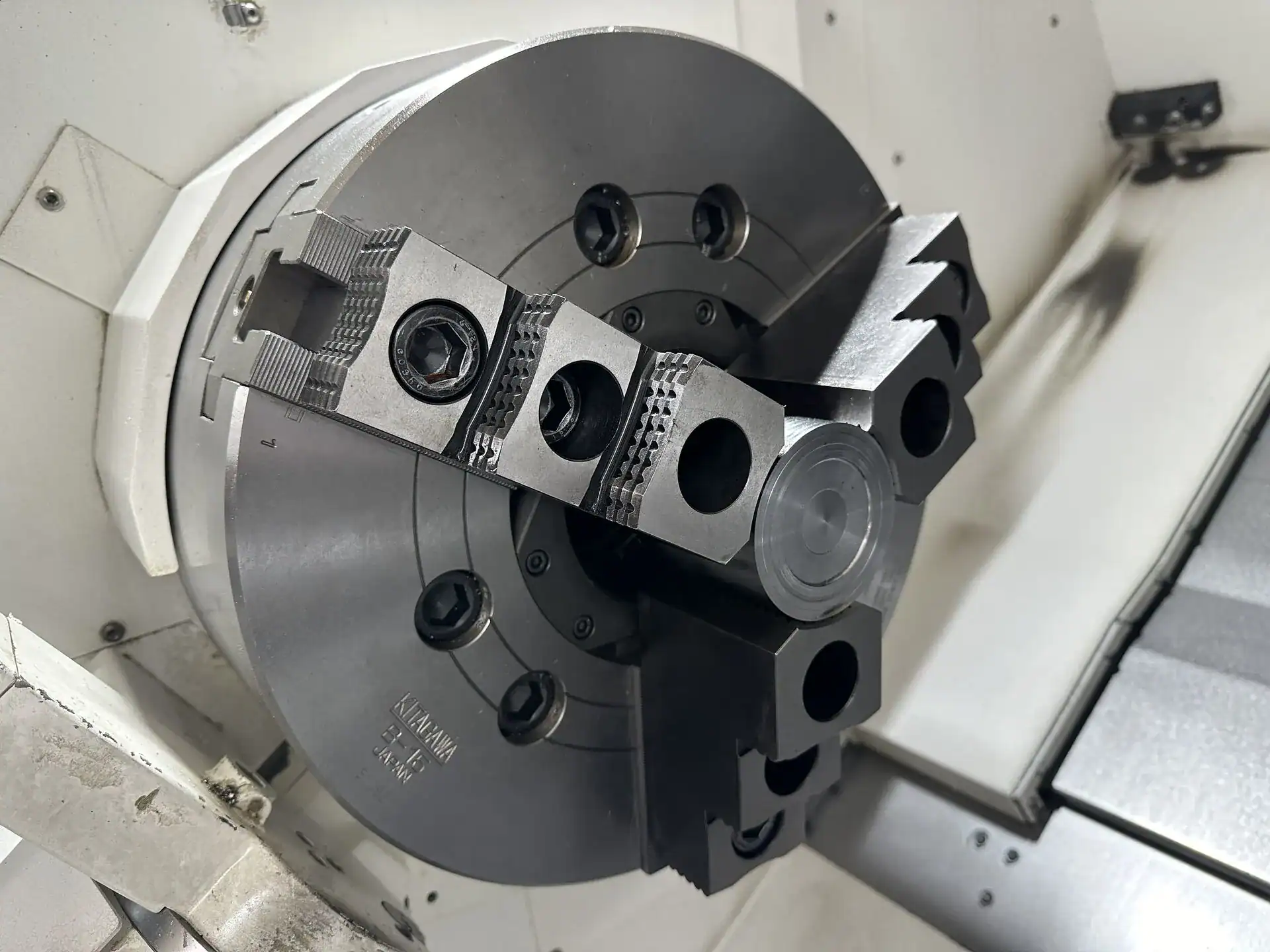

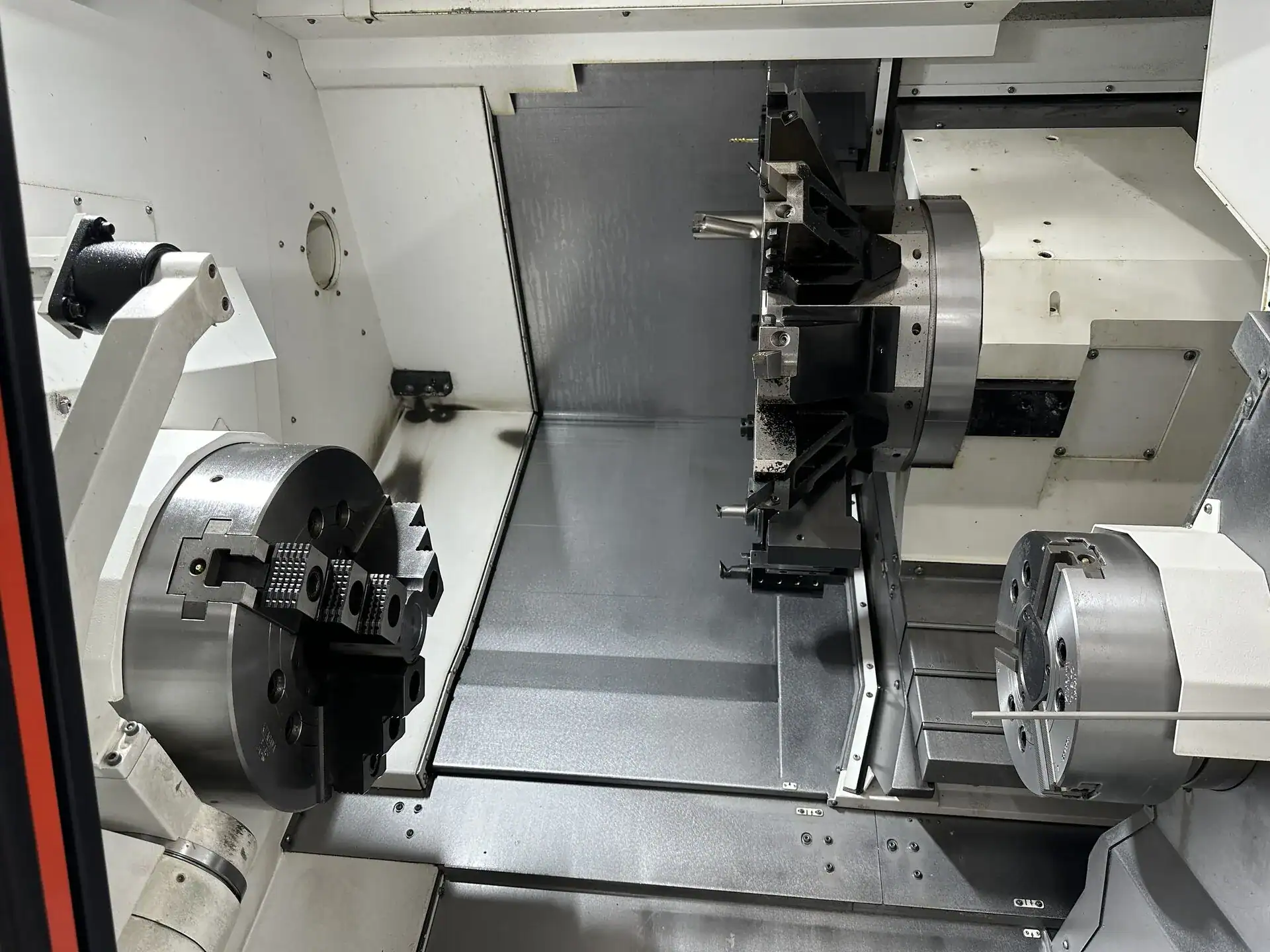

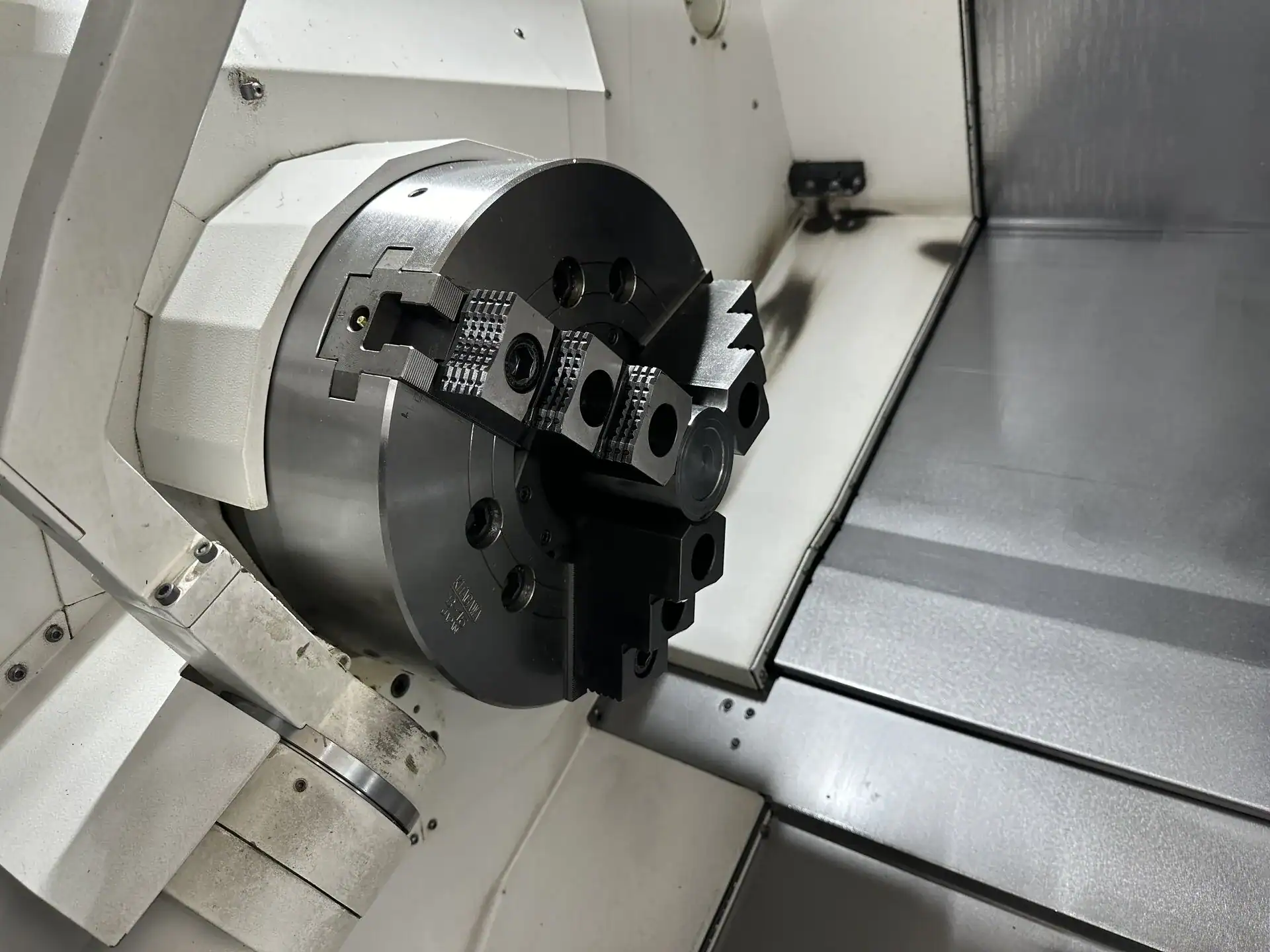

| 15″ Kitagawa 3-Jaw Chuck on Main Spindle |

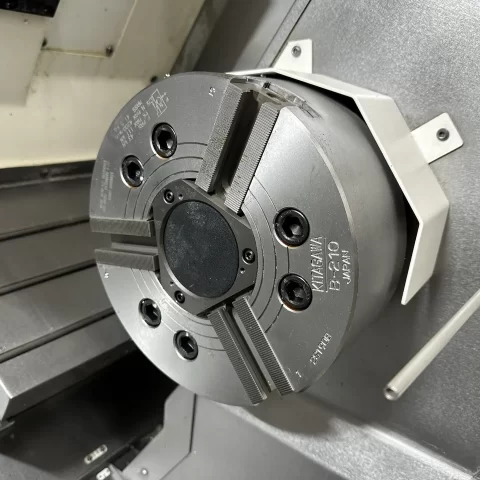

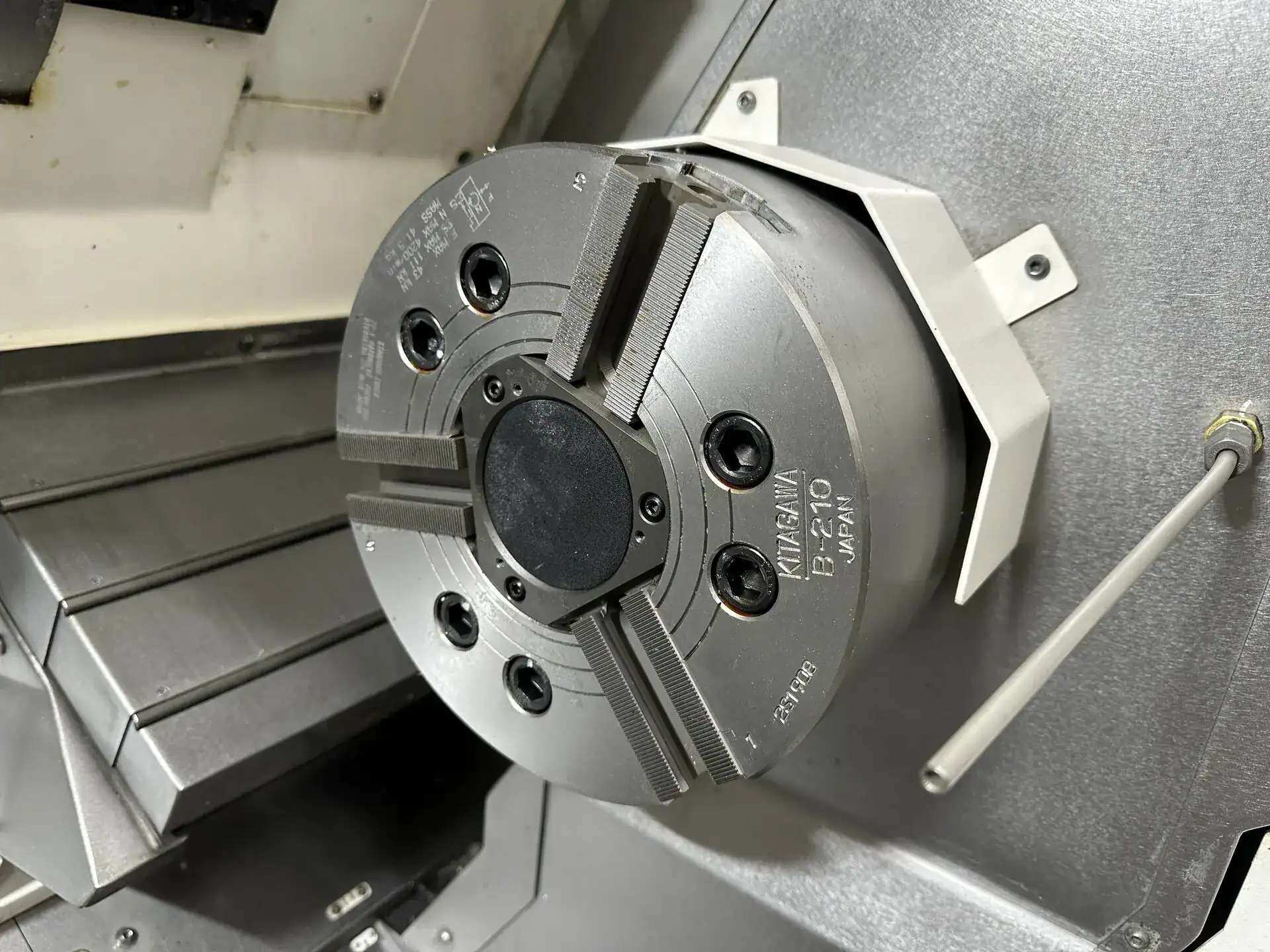

| 10″ Kitagawa 3-Jaw Chuck on Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis On Turret |

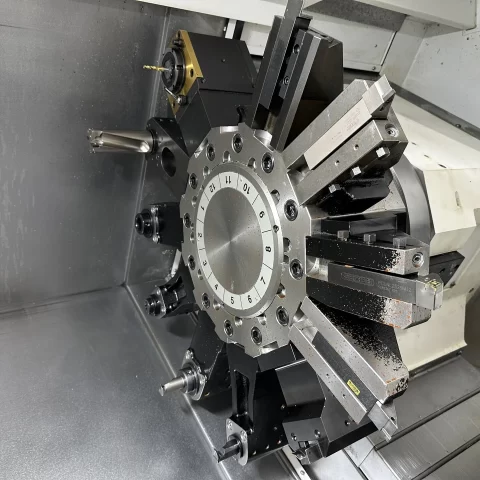

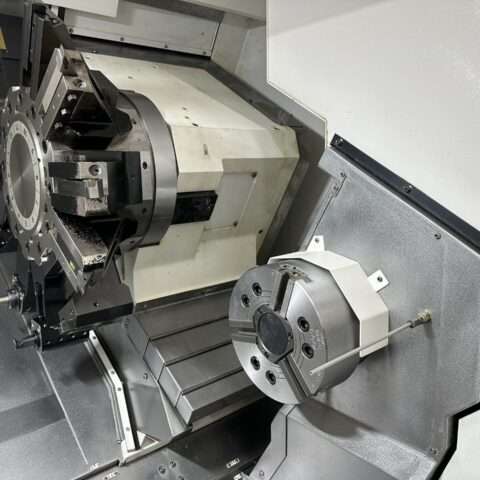

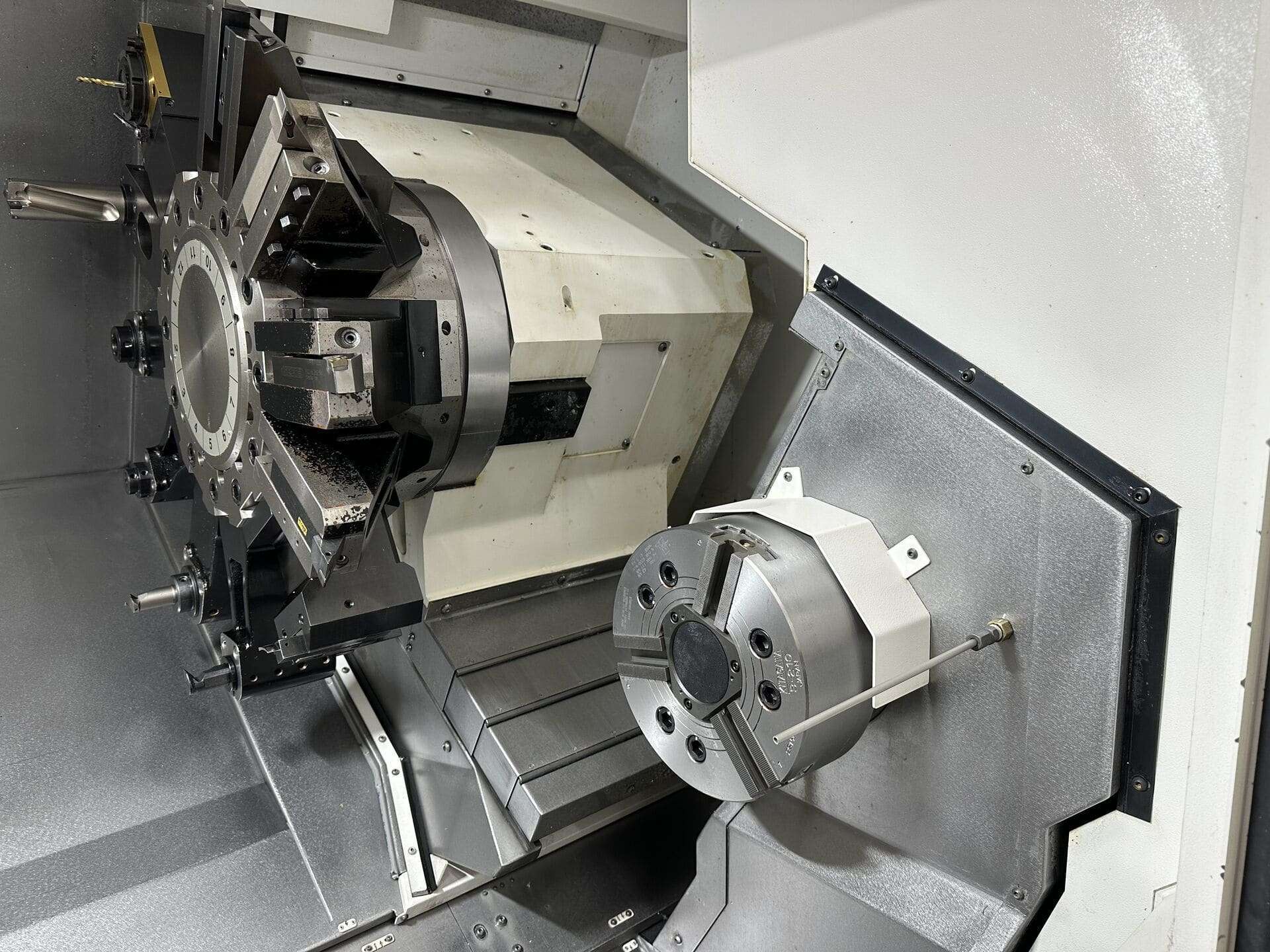

| 12 stations Live Tool Turret |

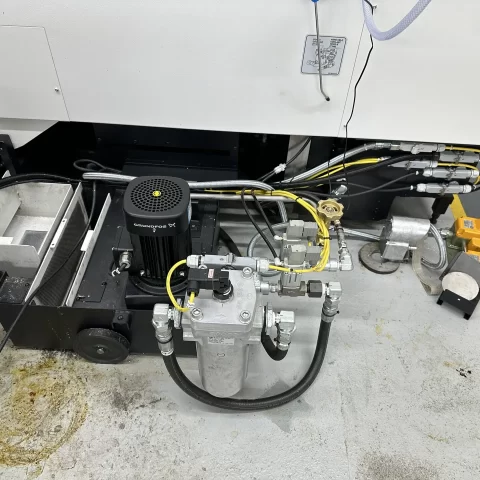

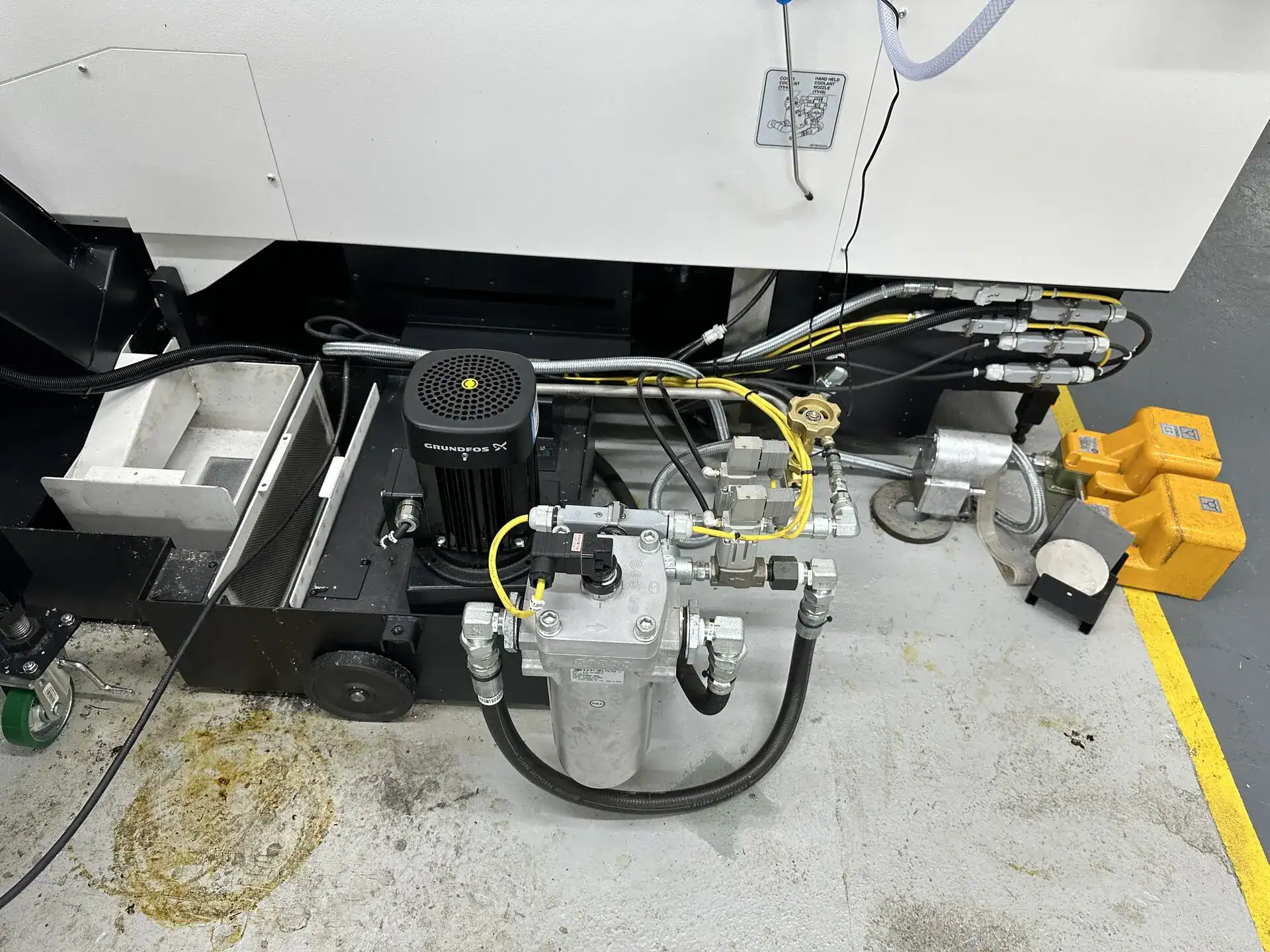

| High Pressure Coolant System |
| Automatic Tool Presetter |
| 40 HP Spindle Power on Main Spindle |
| 35 HP Spindle Power on Main Spindle |
| USB Drive |
| Rigid Tapping on Both Spindles |
| Spindle Orientation |
| Foot Operated Control for Chuck |
| High Pressure Coolant System |

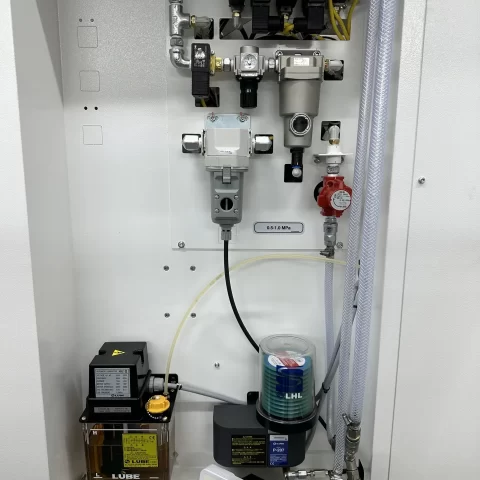

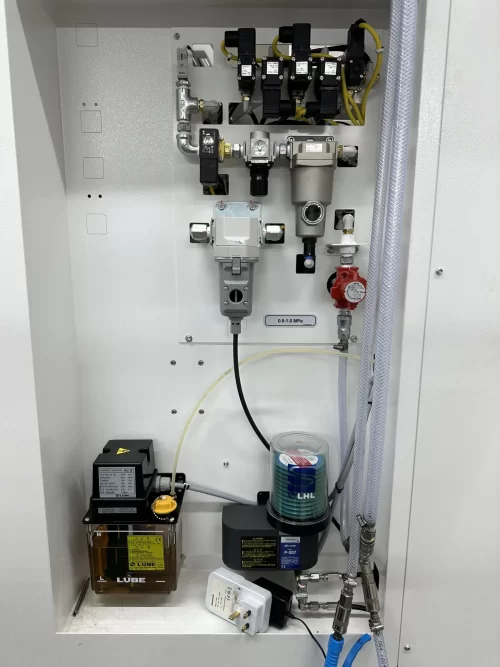

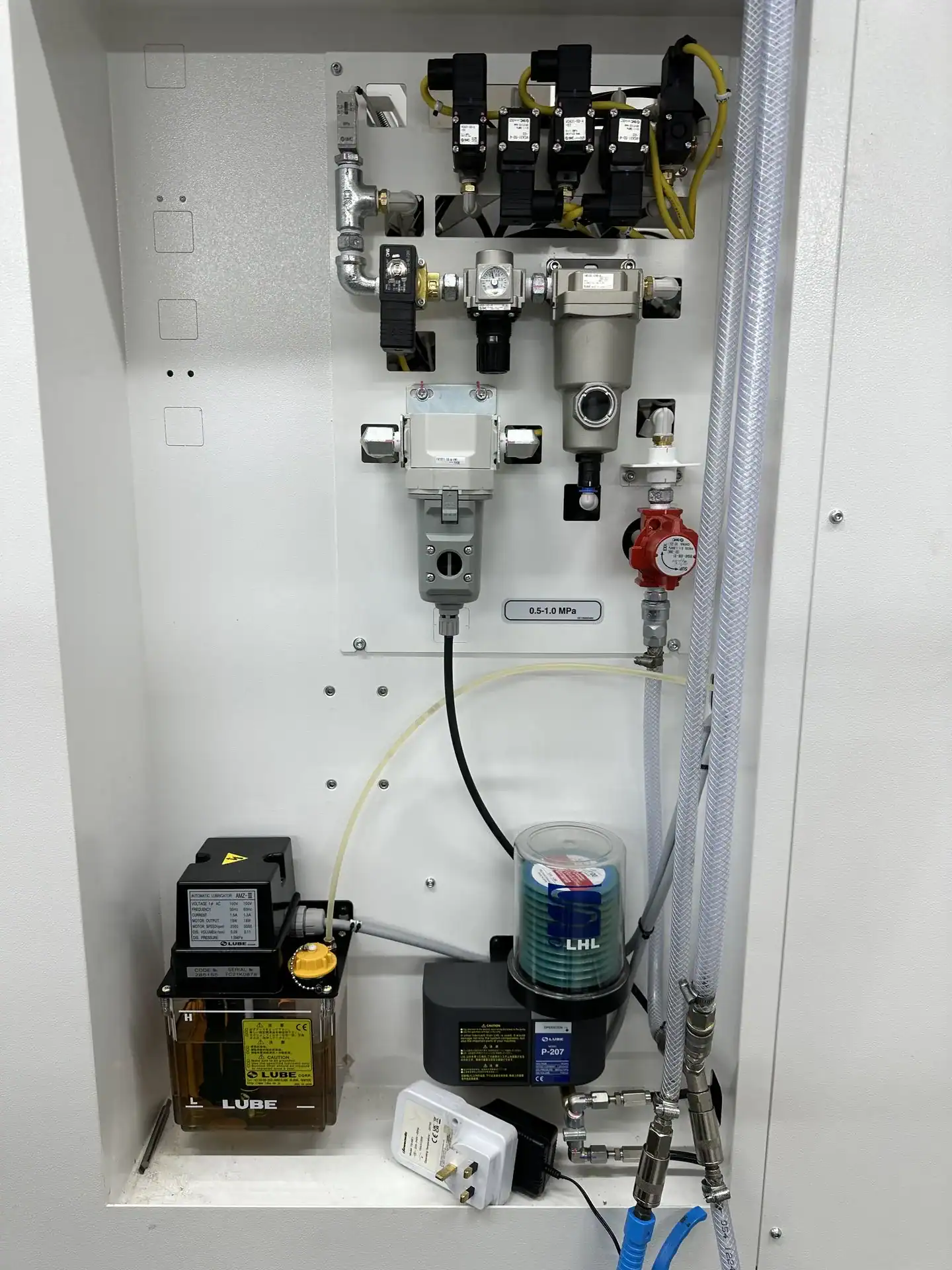

| Automatic Lubrication System |

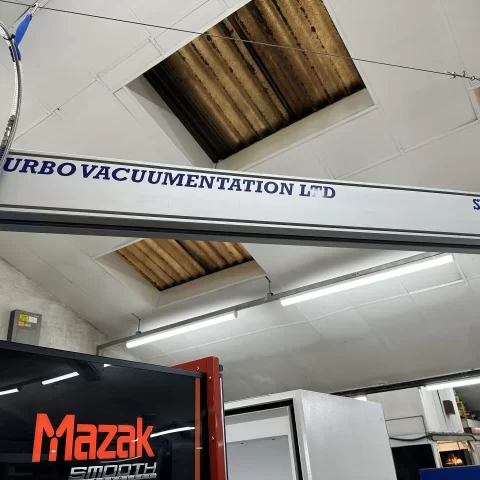

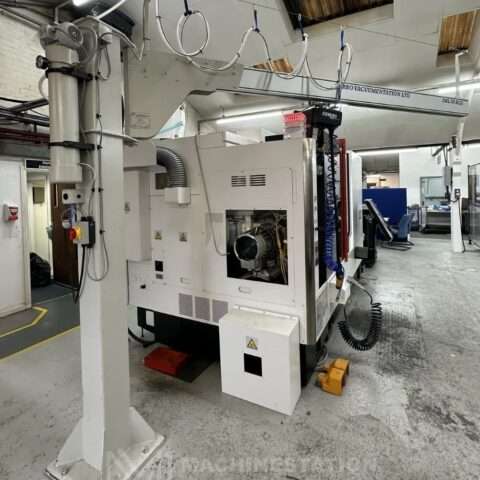

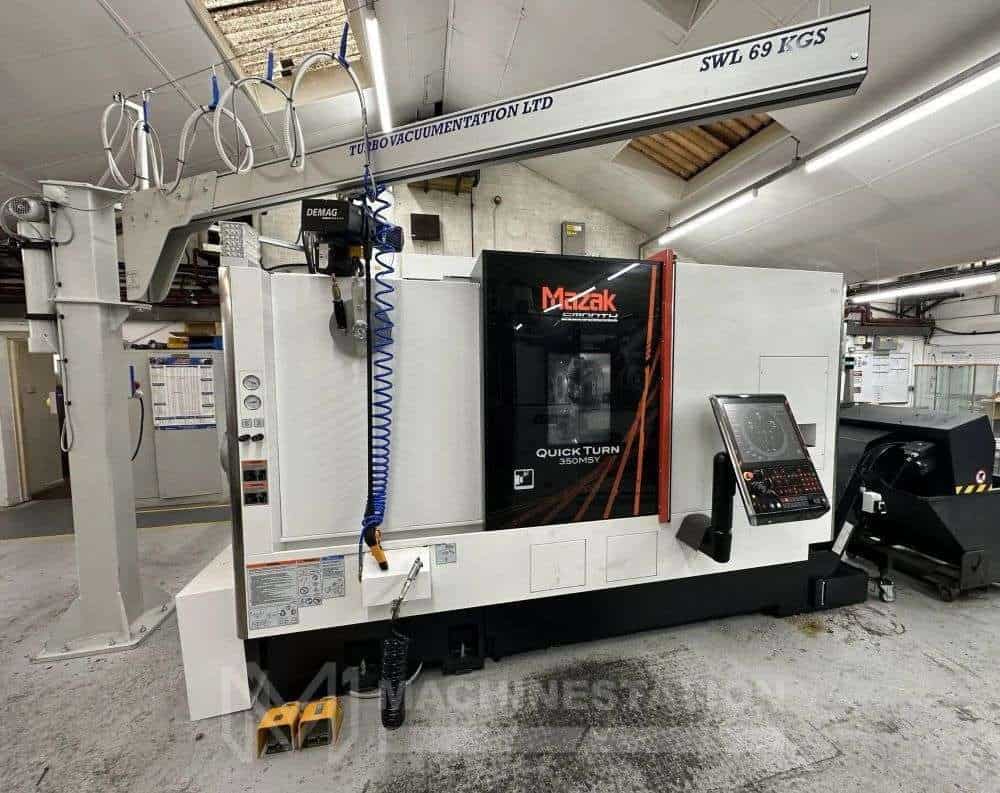

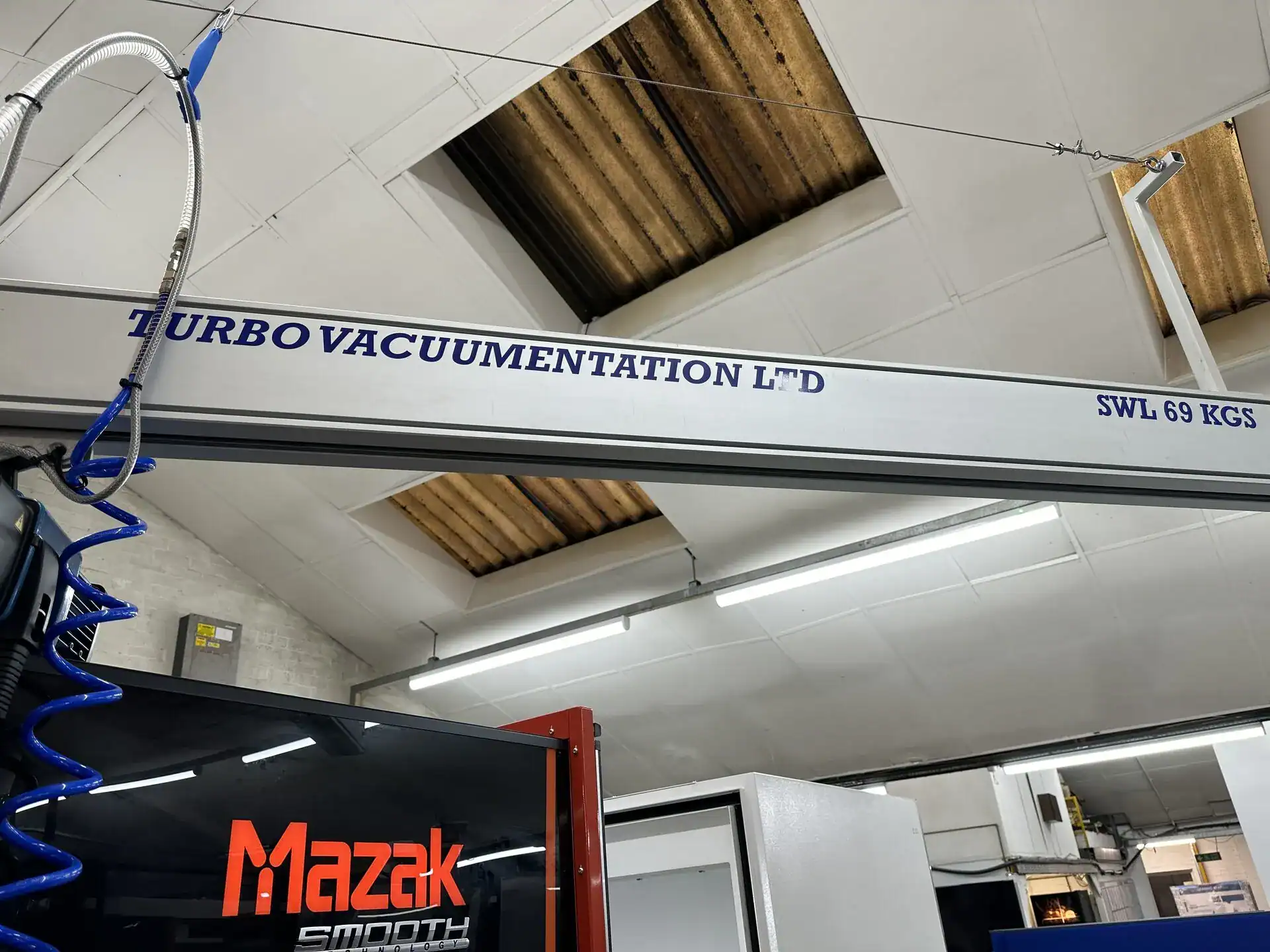

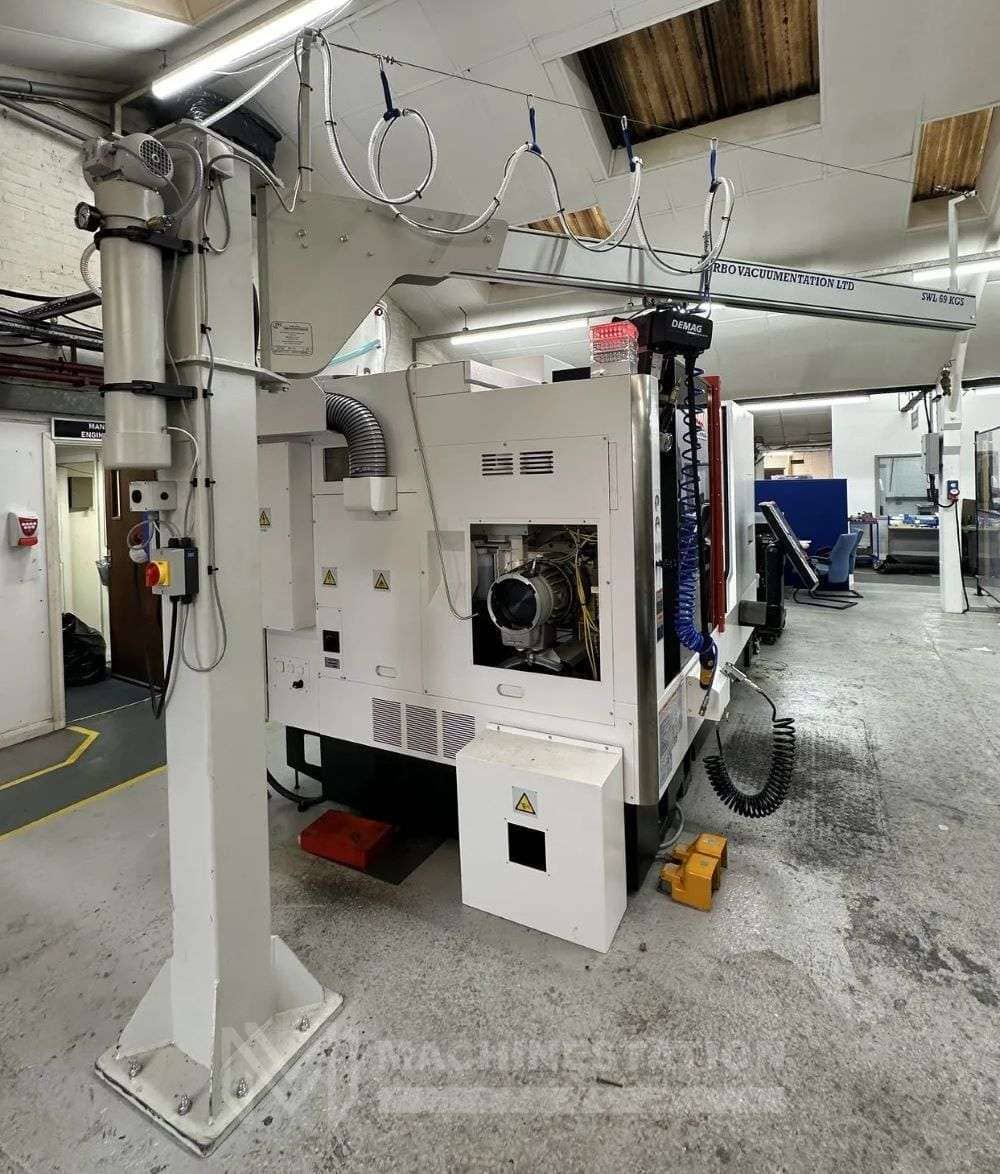

| Turbo Vacummentation SWL 69 kgs Swing Jib Crane |

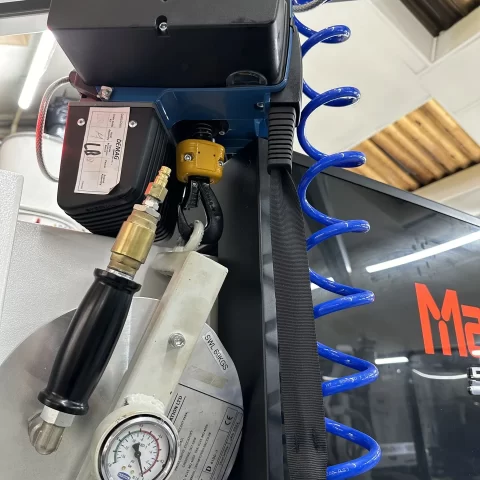

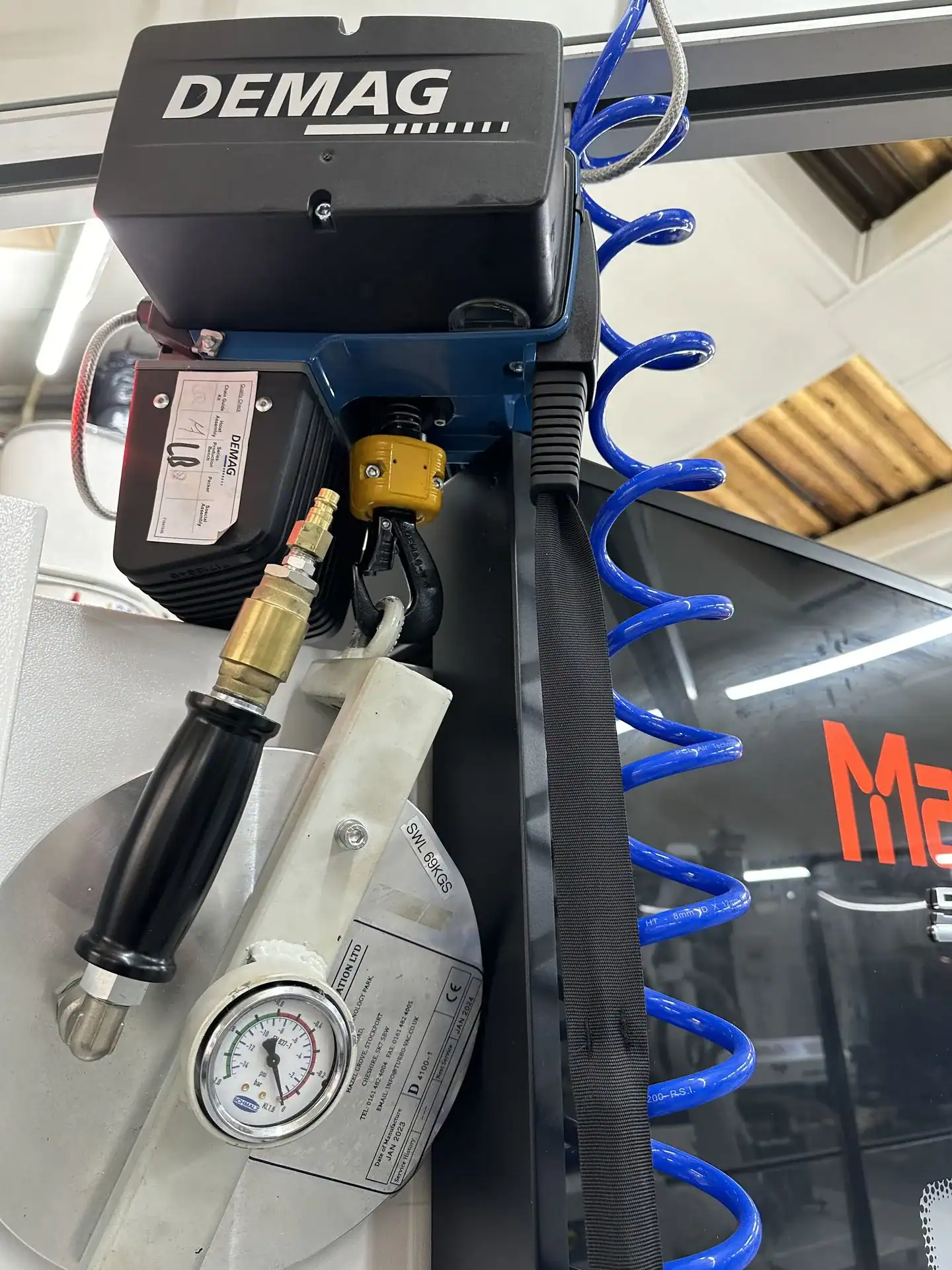

| Demag Electric Lift Hoist |

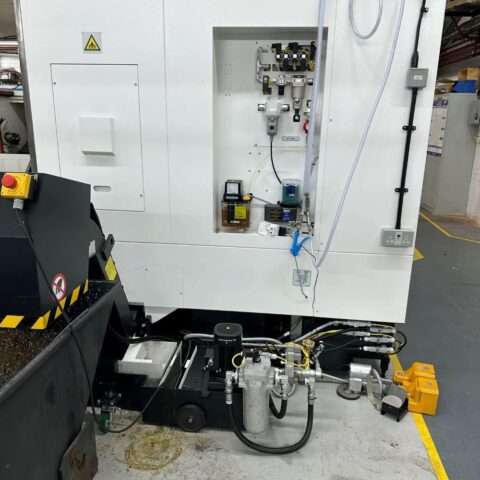

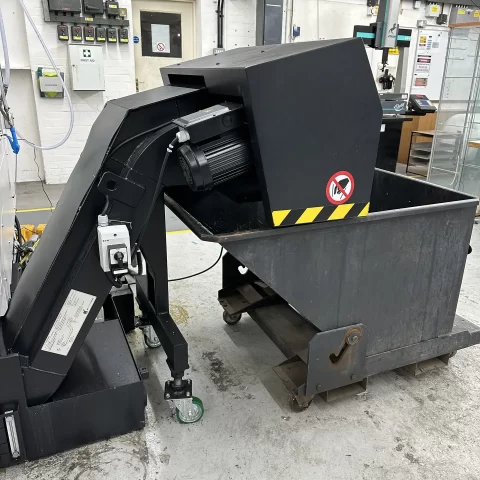

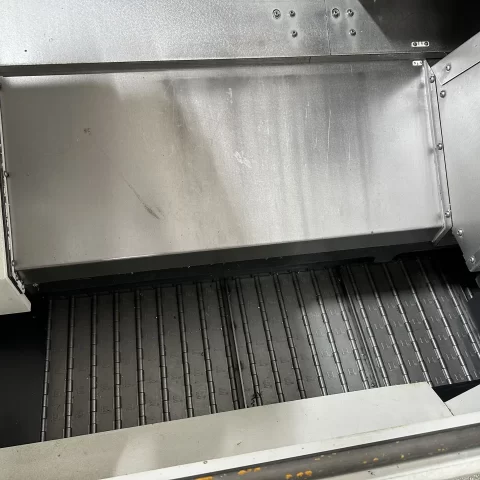

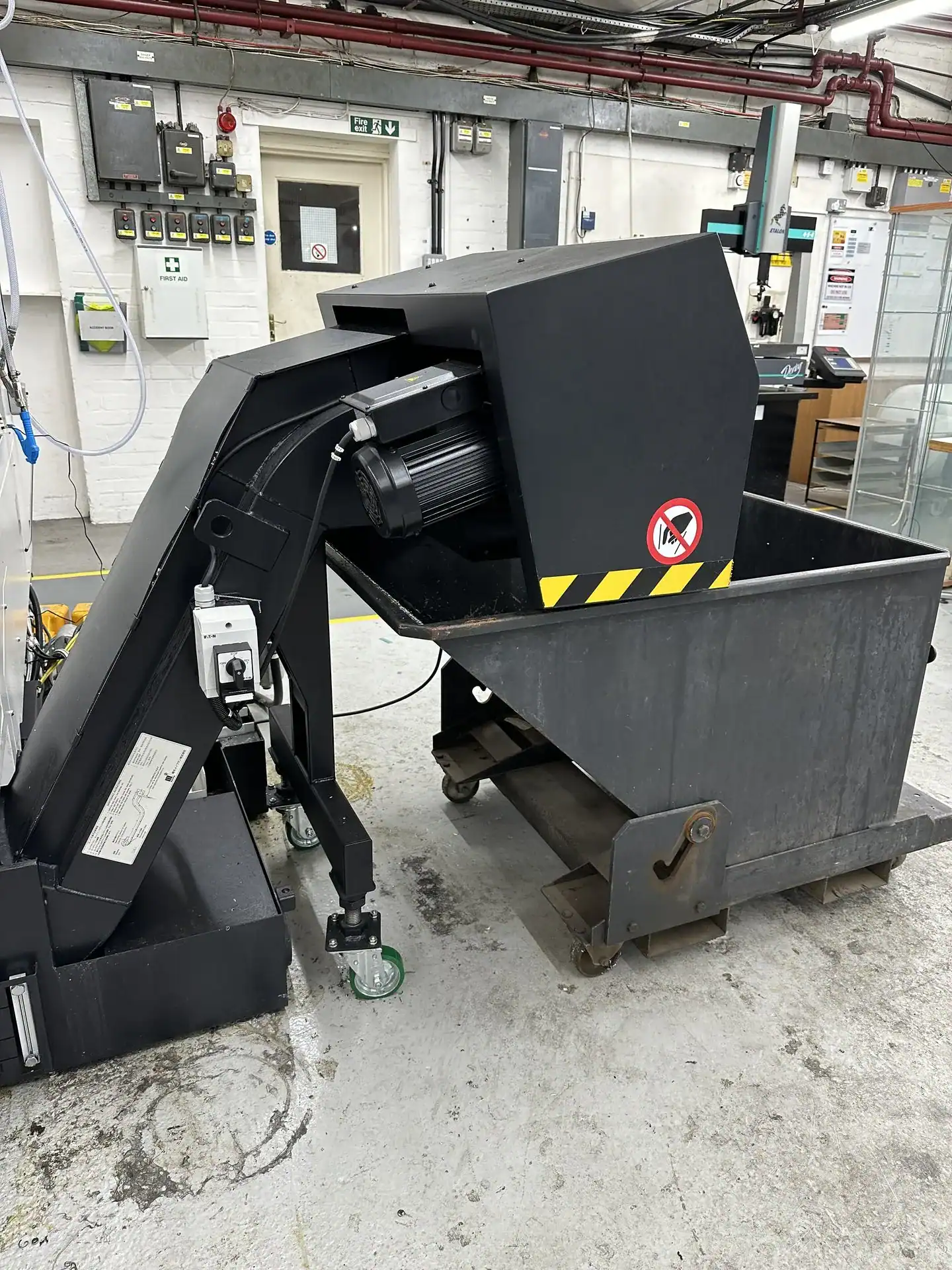

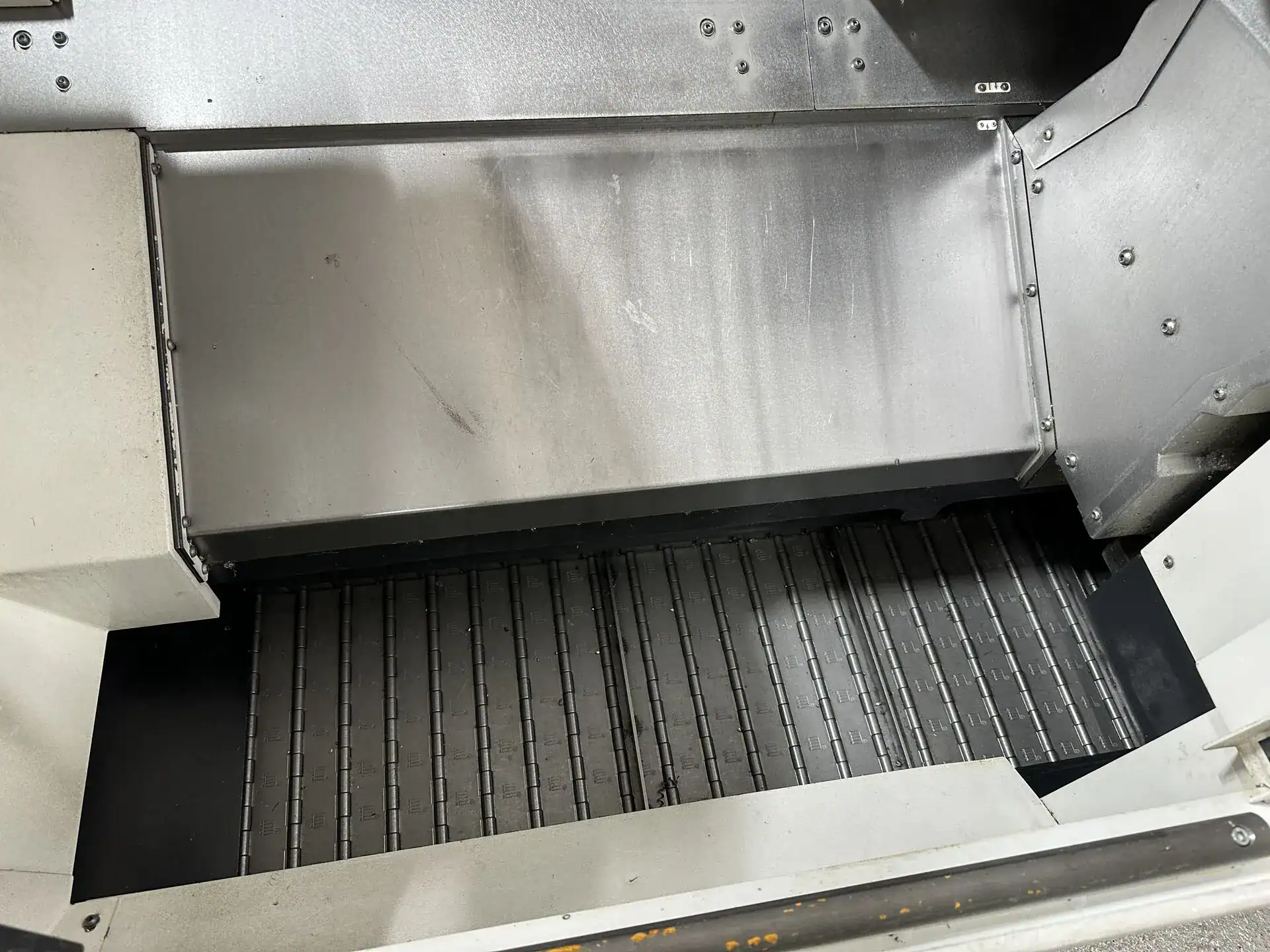

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter : 16.54″ |
| Max Turning Length : 23.8″ |
| Max Swing : 29.5″ |
| Max Bar Capacity Main Spindle : 4.05″ |
| Max Bar Capacity Sub Spindle : 2.55″ |
| Travels: |
|---|
| X Axis Travel : 10.62″ |
| Z Axis Travel : 26.39″ |
| Y Axis Travel: 6.00″ |
| W Axis Travel ( Sub Spindle ): 26.63″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1496 IPM |
| Rapid Traverse Z Axis: 1496 IPM |
| Rapid Traverse Y Axis: 1023 IPM |
| Spindle: |
|---|
| Main Spindle Bore: 4.45″ |
| Sub Spindle Bore: 3.00″ |
| Main Spindle Speed: 4000 RPM |
| Sub Spindle Speed: 4000 RPM |
| Main Spindle Power: 40 HP |
| Sub Spindle Power: 35 HP |
| Turret: |
|---|

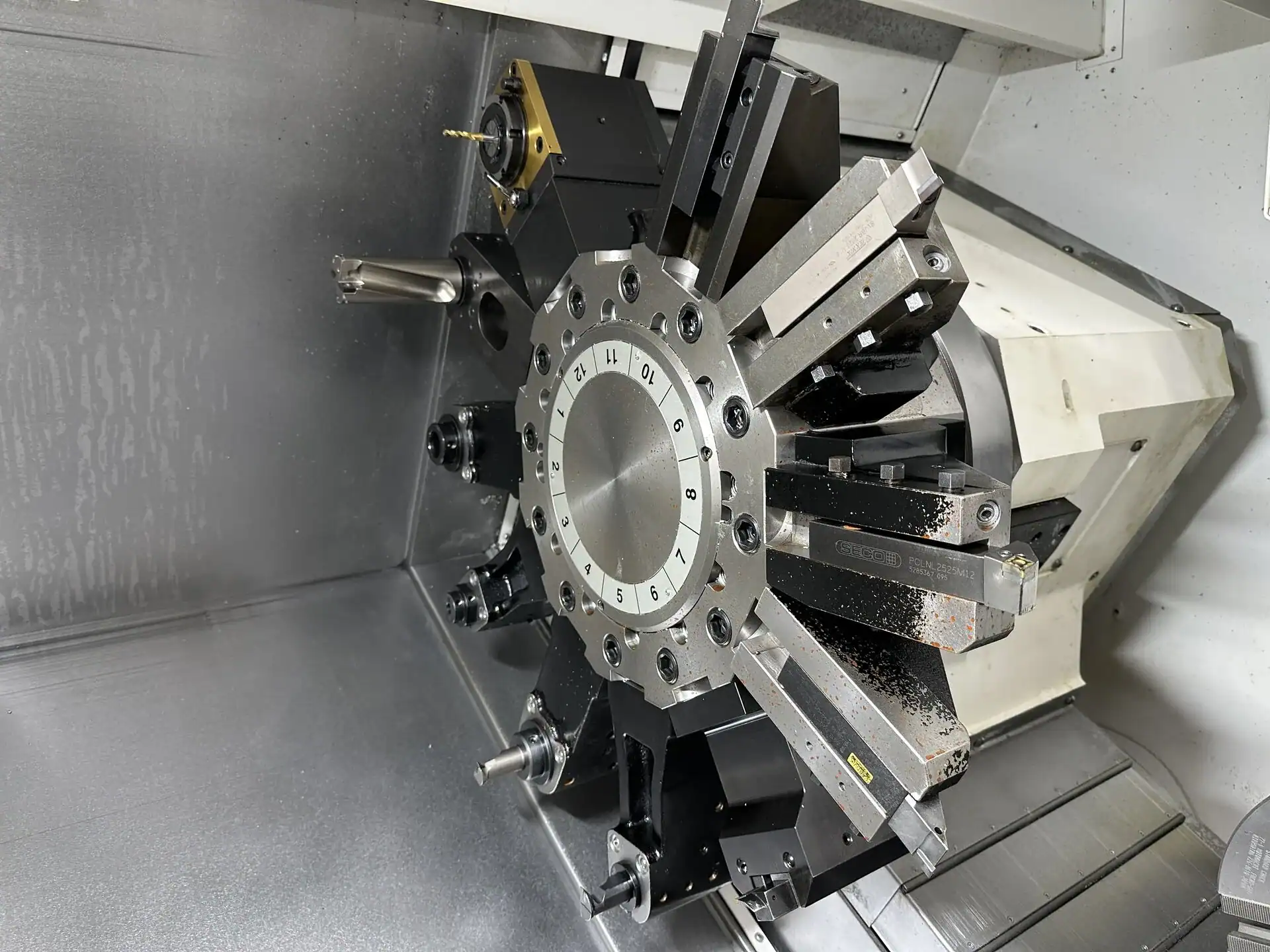

| Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tools Motor: 10 HP |
| General: |
|---|

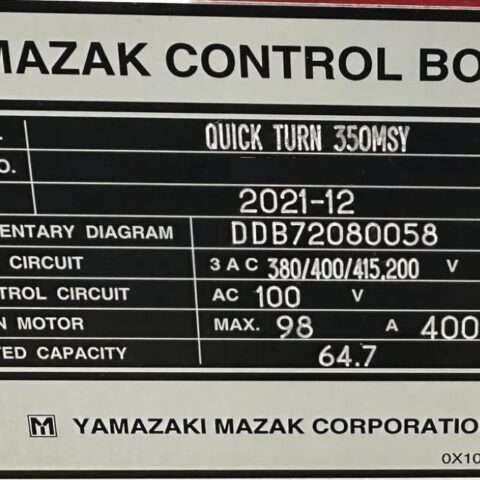

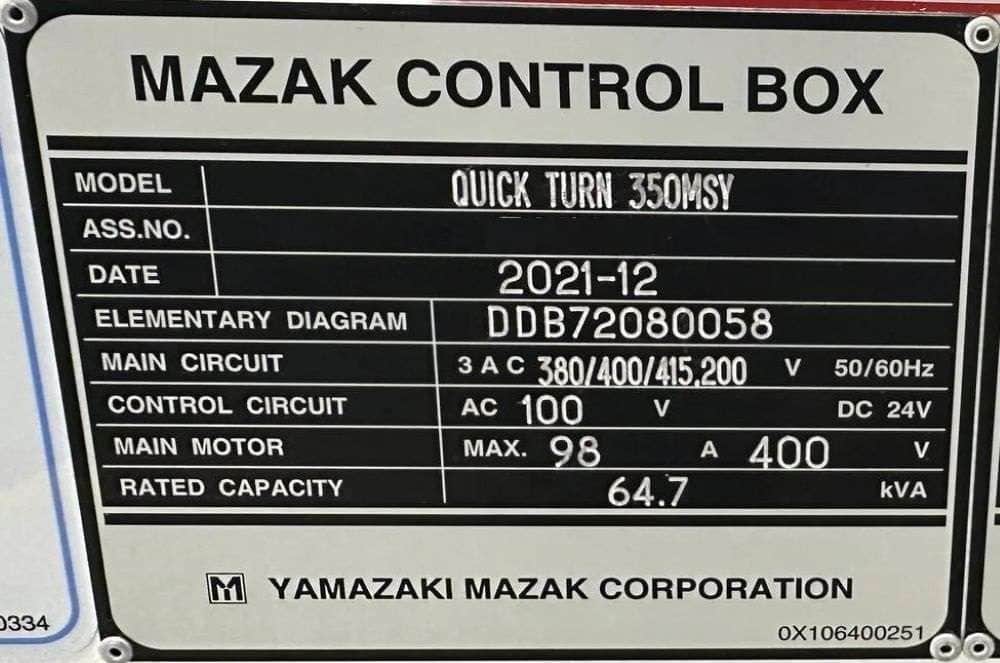

| Power Source: 64.7 kva / 415v – 200v / 3-Phase |
| Overall Dimensions: 145″ x 118″ x 90″ High |

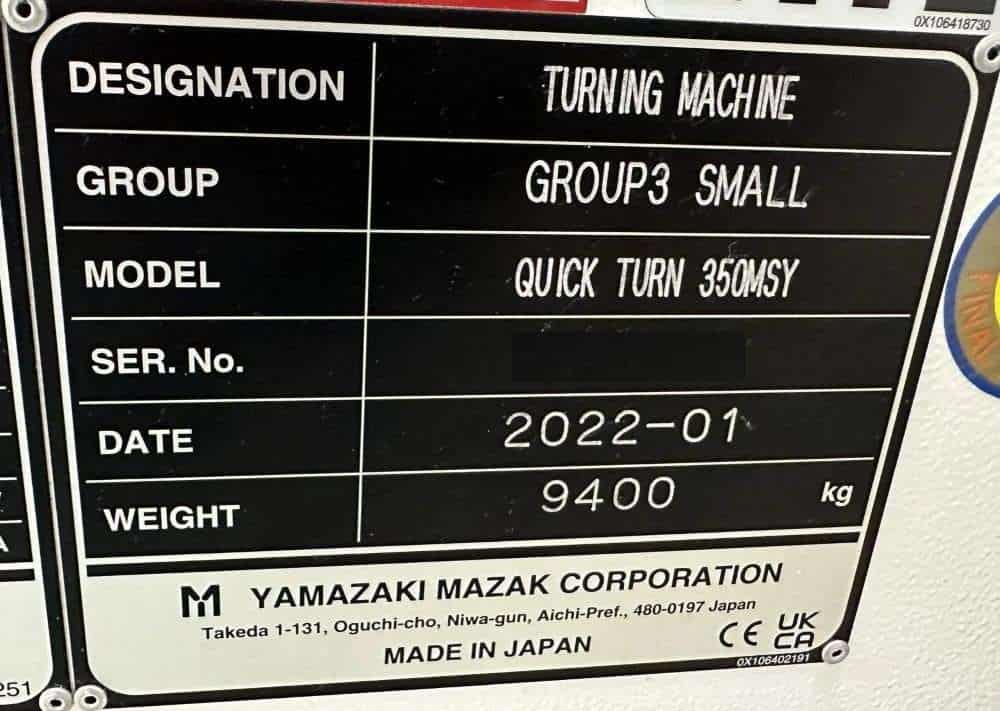

| Weight: 20,723 lbs. Approx. |
