All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | Doosan |

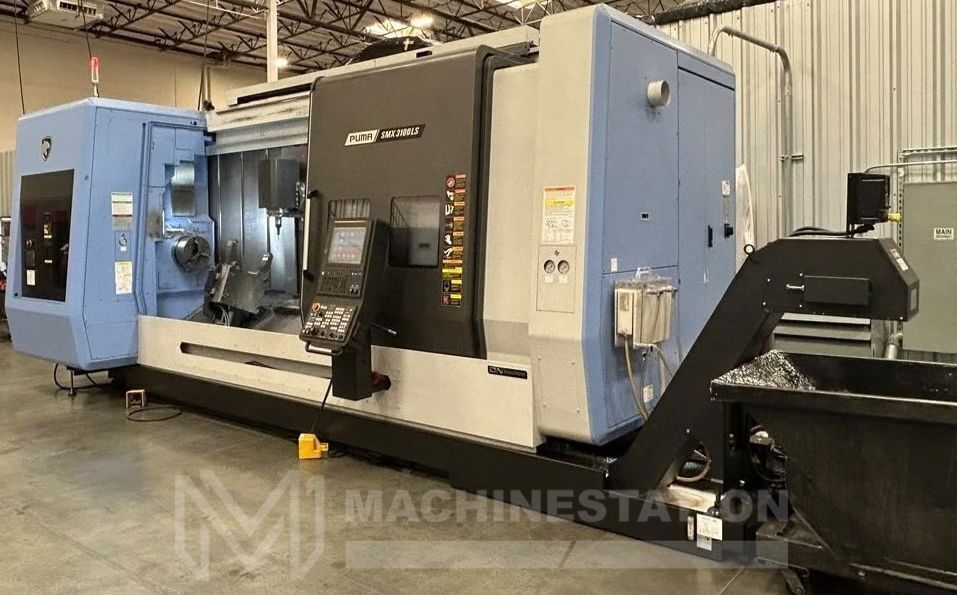

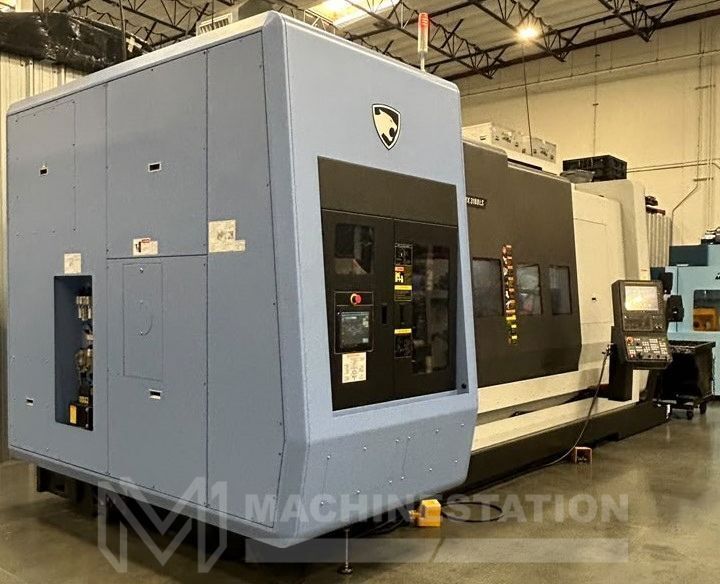

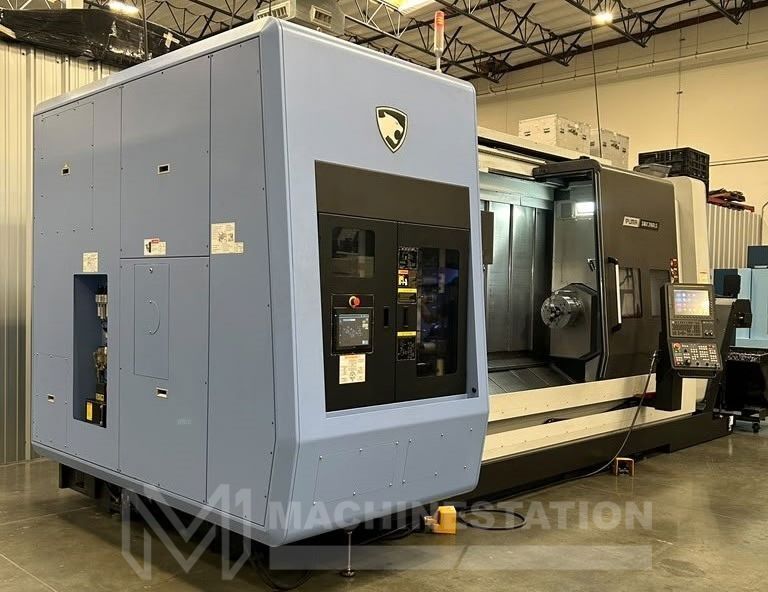

| Model: | Puma SMX3100LS |
| Year: | 2023 |
| Features: |
|---|

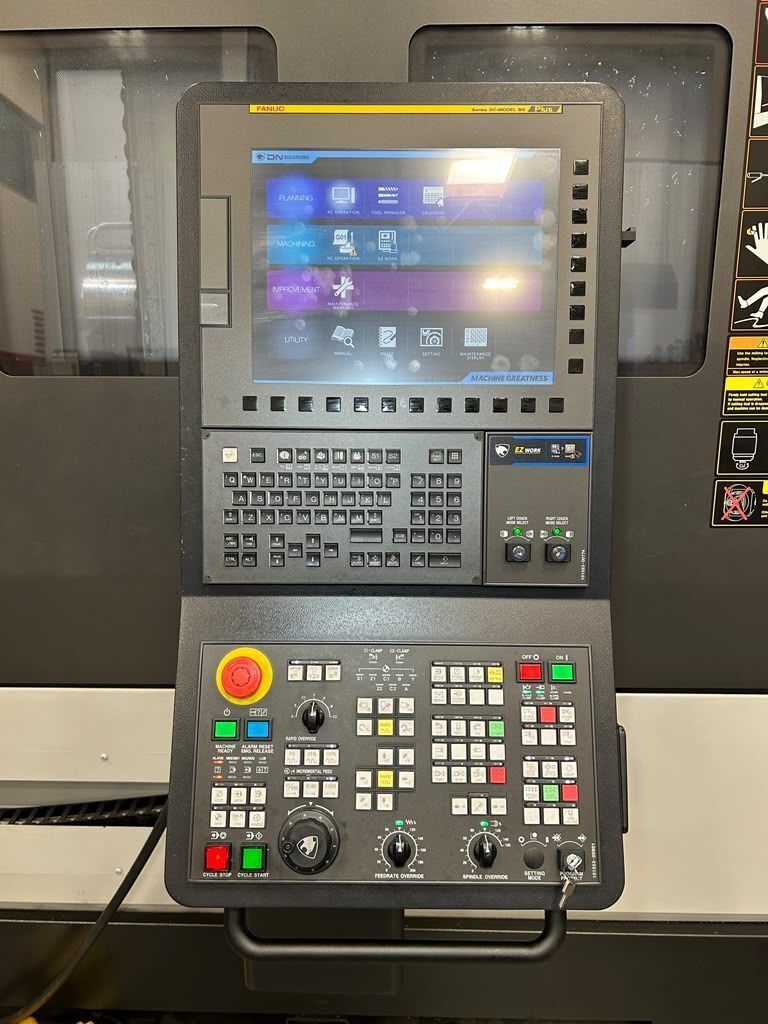

| Fanuc Series 31i-Model B5 Plus CNC Control |

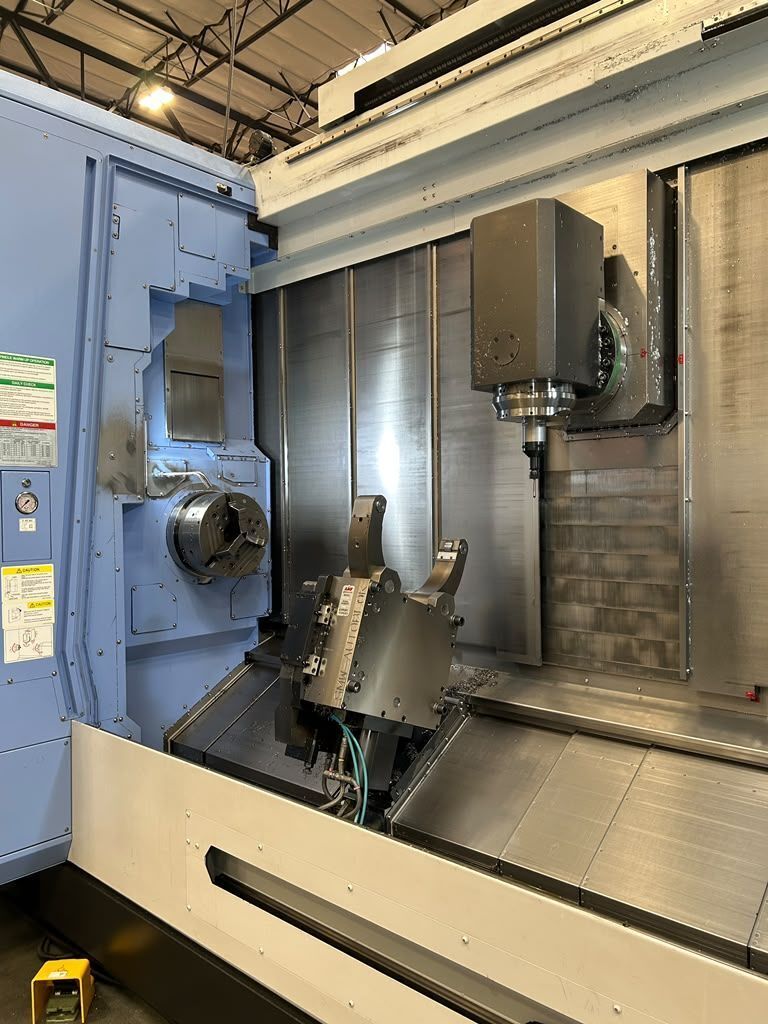

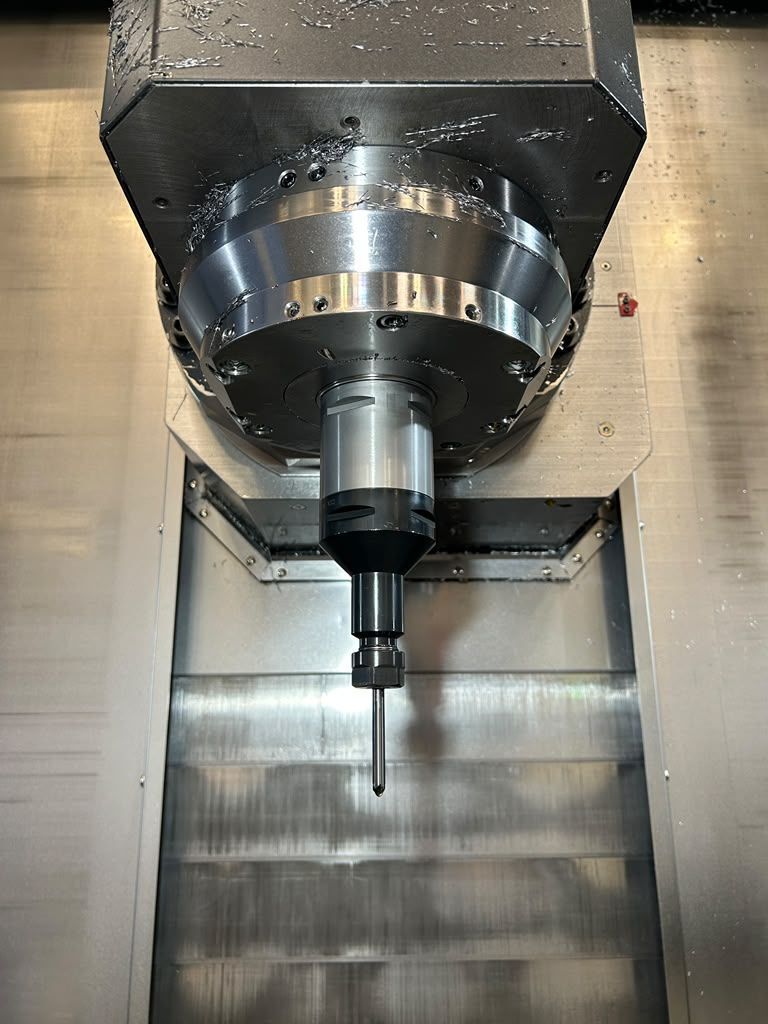

| 12,000 RPM Pendulum Milling Head |

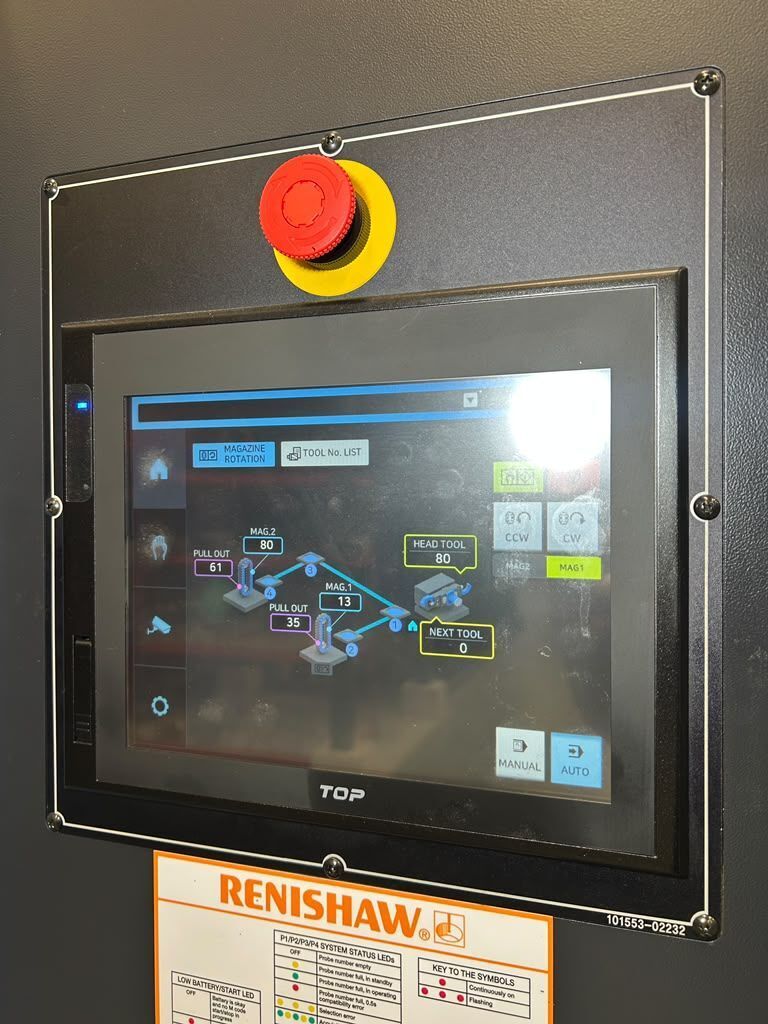

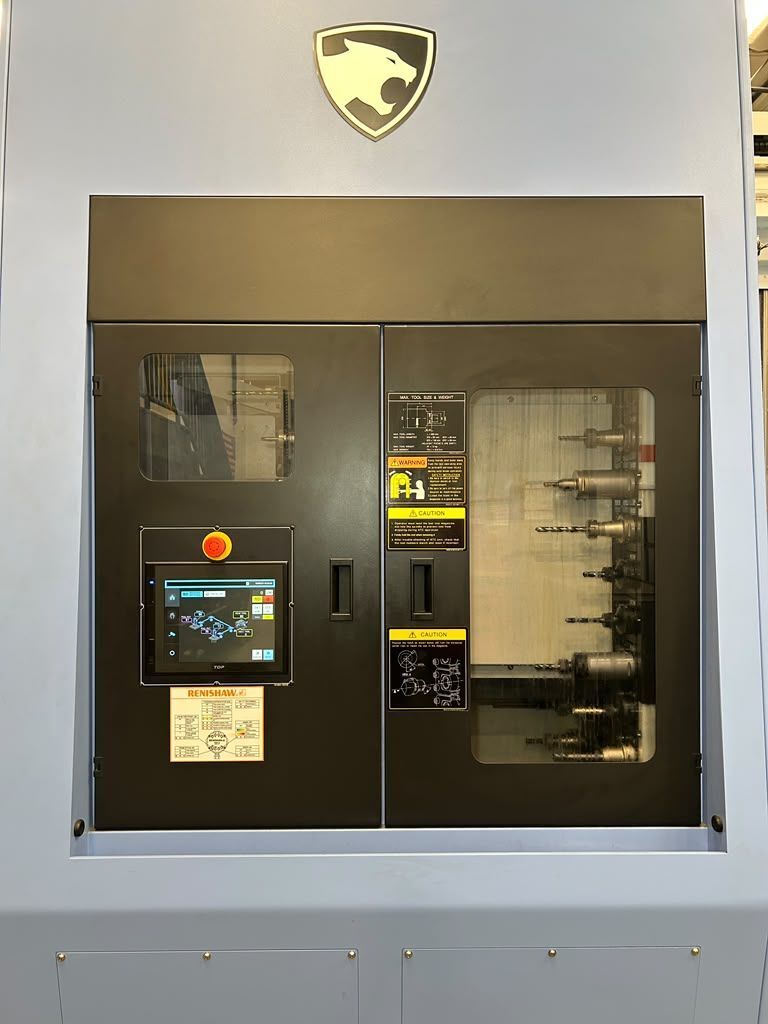

| 80 Station Automatic Tool Changer |

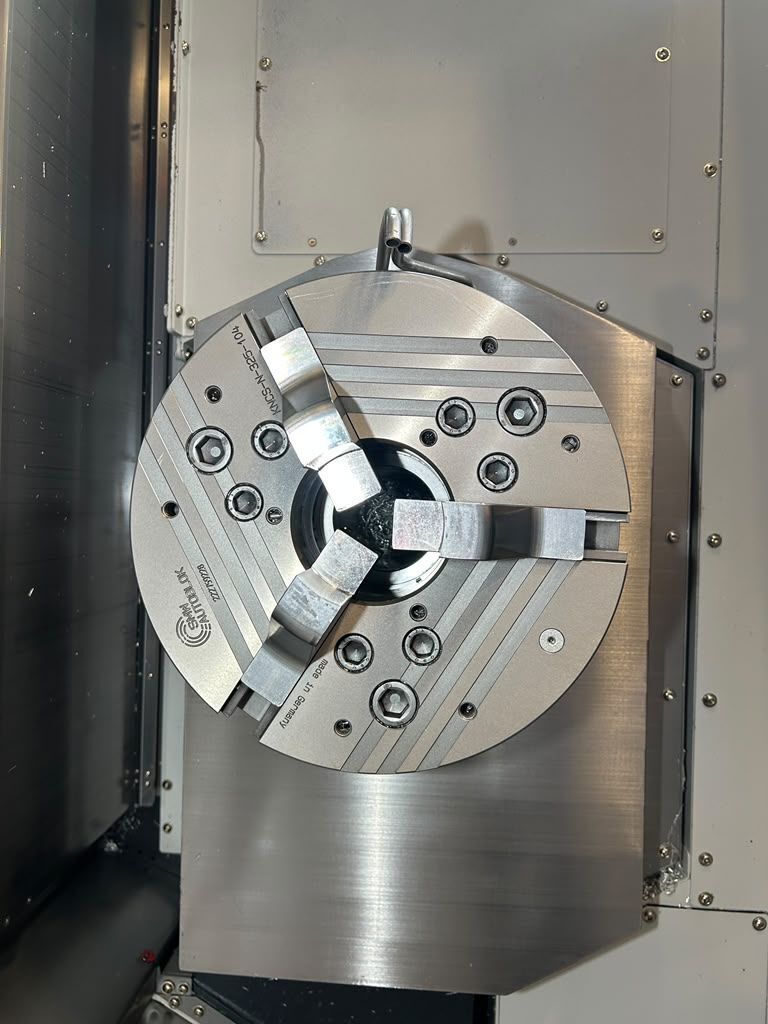

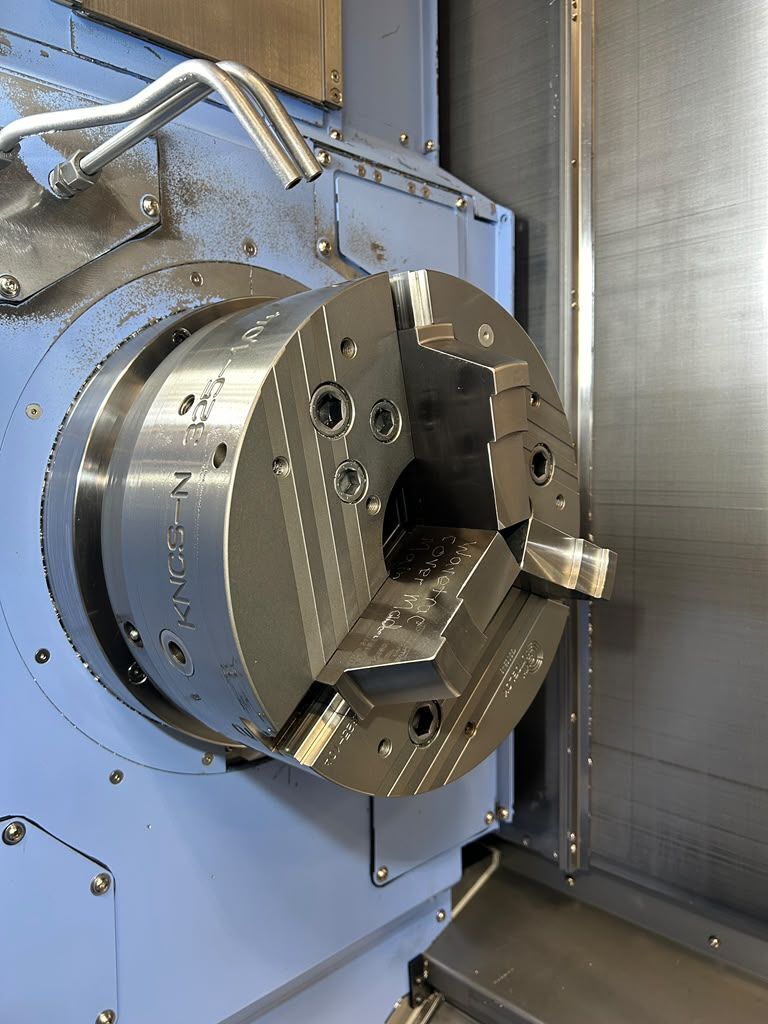

| 12.8 inch SMW Autoblok KNCS-N-325 3-Jaw Chuck on Main Spindle |

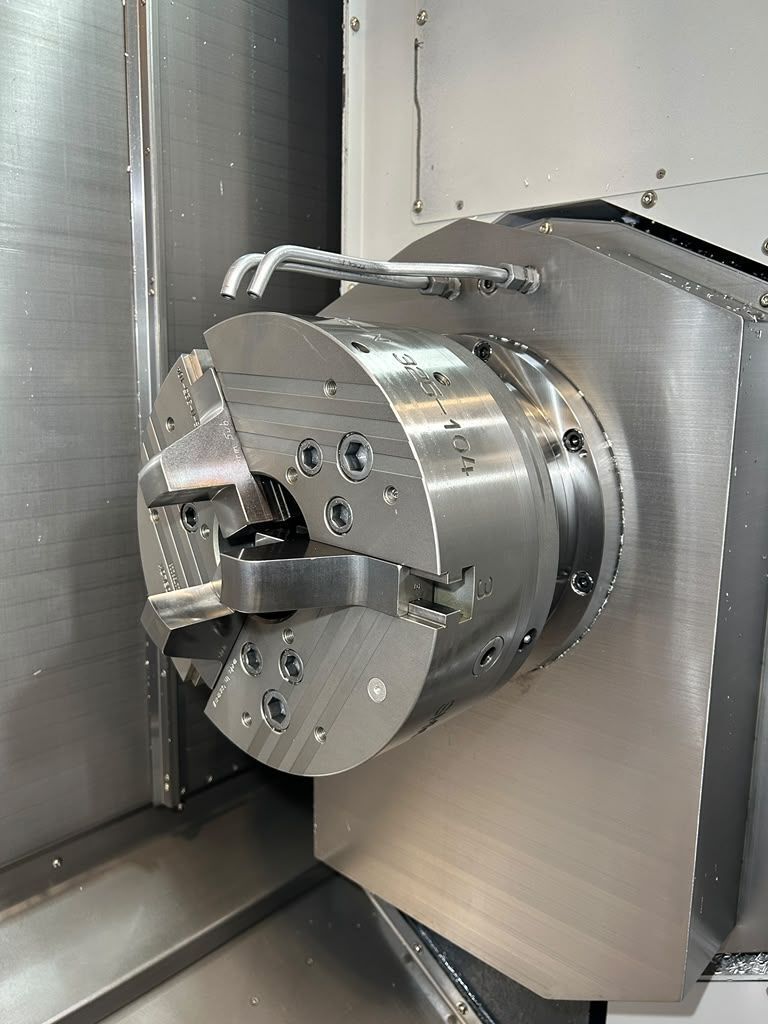

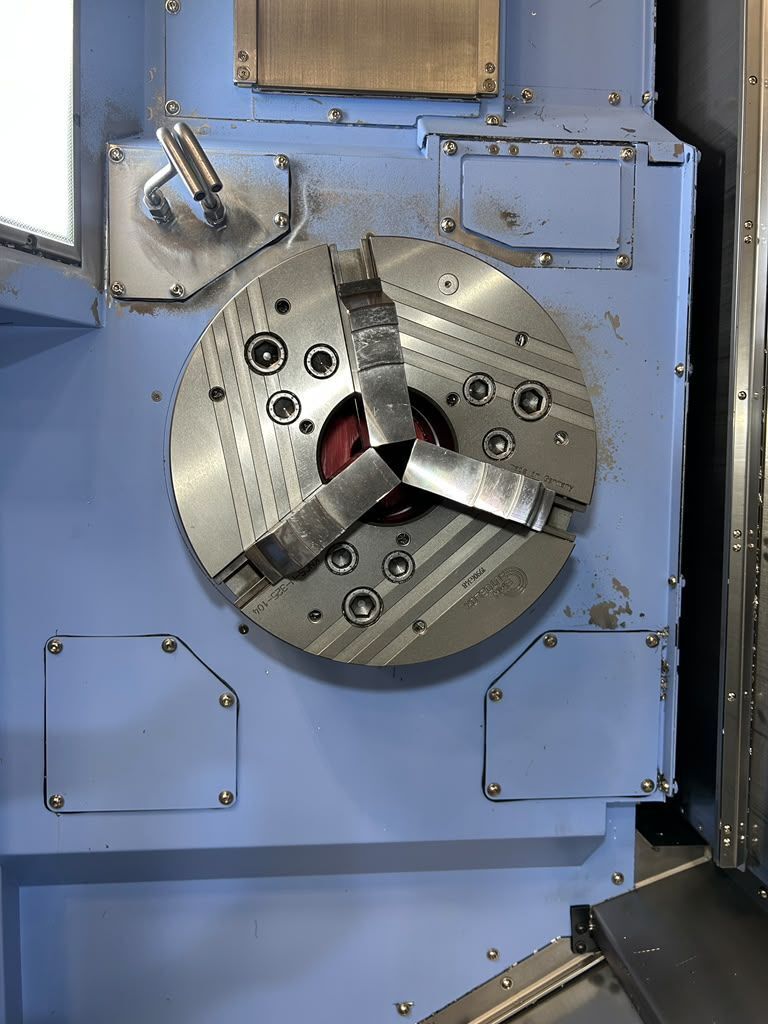

| 12.8 inch SMW Autoblok KNCS-N-325 3-Jaw Chuck on Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability |

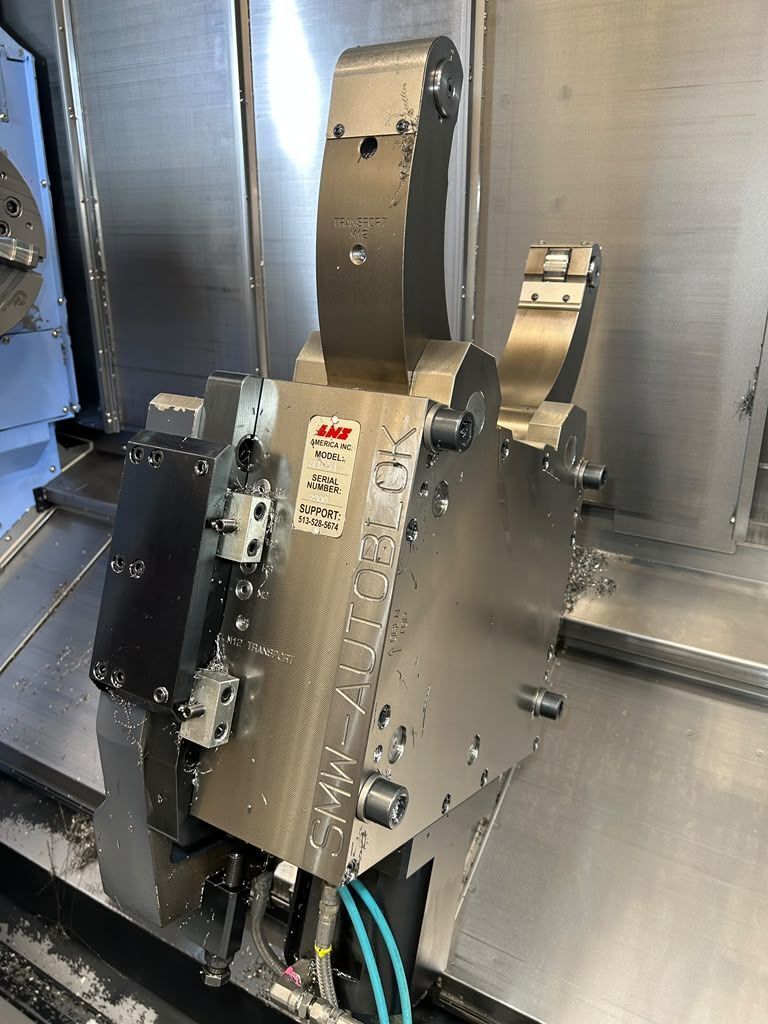

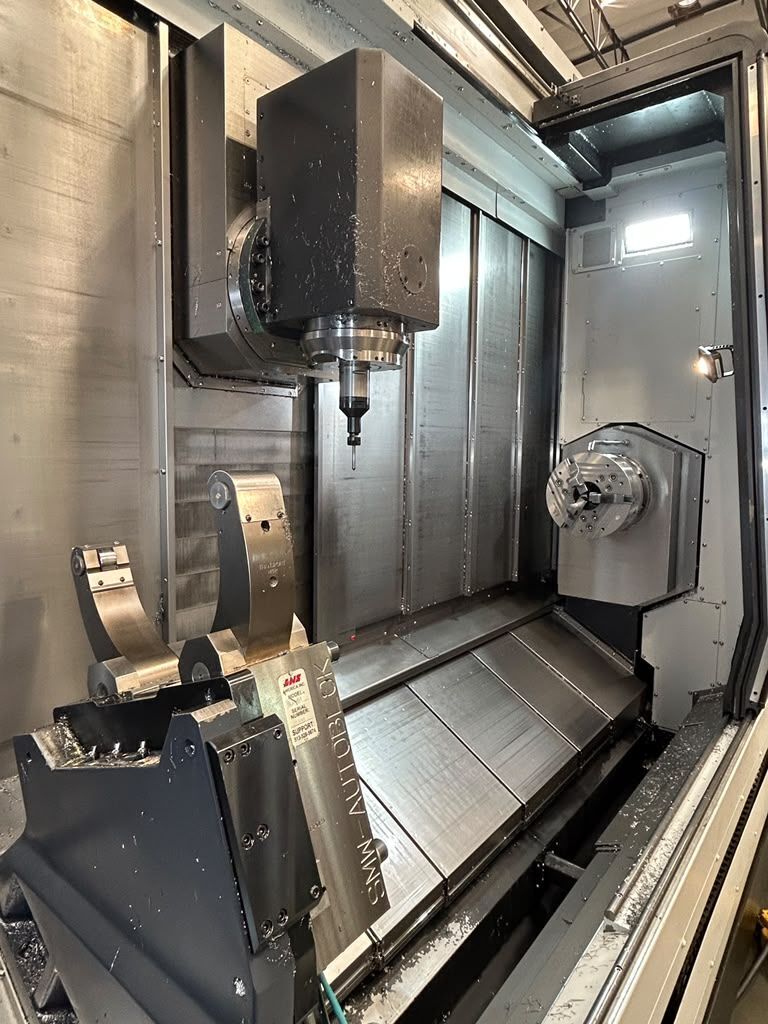

| SMW Autoblok Programmable Steady Rest |

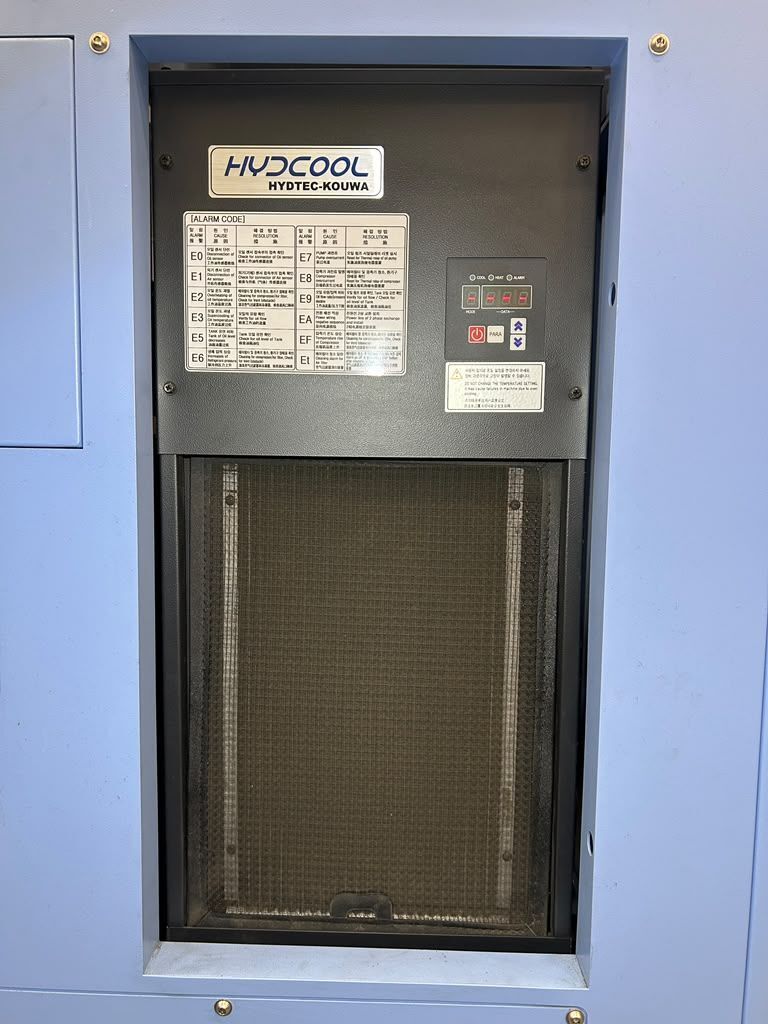

| Hydcool Hydtec-Kouwa Chiller Unit |
| Rigid Tapping |
| Automatic Lubrication Unit |
| Coolant Tank |

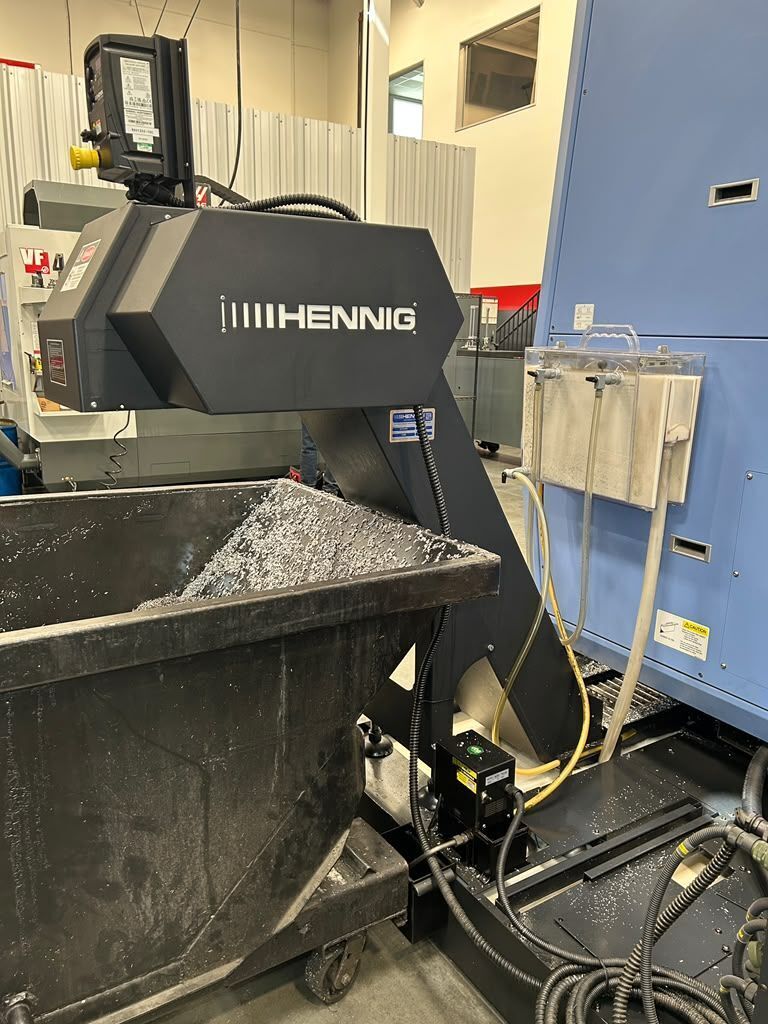

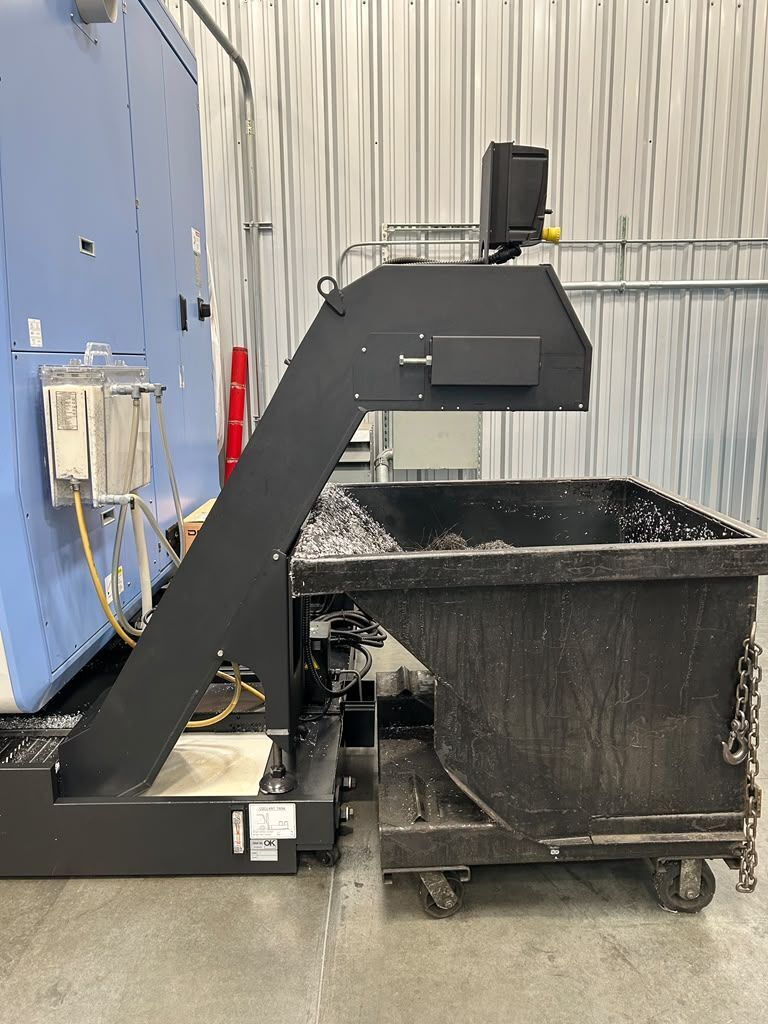

| Hennig Chip Conveyor |

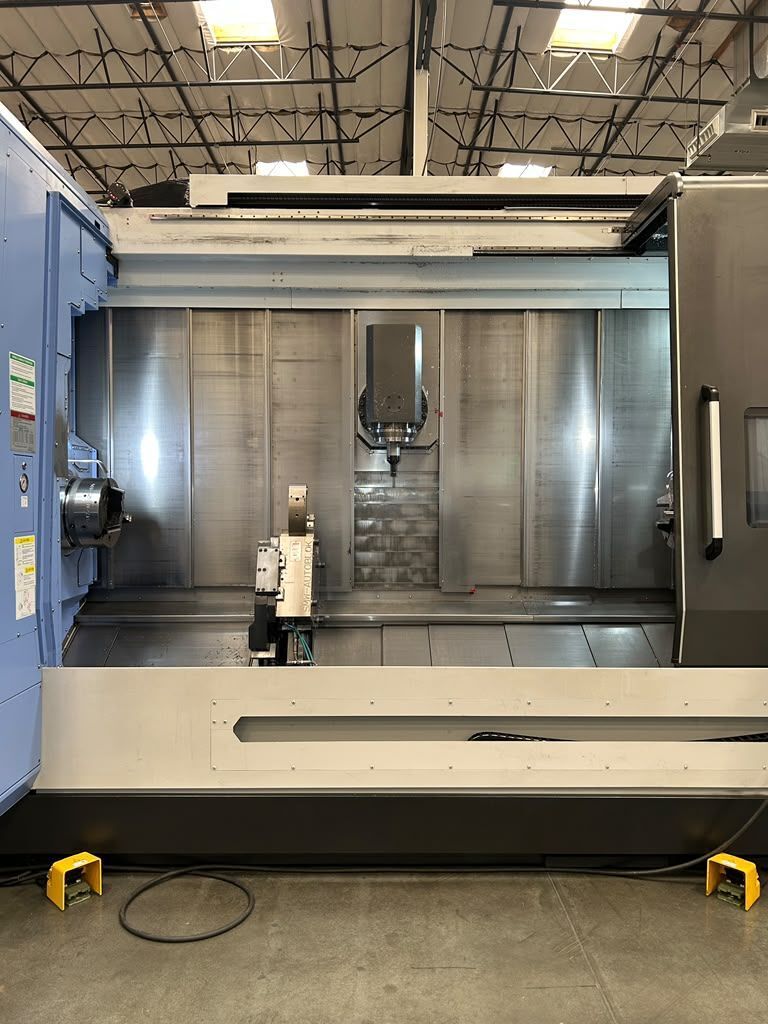

| Foot Switch |
| Capacity: |
|---|
| Max Swing Over Bed: 26.00 inch |
| Max Machining Diameter: 26.00 inch |
| Max Machining Length: 100.00 inch |
| Max Bar Capacity: 4.01 inch |
| Travels: |
|---|
| X Axis Travel: 24.80 inch |
| Y Axis Travel: 11.81 inch (± 5.9 inch) |
| Z Axis Travel: 101.77 inch |
| A-Axis Stroke (Sub Spindle): 98.40 inch |
| C Axis: 360° (0.0001°) |
| B Axis: 240° (± 120°) (0.0001°) |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1,889 IPM |
| Rapid Traverse Y Axis: 1,417 IPM |
| Rapid Traverse Z Axis: 1,181 IPM |
| Rapid Traverse A Axis: 1,181 IPM |
| Rapid Traverse B Axis: 40 RPM |
| Rapid Traverse C Axis: 200 RPM |
| Main Spindle: |
|---|
| Chuck Size: 12.8 inch |
| Spindle Nose: A2-11 |
| Spindle Bore: 4.52 inch |
| Max Spindle Speed: 3,000 RPM |
| Spindle Motor: 40 HP |
| Sub Spindle: |
|---|
| Chuck Size: 12.8 inch |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.60 inch |
| Max Spindle Speed: 4,000 RPM |
| Spindle Motor: 40 HP |
| Milling Spindle: |
|---|
| Milling Spindle Speed: 12,000 RPM |
| Milling Spindle Motor: 35 HP |
| Milling Tool Taper: CAPTO C6 |
| Tool Changer: |
|---|
| Capacity: 80 Tools |
| Max Tool Length: 17.7 inch |
| Max Tool Weight: 26.5 lbs |
| Max Tool Diameter: 3.5 – 5.1 inch |
| General: |
|---|
| Power Source: 220V / 50/60 Hz / 3-Phase / 99.72 kVA |
| Overall Dimensions: 252 inch x 118 inch x 112 inch High Approx. |
| Machine Weight: 47,178 lbs Approx. |
