Mazak Variaxis C-600 5 Axis CNC Vertical Machining Center

Out of stock

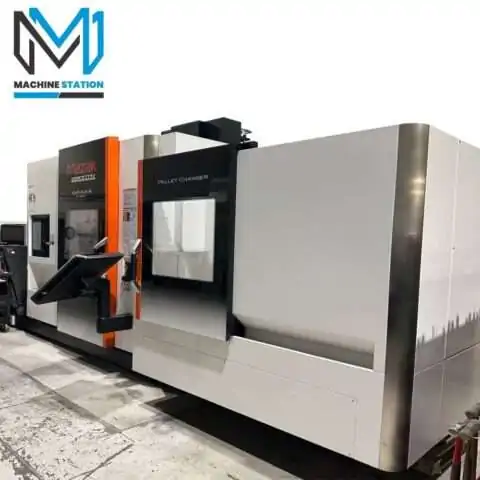

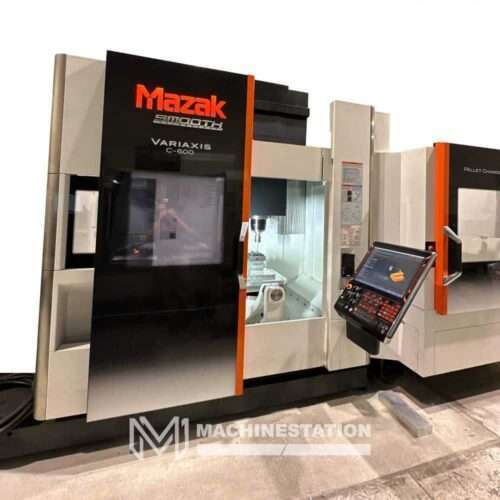

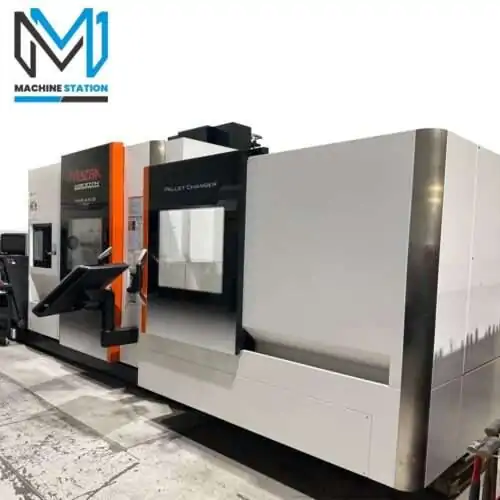

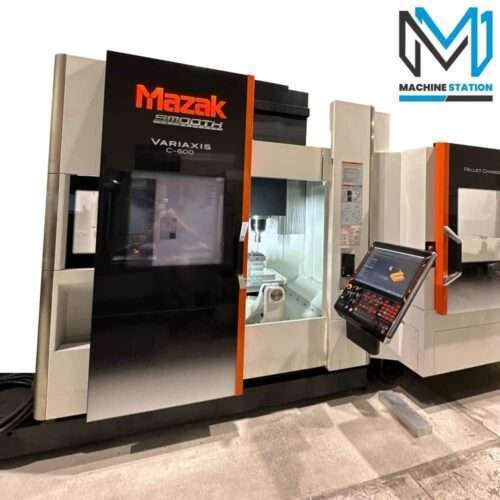

Used Mazak Variaxis C-600 5 Axis CNC Vertical Machining Center For Sale

SKU: 7013
Make/Model: Mazak Variaxis C-600

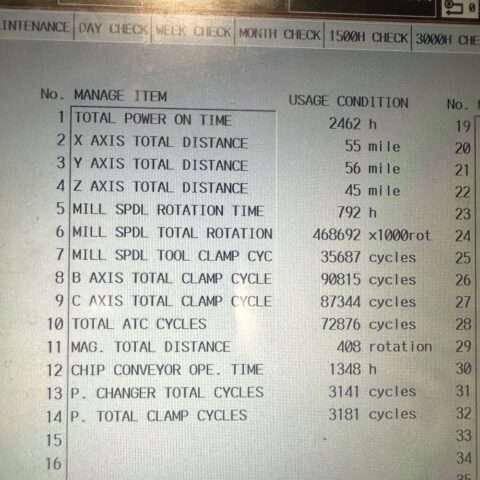

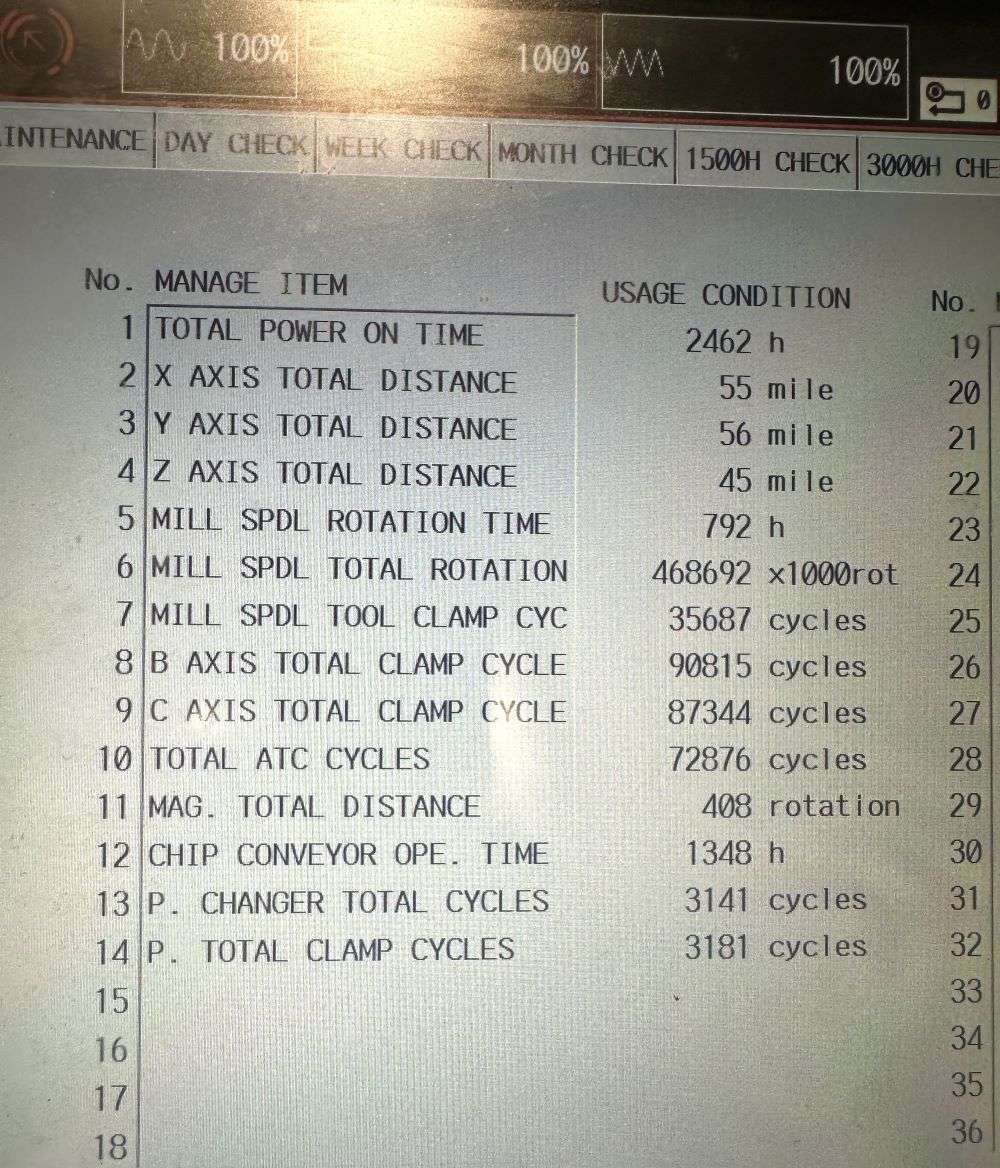

Cutting Time: 792 Hours
Video: No Video



SKU: 7013

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mazak

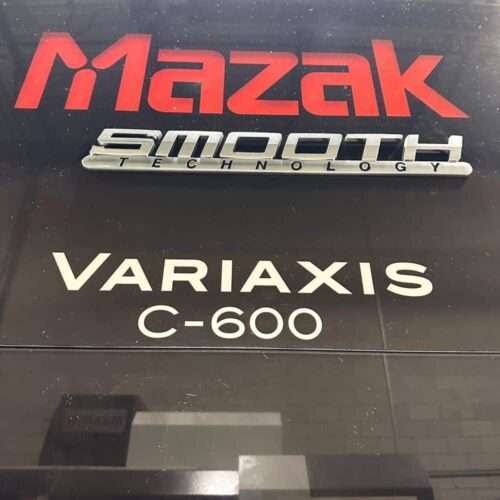

Model: Variaxis C-600
Year: 2021
Condition: Used – Excellent



Features:
Mazatrol Smooth AI 19″ Color LCD Touch Screen CNC Control
5 Axis Simultaneous Machining

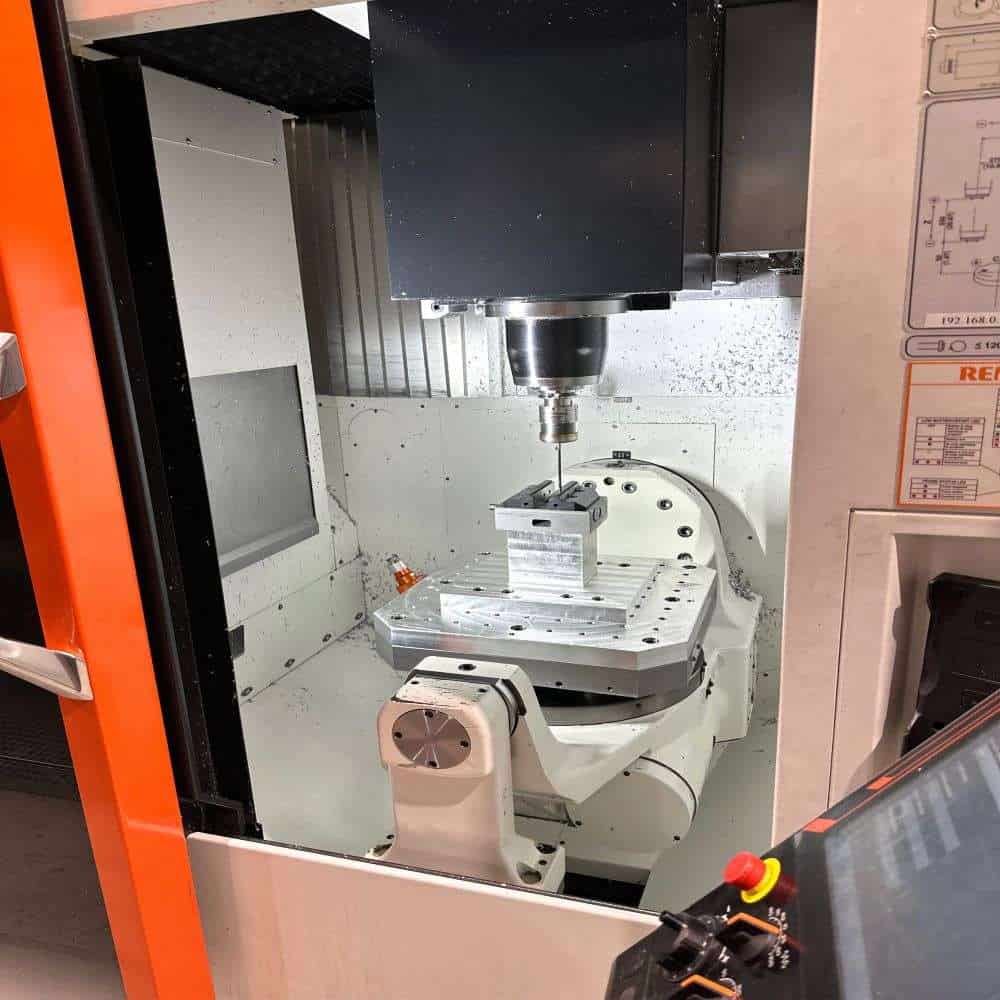

Programmable Swivelling Trunnion Table

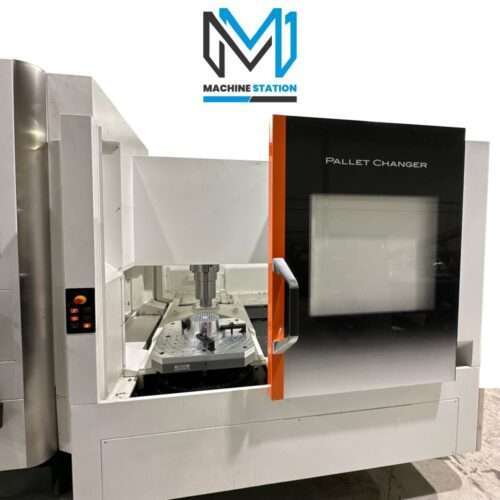

2 Automatic Pallet Changer
Automatic Pallet Changer Auto Recovery
12,000 RPM High Speed Spindle
60 Station Automatic Tool Changer with Automatic Recovery Mode
Coolant through Spindle

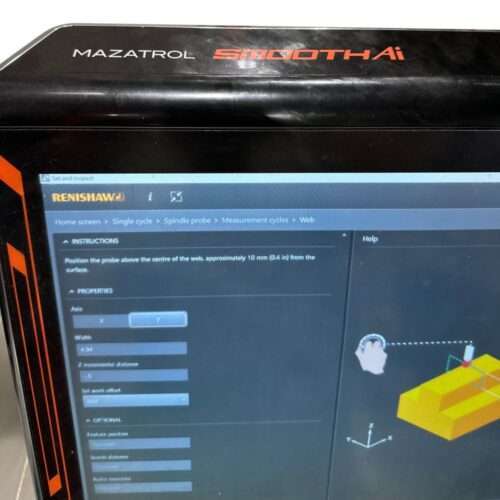

Renishaw Spindle Probe RMP600
Spindle Chiller
LAN Port
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping
Flood Coolant System
Safety Shield
Chip Conveyor
Work light
Books and Manuals



Pallet:
Pallet size: ø23.62″ × 19.69″
Maximum Work Piece Size: ø28.74″ × 17.72″
Max Weight on Pallet: 1102 lbs
Table Surface Configuration: (5/8-11 UNC) tap 20



Travel:
X Axis: 25.29″
Y Axis: 21.65″
Z Axis: 20.87″
A Axis: -30° ~ +120° ( Table Tilt )
C Axis: 360° ( Table Rotate )



Spindle:
Taper Size: CAT 40 Big Plus
Speed Range: 12,000 RPM
Spindle Power: 15 HP



Feed Rates:
Rapid X Y & Z: 1654 Inch Per Minute
Feed Rate : 1574 Inch Per Minute



Tool Changer:
Capacity: 60 Tools
Taper: CAT 40 Big Plus
Max Tool Size: ø3.15″/11.81″
Max Tool Weight: 18 lbs.
Tool Change Time: 4.5 Second



General:
Air Required: 100 psi, 4 scfm
Power: 29.03 kva / 220v / 3-Phase
Machine Dimensions: 107.09″ x 92.52″ x 116.61″ High
Machine Weight: 22,046 lbs
