*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

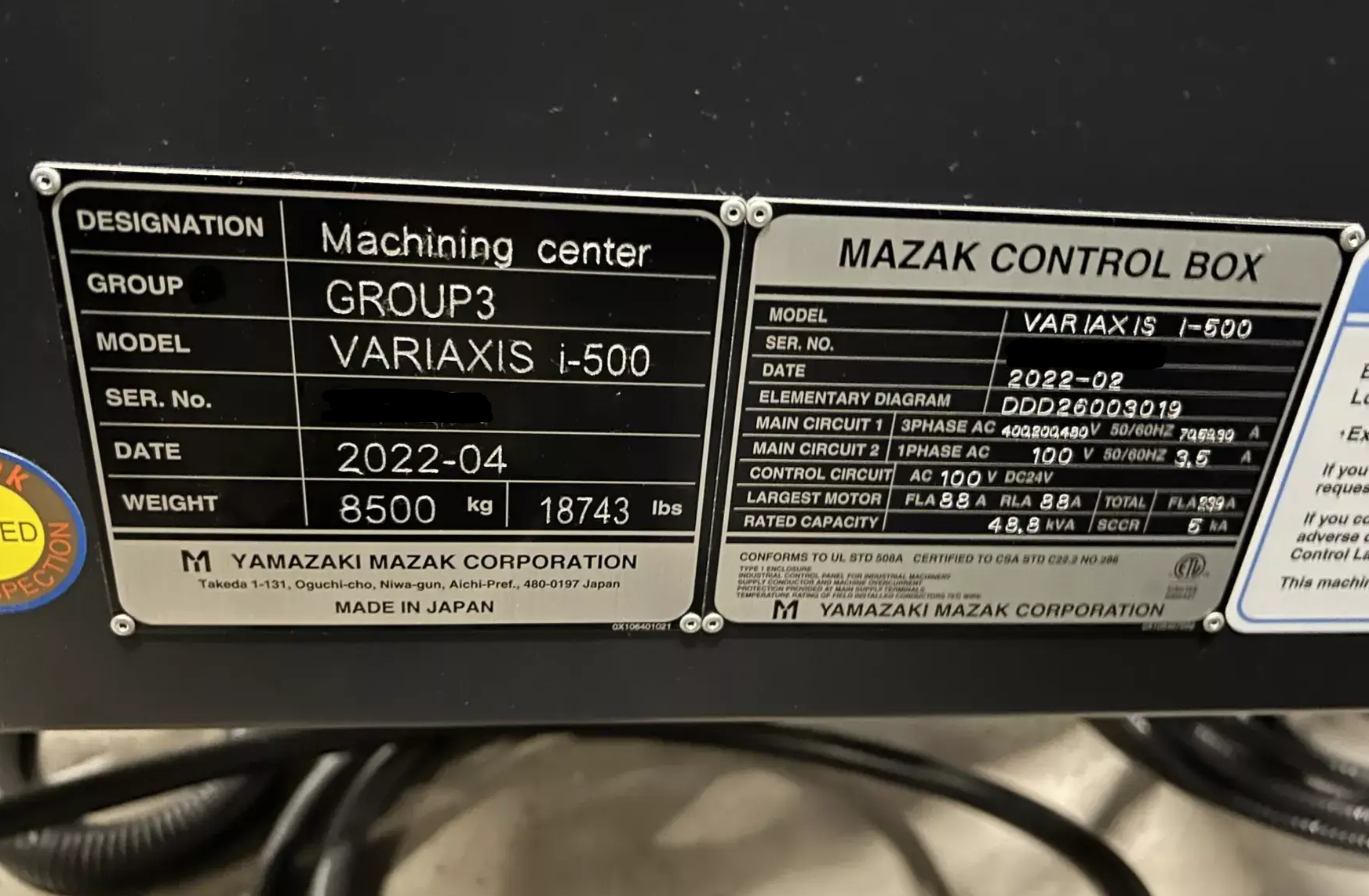

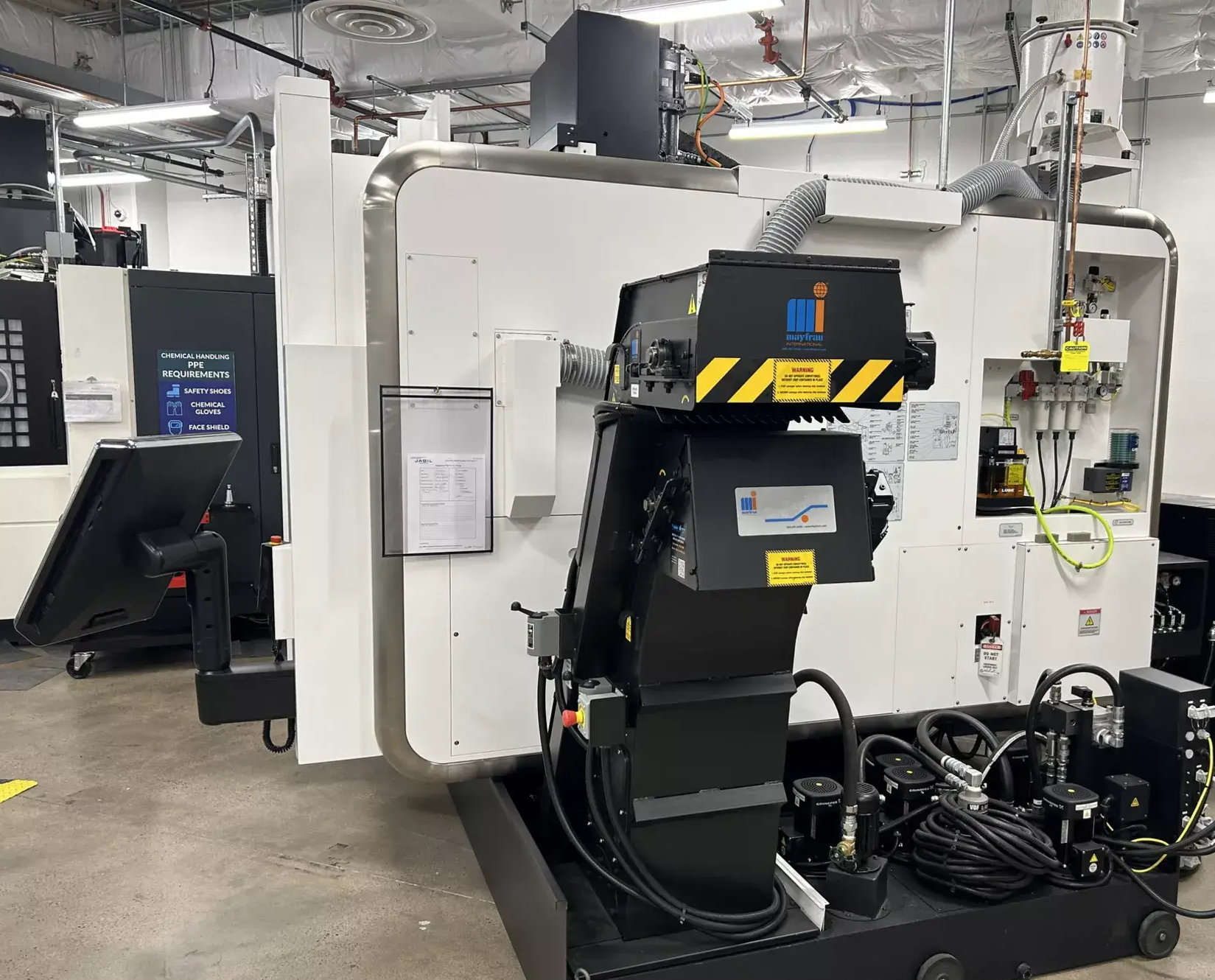

| Make: |
Mazak |
| Model No.: |
VARIAXIS i-500 |
| Year of Manufacture: |
2022 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

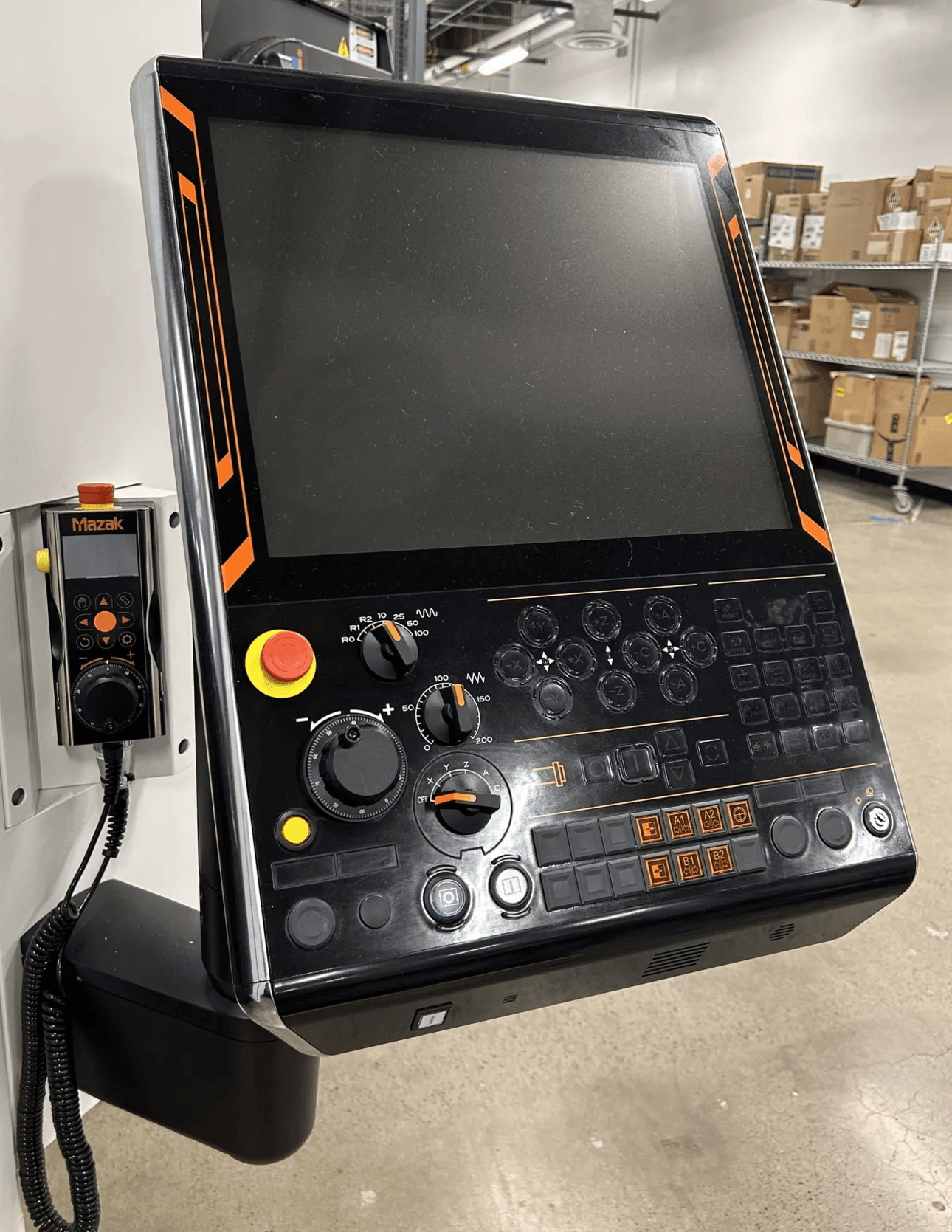

Mazak SmoothAi CNC Control |
| Equipped With: |
| Mazak SmoothAi CNC Control |
| Full 5-Axis Simultaneous Machining Capability |
| Trunnion Style Rotary Table (A/B Axis) |
| High-Speed Spindle |
| Automatic Tool Changer (ATC) |
| Through Spindle Coolant (TSC) |
| Coolant System with Filtration |
| Chip Conveyor |
| Spindle Chiller |
| Tool Measurement System (Tool Setter) |
| Renishaw / Mazak Probing System |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Handheld MPG Pendant |
| Capacity: |
| Table Size (Trunnion): 500 mm (19.7″) Diameter |
| Max Table Load: 200 kg (440 lbs) |
| Max Workpiece Diameter: 500 mm (19.7″) |
| Max Workpiece Height: 350 mm (13.7″) |
| Travels: |
| X-Axis Travel: 500 mm (19.7″) |
| Y-Axis Travel: 450 mm (17.7″) |
| Z-Axis Travel: 400 mm (15.7″) |
| A-Axis (Tilt): -120° to +30° |
| B-Axis (Rotation): 360° Continuous |
| Rapid Traverse (X/Y/Z): 60 m/min (2,362 IPM approx.) |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 18.5 kW / 25 HP (Approx.) |
| Spindle Taper: CAT 40 / BT40 |
| High-Speed Direct Drive Spindle |
| Tool Changer: |
| Tool Changer Type: Automatic Tool Changer (ATC) |
| Capacity: 30 Tools (Standard) |
| Tool Change Time: Approx. 1.5 sec (tool-to-tool) |
| Max Tool Diameter: 70 – 125 mm |
| Max Tool Length: Approx. 300 mm |
| Max Tool Weight: Approx. 8 kg |
| Machine Construction: |
| High-Rigidity Trunnion Design for 5-Axis Machining |
| Thermal Stability Construction |
| Roller Linear Guideways for High Speed & Accuracy |
| Compact Footprint with Maximum Work Envelope |
| Designed for Aerospace, Medical & Complex Part Machining |
| Electrical: |
| Power Requirement: 200–220V / 3 Phase / 50-60 Hz |
| High Efficiency Electrical System |
| Advanced CNC Processing with Smooth Technology |
| General: |
| Machine Weight: Approx. 8,500 kg (18,743 lbs) |
| Country of Origin: Japan |
| Optional Features: |
| Higher Speed Spindle (15K / 20K RPM Options) |
| Laser Tool Measurement |
| Pallet Changer System |
| 5-Axis Auto Calibration |
| Mist Collector |
| High-Pressure Coolant Upgrade |
