*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | VCN-510C |
| Year: | 2003 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Mazatrol 640M Nexus |
| Features: |
|---|
| Mazatrol 640M Nexus CNC Control |
| 12,000 RPM Spindle |
| CAT 40 Spindle Taper |
| 25 HP Spindle Motor (As Supplied) |
| 30-Tool Automatic Tool Changer (ATC) |
| Fully Enclosed Machining Area |
| Coolant System |
| Chip Collection Area |
| Table: |
|---|
| Table Length: 51.18″ |
| Table Width: 21.65″ |
| Table Size: 51.18″ × 21.65″ |
| Maximum Table Load Capacity: 2,640 lbs. |
| Travels: |
|---|
| X-Axis Travel: 41.3″ |
| Y-Axis Travel: 20.08″ |
| Z-Axis Travel: 20.08″ |
| Rapid Traverse Rate (X/Y/Z-Axis): 1,417 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 30 Tools |
| Tool Taper Compatibility: CAT 40 |

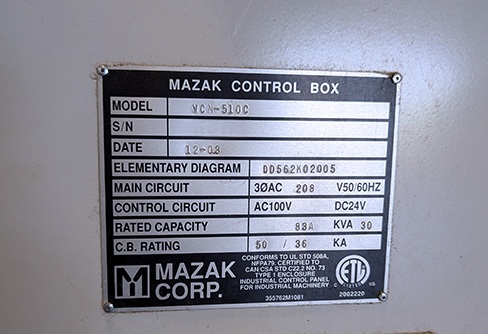

| Electrical: |
|---|
| Main Circuit: 3-Phase AC |
| Voltage: 208 V |
| Frequency: 50/60 Hz |
| Rated Capacity: 30 kVA |
| Rated Current: 83 A |
| General: |
|---|
| Overall Dimensions (Approx.): 113″ L × 111″ W × 110″ H |
| Machine Weight (Approx.): 15,180 lbs. |
