*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | VORTEX 1400/160-II |
| Year: | 2006 |
| Condition: | Used – Good |
| Machine Type: | 5-Axis CNC Vertical Machining Center |

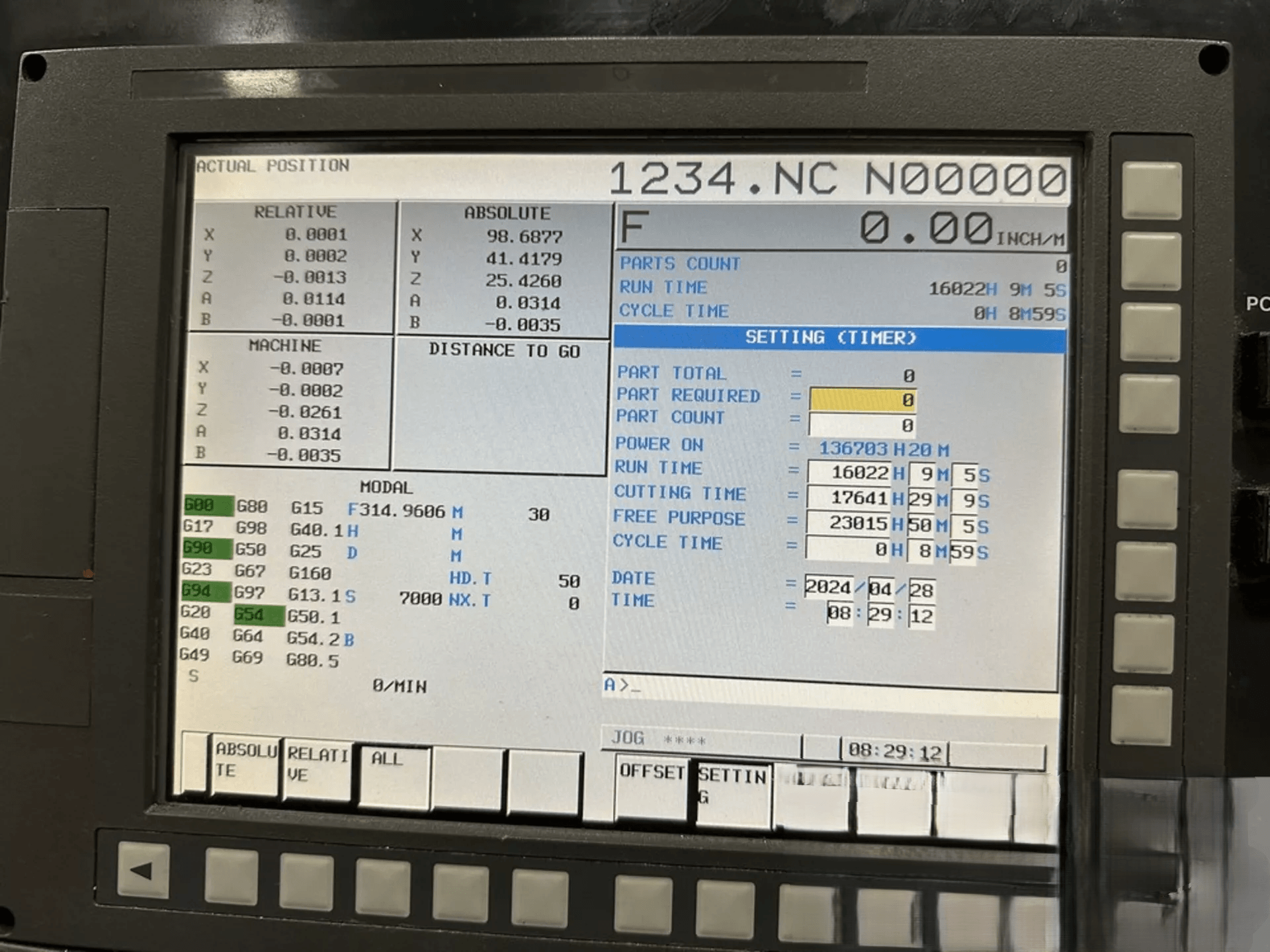

| Control: | Mazatrol 640M Nexus CNC Control |
| Features: |
|---|
| Mazatrol 640M Nexus CNC Control |
| 5-Axis Machining Capability |
| HSK-A100 High-Speed Spindle |
| 100 HP Spindle Motor |
| 60-Station Automatic Tool Changer |
| Tilting Rotary Trunnion Table |
| Through Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Coolant Filtration System |
| Automatic Lubrication System |
| Hydraulic System |
| Work Lights |
| Full Machine Enclosure |
| Travels: |
|---|
| X-Axis Travel: 165.3″ |
| Y-Axis Travel: 55.1″ |
| Z-Axis Travel: 24″ |
| Spindle: |
|---|
| Spindle Motor: 100 HP |
| Maximum Spindle Speed: 13,000 RPM |
| Spindle Taper: HSK-A100 |
| Through Spindle Coolant |
| Automatic Tool Changer: |
|---|
| Automatic Tool Changer |
| Tool Capacity: 60 Stations |
| General: |
|---|
| Power: 400v/ 60 Hz/ 3 Phase/ 101 kVA |
| Machine Weight: 37,000 kg (81,500 lbs) |
