*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
-
Features:

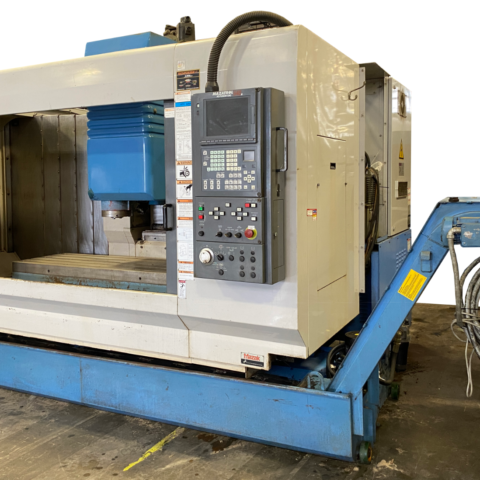

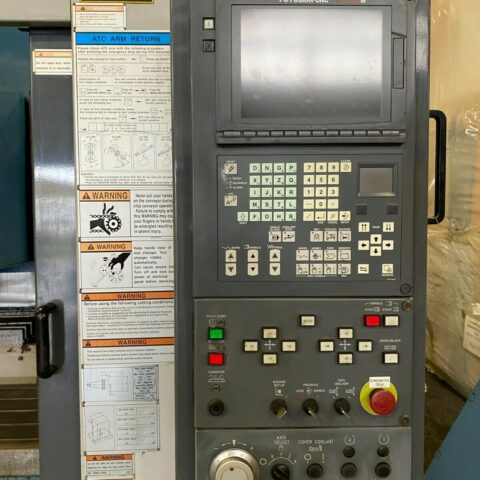

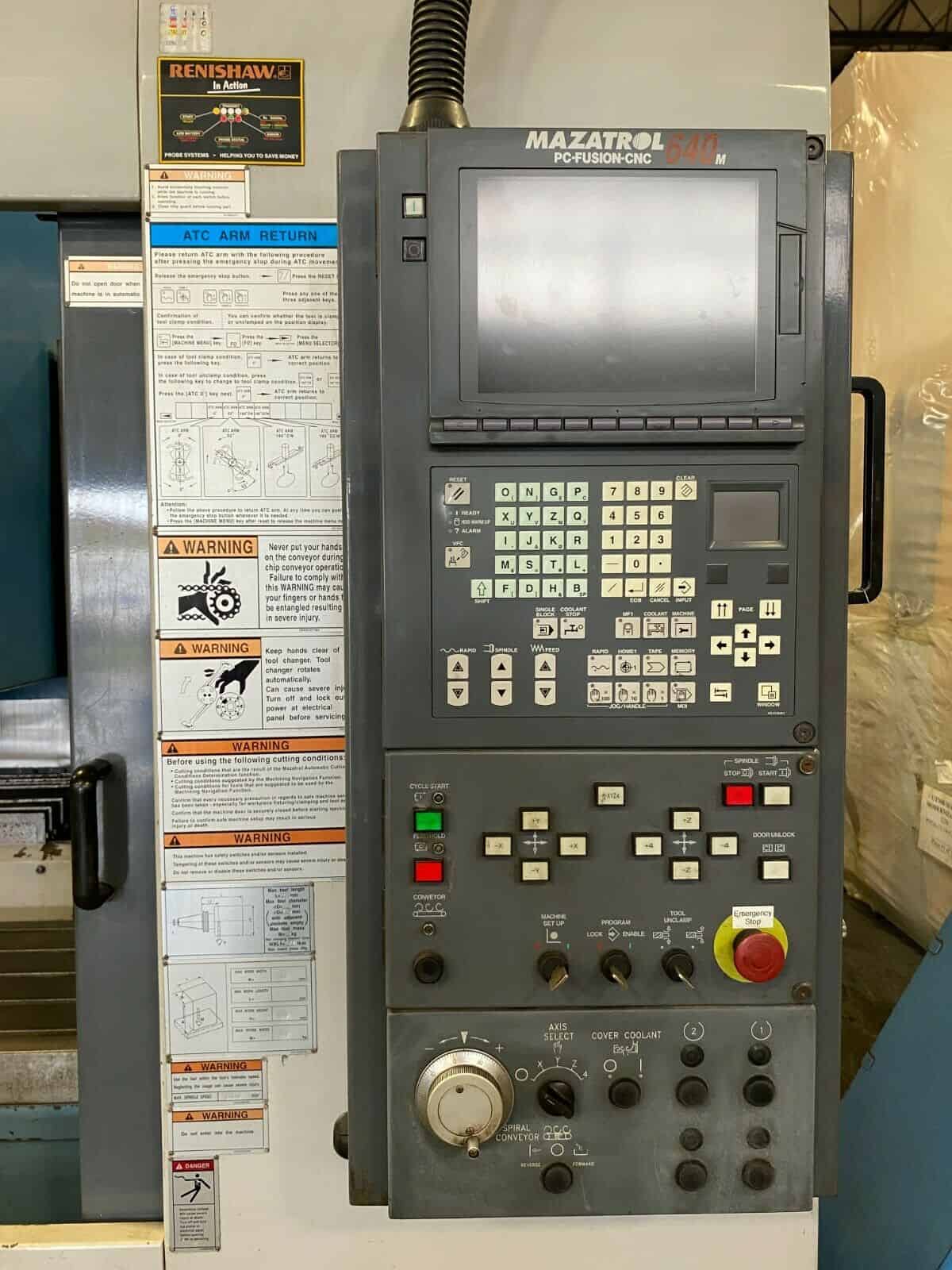

- Mazak PC Fusion 640M CNC Control
- 10,000 RPM Spindle
- 24 Tools Side Mount Bidirectional Tool Changer

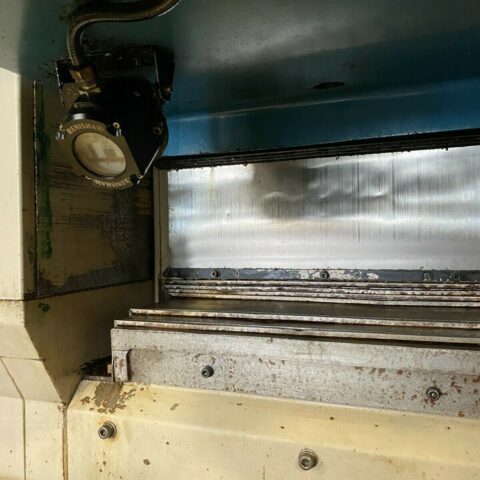

- Renishaw Probing SystemPCMCIA Card Slot
- Powerful 25 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light
- Chip Conveyor
-
Specifications:
- Travels:
- X-Axis: 44.09″
- Y-Axis: 20.08″
- Z-Axis: 26.78″
- Spindle Nose to Table (Min.- Max.): 7.09″ – 27.17″
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 20 HP
-

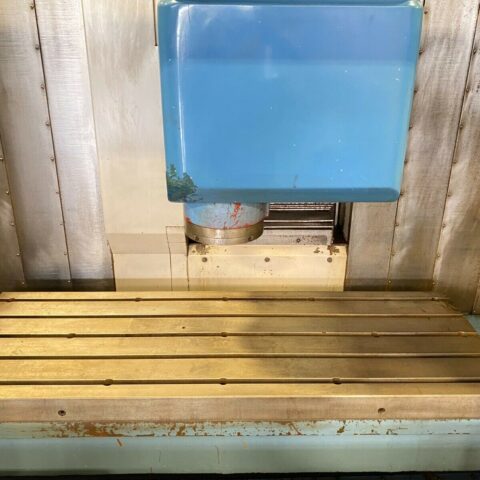

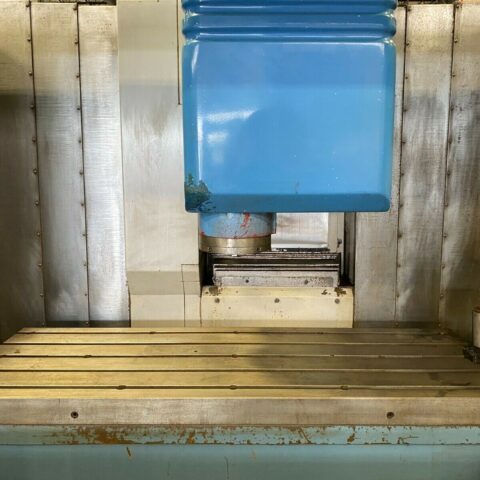

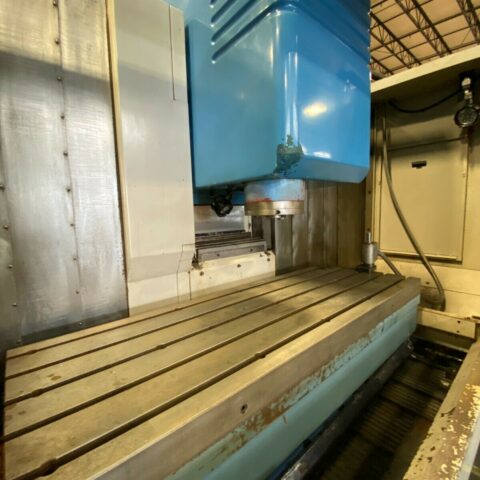

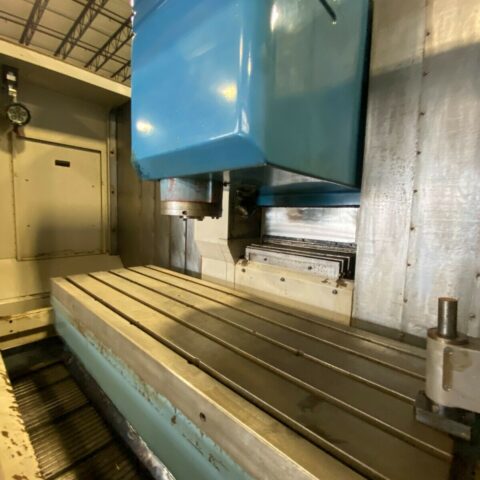

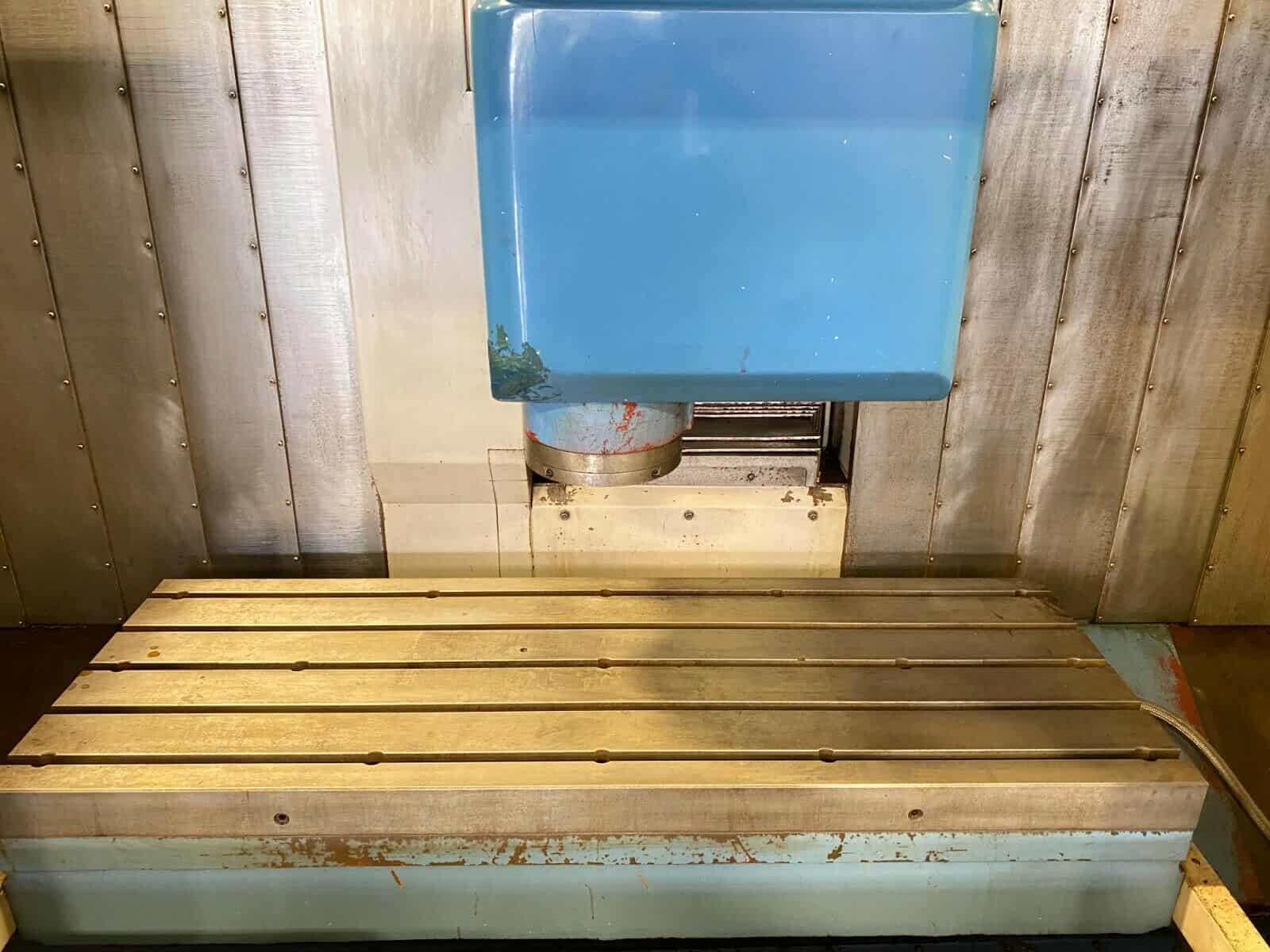

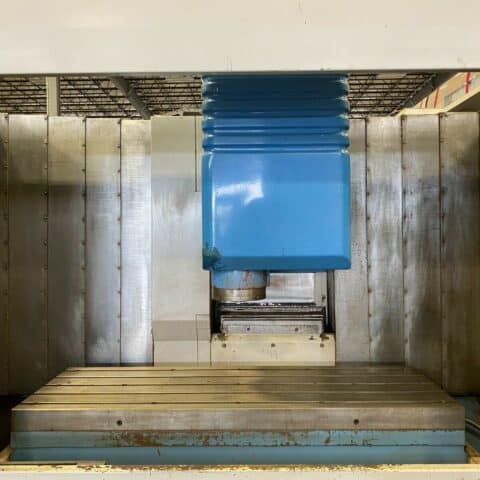

Table:
- Length: 57.48″
- Width: 20.08″
- Max Weight on Table: 1800 lbs
- T-Slot no. & Width: 5 X 0.7″
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Length: 13.8″
- Max Tool Dia: 4.33″
- Tool Change Time: 1.5 sec
-
Feed rates:
- Rapid X,Y & Z: 1181 inch/P.M
- Cutting Feedrate: 315″ inch/ P.M
-
General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 211″ x 137″ x 126″ High
- Weight: 15000 lbs
“No Charges for loading at list Price”
