*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | VTC-200C |
| Year: | 2007 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

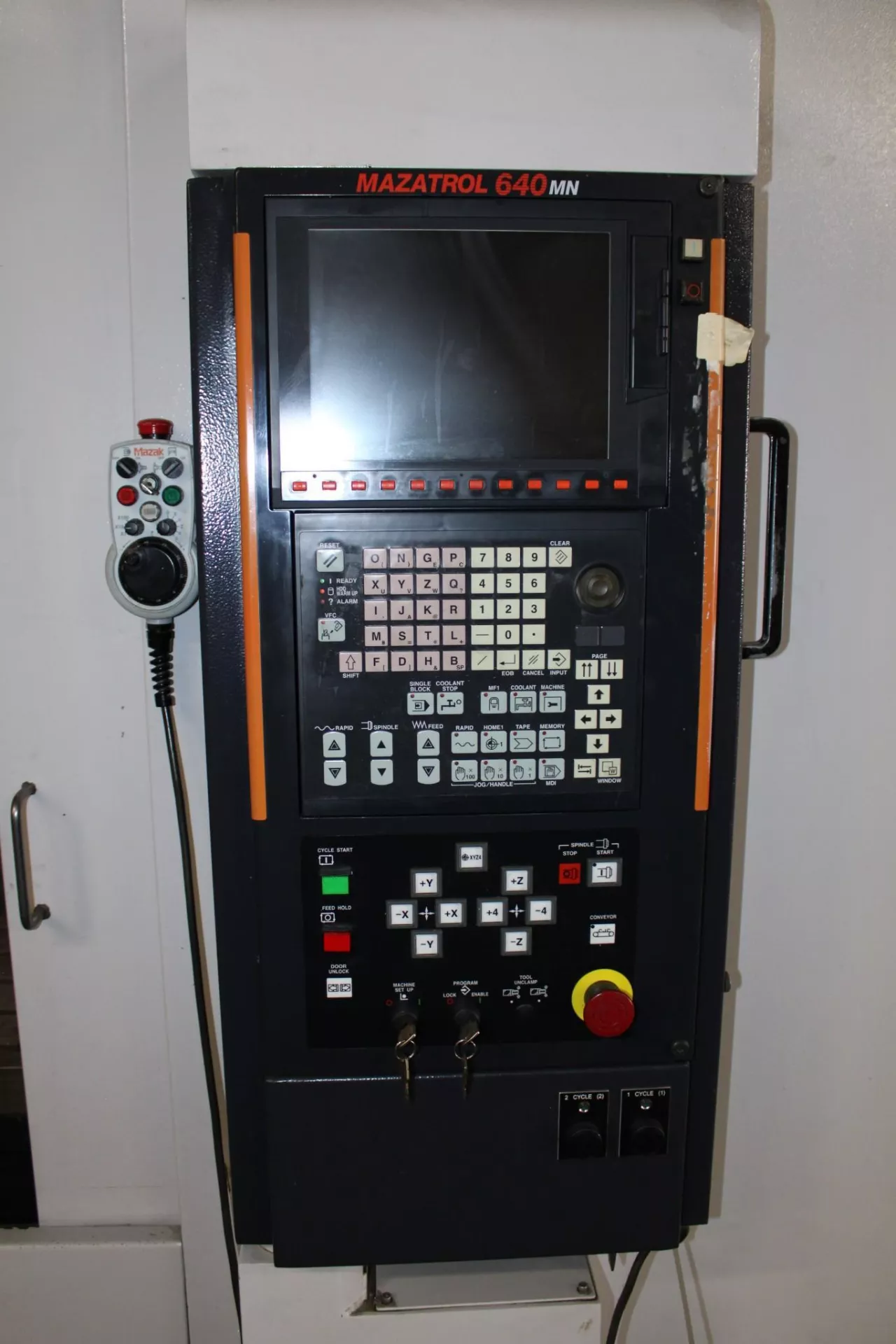

| Control: | Mazatrol 640MN CNC Control |
| Features: |
|---|
| Mazatrol 640MN CNC Control |
| 48-Station Automatic Tool Changer |
| Carousel Tool Changer |
| CAT 40 Spindle |

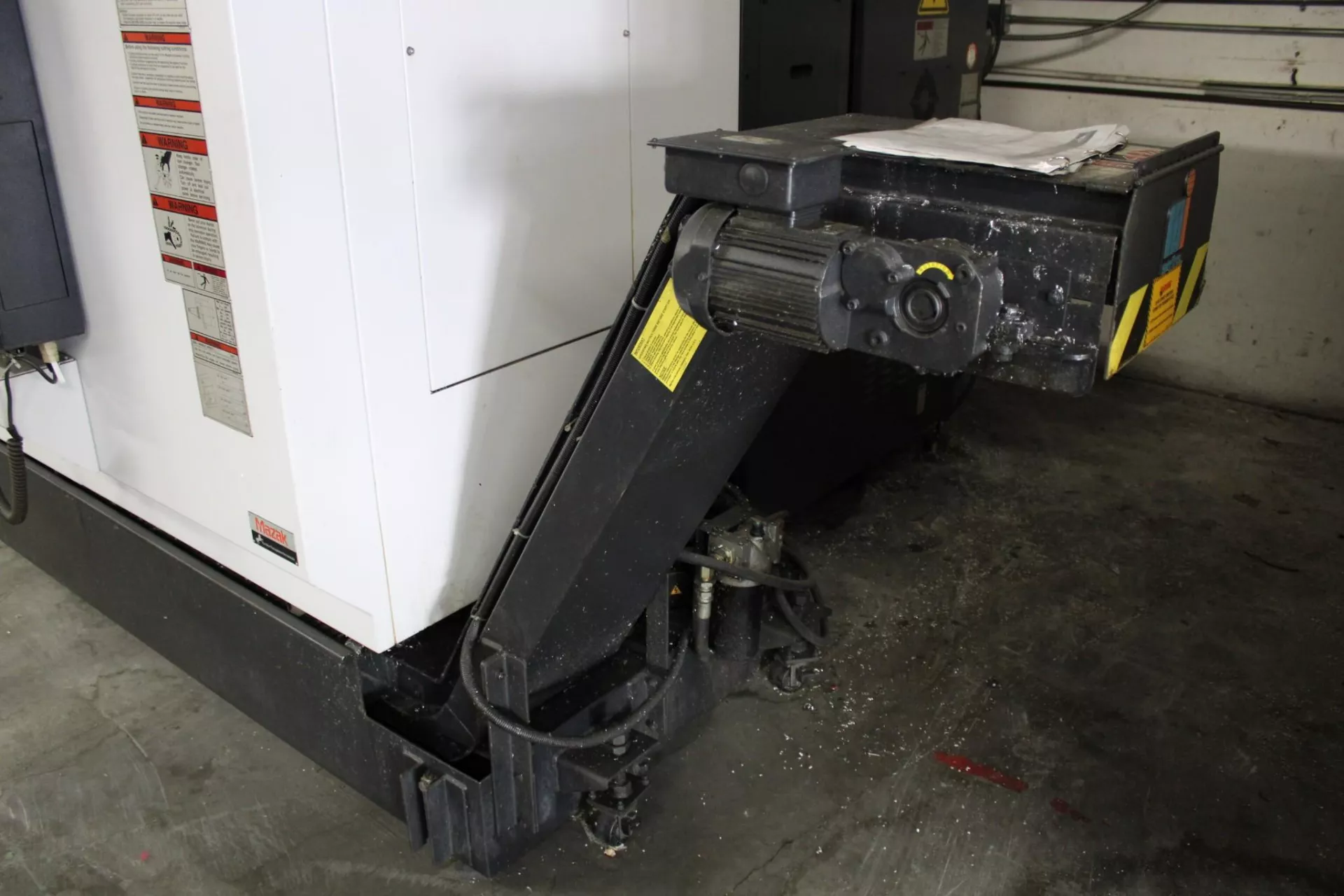

| Chip Conveyor |
| Coolant System |
| Handheld MPG |
| Automatic Tool Changer |
| Full Machine Enclosure |
| Work Light |
| Table: |
|---|
| Table Size: 77.48″ × 20.08″ |
| Table Capacity: 1,760 lbs. |
| Travels: |
|---|
| X-Axis Travel: 65.00″ |
| Y-Axis Travel: 20.08″ |
| Z-Axis Travel: 20.08″ |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 20 HP |
| Spindle to Table Distance: 7.09″ – 27.17″ |
| Spindle Center to Column Distance: 21.65″ |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,181 IPM |
| Maximum Cutting Feed Rate: 697 IPM |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Carousel |
| Tool Capacity: 48 Stations |
| Max Tool Weight: 17 lbs. |
| General: |
|---|
| Overall Dimensions: 178.11″ L x 123.82″ W x 110.16″ H Approx. |
| Machine Weight: 20,071 lbs. Approx. |
