*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Messer |
| Model No.: |
Edge Max |
| Year of Manufacture: |
2022 |
| Condition: |
Used |
| Machine Type: |
CNC Plasma Cutting Table |
| Country of Origin: |
USA |
| Equipped With: |
| CNC Touchscreen Control |

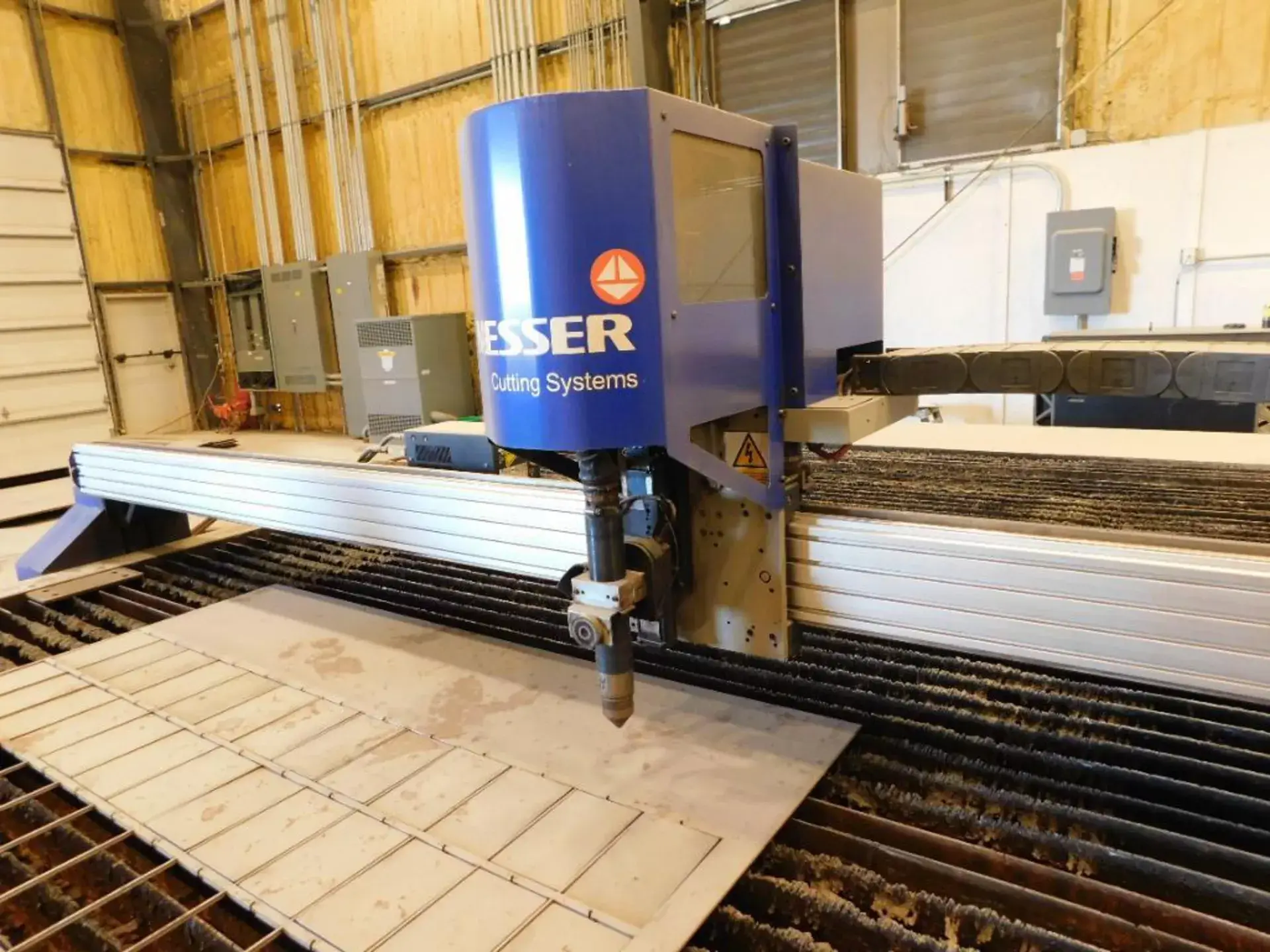

| Plasma Torch with THC |
| Heavy-Duty Cutting Table |
| Cable Management System |
| Emergency Stop Controls |
| Cutting Capacity: |
| Cutting Process: Plasma Cutting |
| Material Capability: Mild Steel, Stainless Steel, Aluminum |
| Max Plate Thickness: Up to 1″ – 2″ (depending on plasma power source) |
| Table & Travels: |
| Table Size: 10′ x 20′ |
| Cutting Area: 120″ x 240″ |
| Table Type: Water / Downdraft Table |
| Slat Bed: Replaceable Slat System |
| Control System: |

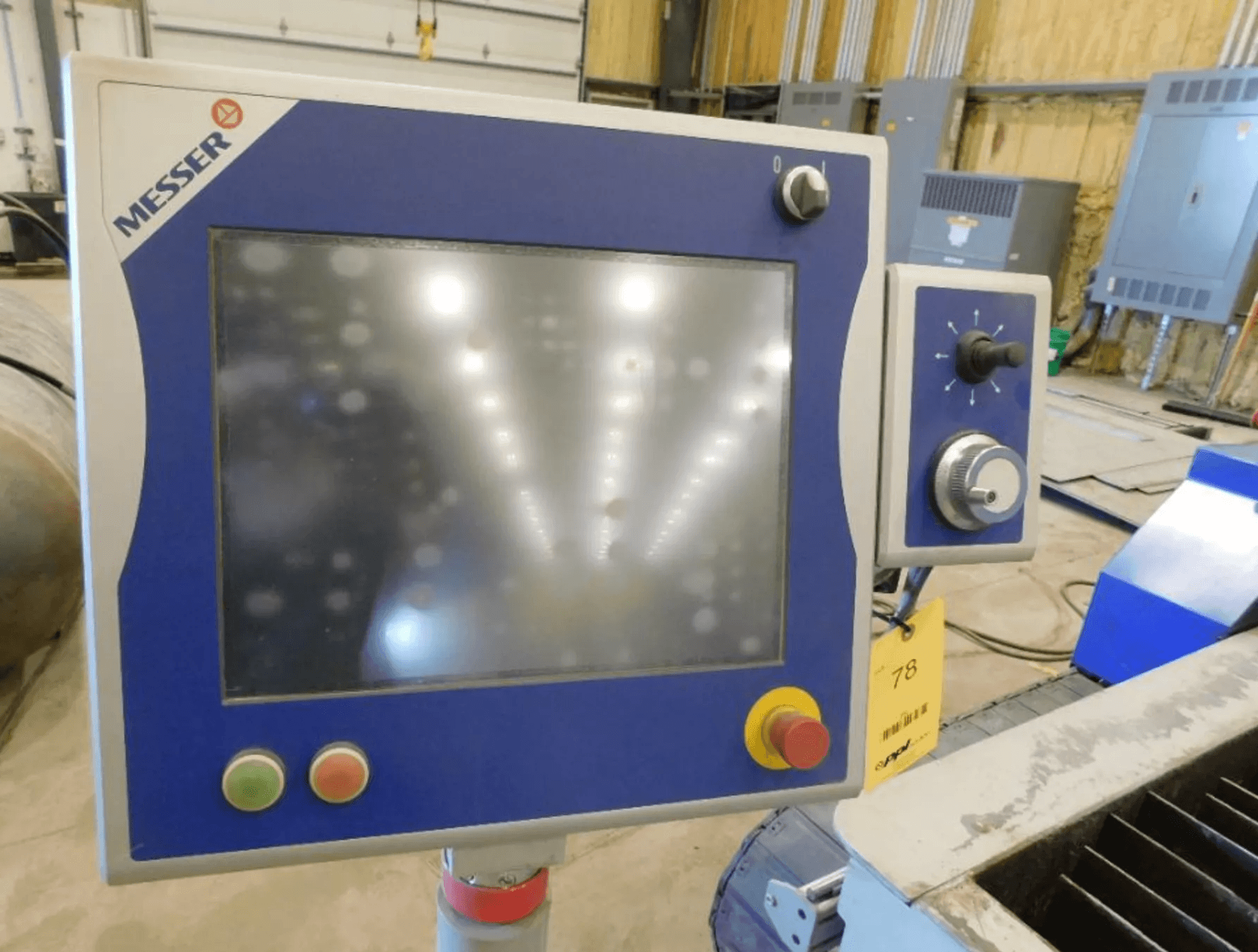

| CNC Controller with Touchscreen Interface |
| Messer Global Control System |
| Programmable Nesting & Cutting Paths |
| User-Friendly HMI |
| Drive System: |
| Precision Rack & Pinion Drive |
| Servo Driven Axes |

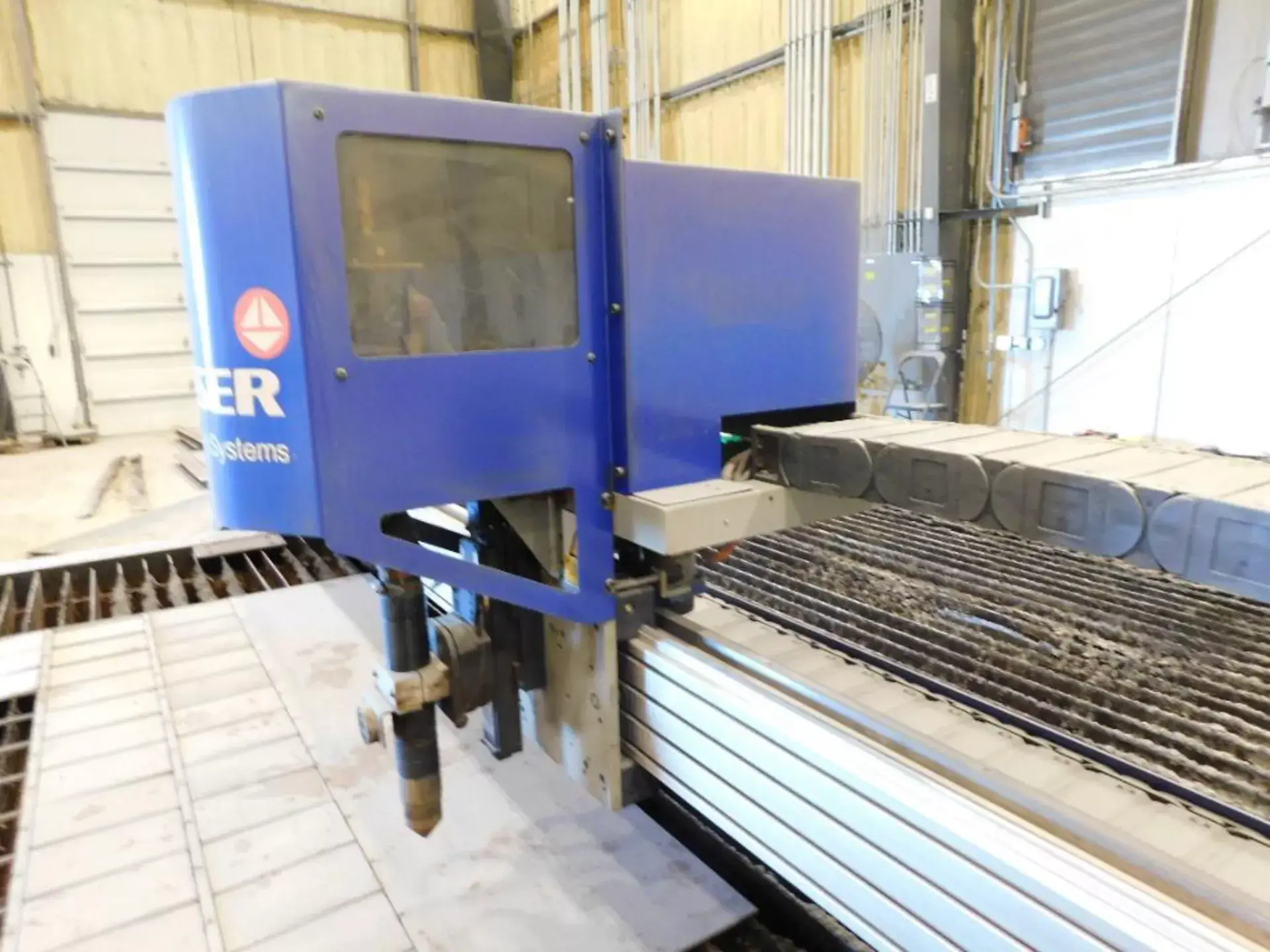

| High-Speed Gantry System |
| Plasma System: |
| High-Definition Plasma Compatible |
| Torch Height Control (THC) |
| Automatic Arc Voltage Control |

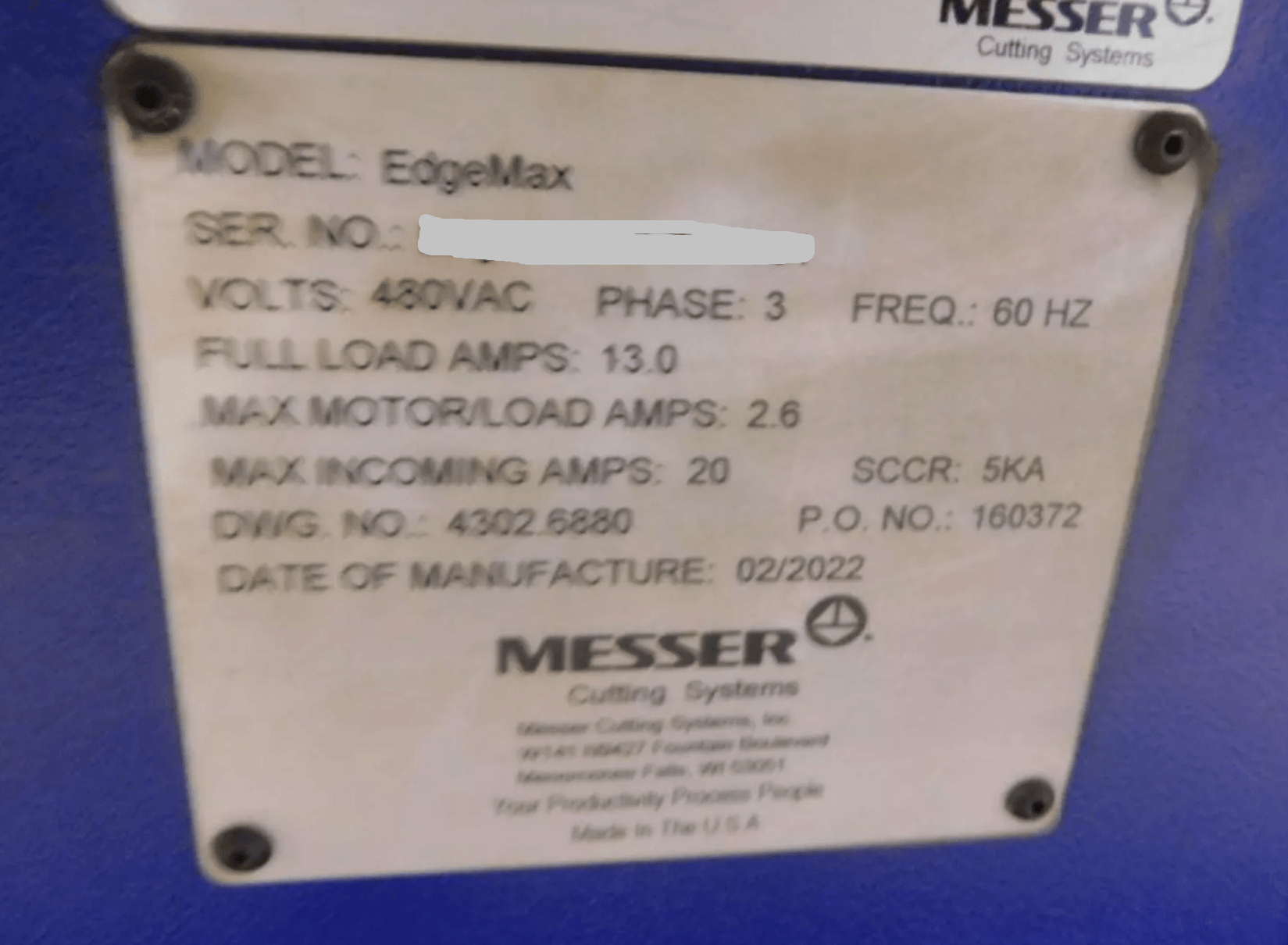

| Electrical: |
| Voltage: 480 VAC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load Amps: 13.0 A |
| Max Incoming Amps: 20 A |
| SCCR: 5 kA |
| Dimensions: |
| Floor Space (L x W x H): 26′ x 12′ x 6.5′ |
| Machine Weight: 12,000 – 18,000 lbs |
| Additional Requirements: |
| Operator Access: 3 ft minimum |
| Plate Loading Area: 8 ft – 12 ft |
| Maintenance Clearance: 3 ft – 5 ft |
| General: |
| Air Required: Clean, Dry Air (for plasma system) |
| Power Requirement: 480V / 3-Phase |
