Mighty Viper HB-180 CNC Vertical Bridge Gantry Milling
Out of stock

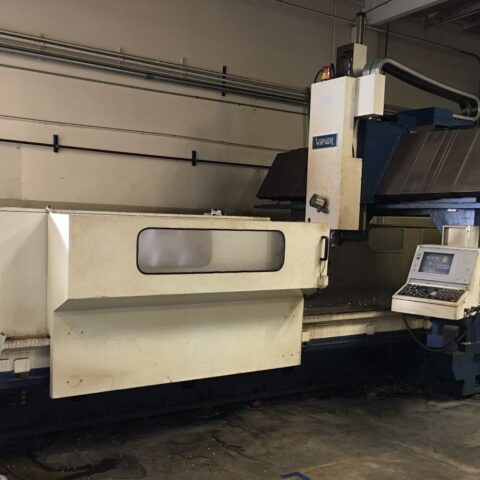

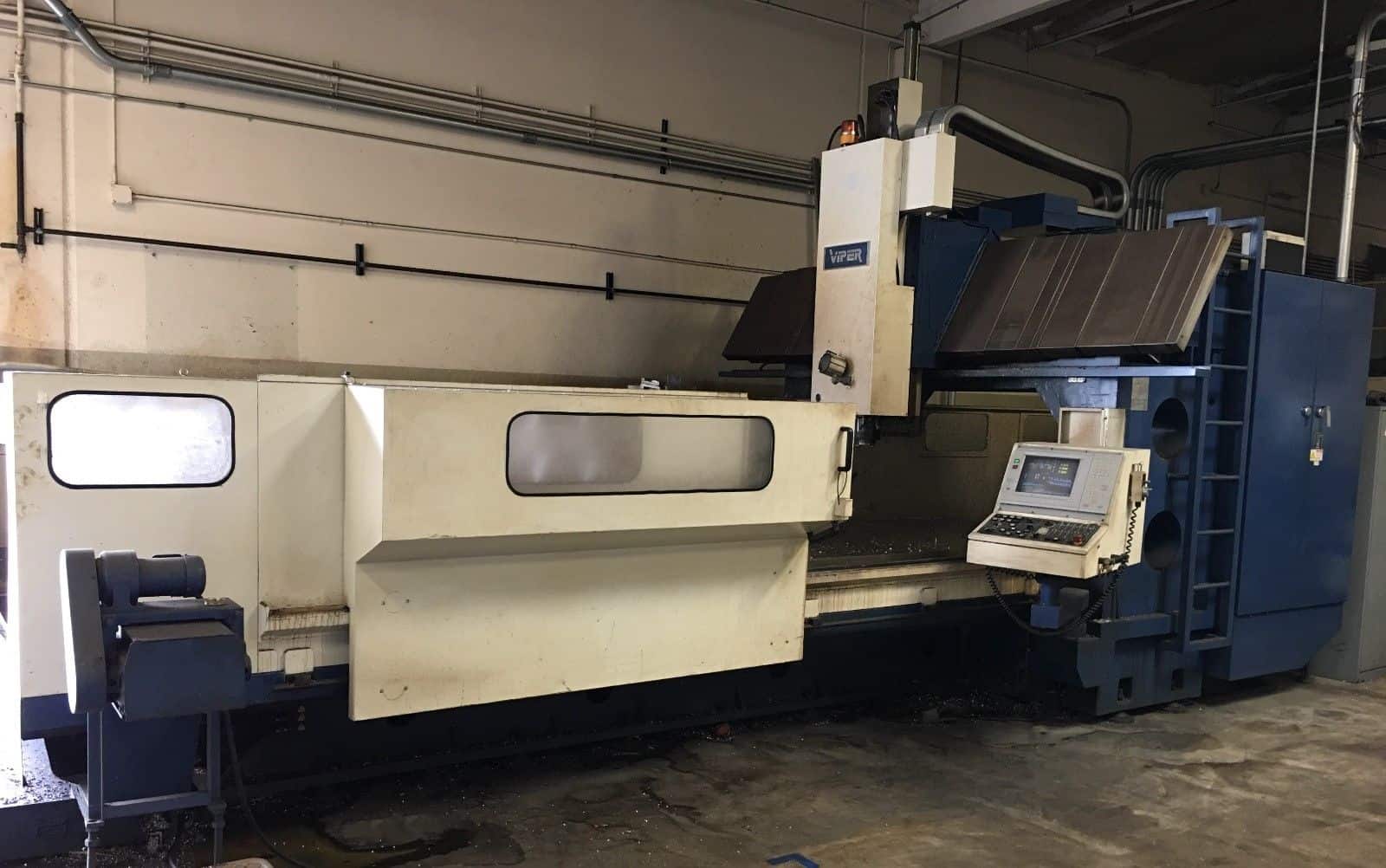

Used Mighty Viper HB-180 CNC Vertical Bridge Gantry Milling for Sale. This Mighty Viper HB-180 has minimal cutting hours and is in almost new condition.
| Make: | Mighty Viper |
| Model: | HB-180 |
| Year: | 1997 |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mighty Viper |
| Model: | HB-180 |
| Year: | 1997 |

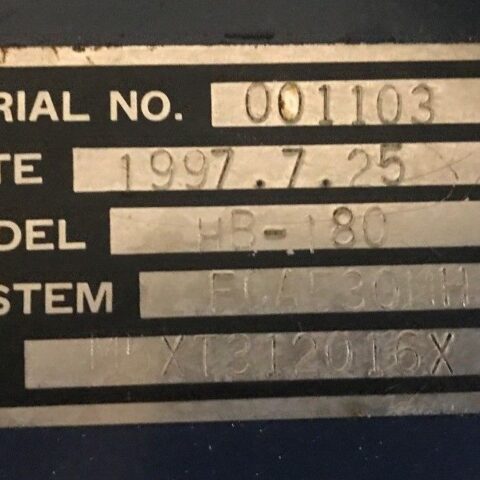

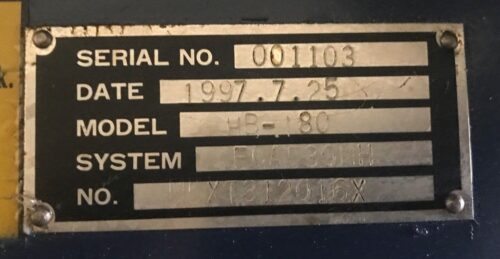

| Serial: | 001103 |
| Condition: | Very Good |
| Equipped With: |
|---|

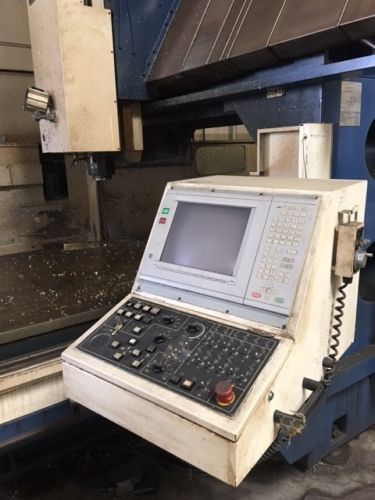

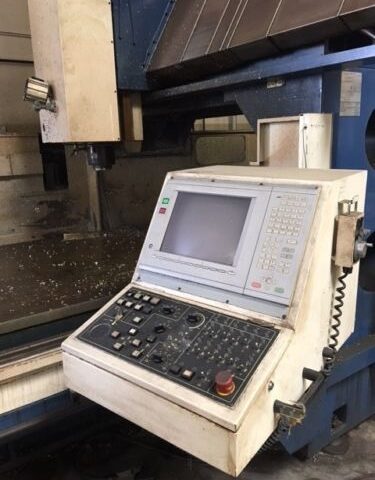

| Mitsubishi CNC Control |
| 160″ x 62″ Jig Table Plate installed |
| 60 Station Side Mount Tool Changer |
| Geared Head 3750 RPM Spindle |
| CAT 50 Taper |
| Powerful 30hp high torque spindle motor |
| Spindle Orientation |
| Rigid Tapping |
| Box Way Construction |
| Portable manual pulse generator |
| Flood coolant with large separate coolant tank |
| Base Flush Chip Disposal with Dual Auger |
| Chip Conveyor |
| Chiller Unit |
| Replacement Cost over $450,000.00 |
| Travels: |
|---|
| X-Axis: 157.5″ |
| Y-Axis: 77.5″ |
| Z-Axis: 36.22″ |
| Distance Between Columns: 82.0″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 42.5″ |
| Spindle Center to Column: 14″ |
| Table: |
|---|
| Length: 162″ |
| Width: 72″ |
| Max Weight on Table: 24,500 lbs |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 30 – 3750 RPM |
| Spindle Power: 30 HP |
| Feed rates: |
|---|
| Rapid X,Y & Z: 393 inch/P.M |
| Cutting Feedrate: .04″ – 276″ inch/ P.M |
| Automatic Tool Changer: |
|---|
| 50 Taper |
| Capacity: 60 |
| Max Tool Weight: 45 lbs |
| Max Tool Length: 13.77″ |
| Max Tool Dia.: 5″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

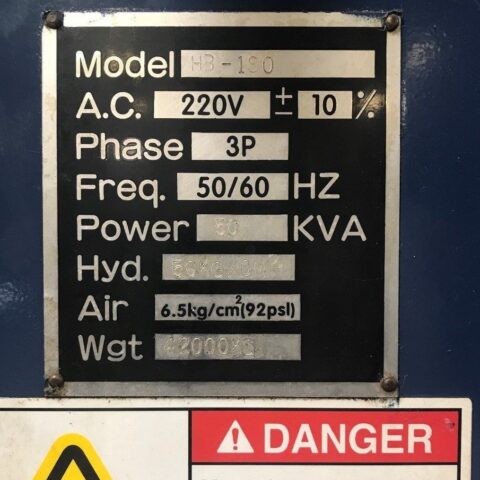

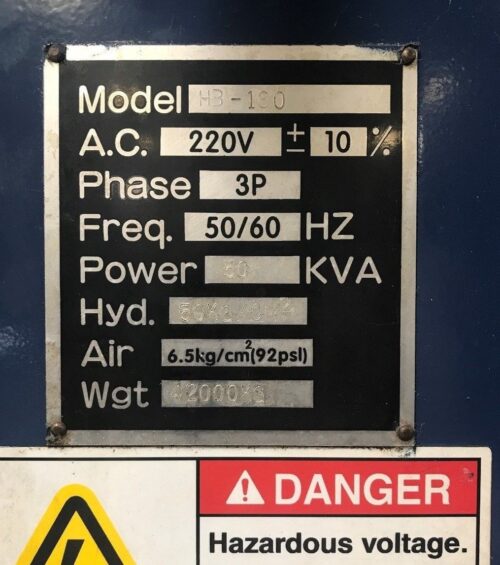

| Power: 205-235v / 66FLA / 3-Phase, 40 Kva |
| Overall Shipping Dimensions: 410″ x 164″ x 130″ High |
| Tool Changer, Chip Conveyor, Chiller unit Extra. |
| Weight: 92,600 lbs |
