*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

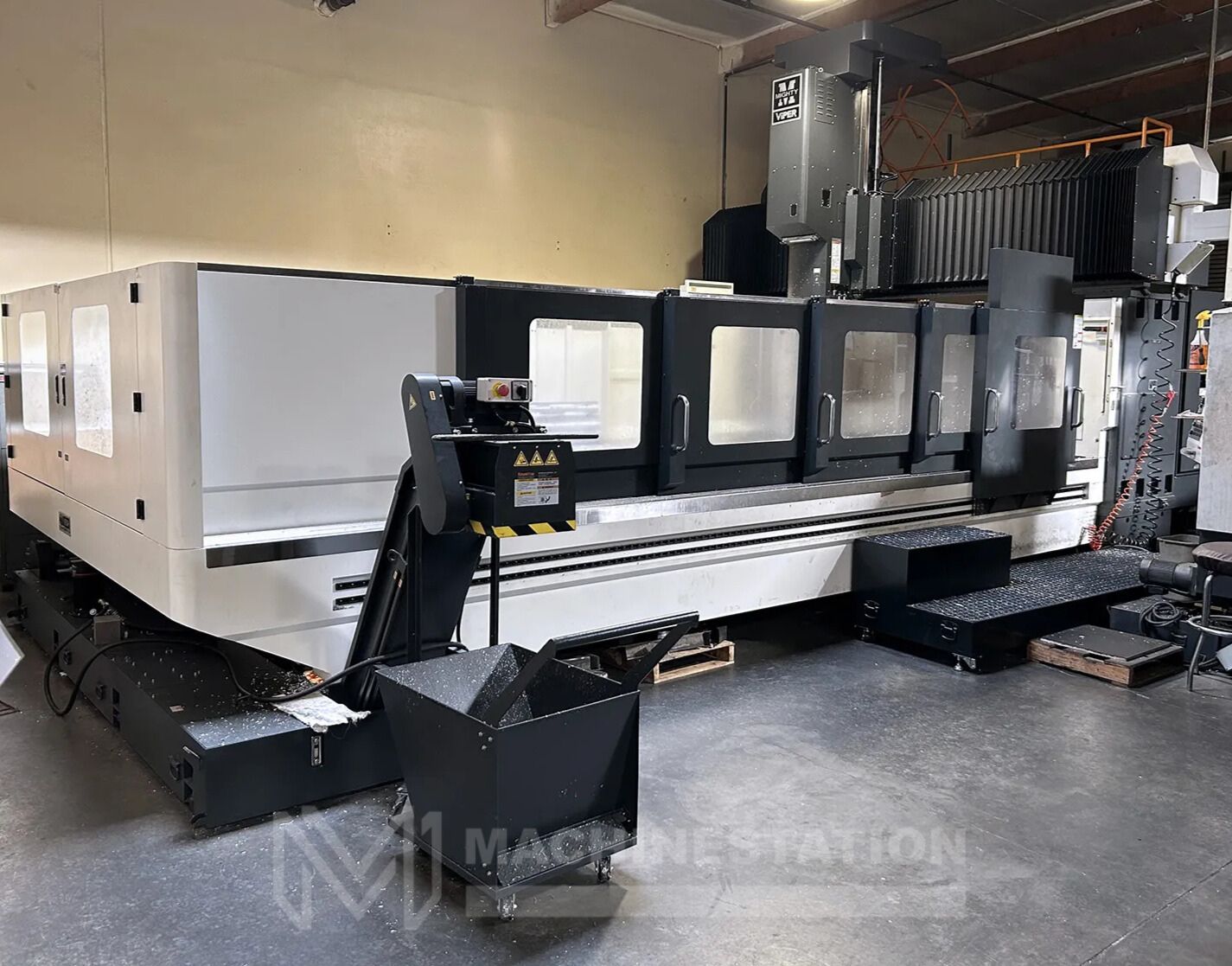

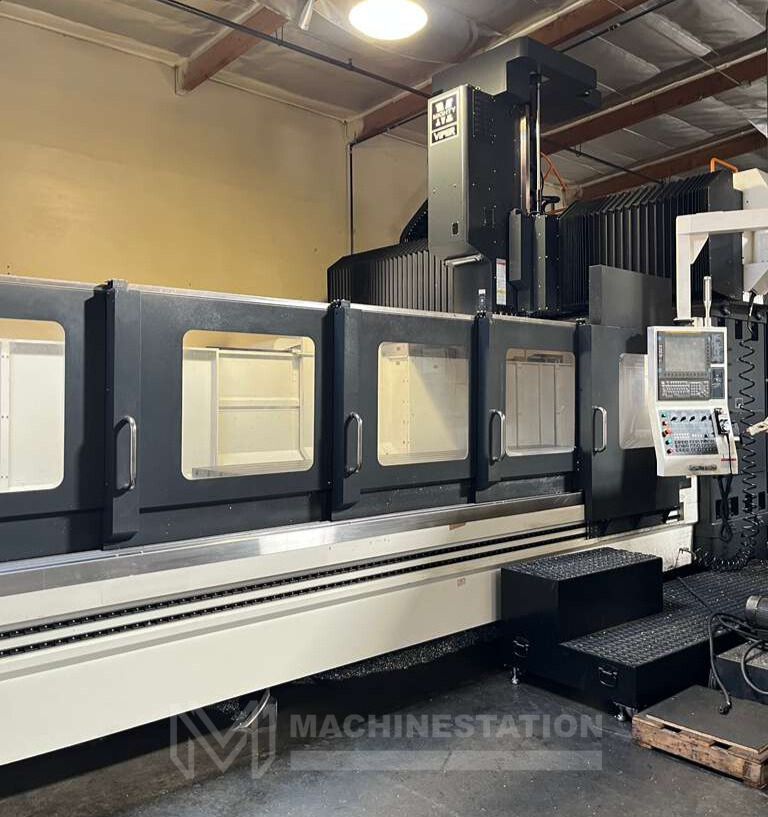

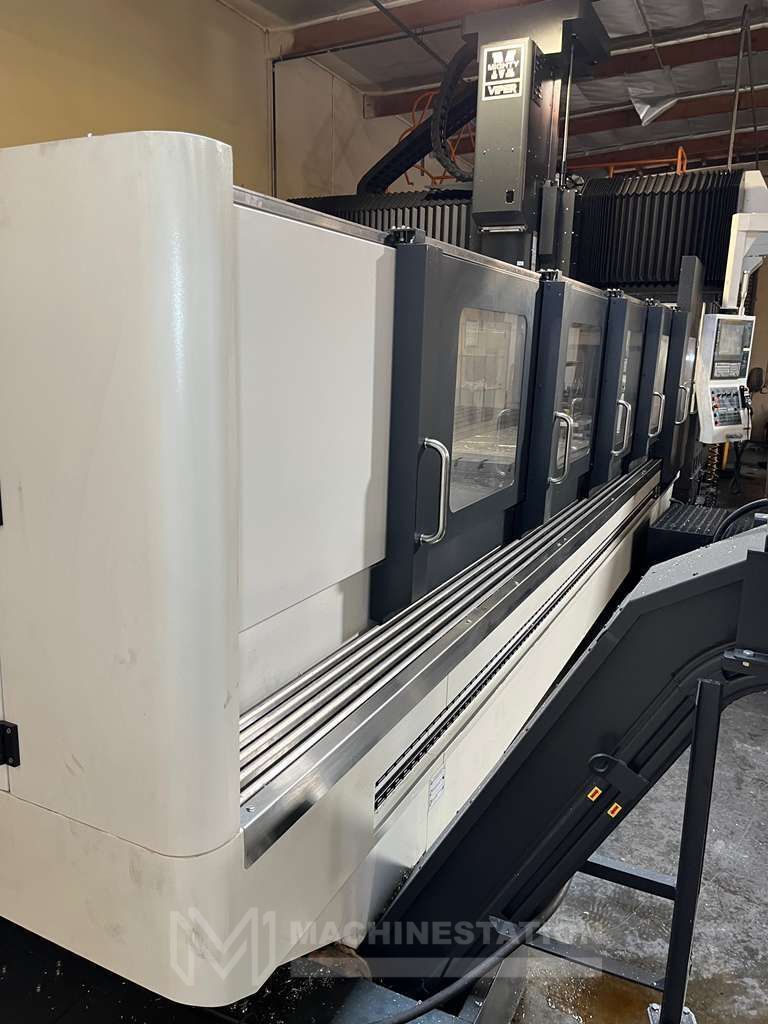

| Make: | Mighty Viper |

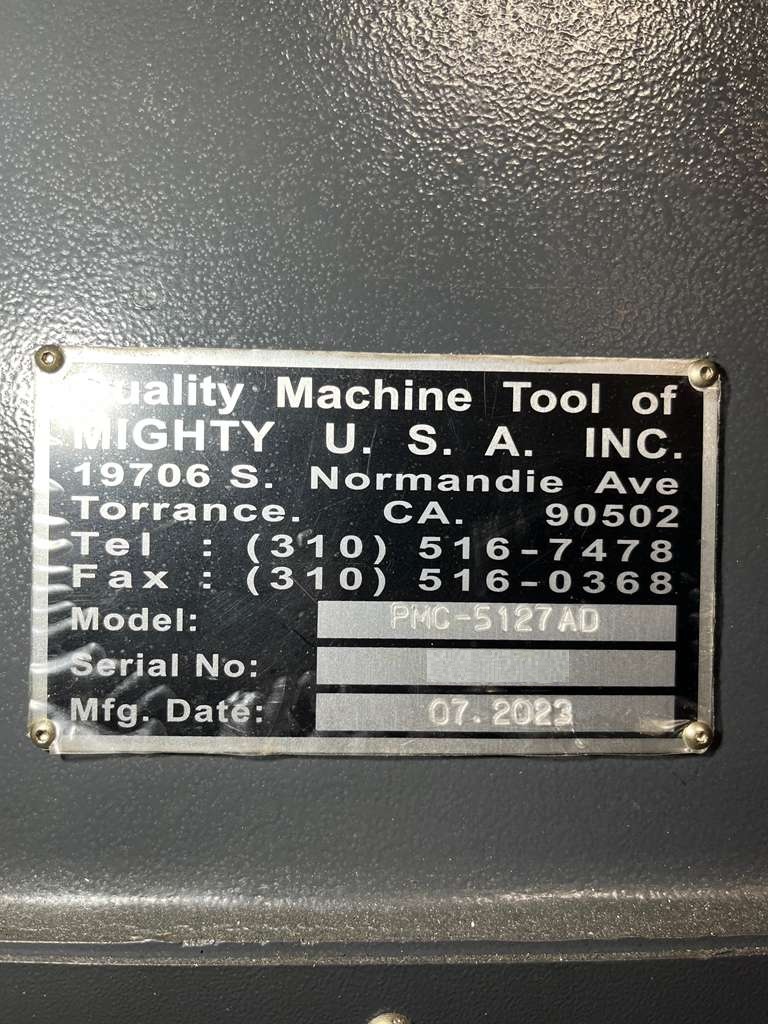

| Model: | PMC-5127AD |
| Year: | 2023 |
| Travels: |
|---|
| X-Axis Travel: 201″ |
| Y-Axis Travel: 106″ |
| Z-Axis Travel: 35.4″ |
| Distance From Spindle Nose to Table Surface: 7.9″ – 43.3″ |
| Distance Between Columns: 111″ |
| Rapid Traverse (X/Y/Z): 472 / 787 / 591 IPM |
| Cutting Feedrate: 394 IPM |
| Features: |
|---|

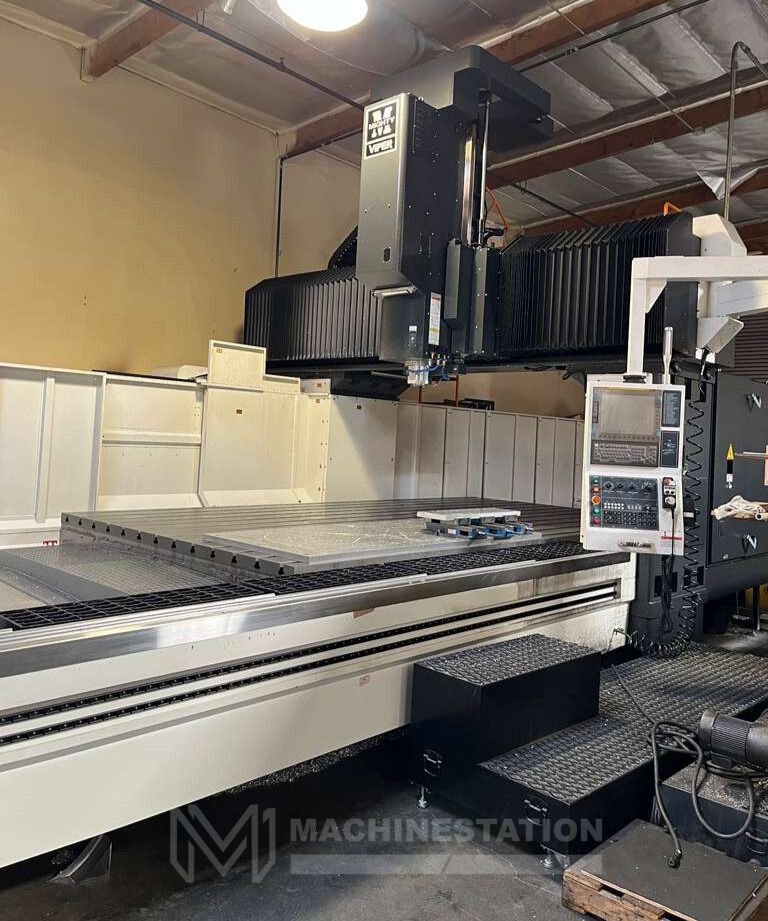

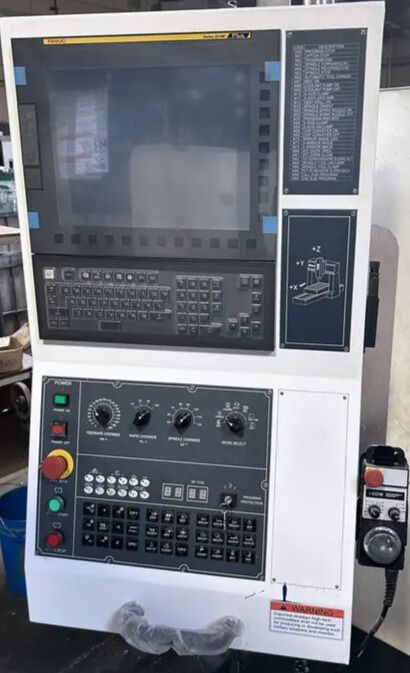

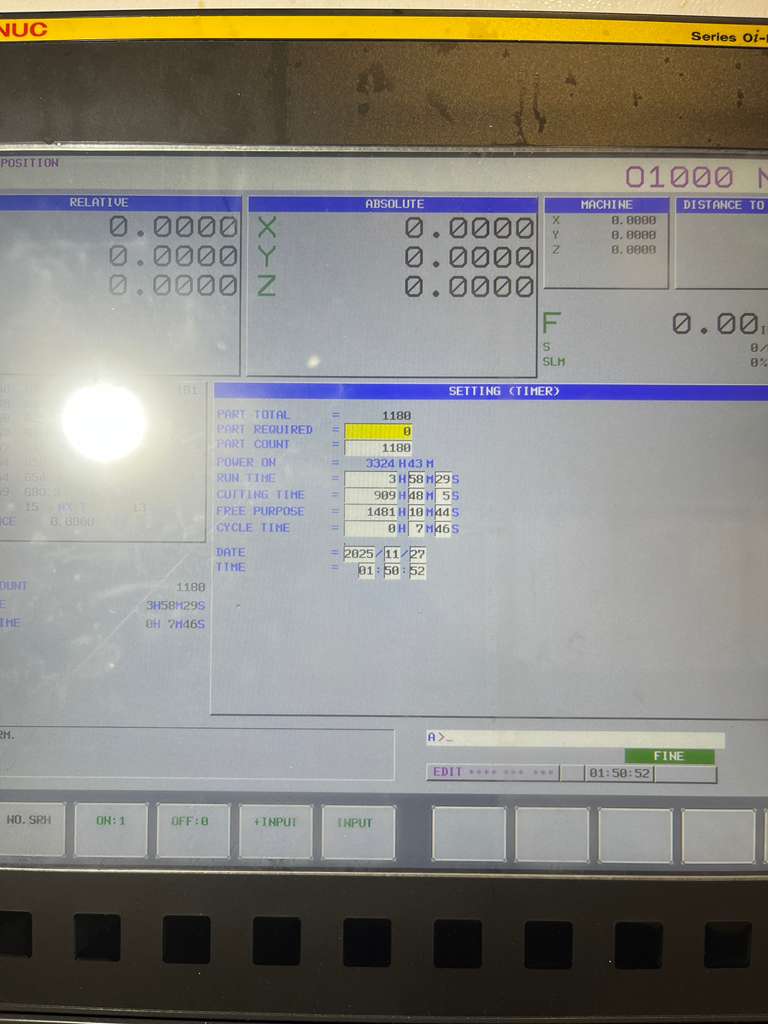

| Fanuc 0i-MF Plus CNC Control |

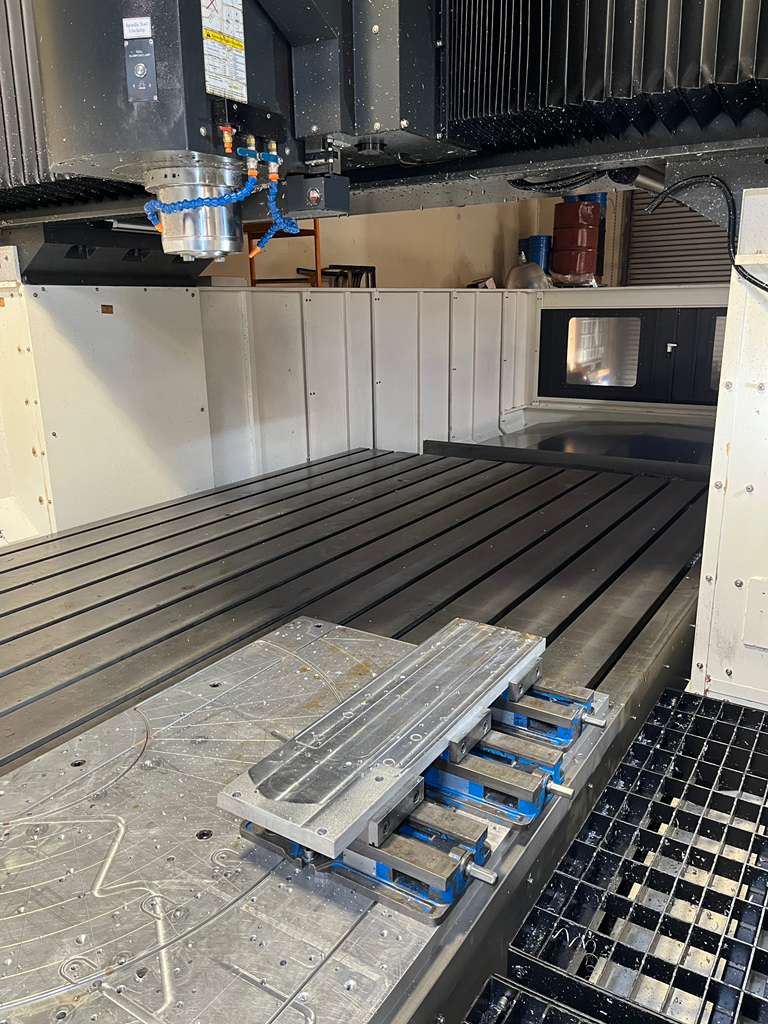

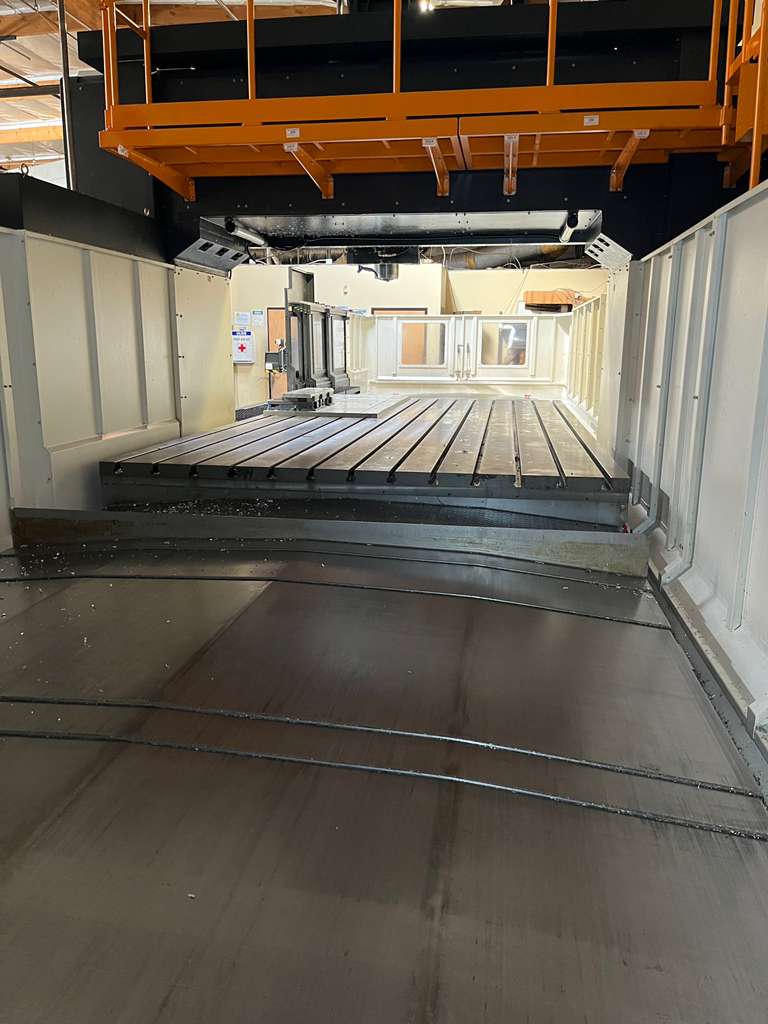

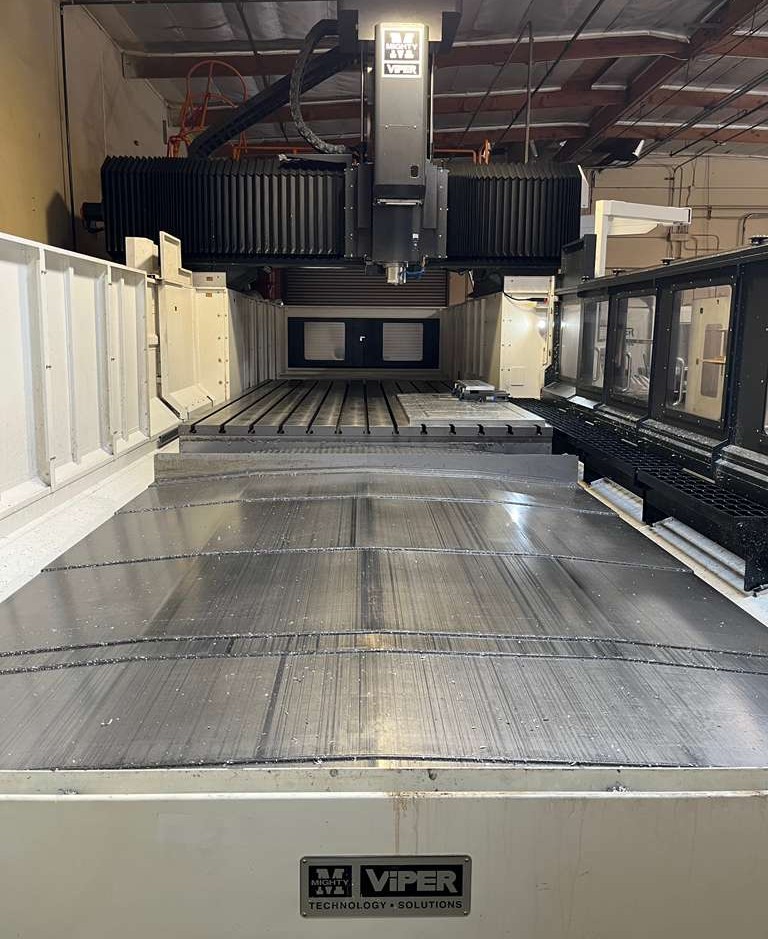

| 197″ x 102″ Table |
| 10,000 RPM Direct-Drive BBT-50 Spindle |
| 40 Station Automatic Tool Changer |
| 35 HP High-Torque Spindle Motor |
| ATC Cam Type CAT-50 |
| Remote Manual Pulse Generator |
| Coolant System |
| Centralized Automatic Lubrication System |
| Air Blast Through Spindle |

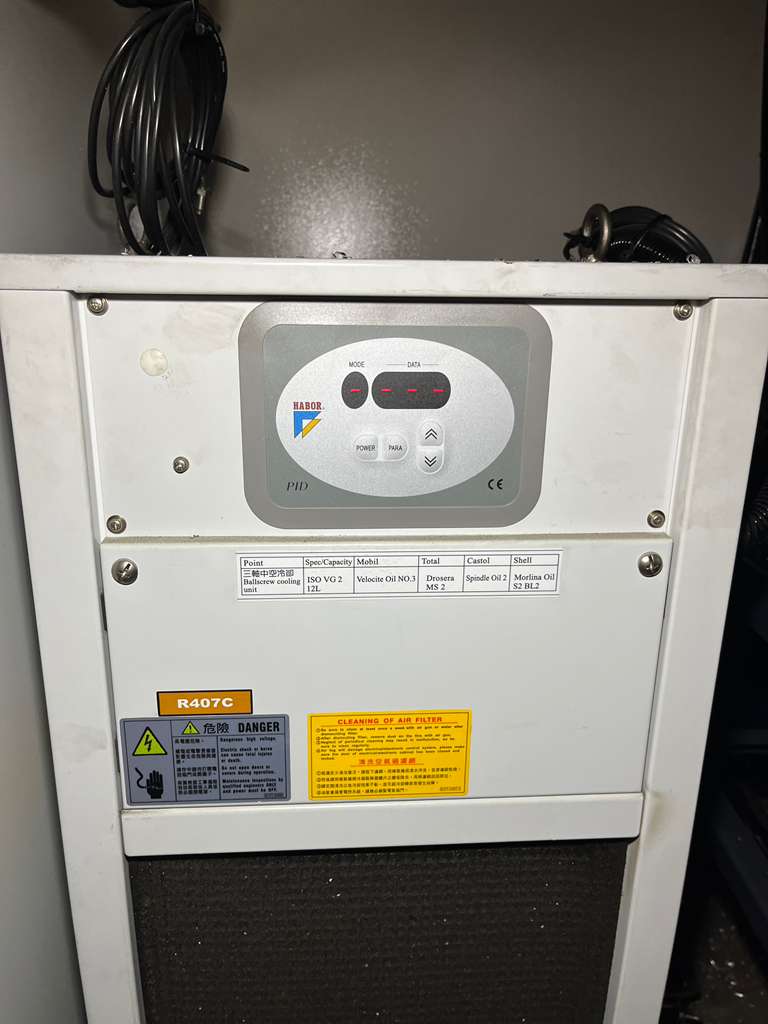

| Spindle Oil Cooler |
| Dual Spiral Chip Auger |

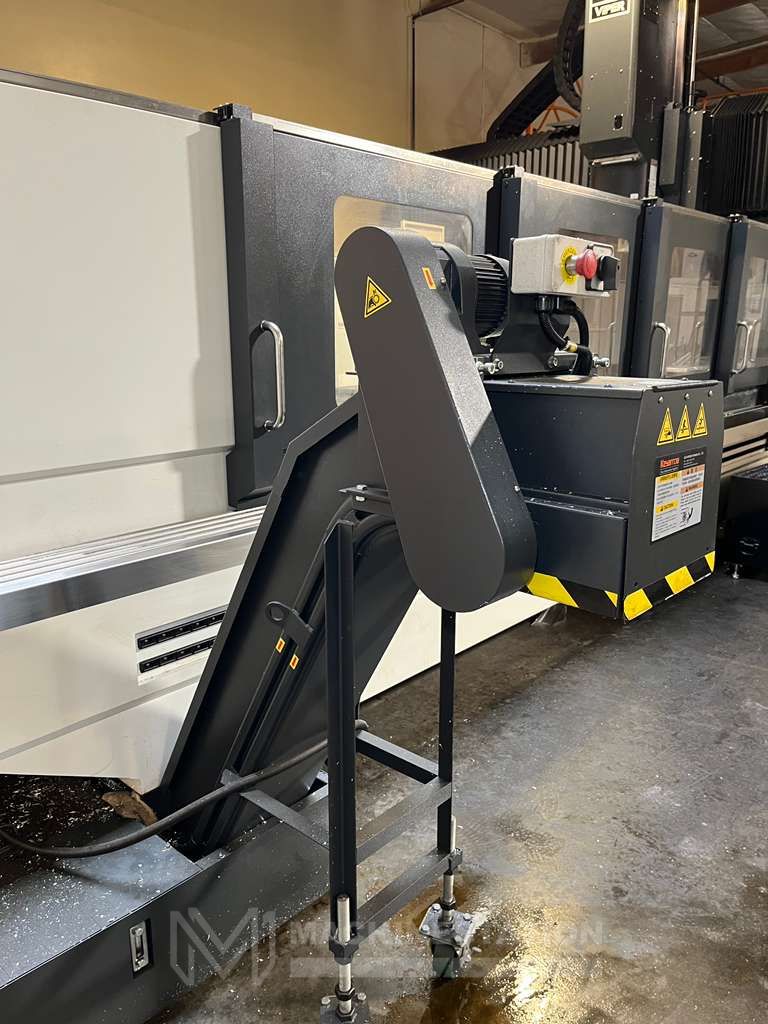

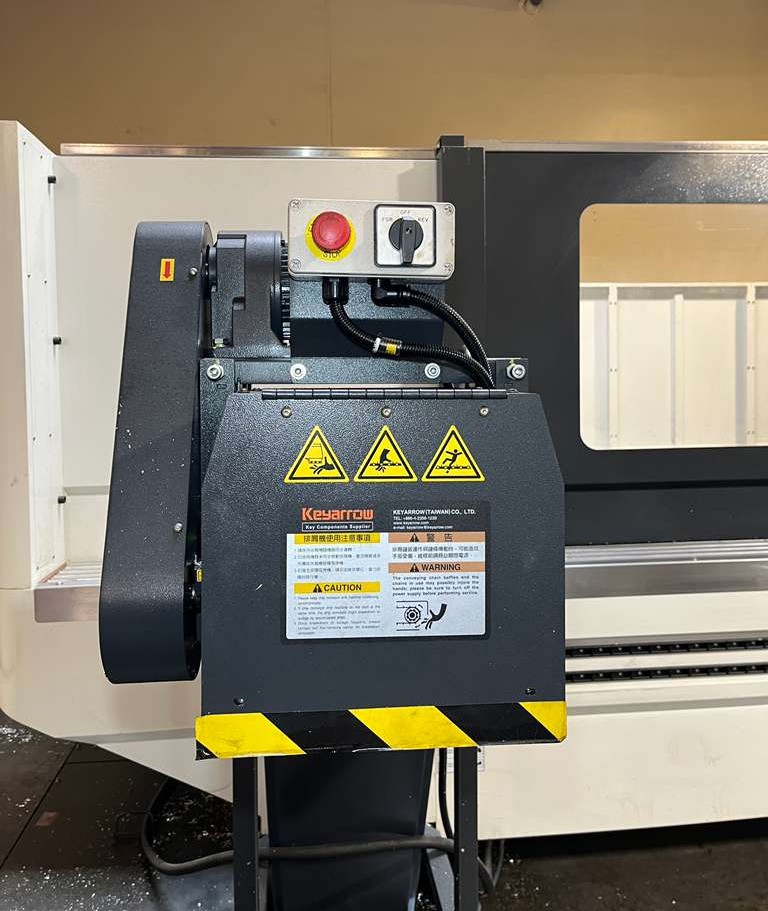

| Link Type Lift-up Chip Conveyor |
| Work Light |
| Status Light For Abnormal Situation |
| Splash Guard |
| Automatic Power Off (M30) |
| Operation Finish Lamp (Tri-Color) |
| USB Interface |
| Foot Pedal Switch For Spindle Clamp & Unclamp |
| Levelling Bolts and Blocks |
| Operation Manual & Electrical Drawing |

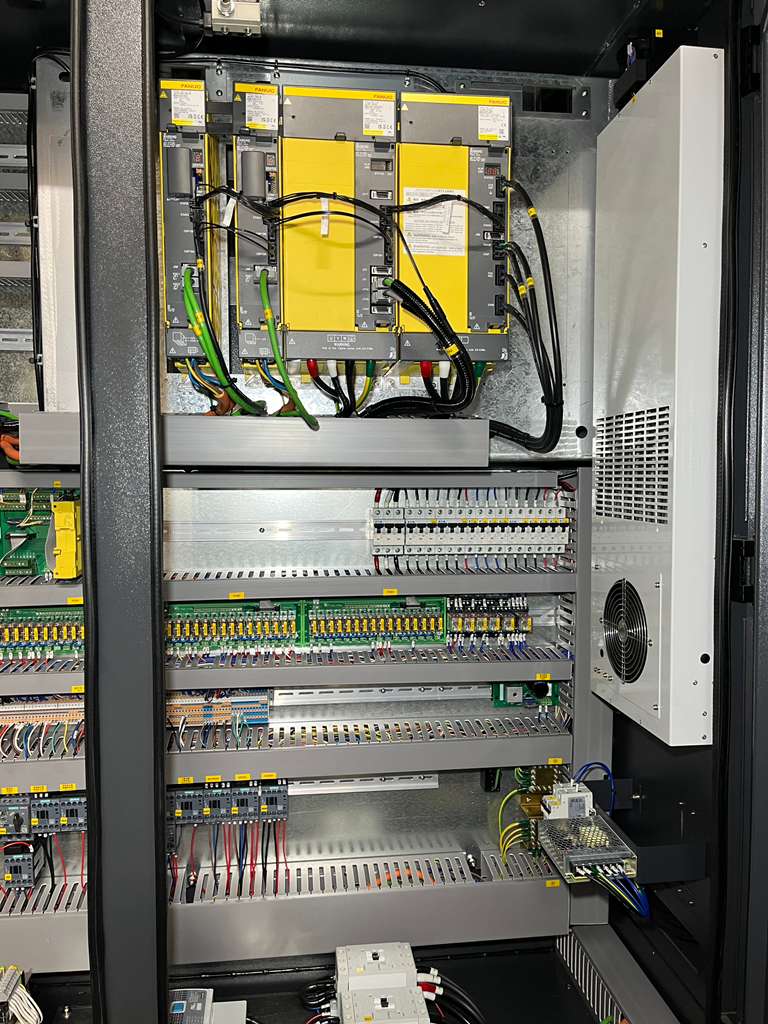

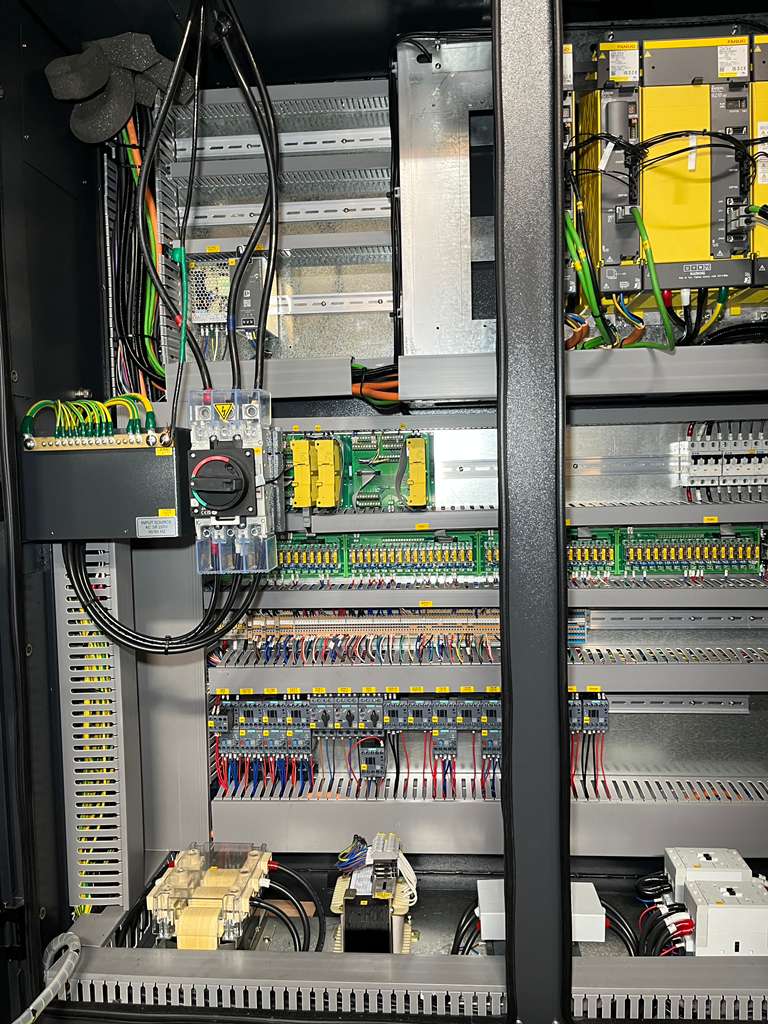

| Heat Exchanger In Control Cabinet |
| Roller Type Linear Guide Way (X, Y Axis INA Brand) |
| Hiwin Brand X,Y,Z Axis Ballscrew (With X,Y,Z Axis Cooling) |
| Oil Skimmer |
| Coolant Gun & Air Gun |
| Door Interlock Switch |
| Note: This Machine Will Accept the CAT-50 Tool Holders with Long Retention Knob |

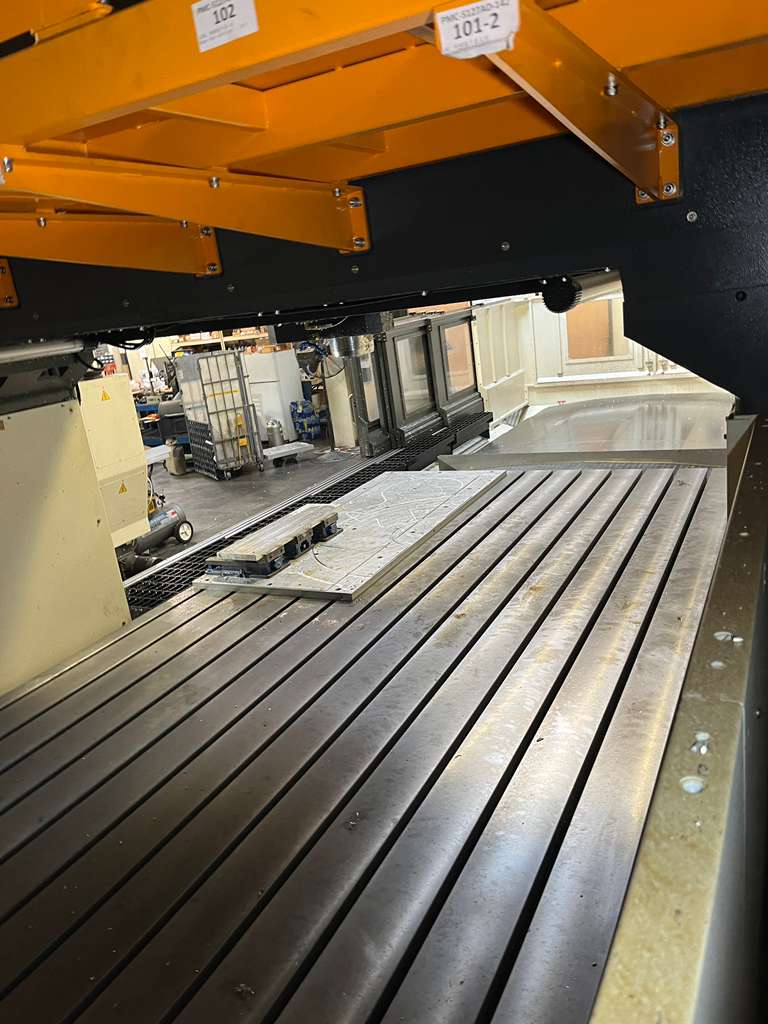

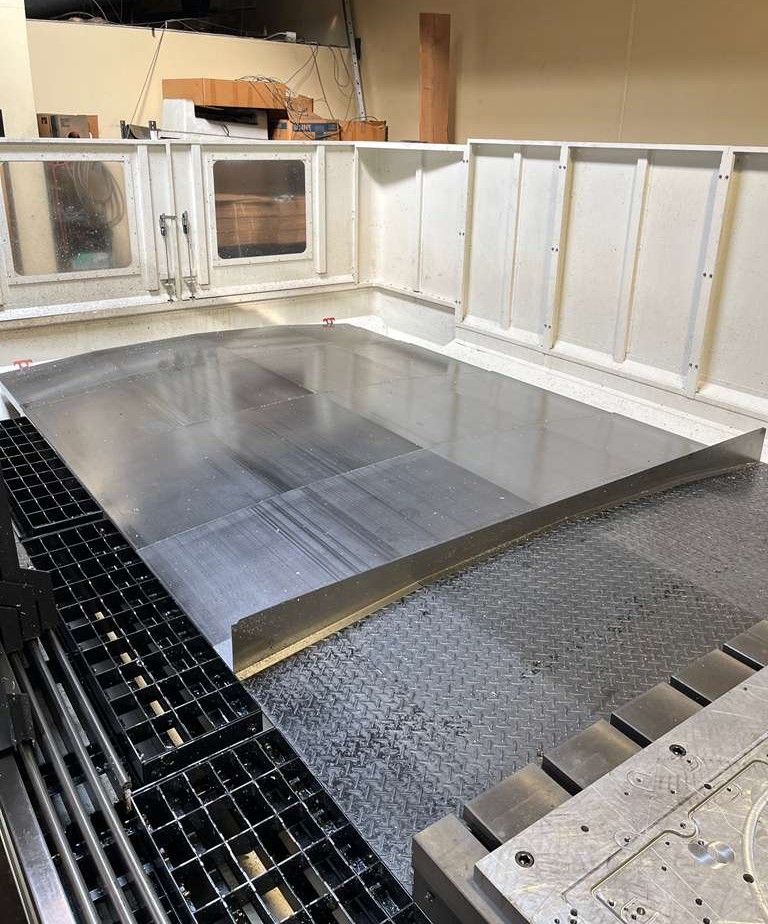

| Table: |
|---|
| Table Length (X): 197″ |
| Table Width (Y): 102″ |
| Table T-Slots (size × number × pitch): 1.1″ × 13.0″ × 7.9″ |
| Maximum Table Load: 44,000 lbs |

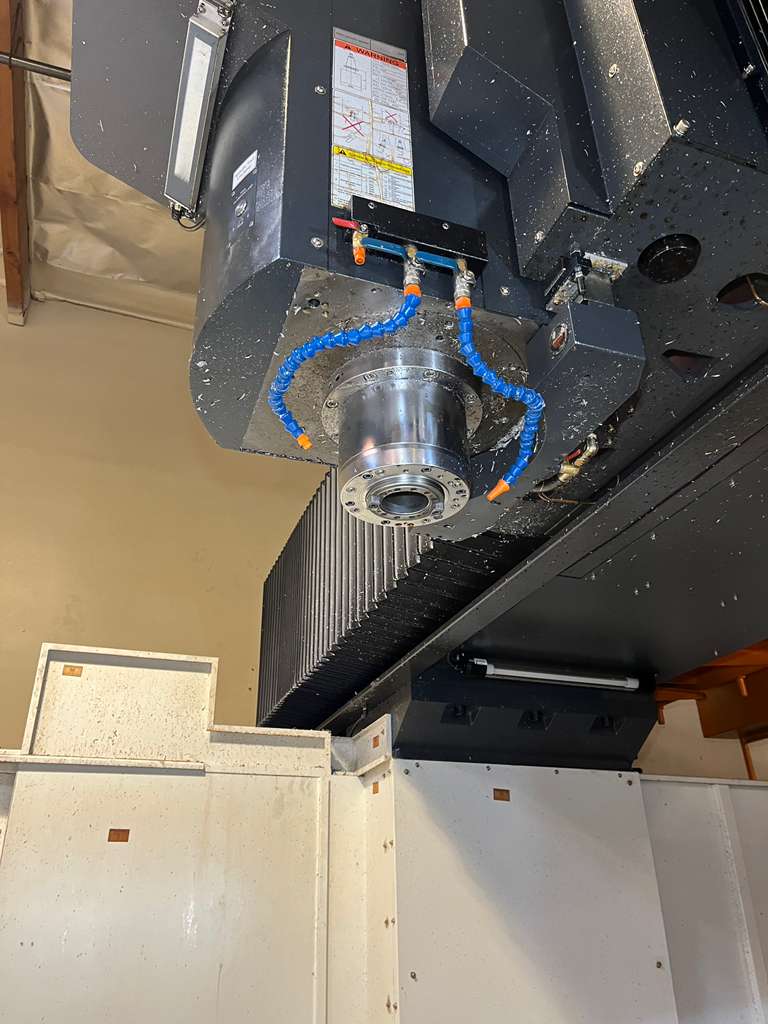

| Spindle: |
|---|
| Spindle Nose Taper: BBT-50 |
| Spindle Speed (Direct Drive): 10,000 RPM |
| Spindle Motor: 35 HP |
| Automatic Tool Changer: |
|---|

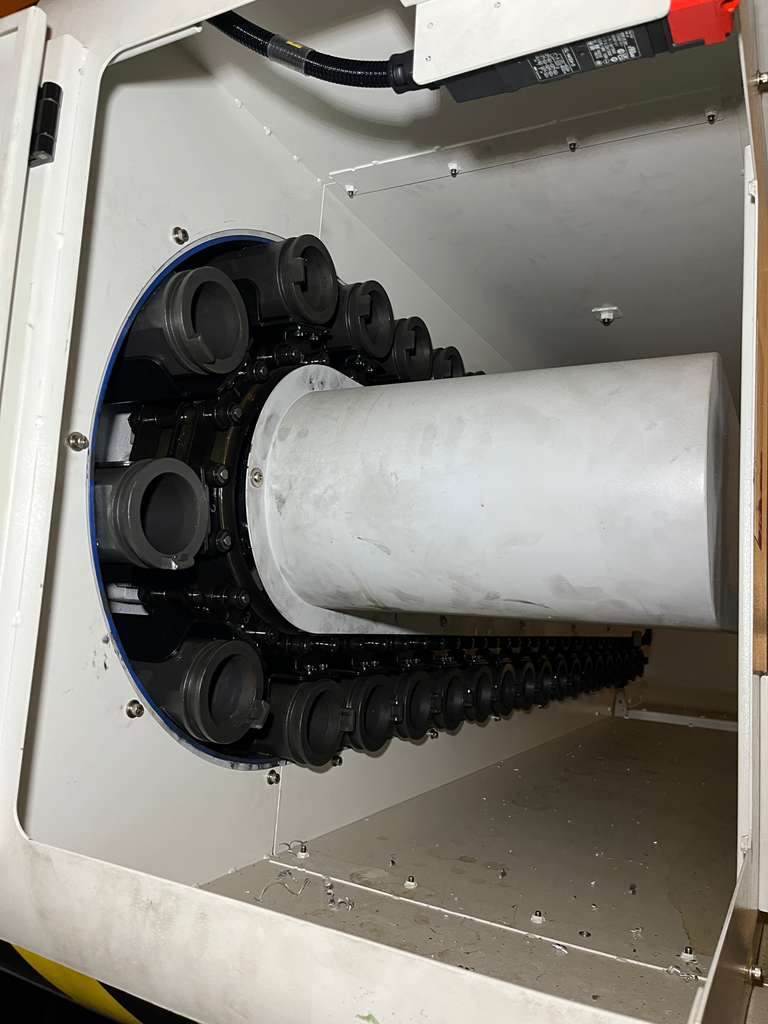

| Tool Magazine Capacity: 40 Tools |
| Max Tool Diameter (Adjacent Tools): Ø4.92″ |
| Max Tool Diameter (No Adjacent Tools): Ø8.4″ |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 44 lbs |
| Tool Shank: CAT-50 |
| General: |
|---|
| Air Required: 90 psi 4 scfm |
| Power Requirement: 205-235v / 66FLA / 3-Phase / 50 kVA |
| Machine Dimensions (L × W × H): 49′ × 20′ × 15′ High Approx. |
| Machine Weight: 115,000 lbs |
