*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

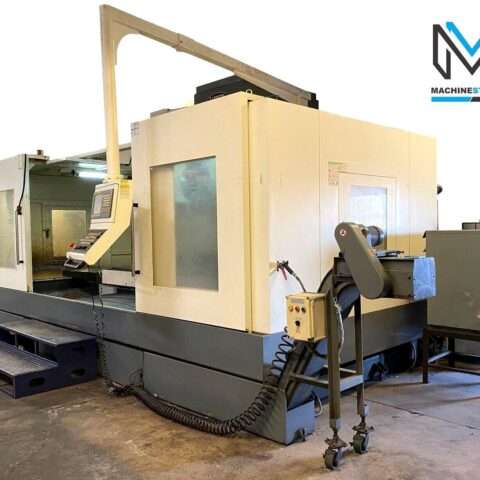

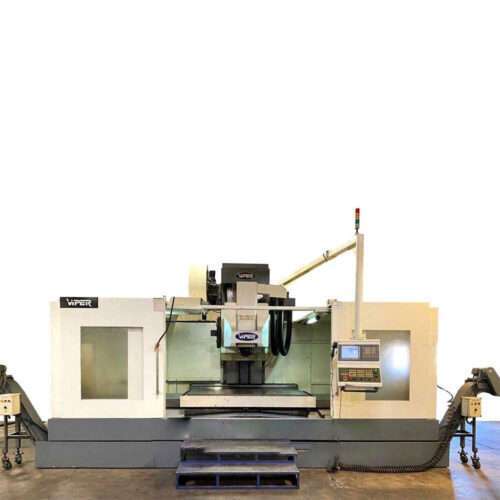

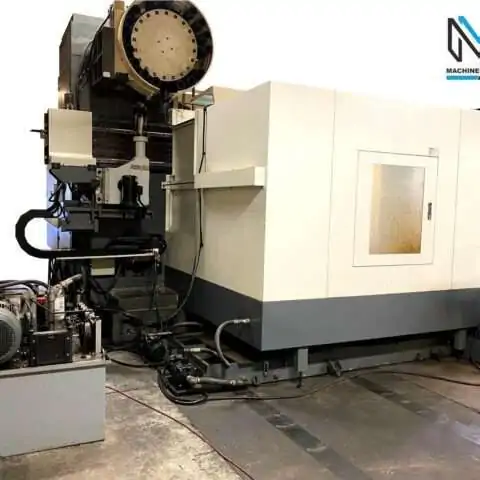

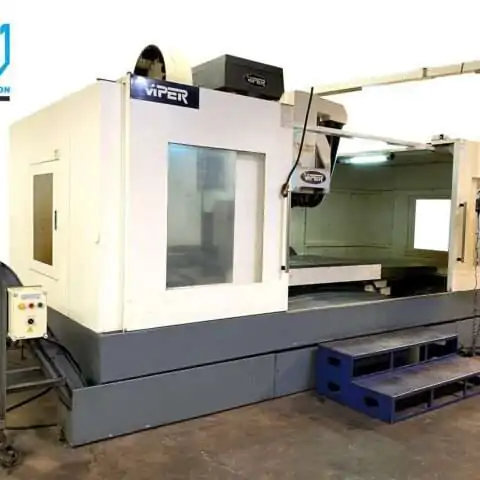

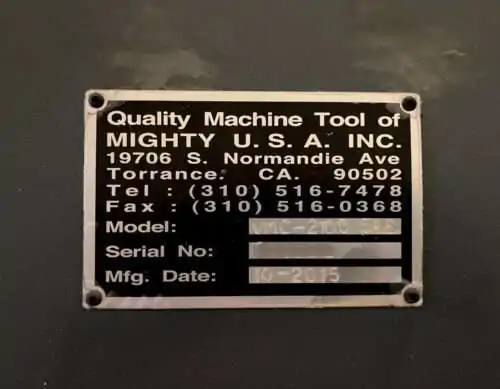

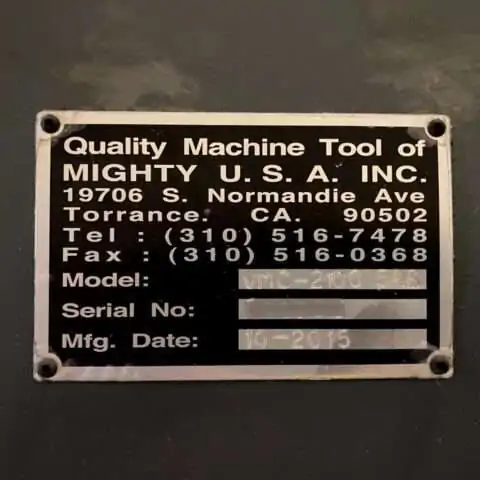

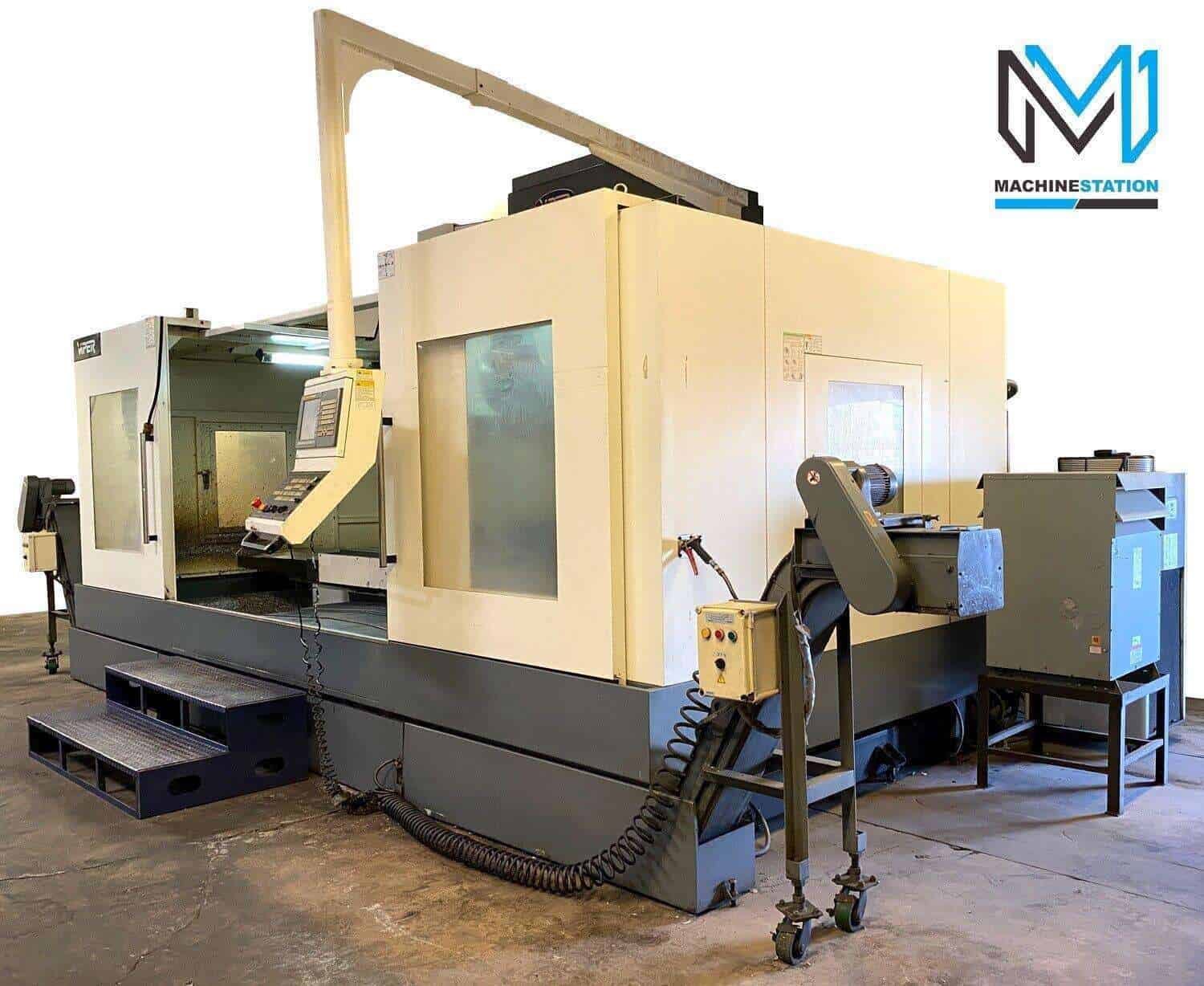

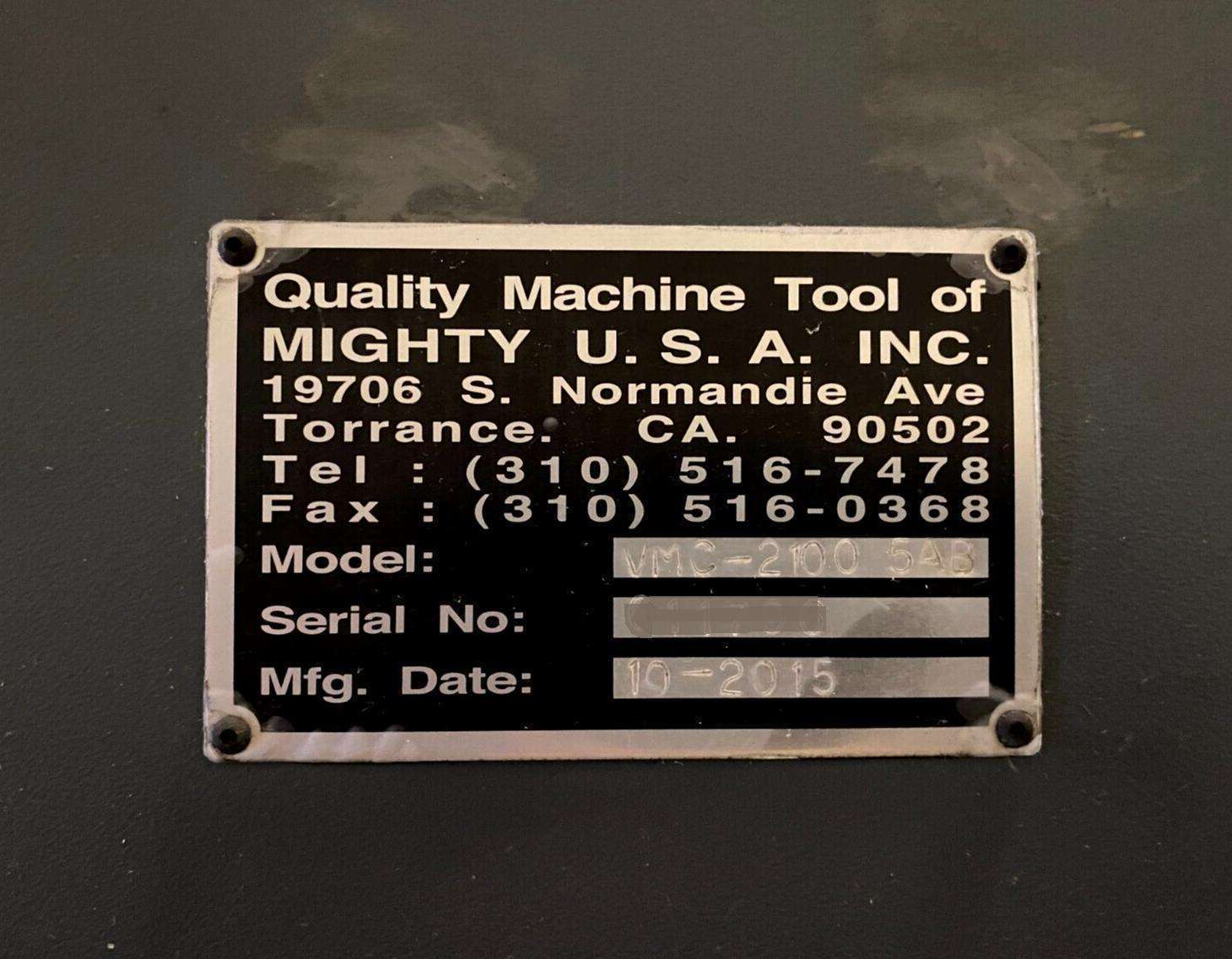

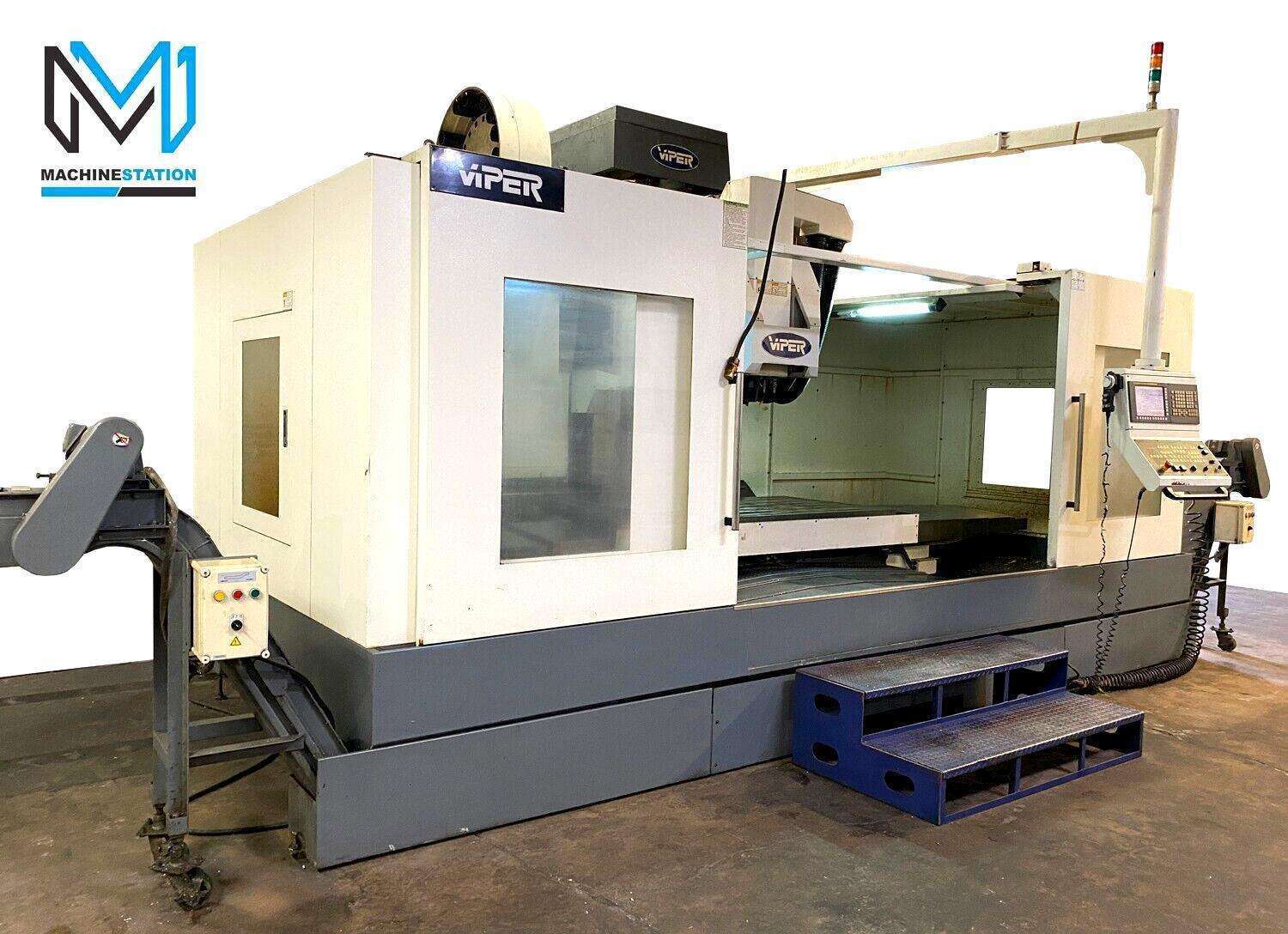

| Make: | MIGHTY VIPER |
| Model: | VMC2100 5AB |
| Year: | 2015 |
| Features: |
|---|

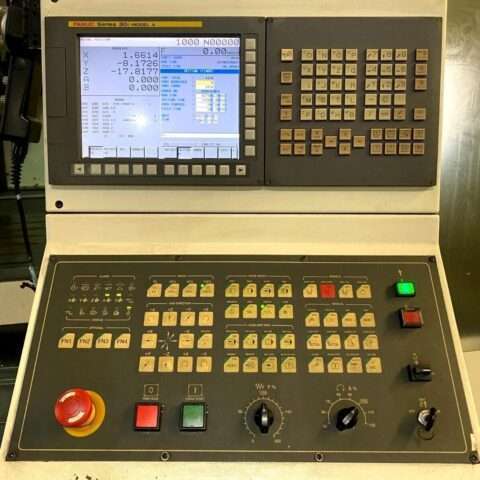

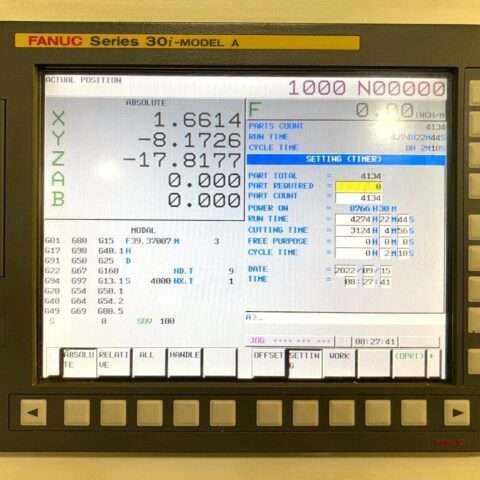

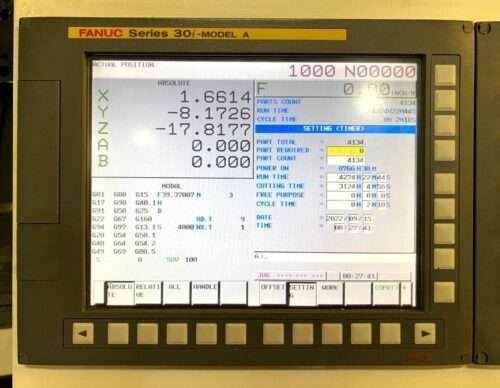

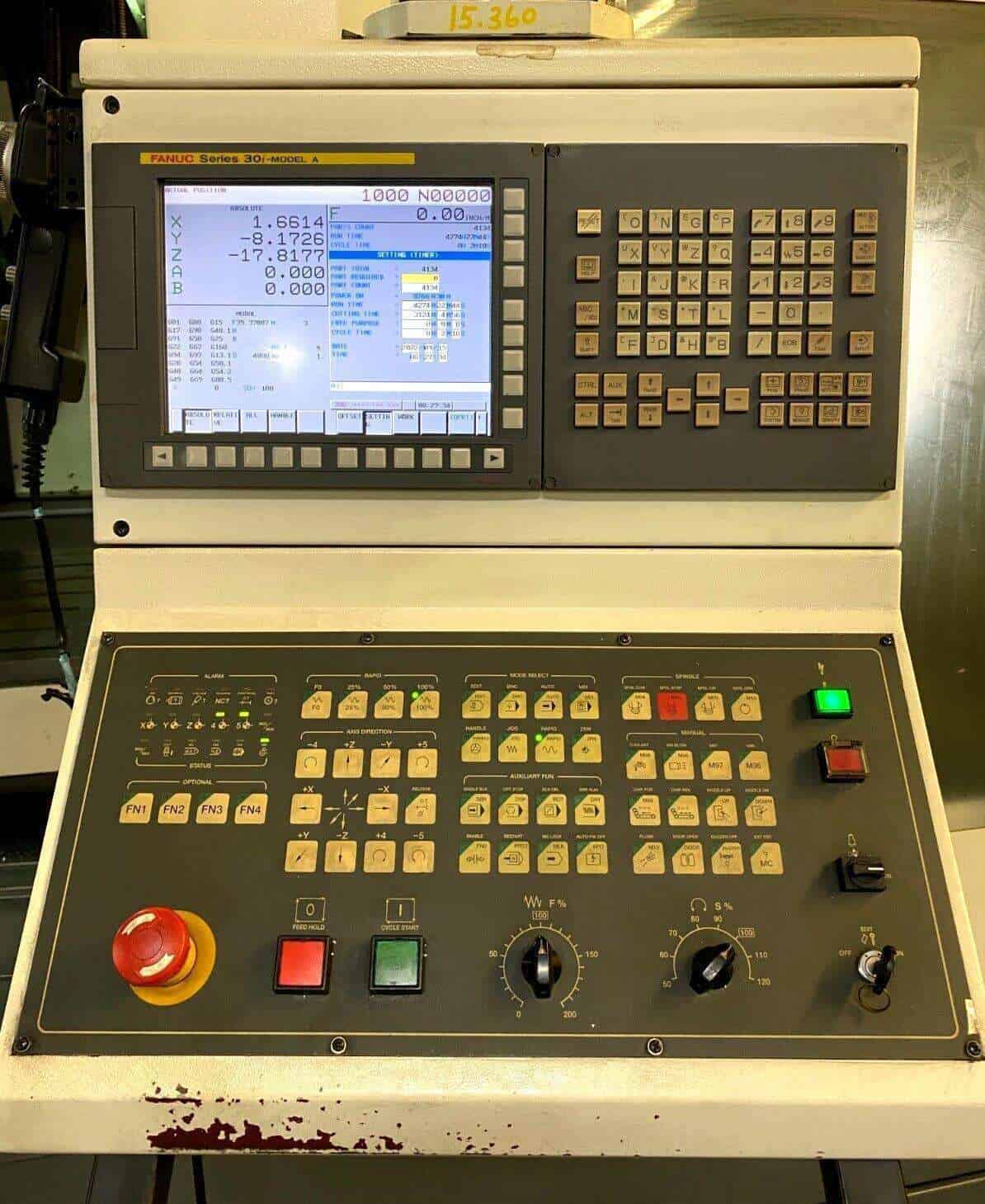

| Fanuc 30i-MA 5 Axis Simultaneous Contouring Control |

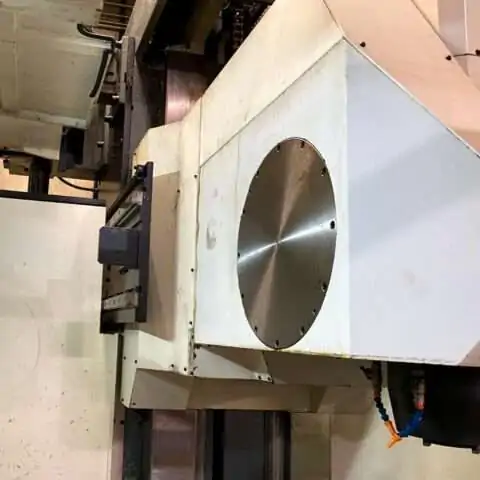

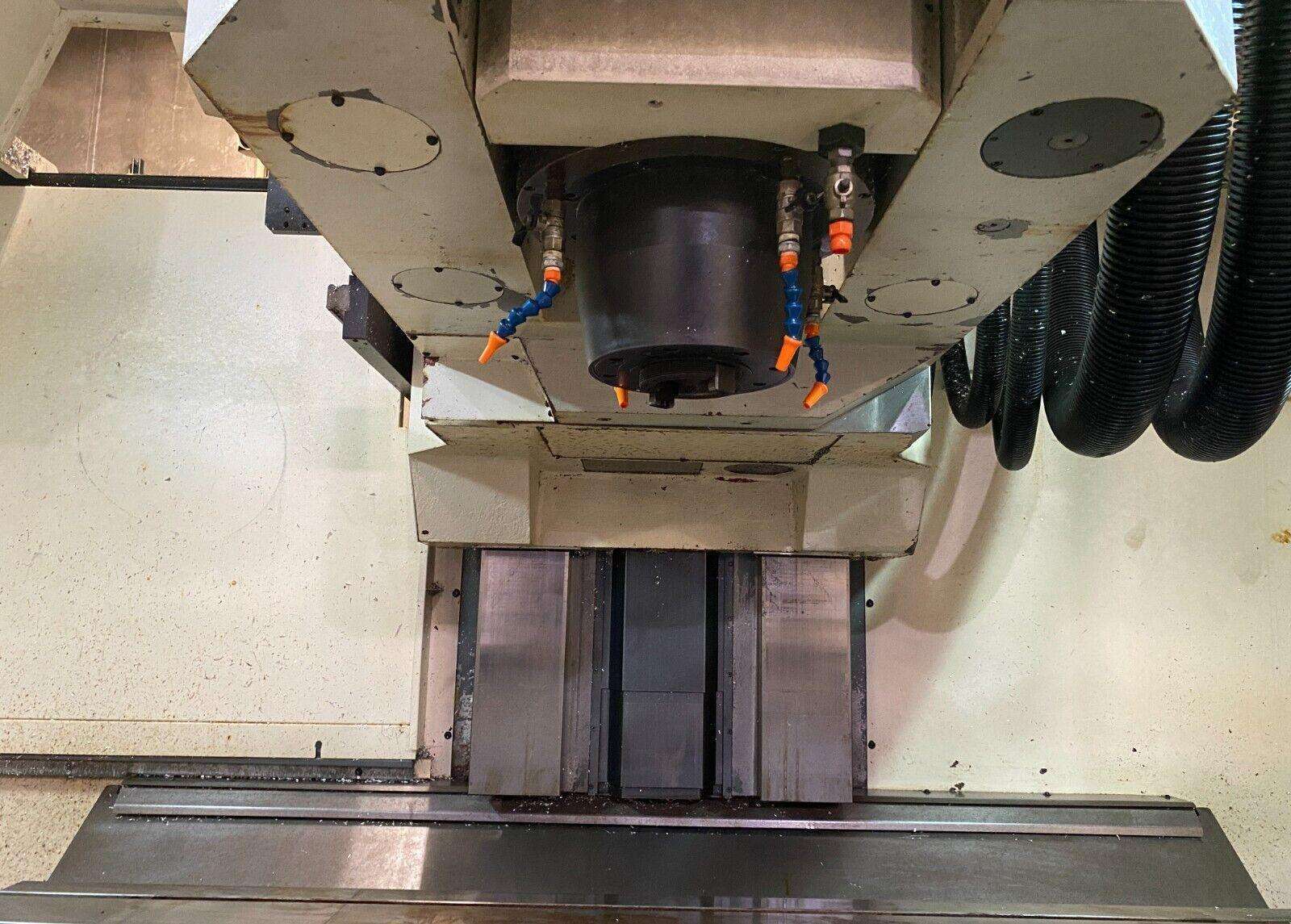

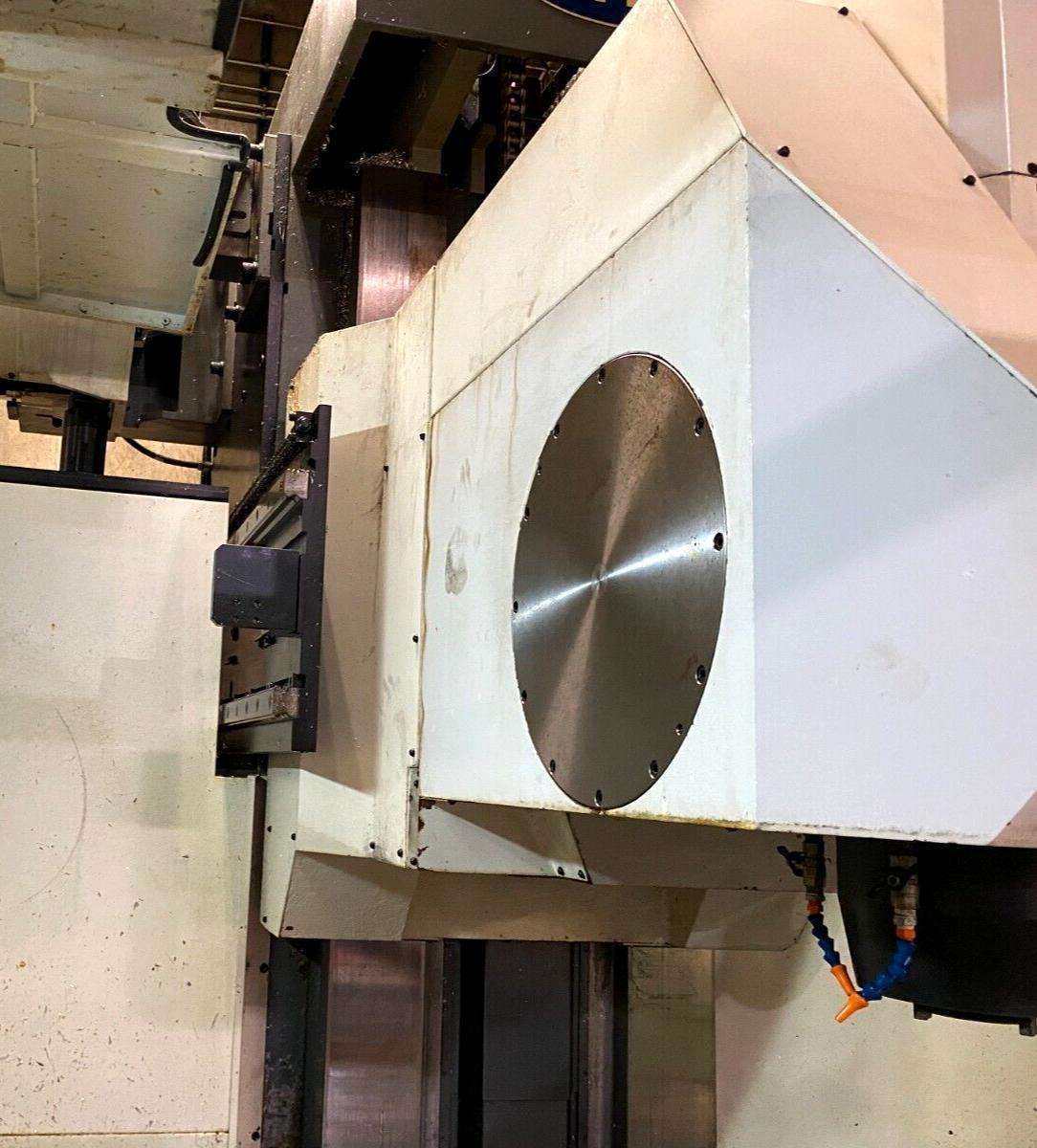

| Articulating Spindle Head (A & B Axis) |
| Box Way Heavy Construction |
| 50 HP High Torque Spindle Motor |
| 50 Taper 10000 RPM Spindle |

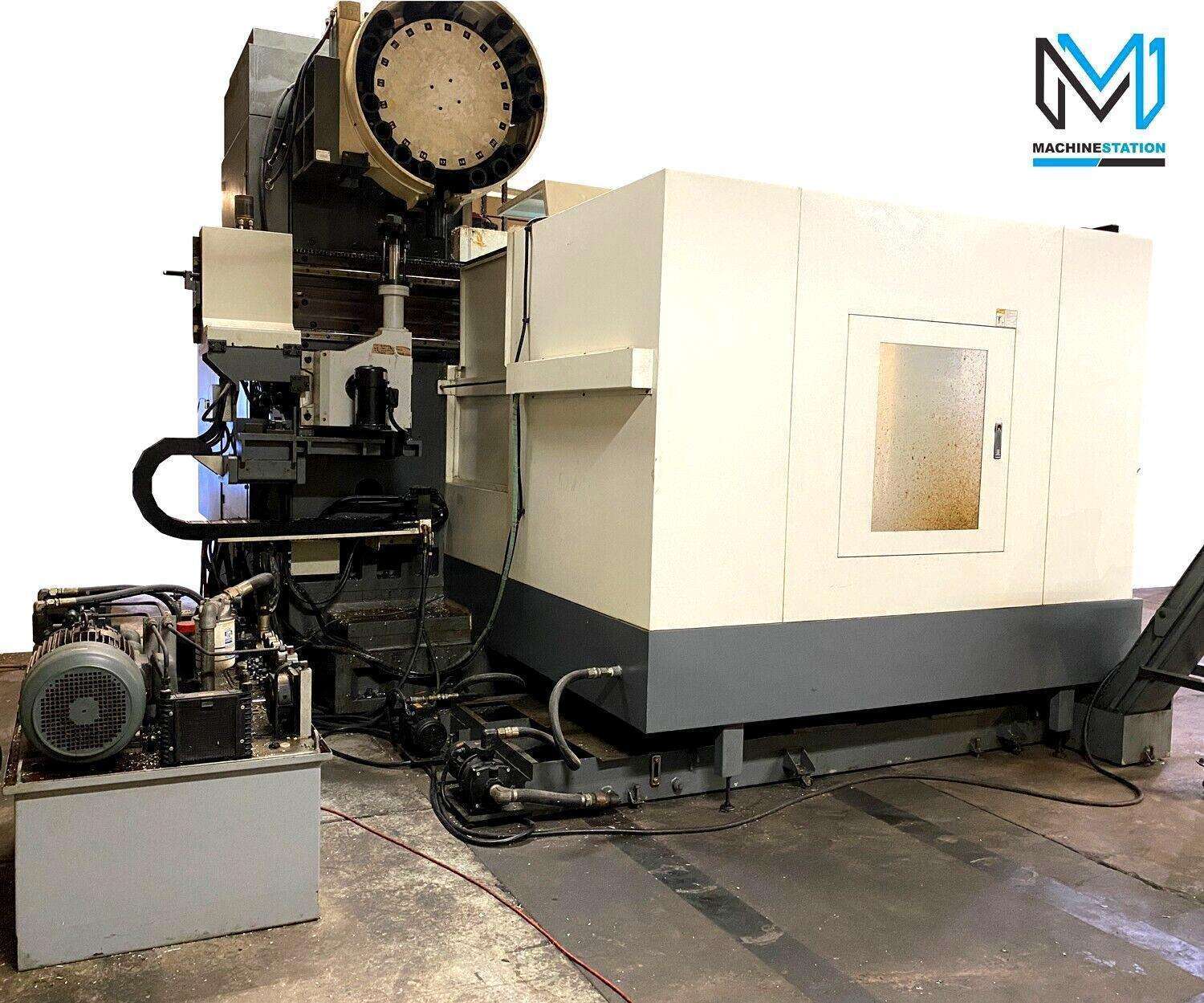

| 20 Automatic tool changer |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |
| Oil Chiller Unit |
| Coolant Tank |
| Dual Chip Conveyor |
| Travels: |
|---|
| X-Axis: 80.0″ |
| Y-Axis: 40.0″ |
| Z-Axis: 30.0″ |
| A-Axis: +/- 35° degrees |
| B-Axis: +/- 35° degrees |
| Rapid Traverse Rates: IPM? |
| Spindle Nose to Table (Min.- Max.): 5.0″ – 39.0″ |

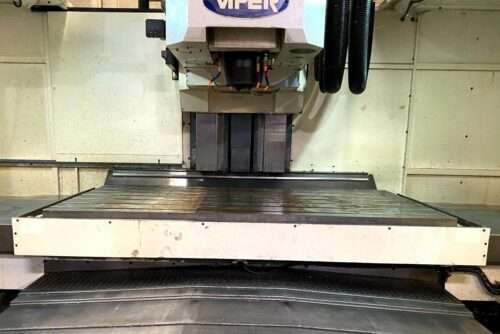

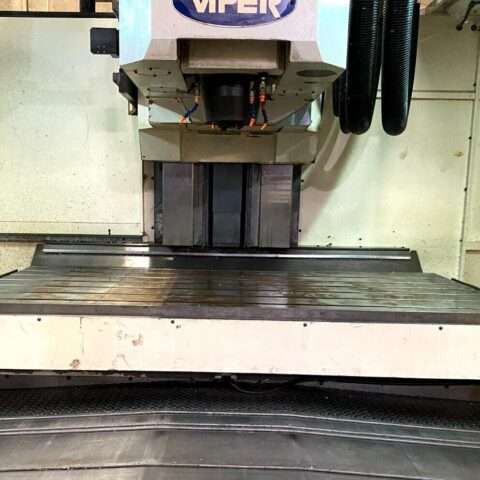

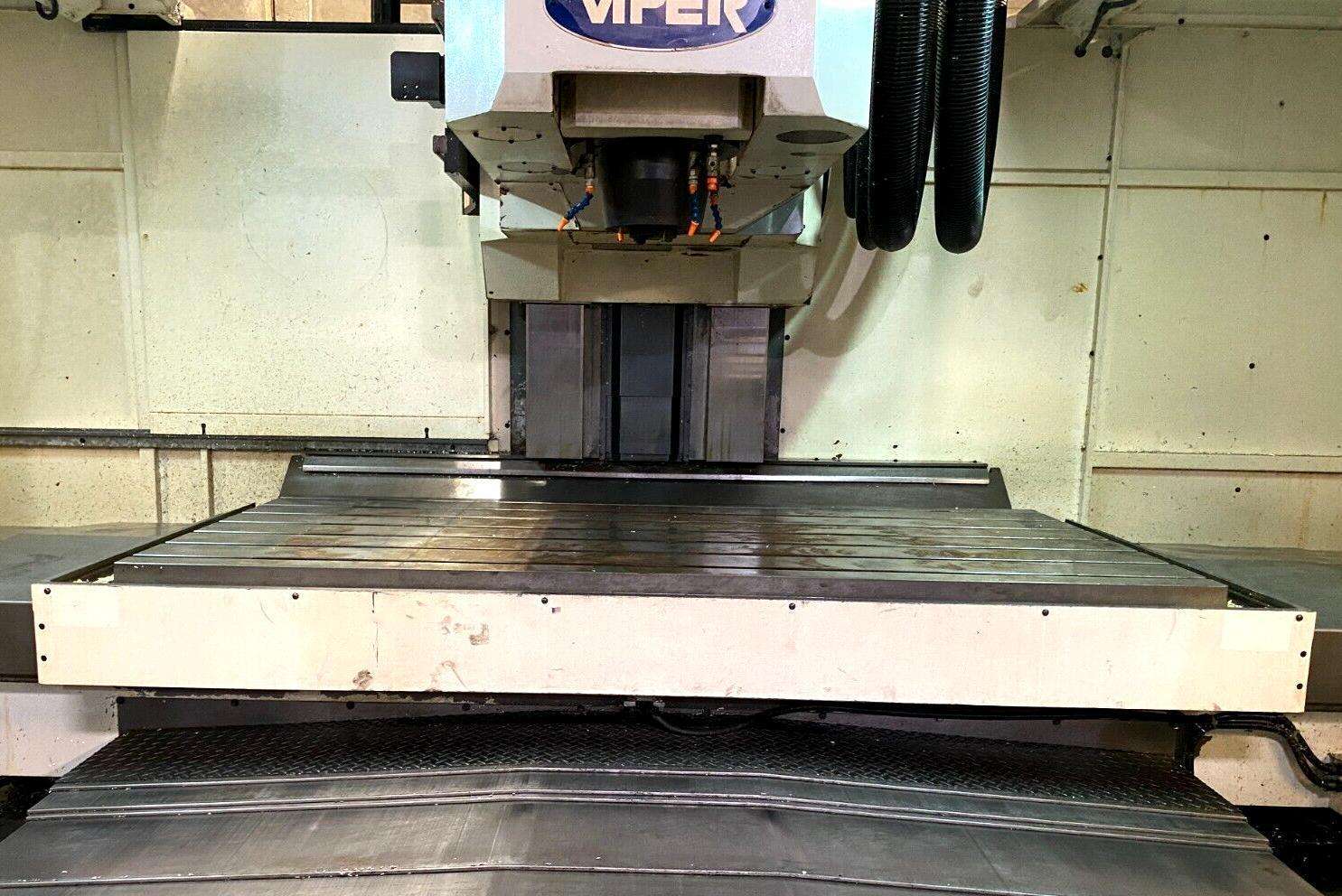

| Table: |
|---|
| Length: 82.6″ |
| Width: 41.3″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: lbs ? |

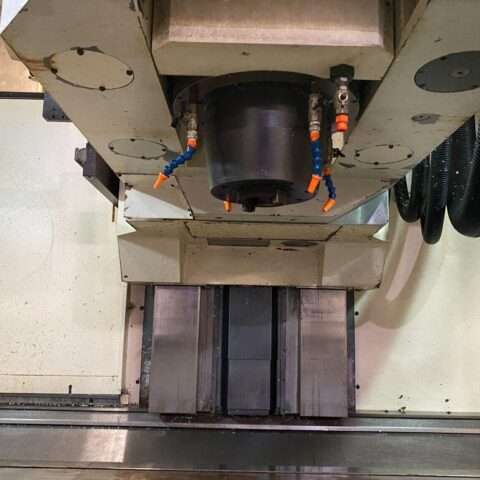

| Spindle: |
|---|
| Articulated 5 Axis |
| Taper Size: 50 |
| Speed Range: 10000 RPM |
| Spindle Power: 50 HP |

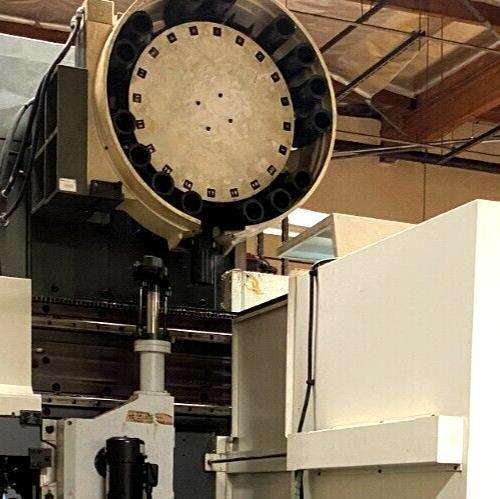

| Automatic Tool Changer: |
|---|
| Capacity: 20 |
| Max Tool Weight: 33 lbs |
| Max Tool Dia: 5.2″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: Seconds ? |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: ” x ” x ” High ? |
| Weight: lbs ? |
| “No Charges for loading at list Price” |
