*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

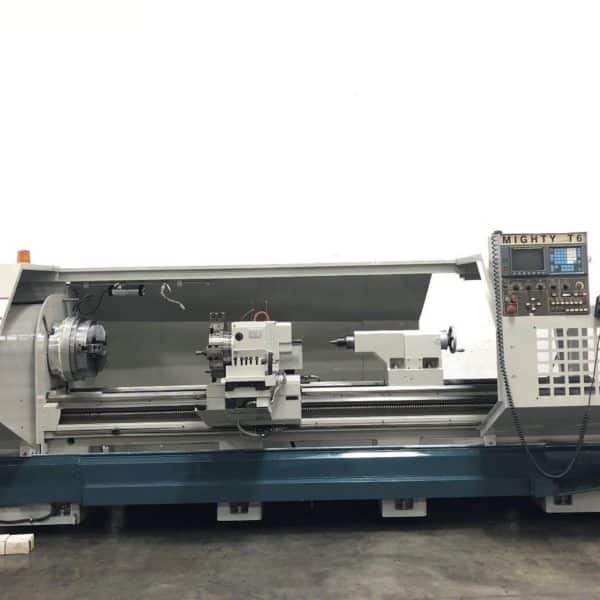

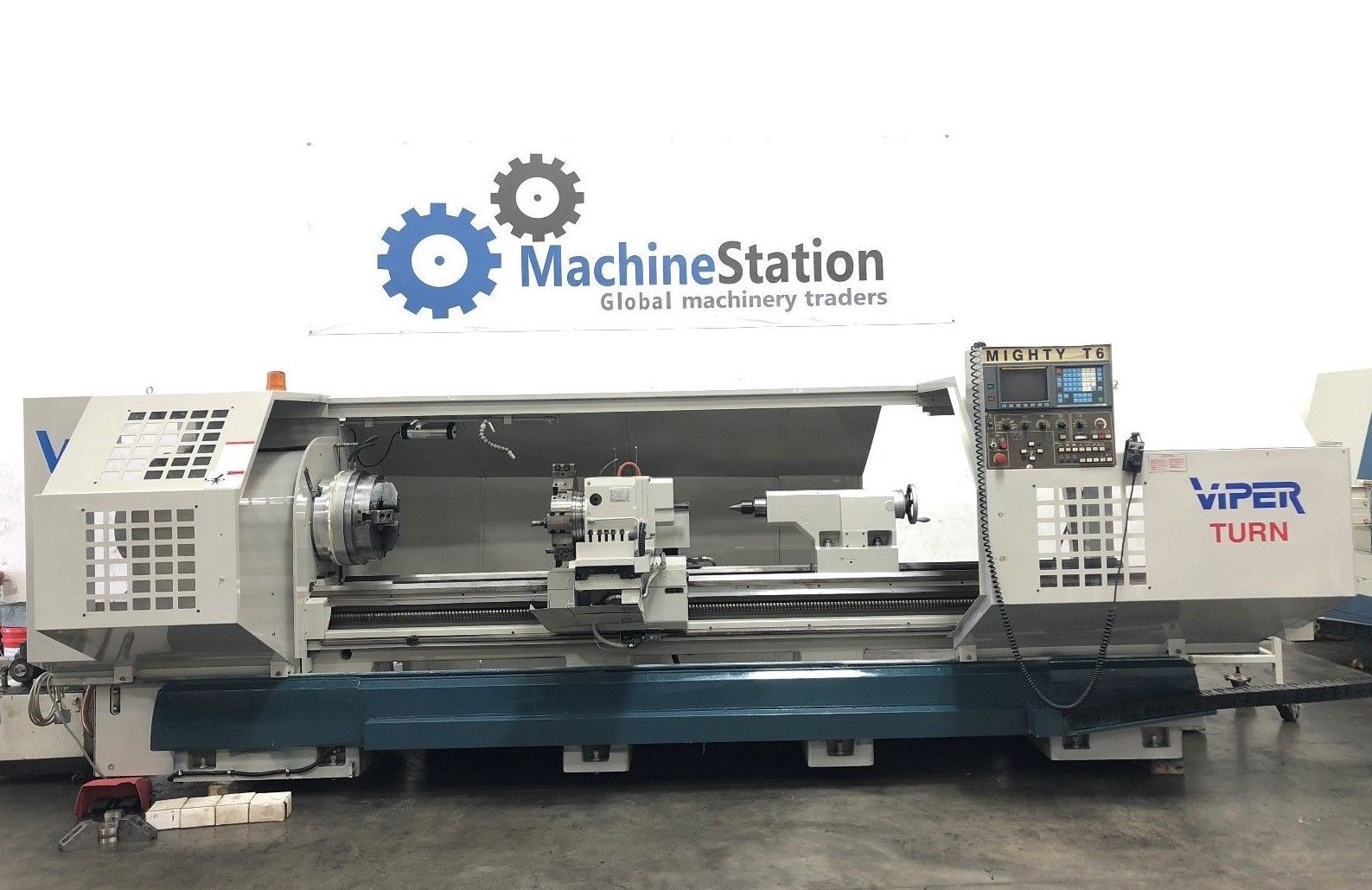

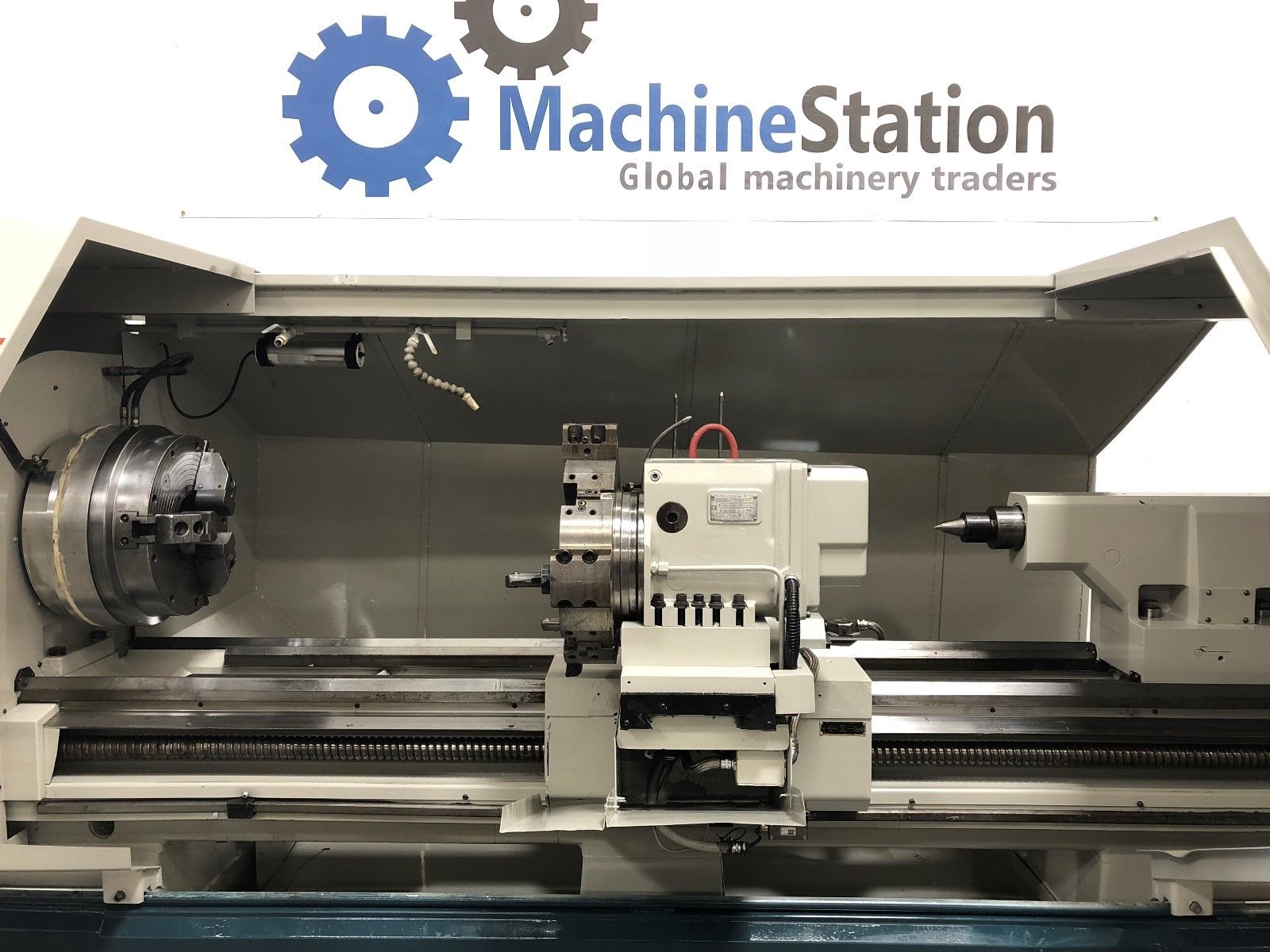

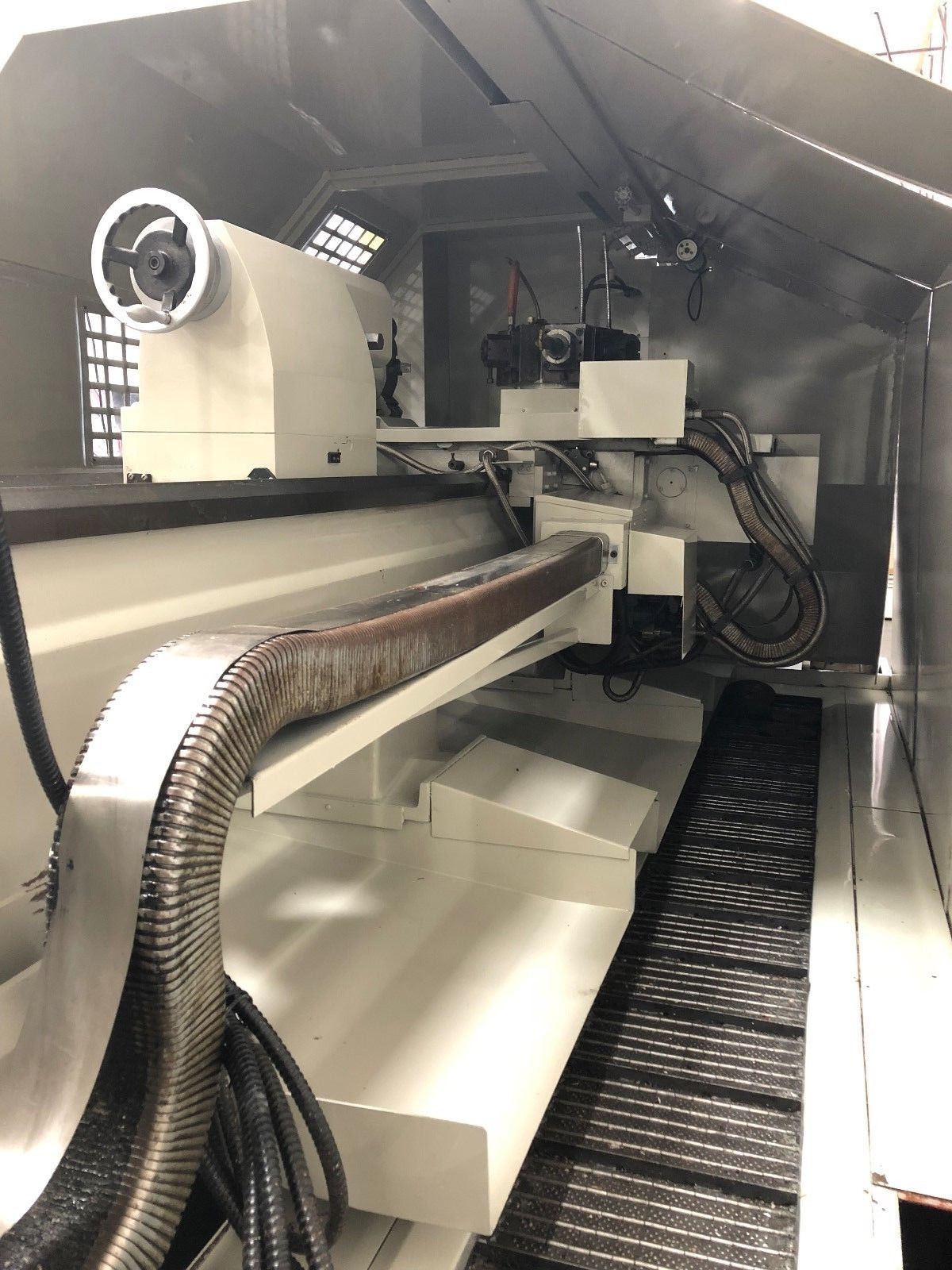

| Make: | Mighty Viper |
| Model: | T6 X 120 |
| Year: | 2000 |
| Serial: | 38075 |
| Condition: | Very Good |
| Equipped With: |
|---|
| Fanuc OT-C series CNC Control |
| 6.6″ Big Bore |
| A2-11 Gear Head Spindle |
| 16″ 3 Jaw Hydraulic Chuck |

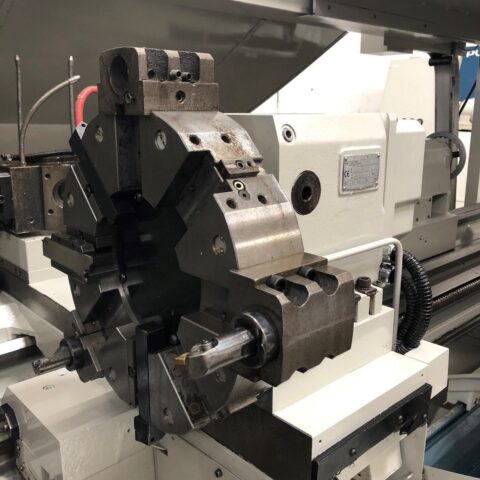

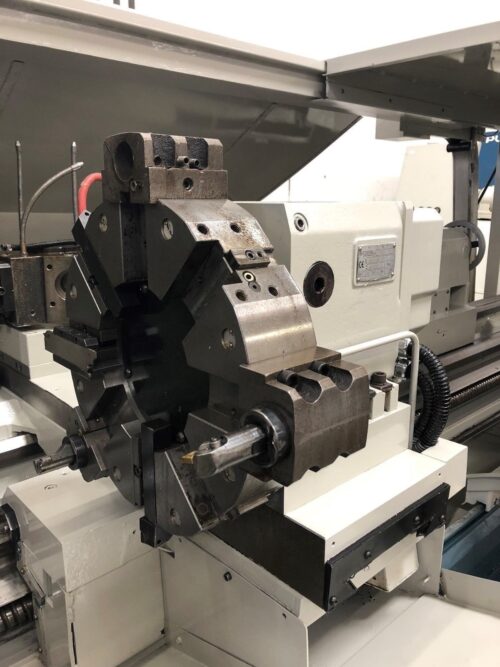

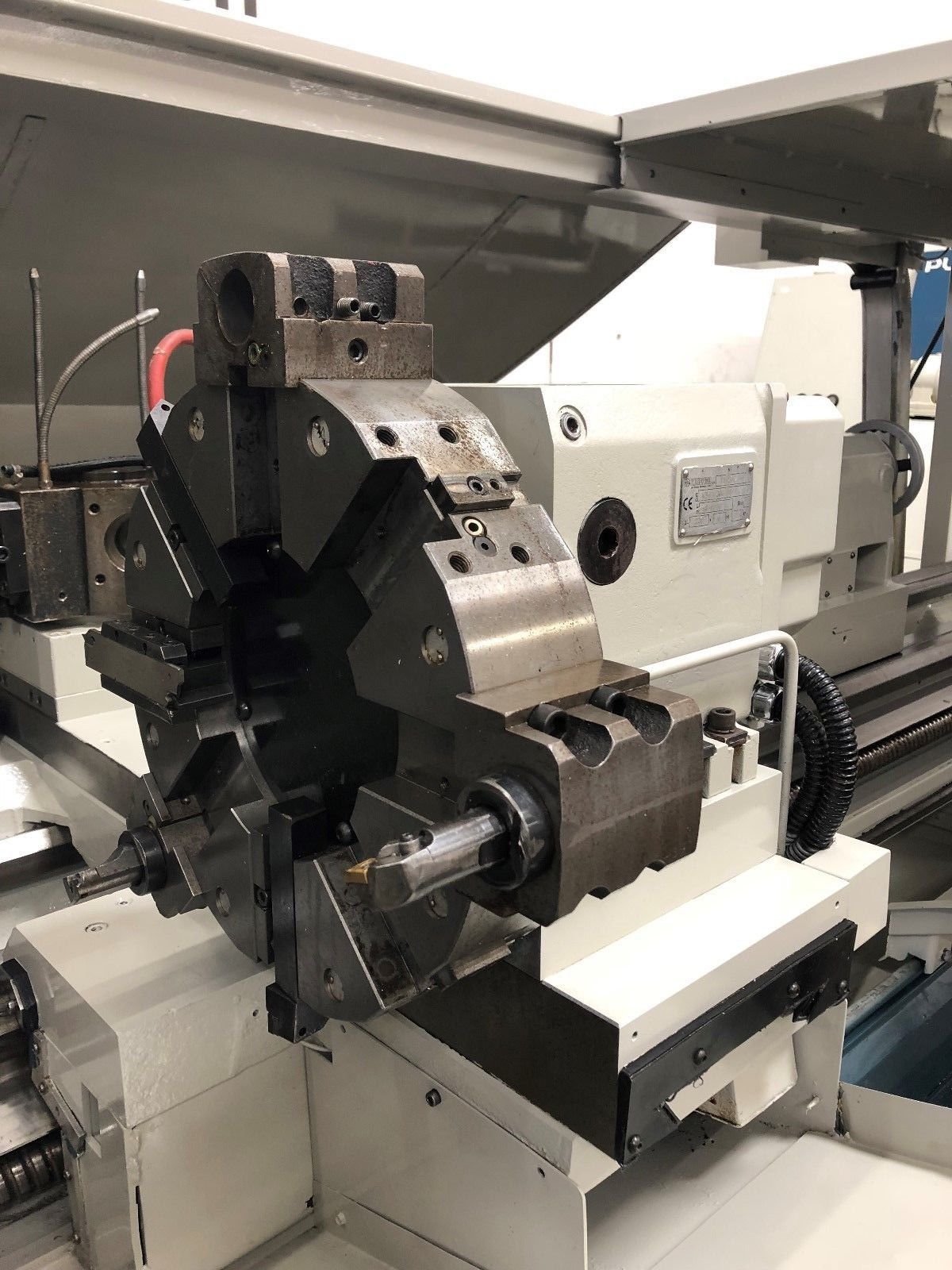

| 2 Turrets – 8 Station Vertical and 6 Station Horizontal |
| Steady Rest |

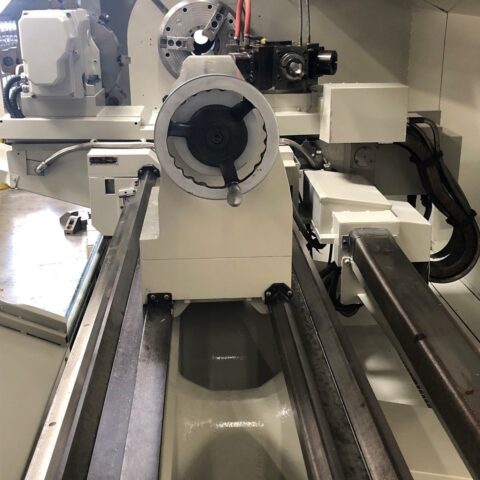

| Heavy Duty Tailstock and Quill |
| RS-232 Port |
| Coolant System |
| Foot Switch |

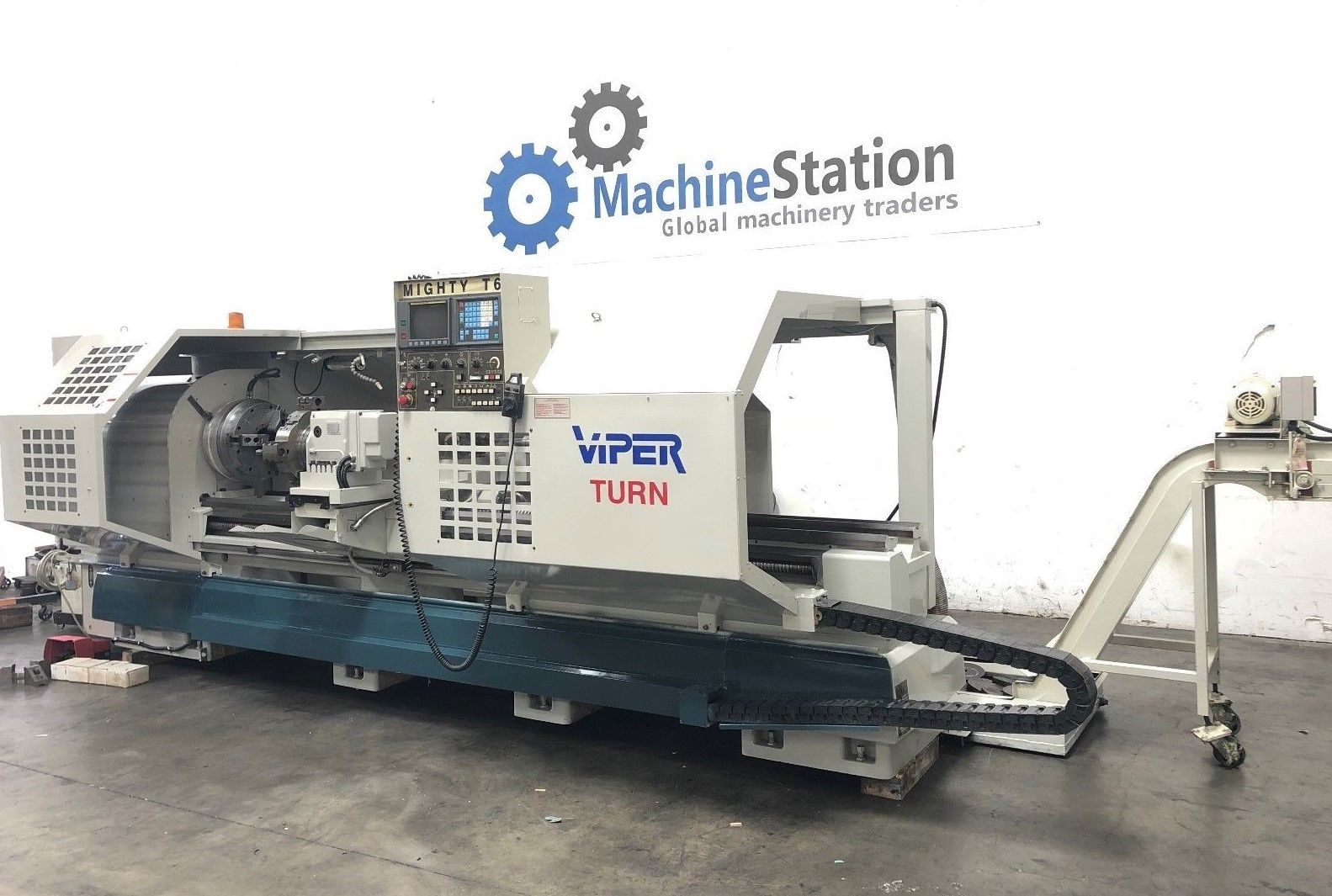

| Chip Conveyor |
| Book, Manuals and original Disks |
| Levelling Pads |
| Extra Jaws and Collets |
| General: |
|---|
| Power: 30 kva, 220v / 3-Phase |
| Overall Dimensions: 228″ X 90″ X 78″ High |
| Overall Dimensions: 288″ X 90″ X 78″High with Chip Conveyor |
| Weight: 17800 lbs |
| Capacity: |
|---|
| Max Turning Diameter: 23.6″ |
| Max Turning Length: 120″ |
| Max Bar Capacity: 6.5″ |
| Swing Over Bed: 26.0″ |
| Distance Between Centers: 124″ |
| X Axis Travel: 21.26″ |
| Z Axis Travel: 120.0″ |
| Rapid Traverse X Axis: 394 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle Nose: A2-11 |
| Spindle Bore: 6.6″ |
| Spindle Speed: 3 – 1000 RPM |
| Spindle Motor: 30 HP |
| Vertical Turret Capacity: 8 Stations |
| Horizontal Turret Capacity: 6 Stations |
| Turret Index Time: 1 Second |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 3.97″ |
| Tailstock Quill Travel: 4.7″ |
