Milltronics VM16 CNC Vertical Machining Center

SKU 11560

Make/Model Milltronics VM16

Year 1995

Video On Request

Out of stock

SKU:	11560
Make/Model:	Milltronics VM16
Year:	1995
Video:	On Request

SKU: 11560

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Milltronics
Model:	Partner VM16
Year:	1995
Machine Type:	CNC Vertical Machining Center
Control:	Milltronics Centurian 6 CNC

Features:

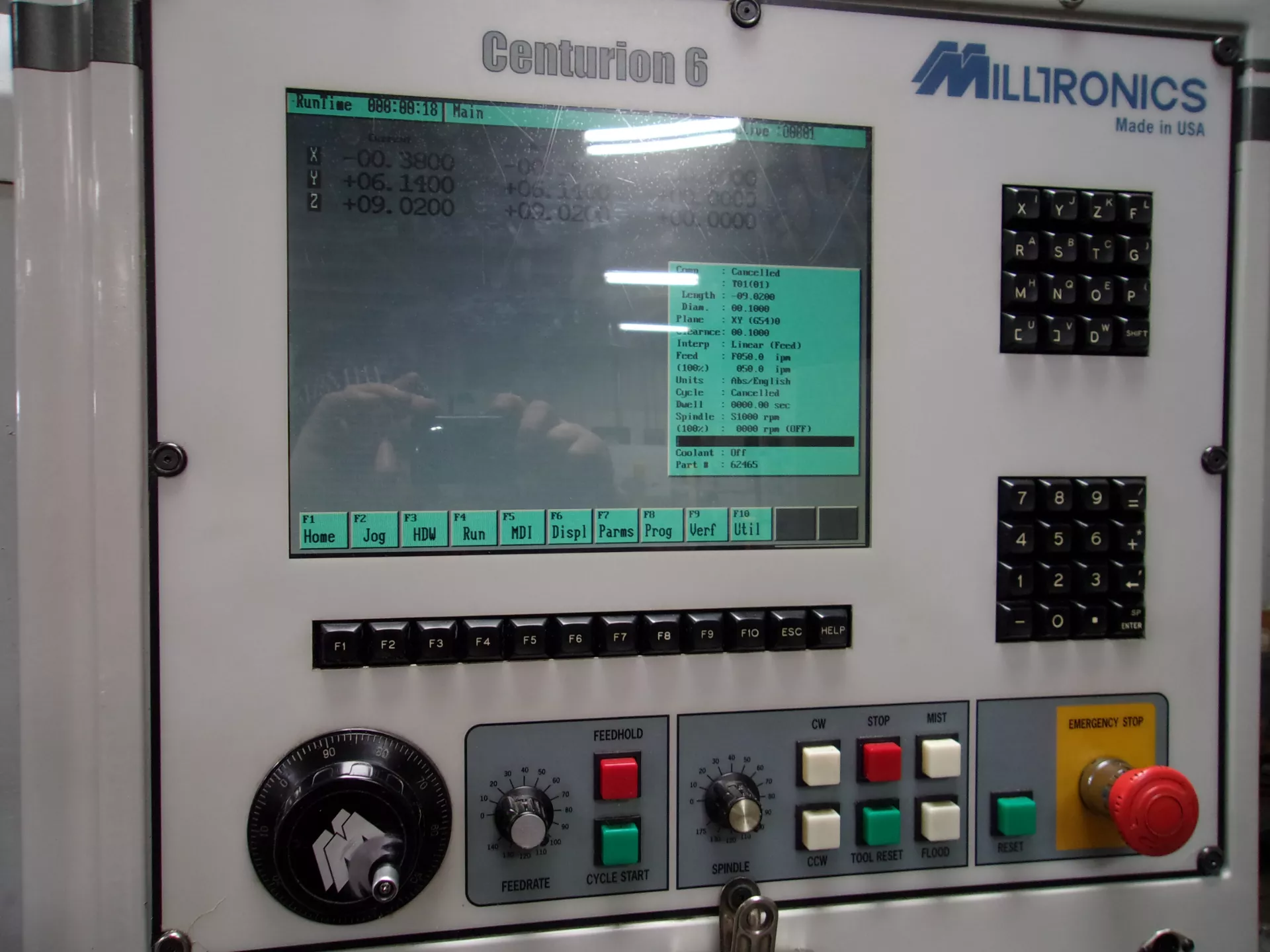

Milltronics Centurian 6 CNC Control with Color LCD Display
Conversational & G-Code Programming
CAT 40 Taper Spindle
16-Tool Automatic Tool Changer
Linear Way Construction
Automatic Positive Displacement Lubrication System
Six Nozzle Variable Height Flood Coolant System
Air Purged Spindle with Labyrinth Seal
Sealed NEMA Standard Electrical Box
Heavy Duty Metal Full Enclosure with Wash Down & Air Blast Hose
Work Lamp

Travels:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
X-Axis, Y-Axis & Z-Axis Rapid Rate: 400 IPM Approx.

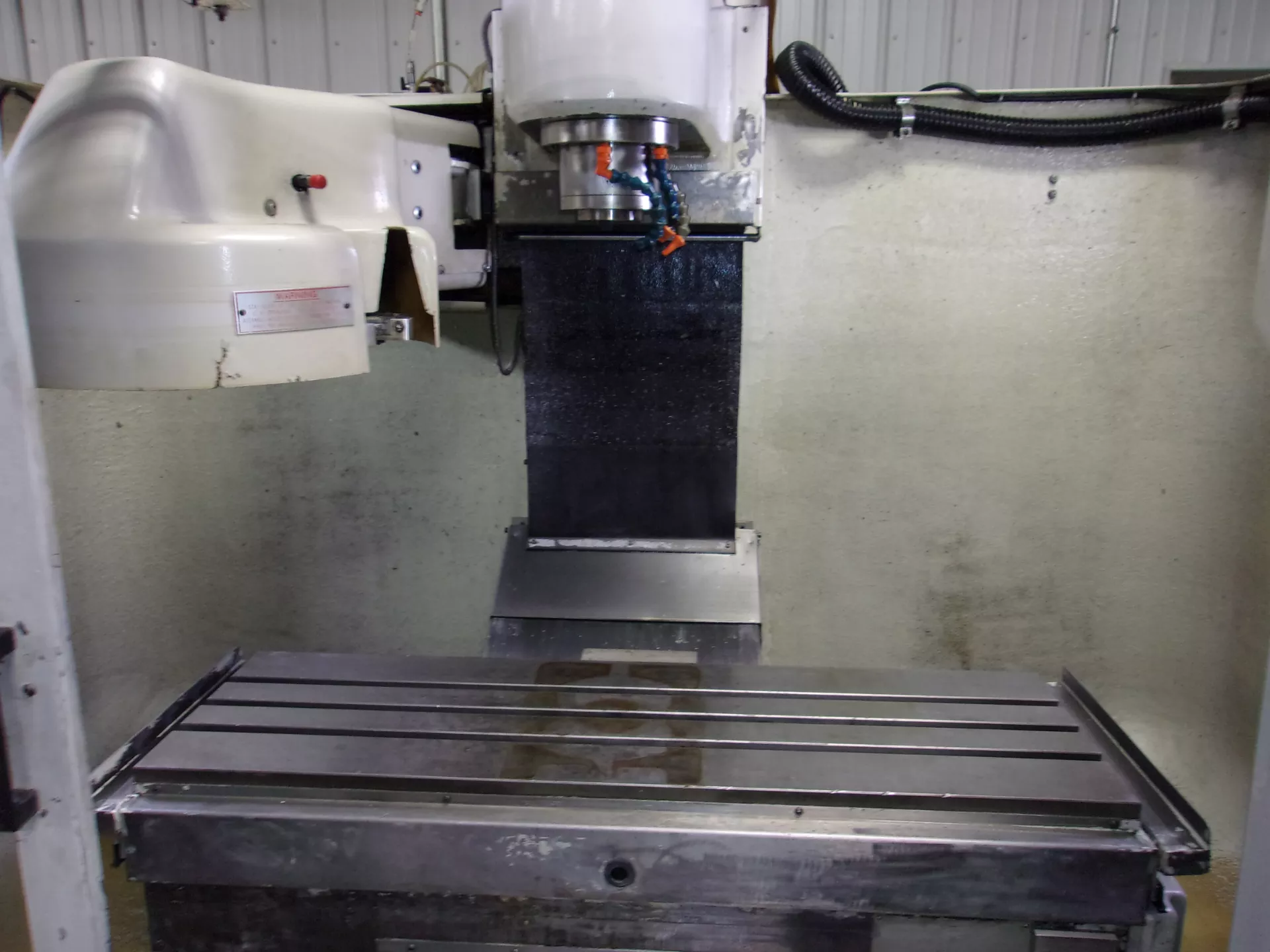

Table:
Table Size: 45″ x 16″
Table Load Capacity: 1,500 lbs

Spindle:
Spindle Taper: CAT 40 (ISO No. 40)
Max Spindle Speed: 6,000 RPM Approx.
Spindle Motor: 18/12 HP Dual Wound AC
Spindle Torque: 65 ft-lbs
Spindle Gauge Line to Table: 4″ – 24″
Column to Spindle Center: 15.5″

Automatic Tool Changer:
Tool Storage Capacity: 16
ATC Type: Swing Arm Carousel
Max Tool Diameter: 3.5″ Approx.
Max Tool Length: 12.0″ Approx.
Max Tool Weight: 15 lbs Approx.

General:

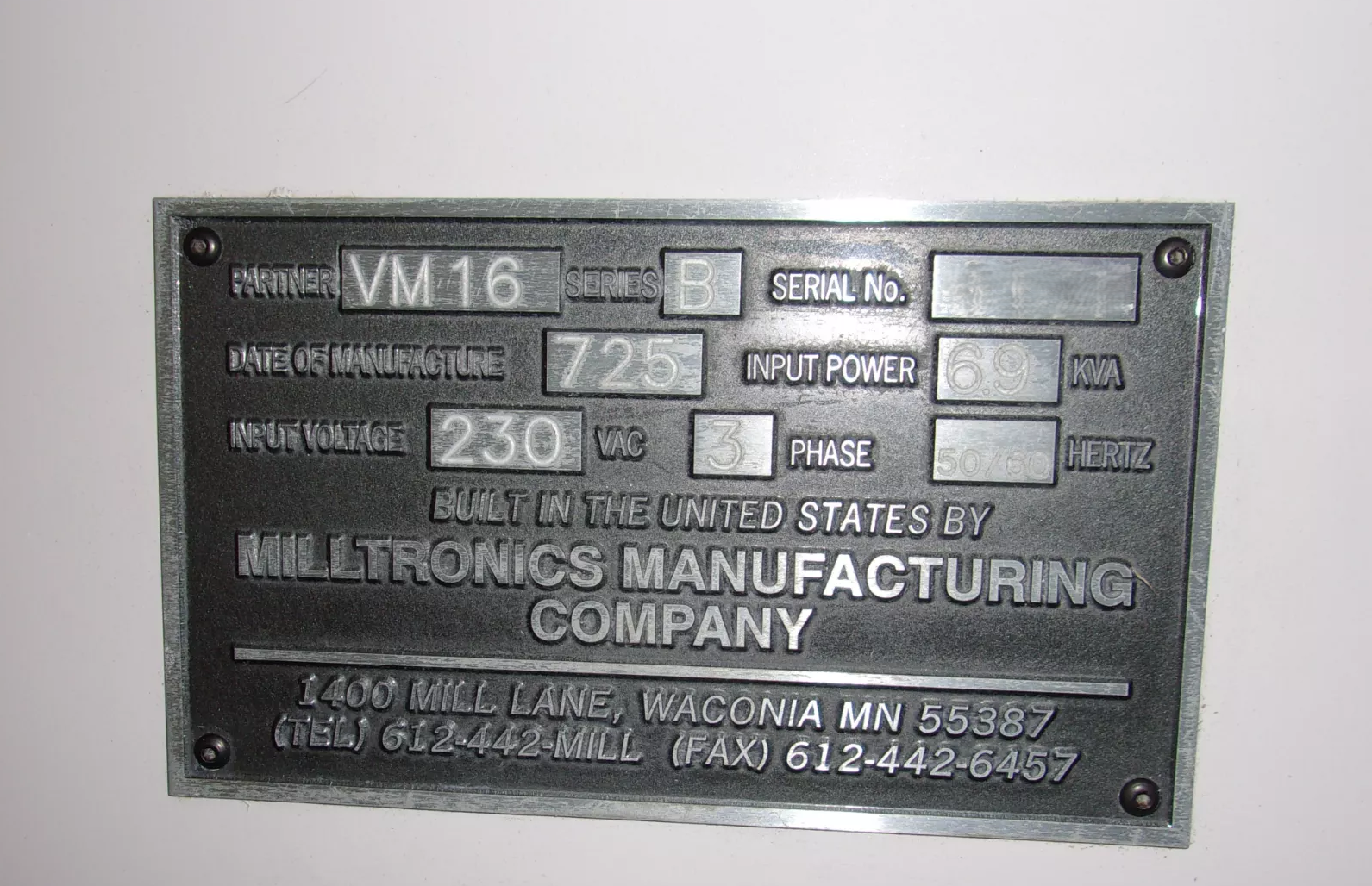

Power: 230V / 50/60 Hz / 3-Phase / 69 KVA
Overall Dimensions: 120″ L x 90″ W x 100″ High Approx.
Machine Weight: 10,000 lbs Approx.

Travels:
X-Axis Travel: 762 mm
Y-Axis Travel: 406 mm
Z-Axis Travel: 508 mm
X-Axis, Y-Axis & Z-Axis Rapid Rate: 400 IPM Approx.

Table:
Table Size: 1,143 mm x 406 mm
Table Load Capacity: 1,500 lbs

Spindle:
Spindle Taper: CAT 40 (ISO No. 40)
Max Spindle Speed: 6,000 RPM Approx.
Spindle Motor: 18/12 HP Dual Wound AC
Spindle Torque: 65 ft-lbs
Spindle Gauge Line to Table: 102 mm - 610 mm
Column to Spindle Center: 394 mm

Automatic Tool Changer:
Tool Storage Capacity: 16
ATC Type: Swing Arm Carousel
Max Tool Diameter: 89 mm Approx.
Max Tool Length: 305 mm Approx.
Max Tool Weight: 15 lbs Approx.

General:
Power: 230V / 50/60 Hz / 3-Phase / 69 KVA
Overall Dimensions: 3,048 mm L x 2,286 mm W x 2,540 mm High Approx.
Machine Weight: 10,000 lbs Approx.

Categories	CNC Vertical Machining Center
Make	Milltronics
Model	VM16

Milltronics Centurian 6 CNC Control with Color LCD Display
Conversational & G-Code Programming
CAT 40 Taper Spindle
16-Tool Automatic Tool Changer
Linear Way Construction
Automatic Positive Displacement Lubrication System
Six Nozzle Variable Height Flood Coolant System
Air Purged Spindle with Labyrinth Seal
Sealed NEMA Standard Electrical Box
Heavy Duty Metal Full Enclosure with Wash Down & Air Blast Hose
Work Lamp
