*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

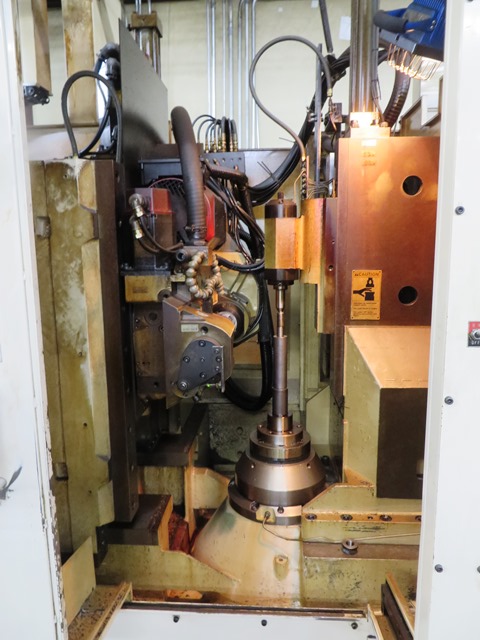

| Make: | Mitsubishi |
| Model: | GC20 |
| Machine Type: | CNC Gear Hobber |
| Control: | Fanuc 16-M CNC Control |
| Equipped With: |
|---|
| Chip Conveyor |
| Chip Conveyor & Separator |
| Coolant System |
| Automatic Lubrication |
| CNC Gear Hobbing |
| 5-Axis CNC Control |
| Capacity: |
|---|
| Maximum Gear Diameter: 7.87″ |
| Maximum Work Length: 27.5″ |
| Maximum Face Width: 11.8″ |
| Maximum Module: 6 mm |
| Number of Work Teeth: 4–1,000 |
| Main Motor Power: 10 HP |
| Spindle: |
|---|
| Maximum Spindle Speed: 1,000 RPM |
| Hob Diameter: 5.12″ |
| Hob Width: 9.06″ |
| Maximum Hob Stroke: 7.09″ |
| Hob Bed Angle: ±45° |
| Table: |
|---|
| Maximum Table Speed: 100 RPM |
| Table Stroke: 5.91″–15.75″ |
| Radial Travel: 5.51″ |
| Radial Cutting Speed: 11.8 IPM |
| Maximum Radial Speed: 393.7 IPM |
| Feeds: |
|---|
| Axial Cutting Speed: 15.7 IPM |
| Maximum Axial Speed: 393.7 IPM |
| General: |
|---|
| Machine Weight (Approx.): 15,430 lbs. |
| Machine Dimensions (Approx.): 120″ × 100″ × 110″ |
