Sold
Miyano LZ-02R2 CNC Turning Center – 8″ Chuck – Fanuc 21i-TB – 2011
Out of stock
| SKU: | 11210 |
| Make/Model: | Miyano LZ-02R2 |
| Year: | 2011 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Miyano |
| Model No.: | LZ-02R2 |
| Year of Manufacture: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

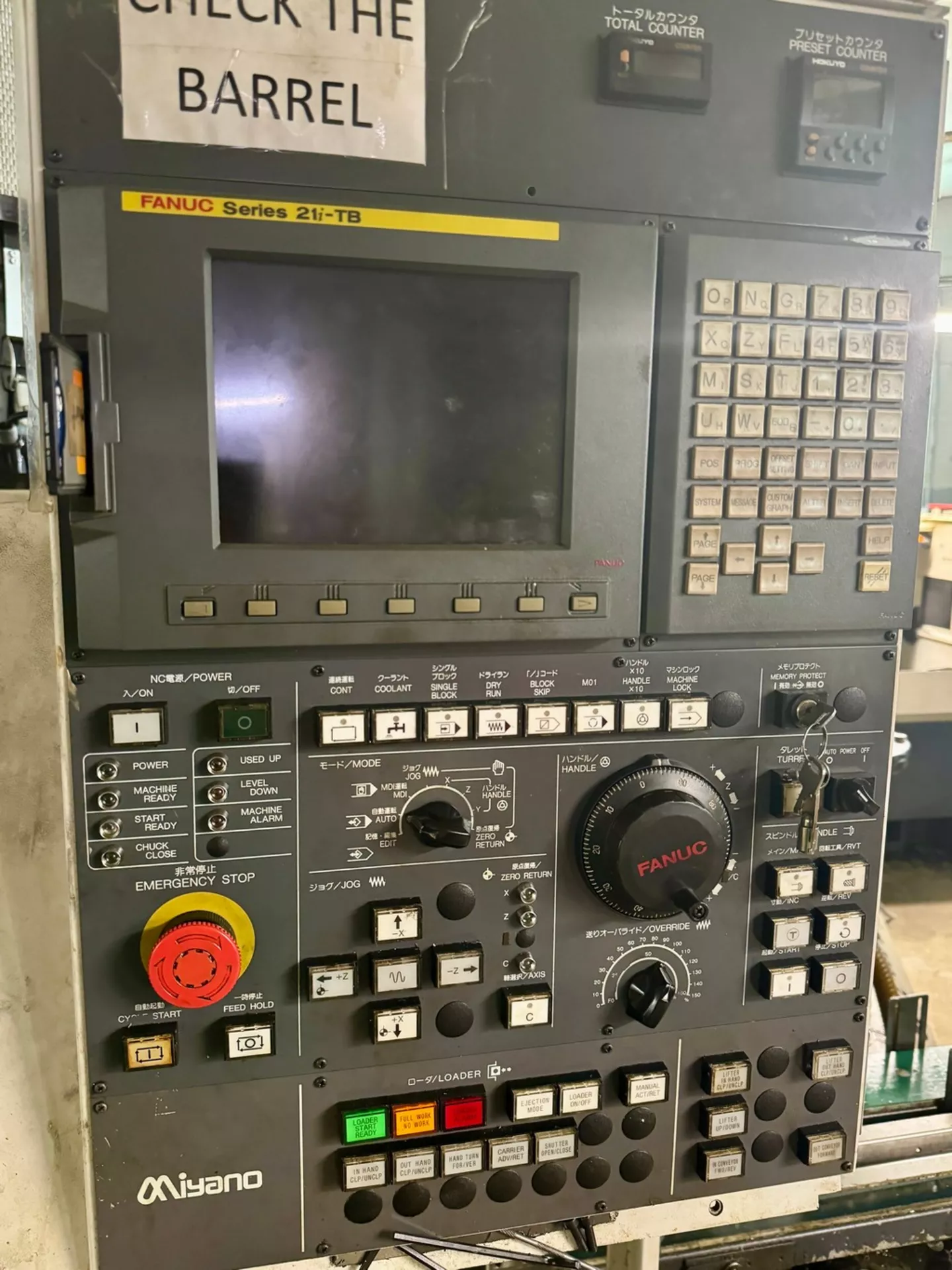

| CNC Control: | Fanuc Series 21i-TB CNC Control |
| Equipped With: |
|---|
| Fanuc 21i-TB CNC Control |
| 8″ Hydraulic Chuck |

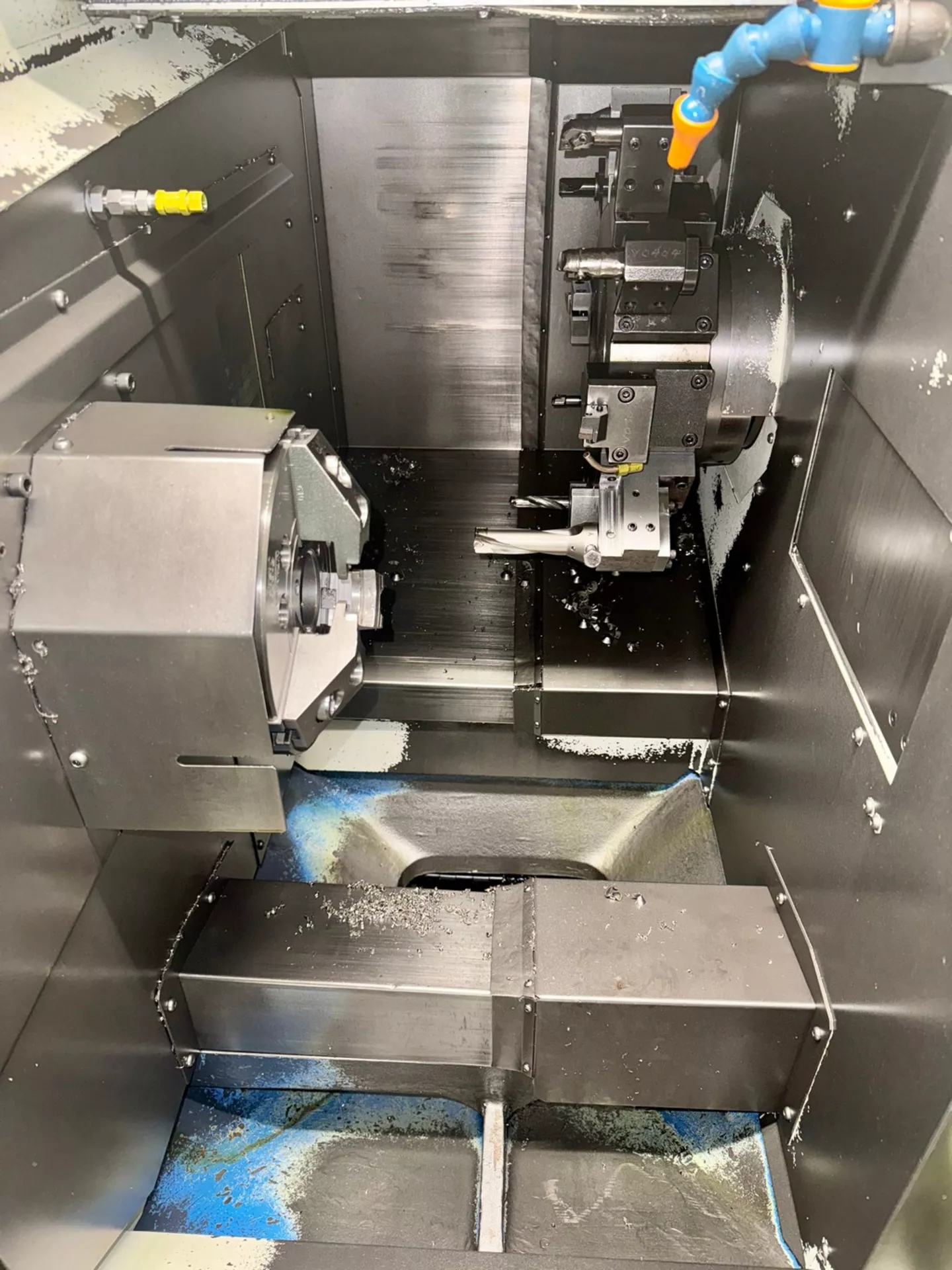

| 10-Station Turret |
| Chip Conveyor |
| Coolant System |
| Auto Lubrication System |
| Parts Catcher (Typical / Optional) |
| Bar Feeder Interface (Ready) |
| Manual Pulse Generator (Handwheel) |
| Capacity: |
|---|
| Maximum Turning Diameter: ~100 mm (3.94″) |
| Maximum Turning Length: ~80 mm (3.15″) |
| Bar Capacity: ~1.25″ (31.75 mm) |
| Chuck Size: 8″ |
| Travels: |
|---|
| X-Axis Travel: ~110 mm (approx.) |
| Z-Axis Travel: ~200 mm (approx.) |
| Spindle: |
|---|
| Spindle Speed: Up to 4,000 – 5,000 RPM |
| Spindle Motor: ~7.5 – 11 kW |
| Spindle Type: High-Rigidity Chucker Spindle |
| Tooling: |
|---|
| Tool Capacity: 10 Stations |
| Turret Type: Hydraulic Indexing Turret |
| Tool Size: 20 × 20 mm Holders |
| Feed Rates: |
|---|
| Rapid Traverse: ~30 m/min (approx.) |
| Cutting Feedrate: Programmable |
| Electrical: |
|---|
| Voltage: AC 200V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Rated Power: 22 kVA |
| Full Load Current: 64 A |
| General: |
|---|
| Machine Weight: ≈8,500 lbs (≈3,900 kg) |
| Floor Space: Approx. 77″ × 62″ × 67″ |
| Features: |
|---|
| High-rigidity chucker lathe designed for precision and heavy-duty cutting |
| Compact footprint ideal for high-production environments |
| Fast turret indexing for reduced cycle times |
| Excellent for automotive, fittings, and batch production |
| Reliable Fanuc control for easy programming and maintenance |
| Optimized for short-part, high-volume machining |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | LZ-02R2 |
