All specifications are approximations and are subject to verification.

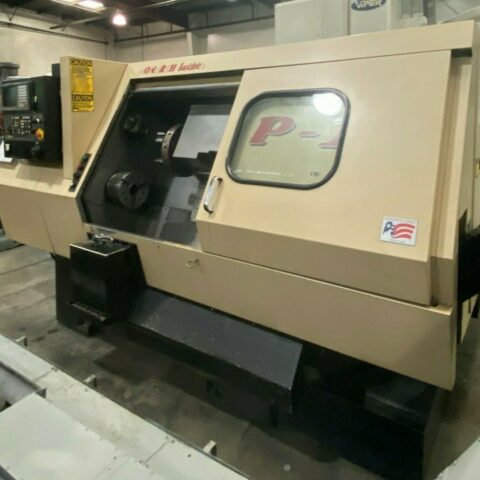

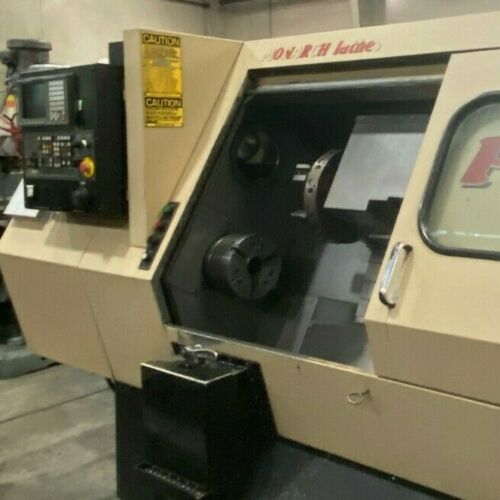

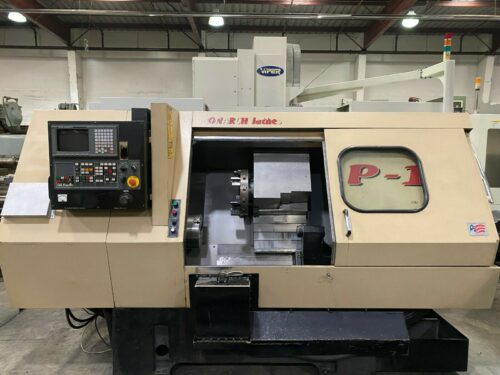

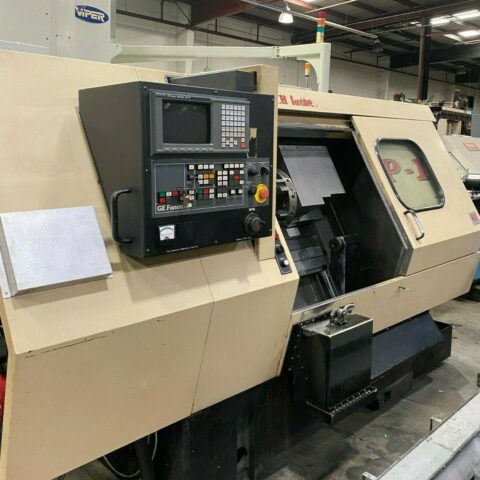

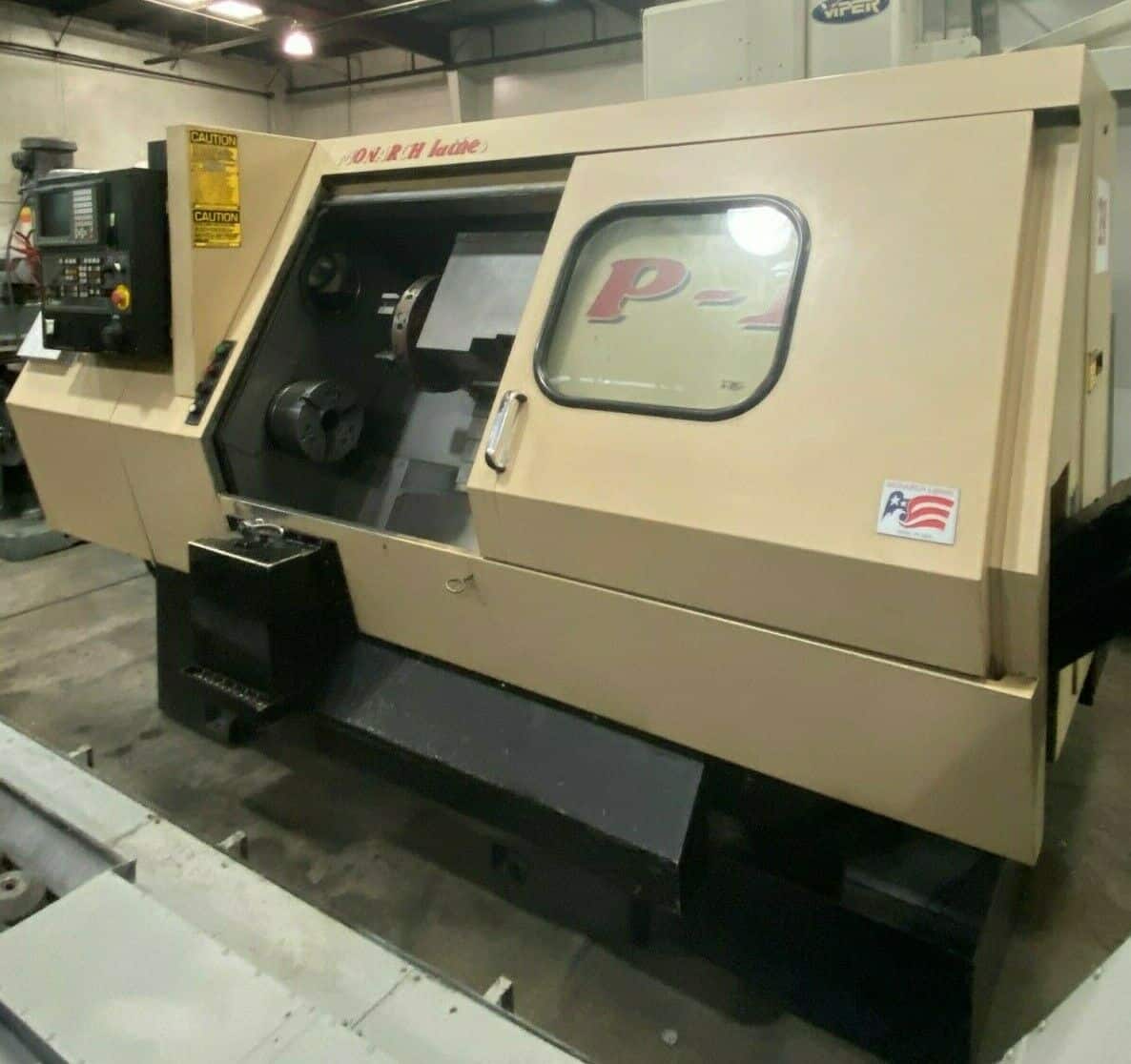

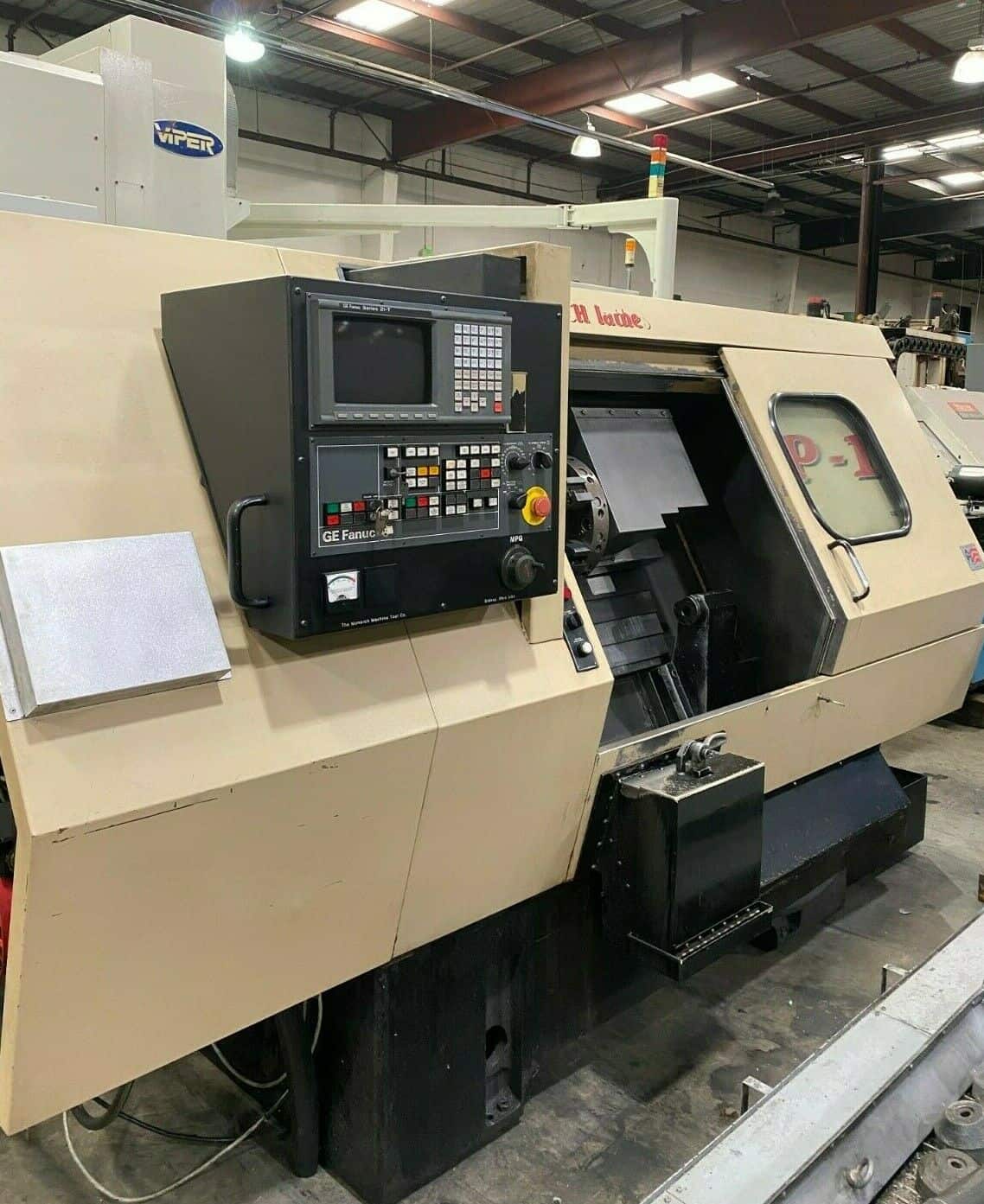

Monarch P-10 CNC Turning Center Equipped With:

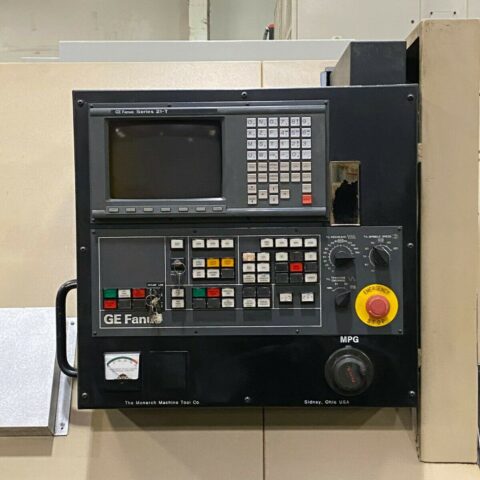

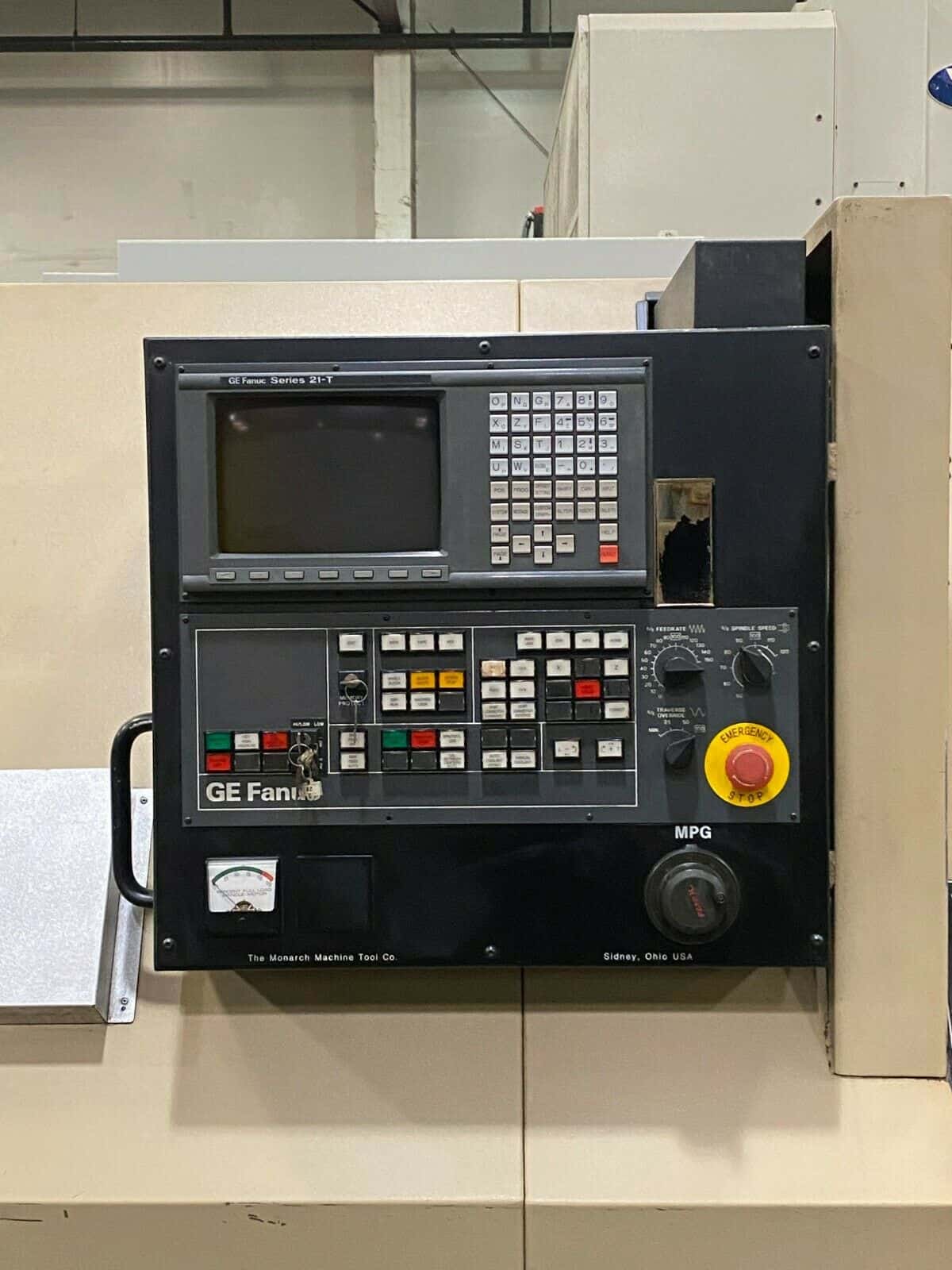

- Fanuc 21T CNC Control
- Box way construction
- Rigid Tapping

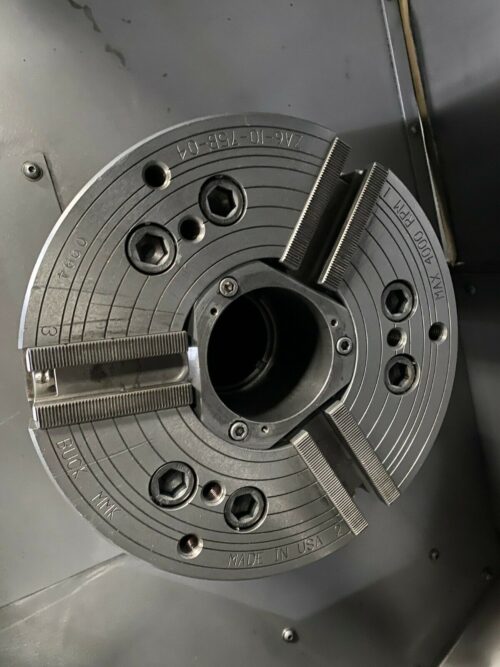

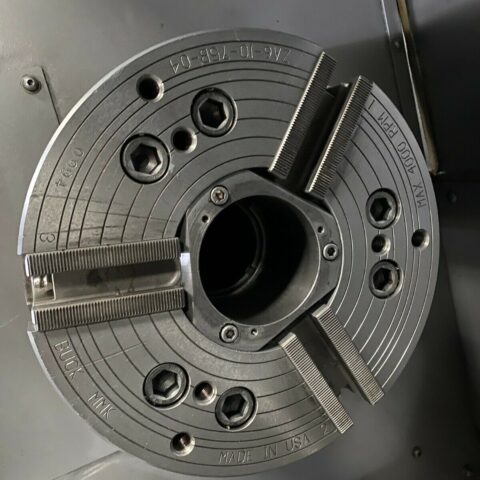

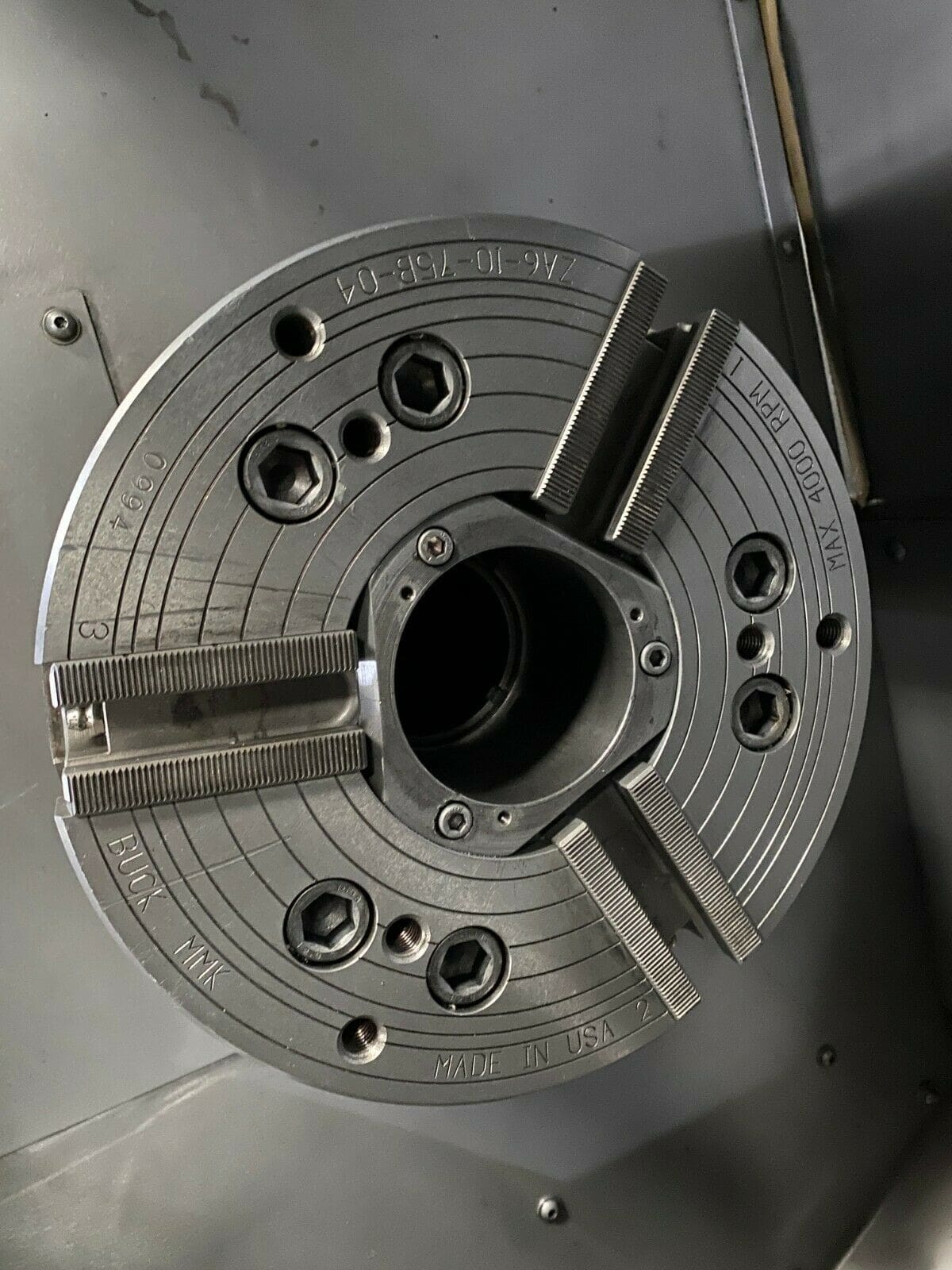

- 10″ 3 Jaw Hydraulic Chuck
- A2-6 Gear Head Spindle
- Hydraulic Programmable Tailstock
- RS-232 connectivity
- Coolant System
- Chip Conveyor

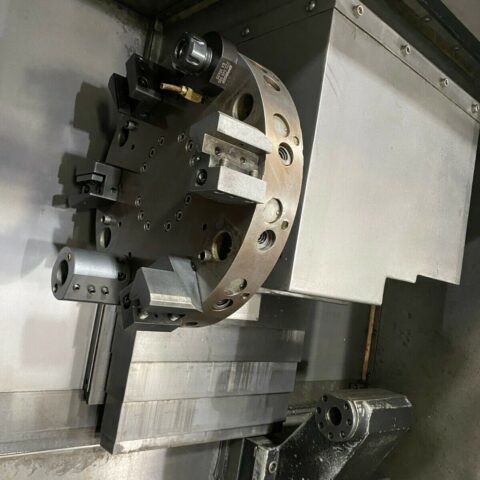

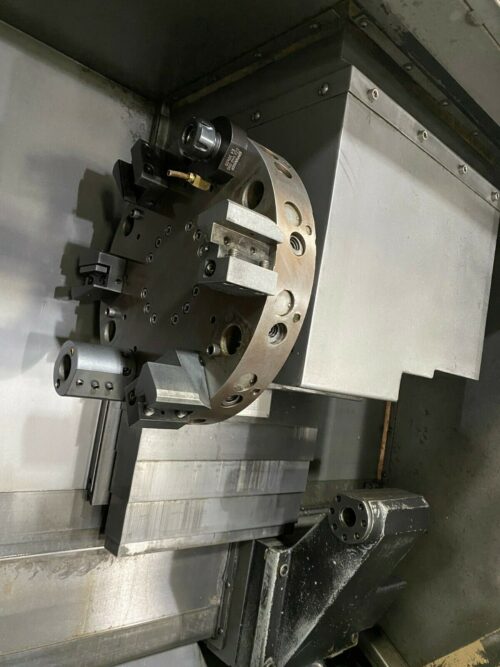

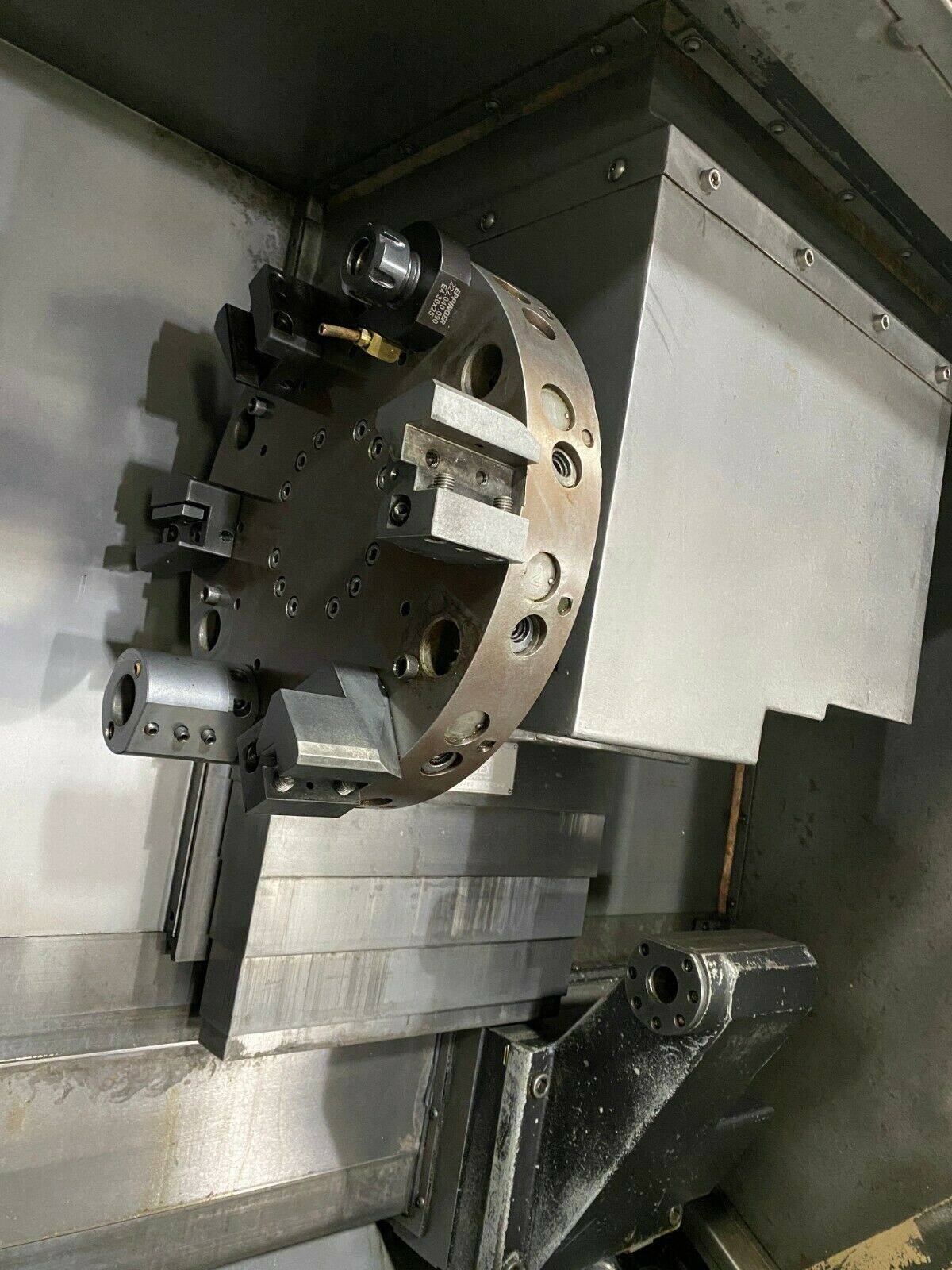

- 10 Station Automatic Turret
- Foot Switch
Monarch P-10 CNC Turning Center Specifications:
- Capacity:
- Max Turning Diameter: 12.75″
- Max Turning Length: 25.2″
- Max Bar Capacity: 2.74″
- Swing Over Bed: 20.44″
- Swing Over Carriage: 17.7″
- Distance Between Centers: 27.8″
Travel:
- X Axis Travel: 6.10″
- Z Axis Travel: 25.27″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 630 IPM
Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 3.0″
- Spindle Speed : 35 – 3500 RPM

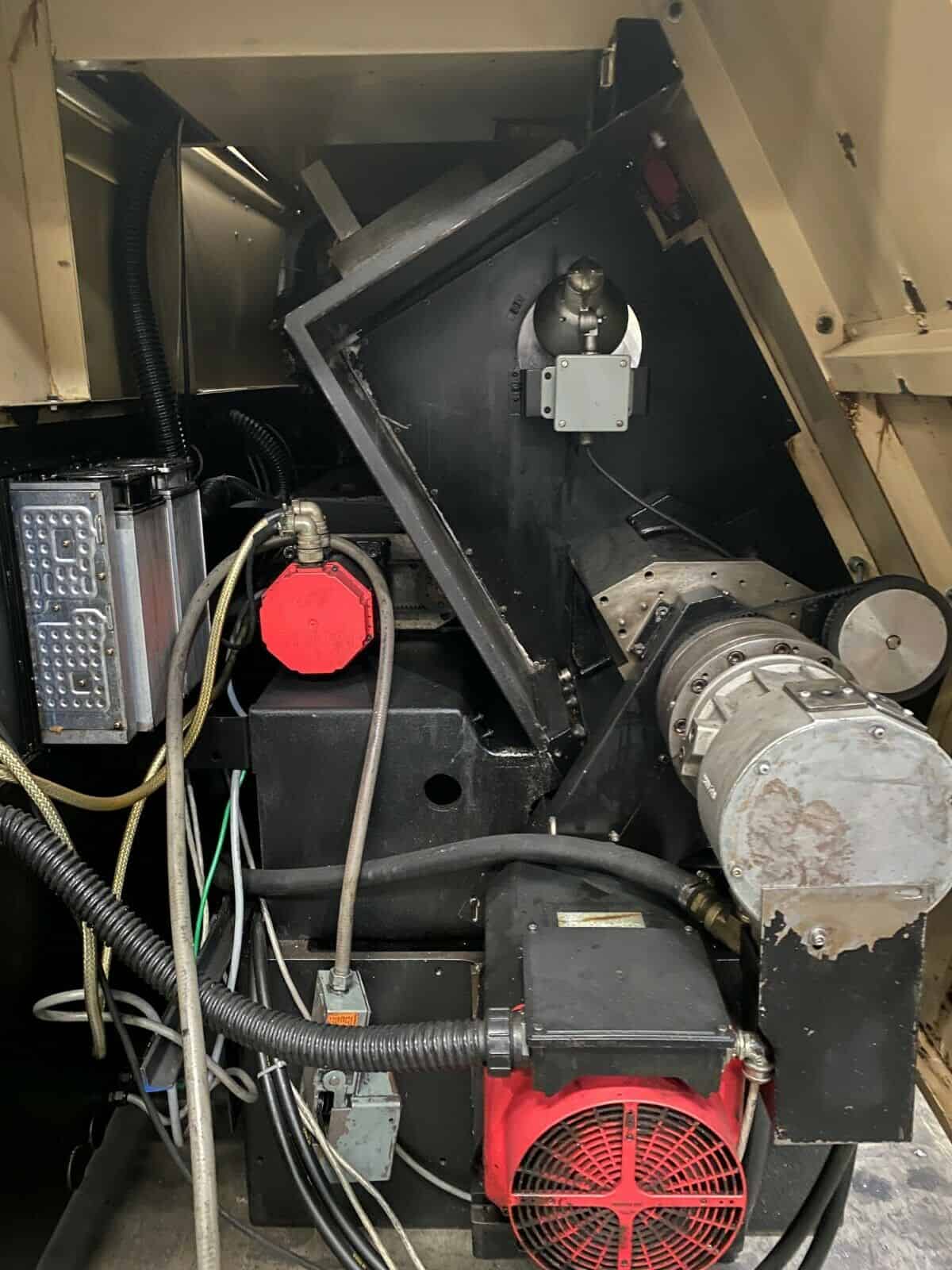

- Spindle Motor: 20 HP
Turret:
- Turret Capacity: 10 Stations
- Turret Index Time: 0.2 Second
Tailstock:
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 3.94″
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 77″ x 80″ High
- Weight: 8600 lbs
