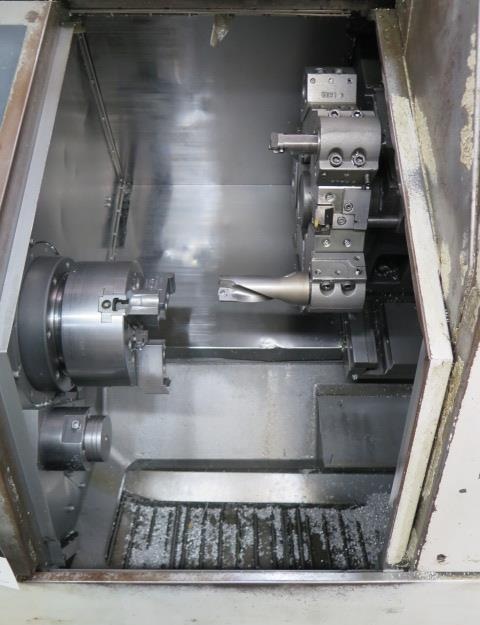

Mori Seiki CL 20A (4)

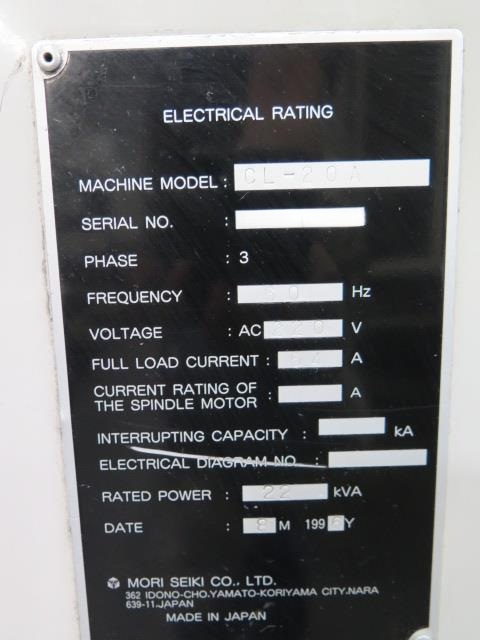

Mori Seiki CL 20A (2)

Mori Seiki CL-20A CNC Turning Center

SKU 11968
Make/Model Mori Seiki CL-20A
Out of stock
SKU: 11968
Make/Model: Mori Seiki CL-20A
SKU: 11968

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: CL-20A
Machine Type: CNC Turning Center
CNC Control: Mori Seiki MSC-603 CNC Control
Features:
Mori Seiki MSC-603 CNC Control
10-Station Automatic Turret
8″ 3-Jaw Power Chuck
Tool Presetter
Royal Filtermist FX-275 Mist Collector
Chip Conveyor
Coolant System
Automatic Lubrication
Enclosed Work Area
A2-6 Spindle Nose
2.0″ Bar Capacity
4,000 RPM Maximum Spindle Speed
Turning Capacity:
Maximum Turning Diameter: 12.20″
Maximum Turning Length: 13.30″
Swing Over Bed: 18.50″
Swing Over Cross Slide: 14.90″
Distance Between Centers: 14.60″
Bar Capacity: 2.00″
Chuck:
Chuck Size: 8″
Chuck Type: 3-Jaw Power Chuck
Chuck Configuration: Hydraulic Power Chuck
Spindle Nose: A2-6
Travels:
X-Axis Travel: 7.50″
Z-Axis Travel: 14.60″
Rapid Traverse X-Axis: 590 IPM
Rapid Traverse Z-Axis: 787 IPM
Spindle:
Spindle Speed Range: 40–4,000 RPM
Spindle Motor: 10 HP / 7.5 kW
Spindle Nose: A2-6
Spindle Bore: 2.40″
Bar Capacity: 2.00″
Turret:
Turret Type: Automatic Tool Turret
Tool Stations: 10
Index Time: 0.6 seconds
General:
Power Source: 200–220V / 3-Phase / 60 Hz
Machine Weight (Approx.): 5,700 lbs.
Overall Dimensions (Approx.): 111″ L × 63″ W × 68″ H
Turning Capacity:
Maximum Turning Diameter: 310 mm
Maximum Turning Length: 338 mm
Swing Over Bed: 470 mm
Swing Over Cross Slide: 378 mm
Distance Between Centers: 371 mm
Bar Capacity: 51 mm
Chuck:
Chuck Size: 203 mm
Chuck Type: 3-Jaw Power Chuck
Chuck Configuration: Hydraulic Power Chuck
Spindle Nose: A2-6
Travels:
X-Axis Travel: 191 mm
Z-Axis Travel: 371 mm
Rapid Traverse X-Axis: 590 IPM
Rapid Traverse Z-Axis: 787 IPM
Spindle:
Spindle Speed Range: 40–4,000 RPM
Spindle Motor: 10 HP / 7.5 kW
Spindle Nose: A2-6
Spindle Bore: 61 mm
Bar Capacity: 51 mm
Turret:
Turret Type: Automatic Tool Turret
Tool Stations: 10
Index Time: 0.6 seconds
General:
Power Source: 200–220V / 3-Phase / 60 Hz
Machine Weight (Approx.): 5,700 lbs.
Overall Dimensions (Approx.): 2,819 mm L × 1,600 mm W × 1,727 mm H
CategoriesCNC Lathes & Turning Centers
MakeMori Seiki
ModelCL-20A
  • Mori Seiki MSC-603 CNC Control
  • 10-Station Automatic Turret
  • 203 mm 3-Jaw Power Chuck
  • Tool Presetter
  • Royal Filtermist FX-275 Mist Collector
  • Chip Conveyor
  • Coolant System
  • Automatic Lubrication
  • Enclosed Work Area
  • A2-6 Spindle Nose
  • 51 mm Bar Capacity
  • 4,000 RPM Maximum Spindle Speed
Mori Seiki CL 20A (3)Mori Seiki CL 20A (4)Mori Seiki CL 20A (2)
