*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | MV-40B/40 |
| Machine Type: | CNC Vertical Machining Center |

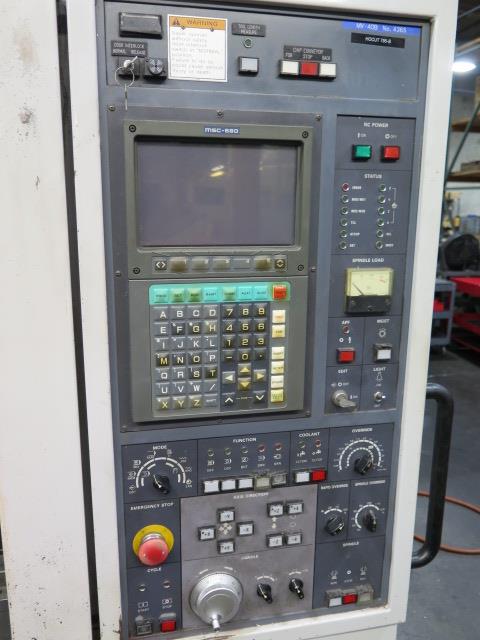

| CNC Control: | Mori Seiki MSC-680 CNC Control |
| Features: |
|---|
| Mori Seiki MSC-680 CNC Control |
| 30-Station Automatic Tool Changer |
| BT-40 Taper Spindle |
| 8,000 RPM Spindle |
| 17.5″ × 43.5″ Worktable |
| Oil Temperature Regulation |
| Coolant System |
| Full Machine Enclosure |
| Automatic Lubrication |
| Rigid Tapping |
| Steel Telescopic Way Covers |
| Enclosed Chip and Coolant Collection Area |
| Table: |
|---|
| Table Size: 17.5″ × 43.5″ |
| Maximum Table Load: 1,540 lbs. |
| T-Slots: 4 |
| T-Slot Width: 0.71″ |
| Travels: |
|---|
| X-Axis Travel: 31.50″ |
| Y-Axis Travel: 16.14″ |
| Z-Axis Travel: 20.08″ |
| Spindle Nose to Table: 5.91″–25.98″ |
| Spindle: |
|---|
| Spindle Taper: BT-40 |
| Maximum Spindle Speed: 8,000 RPM |
| Spindle Motor: 10 HP / 7.5 HP |
| Spindle Drive: AC Spindle Drive |
| Automatic Tool Changer: |
|---|
| Type: Automatic Tool Changer |
| Tool Capacity: 30 Stations |
| Tool Taper: BT-40 |
| Maximum Tool Weight: 17.6 lbs. |
| Maximum Tool Length: 9.84″ |
| Maximum Tool Diameter: 3.15″ |
| Feedrates: |
|---|
| Rapid Traverse X-Axis: 787 IPM |
| Rapid Traverse Y-Axis: 787 IPM |
| Rapid Traverse Z-Axis: 591 IPM |
| Cutting Feedrate: 197 IPM |
| General: |
|---|
| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 13,900 lbs. |
| Overall Dimensions (Approx.): 87″ L × 87″ W × 101″ H |
