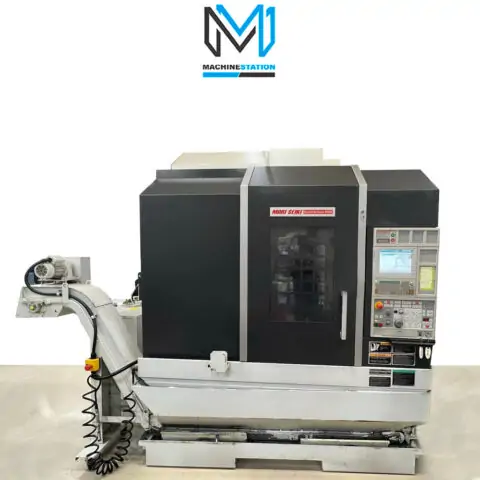

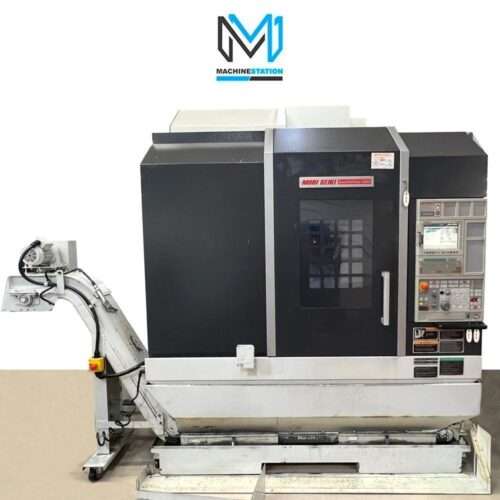

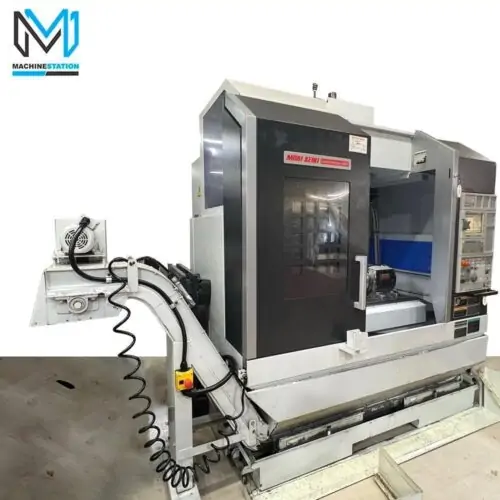

Mori Seiki DuraVertical 5080 4TH Axis CNC Vertical Machining Center

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:

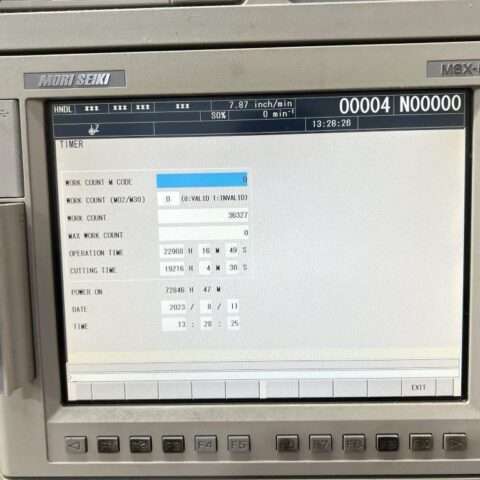

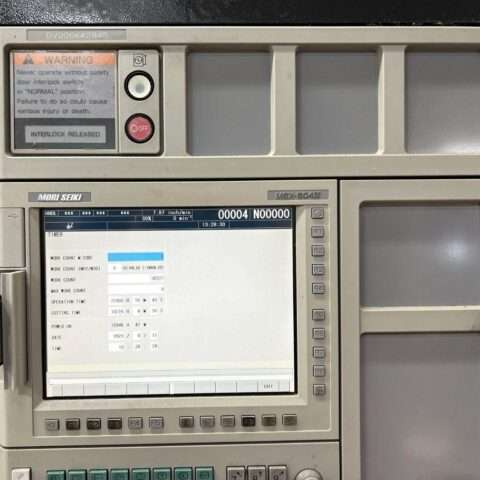

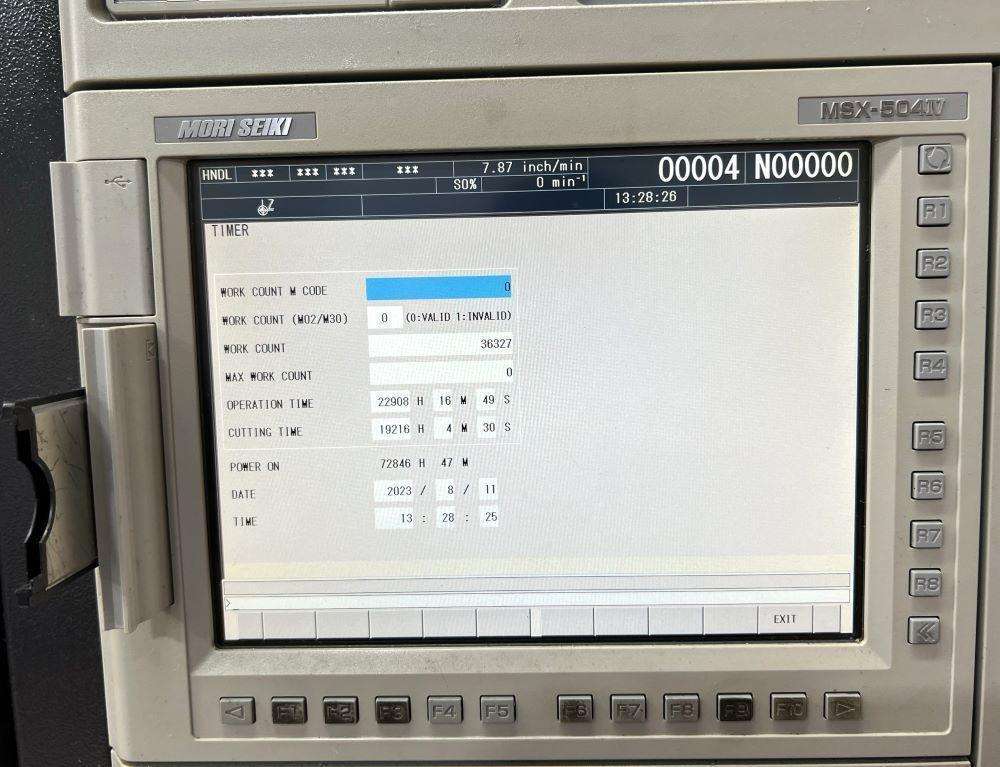

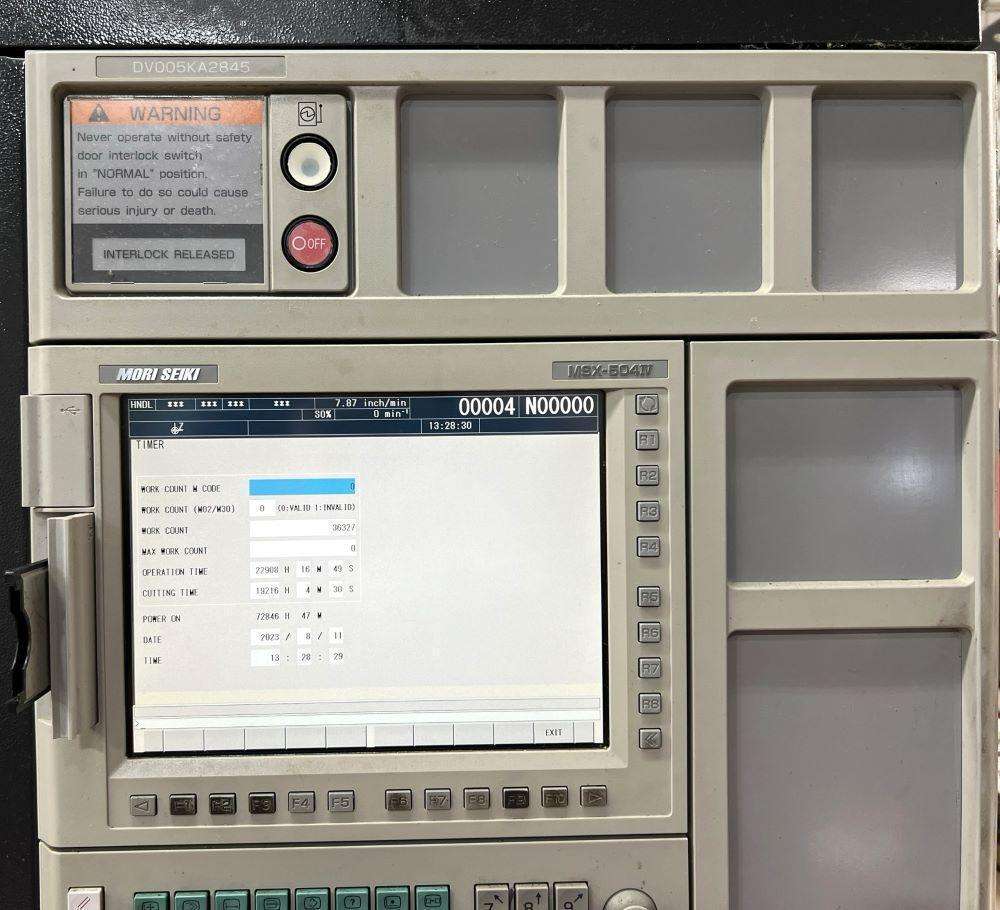

Mori Seiki CNC Control

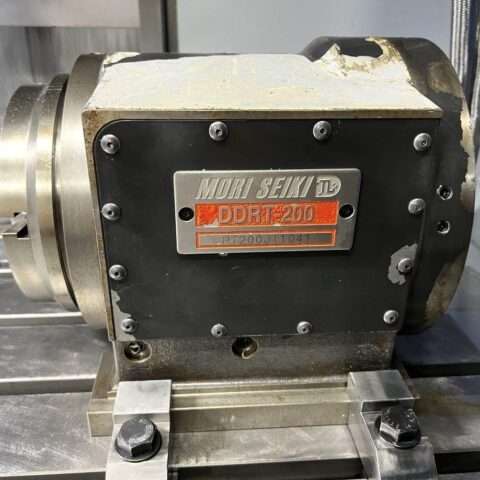

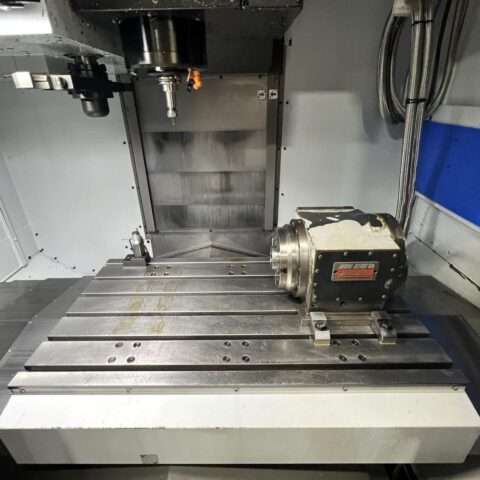

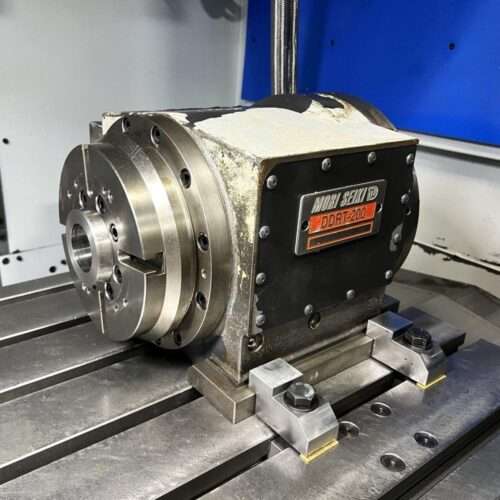

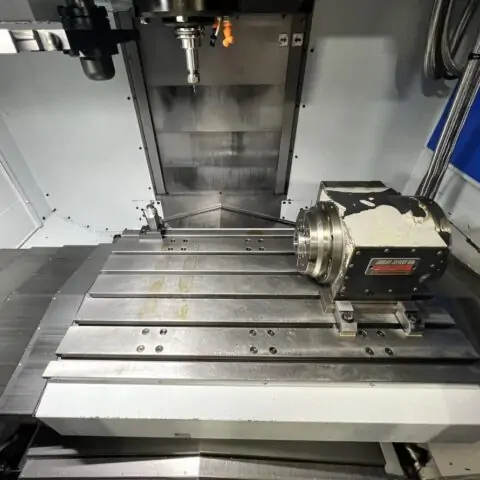

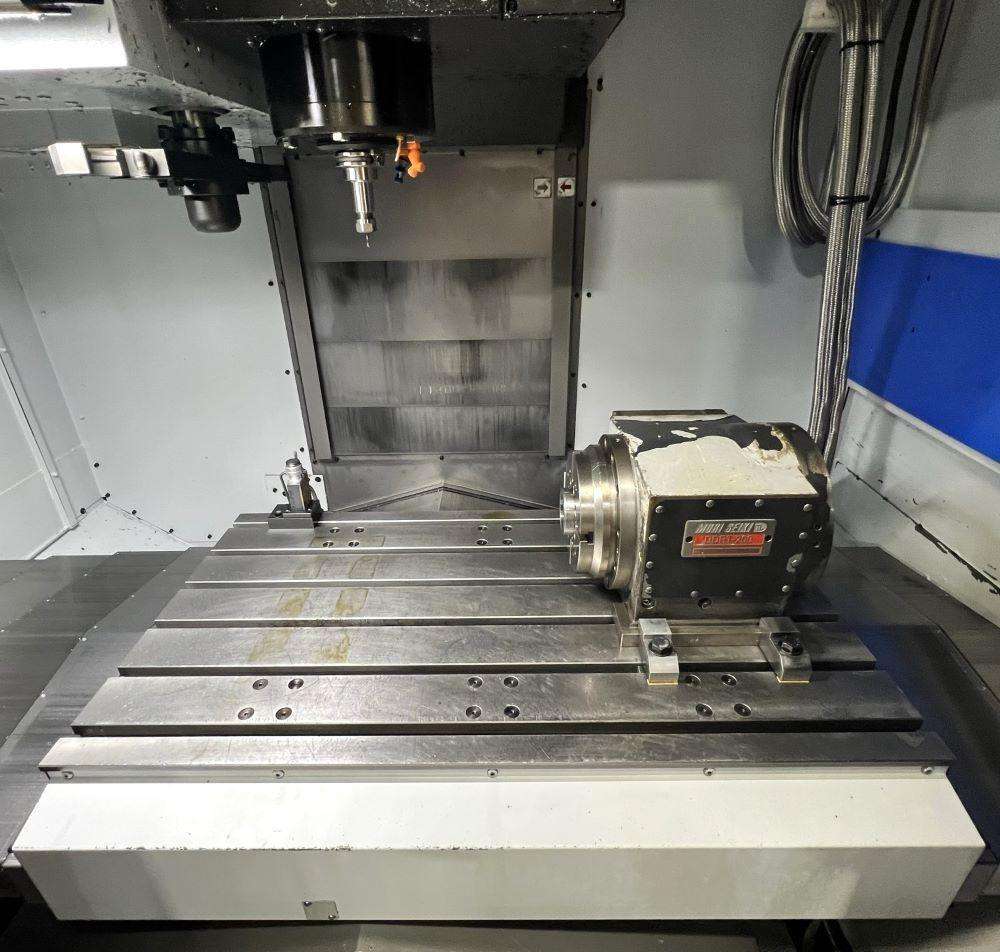

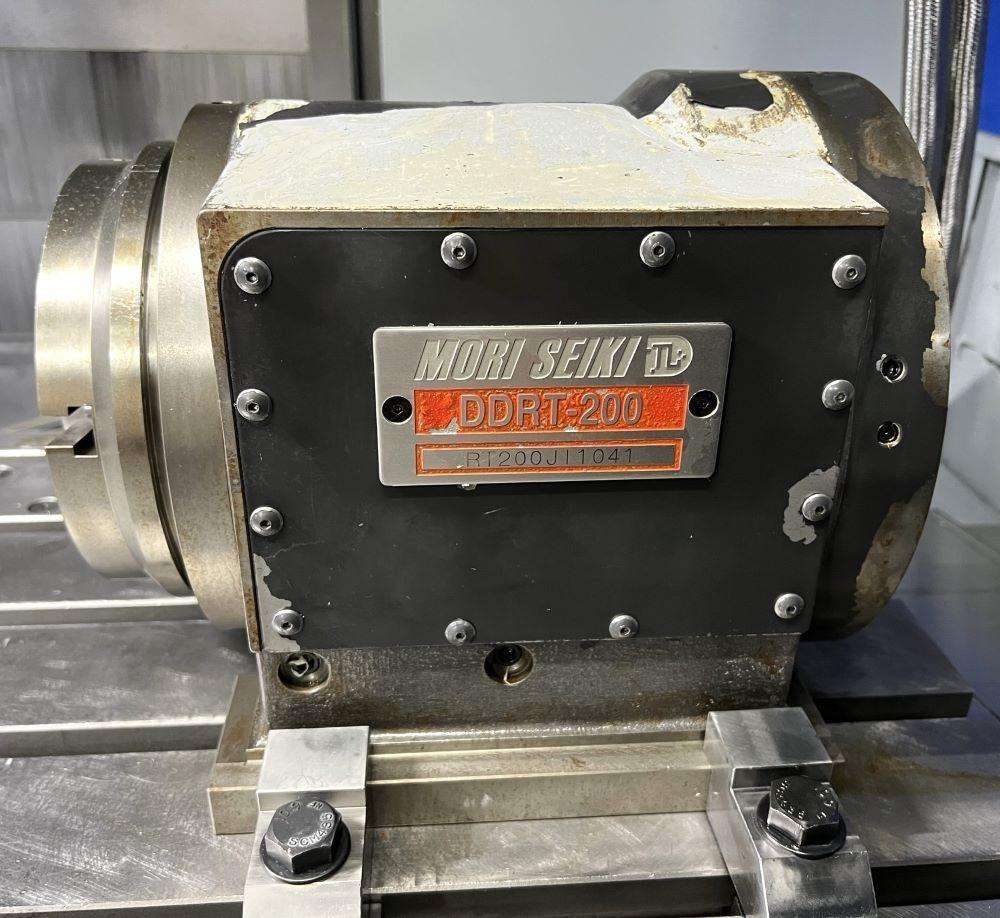

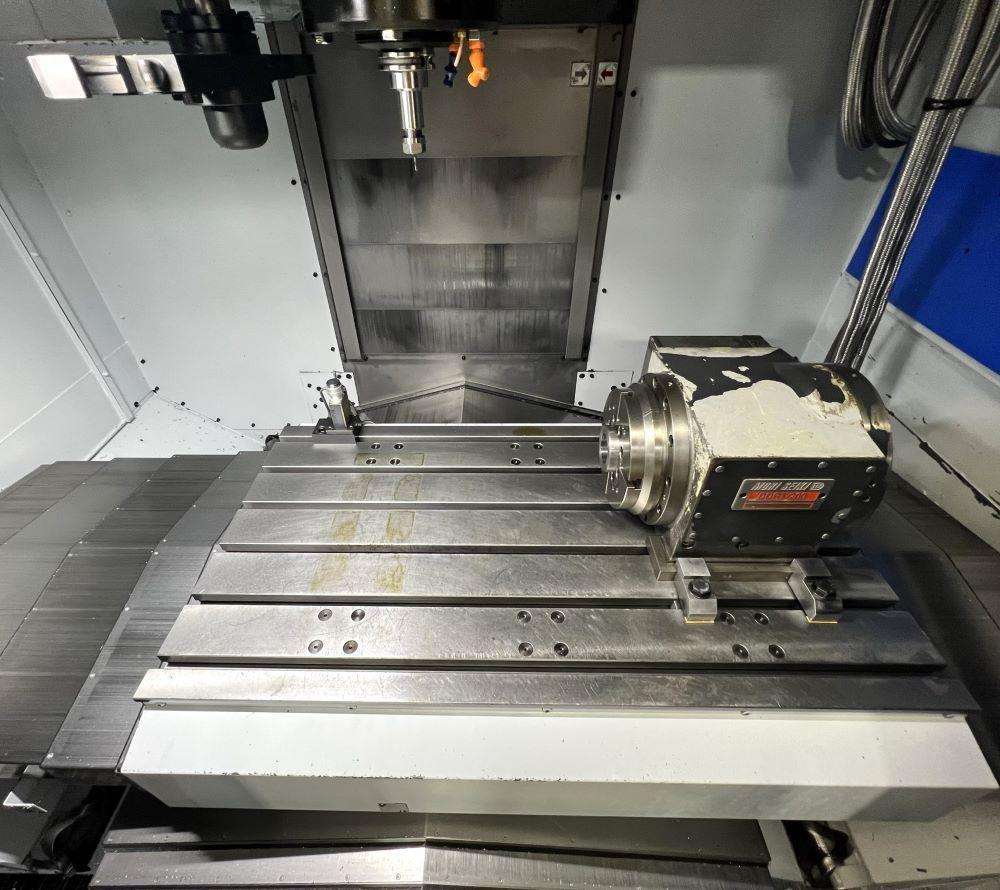

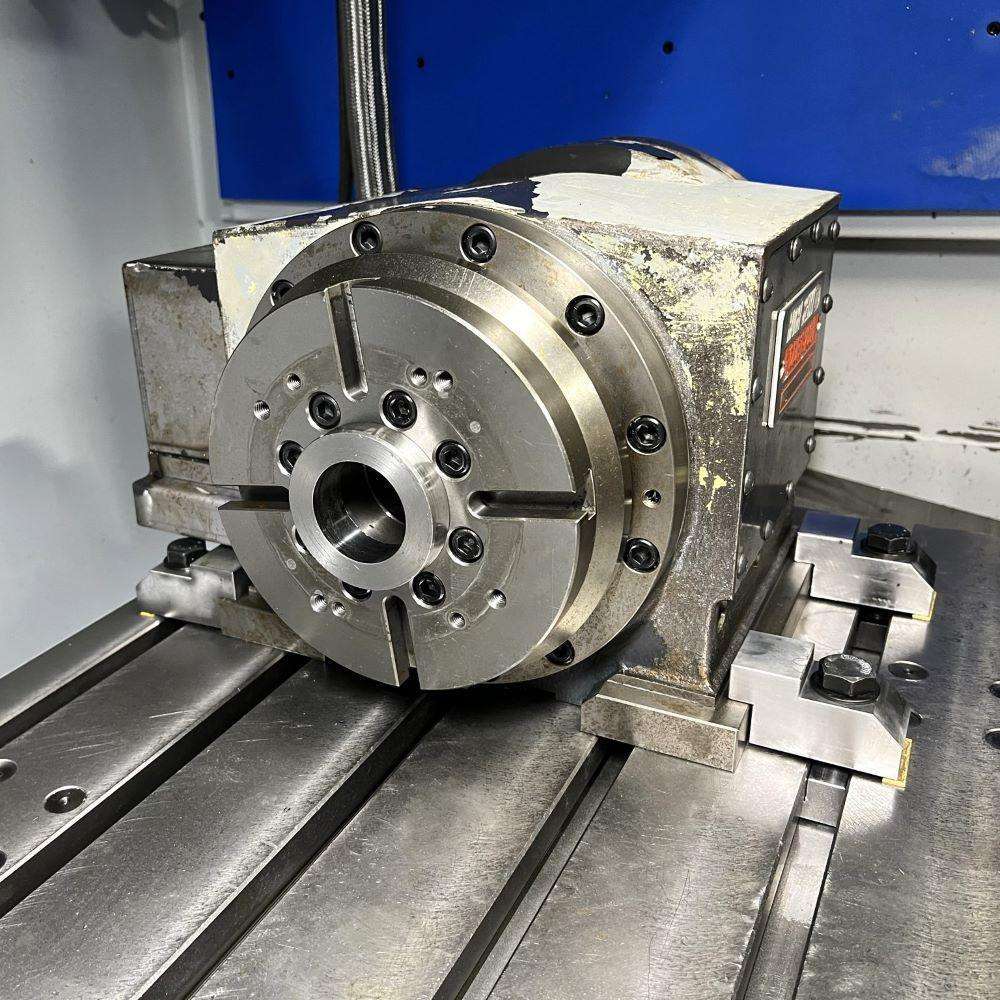

Mori Seiki DDRT-200 4th Axis Rotary Table

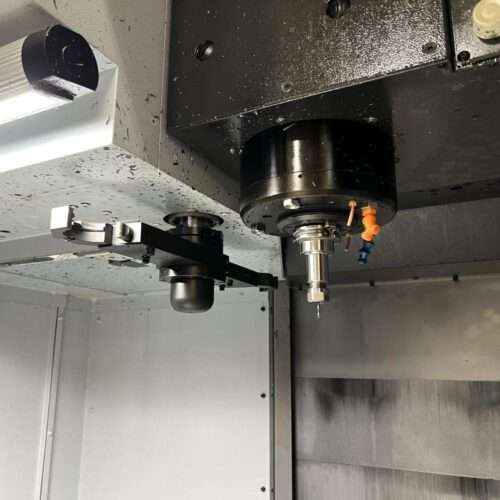

Renishaw Probing System

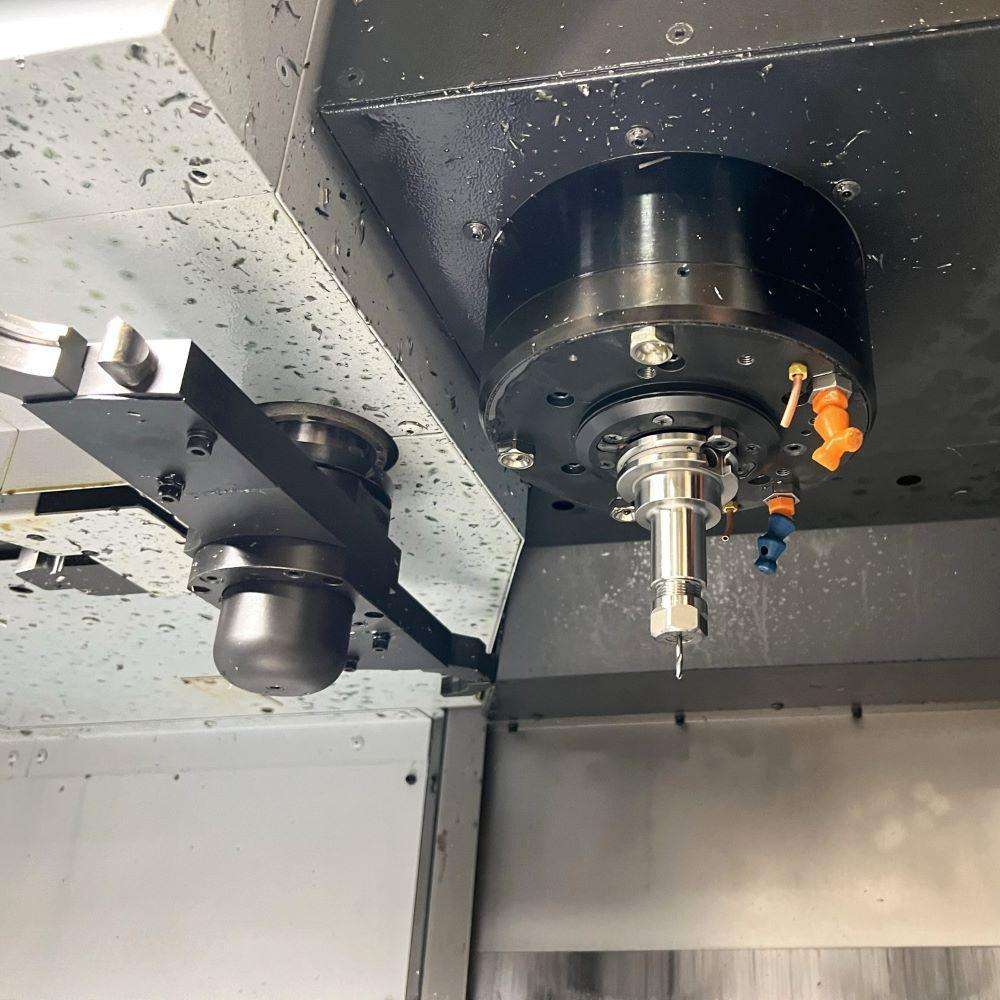

40 Taper 10000 RPM Spindle

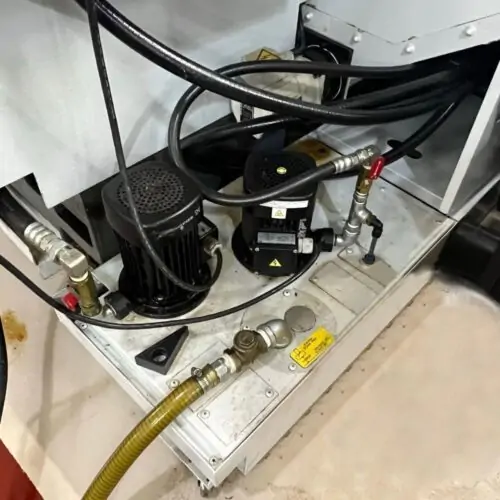

Through Spindle Coolant

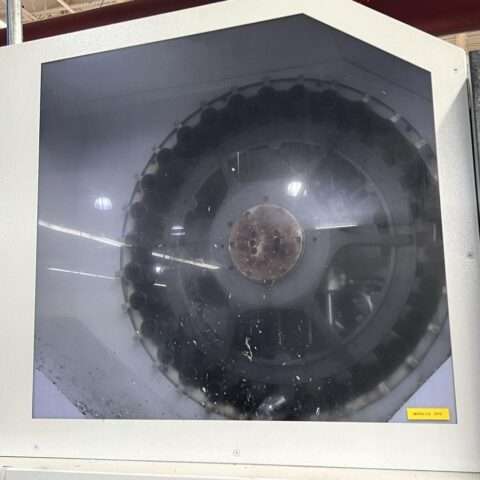

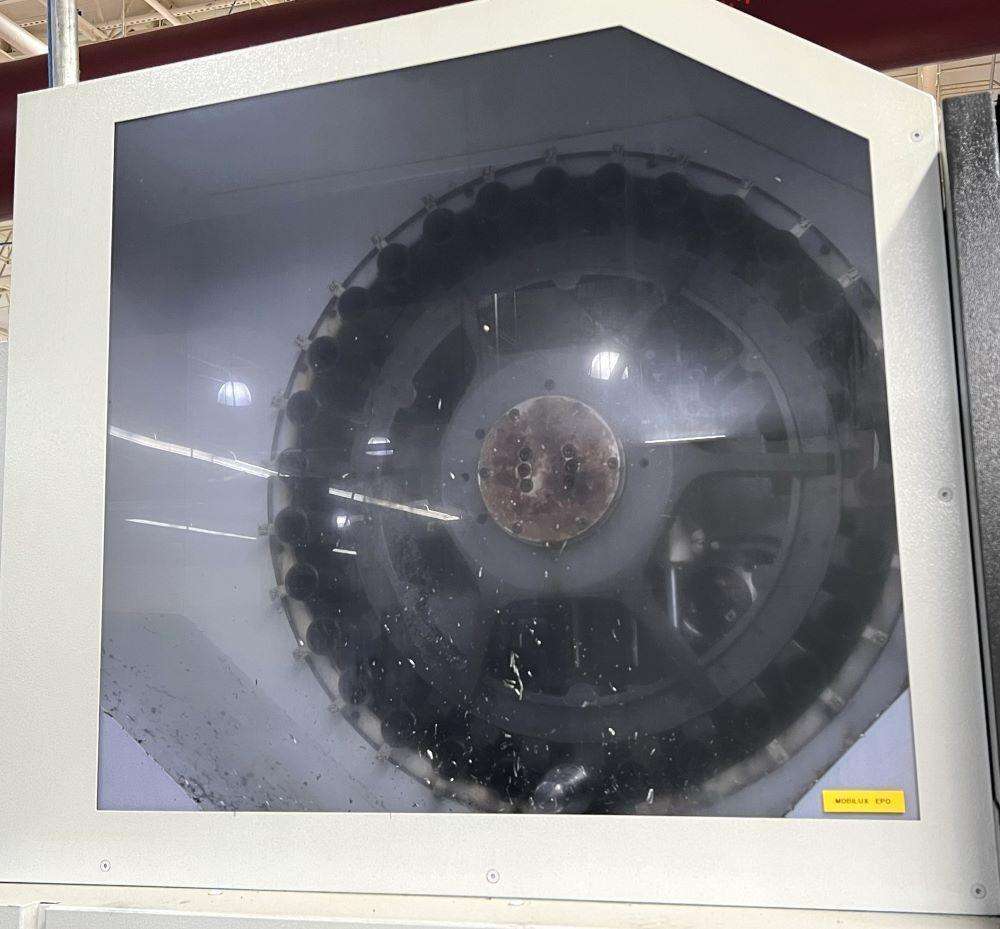

30 Station Side Mounted Tool Changer
PCMCIA Card Slot
Spindle Orientation
Rigid Tapping

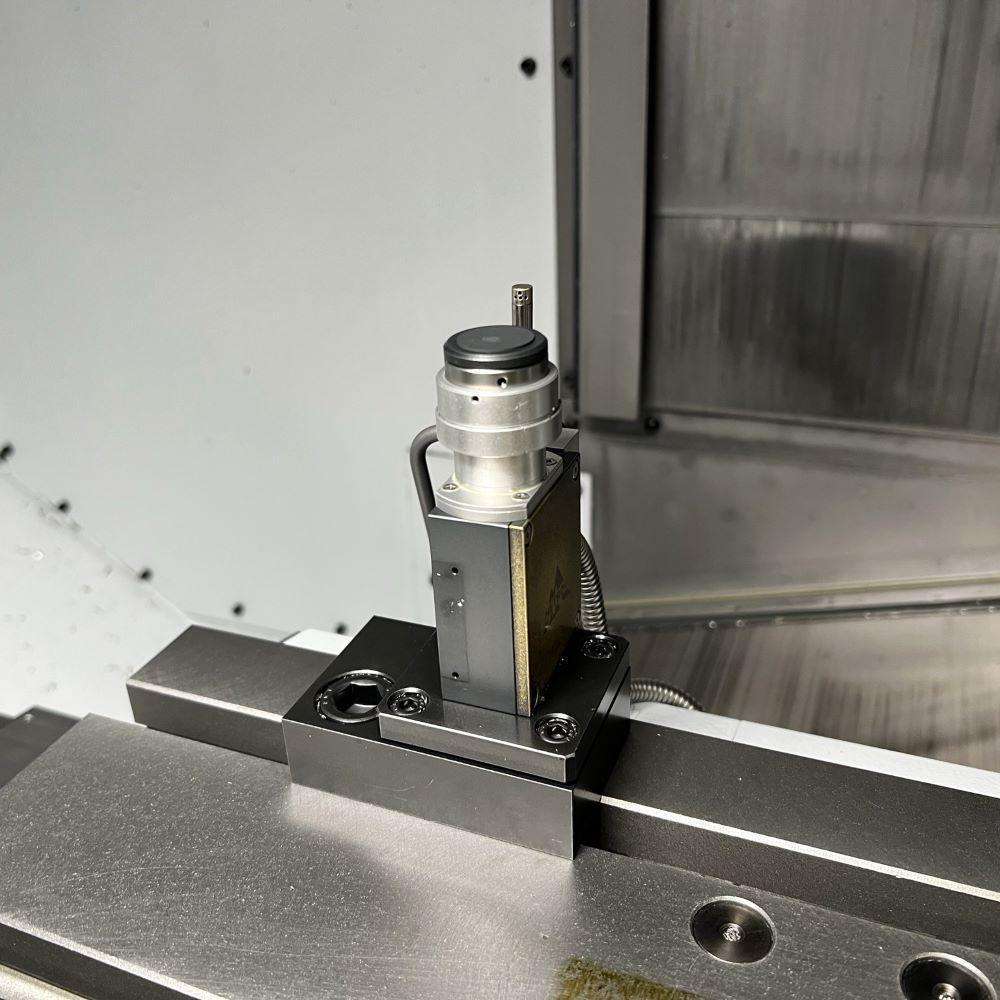

Tool Presetter
Coolant tank
Chip Conveyor

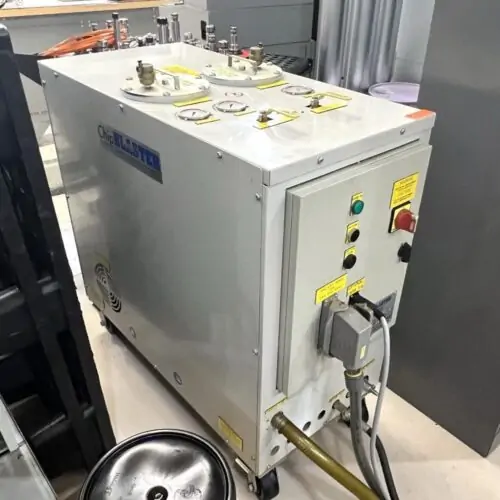

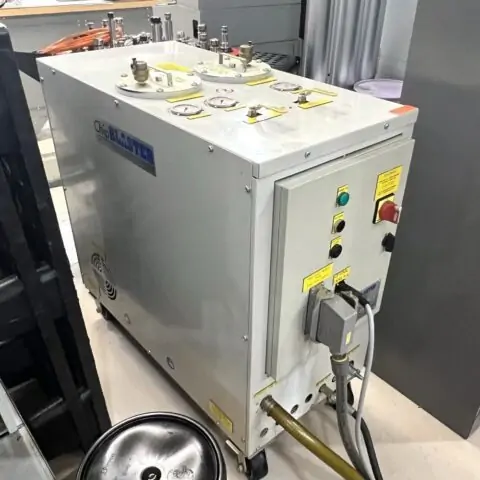

Chip Blaster
Work Light

Specifications:
Travels:
X-Axis: 31.5″
Y-Axis: 20.9″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

Table:
Length: 43.3″
Width: 23.6″
Max Weight on Table: 1760 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Feed Rate:
Rapid X, Y Axis: 1417 IPM
Rapid Z Axis: 787 IPM
Cutting Feed rate: IPM

Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 17.63 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″

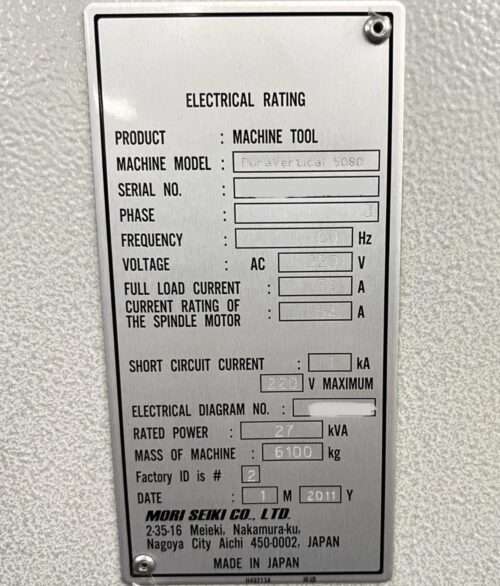

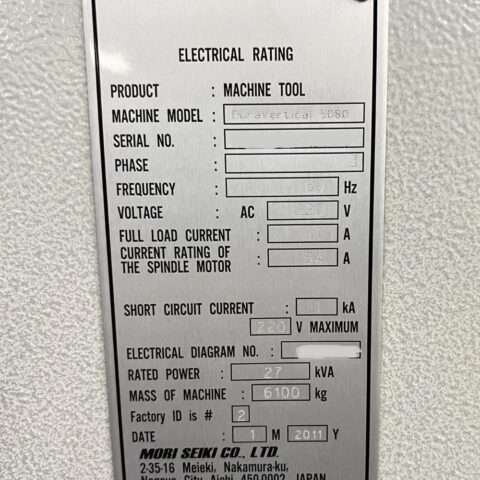

General:

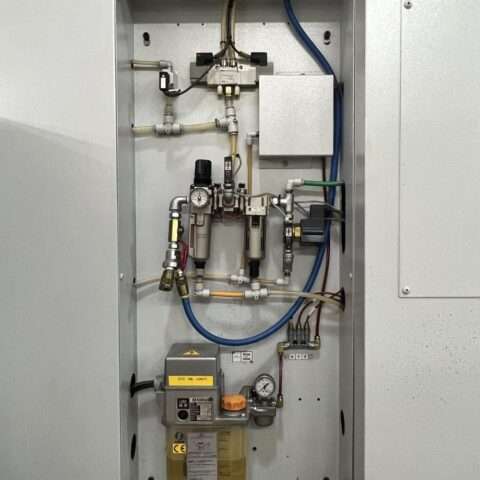

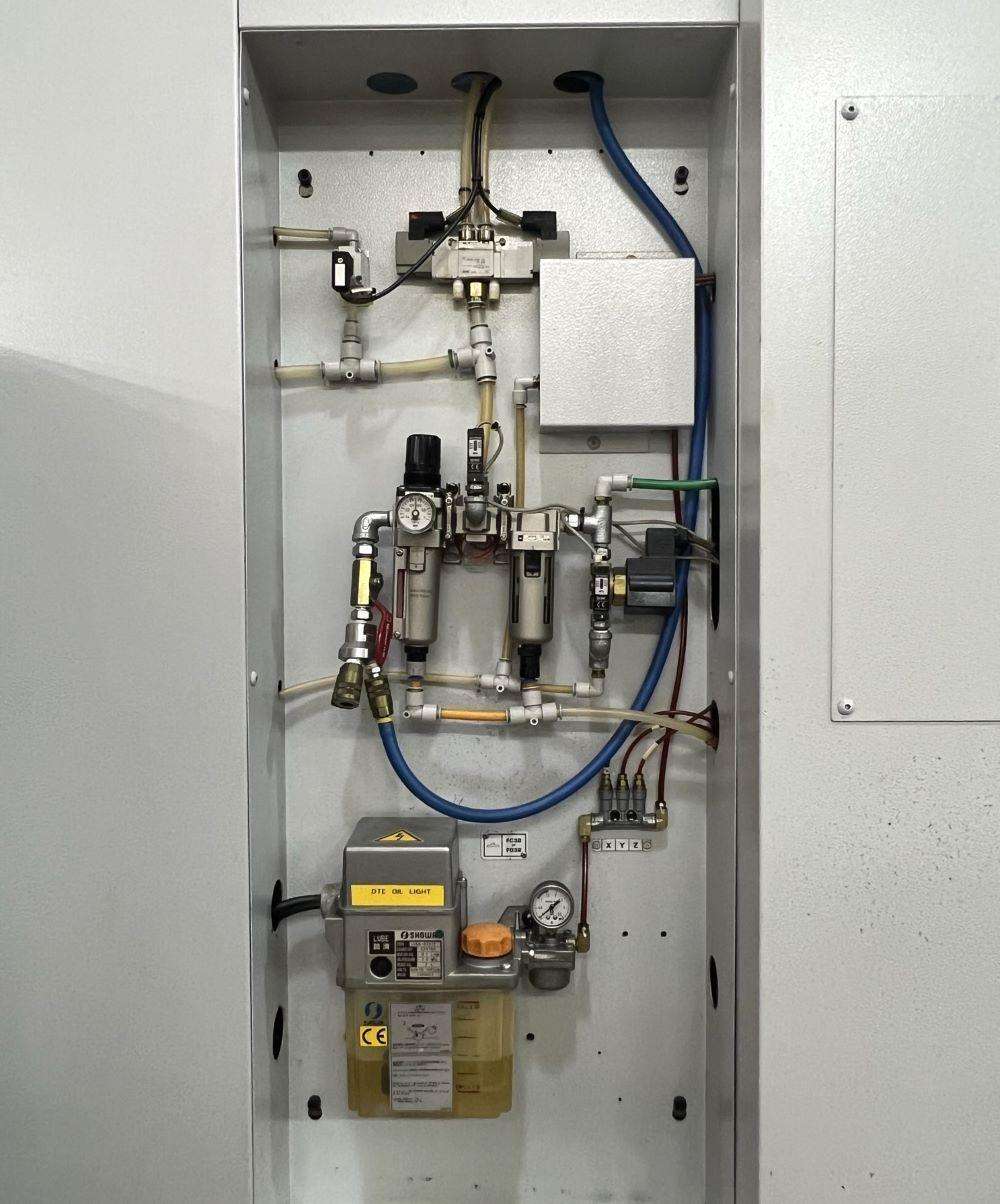

Air Required: 80 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions:  85″ L X 95″ W X 105″ High
Weight: 14,110 lbs

“No Charges for loading at list Price”
Comes as shown in pictures..
