*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

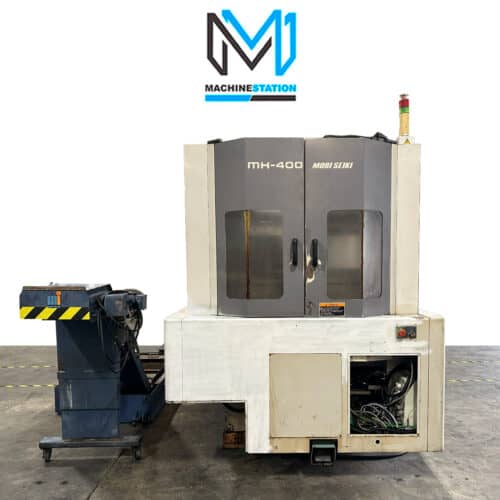

| Make: | Mori Seiki |
| Model: | MH-400 |
| Year: | 1998 |
| Condition: | Used – Good |
| Features: |
|---|
- Mori Seiki MSC-502 (Fanuc 16i-M) CNC Control
- 7,000 RPM High Precision Spindle
- Twin Pallet Changer
- 40 Station Automatic Tool Changer
- RS-232 Port
- Pallet Seat Detection
- Spindle Orientation
- Rigid Tapping
- Spindle Chiller Unit
- Coolant tank
- Chip Conveyor
|
| Travels: |
|---|
- X Axis: 22.04″
- Y Axis: 19.68″
- Z Axis: 20.04″
- B Axis: 1° ( 4th Axis )
- Spindle Nose to Table Center: 3.94″ – 24.02″
- Spindle Center to Table Top: 1.97″ – 21.65″
|
| Table: |
|---|
- Length: 15.75″
- Width: 15.75″
- Max Weight on Table: 882 lbs
- Max Workpiece Diameter: 24.01″
- Max Workpiece Height: 25.59″
|
| Spindle: |
|---|
- Taper Size: 40
- Max. Speed: 7,000 RPM
- Power: 15 HP
|
| Feed rates: |
|---|
- Rapid Traverse Rate: 787 Inch Per Minute
- Cutting Feedrate: 394 Inch Per Minute
|
| Tool changer: |
|---|
- Capacity: 40 Tools
- Taper: 40
- Max Tool Diameter (Without Adjacent Tools): 5.90″
- Max Tool Length: 12.60″
- Max Tool Weight: 26.45 lbs.
- Tool Change Time: 3.5 Second
|
| General: |
|---|
- Air Required: 90 psi, 4 scfm
- Power: 42 kva / 220v / 3-Phase
- Overall Dimensions: 146″ X 73″ x 101″ High Approx.
- Weight: 22,046 lbs Approx.
|
