*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112081 |

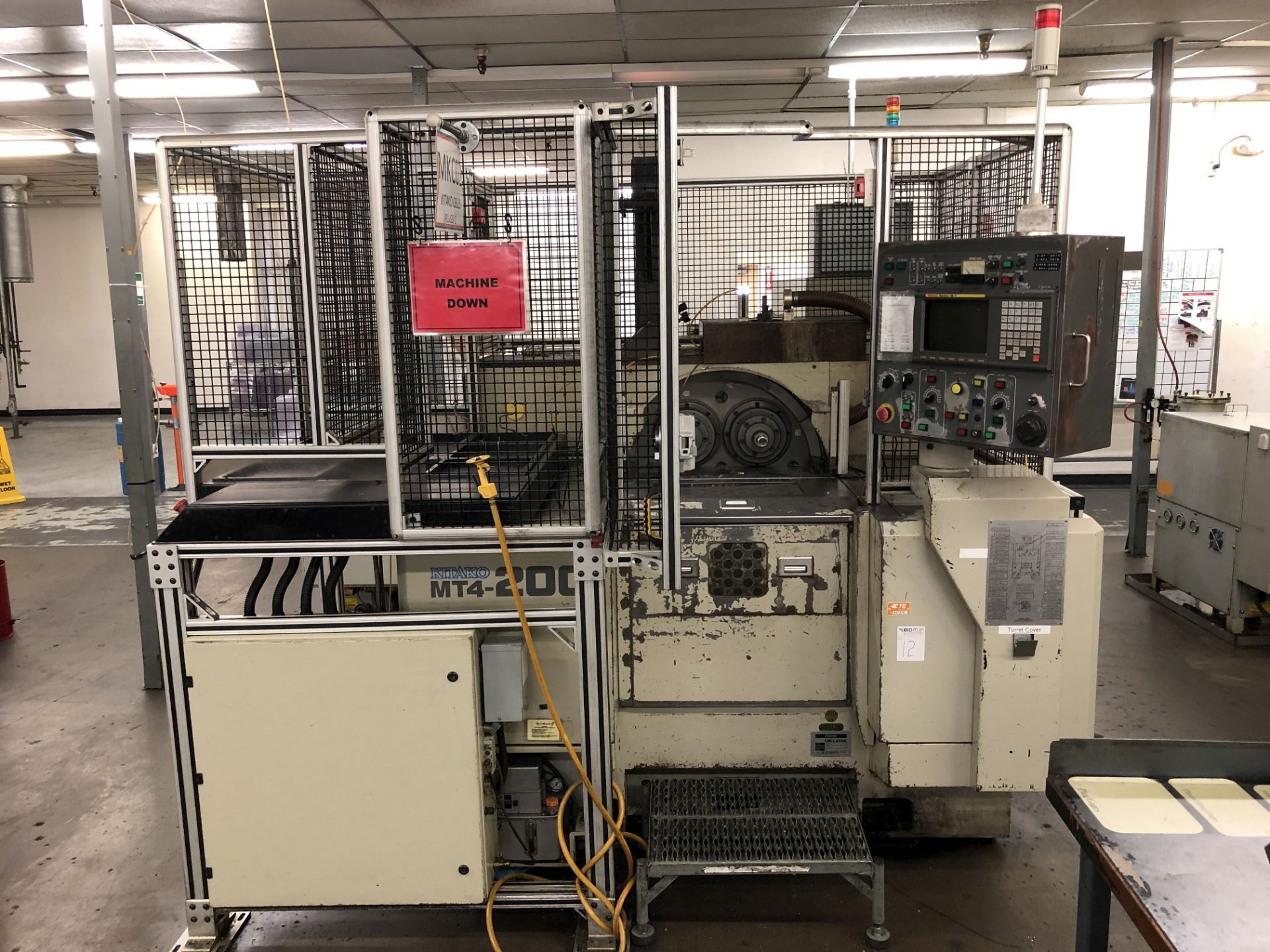

| Make: | Kitako |
| Model: | MT4-200M |
| Year: | 1999 |
| Condition: | Used – Good |
| Features: |
|---|
| Fanuc 18i-T Series 6 Axis CNC Control |
| (4 no.) Spindles Design (2 no.) In Machining Area (2 no.) in Loading Area |
| (4 no.) Collet Chucks (Capable 8″ Chucks) |
| Servo Controlled Full C-Axis on Spindles |
| Twin Turrets with Live Tools |
| 8 Station Left Turret with Live Tools |
| F8 Station Right Turret with Live Tools |
| High Pressure Coolant System |
| Foot Switches |
| Coolant Tank |
| Automatic Lubrication |
| Capacity: |
|---|
| Max Turning Diameter Left Turret : 7.9″ |
| Max Turning Diameter Right Turret : 7.9″ |
| Max Swing : 8.3″ |
| Max Turning Length: 6.3″ |
| Max Bar Capacity Main Spindle : 1.56″ |
| Travels: |
|---|
| X1 Axis Travel (Left Turret): 6.69″ |
| X2 Axis Travel (Right Turret) : 6.69″ |
| Z1 Axis Travel (Left Turret) : 9.84″ |
| Z2 Axis Travel (Right Turret) : 9.84″ |
| C Axis: 360° (0.001°) |
| Feedrate: |
|---|
| X1, X2 Axis: 945 IPM Rapid Traverse |
| Z1, Z2 Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| No. of Spindles: 4 |
| Spindle Bore: 1.97″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 50-4000 RPM |
| Spindle Power: 20 HP |
| Turret: |
|---|
| Left Turret Capacity: 8 Stations |
| Right Turret Capacity: 8 Stations |
| Live Milling Speed: RPM? |
| Live Milling Motor: HP? |
| Turret Index Time (Tool to Tool): sec? |
| Turret Tool Type: BMT |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: kva ? |
| Machine Dimensions: 106″ x 78″ x 85″ Height |
| Machine Weight: 17,500 lbs. Approx. |
