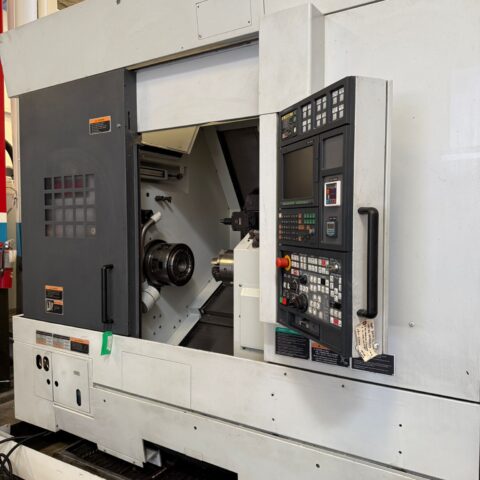

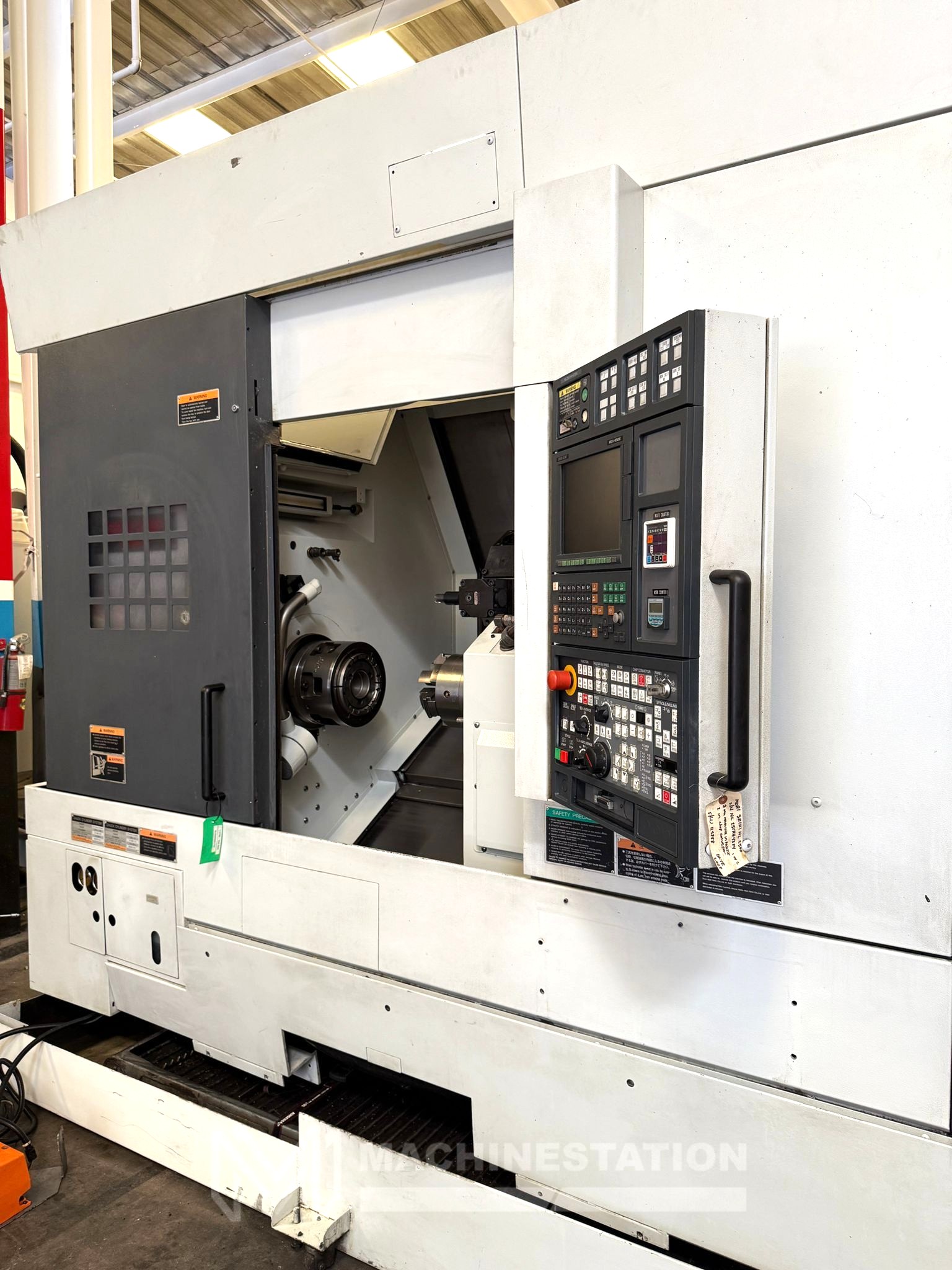

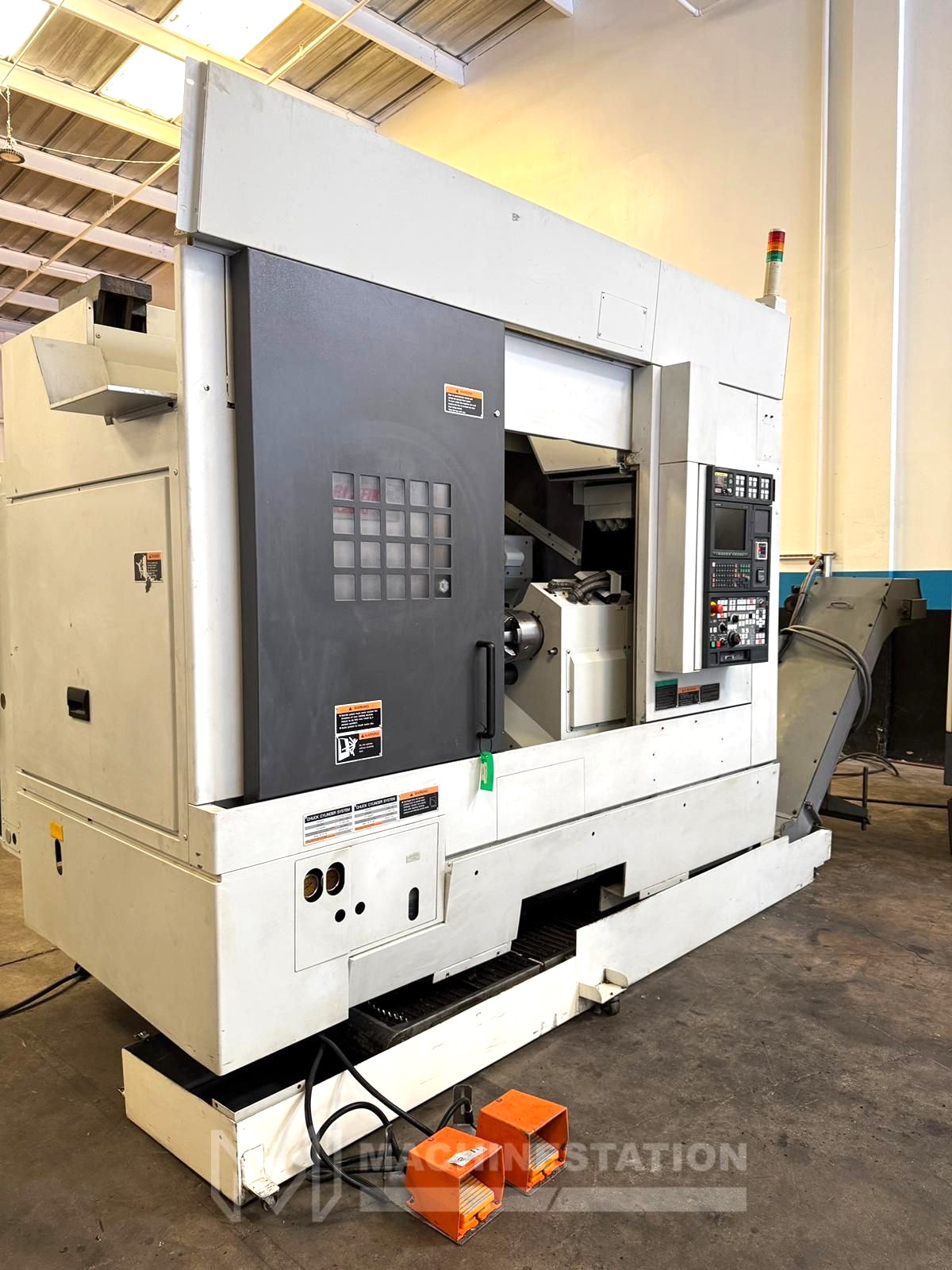

Mori Seiki NL2500SMC/700 CNC Turning Center – Sub Spindle Live Tool Lathe

1 in stock

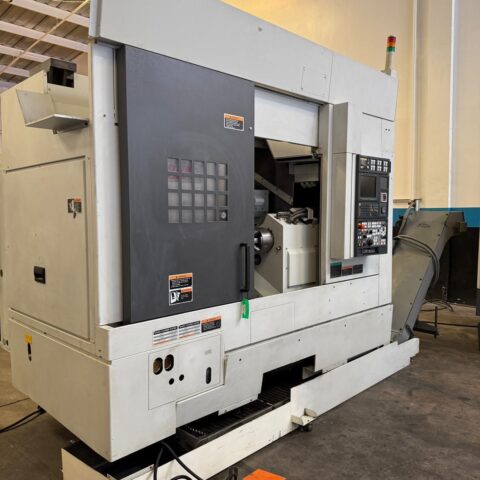

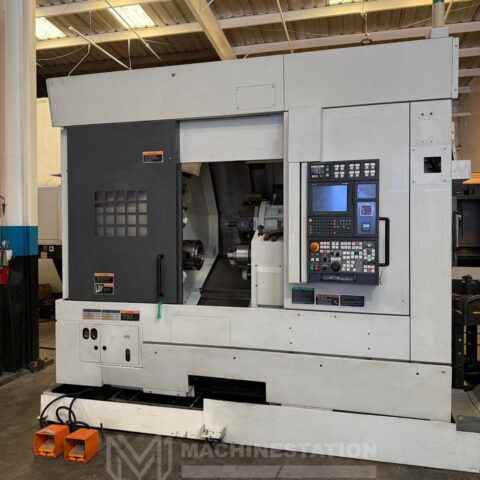

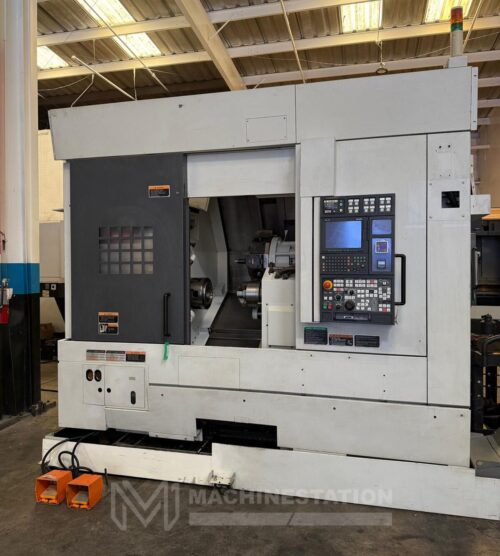

Used Mori Seiki NL2500SMC/700 CNC Turning Center For Sale

Location:Lake Elsinore, CA
SKU:112788
Make/Model::Mori Seiki NL2500SMC/700
Year:2008
Condition:Used – Good
Video:No Video
SKU: 112788

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Mori Seiki
Model:NL2500SMC/700
Year:2008
Condition:Used – Good



Equipped With:

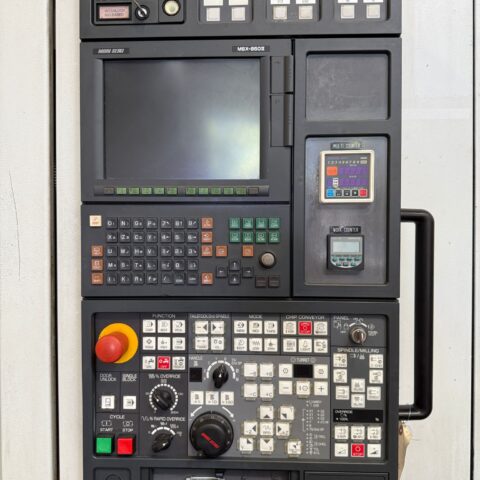

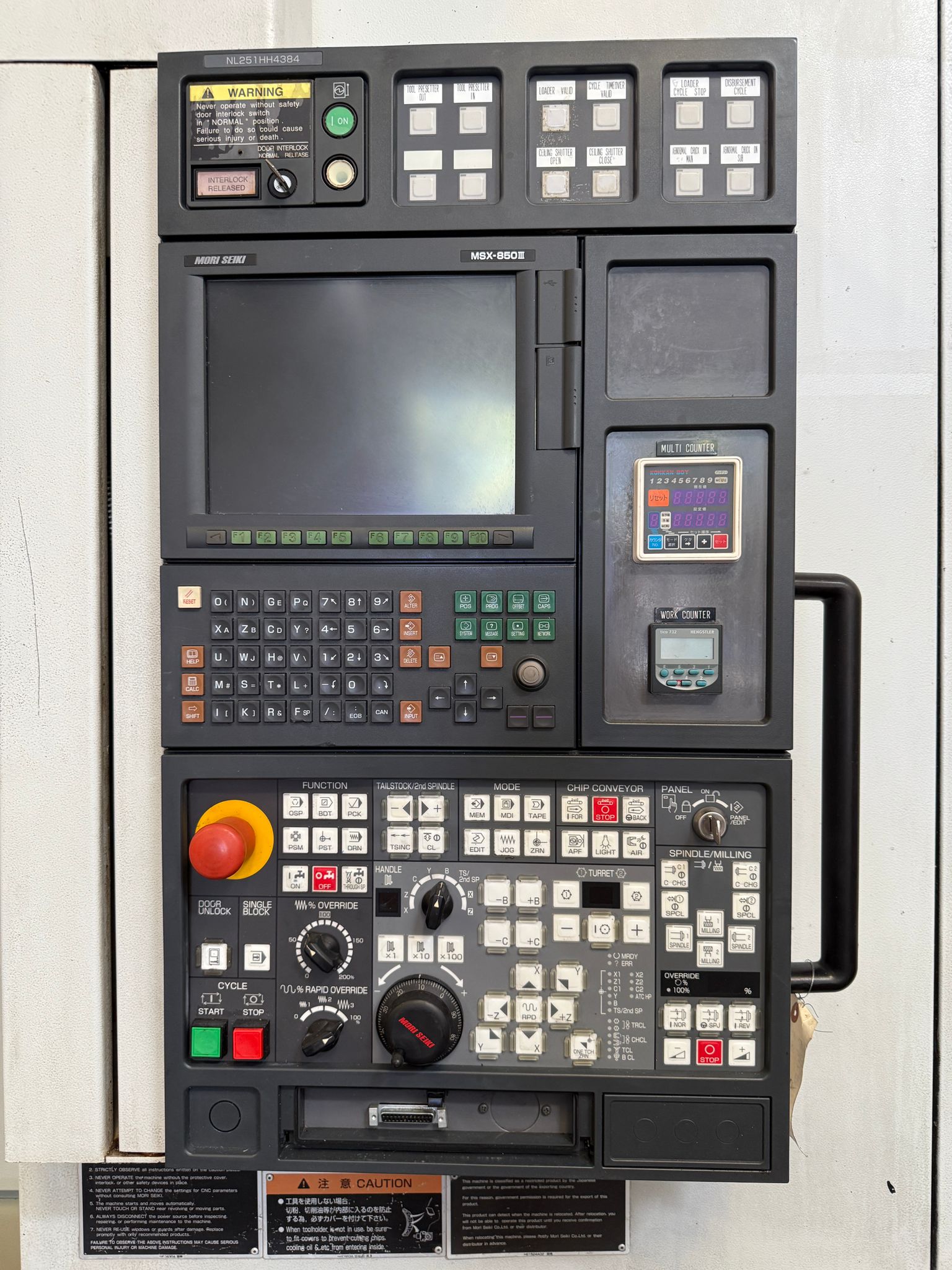

Mori Seiki MSX-850III CNC Control

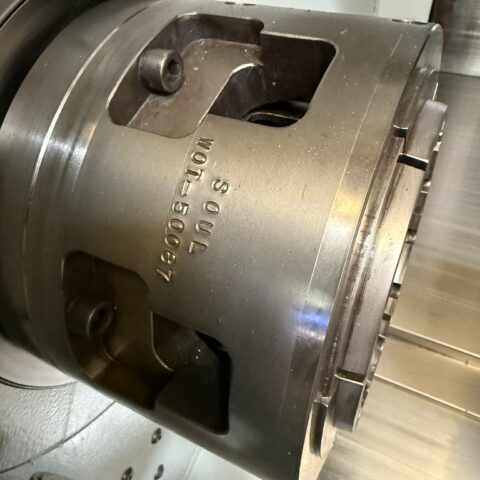

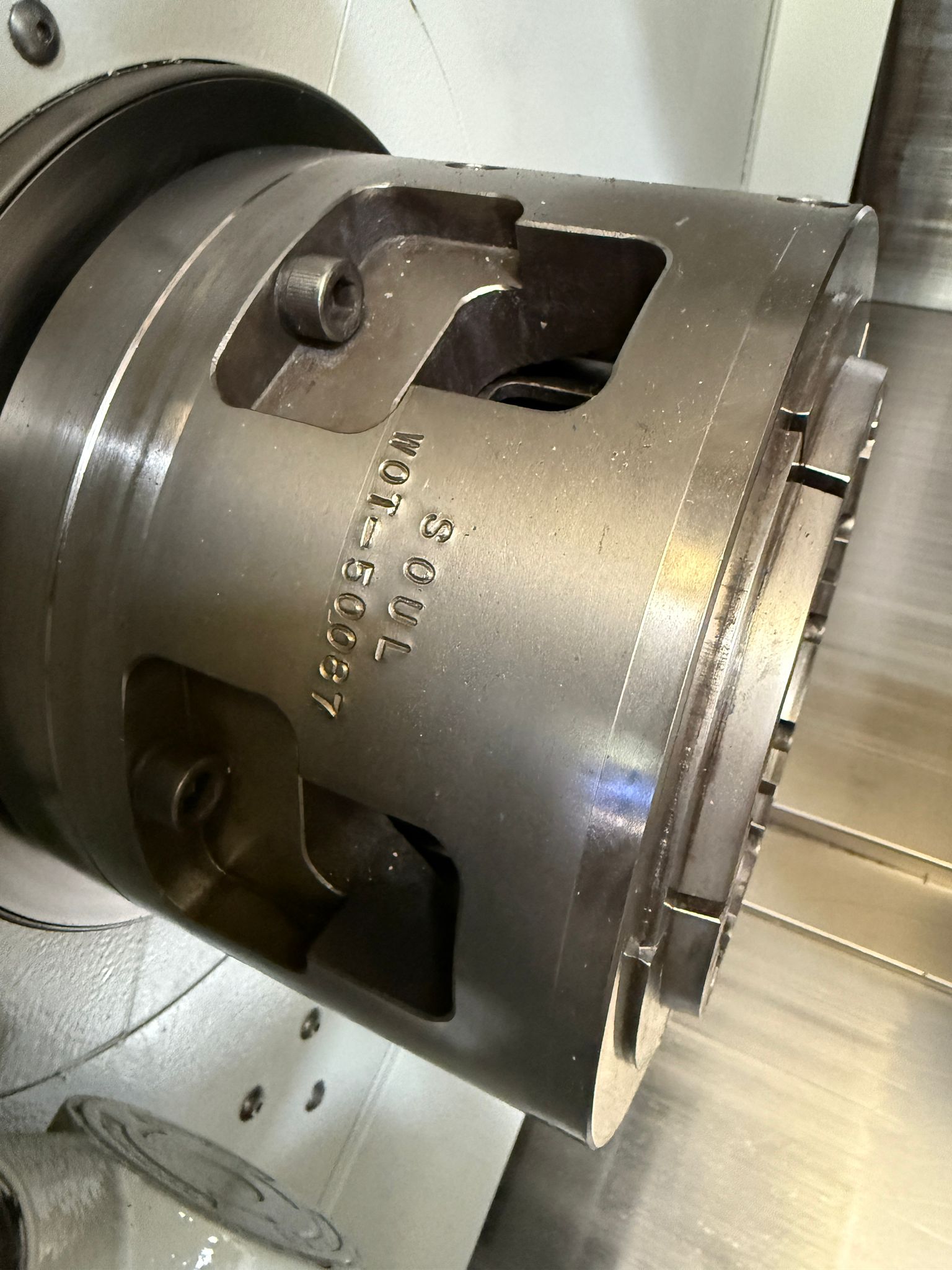

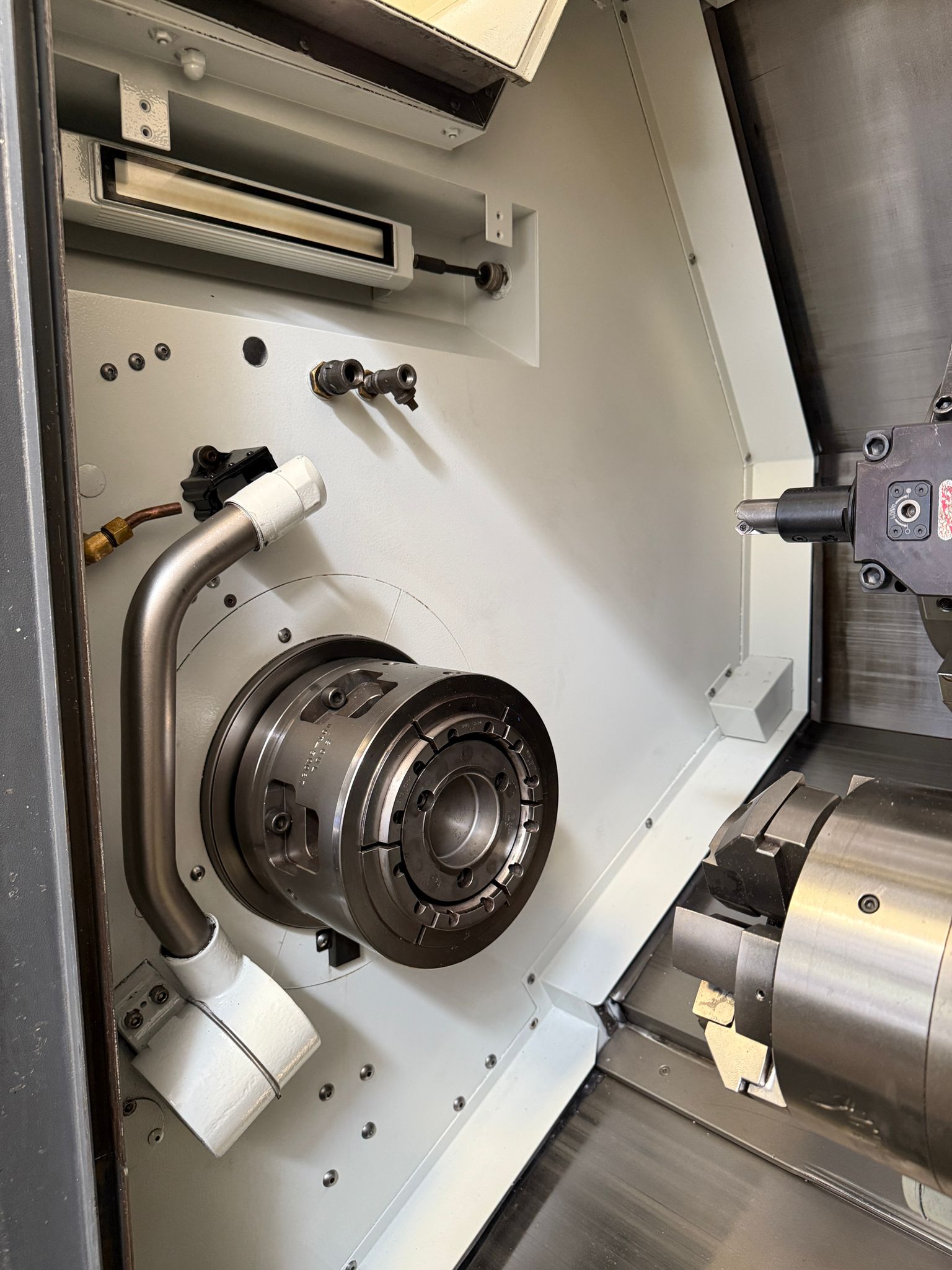

Soul Collet Chuck on Main Spindle (Capable 10″ Chuck)

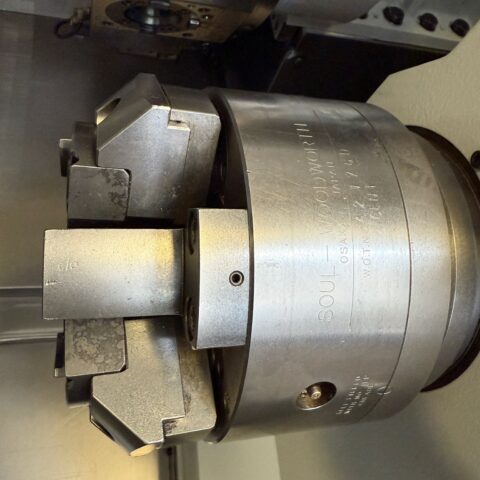

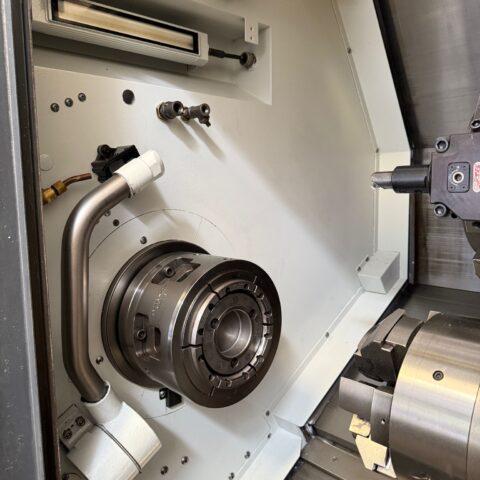

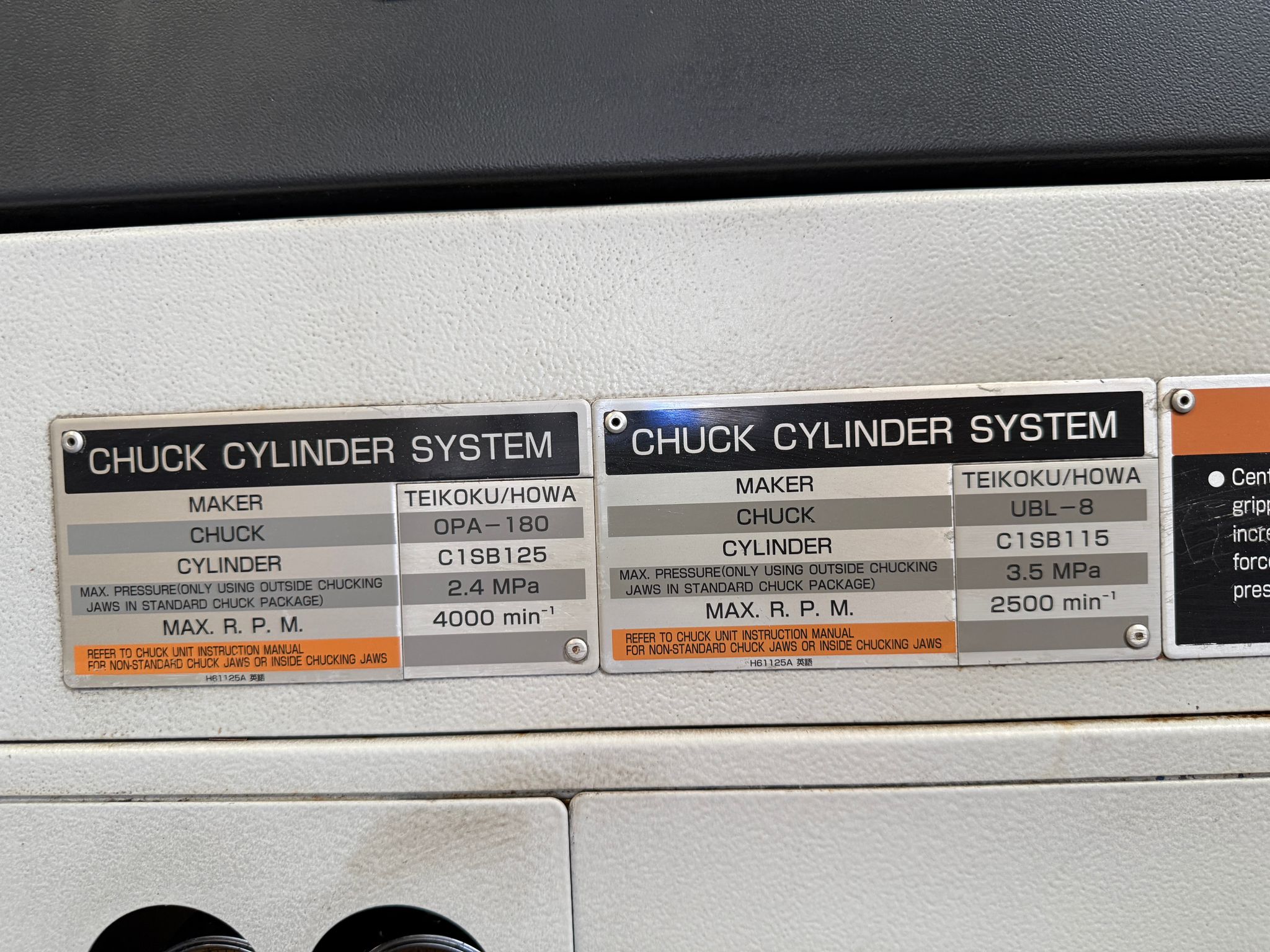

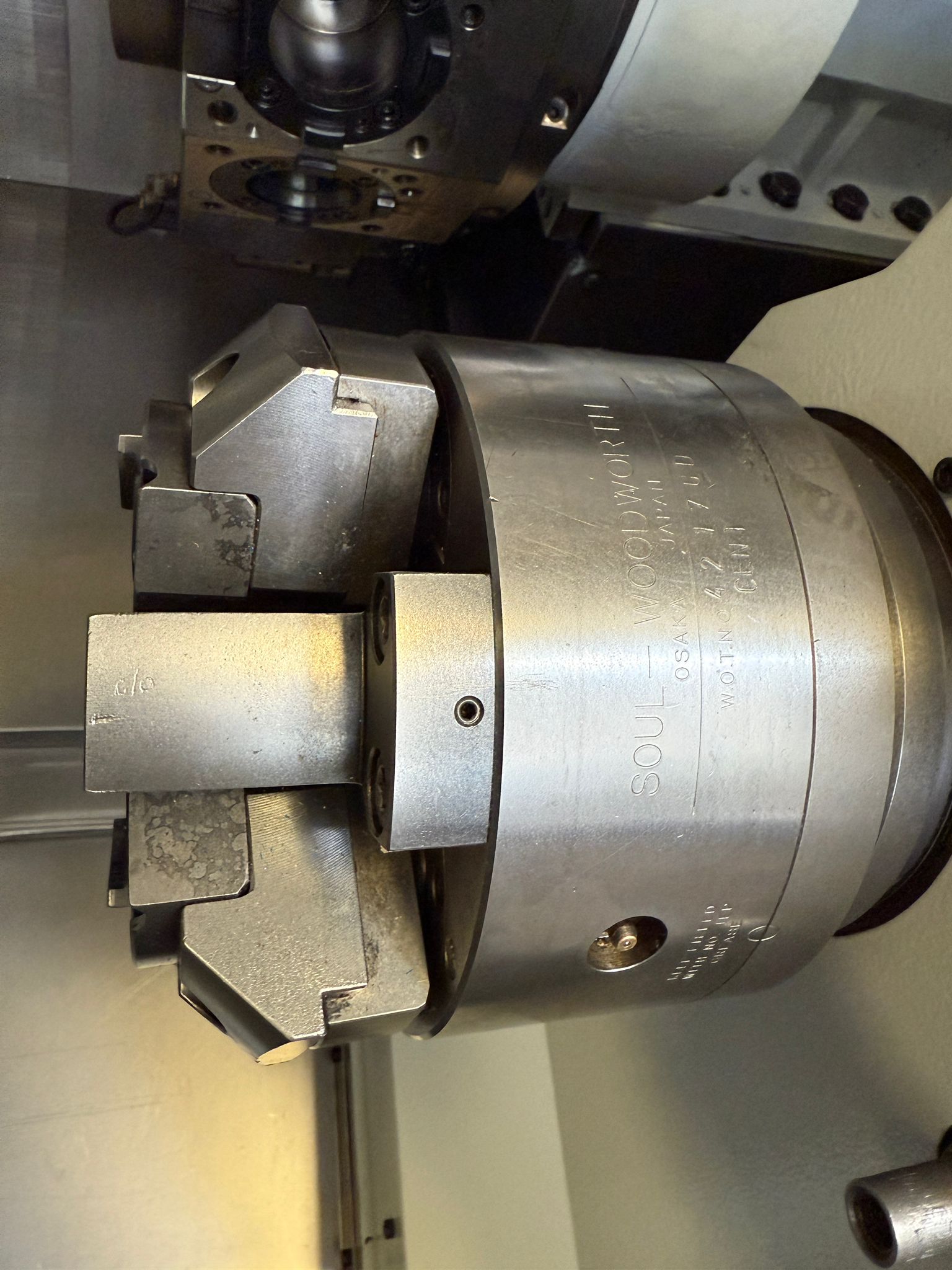

Soul Woodworth UBL-8 6-Jaw Chuck on Sub Spindle
C Axis Capable

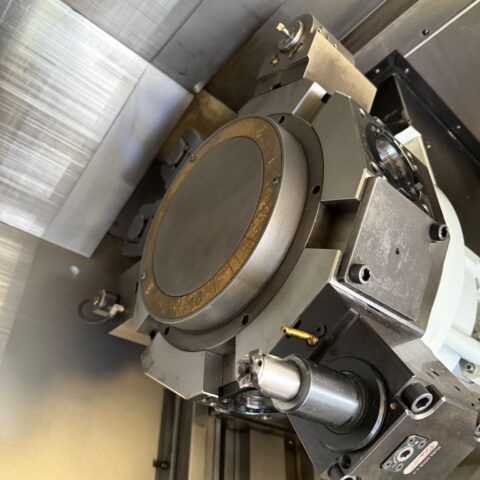

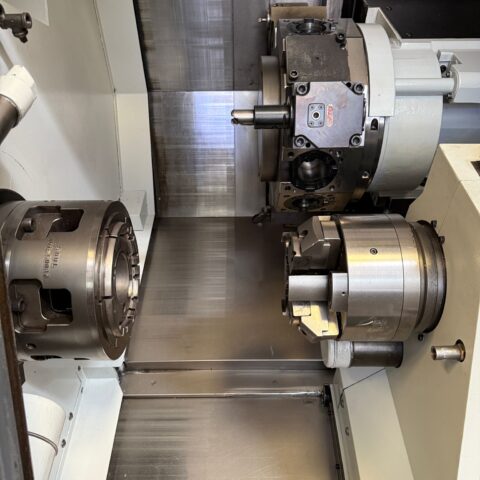

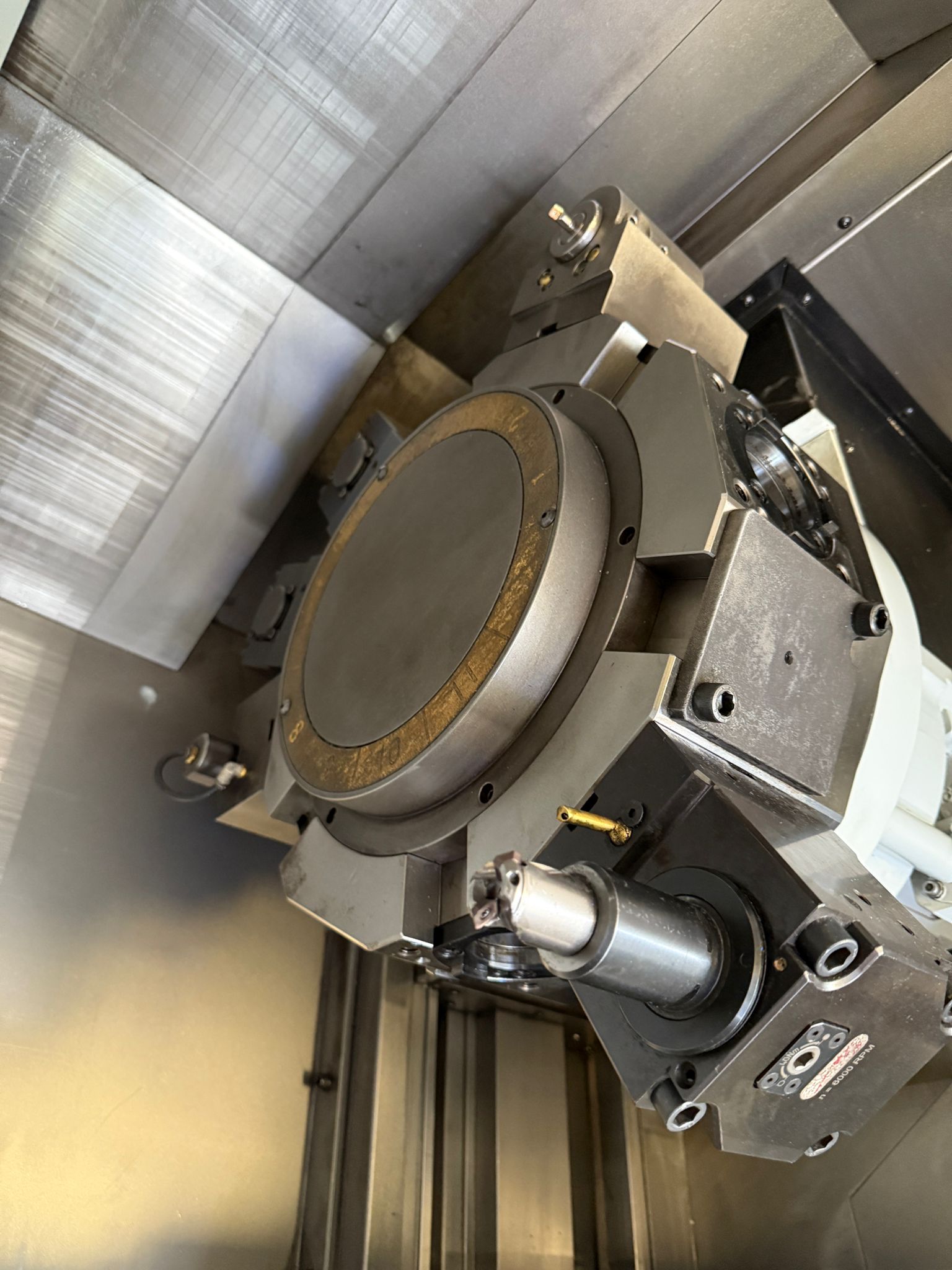

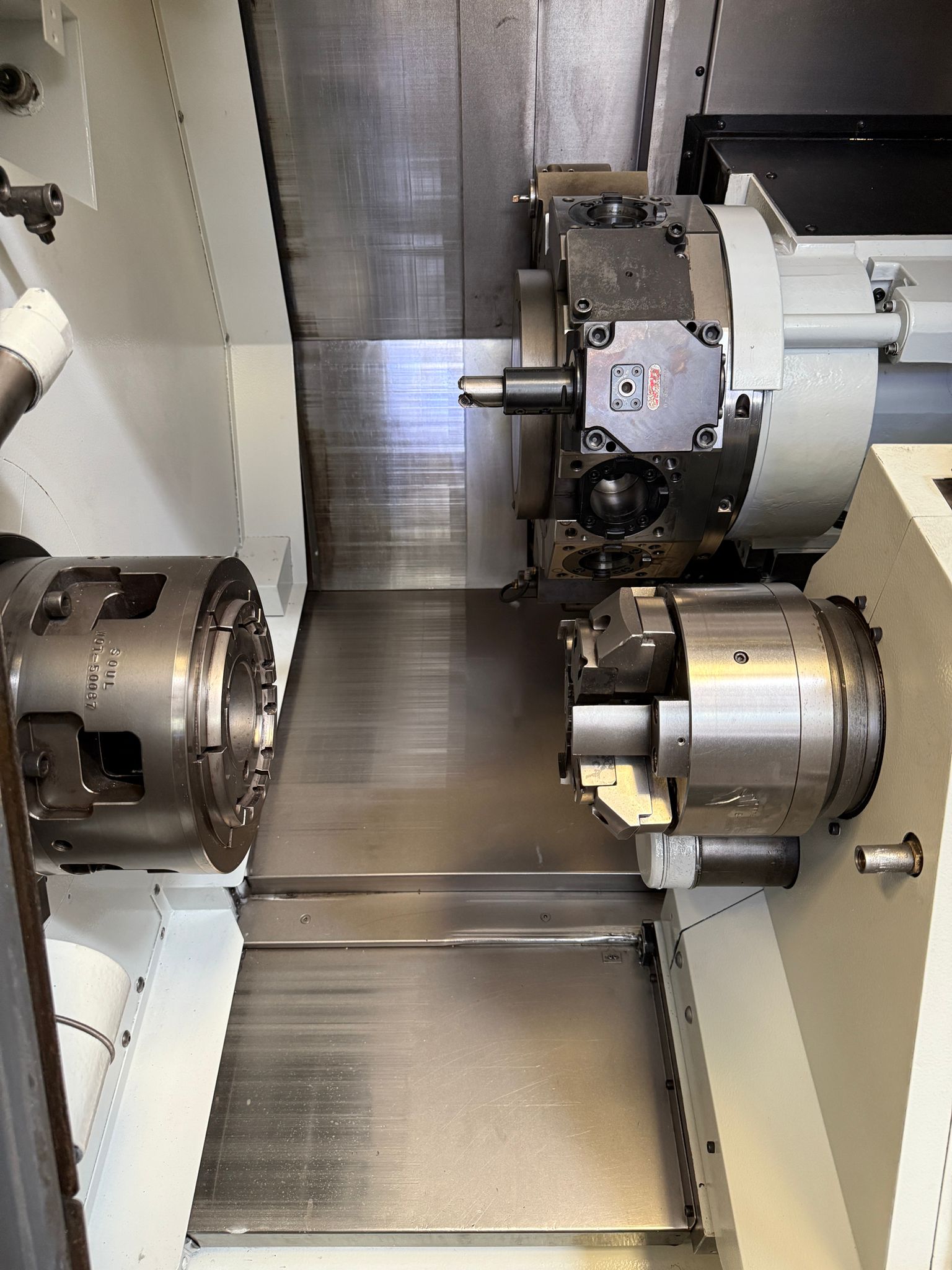

12 Station High Speed Live Tool Turret
25 HP Spindle Power
Tool Presetter
PCMCIA Card Slot
Rigid Tapping
Coolant System
Chip Conveyor

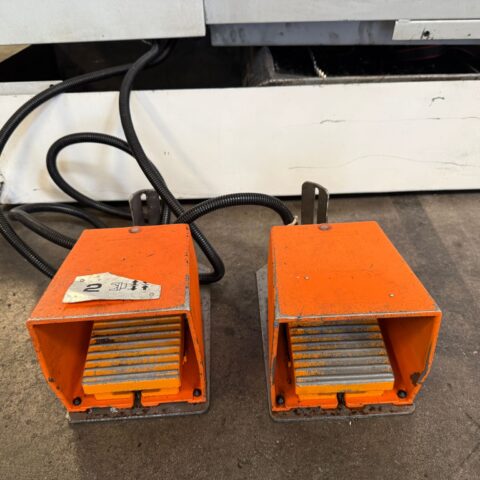

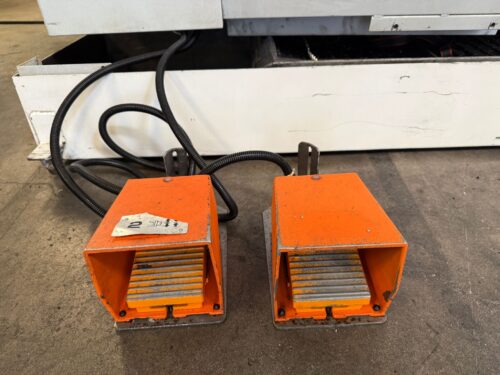

Foot Switches
Live & Statics Tool Holders (Mounted on Turret as shown in the images)



Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″



Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
B Axis Travel (Sub Spindle): 28.9″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM



Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP



Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT



General:

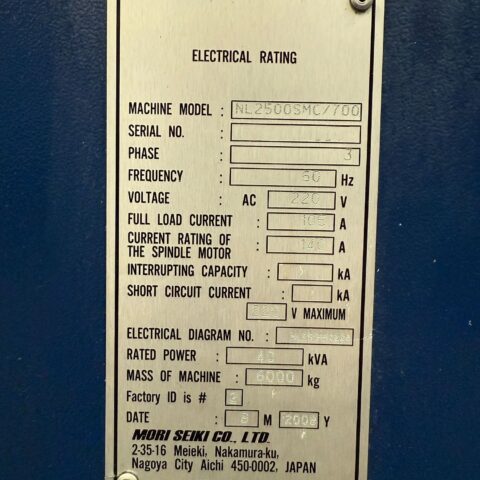

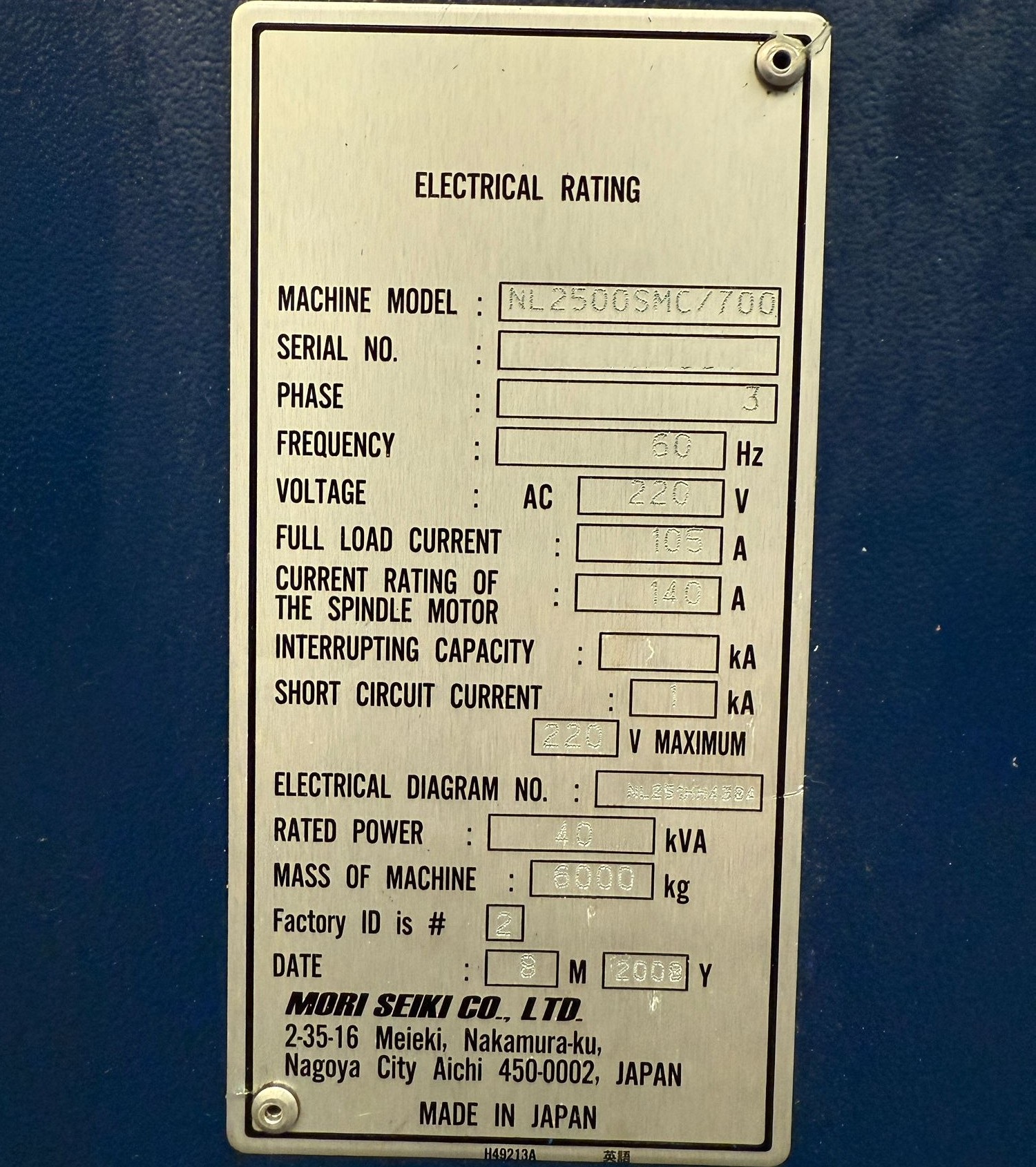

Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 40 kva
Overall Dimensions: 122″ x 78.7 ″ x 83.5″ High
Weight : 13,200 lbs Approx.
