Mori Seiki NT-1000/SZ CNC Turn-Mill Center

Mori Seiki NT-1000/SZ CNC Turn-Mill Center – 2010

SKU 11539

Make/Model Mori Seiki NT-1000SZ

Year 2010

Video On Request

Out of stock

SKU:	11539
Make/Model:	Mori Seiki NT-1000SZ
Year:	2010
Video:	On Request

SKU: 11539

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Manufacturer:	Mori Seiki
Model:	NT-1000SZ
Machine Type:	CNC Turn-Mill Center
Year:	2010
Control:	MSX-711 IV CNC Control
Country of Origin:	Japan

Features:
Main & Sub Spindle Configuration

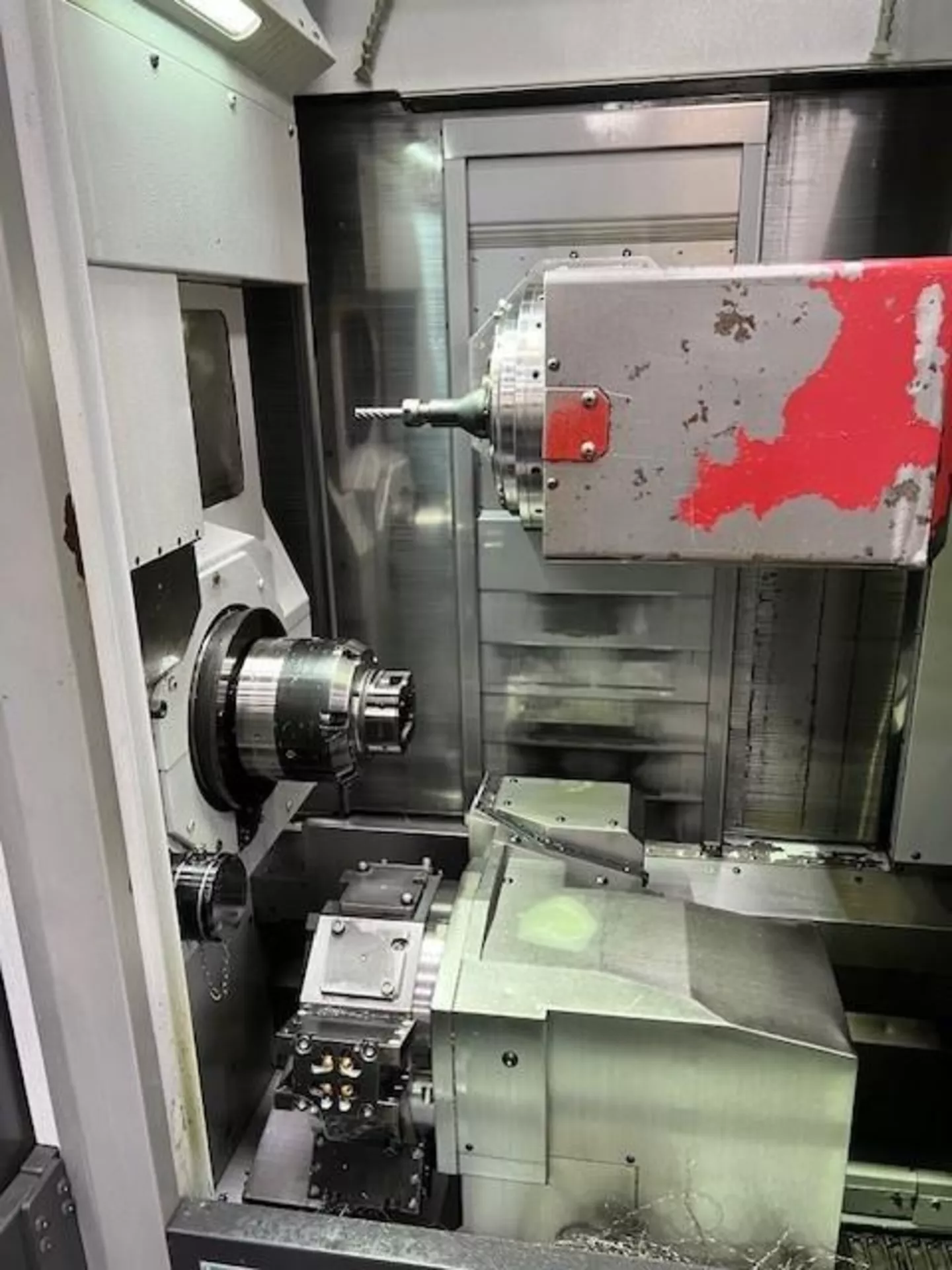

Full B-Axis Milling Head
20,000 RPM Milling Spindle
38 Position Automatic Tool Changer
10 Position Turret
Chip Conveyor

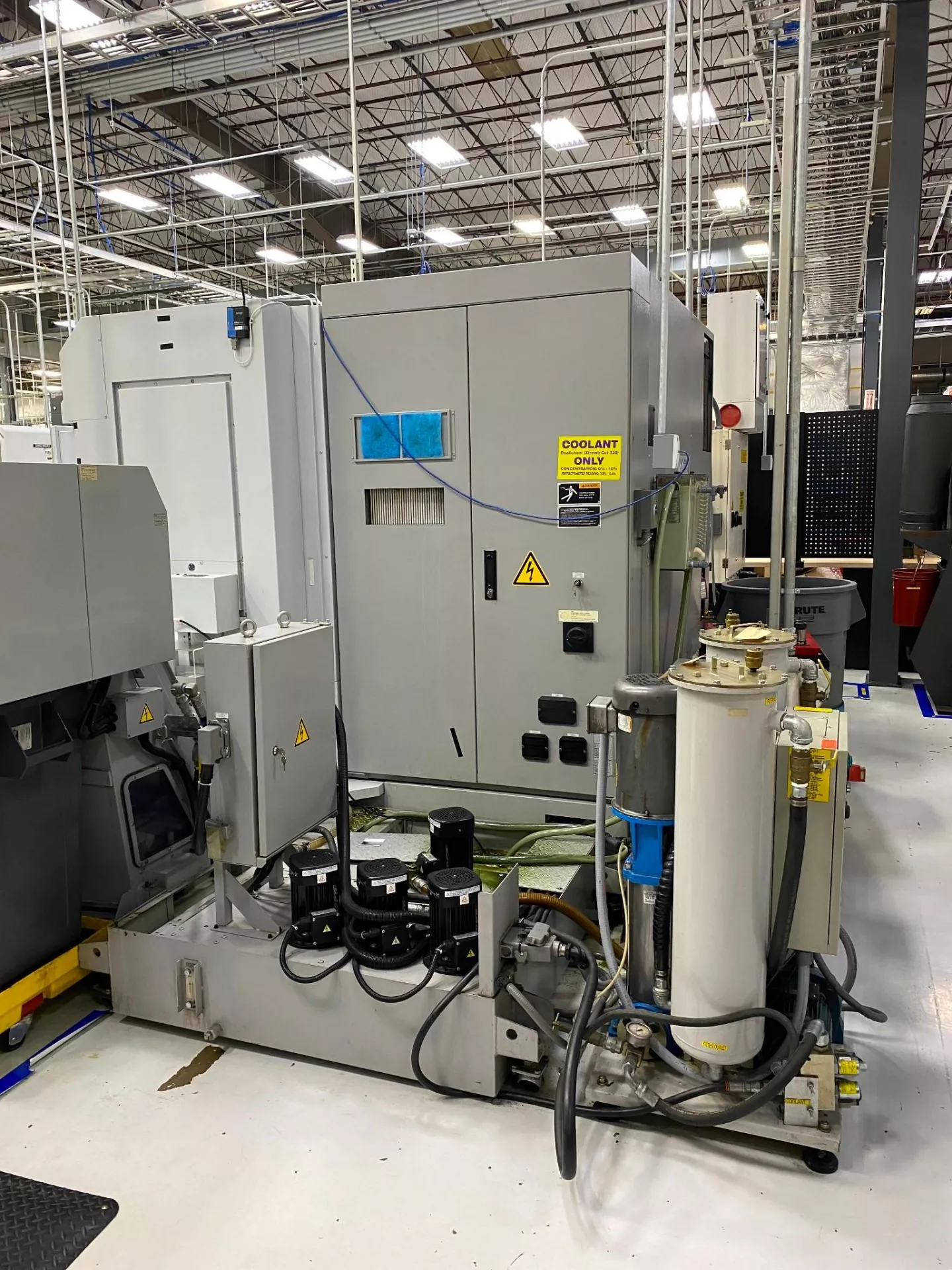

ChipBlaster F-75MSF High-Pressure Coolant System
Renishaw OMP400 Probe System
Air Blast
C-Axis Main & Sub Spindles
Twin Spindle Multi-Tasking Capability
Tool Cart with Tool Holders
Dual Foot Pedals

Capacity:
Maximum Swing of Work Piece: 14.5″
Swing Over Cross Slide: 14.5″
Swing Over Turret 2: 11.8″
Maximum Turning Length: 16.6″
Bar Capacity Main Spindle: 2.0″
Bar Capacity Sub Spindle: 1.5″

Travels:
X-Axis Travel: 15″
Y-Axis Travel: +/- 4.1″
Z-Axis Travel: 18.1″ + 6.1″
Turret 2 X-Axis Travel: 6.1″
Turret 2 Z-Axis Travel: 24″
C-Axis Resolution: .0001 Degree
B-Axis Range: -120° to +120°

Spindle:
Milling Spindle Speed: 20,000 RPM
Tool Spindle Motor: 12 HP
Main Spindle Motor: 15 HP
Sub Spindle Motor: 10 HP
Main Spindle Speed: 6,000 RPM
Sub Spindle Speed: 1,000 RPM
Spindle Nose: A2-5 / G6 Flat Nose
Hole Through Main Spindle: 2.4″
Hole Through Sub Spindle: 2.2″

Automatic Tool Changer:
Automatic Tool Changer Capacity: 38 Tools
Turret Configuration: 10 Station
Turret Indexing Time: .26 Seconds

Rapid Traverse Rates:
X-Axis: 945 IPM
Y-Axis: 945 IPM
Z-Axis: 629 IPM
A-Axis: 300 IPM

Chip & Coolant System:
Chip Conveyor Included
ChipBlaster F-75MSF High Pressure Coolant System
Air Blast System

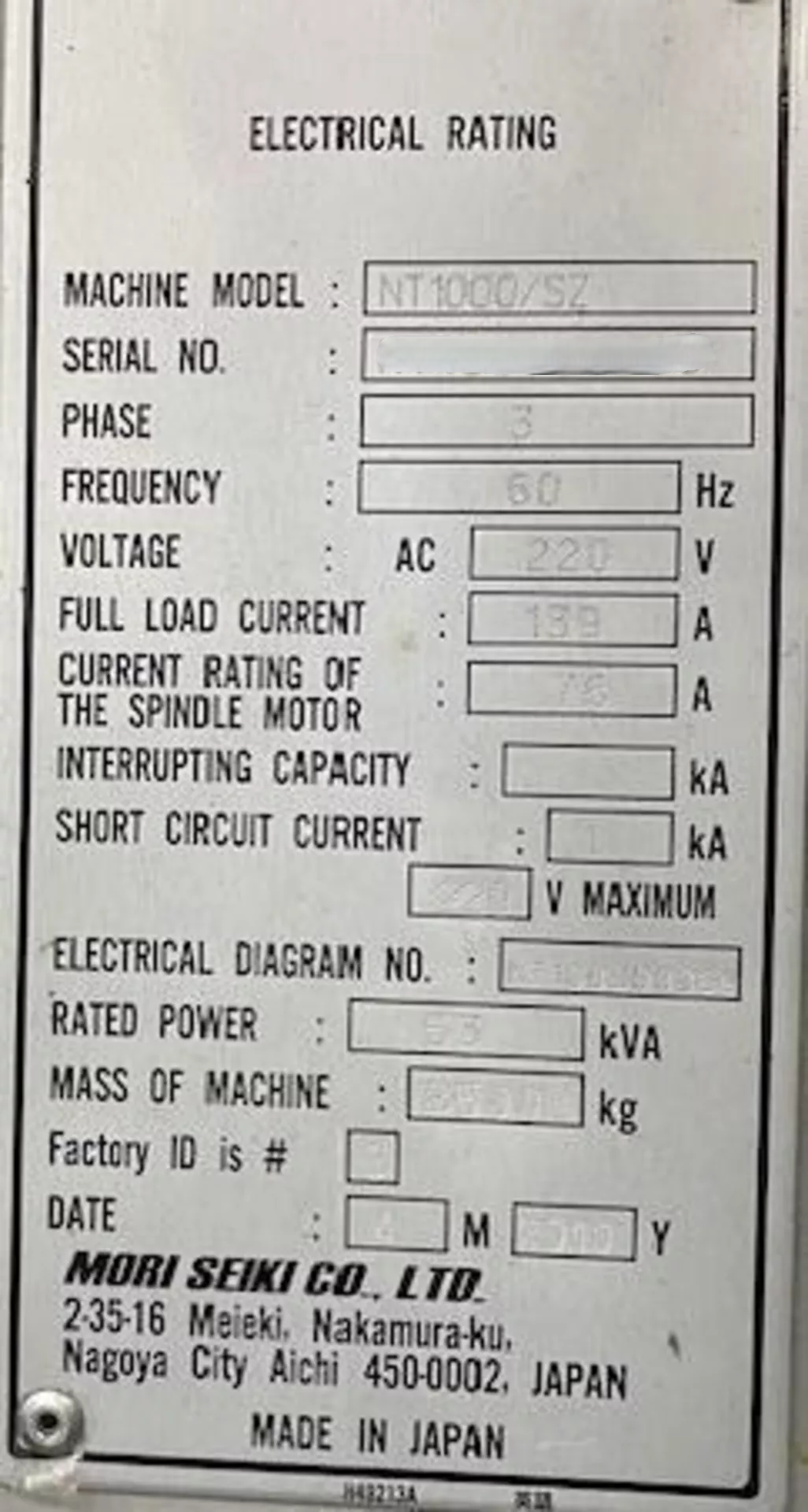

General:
Machine Weight: 19,690 LBS.
Electrical Rating: 220V
Rated Power: 53 KVA
Multi-Tasking Turning & Milling Center

Capacity:
Maximum Swing of Work Piece: 368 mm
Swing Over Cross Slide: 368 mm
Swing Over Turret 2: 300 mm
Maximum Turning Length: 422 mm
Bar Capacity Main Spindle: 51 mm
Bar Capacity Sub Spindle: 38 mm

Travels:
X-Axis Travel: 381 mm
Y-Axis Travel: +/- 104 mm
Z-Axis Travel: 460 mm + 155 mm
Turret 2 X-Axis Travel: 155 mm
Turret 2 Z-Axis Travel: 610 mm
C-Axis Resolution: .0001 Degree
B-Axis Range: -120° to +120°

Spindle:
Milling Spindle Speed: 20,000 RPM
Tool Spindle Motor: 12 HP
Main Spindle Motor: 15 HP
Sub Spindle Motor: 10 HP
Main Spindle Speed: 6,000 RPM
Sub Spindle Speed: 1,000 RPM
Spindle Nose: A2-5 / G6 Flat Nose
Hole Through Main Spindle: 61 mm
Hole Through Sub Spindle: 56 mm

Automatic Tool Changer:
Automatic Tool Changer Capacity: 38 Tools
Turret Configuration: 10 Station
Turret Indexing Time: .26 Seconds

Rapid Traverse Rates:
X-Axis: 945 IPM
Y-Axis: 945 IPM
Z-Axis: 629 IPM
A-Axis: 300 IPM

Chip & Coolant System:
Chip Conveyor Included
ChipBlaster F-75MSF High Pressure Coolant System
Air Blast System

General:
Machine Weight: 19,690 LBS.
Electrical Rating: 220V
Rated Power: 53 KVA
Multi-Tasking Turning & Milling Center

Categories	CNC Multi Axis Machining Center
Make	Mori Seiki
Model	NT-1000SZ

Main & Sub Spindle Configuration
Full B-Axis Milling Head
20,000 RPM Milling Spindle
38 Position Automatic Tool Changer
10 Position Turret
Chip Conveyor
ChipBlaster F-75MSF High-Pressure Coolant System
Renishaw OMP400 Probe System
Air Blast
C-Axis Main & Sub Spindles
Twin Spindle Multi-Tasking Capability
Tool Cart with Tool Holders
Dual Foot Pedals
