*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

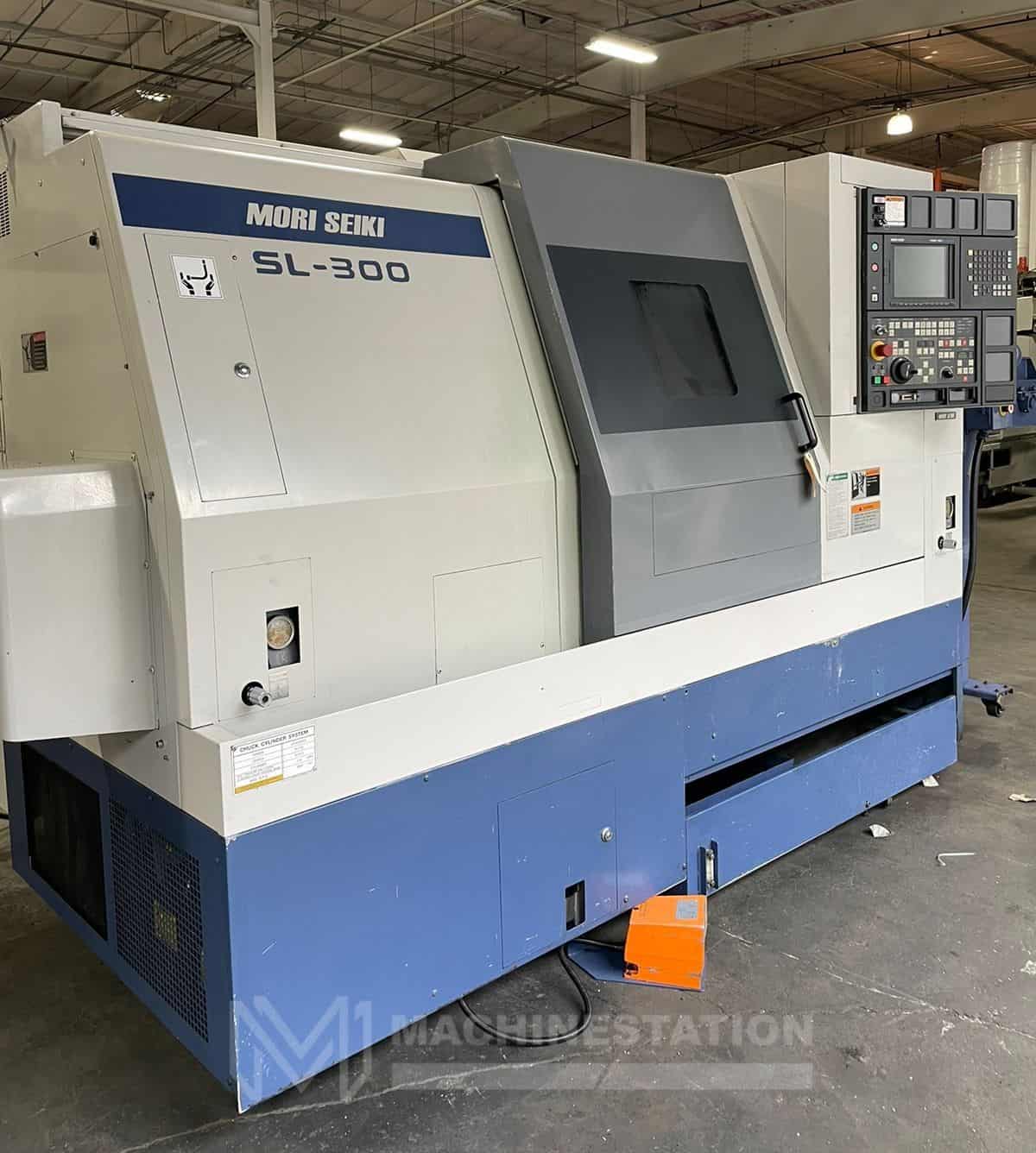

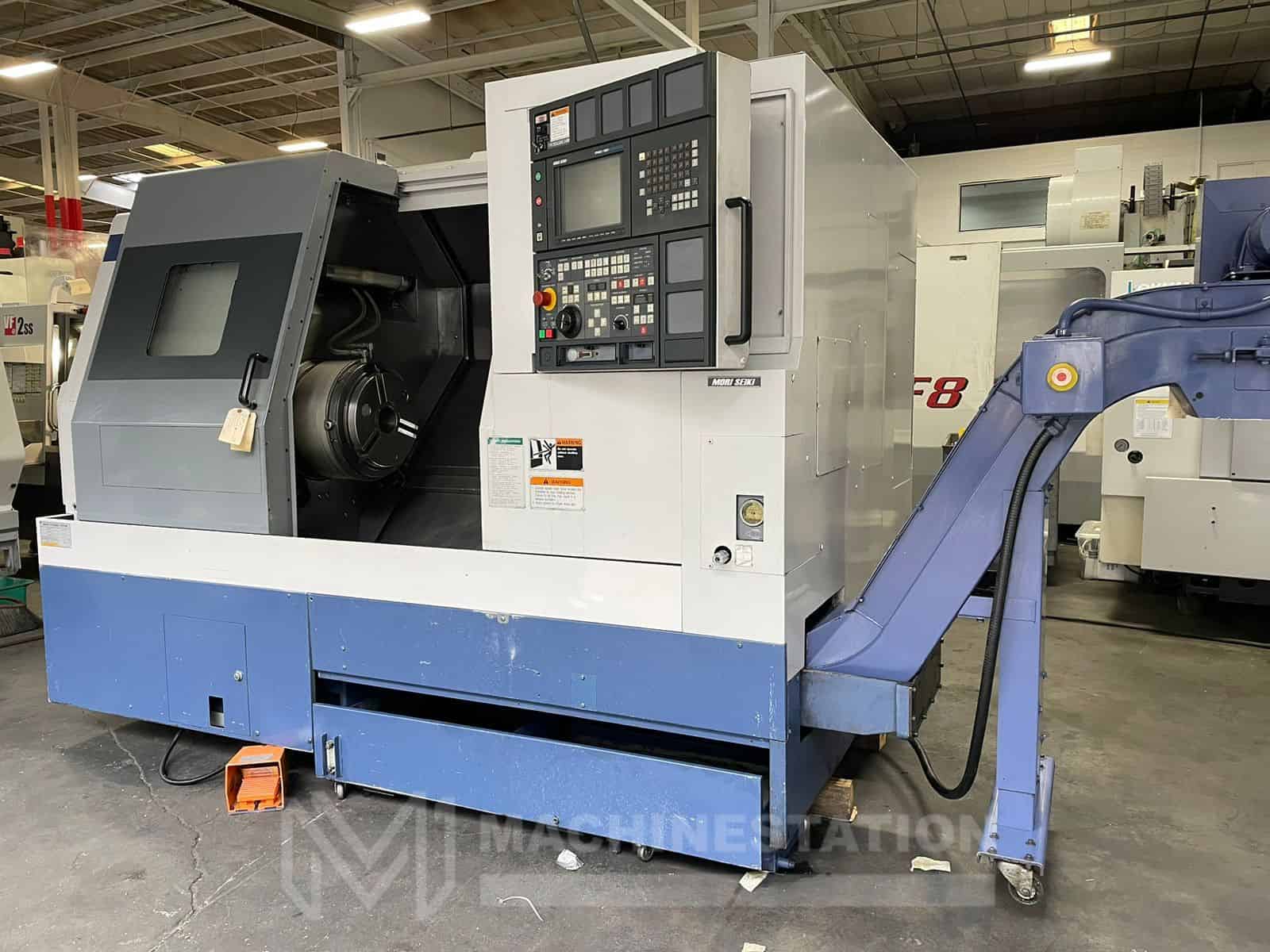

| Make: | Mori Seiki |
| Model: | SL300A |
| Year: | 1998 |
| Condition: | Used – Good |
| Equipped With: |
|---|

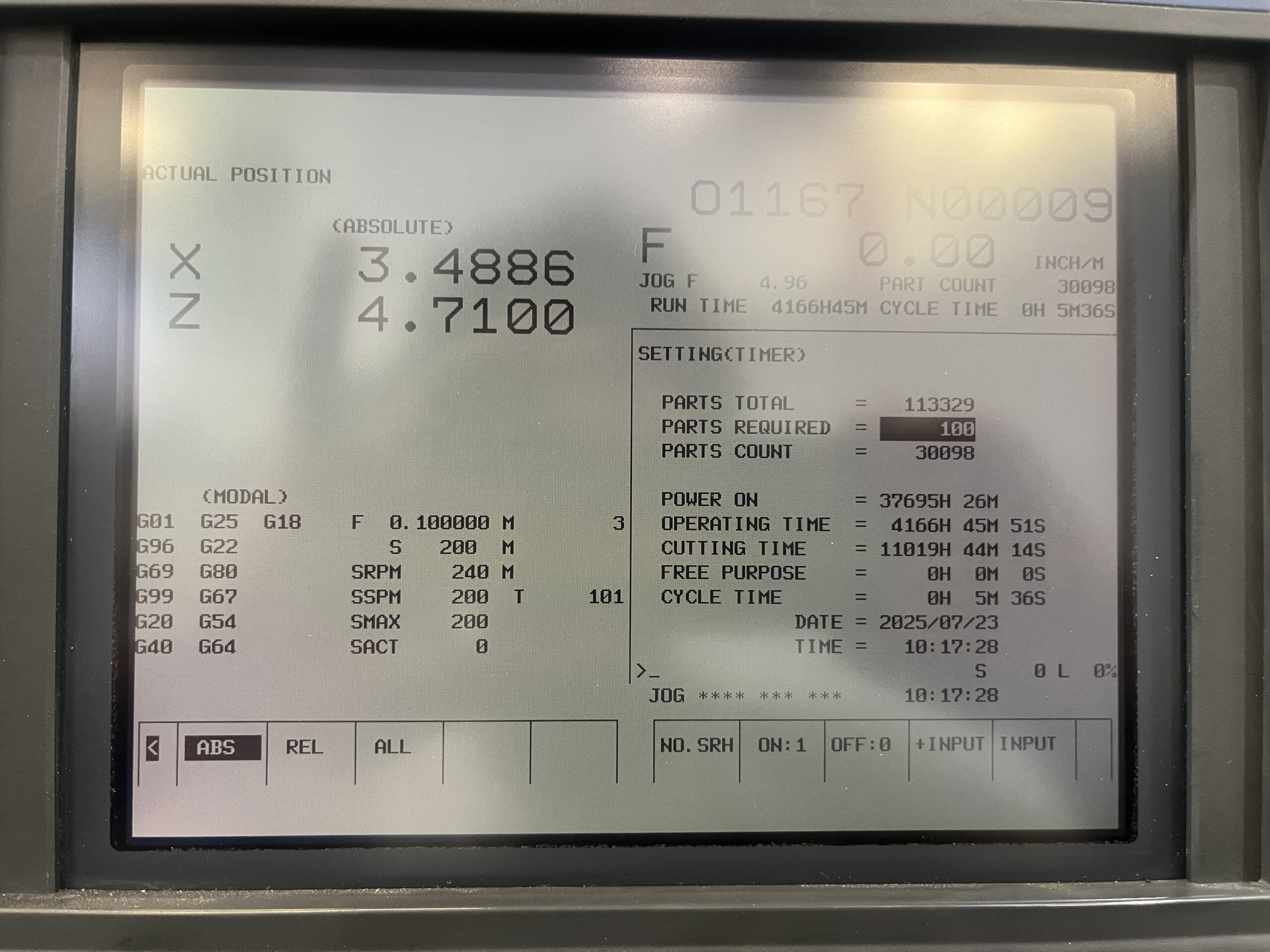

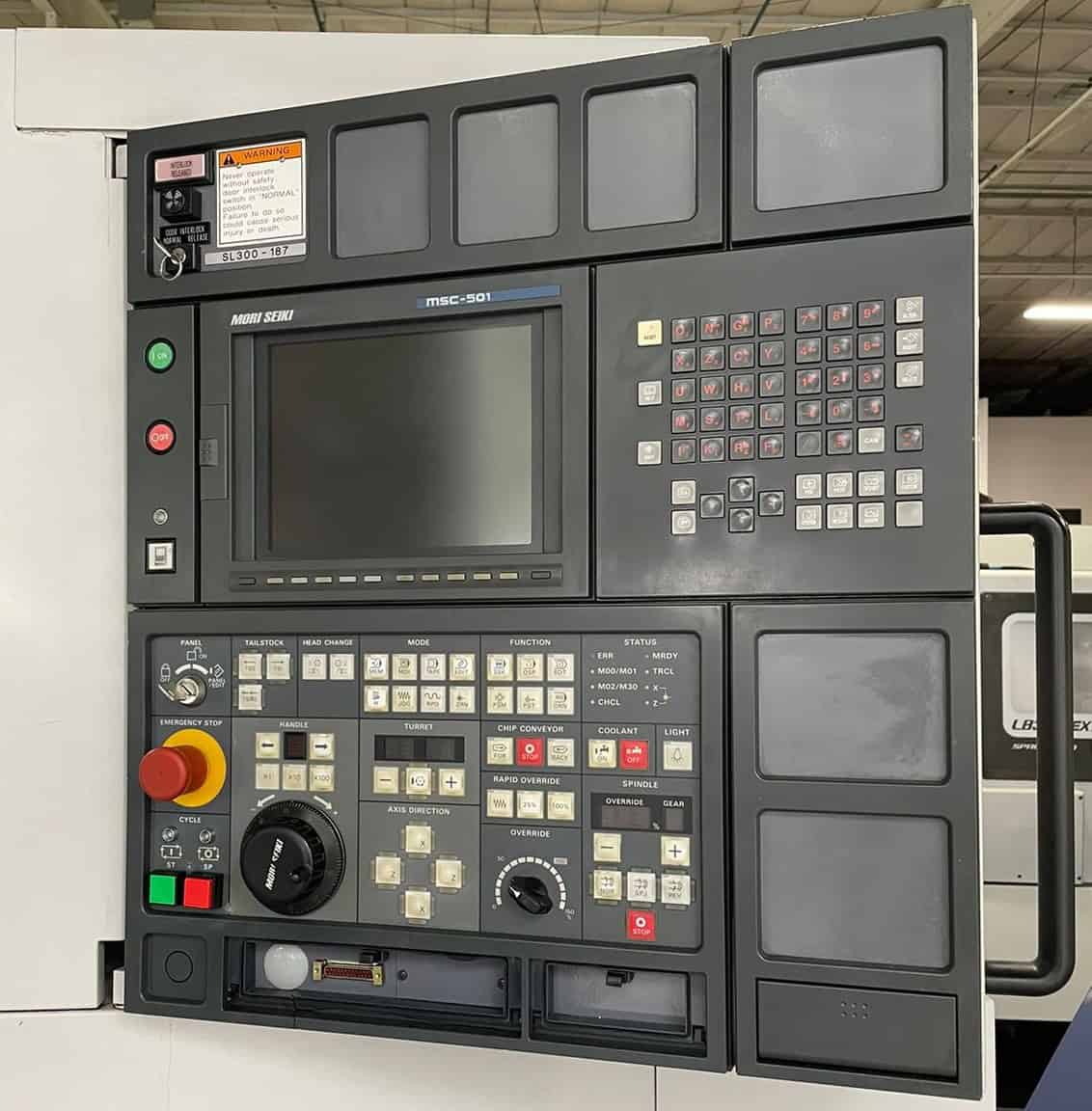

| Mori Seiki MSC-501 (Fanuc) CNC Control |

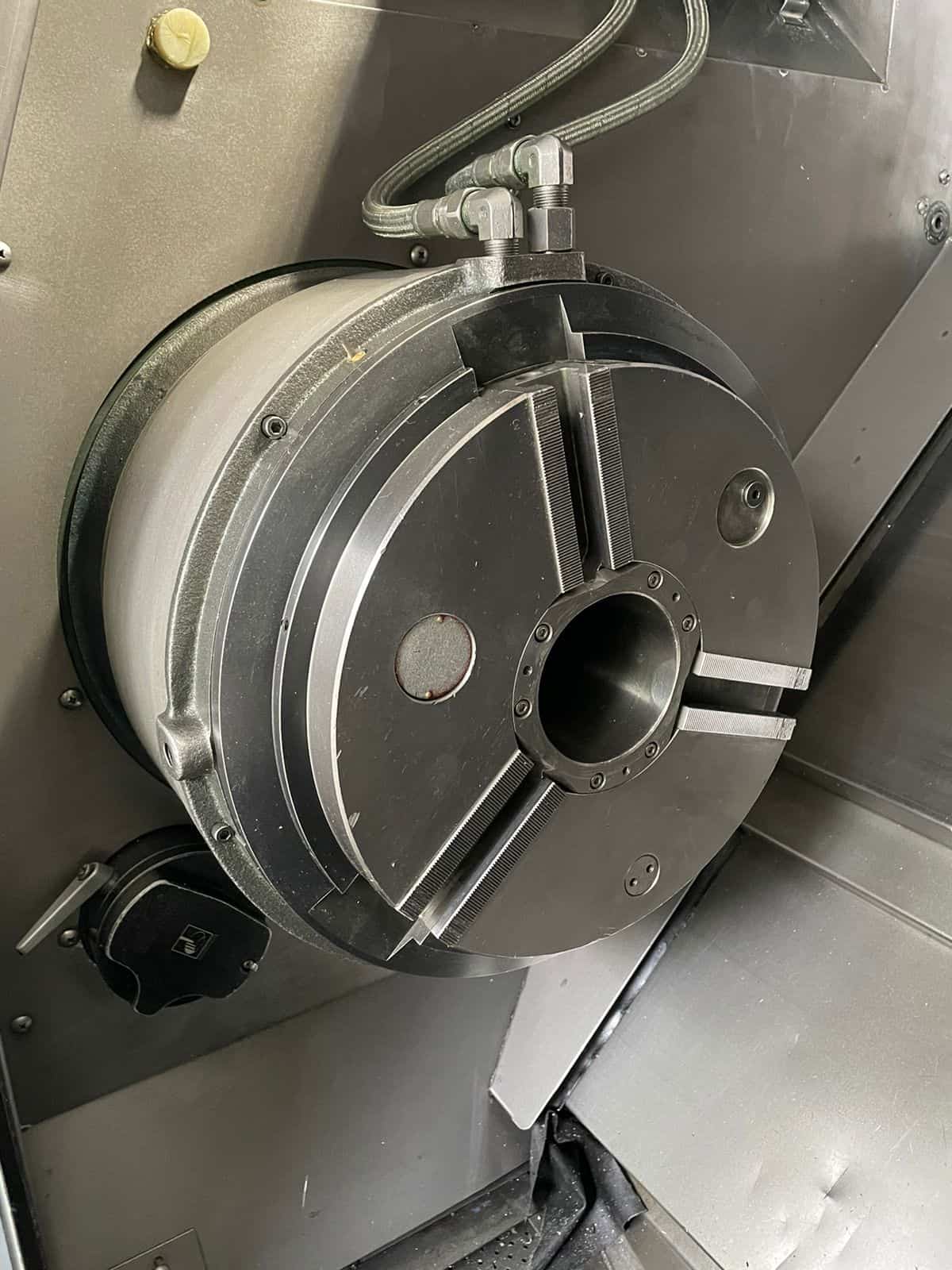

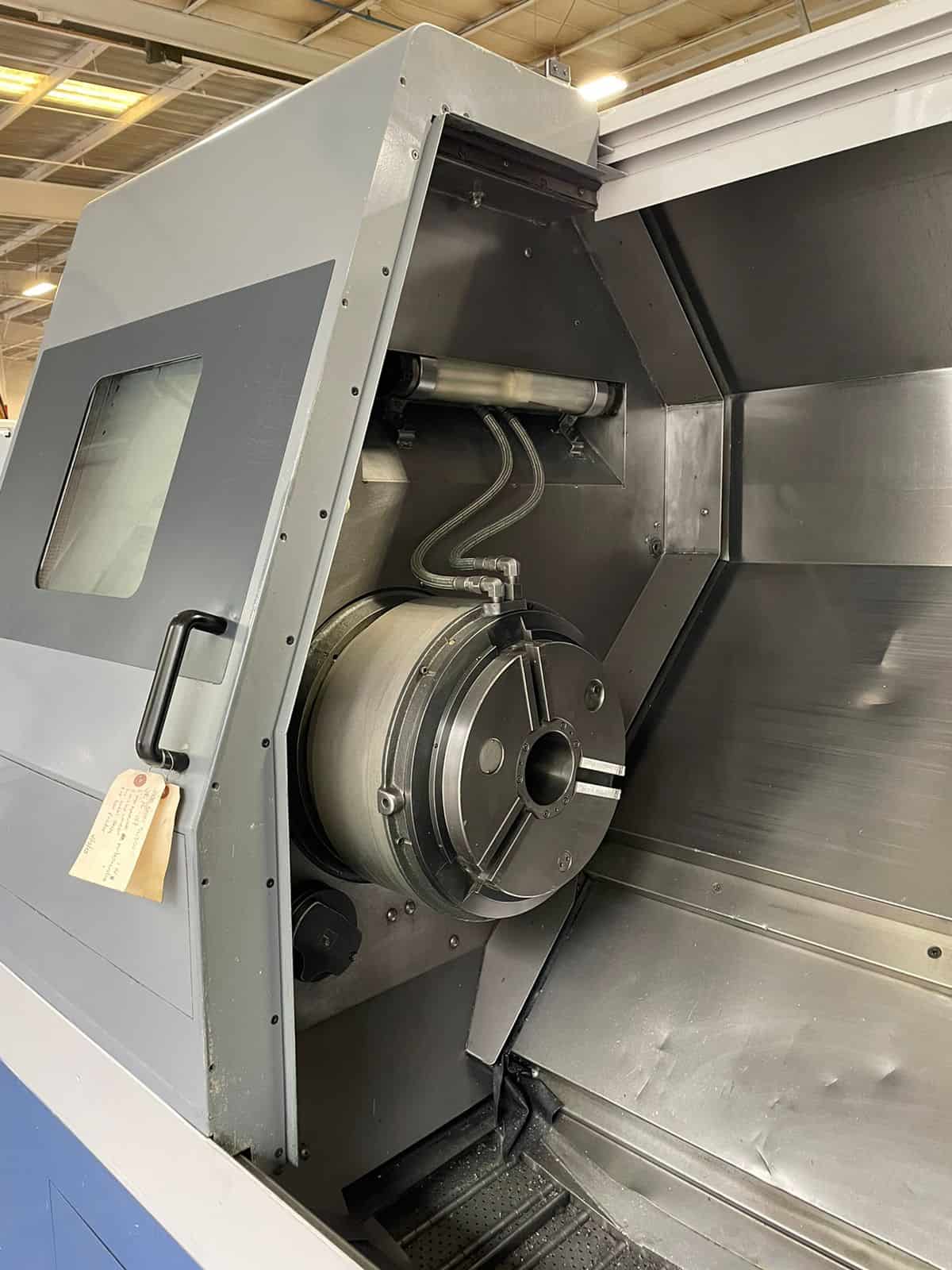

| 12″ 3-Jaw Air Chuck |

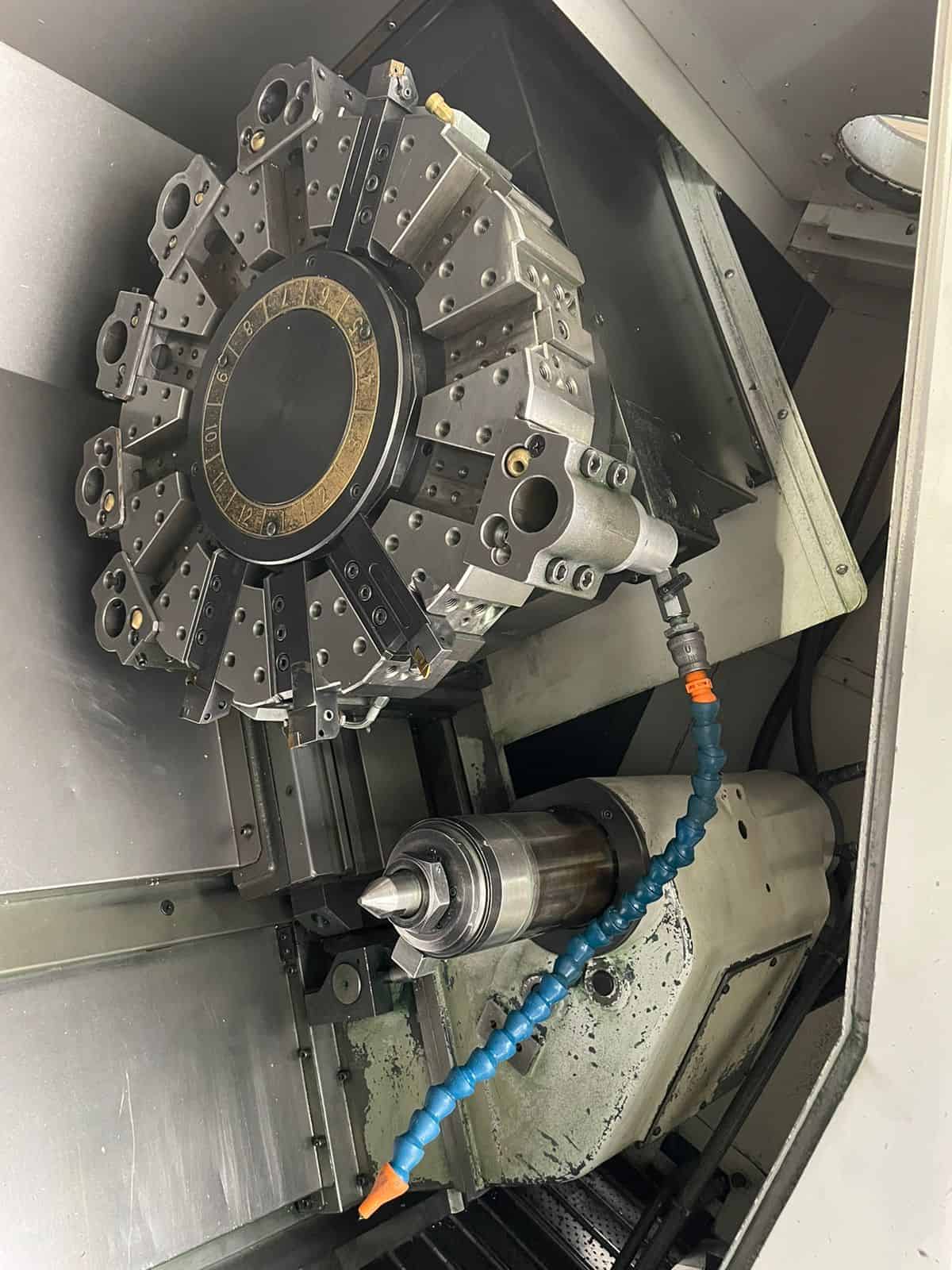

| 12 Station Automatic Turret |
| Tool Presetter |
| 2 Step gear spindle for powerful torque |
| RS-232 Port |
| Hydraulic Tailstock with Power Quill |
| Rigid Tapping |
| Coolant System |

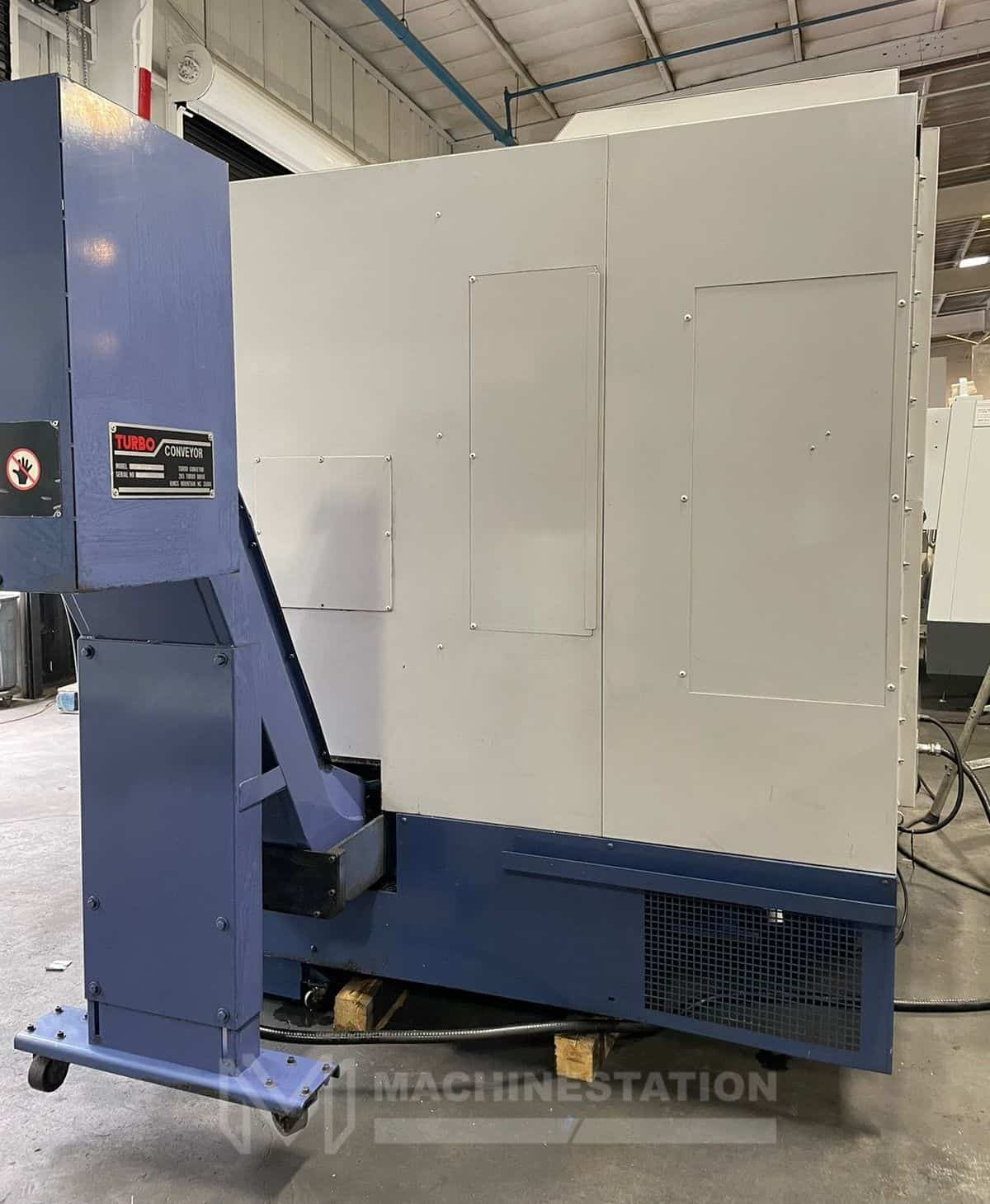

| Turbo Chip Conveyor |
| Foot Switch |

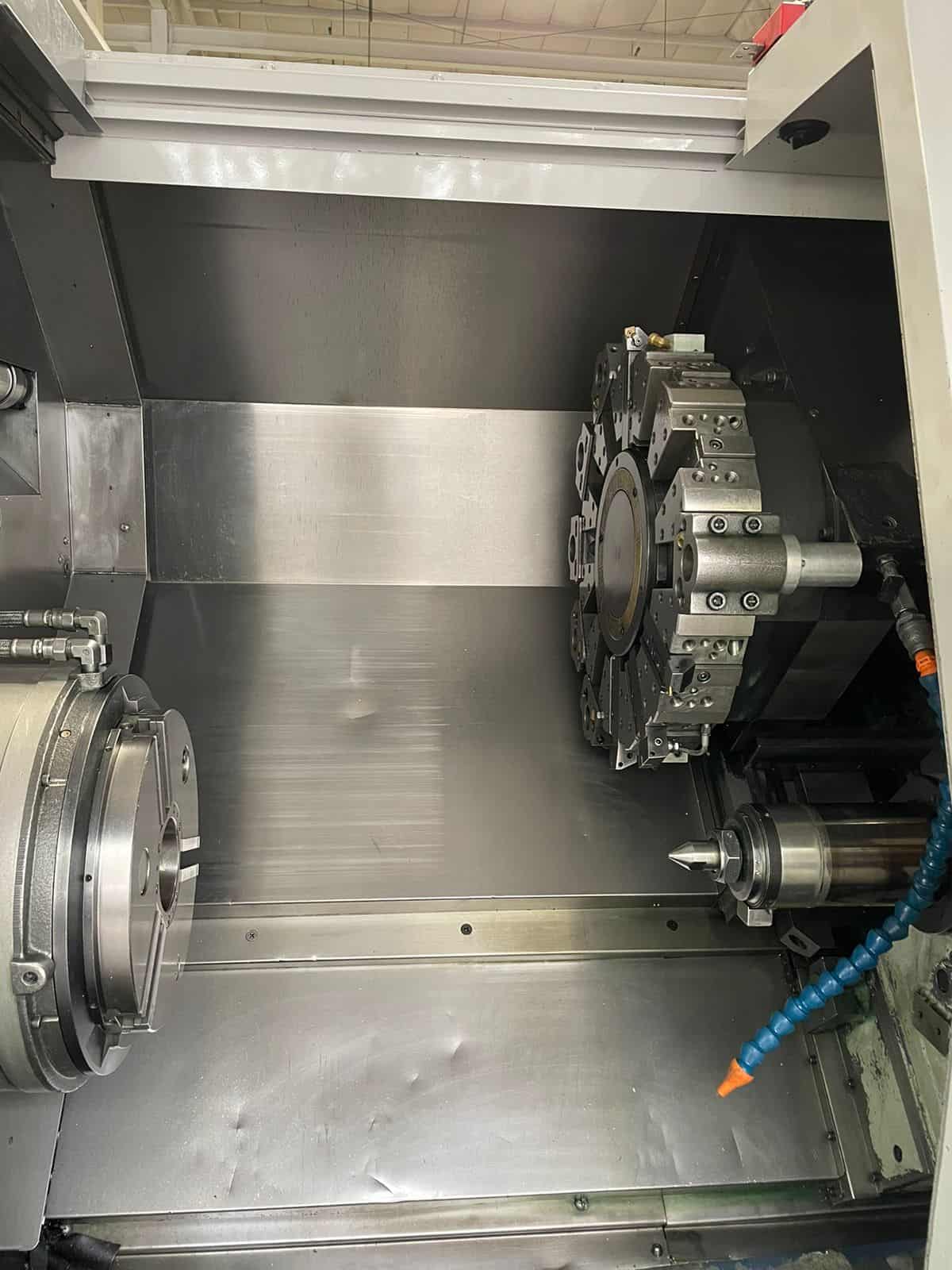

| (4) Turning Tools & (6) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 16.5″ |
| Max Turning Length: 27.9″ |
| Max Bar Capacity: 3.4″ |
| Swing Over Bed: 28″ |
| Distance Between Centers: 31.5″ |
| Travel: |
|---|
| X Axis Travel: 9.84″ |
| Z Axis Travel: 31.49″ |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 940 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 35 – 3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tooling Type: BMT |
| Shank Height For Square Tool: 1.0″ |
| Shank Diameter For Boring Bar: 2.0″ |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Quill Dia.: 4.3″ |
| Tailstock Quill Stroke: 5.9″ |
| Tailstock Taper: MT-5 |

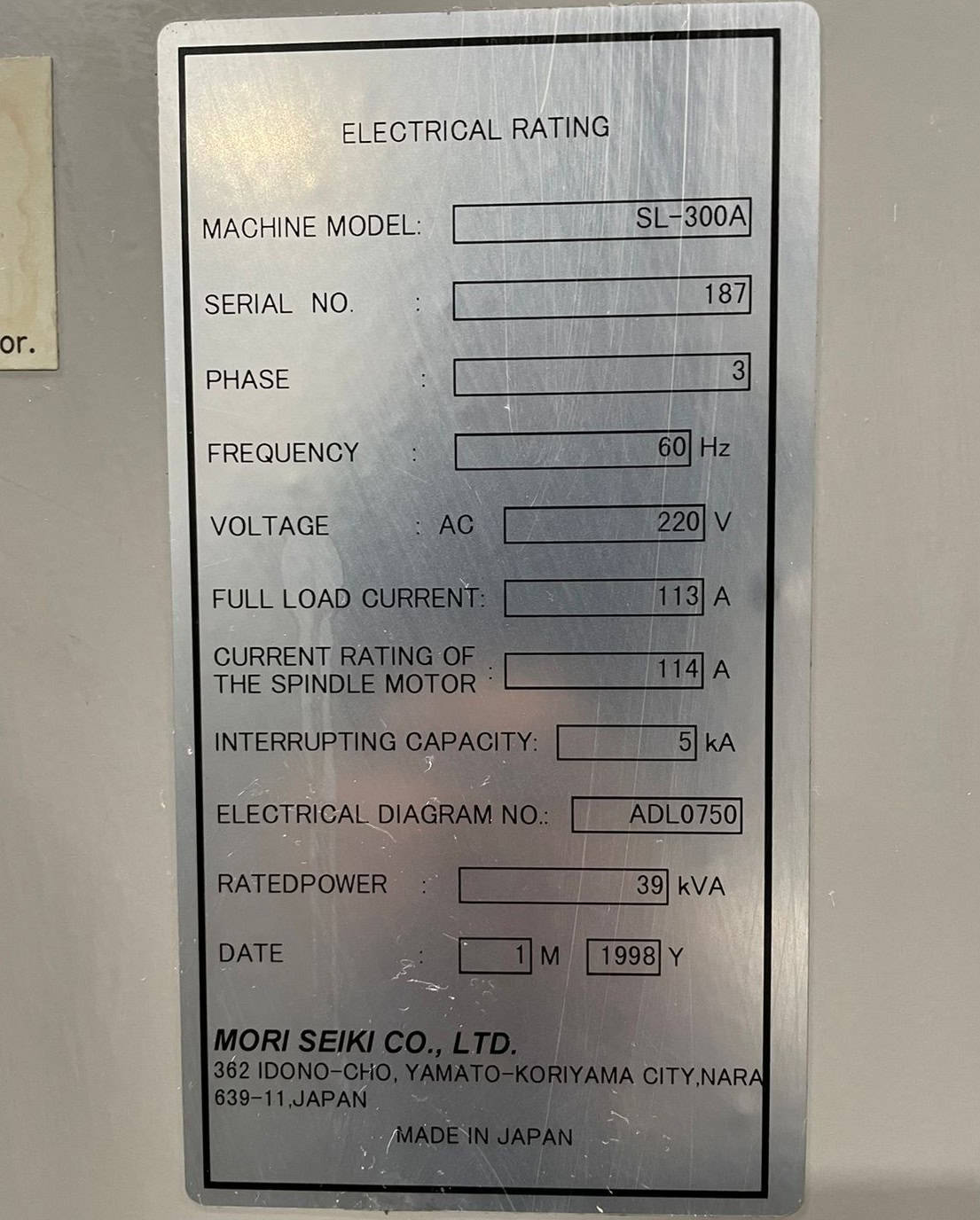

| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 39 kva |
| Overall Dimensions: 137″ X 84″ X 94″ High Approx. |
| Weight : 15,000 lbs. Approx. |
