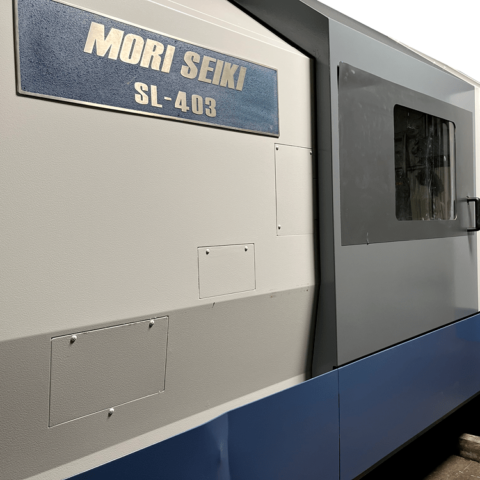

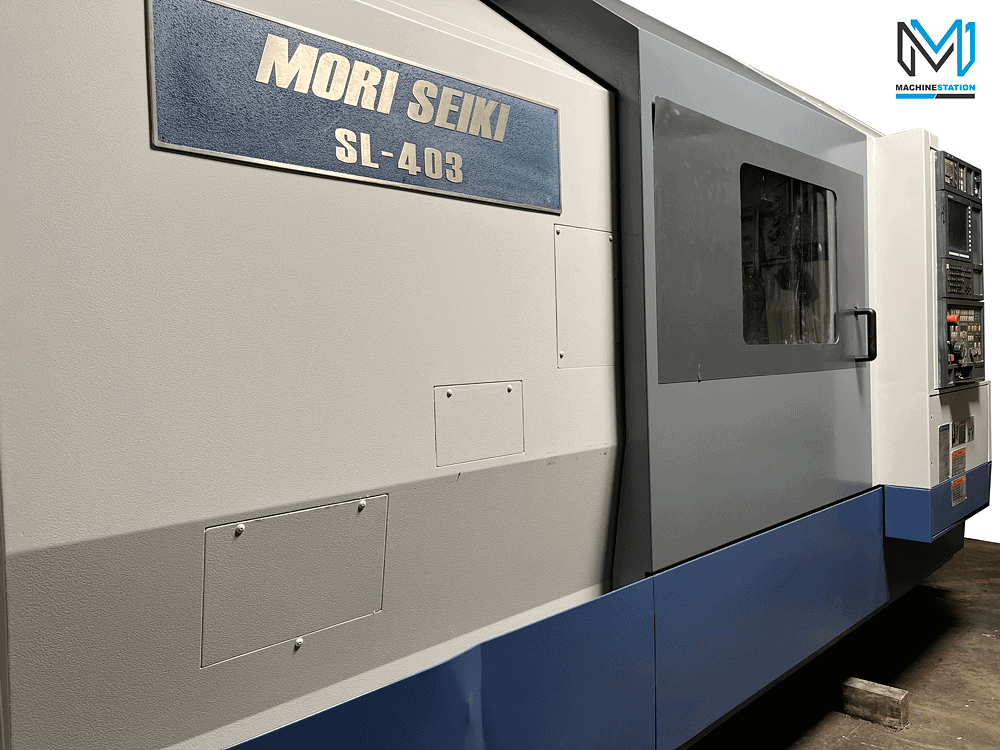

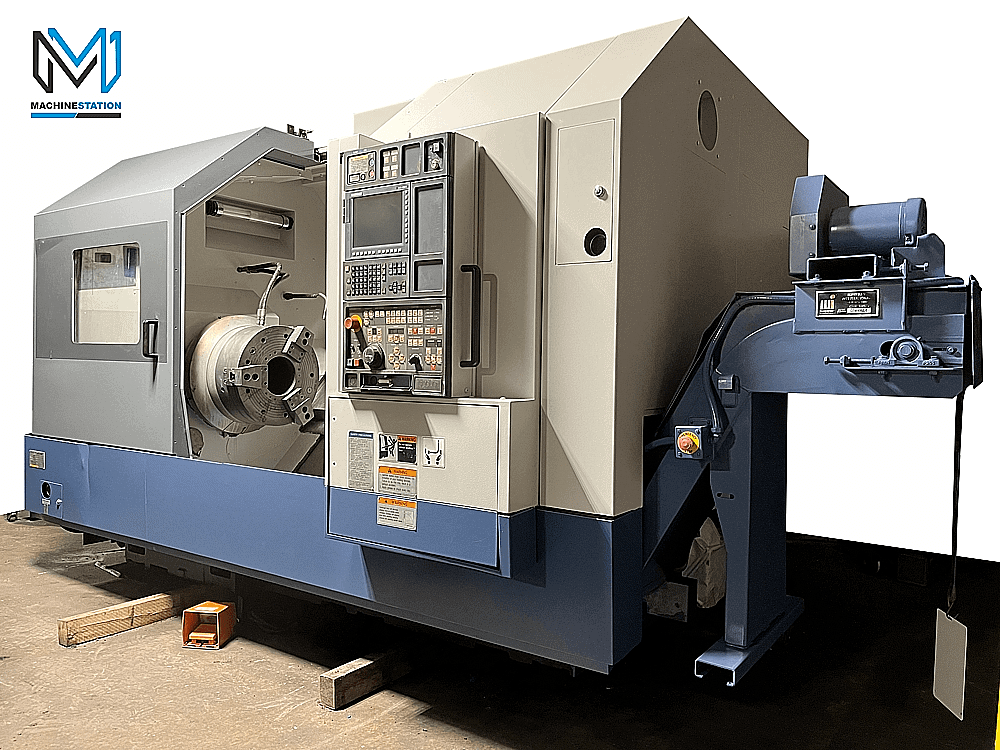

Mori Seiki SL-403C/800 CNC Turning Center
Out of stock
SKU:
2159
Make/Model:
Mori Seiki/SL-403C/800
Video:
[fusion_button link=”https://www.youtube.com/watch?v=sdttuyjX5aw” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]
Make an Offer

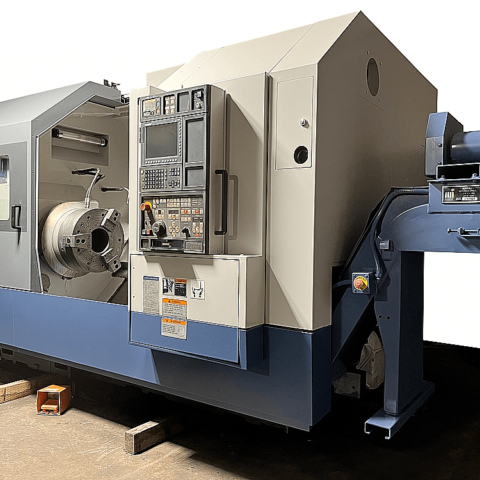

MORI SEIKI SL-403C/800CNC TURNING CENTER
SKU
2159
Make
Mori Seiki
Model No.
SL-403C/800

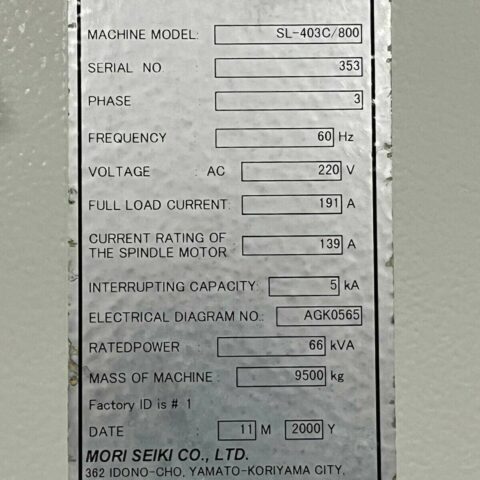

Serial No.:
353
Year
2000
Condition
Very Good

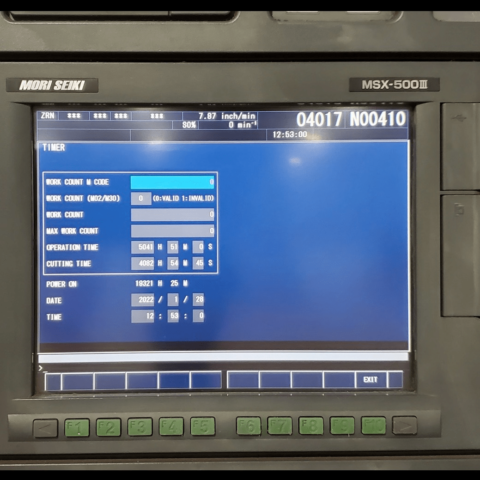

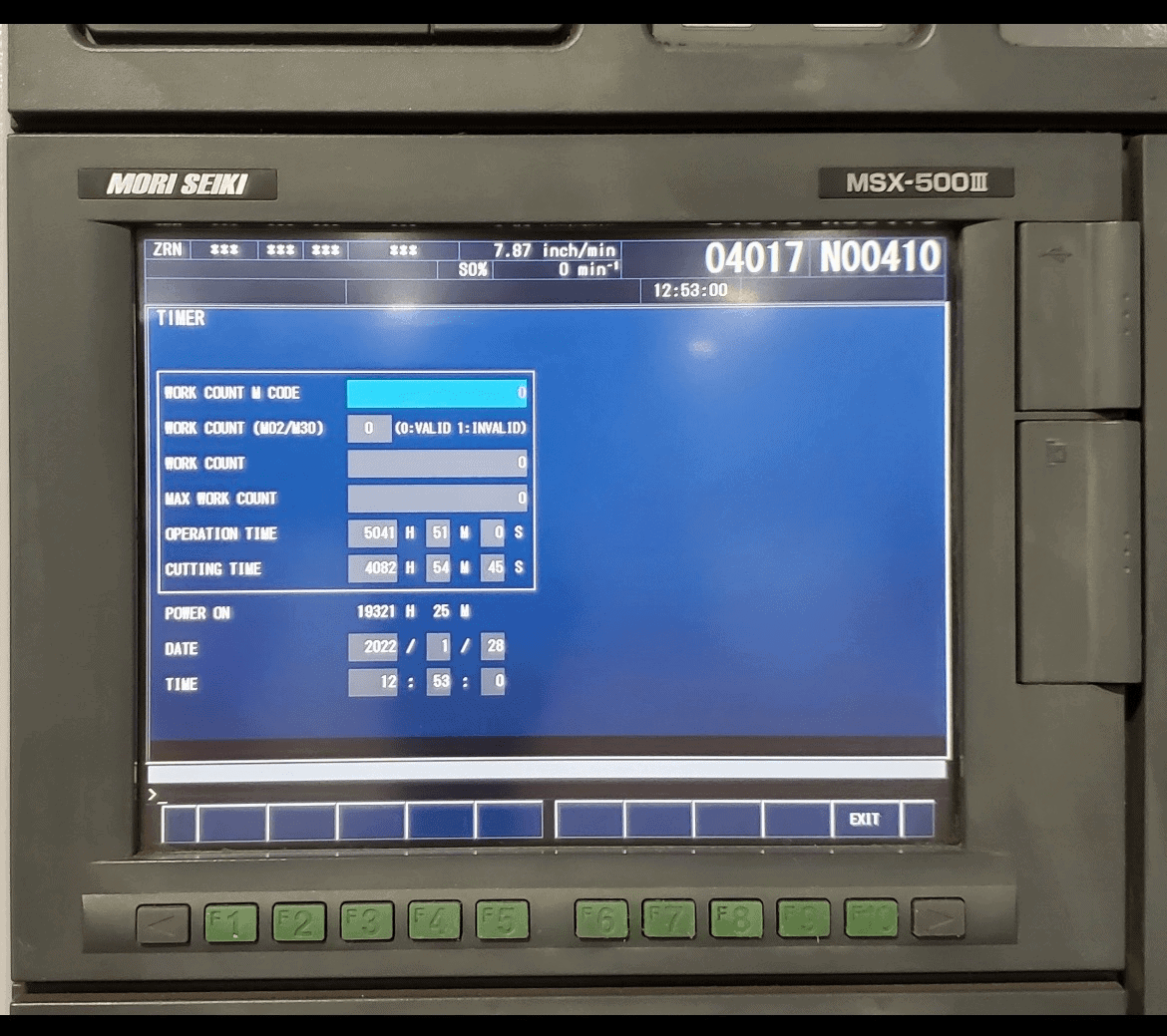

Cutting Hours
4082 Hours
Comes with 24″ back and front Chuck, Tailstock & Chip conveyor.
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
Equipped With:

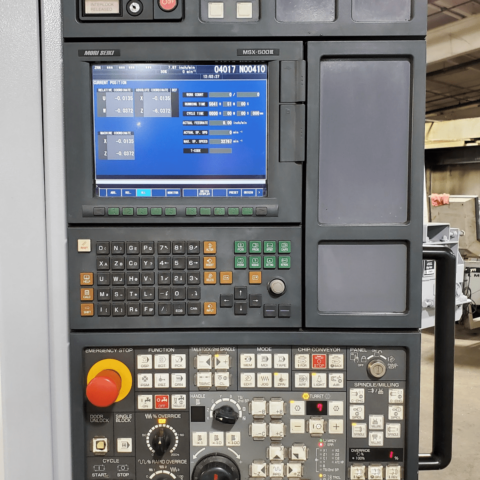

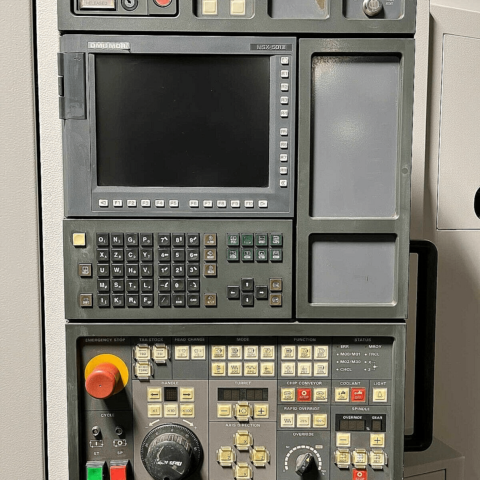

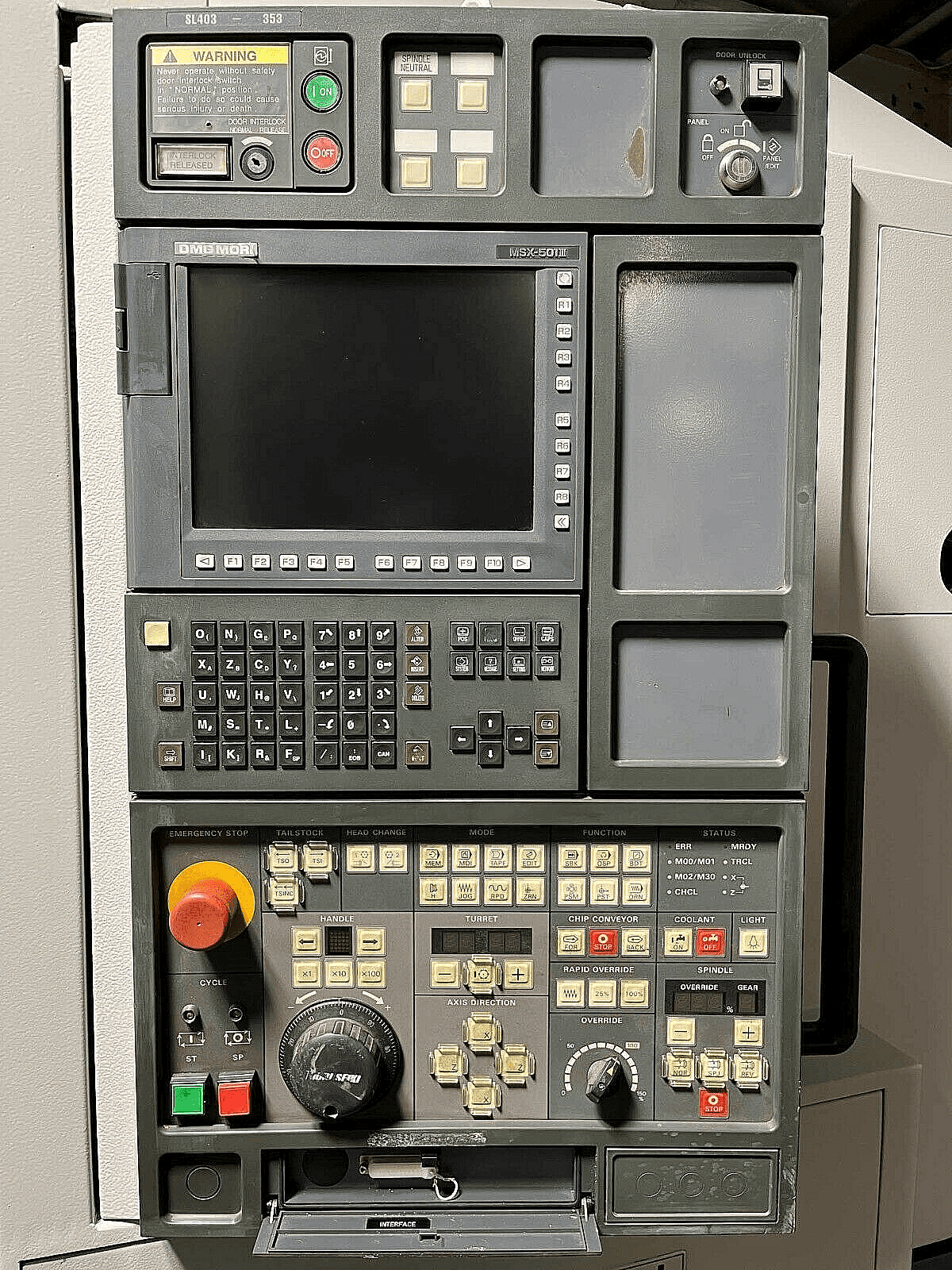

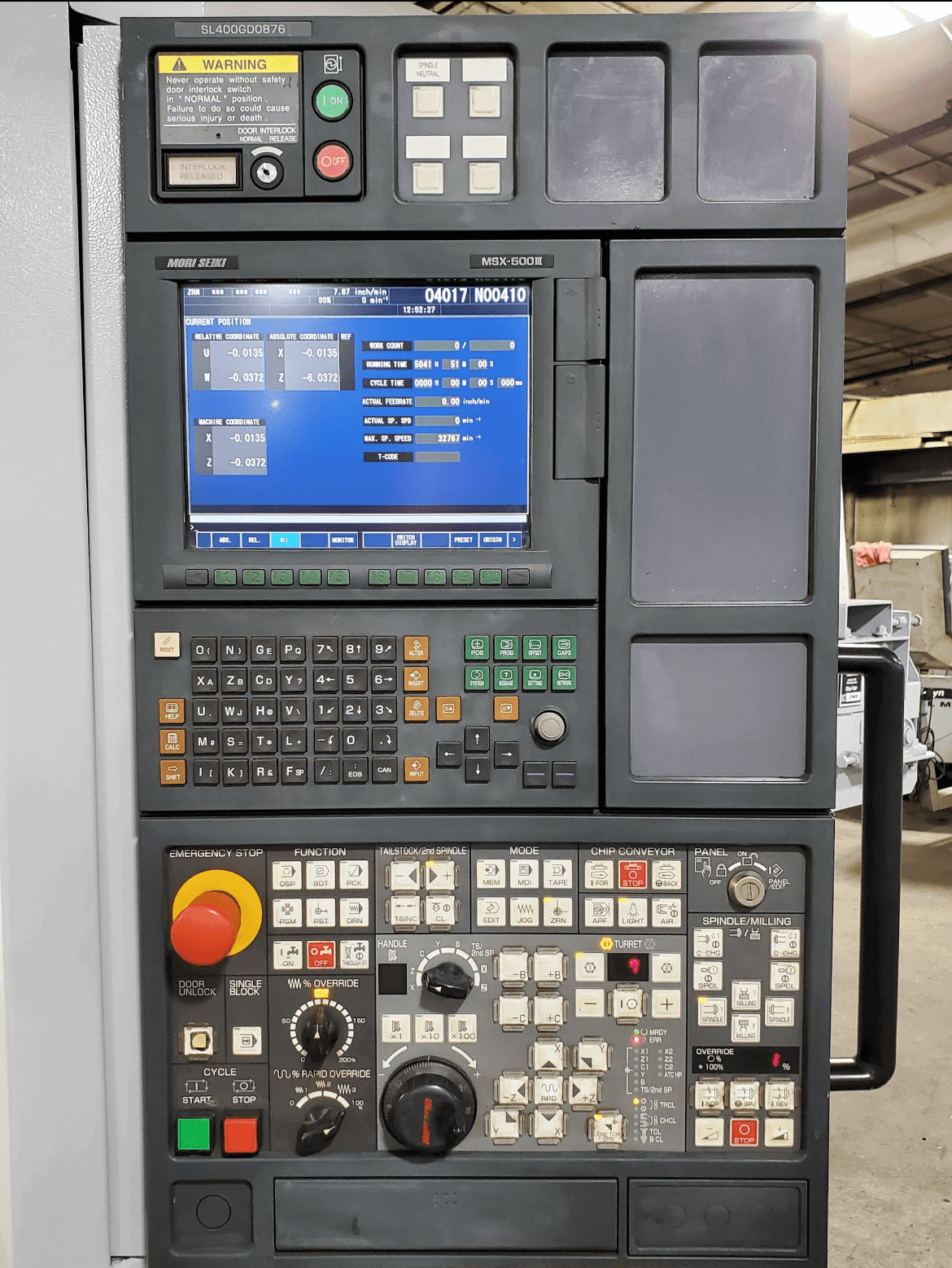

Mori Seiki MSG-501 CNC Control
A2-15 Spindle with 7.3″ Bore

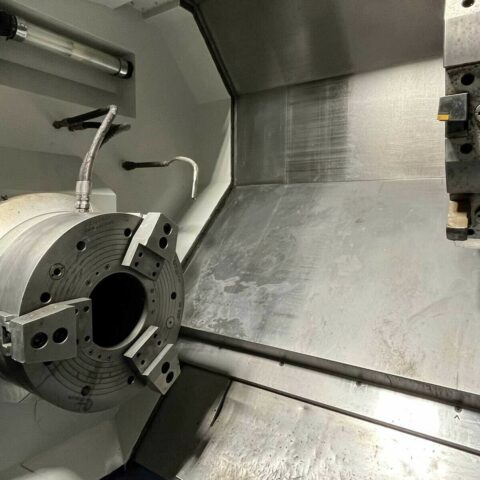

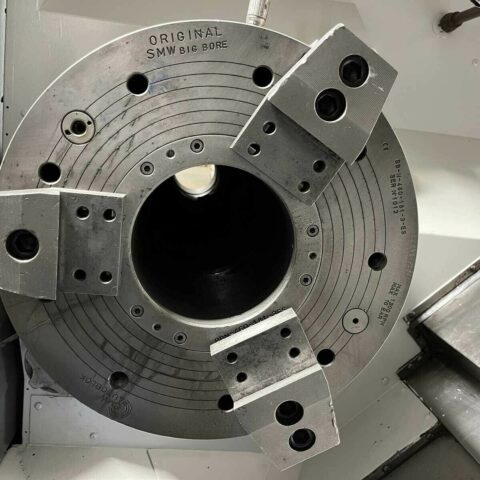

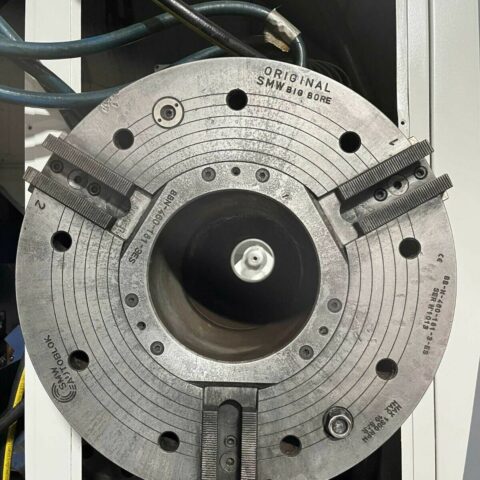

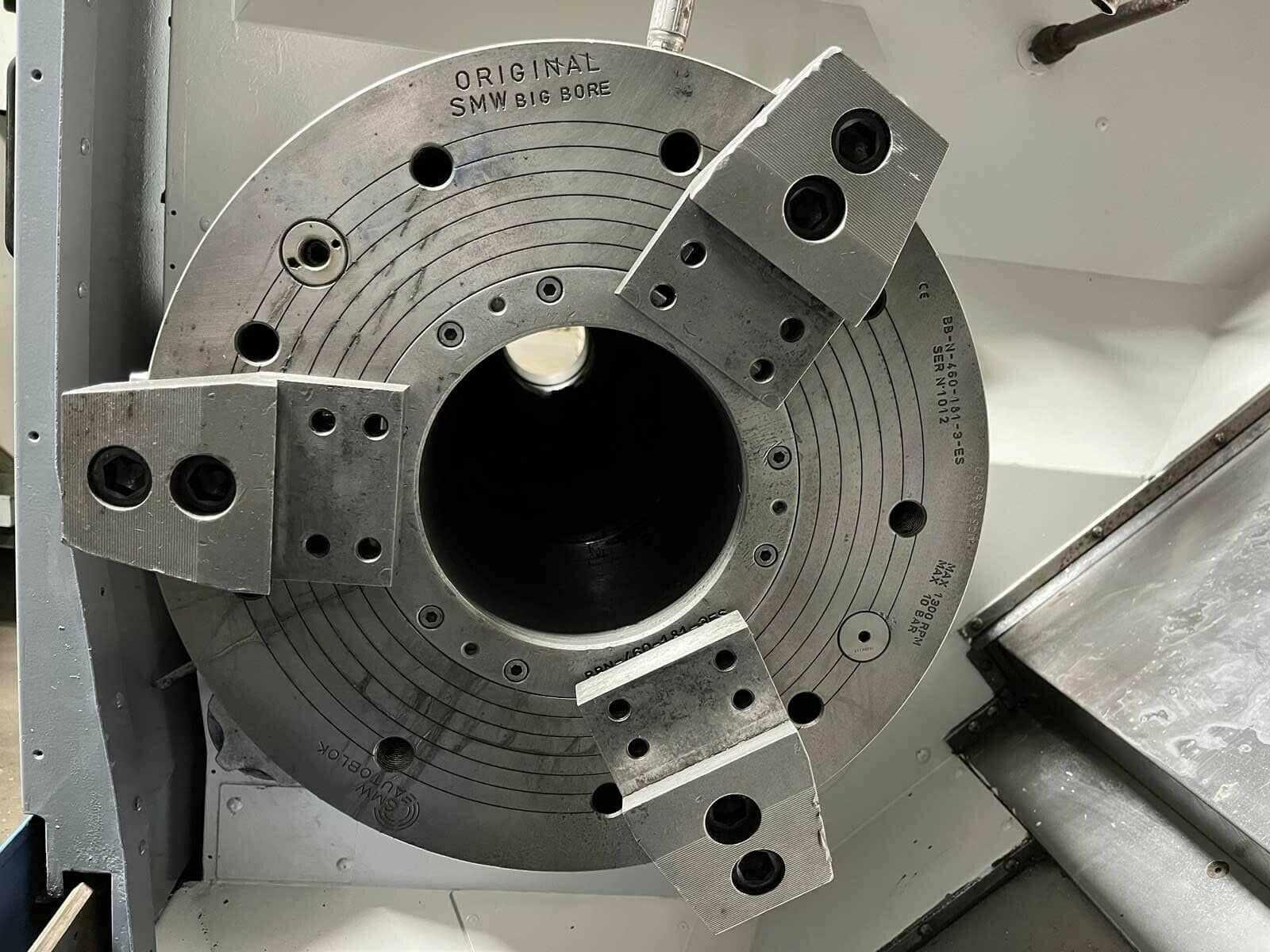

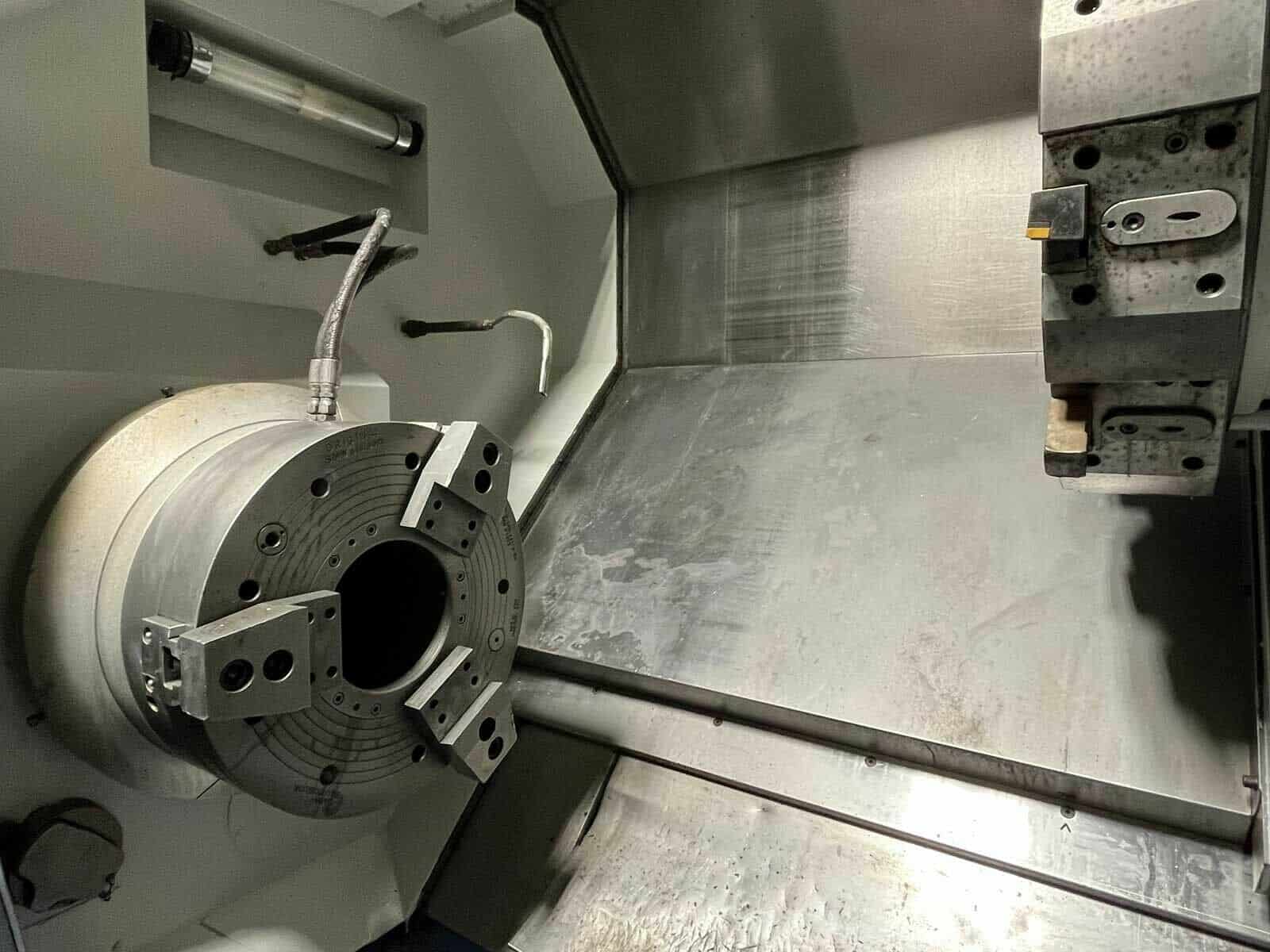

Front 24″ Big Bore German Chuck

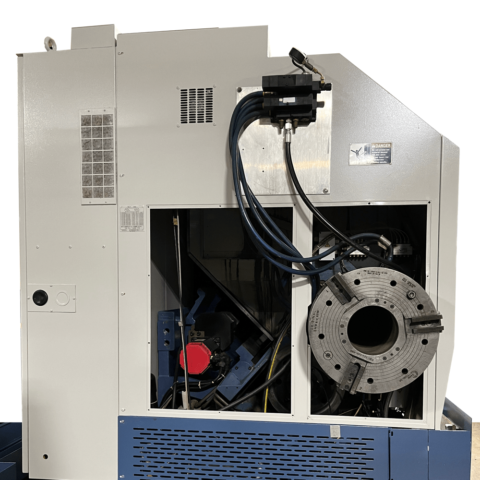

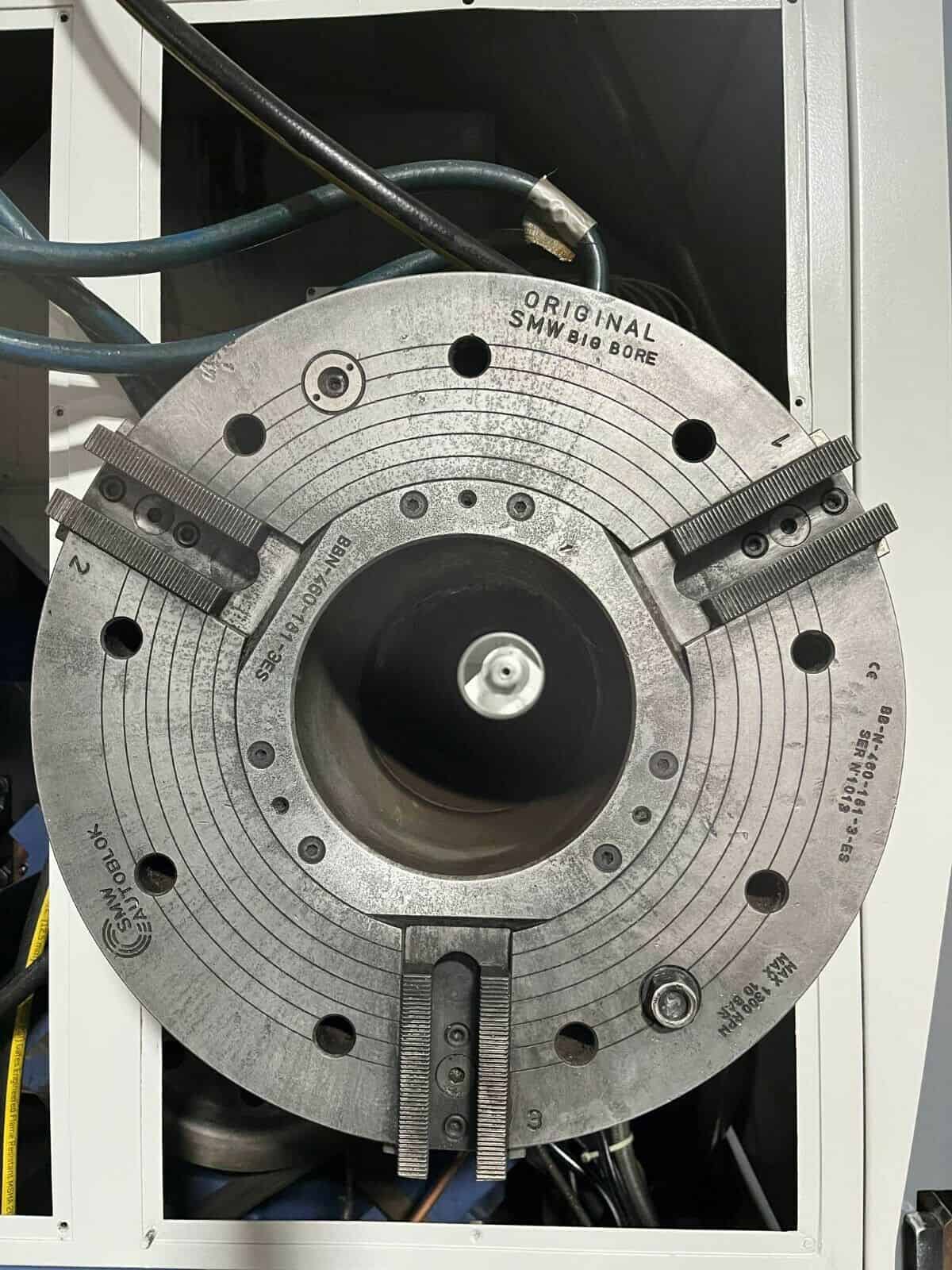

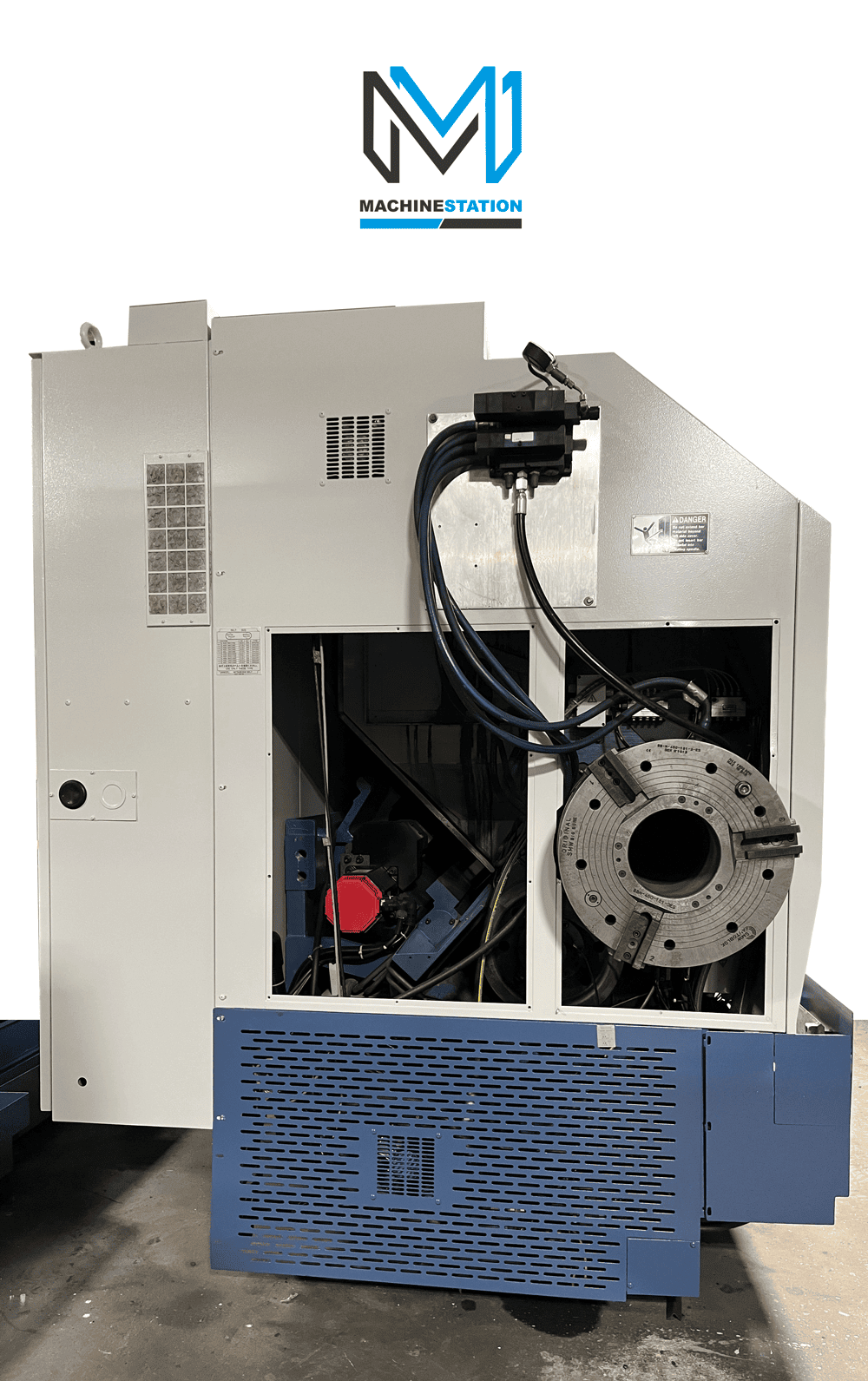

Rear 24″ Big Bore German Chuck

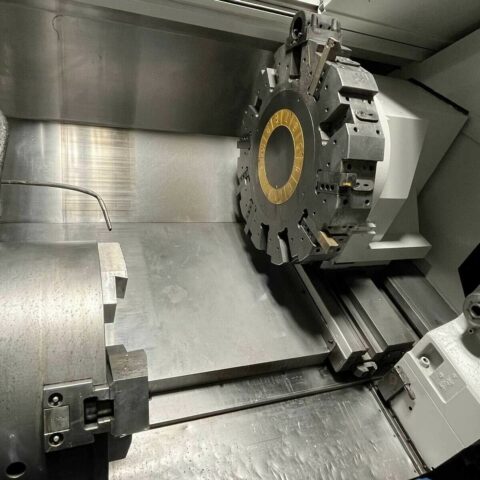

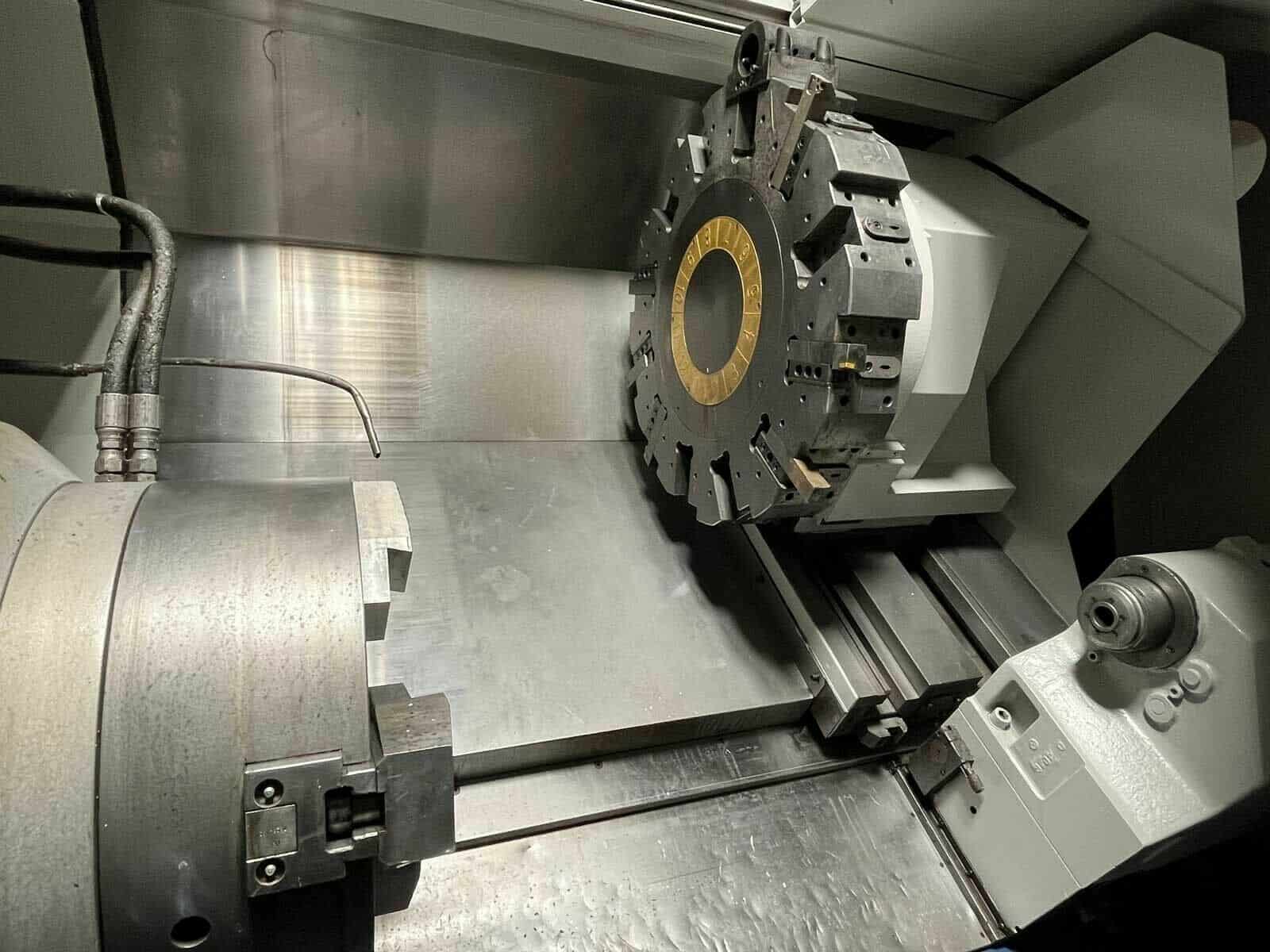

12 Station high speed Turret
Tool Presetter
60/50 HP Gearbox Spindle
PCMCIA Card Slot
USB Drive
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor
Manuals
Travel:
X Axis Travel: 13.58″
Z Axis Travel: 39.2”
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 944 IPM

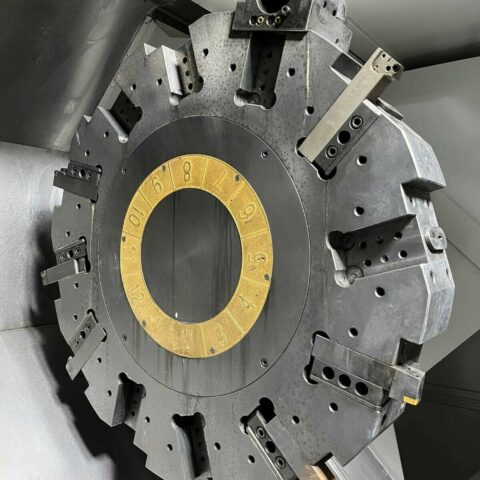

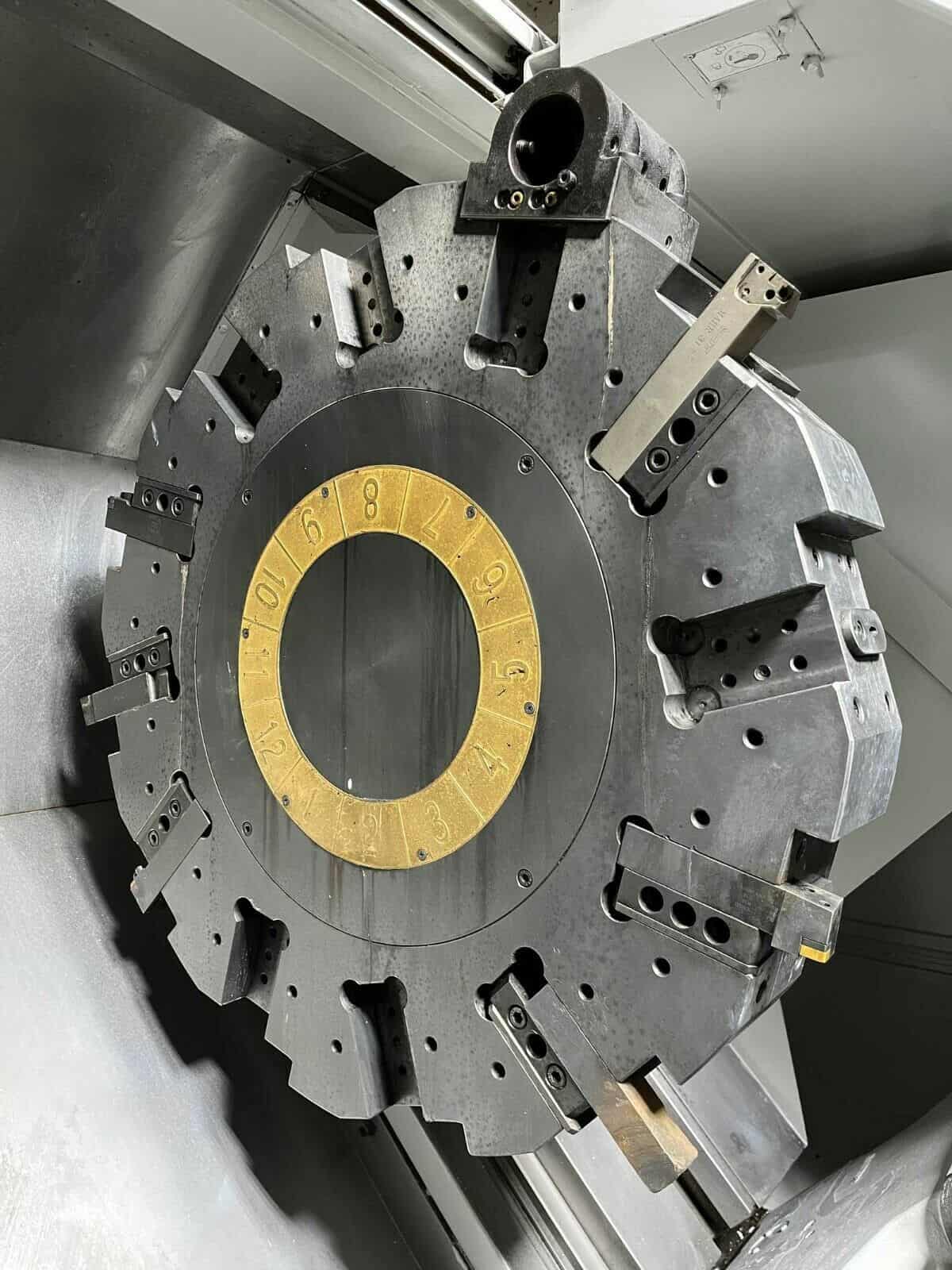

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Spindle:
Spindle Nose: A2-15
Spindle Bore:7.99″
Spindle Speed: 1500 RPM
Spindle Motor: 50/40 HP
Specifications:
Capacity:
Max Turning Diameter: 24.4″
Max Turning Length: 34.10″
Max Bar Capacity: 7.28″
Swing Over Bed: 28.8″
Distance Between Centers: 43.5″
Tailstock:
Tailstock Body Travel: 33.46″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 5.90″
Tailstock Taper: MT-5
General:

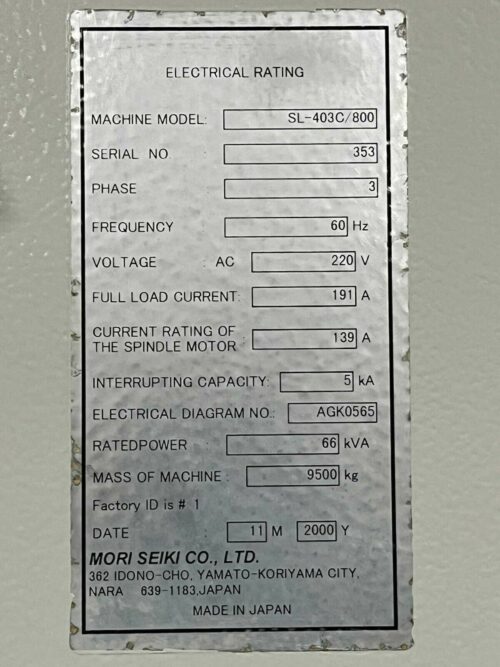

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 43 kva
Overall Dimensions: 195″ x 114″ x 95.6″ High
Weight : 24,200 lbs Approx.
