*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

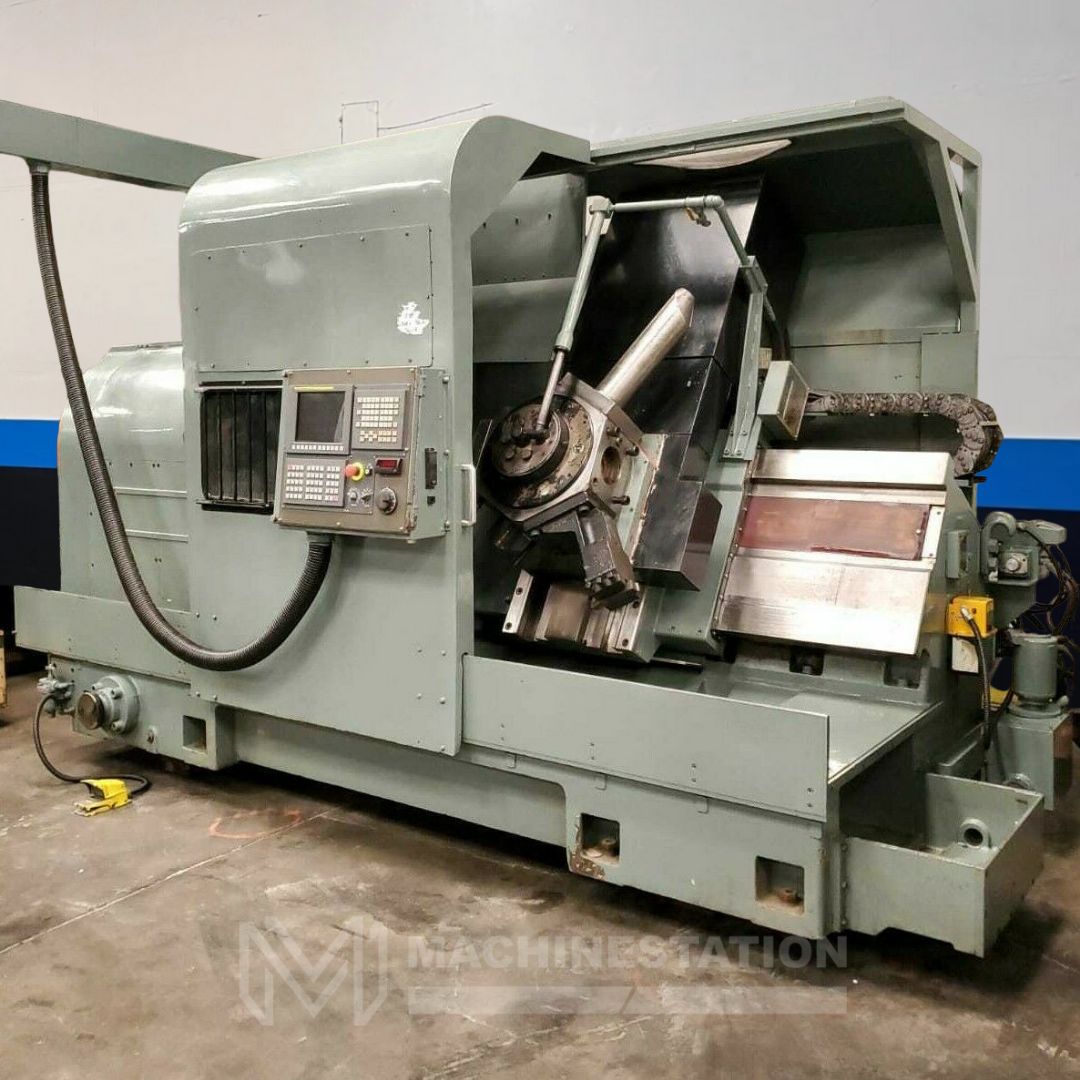

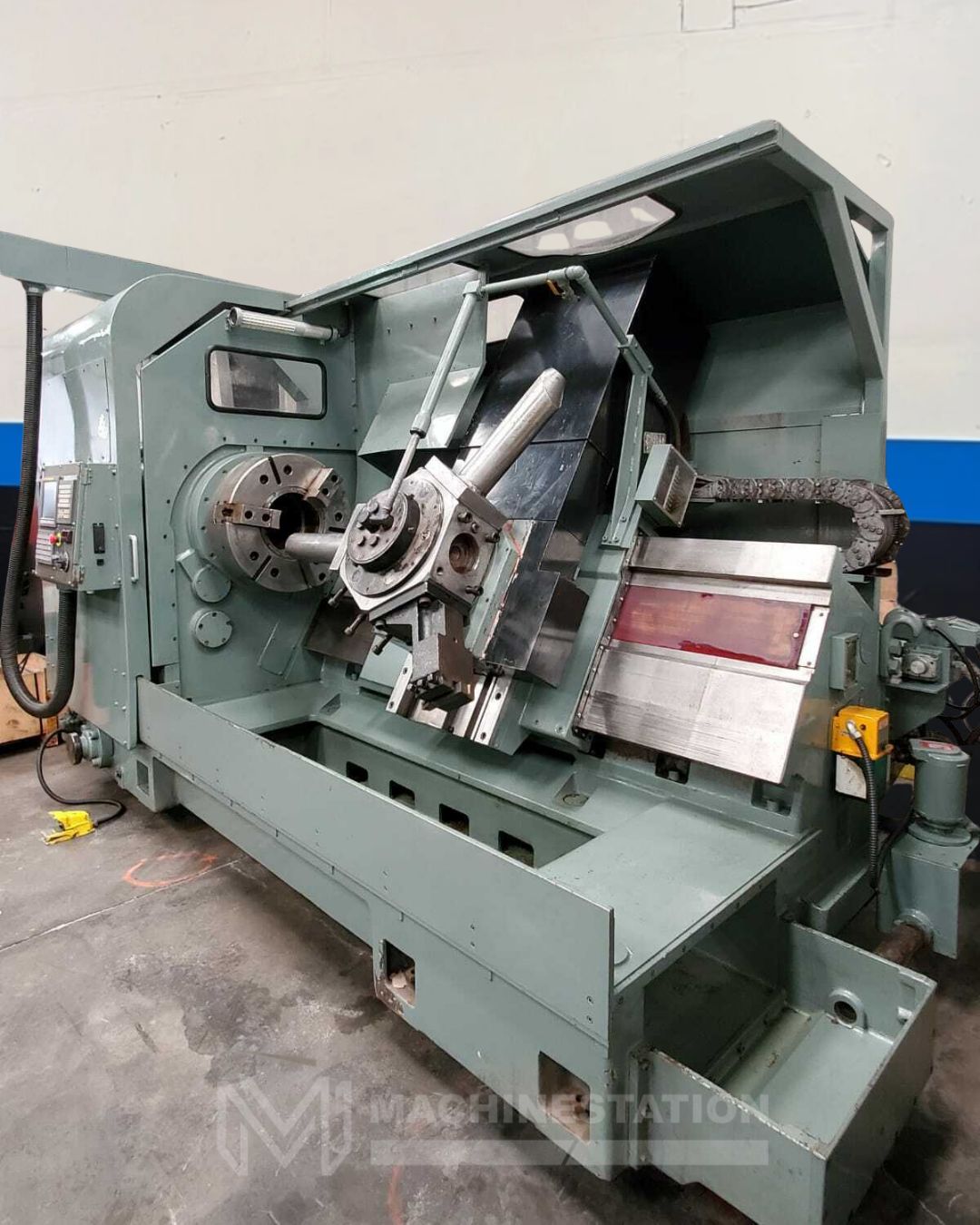

| Make: | Mori Seiki |
| Model: | SL-8 |
| Year: | 1990 (Retrofitted with New Fanuc Control in 2014) |
| Condition: | Used – Good |
| Equipped With: |
|---|

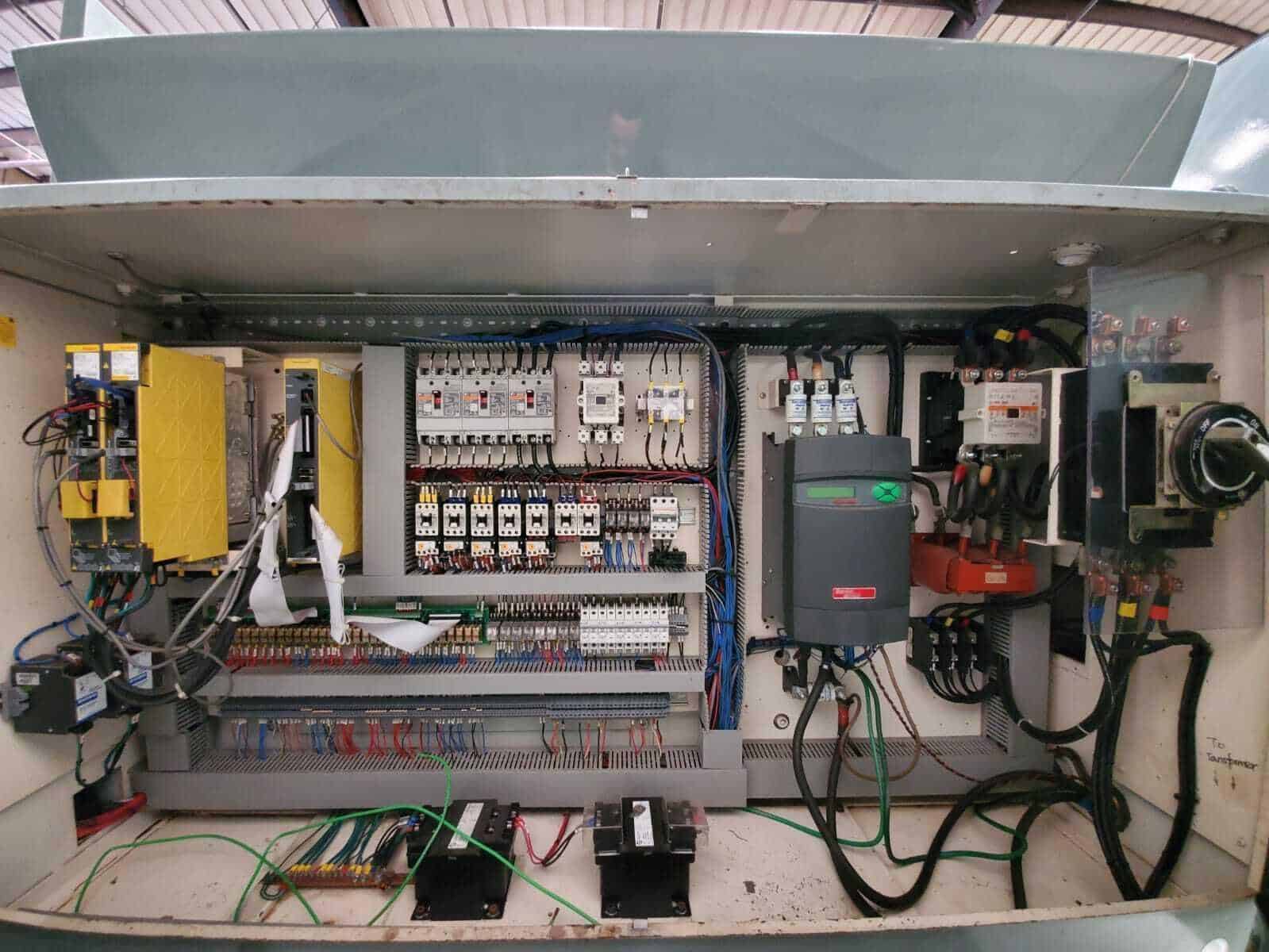

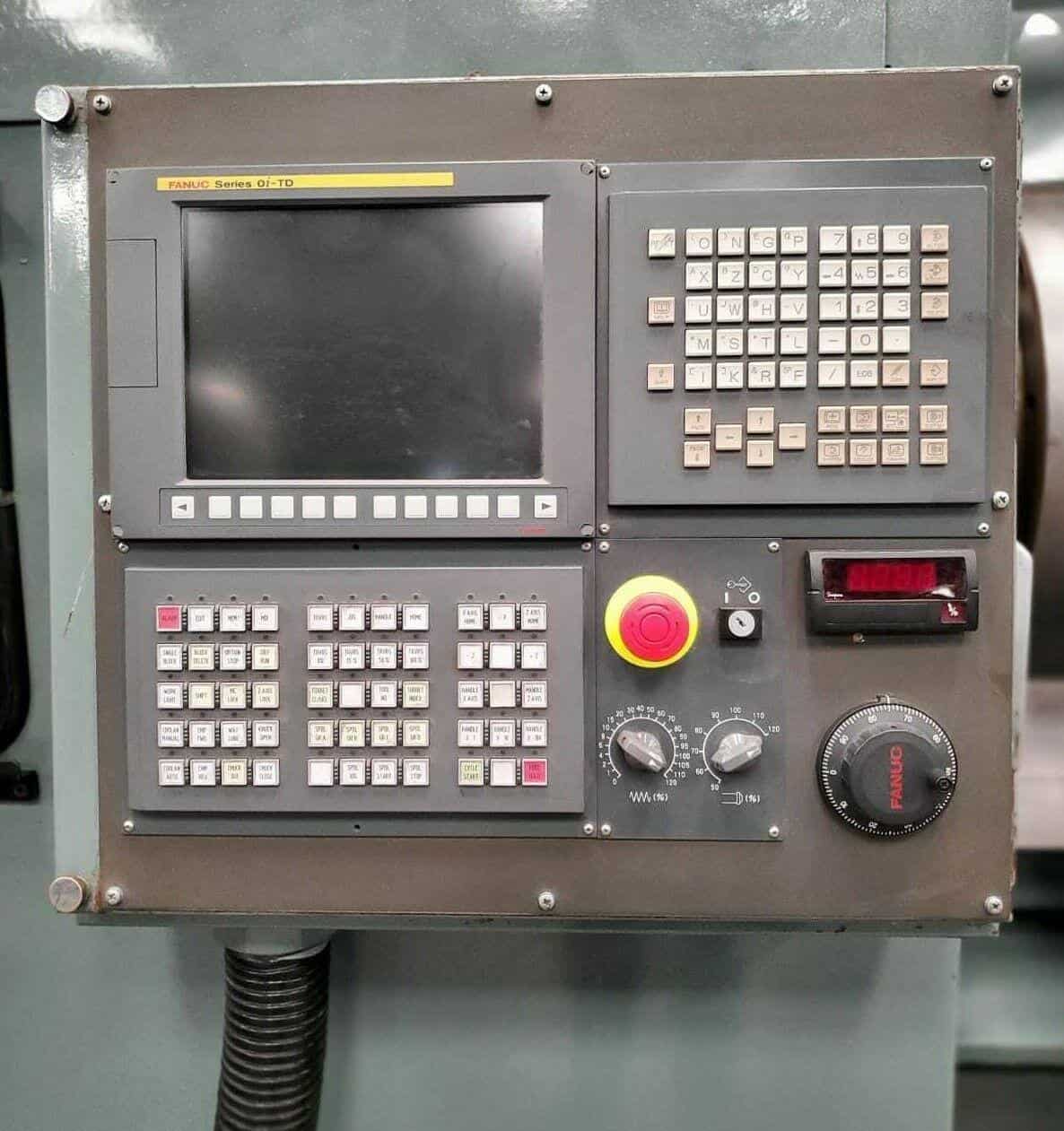

| Fanuc 0i-TD CNC Control |
| 6-Station Turret Box Ways Design |
| A1-20 10.5″ Big Bore Spindle |
| Long Bed Machine |

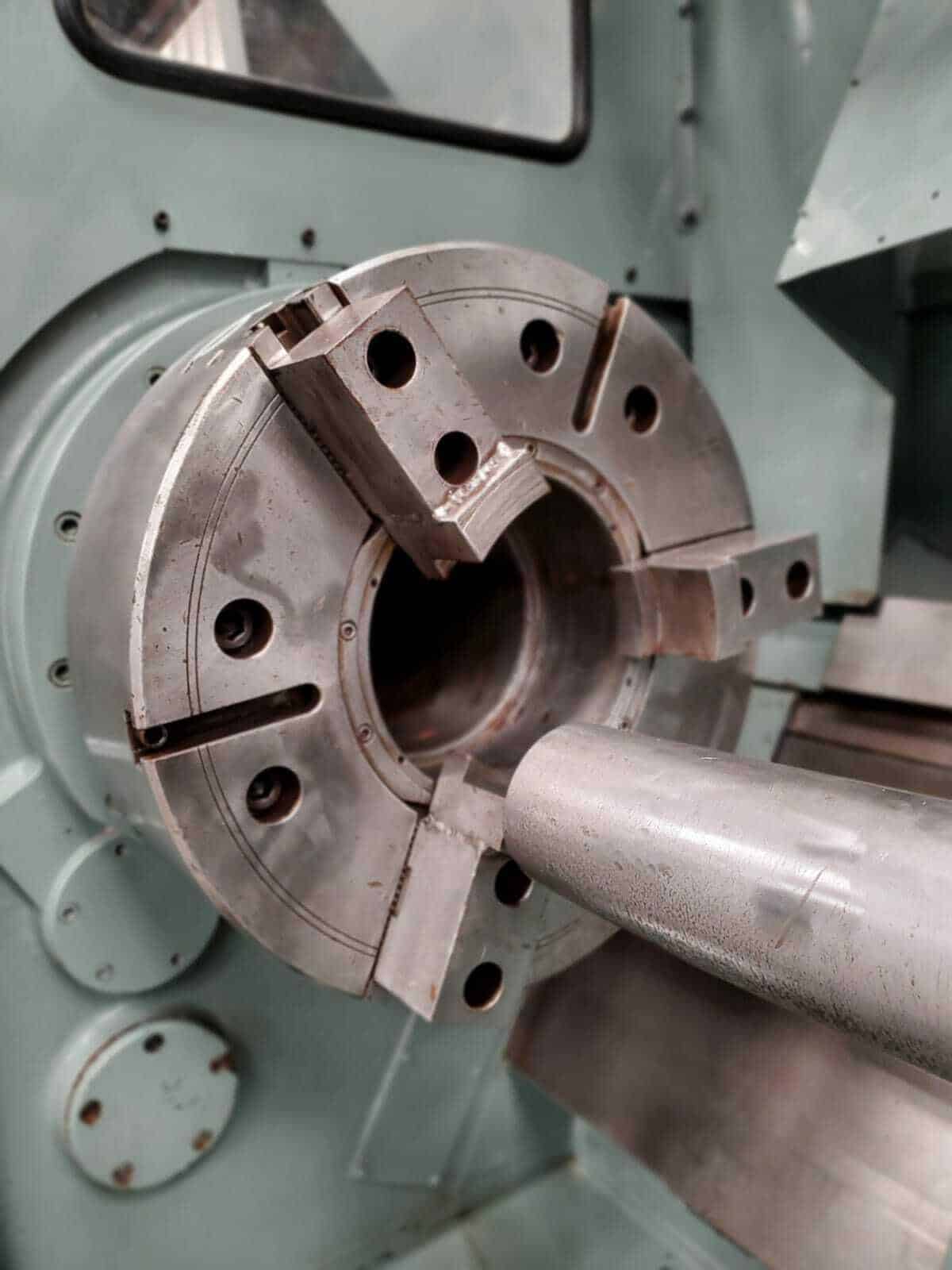

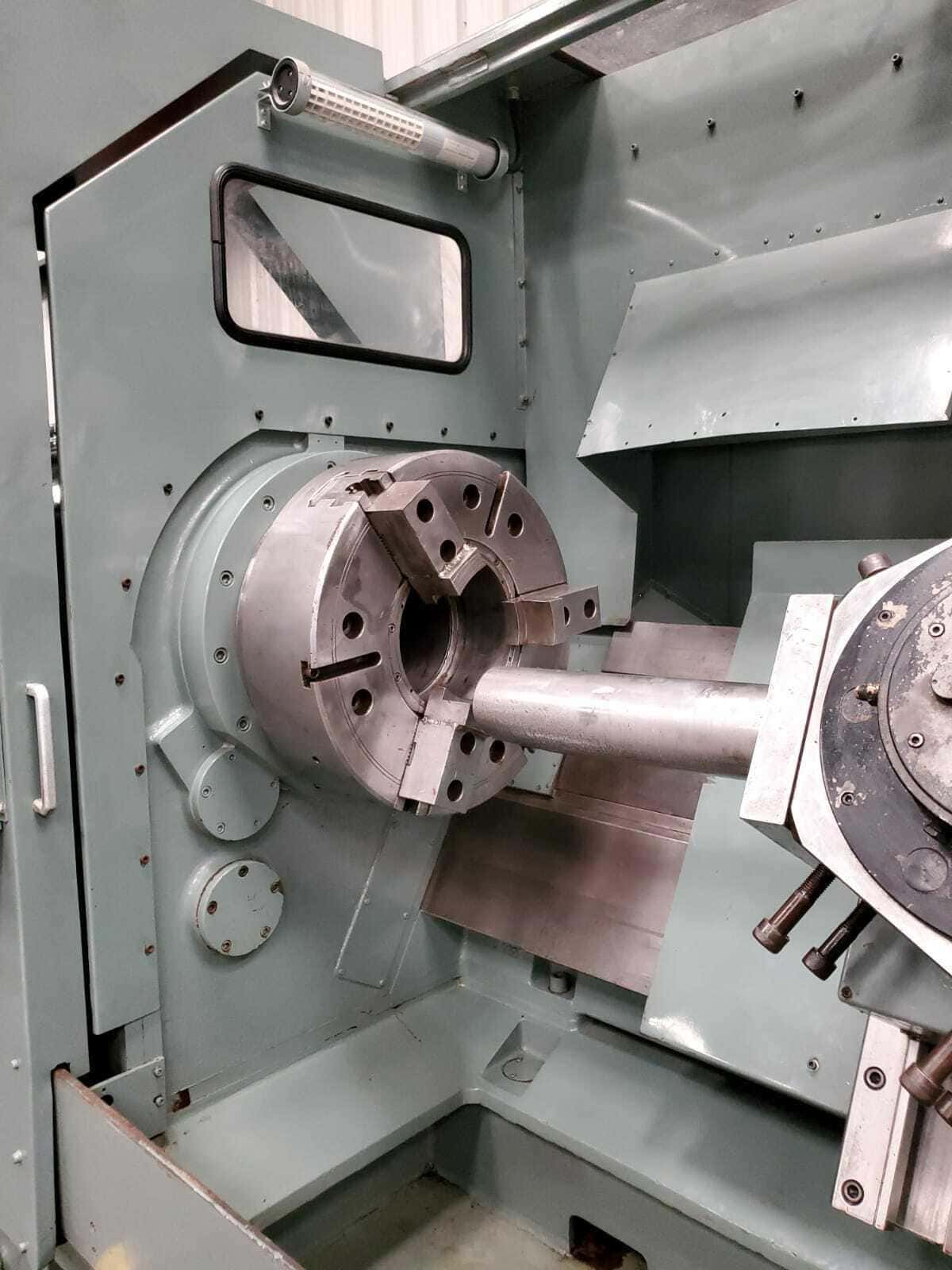

| 24″ 3-Jaw Chuck |

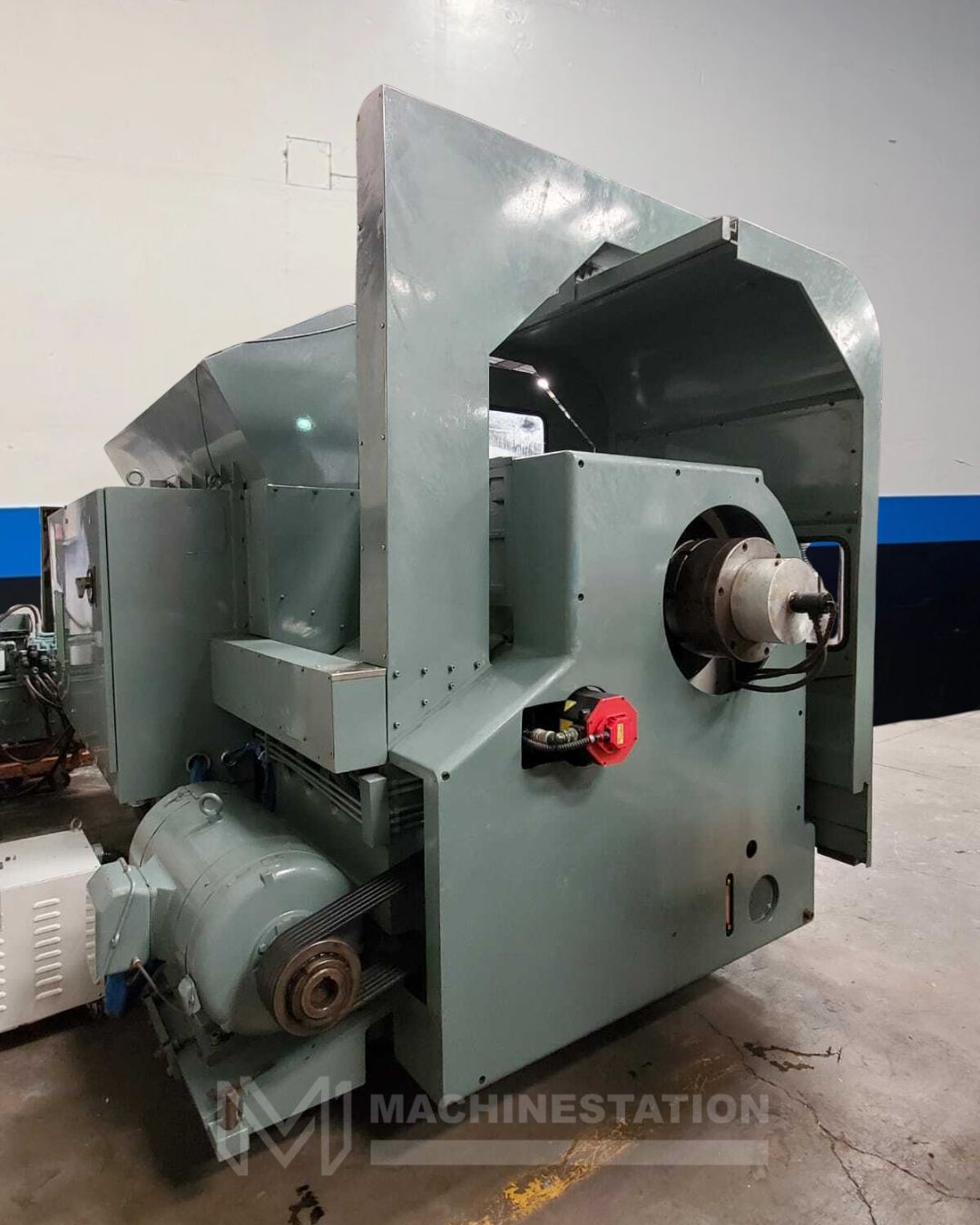

| Geared Head spindle for powerful torque |

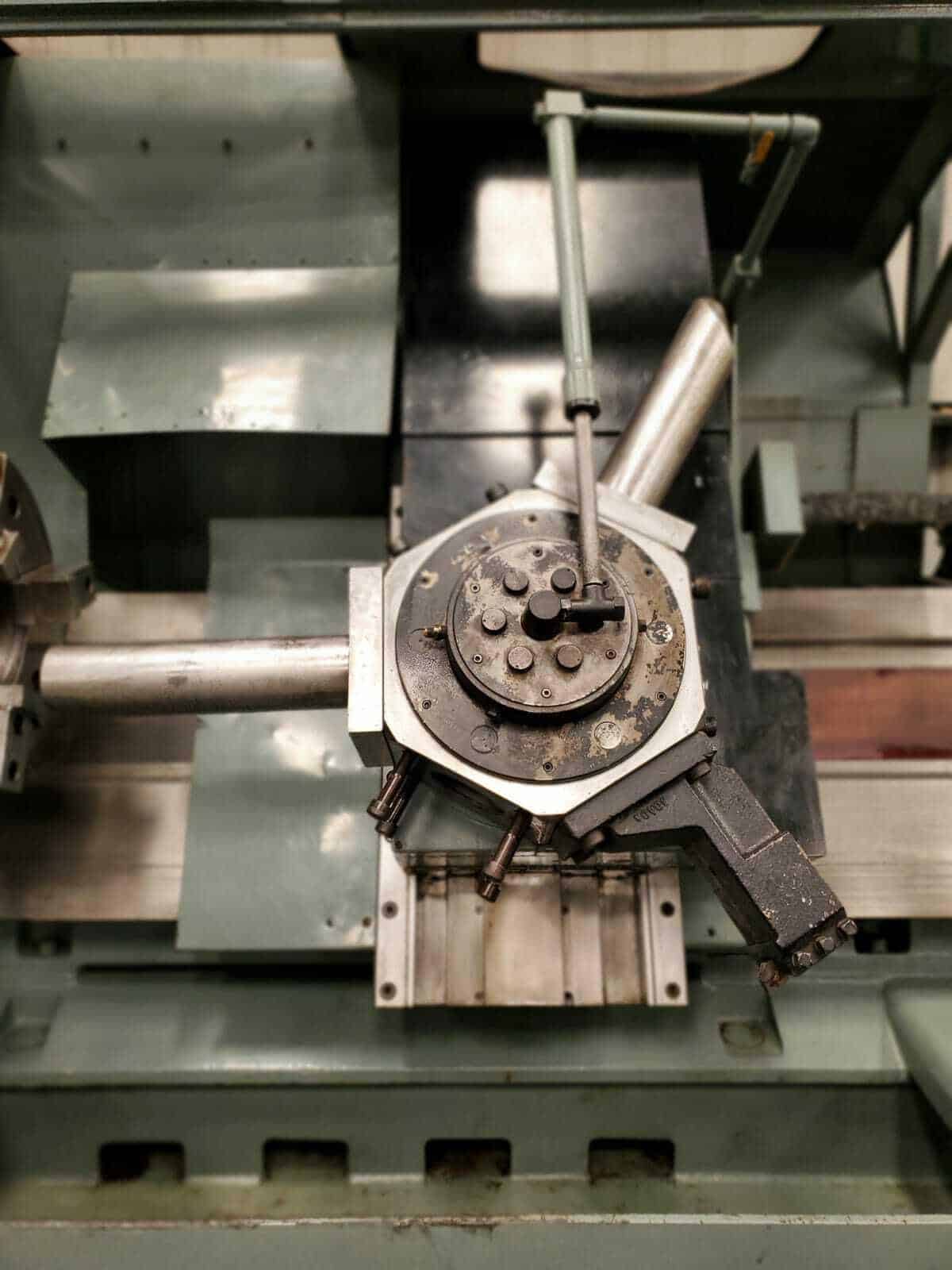

| Hydraulic Turret |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck |
| Coolant Tank Comes with Chip Conveyor |
| Note: Machine was retrofitted with New Fanuc Control in 2013/2014 |
| Capacity: |
|---|
| Max Turning Diameter: 35.4″ |
| Max Turning Length: 43.3″ |
| Max Bar Capacity: 10.2″ |
| Swing Over Carriage: 35.4″ |
| Swing Over Bed: 39.9″ |
| Travels: |
|---|
| X Axis Travel: 16.5″ |
| Z1 Axis Travel : 43.3″ |
| Rapid Traverse X Axis: 197 IPM |
| Rapid Traverse Z Axis: 315 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Bore: 10.5″ |
| Spindle Speed: 4 – 550 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Capacity: 6 Stations Turret |
| Turret Index Time: |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Requirement: 68 Amps Overall |
| Dimensions: 180″ x 80″ x 98″ High |
| Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor |
| Weight : 33,000 lbs Approx. |
